资源链接：
链接：https://pan.baidu.com/s/1HXCSOarJSSSI7qBWO_ZbEQ?pwd=xg77
提取码：xg77
传送门：
预后模型模块化代码分享（1）：数据读取与整理
 预后模型模块化代码分享（2）：Lasso-COX回归分析
 预后模型模块化代码分享（3）：riskScore可视化
打开Auto_nomo_roc.R，首先整理上一个脚本传递的数据和后续分析需要的数据：

library(rms)
sur_nomo <- subset(sur,select = trait_list)
row.names(sur_nomo) <- sur$Sample
data_risk <- arrange(data_risk,id)
sur_nomo$riskScore <- data_risk$riskScore
sur_nomo$sur_time <- data_risk$sur_time
sur_nomo$status <- sur$status

进行nomogram分析，这里分析的变量是riskScore加上第一个脚本中输入的向量trait_list，先进行单因素和多因素coxph分析并绘制森林图，观察上述变量对生存时间的影响，随后进行nomogram分析：

library(forestplot)
i <- 1
k <- length(trait_list)
coxm <- coxph(Surv(sur_time,status)~riskScore,data=sur_nomo)
coxph_result <- data.frame(HR=NA,exp=NA,LowerCI=NA,UpperCI=NA,P=NA)
coxph_result[i,1:4] <- summary(coxm)[["conf.int"]][1,]
coef <- summary(coxm)[["coefficients"]][1,5]
if (coef<0.001){
  coxph_result[i,5] <- "<0.001"
}else{
  coxph_result[i,5] <- round(coef,3)
}
while (i <= k) {
  formula_trait <- formula(paste("Surv(sur_time,status)~",trait_list[i],""))
  coxm <- coxph(formula_trait,data=sur_nomo)
  coxph_result[i+1,1:4] <- summary(coxm)[["conf.int"]][1,]
  coef <- summary(coxm)[["coefficients"]][1,5]
  if (coef<0.001){
    coxph_result[i+1,5] <- "<0.001"}else{
      coxph_result[i+1,5] <- round(coef,3)
    }
  i <- i + 1
}
text <- cbind(c("","riskScore",trait_list),
              c("HR",round(coxph_result$HR,3)),
              c("95% CI",paste(round(coxph_result$LowerCI,3),paste("-",round(coxph_result$UpperCI,3),sep=""),sep="")),
              c("P value",coxph_result$P))
tiff(file="Forest_uni_trait.tiff",width=32,height=24,units="cm",compression="lzw",bg="white",res=300)
forestplot(text,mean=c(NA,coxph_result$HR),lower=c(NA,coxph_result$LowerCI),upper=c(NA,coxph_result$UpperCI),
           align=c("l"),graph.pos=5,hral_lines = T,
           zero=1,lwd.zero=1,xlab="Risk ratio(95%CI)",lwd.xaxis=2,
           lty.ci=1,lwd.ci=2,ci.vertices=T,
           ci.vertices.height=0.2,boxsize=0.2,
           col=fpColors(
             box = "black",lines = "black",
             summary = "black",zero = "black",
             text = "black",axes = "black",
             hrz_lines = "black"),
           txt_gp=fpTxtGp(label=gpar(cex=1.25),
                          ticks=gpar(cex=1.1),
                          xlab=gpar(cex = 1.2),
                          title=gpar(cex = 1.2)))
dev.off()

formula_nomo <- formula(paste("Surv(sur_time, status) ~ ",paste("riskScore+",paste(trait_list,collapse = "+"),""),""))
coxm <- coxph(formula_nomo,data=sur_nomo)
coxph_result <- data.frame(HR=NA,exp=NA,LowerCI=NA,UpperCI=NA)
coxph_result <- summary(coxm)[["conf.int"]]
coxph_result <- as.data.frame(coxph_result)
colnames(coxph_result) <- c("HR","exp","LowerCI","UpperCI")
coef <- summary(coxm)[["coefficients"]][,5]
coef <- round(coef,3)
coef <- ifelse(coef <= 0.001,"<0.001",coef)
coxph_result$P <- coef
text <- cbind(c("","riskScore",trait_list),
              c("HR",round(coxph_result$HR,3)),
              c("95% CI",paste(round(coxph_result$LowerCI,3),paste("-",round(coxph_result$UpperCI,3),sep=""),sep="")),
              c("P value",coxph_result$P))
tiff(file="Forest_muti_trait.tiff",width=32,height=24,units="cm",compression="lzw",bg="white",res=300)
forestplot(text,mean=c(NA,coxph_result$HR),lower=c(NA,coxph_result$LowerCI),upper=c(NA,coxph_result$UpperCI),
           align=c("l"),graph.pos=5,hral_lines = T,
           zero=1,lwd.zero=1,xlab="Risk ratio(95%CI)",lwd.xaxis=2,
           lty.ci=1,lwd.ci=2,ci.vertices=T,
           ci.vertices.height=0.2,boxsize=0.2,
           col=fpColors(
             box = "black",lines = "black",
             summary = "black",zero = "black",
             text = "black",axes = "black",
             hrz_lines = "black"),
           txt_gp=fpTxtGp(label=gpar(cex=1.25),
                          ticks=gpar(cex=1.1),
                          xlab=gpar(cex = 1.2),
                          title=gpar(cex = 1.2)))
dev.off()

nomogram模型分析，根据第一篇输入的time_seq参数确定分割的时间点，单位为年

#nomo model
dd <- datadist(sur_nomo)
options(datadist="dd")
f <- cph(formula_nomo, x=T, y=T, surv=T, data=sur_nomo)
surv <- Survival(f)
nom <- nomogram(f, fun=list(function(x) surv(time_seq[1], x), function(x) surv(time_seq[2], x), function(x) surv(time_seq[3], x)),
                lp=F, funlabel=c("1-year survival", "2-year survival", "3-year survival"),
                maxscale=100,
                fun.at=c(0.99, 0.95, 0.9, 0.8, 0.7, 0.5, 0.3,0.1))

tiff(file="Nomogram.tiff",width=20,height=20,units="cm",compression="lzw",bg="white",res=300)
plot(nom)
dev.off()

#calibration curve
time=time_seq[1]
k <- round(length(row.names(sur_nomo))/3)
f <- cph(formula_nomo, x=T, y=T, surv=T, data=sur_nomo, time.inc=time)
cal <- calibrate(f, cmethod="KM", method="boot", u=time, m=k, B=1000)
tiff(file="calibration_years.tiff",width=20,height=20,units="cm",compression="lzw",bg="white",res=300)
plot(cal,lwd=2,lty=1,xlab="Nomogram-Predicted Probability of OS",
     ylab="Actual OS(proportion)",col="red",sub=F,xlim=c(0.25,1.0),errbar.col="red",
     ylim=c(0.25,1.0))

time=time_seq[2]
f <- cph(formula_nomo, x=T, y=T, surv=T, data=sur_nomo, time.inc=time)
cal <- calibrate(f, cmethod="KM", method="boot", u=time, m=k, B=1000) #m样品数目1/3
plot(cal,lwd=2,lty=1,add=T,col="blue",sub=F,errbar.col="blue")

time=time_seq[3]
f <- cph(formula_nomo, x=T, y=T, surv=T, data=sur_nomo, time.inc=time)
cal <- calibrate(f, cmethod="KM", method="boot", u=time, m=k, B=1000) #m样品数目1/3
plot(cal,lwd=2,lty=1,add=T,col="purple",sub=F,errbar.col="purple")
legend("bottomright", legend=paste(time_seq,"years"," "), col=c("red", "blue","purple"), lwd=2)
dev.off()

library(nomogramFormula)

#numeric string variable to calculate
dd <- datadist(sur_nomo)
options(datadist="dd")
f <- cph(formula_nomo, x=T, y=T, surv=T, data=sur_nomo)
surv <- Survival(f)
nom <- nomogram(f, fun=list(function(x) surv(time_seq[1], x), function(x) surv(time_seq[2], x), function(x) surv(time_seq[3], x)),
                lp=F, funlabel=c("1-year survival", "2-year survival", "3-year survival"),
                maxscale=100,
                fun.at=c(0.99, 0.95, 0.9, 0.85, 0.8, 0.75, 0.7, 0.5, 0.3,0.1))
results <- formula_rd(nomogram=nom)
sur_nomo$scores<-points_cal(formula = results$formula,rd=sur_nomo[1:(length(trait_list)+1)])[,1]

绘制时间依赖的ROC曲线，分别根据nomo模型和riskScore模型的结果绘制，时间截断值由time_seq参数指定

library(rms)
library(timeROC)
ROC <- timeROC(T = sur_nomo$sur_time,
               delta = as.numeric(sur_nomo$status),
               marker = sur_nomo$scores,
               cause = 1,weighting = "marginal",
               times = time_seq,iid = T)
AUC <- ROC$AUC
conf <- confint(ROC)$CI_AUC
tiff(file="ROC_nomo.tiff",width=20,height=20,units="cm",compression="lzw",bg="white",res=300)
plot (ROC,time=time_seq[1], col = "blue",add=F,title=F)
plot (ROC,time=time_seq[2], col = "purple",add = T)
plot (ROC,time=time_seq[3], col = "black", add = T)
legend ("bottomright", lty =1, cex = 1.0,
        col = c("blue","purple", "black"),
        legend = c(paste(c(paste(time_seq[1],"year AUC:"," "),round(AUC[1],2),"(",conf[1,1],"-",conf[1,2],")"),sep ="",collapse = ""),
                   paste(c(paste(time_seq[2],"year AUC:"," "),round(AUC[2],2),"(",conf[2,1],"-",conf[2,2],")"),sep ="",collapse = ""),
                   paste(c(paste(time_seq[3],"year AUC:"," "),round(AUC[3],2),"(",conf[3,1],"-",conf[3,2],")"),sep ="",collapse = "")))
dev.off()

ROC <- timeROC(T = sur_nomo$sur_time,
               delta = as.numeric(sur_nomo$status),
               marker = sur_nomo$riskScore,
               cause = 1,
               weighting = "marginal",
               times = time_seq,
               iid = T)
AUC <- ROC$AUC
conf <- confint(ROC)$CI_AUC
tiff(file="ROC_riskScore.tiff",width=20,height=20,units="cm",compression="lzw",bg="white",res=300)
plot (ROC,time=time_seq[1], col = "blue",add=F,title=F)
plot (ROC,time=time_seq[2], col = "purple",add = T)
plot (ROC,time=time_seq[3], col = "black", add = T)
legend ("bottomright", lty =1, cex = 1.0,
        col = c("blue","purple", "black"),
        legend = c(paste(c(paste(time_seq[1],"year AUC:"," "),round(AUC[1],2),"(",conf[1,1],"-",conf[1,2],")"),sep ="",collapse = ""),
                   paste(c(paste(time_seq[2],"year AUC:"," "),round(AUC[2],2),"(",conf[2,1],"-",conf[2,2],")"),sep ="",collapse = ""),
                   paste(c(paste(time_seq[3],"year AUC:"," "),round(AUC[3],2),"(",conf[3,1],"-",conf[3,2],")"),sep ="",collapse = "")))
dev.off()

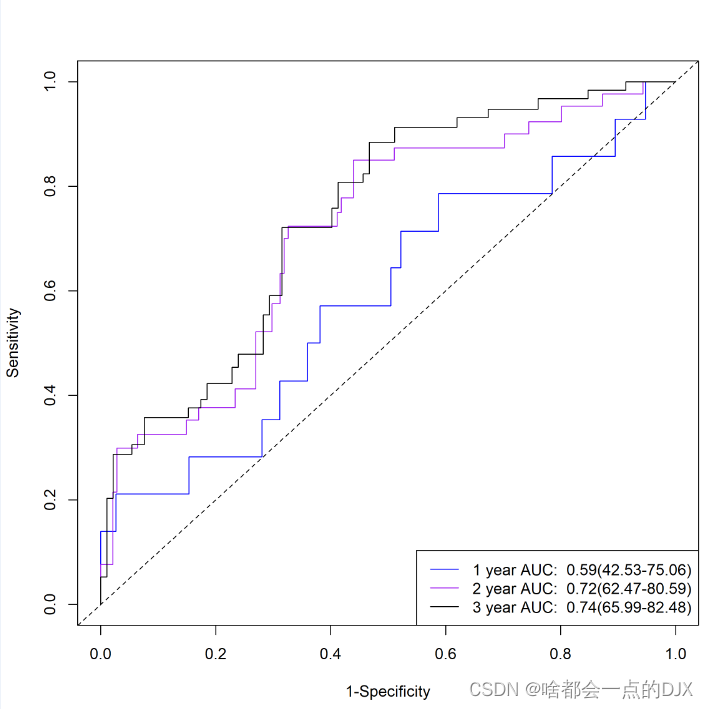

效果图如下，可以看到2年和3年的预测准确度还是比较高的：
在这里插入图片描述
最后绘制nomo模型和riskScore模型的DCA曲线：

f1 <- cph(Surv(sur_time,status) ~ riskScore,x=T, y=T,sur_nomo)
f2 <- cph(Surv(sur_time,status) ~ scores,x=T, y=T,sur_nomo)
library(dcurves)
time  <- median(sur_nomo$sur_time)
sur_nomo$risk_model = c(1- (summary(survfit(f1, newdata=sur_nomo), times=time)$surv))
sur_nomo$nomo_model = c(1- (summary(survfit(f2, newdata=sur_nomo), times=time)$surv))
tiff(file="decision_curve.tiff",width = 20,height = 15,units ="cm",compression="lzw",bg="white",res=300)
valid <- dca(Surv(sur_time,status) ~ risk_model+nomo_model,
             data = sur_nomo,
             time = time)
plot(valid,smooth = T)
dev.off()

欢迎评论区批评指正！
