Verilog数字系统设计——8位数字比较器实现

Verilog数字系统设计——8位数字比较器

一、8位比较器

1.1、8位比较器概念

如果输入A[7:0]小于等于输入B[7:0]则输出1，否则输出0；

1.2、1位比较器实现

先比较最高位（第八位）

• 相等 ——> 比较第七位…（以此类推）
  使用异或门（xnor）

a	b	out
0	0	1
1	0	0
0	1	0
1	1	1

• 不相等 ——> 得出结果
  out=~ab（一个非门，一个与门）

a	b	out
1	0	0
1	1	1

1.2、8位比较器实现

写出8个与门
再用一个或门连接

二、门级原语实现

2.1、方法一

Compare8_1_gate module:
	module compare8_3(out,a,b);
	input [7:0] a,b;
	output out;
	not u0(na0,a[0]);
	and u1(rs0,na0,b[0]);    //compare budeng
	xnor u2(rs1,a[0],b[0]);  //compare xiangdeng a[0]=b[0]

	not u3(na1,a[1]);
	and u4(rs2,na1,b[1]);
	xnor u5(rs3,a[1],b[1]);

	not u6(na2,a[2]);
	and u7(rs4,na2,b[2]);
	xnor u8(rs5,a[2],b[2]);

	not u9(na3,a[3]);
	and u10(rs6,na3,b[3]);
	xnor u11(rs7,a[3],b[3]);

  	not u12(na4,a[4]);
	and u13(rs8,na4,b[4]);
	xnor u14(rs9,a[4],b[4]);

	not u15(na5,a[5]);
	and u16(rs10,na5,b[5]);
	xnor u17(rs11,a[5],b[5]);

	not u18(na6,a[6]);
	and u19(rs12,na6,b[6]);
	xnor u20(rs13,a[6],b[6]);

	not u21(na7,a[7]);
	and u22(rs14,na7,b[7]);
	xnor u23(rs15,a[7],b[7]);

	and y0(rs16,rs15,rs12);			//compare 8 wei
	and y1(rs17,rs15,rs13,rs10);	// compare 7 wei
	and y2(rs18,rs15,rs13,rs11,rs8);//6
	and y3(rs19,rs15,rs13,rs11,rs9,rs6);//5
	and y4(rs20,rs15,rs13,rs11,rs9,rs7,rs4);//4
	and y5(rs21,rs15,rs13,rs11,rs9,rs7,rs5,rs2);//3
	and y6(rs22,rs15,rs13,rs11,rs9,rs7,rs5,rs3,rs0);//2
	and y7(rs23,rs15,rs13,rs11,rs9,rs7,rs5,rs3,rs1);//1

	or y_out(out,rs14,rs16,rs17,rs18,rs19,rs20,rs21,rs22,rs23);

endmodule

2.2、方法二（循环生成）

module compare8_gate(out,a,b);
	output wire out;
	input wire [7:0] a,b;
	generate
	genvar j;
	for(j=0;j<=7;j=j+1)
		begin:loop_adder
			not u0(na,a[j]);
			and u1(rs,na,b[j]);    //a[j]<b[j] a<b
			xnor u2(rs_out,a[j],b[j]);  //a[j]=b[j]
		end
	endgenerate
	and y0(and0,loop_adder[7].rs_out,loop_adder[6].rs);
	and y1(and1,loop_adder[7].rs_out,loop_adder[6].rs_out,loop_adder[5].rs);
	and y2(and2,loop_adder[7].rs_out,loop_adder[6].rs_out,loop_adder[5].rs_out,loop_adder[4].rs);
	and y3(and3,loop_adder[7].rs_out,loop_adder[6].rs_out,loop_adder[5].rs_out,loop_adder[4].rs_out,loop_adder[3].rs);
	and y4(and4,loop_adder[7].rs_out,loop_adder[6].rs_out,loop_adder[5].rs_out,loop_adder[4].rs_out,loop_adder[3].rs_out,loop_adder[2].rs);
	and y5(and5,loop_adder[7].rs_out,loop_adder[6].rs_out,loop_adder[5].rs_out,loop_adder[4].rs_out,loop_adder[3].rs_out,loop_adder[2].rs_out,loop_adder[1].rs);
	and y6(and6,loop_adder[7].rs_out,loop_adder[6].rs_out,loop_adder[5].rs_out,loop_adder[4].rs_out,loop_adder[3].rs_out,loop_adder[2].rs_out,loop_adder[1].rs_out,loop_adder[0].rs);
	and y7(and7,loop_adder[7].rs_out,loop_adder[6].rs_out,loop_adder[5].rs_out,loop_adder[4].rs_out,loop_adder[3].rs_out,loop_adder[2].rs_out,loop_adder[1].rs_out,loop_adder[0].rs_out);

	or  y8(out,loop_adder[7].rs,and0,and1,and2,and3,and4,and5,and6,and7);
endmodule

2.3、test module

	module test_compare8_1_gate;
  reg  [7:0] a_t;
  reg  [7:0] b_t;
  wire out_t;
  compare8_gate myCompare8_1(
  	.out(out_t),
  	.a(a_t),
  	.b(b_t));
  initial
    begin
         //a=b   out=1
         a_t=8'b0000_0000;
         b_t=8'b0000_0000;
         //a>b   out=0
         #20
         a_t=8'b0010_0000;
         b_t=8'b0001_0000;
         //a<b    out=1
         #20
         a_t=8'b00001000;
         b_t=8'b00010000;
         //a=b    out=1
         #20
         a_t=8'b0001_0000;
         b_t=8'b0001_0000;
    end
endmodule

2.4、仿真截图

三、assign 和always 语句实现

3.1、assign module

module compare8_1_always(out,a,b);
	parameter size=7;
	output reg out;
	input wire [size:0] a,b;
	always @(a or b)		//use always combinational logic
		if(a<=b)	out = 1;//in always module,only reg type can be defined.
		else		out = 0;
endmodule

3.2、always module

module test_compare8_1;
	reg [7:0] a_t,b_t;
	wire out_t;
	//Instantiation module
	compare8_1_always test_compare_al(.out(out_t),.a(a_t),.b(b_t));
	compare8_1_assign test_compare_as(.out(out_t),.a(a_t),.b(b_t));
	initial
		begin
			a_t = 8'b0000_0000;
			b_t = 8'b0000_0000;
		end
	always #20 {a_t,b_t}={a_t,b_t}+8'b0000_0001;
endmodule

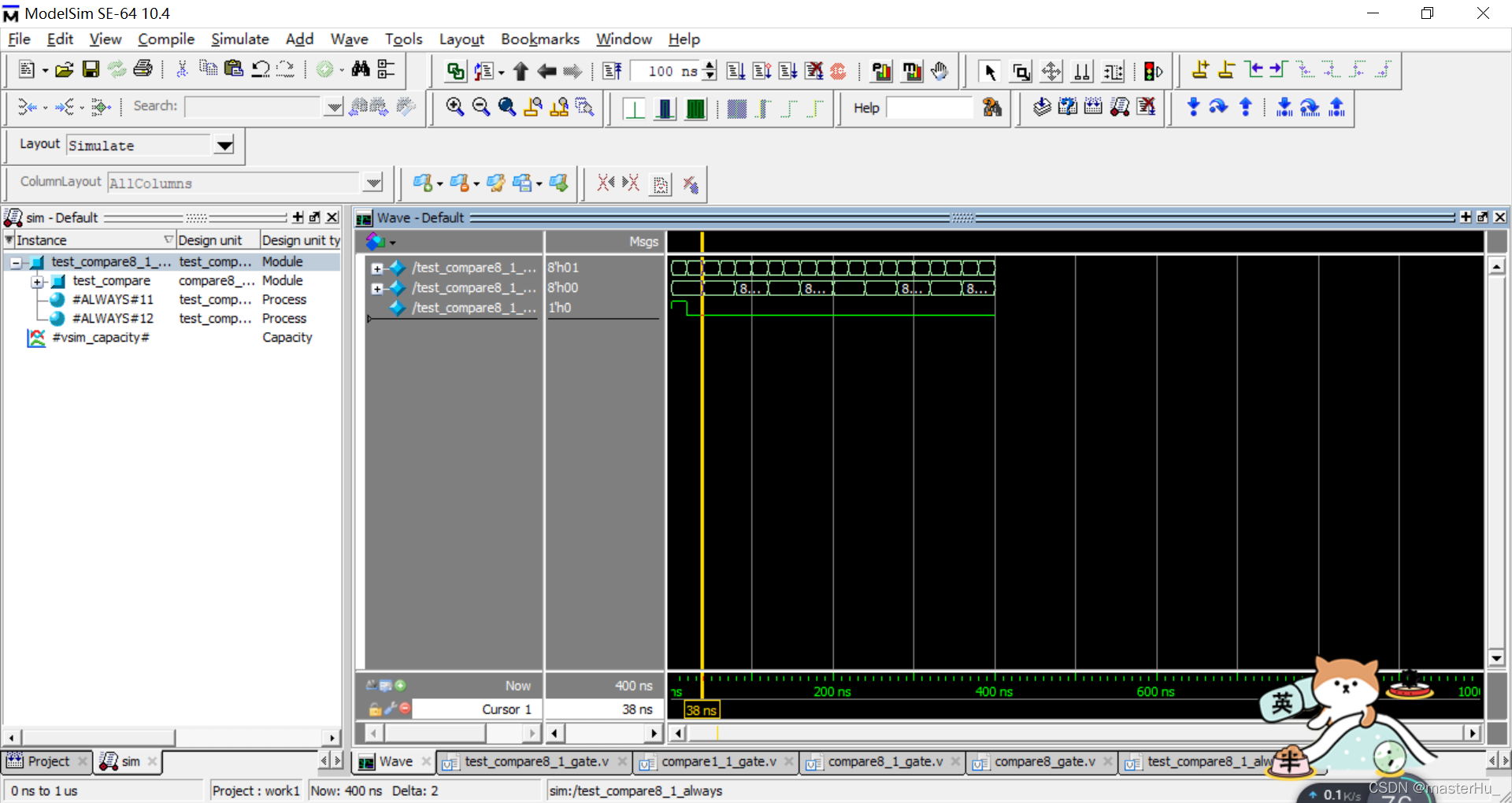

3.3、仿真截图
