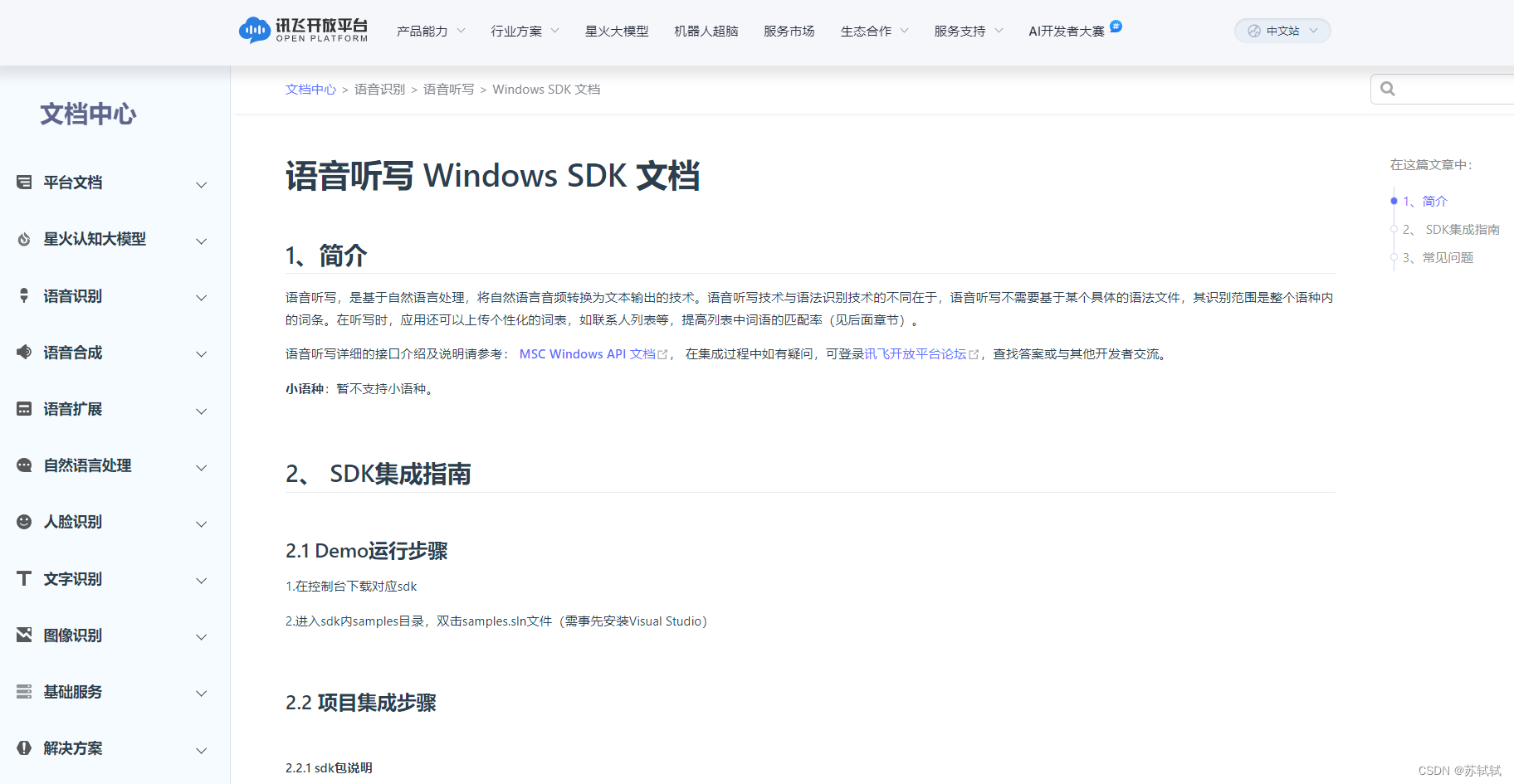

1.查看官方文档、登录并下载我们所需的SDK。语音唤醒需要我们设置唤醒词。
在控制台下载对应SDK，由于讯飞官方只提供了C++/C语音版本，我们需要用C#调用下载SDK的dll库文件。
2.将dll库拖进Unity项目中
如果目标设备为64位，我们选择msc_x64.dll；如果是32位，我们选择msc.dll。
另外我们如果要使用语音唤醒功能，还需要wakeupresource.jet拖进Unity项目中。
3.编写C#代码调用dll库
语音合成和语音唤醒部分具体请看Unity 接入科大讯飞语音识别及语音合成_Windwos（该UP有在评论区分享demo，非常暖心！！）
【注意】在使用up主的demo时，我们需要将自己的dll库存放进去，appid换成我们自己的（APPID 于讯飞开发者控制台创建应用申请所得）
以下是我在参考VAIN_K语音唤醒和Unity 接入科大讯飞语音识别及语音合成_Windwos之后稍作调整的代码：
我们在使用语音功能时要先调用登入方法，结束时要调用退出登录的方法。
using System;
using System.Collections.Generic;
using System.IO;
using System.Runtime.InteropServices;
using System.Text;
using System.Threading;
using Unity.VisualScripting;
using UnityEngine;
/// <summary>
/// 语音工具
/// </summary>
public static class Speech
{
/* APPID 于讯飞开发者控制台创建应用申请所得 */
const string mAppID = "appid=11111111";
//wakeupresource.jet的路径
const string path = "D:\\UnityProject\\VoiceToText\\Assets\\Speech\\Plugins\\wakeupresource.jet";
const string qivw_session_begin_params = "ivw_threshold=0:1450,sst=wakeup,ivw_res_path =fo|" + path;
public static bool isAwaken = false;
/// <summary>
/// 登录接口
/// </summary>
/// <returns></returns>
public static int MSPLogin()
{
int res = MSCDLL.MSPLogin(null, null, mAppID);
if (res != 0)
{
Debug.Log($"login failed. error code: {res}");
}
else
Debug.Log("登录接口成功");
return res;
}
/// <summary>
/// 退出登录
/// </summary>
public static void MSPLogout()
{
int error = MSCDLL.MSPLogout();
if (error != 0)
Debug.Log($"logout failed. error code {error}");
else
Debug.Log("退出登录成功");
}
/// <summary>
/// 科大讯飞语音识别
/// </summary>
/// <param name="clipBuffer">音频数据</param>
/// <returns>识别后的字符串结果</returns>
public static string Asr(byte[] clipBuffer)
{
/* 首先调用登录接口
* 登录成功返回0,否则为错误代码 */
int res = 0;
/* 调用开启一次语音识别的接口
* 接收返回的句柄,后续调用写入音频、获取结果等接口需要使用
* 调用成功error code为0,否则为错误代码
* 备注:
* 第二个参数为 开始一次语音识别的参数列表 可以再进行具体的封装
* 例如 language参数 封装枚举 switch中文 为zh_cn switch英文 为en_us
* 具体参照科大讯飞官网SDK文档 */
IntPtr sessionID = MSCDLL.QISRSessionBegin(null,
"sub=iat,domain=iat,language=zh_cn,accent=mandarin,sample_rate=16000,result_type=plain,result_encoding= utf-8", ref res);
if (res != 0)
{
Debug.Log($"begin failed. error code: {res}");
OnErrorEvent();
return null;
}
/* 用于记录端点状态 */
EpStatus epStatus = EpStatus.MSP_EP_LOOKING_FOR_SPEECH;
/* 用于记录识别状态 */
RecogStatus recognizeStatus = RecogStatus.MSP_REC_STATUS_SUCCESS;
/* 调用音频写入接口 将需要识别的音频数据传入
* 写入成功返回0,否则为错误代码 */
res = MSCDLL.QISRAudioWrite(sessionID, clipBuffer, (uint)clipBuffer.Length, AudioStatus.MSP_AUDIO_SAMPLE_CONTINUE, ref epStatus, ref recognizeStatus);
if (res != 0)
{
Debug.Log($"write failed. error code: {res}");
MSCDLL.QISRSessionEnd(sessionID, "error");
OnErrorEvent();
return null;
}
res = MSCDLL.QISRAudioWrite(sessionID, null, 0, AudioStatus.MSP_AUDIO_SAMPLE_LAST, ref epStatus, ref recognizeStatus);
if (res != 0)
{
Debug.Log($"write failed. error code: {res}");
MSCDLL.QISRSessionEnd(sessionID, "error");
OnErrorEvent();
return null;
}
/* 用于存储识别结果 */
StringBuilder sb = new StringBuilder();
/* 用于累加识别结果的长度 */
int length = 0;
/* 音频写入后 反复调用获取识别结果的接口直到获取完毕 */
while (recognizeStatus != RecogStatus.MSP_REC_STATUS_COMPLETE)
{
IntPtr curtRslt = MSCDLL.QISRGetResult(sessionID, ref recognizeStatus, 0, ref res);
if (res != 0)
{
Debug.Log($"get result failed. error code: {res}");
MSCDLL.QISRSessionEnd(sessionID, "error");
OnErrorEvent();
return null;
}
/* 当前部分识别结果不为空 将其存入sb*/
if (null != curtRslt)
{
length += curtRslt.ToString().Length;
if (length > 4096)
{
Debug.Log($"size not enough: {length} > 4096");
MSCDLL.QISRSessionEnd(sessionID, "error");
OnErrorEvent();
return sb.ToString();
}
sb.Append(Marshal.PtrToStringAnsi(curtRslt));
}
Thread.Sleep(150);
}
/* 获取完全部识别结果后 结束本次语音识别 */
res = MSCDLL.QISRSessionEnd(sessionID, "ao li gei !");
if (res != 0) Debug.Log($"end failed. error code: {res}");
/* 最终退出登录 返回识别结果*/
//MSPLogout();
return sb.ToString();
}
/// <summary>
/// 科大讯飞语音识别
/// </summary>
/// <param name="path">音频文件所在路径</param>
/// <returns>识别后的字符串结果</returns>
public static string Asr(string path)
{
if (string.IsNullOrEmpty(path))
{
Debug.Log("path can not be null.");
return null;
}
byte[] clipBuffer;
try
{
clipBuffer = File.ReadAllBytes(path);
}
catch (Exception e)
{
Debug.Log($"exception: {e.Message}");
return null;
}
return Asr(clipBuffer);
}
/// <summary>
/// 科大讯飞语音识别
/// </summary>
/// <param name="clip">需要识别的AudioClip</param>
/// <returns>识别后的字符串结果</returns>
public static string Asr(AudioClip clip)
{
byte[] clipBuffer = clip.ToPCM16();
return Asr(clipBuffer);
}
/// <summary>
/// 科大讯飞语音合成
/// </summary>
/// <param name="content">需要合成音频的文本内容</param>
/// <returns>合成后的音频</returns>
public static AudioClip Tts(string content, TtsVoice voice = TtsVoice.XuJiu)
{
/* 首先调用登录接口
* 登录成功返回0,否则为错误代码 */
//int res = MSPLogin();
int res = 0;
/* 调用开启一次语音合成的接口
* 接收返回后的句柄,后续调用写入文本等接口需要使用
* 调用成功error code为0,否则为错误代码
* 备注:
* 第一个参数为 开启一次语音合成的参数列表
* 具体参照科大讯飞官网SDK文档 */
string voicer = "";
switch (voice)
{
case TtsVoice.XiaoYan:
voicer = "xiaoyan";
break;
case TtsVoice.XuJiu:
voicer = "aisjiuxu";
break;
case TtsVoice.XiaoPing:
voicer = "aisxping";
break;
case TtsVoice.XiaoJing:
voicer = "aisjinger";
break;
case TtsVoice.XuXiaoBao:
voicer = "aisbabyxu";
break;
default:
break;
}
IntPtr sessionID = MSCDLL.QTTSSessionBegin($"engine_type = cloud, voice_name = {voicer}, speed = 65, pitch = 40, text_encoding = utf8, sample_rate = 16000", ref res);
if (res != 0)
{
Debug.Log($"begin failed. error code: {res}");
OnErrorEvent();
return null;
}
/* 调用写入文本的接口 将需要合成内容传入
* 调用成功返回0,否则为错误代码 */
res = MSCDLL.QTTSTextPut(sessionID, content, (uint)Encoding.UTF8.GetByteCount(content), string.Empty);
if (res != 0)
{
Debug.Log($"put text failed. error code: {res}");
OnErrorEvent();
return null;
}
/* 用于记录长度 */
uint audioLength = 0;
/* 用于记录合成状态 */
SynthStatus synthStatus = SynthStatus.MSP_TTS_FLAG_STILL_HAVE_DATA;
List<byte[]> bytesList = new List<byte[]>();
/* 文本写入后 调用获取合成音频的接口
* 获取成功error code为0,否则为错误代码
* 需反复调用 直到合成状态为结束 或出现错误代码 */
try
{
while (true)
{
IntPtr intPtr = MSCDLL.QTTSAudioGet(sessionID, ref audioLength, ref synthStatus, ref res);
byte[] byteArray = new byte[(int)audioLength];
if (audioLength > 0) Marshal.Copy(intPtr, byteArray, 0, (int)audioLength);
bytesList.Add(byteArray);
Thread.Sleep(150);
if (synthStatus == SynthStatus.MSP_TTS_FLAG_DATA_END || res != 0)
break;
}
}
catch (Exception e)
{
OnErrorEvent();
Debug.Log($"error: {e.Message}");
return null;
}
int size = 0;
for (int i = 0; i < bytesList.Count; i++)
{
size += bytesList[i].Length;
}
var header = GetWaveHeader(size);
byte[] array = header.ToBytes();
bytesList.Insert(0, array);
size += array.Length;
byte[] bytes = new byte[size];
size = 0;
for (int i = 0; i < bytesList.Count; i++)
{
bytesList[i].CopyTo(bytes, size);
size += bytesList[i].Length;
}
AudioClip clip = bytes.ToWAV();
res = MSCDLL.QTTSSessionEnd(sessionID, "ao li gei !");
if (res != 0)
{
Debug.Log($"end failed. error code: {res}");
OnErrorEvent();
return clip;
}
//MSPLogout();
return clip;
}
/// <summary>
/// 科大讯飞语音合成
/// </summary>
/// <param name="content">需要合成的内容</param>
/// <param name="path">将合成后的音频写入指定的路径</param>
/// <returns>调用成功返回true 发生异常返回false</returns>
public static bool Tts(string content, string path)
{
/* 首先调用登录接口
* 登录成功返回0,否则为错误代码 */
int res = MSCDLL.MSPLogin(null, null, mAppID);
if (res != 0)
{
Debug.Log($"login failed. error code: {res}");
return false;
}
/* 调用开启一次语音合成的接口
* 接收返回后的句柄,后续调用写入文本等接口需要使用
* 调用成功error code为0,否则为错误代码
* 备注:
* 第一个参数为 开启一次语音合成的参数列表
* 具体参照科大讯飞官网SDK文档 */
IntPtr sessionID = MSCDLL.QTTSSessionBegin("engine_type = cloud, voice = xiaoyan, text_encoding = utf8, sample_rate = 16000", ref res);
if (res != 0)
{
Debug.Log($"begin failed. error code: {res}");
OnErrorEvent();
return false;
}
/* 调用写入文本的接口 将需要合成内容传入
* 调用成功返回0,否则为错误代码 */
res = MSCDLL.QTTSTextPut(sessionID, content, (uint)Encoding.UTF8.GetByteCount(content), string.Empty);
if (res != 0)
{
Debug.Log($"put text failed. error code: {res}");
OnErrorEvent();
return false;
}
/* 用于记录长度 */
uint audioLength = 0;
/* 用于记录合成状态 */
SynthStatus synthStatus = SynthStatus.MSP_TTS_FLAG_STILL_HAVE_DATA;
/* 开启一个流 */
MemoryStream ms = new MemoryStream();
ms.Write(new byte[44], 0, 44);
/* 文本写入后 调用获取合成音频的接口
* 获取成功error code为0,否则为错误代码
* 需反复调用 直到合成状态为结束 或出现错误代码 */
try
{
while (true)
{
IntPtr intPtr = MSCDLL.QTTSAudioGet(sessionID, ref audioLength, ref synthStatus, ref res);
byte[] byteArray = new byte[(int)audioLength];
if (audioLength > 0) Marshal.Copy(intPtr, byteArray, 0, (int)audioLength);
ms.Write(byteArray, 0, (int)audioLength);
Thread.Sleep(150);
if (synthStatus == SynthStatus.MSP_TTS_FLAG_DATA_END || res != 0)
break;
}
}
catch (Exception e)
{
OnErrorEvent();
Debug.Log($"error: {e.Message}");
return false;
}
var header = GetWaveHeader((int)ms.Length);
byte[] array = header.ToBytes();
ms.Position = 0L;
ms.Write(array, 0, array.Length);
ms.Position = 0L;
FileStream fs = new FileStream(path, System.IO.FileMode.Create, FileAccess.Write);
ms.WriteTo(fs);
ms.Close();
fs.Close();
res = MSCDLL.QTTSSessionEnd(sessionID, "ao li gei !");
if (res != 0)
{
Debug.Log($"end failed. error code: {res}");
OnErrorEvent();
return false;
}
res = MSCDLL.MSPLogout();
if (res != 0)
{
Debug.Log($"logout failed. error code: {res}");
return false;
}
return true;
}
/// <summary>
/// 科大讯飞语音唤醒
/// </summary>
/// <param name="clipBuffer">音频数据</param>
/// <returns>识别后的字符串结果</returns>
public static void MSCAwaken(byte[] clipBuffer)
{
/* 首先调用登录接口 在外部调用*/
int errorCode = 0;
IntPtr sessionID = MSCDLL.QIVWSessionBegin(null, qivw_session_begin_params, ref errorCode);
if (errorCode != 0)
{
Debug.LogError("初始化语音唤醒失败！错误信息：" + errorCode);
OnErrorEvent();
return;
}
这个是Unity 自动录音并截取音频保存 章节的方法
//byte[] playerClipByte = AudioClipToByte(Player.clip, start, end);//语音文件byte[]
int message = MSCDLL.QIVWRegisterNotify(sessionID, cb_ivw_msg_proc, IntPtr.Zero);
if (message == 0)
{
message = MSCDLL.QIVWAudioWrite(sessionID, clipBuffer, (uint)clipBuffer.Length, AudioStatus.MSP_AUDIO_SAMPLE_LAST);
if (message != 0)
Debug.LogError("写入唤醒音频失败！错误信息：" + errorCode);
}
else
{
Debug.LogError("语音唤醒注册回调失败！错误信息：" + errorCode);
}
//if (message != 0)
//{
// Debug.LogError("写入语音唤醒失败！错误信息：" + message);
// OnErrorEvent();
// return;
//}
//Debug.Log("QIVWAudioWrite");
//message = MSCDLL.QIVWAudioWrite(sessionID, null, 0, AudioStatus.MSP_AUDIO_SAMPLE_LAST);
//if (message != 0)
//{
// Debug.LogError("写入语音唤醒失败！错误信息：" + message);
// OnErrorEvent();
// return;
//}
message = MSCDLL.QIVWSessionEnd(sessionID, "语音唤醒结束");
if (message != 0)
{
Debug.LogError("语音唤醒结束失败！错误信息：" + message);
OnErrorEvent();
return;
}
/* 最终退出登录*/
}
/// <summary>
/// 语音唤醒的回调函数
/// </summary>
/// <param name="sessionID"></param>
/// <param name="msg"></param>
/// <param name="param1"></param>
/// <param name="param2"></param>
/// <param name="info"></param>
/// <param name="userData"></param>
/// <returns></returns>
private static int cb_ivw_msg_proc(IntPtr sessionID, int msg, int param1, int param2, IntPtr info, IntPtr userData)
{
if (msg == (int)IvwStatus.MSP_IVW_MSG_ERROR) //唤醒出错消息
{
Debug.LogError("MSP_IVW_MSG_ERROR error code:" + param1);
}
else if (msg == (int)IvwStatus.MSP_IVW_MSG_WAKEUP)//唤醒成功消息
{
isAwaken = true;
Debug.Log("唤醒成功,执行回调函数");
}
return 0;
}
/* 发生异常后调用退出登录接口 */
static void OnErrorEvent()
{
int res = MSCDLL.MSPLogout();
if (res != 0)
{
Debug.Log($"logout failed. error code: {res}");
}
}
/* 语音音频头 初始化赋值 */
static WaveHeader GetWaveHeader(int dataLen)
{
return new WaveHeader
{
RIFFID = 1179011410,
FileSize = dataLen - 8,
RIFFType = 1163280727,
FMTID = 544501094,
FMTSize = 16,
FMTTag = 1,
FMTChannel = 1,
FMTSamplesPerSec = 16000,
AvgBytesPerSec = 32000,
BlockAlign = 2,
BitsPerSample = 16,
DataID = 1635017060,
DataSize = dataLen - 44
};
}
}
public class MSCDLL
{
#region msp_cmn.h 通用接口
/// <summary>
/// 初始化msc 用户登录 user login.
/// 使用其他接口前必须先调用MSPLogin,可以在应用程序启动时调用
/// </summary>
/// <param name="usr">user name. 此参数保留 传入NULL即可</param>
/// <param name="pwd">password. 此参数保留 传入NULL即可</param>
/// <param name="parameters">parameters when user login. 每个参数和参数值通过key=value的形式组成参数对,如果有多个参数对,再用逗号进行拼接</param>
/// 通用 appid 应用ID: 于讯飞开放平台申请SDK成功后获取到的appid
/// 离线 engine_start 离线引擎启动: 启用离线引擎 支持参数: ivw:唤醒 asr:识别
/// 离线 [xxx]_res_path 离线引擎资源路径: 设置ivw asr引擎离线资源路径
/// 详细格式: fo|[path]|[offset]|[length]|xx|xx
/// 单个资源路径示例: ivw_res_path=fo|res/ivw/wakeupresource.jet
/// 多个资源路径示例: asr_res_path=fo|res/asr/common.jet;fo|res/asr/sms.jet
/// <returns>return 0 if sucess, otherwise return error code. 成功返回MSP_SUCCESS,否则返回错误代码</returns>
[DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
public static extern int MSPLogin(string usr, string pwd, string parameters);
/// <summary>
/// 退出登录 user logout.
/// 本接口和MSPLogin配合使用 确保其他接口调用结束之后调用MSPLogout,否则结果不可预期
/// </summary>
/// <returns>如果函数调用成功返回MSP_SUCCESS,否则返回错误代码 return 0 if sucess, otherwise return error code.</returns>
[DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
public static extern int MSPLogout();
/// <summary>
/// 用户数据上传 upload data such as user config, custom grammar, etc.
/// </summary>
/// <param name="dataName">数据名称字符串 should be unique to diff other data.</param>
/// <param name="data">待上传数据缓冲区的起始地址 the data buffer pointer, data could be binary.</param>
/// <param name="dataLen">数据长度(如果是字符串,则不包含'\0') length of data.</param>
/// <param name="_params">parameters about uploading data.</param>
/// 在线 sub = uup,dtt = userword 上传用户词表
/// 在线 sub = uup,dtt = contact 上传联系人
/// <param name="errorCode">return 0 if success, otherwise return error code.</param>
/// <returns>data id returned by server, used for special command.</returns>
[DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
public static extern IntPtr MSPUploadData(string dataName, IntPtr data, uint dataLen, string _params, ref int errorCode);
/// <summary>
/// write data to msc, such as data to be uploaded, searching text, etc.
/// </summary>
/// <param name="data">the data buffer pointer, data could be binary.</param>
/// <param name="dataLen">length of data.</param>
/// <param name="dataStatus">data status, 2: first or continuous, 4: last.</param>
/// <returns>return 0 if success, otherwise return error code.</returns>
[DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
public static extern int MSPAppendData(IntPtr data, uint dataLen, uint dataStatus);
/// <summary>
/// download data such as user config, etc.
/// </summary>
/// <param name="_params">parameters about data to be downloaded.</param>
/// <param name="dataLen">length of received data.</param>
/// <param name="errorCode">return 0 if success, otherwise return error code.</param>
/// <returns>received data buffer pointer, data could be binary, null if failed or data does not exsit.</returns>
[DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
public static extern IntPtr MSPDownloadData(string _params, ref uint dataLen, ref int errorCode);
/// <summary>
/// set param of msc. 参数设置接口、离线引擎初始化接口
/// </summary>
/// <param name="paramName">param name.</param>
/// 离线 engine_start 启动离线引擎
/// 离线 engine_destroy 销毁离线引擎
/// <param name="paramValue">param value. 参数值</param>
/// <returns>return 0 if success, otherwise return errcode. 函数调用成功则其值为MSP_SUCCESS,否则返回错误代码</returns>
[DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
public static extern int MSPSetParam(string paramName, string paramValue);
/// <summary>
/// get param of msc. 获取msc的设置信息
/// </summary>
/// <param name="paramName">param name. 参数名,一次调用只支持查询一个参数</param>
/// 在线 upflow 上行数据量
/// 在线 downflow 下行数据量
/// <param name="paramValue">param value.</param>
/// 输入: buffer首地址
/// 输出: 向该buffer写入获取到的信息
/// <param name="valueLen">param value (buffer) length.</param>
/// 输入: buffer的大小
/// 输出: 信息实际长度(不含'\0')
/// <returns>return 0 if success, otherwise return errcode. 函数调用成功返回MSP_SUCCESS,否则返回错误代码</returns>
[DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
public static extern int MSPGetParam(string paramName, ref byte[] paramValue, ref uint valueLen);
/// <summary>
/// get version of msc or local engine. 获取msc或本地引擎版本信息
/// </summary>
/// <param name="verName">version name, could be "msc", "aitalk", "aisound", "ivw". 参数名,一次调用只支持查询一个参数</param>
/// 离线 ver_msc msc版本号
/// 离线 ver_asr 离线识别版本号,目前不支持
/// 离线 ver_tts 离线合成版本号
/// 离线 ver_ivw 离线唤醒版本号
/// <param name="errorCode">return 0 if success, otherwise return error code. 如果函数调用成功返回MSP_SUCCESS,否则返回错误代码</param>
/// <returns>return version value if success, null if fail. 成功返回缓冲区指针,失败或数据不存在返回NULL</returns>
[DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
public static extern IntPtr MSPGetVersion(string verName, ref int errorCode);
#endregion
#region qisr.h 语音识别
/// <summary>
/// create a recognizer session to recognize audio data. 开始一次语音识别
/// </summary>
/// <param name="grammarList">garmmars list, inline grammar support only one. 此参数保留,传入NULL即可</param>
/// <param name="_params">parameters when the session created.</param>
/// 通用 engine_type 引擎类型 cloud在线引擎 local离线引擎
/// 在线 sub 本次识别请求的类型 iat语音听写 asr命令词识别
/// 在线 language 语言 zh_cn简体中文 en_us英文
/// 在线 domain 领域 iat语音听写
/// 在线 accent 语言区域 mandarin普通话
/// 通用 sample_rate 音频采样率 16000 8000
/// 通用 asr_threshold 识别门限 离线语法识别结果门限值,设置只返回置信度得分大于此门限值的结果 0-100
/// 离线 asr_denoise 是否开启降噪功能 0不开启 1开启
/// 离线 asr_res_path 离线识别资源路径 离线识别资源所在路径
/// 离线 grm_build_path 离线语法生成路径 构建离线语法所生成数据的保存路径(文件夹)
/// 通用 result_type 结果格式 plain json
/// 通用 text_encoding 文本编码格式 表示参数中携带的文本编码格式
/// 离线 local_grammar 离线语法id 构建离线语法后获得的语法ID
/// 通用 ptt 添加标点符号(sub=iat时有效) 0:无标点符号;1:有标点符号
/// 在线 aue 音频编码格式和压缩等级 编码算法:raw;speex;speex-wb;ico 编码等级: raw不进行压缩 speex系列0-10
/// 通用 result_encoding 识别结果字符串所用编码格式 plain:UTF-8,GB2312 json:UTF-8
/// 通用 vad_enable VAD功能开关 是否启用VAD 默认为开启VAD 0(或false)为关闭
/// 通用 vad_bos 允许头部静音的最长时间 目前未开启该功能
/// 通用 vad_eos 允许尾部静音的最长时间 0-10000毫秒 默认为2000
/// <param name="errorCode">return 0 if success, otherwise return error code. 函数调用成功则其值为MSP_SUCCESS,否则返回错误代码</param>
/// <returns>return session id of current session, null is failed. 函数调用成功返回字符串格式的sessionID,失败返回NULL sessionID是本次识别的句柄</returns>
[DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
public static extern IntPtr QISRSessionBegin(string grammarList, string _params, ref int errorCode);
/// <summary>
/// writing binary audio data to recognizer. 写入本次识别的音频
/// </summary>
/// <param name="sessionID">the session id returned by recog_begin. 由QISRSessionBegin返回的句柄</param>
/// <param name="waveData">binary data of waveform. 音频数据缓冲区起始地址</param>
/// <param name="waveLen">waveform data size in bytes. 音频数据长度,单位字节</param>
/// <param name="audioStatus">audio status. 用来告知msc音频发送是否完成</param>
/// <param name="epStatus">ep status. 端点检测(End-point detected)器所处的状态</param>
/// <param name="recogStatus">recognition status. 识别器返回的状态,提醒用户及时开始\停止获取识别结果</param>
/// 本接口需不断调用,直到音频全部写入为止 上传音频时,需更新audioStatus的值 具体来说:
/// 当写入首块音频时,将audioStatus置为MSP_AUDIO_SAMPLE_FIRST
/// 当写入最后一块音频时,将audioStatus置为MSP_AUDIO_SAMPLE_LAST
/// 其余情况下,将audioStatus置为MSP_AUDIO_SAMPLE_CONTINUE
/// 同时,需定时检查两个变量: epStatus和recogStatus 具体来说:
/// 当epStatus显示已检测到后端点时,MSC已不再接收音频,应及时停止音频写入
/// 当rsltStatus显示有识别结果返回时,即可从MSC缓存中获取结果
/// <returns>return 0 if success, otherwise return error code. 函数调用成功则其值为MSP_SUCCESS,否则返回错误代码</returns>
[DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
public static extern int QISRAudioWrite(IntPtr sessionID, byte[] waveData, uint waveLen, AudioStatus audioStatus, ref EpStatus epStatus, ref RecogStatus recogStatus);
/// <summary>
/// get recognize result in specified format. 获取识别结果
/// </summary>
/// <param name="sessionID">session id returned by session begin. 由QISRSessionBegin返回的句柄</param>
/// <param name="rsltStatus">status of recognition result, 识别结果的状态,其取值范围和含义请参考QISRAudioWrite 的参数recogStatus</param>
/// <param name="waitTime">此参数做保留用</param>
/// <param name="errorCode">return 0 if success, otherwise return error code. 函数调用成功则其值为MSP_SUCCESS,否则返回错误代码</param>
/// 当写入音频过程中已经有部分识别结果返回时,可以获取结果
/// 在音频写入完毕后,用户需反复调用此接口,直到识别结果获取完毕(rlstStatus值为5)或返回错误码
/// 注意:如果某次成功调用后暂未获得识别结果,请将当前线程sleep一段时间,以防频繁调用浪费CPU资源
/// <returns>return 0 if success, otherwise return error code. 函数执行成功且有识别结果时,返回结果字符串指针 其他情况(失败或无结果)返回NULL</returns>
[DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
public static extern IntPtr QISRGetResult(IntPtr sessionID, ref RecogStatus rsltStatus, int waitTime, ref int errorCode);
/// <summary>
/// end the recognizer session, release all resource. 结束本次语音识别
/// 本接口和QISRSessionBegin对应,调用此接口后,该句柄对应的相关资源(参数、语法、音频、实例等)都会被释放,用户不应再使用该句柄
/// </summary>
/// <param name="sessionID">session id string to end. 由QISRSessionBegin返回的句柄</param>
/// <param name="hints">user hints to end session, hints will be logged to CallLog. 结束本次语音识别的原因描述,为用户自定义内容</param>
/// <returns>return 0 if sucess, otherwise return error code. 函数调用成功则其值为MSP_SUCCESS,否则返回错误代码</returns>
[DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
public static extern int QISRSessionEnd(IntPtr sessionID, string hints);
/// <summary>
/// get params related with msc. 获取当次语音识别信息,如上行流量、下行流量等
/// </summary>
/// <param name="sessionID">session id of related param, set null to got global param. 由QISRSessionbegin返回的句柄,如果为NULL,获取msc的设置信息</param>
/// <param name="paramName">param name,could pass more than one param split by ','';'or'\n'. 参数名,一次调用只支持查询一个参数</param>
/// 在线 sid 服务端会话ID 长度为32字节
/// 在线 upflow 上行数据量
/// 在线 downflow 下行数据量
/// 通用 volume 最后一次写入的音频的音量
/// <param name="paramValue">param value buffer, malloced by user.</param>
/// 输入: buffer首地址
/// 输出: 向该buffer写入获取到的信息
/// <param name="valueLen">pass in length of value buffer, and return length of value string.</param>
/// 输入: buffer的大小
/// 输出: 信息实际长度(不含’\0’)
/// <returns>return 0 if success, otherwise return errcode. 函数调用成功返回MSP_SUCCESS,否则返回错误代码</returns>
[DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
public static extern int QISRGetParam(string sessionID, string paramName, ref byte[] paramValue, ref uint valueLen);
#endregion
#region qtts.h 语音合成
/// <summary>
/// create a tts session to synthesize data. 开始一次语音合成,分配语音合成资源
/// </summary>
/// <param name="_params">parameters when the session created. 传入的参数列表</param>
/// 通用 engine_type 引擎类型 cloud在线引擎 local离线引擎
/// 通用 voice_name 发音人 不同的发音人代表了不同的音色 如男声、女声、童声等
/// 通用 speed 语速 0-100 default50
/// 通用 volume 音量 0-100 dafault50
/// 通用 pitch 语调 0-100 default50
/// 离线 tts_res_path 合成资源路径 合成资源所在路径,支持fo 方式参数设置
/// 通用 rdn 数字发音 0数值优先 1完全数值 2完全字符串 3字符串优先
/// 离线 rcn 1 的中文发音 0表示发音为yao 1表示发音为yi
/// 通用 text_encoding 文本编码格式(必传) 合成文本编码格式,支持参数,GB2312,GBK,BIG5,UNICODE,GB18030,UTF8
/// 通用 sample_rate 合成音频采样率 合成音频采样率,支持参数,16000,8000,默认为16000
/// 在线 background_sound背景音 0无背景音乐 1有背景音乐
/// 在线 aue 音频编码格式和压缩等级 编码算法:raw;speex;speex-wb;ico 编码等级: raw不进行压缩 speex系列0-10
/// 在线 ttp 文本类型 text普通格式文本 cssml格式文本
/// 离线 speed_increase 语速增强 1正常 2二倍语速 4四倍语速
/// 离线 effect 合成音效 0无音效 1忽远忽近 2回声 3机器人 4合唱 5水下 6混响 7阴阳怪气
/// <param name="errorCode">return 0 if success, otherwise return error code. 函数调用成功则其值为MSP_SUCCESS,否则返回错误代码</param>
/// <returns>return the new session id if success, otherwise return null. 函数调用成功返回字符串格式的sessionID,失败返回NULL sessionID是本次合成的句柄</returns>
[DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
public static extern IntPtr QTTSSessionBegin(string _params, ref int errorCode);
/// <summary>
/// writing text string to synthesizer. 写入要合成的文本
/// </summary>
/// <param name="sessionID">the session id returned by sesson begin. 由QTTSSessionBegin返回的句柄</param>
/// <param name="textString">text buffer. 字符串指针 指向待合成的文本字符串</param>
/// <param name="textLen">text size in bytes. 合成文本长度,最大支持8192个字节</param>
/// <param name="_params">parameters when the session created. 本次合成所用的参数,只对本次合成的文本有效 目前为空</param>
/// <returns>return 0 if success, otherwise return error code. 函数调用成功则其值为MSP_SUCCESS,否则返回错误代码</returns>
[DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
public static extern int QTTSTextPut(IntPtr sessionID, string textString, uint textLen, string _params);
/// <summary>
/// synthesize text to audio, and return audio information. 获取合成音频
/// </summary>
/// <param name="sessionID">session id returned by session begin. 由QTTSSessionBegin返回的句柄</param>
/// <param name="audioLen">synthesized audio size in bytes. 合成音频长度,单位字节</param>
/// <param name="synthStatus">synthesizing status. 合成音频状态</param>
/// <param name="errorCode">return 0 if success, otherwise return error code. 函数调用成功则其值为MSP_SUCCESS,否则返回错误代码</param>
/// 用户需要反复获取音频,直到音频获取完毕或函数调用失败
/// 在重复获取音频时,如果暂未获得音频数据,需要将当前线程sleep一段时间,以防频繁调用浪费CPU资源
/// <returns>return current synthesized audio data buffer, size returned by QTTSTextSynth. 函数调用成功且有音频数据时返回非空指针 调用失败或无音频数据时,返回NULL</returns>
[DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
public static extern IntPtr QTTSAudioGet(IntPtr sessionID, ref uint audioLen, ref SynthStatus synthStatus, ref int errorCode);
/// <summary>
/// get synthesized audio data information.
/// </summary>
/// <param name="sessionID">session id returned by session begin.</param>
/// <returns>return audio info string.</returns>
[DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
public static extern IntPtr QTTSAudioInfo(IntPtr sessionID);
/// <summary>
/// end the recognizer session, release all resource. 结束本次语音合成
/// 本接口和QTTSSessionBegin对应,调用此接口后,该句柄对应的相关资源(参数 合成文本 实例等)都会被释放,用户不应再使用该句柄
/// </summary>
/// <param name="sessionID">session id string to end. 由QTTSSessionBegin返回的句柄</param>
/// <param name="hints">user hints to end session, hints will be logged to CallLog. 结束本次语音合成的原因描述,为用户自定义内容</param>
/// <returns>return 0 if success, otherwise return error code. 函数调用成功则其值为MSP_SUCCESS,否则返回错误代码</returns>
[DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
public static extern int QTTSSessionEnd(IntPtr sessionID, string hints);
/// <summary>
/// set params related with msc.
/// </summary>
/// <param name="sessionID">session id of related param, set null to got global param.</param>
/// <param name="paramName">param name,could pass more than one param split by ','';'or'\n'.</param>
/// <param name="paramValue">param value buffer, malloced by user.</param>
/// <returns>return 0 if success, otherwise return errcode.</returns>
[DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
public static extern int QTTSSetParam(IntPtr sessionID, string paramName, byte[] paramValue);
/// <summary>
/// get params related with msc. 获取当前语音合成信息,如当前合成音频对应文本结束位置、上行流量、下行流量等
/// </summary>
/// <param name="sessionID">session id of related param, set NULL to got global param. 由QTTSSessionBegin返回的句柄,如果为NULL,获取msc的设置信息</param>
/// <param name="paramName">param name,could pass more than one param split by ','';'or'\n'. 参数名,一次调用只支持查询一个参数</param>
/// 在线 sid 服务端会话ID 长度为32字节
/// 在线 upflow 上行数据量
/// 在线 downflow 下行数据量
/// 通用 ced 当前合成音频对应文本结束位置
/// <param name="paramValue">param value buffer, malloced by user.</param>
/// 输入: buffer首地址
/// 输出: 向该buffer写入获取到的信息
/// <param name="valueLen">pass in length of value buffer, and return length of value string</param>
/// 输入: buffer的大小
/// 输出: 信息实际长度(不含’\0’)
/// <returns>return 0 if success, otherwise return errcode. 函数调用成功则其值为MSP_SUCCESS,否则返回错误代码</returns>
[DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
public static extern int QTTSGetParam(IntPtr sessionID, string paramName, ref byte[] paramValue, ref uint valueLen);
#endregion
#region qivw.h 语音唤醒
/// <summary>
/// 开始唤醒功能，本次唤醒所用的参数等。
/// </summary>
/// <param name="grammarList">保留参数，设置为NULL即可。</param>
/// <param name="_params"></param>
/// <param name="errorCode">函数调用成功则其值为MSP_SUCCESS(0)，否则返回错误代码，详见错误码列表</param>
/// <returns>函数调用成功返回字符串格式的sessionID，失败返回NULL。sessionID是本次唤醒的句柄。</returns>
/// [DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
[DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
public static extern IntPtr QIVWSessionBegin(string grammarList, string _params, ref int errorCode);
/// <summary>
/// 结束本次语音唤醒。
/// </summary>
/// <param name="sessionID">由QIVWSessionBegin返回的句柄。</param>
/// <param name="hints">结束本次语音唤醒的原因描述，为用户自定义内容。</param>
/// <returns>函数调用成功则其值为MSP_SUCCESS，否则返回错误代码</returns>
/// 本接口和QIVWSessionBegin 对应，用来本次语音唤醒。调用此接口后，该句柄对应的相关资源（参数、语法、音频、实例等）都会被释放，用户不应再使用该句柄。
[DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
public static extern int QIVWSessionEnd(IntPtr sessionID, string hints);
/// <summary>
/// 写入本次唤醒的音频，本接口需要反复调用直到音频写完为止。
/// </summary>
/// <param name="sessionID">由QIVWSessionBegin返回的句柄。</param>
/// <param name="audioData">音频数据缓冲区起始地址。</param>
/// <param name="audioLen">音频数据长度，单位字节。</param>
/// <param name="audioStatus">用来告知MSC音频发送是否完成，典型值如下：</param>
/// 枚举常量 简介
/// MSP_AUDIO_SAMPLE_FIRST = 1 第一块音频
/// MSP_AUDIO_SAMPLE_CONTINUE = 2 还有后继音频
/// MSP_AUDIO_SAMPLE_LAST = 4 最后一块音频
/// <returns></returns>
[DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
public static extern int QIVWAudioWrite(IntPtr sessionID, byte[] audioData, uint audioLen, AudioStatus audioStatus);
/// <summary>
/// 注册回调。
/// </summary>
/// <param name="sessionID">由QIVWSessionBegin返回的句柄。</param>
/// <param name="msgProcCb">注册通知的回调函数，唤醒结果将在此注册回调中返回。格式为：typedef int( *ivw_ntf_handler)( const char *sessionID, int msg,int param1, int param2, const void *info, void *userData );
/// 参数说明查看官方文档</param>
/// <param name="userData">用户数据</param>
/// <returns></returns>
[DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
public static extern int QIVWRegisterNotify(IntPtr sessionID, [MarshalAs(UnmanagedType.FunctionPtr)] ivw_ntf_handler msgProcCb, IntPtr userData);
//定义回调函数
[UnmanagedFunctionPointer(CallingConvention.Cdecl)]
public delegate int ivw_ntf_handler(IntPtr sessionID, int msg, int param1, int param2, IntPtr info, IntPtr userData);
#endregion
}
#region QISR
/// <summary>
/// 用来告知msc音频发送是否完成
/// </summary>
public enum AudioStatus
{
MSP_AUDIO_SAMPLE_INIT = 0x00,
MSP_AUDIO_SAMPLE_FIRST = 0x01, //第一块音频
MSP_AUDIO_SAMPLE_CONTINUE = 0x02, //还有后继音频
MSP_AUDIO_SAMPLE_LAST = 0x04, //最后一块音频
}
/// <summary>
/// 端点检测（End-point detected）器所处的状态
/// </summary>
public enum EpStatus
{
MSP_EP_LOOKING_FOR_SPEECH = 0, //还没有检测到音频的前端点
MSP_EP_IN_SPEECH = 1, //已经检测到了音频前端点,正在进行正常的音频处理
MSP_EP_AFTER_SPEECH = 3, //检测到音频的后端点,后记的音频会被msc忽略
MSP_EP_TIMEOUT = 4, //超时
MSP_EP_ERROR = 5, //出现错误
MSP_EP_MAX_SPEECH = 6, //音频过大
MSP_EP_IDLE = 7, // internal state after stop and before start
}
/// <summary>
/// 识别器返回的状态,提醒用户及时开始\停止获取识别结果
/// </summary>
public enum RecogStatus
{
MSP_REC_STATUS_SUCCESS = 0, //识别成功,此时用户可以调用QISRGetResult来获取(部分结果)
MSP_REC_STATUS_NO_MATCH = 1, //识别结束,没有识别结果
MSP_REC_STATUS_INCOMPLETE = 2, //未完成 正在识别中
MSP_REC_STATUS_NON_SPEECH_DETECTED = 3,
MSP_REC_STATUS_SPEECH_DETECTED = 4,
MSP_REC_STATUS_COMPLETE = 5, //识别结束
MSP_REC_STATUS_MAX_CPU_TIME = 6,
MSP_REC_STATUS_MAX_SPEECH = 7,
MSP_REC_STATUS_STOPPED = 8,
MSP_REC_STATUS_REJECTED = 9,
MSP_REC_STATUS_NO_SPEECH_FOUND = 10,
MSP_REC_STATUS_FAILURE = MSP_REC_STATUS_NO_MATCH,
}
#endregion
#region QTTS
/// <summary>
/// 合成状态
/// </summary>
public enum SynthStatus
{
MSP_TTS_FLAG_CMD_CANCLEED = 0,
MSP_TTS_FLAG_STILL_HAVE_DATA = 1, //音频还没获取完 还有后续的音频
MSP_TTS_FLAG_DATA_END = 2, //音频已经获取完
}
/// <summary>
/// 语音音频头
/// </summary>
public struct WaveHeader
{
public int RIFFID;
public int FileSize;
public int RIFFType;
public int FMTID;
public int FMTSize;
public short FMTTag;
public ushort FMTChannel;
public int FMTSamplesPerSec;
public int AvgBytesPerSec;
public ushort BlockAlign;
public ushort BitsPerSample;
public int DataID;
public int DataSize;
}
public enum TtsVoice
{
XiaoYan = 0, //讯飞小燕
XuJiu = 1, //讯飞许久
XiaoPing = 2, //讯飞小萍
XiaoJing = 3, //讯飞小婧
XuXiaoBao = 4, //讯飞许小宝
}
public enum SynthesizingStatus
{
MSP_TTS_FLAG_STILL_HAVE_DATA = 1,
MSP_TTS_FLAG_DATA_END = 2,
MSP_TTS_FLAG_CMD_CANCELED = 4,
};
/* Handwriting process flags */
public enum HandwritingStatus
{
MSP_HCR_DATA_FIRST = 1,
MSP_HCR_DATA_CONTINUE = 2,
MSP_HCR_DATA_END = 4,
};
/*ivw message type */
public enum IvwStatus
{
MSP_IVW_MSG_WAKEUP = 1,
MSP_IVW_MSG_ERROR = 2,
MSP_IVW_MSG_ISR_RESULT = 3,
MSP_IVW_MSG_ISR_EPS = 4,
MSP_IVW_MSG_VOLUME = 5,
MSP_IVW_MSG_ENROLL = 6,
MSP_IVW_MSG_RESET = 7
};
/* Upload data process flags */
public enum UploadStatus
{
MSP_DATA_SAMPLE_INIT = 0x00,
MSP_DATA_SAMPLE_FIRST = 0x01,
MSP_DATA_SAMPLE_CONTINUE = 0x02,
MSP_DATA_SAMPLE_LAST = 0x04,
};
#endregion
public class WAV
{
// convert two bytes to one float in the range -1 to 1
static float BytesToFloat(byte firstByte, byte secondByte)
{
// convert two bytes to one short (little endian)
short s = (short)((secondByte << 8) | firstByte);
// convert to range from -1 to (just below) 1
return s / 32768.0F;
}
static int BytesToInt(byte[] bytes, int offset = 0)
{
int value = 0;
for (int i = 0; i < 4; i++)
{
value |= ((int)bytes[offset + i]) << (i * 8);
}
return value;
}
// properties
public float[] LeftChannel { get; internal set; }
public float[] RightChannel { get; internal set; }
public int ChannelCount { get; internal set; }
public int SampleCount { get; internal set; }
public int Frequency { get; internal set; }
public WAV(byte[] wav)
{
// Determine if mono or stereo
ChannelCount = wav[22]; // Forget byte 23 as 99.999% of WAVs are 1 or 2 channels
// Get the frequency
Frequency = BytesToInt(wav, 24);
// Get past all the other sub chunks to get to the data subchunk:
int pos = 12; // First Subchunk ID from 12 to 16
// Keep iterating until we find the data chunk (i.e. 64 61 74 61 ...... (i.e. 100 97 116 97 in decimal))
while (!(wav[pos] == 100 && wav[pos + 1] == 97 && wav[pos + 2] == 116 && wav[pos + 3] == 97))
{
pos += 4;
int chunkSize = wav[pos] + wav[pos + 1] * 256 + wav[pos + 2] * 65536 + wav[pos + 3] * 16777216;
pos += 4 + chunkSize;
}
pos += 8;
// Pos is now positioned to start of actual sound data.
SampleCount = (wav.Length - pos) / 2; // 2 bytes per sample (16 bit sound mono)
if (ChannelCount == 2) SampleCount /= 2; // 4 bytes per sample (16 bit stereo)
// Allocate memory (right will be null if only mono sound)
LeftChannel = new float[SampleCount];
if (ChannelCount == 2) RightChannel = new float[SampleCount];
else RightChannel = null;
// Write to double array/s:
int i = 0;
while (pos < wav.Length)
{
LeftChannel[i] = BytesToFloat(wav[pos], wav[pos + 1]);
pos += 2;
if (ChannelCount == 2)
{
RightChannel[i] = BytesToFloat(wav[pos], wav[pos + 1]);
pos += 2;
}
i++;
}
}
public override string ToString()
{
return string.Format("[WAV: LeftChannel={0}, RightChannel={1}, ChannelCount={2}, SampleCount={3}, Frequency={4}]", LeftChannel, RightChannel, ChannelCount, SampleCount, Frequency);
}
}4.编写实际使用代码（自动录音+语音唤醒+语音合成+语音识别+通义千问大模型）
Unity使用通义千问大模型参考我的文章：Unity使用通义千问大模型接口
自动录音代码依然参考了该大佬的文章VAIN_K自动录音+截取音频保存 ，在两位大佬的基础上我进行了添加修改：
using System;
using System.Collections;
using System.IO;
using System.Threading;
using UnityEngine;
public class AutomaticRecord : MonoBehaviour
{
[SerializeField] private float volume;//音量
[SerializeField] private float minVolume = 2;//录音关闭音量值
[SerializeField] private float maxVolume = 3;//录音开启音量值
[SerializeField] private int minVolume_Number;//记录的小音量数量
private const int minVolume_Sum = 200;//小音量总和值
private const int VOLUME_DATA_LENGTH = 128; //录制的声音长度
private const int frequency = 16000; //码率
private const int lengthSec = 600; //录制时长
private AudioSource audioSource; //录制的音频
private bool isRecord = false;//录音开关
private bool isLogout = false;//是否已退出登录
private bool isPlayed = true;//音频是否播放完毕(使当前可录入我们的问题)
private int start;//录音起点
private int end;//录音终点
private string voiceText;
private AudioClip aiAudioClip;
public AudioSource _audioSource;
private float time = 0;//定时器
private float timeLimit = 25;
public QWTurbo qw;
private void Start()
{
audioSource = GetComponent<AudioSource>();
audioSource.clip = Microphone.Start(null, true, lengthSec, frequency);
}
private void Update()
{
volume = GetVolume(audioSource.clip, VOLUME_DATA_LENGTH);
RecordOpenClose();
//长时间无反应，唤醒状态关闭
if (Speech.isAwaken && isPlayed)
{
Debug.Log("正在计时");
time += Time.deltaTime;
if(time > timeLimit)
{
AwakeClose();
time = 0;
}
}
}
private void OnDisable()
{
if(!isLogout)
Speech.MSPLogout();
}
/// <summary>
/// 录音自动开关
/// </summary>
private void RecordOpenClose()
{
//上一个语音是否已经播放完毕
if (isPlayed)
{
//开
if (!isRecord && volume >= maxVolume)
{
start = Microphone.GetPosition(Microphone.devices[0]);
isRecord = true;
Debug.Log("自动录音开启：" + start);
minVolume_Number = 0;
}
//关
if (isRecord && volume < minVolume)
{
//当小音量的数量达到一定的次数再关闭
if (minVolume_Number > minVolume_Sum)
{
end = Microphone.GetPosition(Microphone.devices[0]);
minVolume_Number = 0;
isRecord = false;
byte[] clipBuffer = AudioClipToByte(audioSource.clip, start, end);
//File.WriteAllBytes(Application.streamingAssetsPath + "/audio.wav", playerClipByte);
//当前不是被激活状态
if (!Speech.isAwaken)
{
if (Speech.MSPLogin() == 0)
{
isLogout = false;
Speech.MSCAwaken(clipBuffer);
Thread.Sleep(150);
Debug.Log("是否被激活:" + Speech.isAwaken);
//不是关键词 仍然未被激活 退出登录
if (!Speech.isAwaken)
{
Speech.MSPLogout();
isLogout = true;
}
//是关键词 被激活 数字人回应
if (Speech.isAwaken)
{
aiAudioClip = Speech.Tts("我在，有什么我可以帮助你的吗？");
StartCoroutine(PlayAudioToFinish(aiAudioClip));
}
}
}
else//当前已经是激活状态
{
//进行语音对话
voiceText = Speech.Asr(clipBuffer);
if (voiceText == string.Empty)
{
Debug.Log("暂未检测到语音输入");
}
else
{
if (qw == null)
{
Debug.LogError("qw为空！");
Speech.MSPLogout();
isLogout = true;
return;
}
//与通义千问对接获取收到的文字
qw.PostMsg(voiceText, CallBack);
}
}
Debug.Log("自动录音关闭：" + end);
}
minVolume_Number++;
}
}
}
private void CallBack(string backMsg)
{
//播放ai转换后音频
aiAudioClip = Speech.Tts(backMsg);
StartCoroutine(PlayAudioToFinish(aiAudioClip));
}
IEnumerator PlayAudioToFinish(AudioClip audioClip)
{
_audioSource.PlayOneShot(audioClip);
Thread.Sleep((int)audioClip.length);
isPlayed = false;
yield return new WaitForSeconds(audioClip.length);
Debug.Log("音频播放完毕");
isPlayed = true;
time = 0;
}
private void AwakeClose()
{
aiAudioClip = Speech.Tts("有什么需要再叫我。");
StartCoroutine(PlayAudioToFinish(aiAudioClip));
Speech.isAwaken = false;
Speech.MSPLogout();
isLogout = true;
}
/// <summary>
/// 获取音量
/// </summary>
/// <param name="clip">音频片段</param>
/// <param name="lengthVolume">长度</param>
/// <returns></returns>
private float GetVolume(AudioClip clip, int lengthVolume)
{
if (Microphone.IsRecording(null))
{
float maxVolume = 0f;
//用于储存一段时间内的音频信息
float[] volumeData = new float[lengthVolume];
//获取录制的音频的开头位置
int offset = Microphone.GetPosition(null) - (lengthVolume + 1);
if (offset < 0)
return 0f;
//获取数据
clip.GetData(volumeData, offset);
//解析数据
for (int i = 0; i < lengthVolume; i++)
{
float tempVolume = volumeData[i];
if (tempVolume > maxVolume)
maxVolume = tempVolume;
}
return maxVolume * 99;
}
return 0;
}
/// <summary>
/// clip转byte[]
/// </summary>
/// <param name="clip">音频片段</param>
/// <param name="star">开始点</param>
/// <param name="end">结束点</param>
/// <returns></returns>
public byte[] AudioClipToByte(AudioClip clip, int star, int end)
{
float[] data;
if (end > star)
data = new float[end - star];
else
data = new float[clip.samples - star + end];
clip.GetData(data, star);
int rescaleFactor = 32767; //to convert float to Int16
byte[] outData = new byte[data.Length * 2];
for (int i = 0; i < data.Length; i++)
{
short temshort = (short)(data[i] * rescaleFactor);
byte[] temdata = BitConverter.GetBytes(temshort);
outData[i * 2] = temdata[0];
outData[i * 2 + 1] = temdata[1];
}
return outData;
}
}
5.代码中需要优化的地方
1.将多个bool值（isLogout、isPlayed、Speech.isAwake）替换为数字人的状态enum枚举类型
public enum State
{
sleep,//未被唤醒
listen,//被唤醒状态，等待被询问
think,//被唤醒状态，正在思考
speak//被唤醒状态，正在说话
}这样，全局可使用可修改。
在思考、说话状态我们不进行计时功能，只有在listen状态下开启计时功能。
2.记不清了呜呜呜，我记得好像在时间节点快结束时去询问，会出现休眠语句（“有什么需要再叫我”）和数字人回答的问题会同时响应的bug
大概是需要在结束语“有什么需要再叫我”时状态设置为State.sleep。
然后在播放音频的协程方法中添加判断条件。
以下代码仅参考思路（写前半部分和后半部分时项目已发生改变T_T）
IEnumerator PlayingAudio(AudioClip audioClip,int state = 0)
{
isEndOfAudio = false;
//防止结束语"有什么需要再叫我"转换状态
if(AiState._aiState != State.sleep)
AiState._aiState = State.speak;
mySource.clip = audioClip;
mySource.PlayOneShot(audioClip);
yield return new WaitForSeconds(audioClip.length);
if (AiState._aiState != State.sleep)
AiState._aiState = State.listen;
mytime = 0;
}
2034
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
