(即插即用模块-特征处理部分) 三十六、(2024) HFF 层次特征融合模块

paper：HiFuse: Hierarchical multi-scale feature fusion network for medical image classification

Code：https://github.com/huoxiangzuo/HiFuse

---

1、Hierarchical Feature Fusion Module

医学图像分类任务中，需要同时提取局部空间特征和全局语义信息，而单一网络结构难以兼顾两者。现有融合方法如 ViTAE、StoHisNet 等，虽然取得了不错的效果，但在医学图像领域表现不佳，可能是因为医学图像数据量小、特征分散，难以有效学习。所以这篇论文提出一种 层次特征融合模块（Hierarchical Feature Fusion Module），HFF 模块通过以下机制实现特征融合：

• 空间注意力机制：增强局部特征中重要区域的表示，抑制无关信息。
• 通道注意力机制：增强全局特征中重要通道的表示，提高特征表达能力。
• 倒残差多层感知器 (IRMLP)：学习融合后的特征，并通过深度可分离卷积降低计算成本。
• 短路连接：提高模型稳定性，防止梯度消失。

实现过程：

1. 将局部特征和全局特征分别输入 HFF 模块。
2. 对局部特征应用空间注意力机制，对全局特征应用通道注意力机制。
3. 将注意力机制增强后的特征进行元素级乘法，得到加权后的特征。
4. 对加权后的特征进行平均池化，得到融合后的特征表示。
5. 将融合后的特征、加权后的局部特征和全局特征进行拼接。
6. 将拼接后的特征输入 IRMLP 模块进行非线性变换，得到最终的融合特征。

优势：

• HFF 模块能够有效地融合不同层次、不同来源的特征，提高模型的表达能力。
• HFF 模块的设计简洁，易于理解和实现。
• HFF 模块能够适应不同尺度的特征，具有较强的泛化能力。

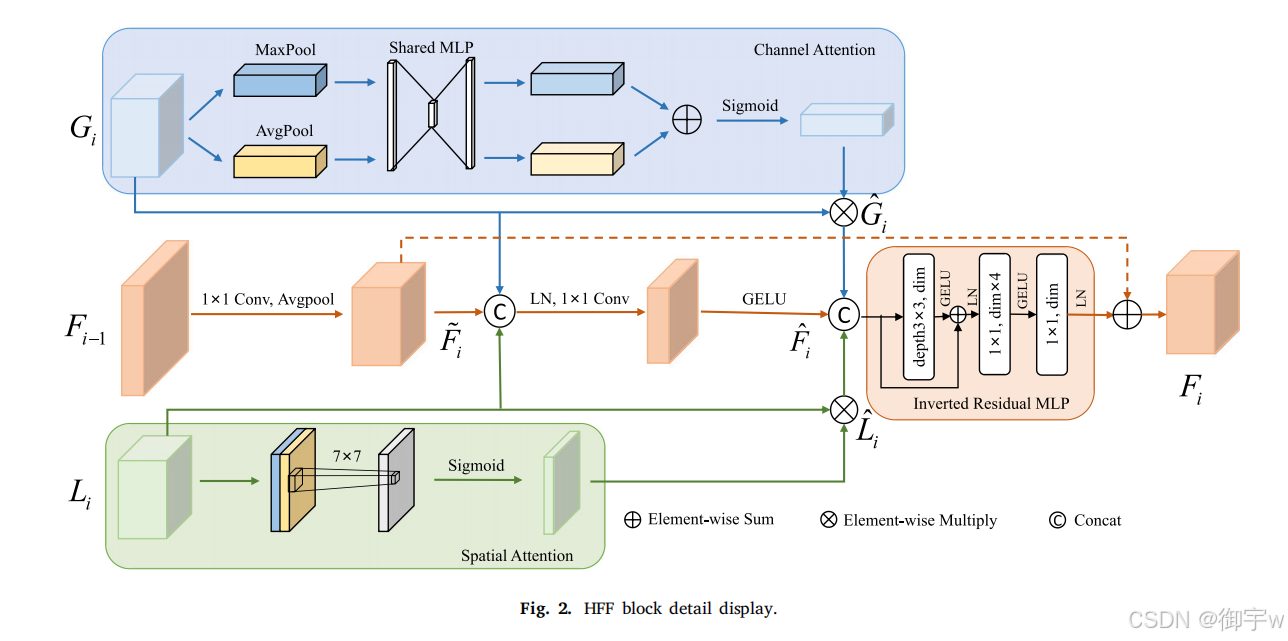

Hierarchical Feature Fusion Module 结构图：

2、代码实现

import torch
import torch.nn as nn


def drop_path_f(x, drop_prob = 0., training = False):
    if drop_prob == 0. or not training:
        return x
    keep_prob = 1 - drop_prob
    shape = (x.shape[0],) + (1,) * (x.ndim - 1) # work with diff dim tensors, not just 2D ConvNets
    random_tensor = keep_prob + torch.rand(shape, dtype=x.dtype, device=x.device)
    random_tensor.floor_() # binarize
    output = x.div(keep_prob) * random_tensor
    return output

class DropPath(nn.Module):
    def __init__(self, drop_prob=None):
        super(DropPath, self).__init__()
        self.drop_prob = drop_prob

    def forward(self, x):
        return drop_path_f(x, self.drop_prob, self.training)


class LayerNorm(nn.Module):
    def __init__(self, normalized_shape, eps=1e-6, data_format="channels_last"):
        super().__init__()
        self.weight = nn.Parameter(torch.ones(normalized_shape), requires_grad=True)
        self.bias = nn.Parameter(torch.zeros(normalized_shape), requires_grad=True)
        self.eps = eps
        self.data_format = data_format
        if self.data_format not in ["channels_last", "channels_first"]:
            raise ValueError(f"not support data format '{self.data_format}'")
        self.normalized_shape = (normalized_shape,)

    def forward(self, x: torch.Tensor) -> torch.Tensor:
        if self.data_format == "channels_last":
            return F.layer_norm(x, self.normalized_shape, self.weight, self.bias, self.eps)
        elif self.data_format == "channels_first":
            # [batch_size, channels, height, width]
            mean = x.mean(1, keepdim=True)
            var = (x - mean).pow(2).mean(1, keepdim=True)
            x = (x - mean) / torch.sqrt(var + self.eps)
            x = self.weight[:, None, None] * x + self.bias[:, None, None]
            return x


class HFF_block(nn.Module):
    def __init__(self, ch_1, ch_2, ch_int, ch_out, r_2=4, drop_rate=0.):
        super(HFF_block, self).__init__()
        self.maxpool=nn.AdaptiveMaxPool2d(1)
        self.avgpool=nn.AdaptiveAvgPool2d(1)
        self.se=nn.Sequential(
            nn.Conv2d(ch_2, ch_2 // r_2, 1,bias=False),
            nn.ReLU(),
            nn.Conv2d(ch_2 // r_2, ch_2, 1,bias=False)
        )
        self.sigmoid = nn.Sigmoid()
        self.spatial = Conv(2, 1, 7, bn=True, relu=False, bias=False)
        self.W_l = Conv(ch_1, ch_int, 1, bn=True, relu=False)
        self.W_g = Conv(ch_2, ch_int, 1, bn=True, relu=False)
        self.Avg = nn.AvgPool2d(2, stride=2)
        self.Updim = Conv(ch_int//2, ch_int, 1, bn=True, relu=True)
        self.norm1 = LayerNorm(ch_int * 3, eps=1e-6, data_format="channels_first")
        self.norm2 = LayerNorm(ch_int * 2, eps=1e-6, data_format="channels_first")
        self.norm3 = LayerNorm(ch_1 + ch_2 + ch_int, eps=1e-6, data_format="channels_first")
        self.W3 = Conv(ch_int * 3, ch_int, 1, bn=True, relu=False)
        self.W = Conv(ch_int * 2, ch_int, 1, bn=True, relu=False)

        self.gelu = nn.GELU()

        self.residual = IRMLP(ch_1 + ch_2 + ch_int, ch_out)
        self.drop_path = DropPath(drop_rate) if drop_rate > 0. else nn.Identity()

    def forward(self, l, g, f):

        W_local = self.W_l(l)   # local feature from Local Feature Block
        W_global = self.W_g(g)   # global feature from Global Feature Block
        if f is not None:
            W_f = self.Updim(f)
            W_f = self.Avg(W_f)
            shortcut = W_f
            X_f = torch.cat([W_f, W_local, W_global], 1)
            X_f = self.norm1(X_f)
            X_f = self.W3(X_f)
            X_f = self.gelu(X_f)
        else:
            shortcut = 0
            X_f = torch.cat([W_local, W_global], 1)
            X_f = self.norm2(X_f)
            X_f = self.W(X_f)
            X_f = self.gelu(X_f)

        # spatial attention for ConvNeXt branch
        l_jump = l
        max_result, _ = torch.max(l, dim=1, keepdim=True)
        avg_result = torch.mean(l, dim=1, keepdim=True)
        result = torch.cat([max_result, avg_result], 1)
        l = self.spatial(result)
        l = self.sigmoid(l) * l_jump

        # channel attetion for transformer branch
        g_jump = g
        max_result=self.maxpool(g)
        avg_result=self.avgpool(g)
        max_out=self.se(max_result)
        avg_out=self.se(avg_result)
        g = self.sigmoid(max_out+avg_out) * g_jump

        fuse = torch.cat([g, l, X_f], 1)
        fuse = self.norm3(fuse)
        fuse = self.residual(fuse)
        fuse = shortcut + self.drop_path(fuse)
        return fuse

class Conv(nn.Module):
    def __init__(self, inp_dim, out_dim, kernel_size=3, stride=1, bn=False, relu=True, bias=True, group=1):
        super(Conv, self).__init__()
        self.inp_dim = inp_dim
        self.conv = nn.Conv2d(inp_dim, out_dim, kernel_size, stride, padding=(kernel_size-1)//2, bias=bias)
        self.relu = None
        self.bn = None
        if relu:
            self.relu = nn.ReLU(inplace=True)
        if bn:
            self.bn = nn.BatchNorm2d(out_dim)

    def forward(self, x):
        assert x.size()[1] == self.inp_dim, "{} {}".format(x.size()[1], self.inp_dim)
        x = self.conv(x)
        if self.bn is not None:
            x = self.bn(x)
        if self.relu is not None:
            x = self.relu(x)
        return x

#### Inverted Residual MLP
class IRMLP(nn.Module):
    def __init__(self, inp_dim, out_dim):
        super(IRMLP, self).__init__()
        self.conv1 = Conv(inp_dim, inp_dim, 3, relu=False, bias=False, group=inp_dim)
        self.conv2 = Conv(inp_dim, inp_dim * 4, 1, relu=False, bias=False)
        self.conv3 = Conv(inp_dim * 4, out_dim, 1, relu=False, bias=False, bn=True)
        self.gelu = nn.GELU()
        self.bn1 = nn.BatchNorm2d(inp_dim)

    def forward(self, x):

        residual = x
        out = self.conv1(x)
        out = self.gelu(out)
        out += residual

        out = self.bn1(out)
        out = self.conv2(out)
        out = self.gelu(out)
        out = self.conv3(out)

        return out


if __name__ == '__main__':
    x = torch.randn(4, 64, 128, 128).cuda()
    y = torch.randn(4, 64, 128, 128).cuda()
    # z 可有可无
    z = torch.randn(4, 32, 256, 256).cuda()
    model = HFF_block(64, 64, 64, 64).cuda()
    out = model(x, y, z)
    print(out.shape)
