ESP32学习---ESP-NOW

乐鑫编程指南中关于ESP-NOW的介绍：https://docs.espressif.com/projects/esp-idf/zh_CN/v5.2.1/esp32/api-reference/network/esp_now.html

乐鑫提供的esp-now仓库：https://github.com/espressif/esp-now

基于Arduino IDE环境

基于arduino环境的ESP-NOW教程：https://randomnerdtutorials.com/esp-now-esp32-arduino-ide/

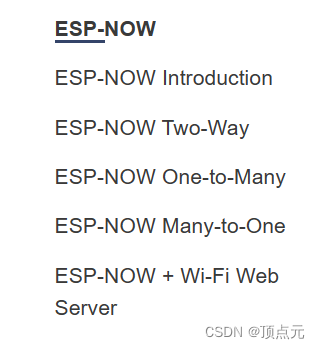

可以从左侧的目录栏找到对应的ESP-NOW教程的位置，如下所示：
在这里插入图片描述

ESP-NOW自动配对功能实现的参考链接：https://randomnerdtutorials.com/esp-now-auto-pairing-esp32-esp8266/

获取mac地址

对于ESP-NOW协议来说mac地址是个不可或缺的数据，模块之间的配对需要用到，这里是获取mac地址的方法：

#include <WiFi.h>

void setup() {
  // put your setup code here, to run once:
  Serial.begin(115200);
  WiFi.mode(WIFI_MODE_STA);
  Serial.println(WiFi.macAddress());
}

void loop() {
  // put your main code here, to run repeatedly:

}

打开串口监视器复位模块显示信息中会包含如下信息即为mac地址

16:38:06.244 -> A0:B7:65:60:E7:B8

单播通讯

一对多通讯

多对一通讯

多对多通讯

这里使用3个模块之间互相传输数据，首先我们先要获取到3个模块的MAC地址，每个模块向外发送数据并同时接收来自于其它两个模块的数据

模块1代码

esp_now_1.ino :


//发送端的程序
#include <WiFi.h>
#include "esp_now.h"

// 1作为发送，2和3作为接收
//接收端的MAC地址 16:38:06.244 -> A0:B7:65:60:E7:B8
uint8_t broadcastAddress1[] = {0xA0,0xB7,0x65,0x4F,0x27,0x30};
uint8_t broadcastAddress2[] = {0xA0,0xB7,0x65,0x60,0xE7,0xB8};
uint8_t broadcastAddress3[] = {0xA0,0xB7,0x65,0x48,0x78,0x9C};//A0:B7:65:48:78:9C
// uint8_t broadcastAddress2[] = {0xFF,0xFF,0xFF,0xFF,0xFF,0xFF};
// uint8_t broadcastAddress3[] = {0xFF,0xFF,0xFF,0xFF,0xFF,0xFF};

//发送数据类型
typedef struct {
  char a[32];
  int b;
  float c;
  bool d;
} Message_t;

Message_t msg, rcv_msg;

void OnDataSent(const uint8_t *mac_addr, esp_now_send_status_t status) {
  Serial.print("\r\nLast Packet Send Status:\t");
  Serial.println(status == ESP_NOW_SEND_SUCCESS ? "Delivery Success" : "Delivery Fail");
}

void OnDataRecv(const uint8_t *mac_addr, const uint8_t *incomingData, int len) {
  memcpy(&rcv_msg, incomingData, sizeof(rcv_msg));
  Serial.print("Bytes received: ");
  Serial.println(len);
  Serial.print("Char: ");
  Serial.print(rcv_msg.a);
  Serial.print("Int: ");
  Serial.println(rcv_msg.b);
  Serial.print("float: ");
  Serial.println(rcv_msg.c);
  Serial.print("Bool: ");
  Serial.println(rcv_msg.d);
  Serial.println();
}

esp_now_peer_info_t peerInfo2;
esp_now_peer_info_t peerInfo3;

void setup() {
  // put your setup code here, to run once:
  Serial.begin(115200);
  WiFi.mode(WIFI_MODE_STA);
  Serial.println(WiFi.macAddress());

  if(esp_now_init() != ESP_OK){
    Serial.println("Error init ESP-NOW");
    return;
  }
  esp_now_register_send_cb(OnDataSent); //注册发送回调函数
  esp_now_register_recv_cb(OnDataRecv); //注册接收回调函数

  //注册通信频道
  // esp_now_peer_info_t peerInfo;
  memcpy(peerInfo2.peer_addr, broadcastAddress2, 6);
  char macStr[18];
  snprintf(macStr,sizeof(macStr),"%02x:%02x:%02x:%02x:%02x:%02x", peerInfo2.peer_addr[0],
    peerInfo2.peer_addr[1],peerInfo2.peer_addr[2],peerInfo2.peer_addr[3],
    peerInfo2.peer_addr[4], peerInfo2.peer_addr[5]);
  Serial.print("mac addr: ");Serial.println(macStr);
  peerInfo2.channel = 1; //通道
  peerInfo2.encrypt = false; //是否加密

  if(esp_now_add_peer(&peerInfo2) != ESP_OK) {
    Serial.println("Failed to add peer 2");
    return;
  }

  // 3
  memcpy(peerInfo3.peer_addr, broadcastAddress3, 6);
  peerInfo3.channel = 1; //
  peerInfo3.encrypt = false;
  if(esp_now_add_peer(&peerInfo3) != ESP_OK) {
    Serial.println("Failed to add peer 3");
    return;
  }

}

void loop() {
  // put your main code here, to run repeatedly:
  strcpy(msg.a, "this is a char");
  msg.b = random(1, 20);
  msg.c = 10.0f;
  msg.d = false;

  esp_err_t result = esp_now_send(0, (uint8_t *)&msg, sizeof(msg));
  if(result == ESP_OK) {
    Serial.println("Sent with success");
  } else {
    Serial.println("Error sending the data");
  }
  delay(200);
}

模块2

esp_now_2.ino

// 接收端程序
#include <WiFi.h>
#include "esp_now.h"

//2作为发送，1和3作为接收
uint8_t broadcastAddress1[] = {0xA0,0xB7,0x65,0x4F,0x27,0x30};
uint8_t broadcastAddress2[] = {0xA0,0xB7,0x65,0x60,0xE7,0xB8};
uint8_t broadcastAddress3[] = {0xA0,0xB7,0x65,0x48,0x78,0x9C};//A0:B7:65:48:78:9C

typedef struct {
  char a[32];
  int b;
  float c;
  bool d;
}Message_t;

Message_t send_msg, rcv_msg;

void OnDataSend(const uint8_t *mac_addr, esp_now_send_status_t status) {
  Serial.print("\r\nLast Packet Send Status:\t");
  Serial.println(status == ESP_NOW_SEND_SUCCESS ? "Delivery Success" : "Delivery Fail");
}

// 回调函数，当接收到消息时会调用该函数
void OnDataRecv(const uint8_t *mac, const uint8_t *incomingData, int len){
  memcpy(&rcv_msg, incomingData, sizeof(rcv_msg));
  Serial.print("Bytes received: ");
  Serial.println(len);
  Serial.print("Char: ");
  Serial.print(rcv_msg.a);
  Serial.print("Int: ");
  Serial.println(rcv_msg.b);
  Serial.print("float: ");
  Serial.println(rcv_msg.c);
  Serial.print("Bool: ");
  Serial.println(rcv_msg.d);
  Serial.println();
}

 esp_now_peer_info_t peerInfo1;
 esp_now_peer_info_t peerInfo3;

void setup() {
  // put your setup code here, to run once:
  Serial.begin(115200);
  WiFi.mode(WIFI_STA);
  Serial.println(WiFi.macAddress());
  if(esp_now_init() != ESP_OK) {
    Serial.println("Error init ESP-NOW");
    return;
  }

  esp_now_register_recv_cb(OnDataRecv); //注册接收信息回调函数
  esp_now_register_send_cb(OnDataSend);

  //设置通信频道
  //esp_now_peer_info_t peerInfo;
  memcpy(peerInfo1.peer_addr, broadcastAddress1, 6);
  peerInfo1.channel = 1; //通道
  peerInfo1.encrypt = false;
  if(esp_now_add_peer(&peerInfo1) != ESP_OK) {
    Serial.println("Failed to add peer");
    return;
  }

  memcpy(peerInfo3.peer_addr, broadcastAddress3, 6);
  peerInfo3.channel = 1; //通道
  peerInfo3.encrypt = false;
  if(esp_now_add_peer(&peerInfo3) != ESP_OK) {
    Serial.println("Failed to add peer");
    return;
  }
}

void loop() {
  // put your main code here, to run repeatedly:
  strcpy(send_msg.a, "this is a slaver");
  send_msg.b = random(1,50);
  send_msg.c = 20.0f;
  send_msg.d = true;

  esp_err_t result = esp_now_send(0, (uint8_t *)&send_msg, sizeof(send_msg));
  if(result == ESP_OK){
    Serial.println("Send with success");
  } else {
    Serial.println("Error sending the data");
  }
  delay(200);
}

模块3

esp_now_3.ino

// 接收端程序
#include <WiFi.h>
#include "esp_now.h"

//3作为发送，1和2作为接收
uint8_t broadcastAddress1[] = {0xA0,0xB7,0x65,0x4F,0x27,0x30};
uint8_t broadcastAddress2[] = {0xA0,0xB7,0x65,0x60,0xE7,0xB8};
uint8_t broadcastAddress3[] = {0xA0,0xB7,0x65,0x48,0x78,0x9C};//A0:B7:65:48:78:9C

typedef struct {
  char a[32];
  int b;
  float c;
  bool d;
}Message_t;

Message_t send_msg, rcv_msg;

void OnDataSend(const uint8_t *mac_addr, esp_now_send_status_t status) {
  Serial.print("\r\nLast Packet Send Status:\t");
  Serial.println(status == ESP_NOW_SEND_SUCCESS ? "Delivery Success" : "Delivery Fail");
}

// 回调函数，当接收到消息时会调用该函数
void OnDataRecv(const uint8_t *mac, const uint8_t *incomingData, int len){
  memcpy(&rcv_msg, incomingData, sizeof(rcv_msg));
  Serial.print("Bytes received: ");
  Serial.println(len);
  Serial.print("Char: ");
  Serial.print(rcv_msg.a);
  Serial.print("Int: ");
  Serial.println(rcv_msg.b);
  Serial.print("float: ");
  Serial.println(rcv_msg.c);
  Serial.print("Bool: ");
  Serial.println(rcv_msg.d);
  Serial.println();
}

 esp_now_peer_info_t peerInfo1;
 esp_now_peer_info_t peerInfo2;

void setup() {
  // put your setup code here, to run once:
  Serial.begin(115200);
  WiFi.mode(WIFI_STA);
  Serial.println(WiFi.macAddress());
  if(esp_now_init() != ESP_OK) {
    Serial.println("Error init ESP-NOW");
    return;
  }

  esp_now_register_recv_cb(OnDataRecv); //注册接收信息回调函数
  esp_now_register_send_cb(OnDataSend);

  //设置通信频道
  //esp_now_peer_info_t peerInfo;
  memcpy(peerInfo1.peer_addr, broadcastAddress1, 6);
  peerInfo1.channel = 1; //通道
  peerInfo1.encrypt = false;
  if(esp_now_add_peer(&peerInfo1) != ESP_OK) {
    Serial.println("Failed to add peer");
    return;
  }

  memcpy(peerInfo2.peer_addr, broadcastAddress2, 6);
  peerInfo2.channel = 1; //通道
  peerInfo2.encrypt = false;
  if(esp_now_add_peer(&peerInfo2) != ESP_OK) {
    Serial.println("Failed to add peer");
    return;
  }
}

void loop() {
  // put your main code here, to run repeatedly:
  strcpy(send_msg.a, "this is a slaver");
  send_msg.b = random(1,50);
  send_msg.c = 30.0f;
  send_msg.d = true;

  esp_err_t result = esp_now_send(0, (uint8_t *)&send_msg, sizeof(send_msg));
  if(result == ESP_OK){
    Serial.println("Send with success");
  } else {
    Serial.println("Error sending the data");
  }
  delay(200);
}

广播通讯

参考链接：https://dronebotworkshop.com/esp-now/中的Broadcast Mode章节

在这个模式下测试至少需要两个ESP32模块，相对于上面的多对多通讯的实现而言，这种方式可以不用提前配对且可以多个模块共用一套代码。当然广播通讯模式可也能会有一些问题：例如有些产品通过网络广播的形式形成了一个网络，可能会受到其它网络通过广播模式发数据的影响，具体的情况还需还要根据实际的应用来考虑。

这里通过广播模式每隔0.5S发送一次hello world，可以通过MAC地址确定对应的信息是由哪个模块发送来的。

esp_now_broadcast.ino

#include "WiFi.h"
#include "esp_now.h"

void formatMacAddress(const uint8_t *macAddr, char *buffer, int maxLength){
  snprintf(buffer, maxLength, "%02X:%02X:%02X:%02X:%02X:%02X", macAddr[0], macAddr[1], macAddr[2], macAddr[3], macAddr[4], macAddr[5]);
}

void receiveCallback(const uint8_t *macAddr, const uint8_t *data, int dataLen) {
  // 将接收到的数据复制到缓存中，最大允许250个字节 + 1个null终止字节
  char buffer[ESP_NOW_MAX_DATA_LEN+1];
  int msgLen = min(ESP_NOW_MAX_DATA_LEN, dataLen);
  strncpy(buffer, (const char *)data, msgLen);

  buffer[msgLen] = 0; //确保最后一个字节为null

  char macStr[18];
  formatMacAddress(macAddr, macStr, 18);
  Serial.printf("Received message from: %s - %s", macStr, buffer);
}

void sendCallback(const uint8_t *macAddr, esp_now_send_status_t status) {
  char macStr[18];
  formatMacAddress(macAddr, macStr, 18);
  Serial.print("Last Packet Send to: ");
  Serial.println(macStr);
  Serial.println(status == ESP_NOW_SEND_SUCCESS ? "Delivery Success" : "Delivery Fail");
}

esp_now_peer_info_t peerInfo = {};
uint8_t broadcastAddress[] = {0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF};

void broadcast(const String &message) {
  // uint8_t broadcastAddress[] = {0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF};
  // esp_now_peer_info_t peerInfo = {};
  memcpy(&peerInfo.peer_addr, broadcastAddress, 6);
  if(!esp_now_is_peer_exist(broadcastAddress)) {
    esp_now_add_peer(&peerInfo);
  }
  esp_err_t result = esp_now_send(peerInfo.peer_addr, (const uint8_t *)message.c_str(), message.length());
  if(result == ESP_OK) {
    Serial.println("Broadcast message success");
  } else if(result == ESP_ERR_ESPNOW_NOT_INIT) {
    Serial.println("ESP-NOW not Init");
  } else if(result == ESP_ERR_ESPNOW_ARG) {
    Serial.println("Invalid Argument");
  } else if(result == ESP_ERR_ESPNOW_INTERNAL) {
    Serial.println("Internal Error");
  } else if(result == ESP_ERR_ESPNOW_NO_MEM) {
    Serial.println("ESP_ERR_ESPNOW_NO_MEM");
  } else if(result == ESP_ERR_ESPNOW_NOT_FOUND) {
    Serial.println("Peer not found");
  } else {
    Serial.println("Unknown error");
  }
}

void setup() {
  // put your setup code here, to run once:
  Serial.begin(115200);
  delay(1000);

  WiFi.mode(WIFI_STA);
  Serial.println("ESP-NOW Broadcast Demo");

  Serial.print("MAC Address: ");
  Serial.println(WiFi.macAddress());

  WiFi.disconnect();

  if(esp_now_init() == ESP_OK) {
    Serial.println("ESP-NOW init success");
    esp_now_register_recv_cb(receiveCallback);
    esp_now_register_send_cb(sendCallback);
  } else {
    Serial.println("ESP-NOW init failed");
    delay(3000);
    ESP.restart();
  }
}

void loop() {
  // put your main code here, to run repeatedly:
  broadcast("hello world!");
  delay(500);
}

基于ESP-IDF框架

github上找到的基于网状网络的ESP-NOW协议组件：https://github.com/aZholtikov/zh_network/tree/main

无需配对即可进行数据传输
支持广播模式和单播模式
…
详细的说明可到链接地址查看，后续有时间可以研究下。

后续内容待添加。。。
