💥1 概述

摘要：

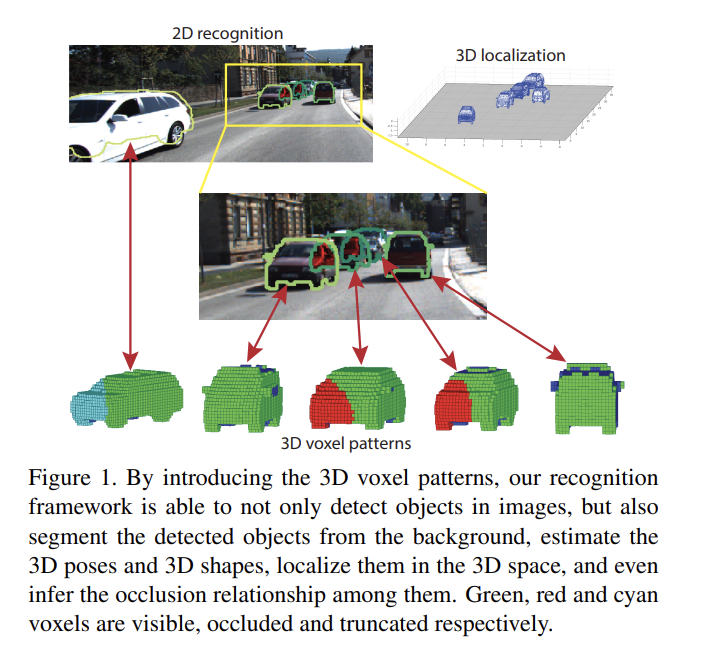

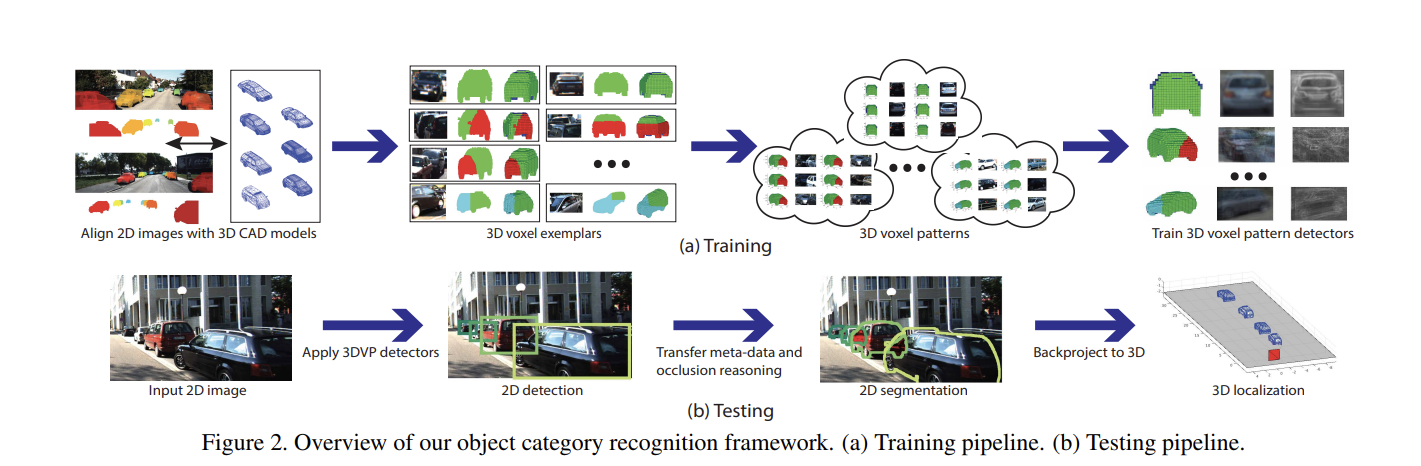

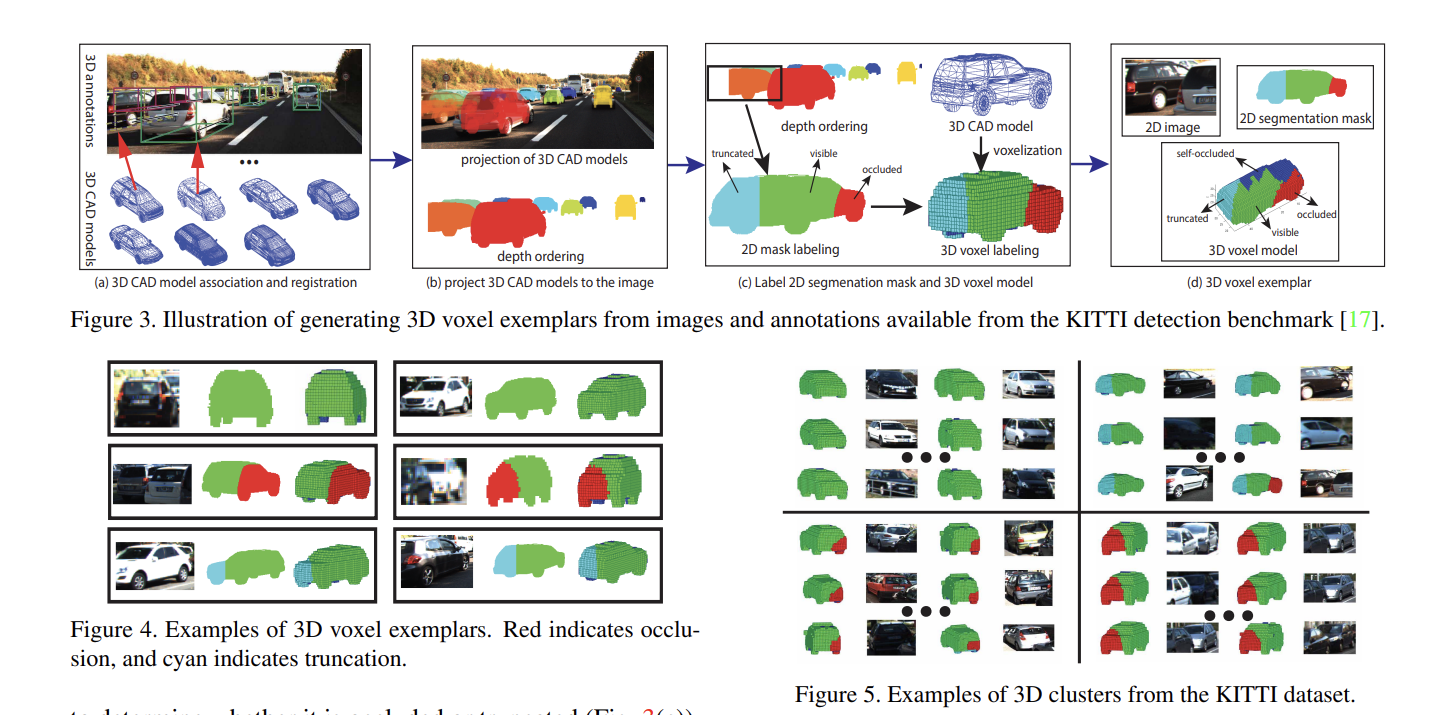

尽管在将物体识别为图像中的二维边界框方面取得了很大进展，但从单幅图像中检测被遮挡的物体并估计多个物体的三维属性仍然非常具有挑战性。在本文中，我们提出了一种新的对象表示方法，即3D体素模式（3DVP），该方法联合编码了对象的关键属性，包括外观、3D形状、视点、遮挡和截断。我们以数据驱动的方式发现3DVP，并为3DVP字典训练一组专门的检测器。3DVP检测器能够检测具有特定可见性模式的物体，并将元数据从3DVP传输到检测到的物体，如2D分割掩模、3D姿态以及遮挡或截断边界。转移的元数据使我们能够推断出对象之间的遮挡关系，从而提供改进的对象识别结果。实验在KITTI检测基准[17]和室外场景数据集[41]上进行。我们在汽车检测和姿态估计方面取得了最先进的结果，并取得了显著的优势（在KITTI的困难数据中为6%）。我们还验证了我们的方法在从背景中准确分割对象并在3D中定位它们的能力。

Abstract:

Despite the great progress achieved in recognizing objects as 2D bounding boxes in images, it is still very challenging to detect occluded objects and estimate the 3D properties of multiple objects from a single image. In this paper, we propose a novel object representation, 3D Voxel Pattern (3DVP), that jointly encodes the key properties of objects including appearance, 3D shape, viewpoint, occlusion and truncation. We discover 3DVPs in a data-driven way, and train a bank of specialized detectors for a dictionary of 3DVPs. The 3DVP detectors are capable of detecting objects with specific visibility patterns and transferring the meta-data from the 3DVPs to the detected objects, such as 2D segmentation mask, 3D pose as well as occlusion or truncation boundaries. The transferred meta-data allows us to infer the occlusion relationship among objects, which in turn provides improved object recognition results. Experiments are conducted on the KITTI detection benchmark [17] and the outdoor-scene dataset [41]. We improve state-of-the-art results on car detection and pose estimation with notable margins (6% in difficult data of KITTI). We also verify the ability of our method in accurately segmenting objects from the background and localizing them in 3D.

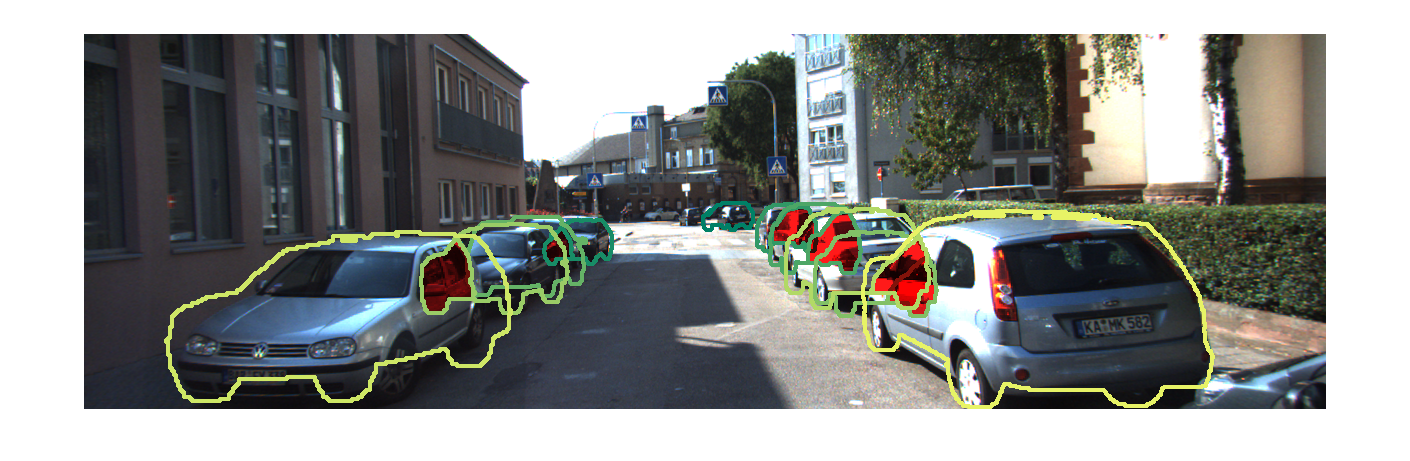

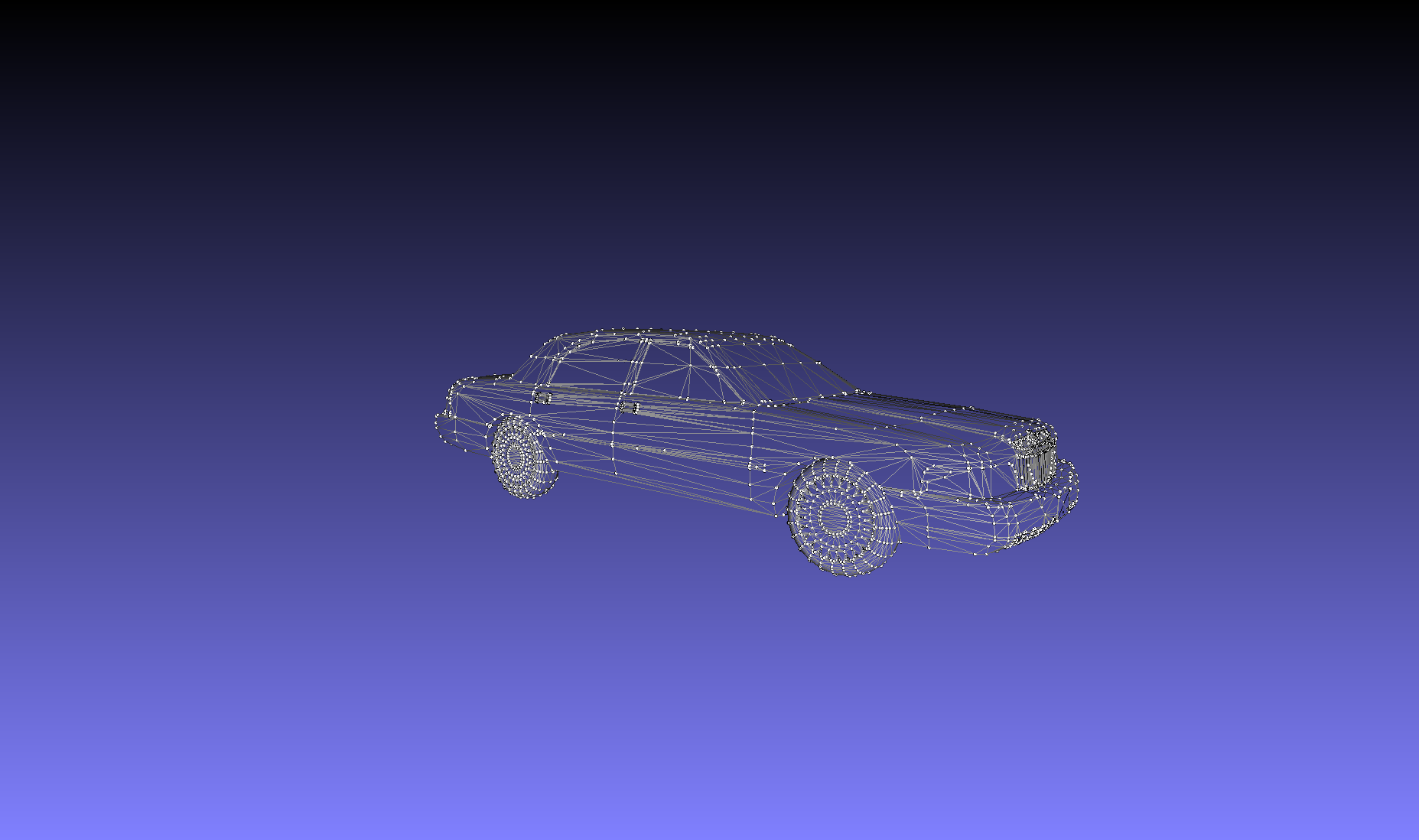

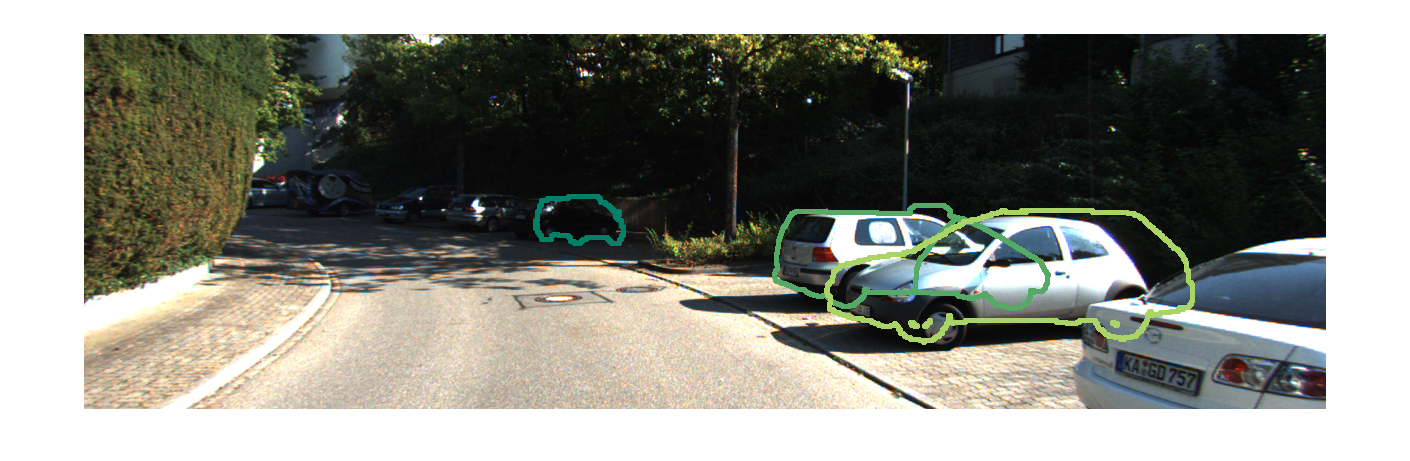

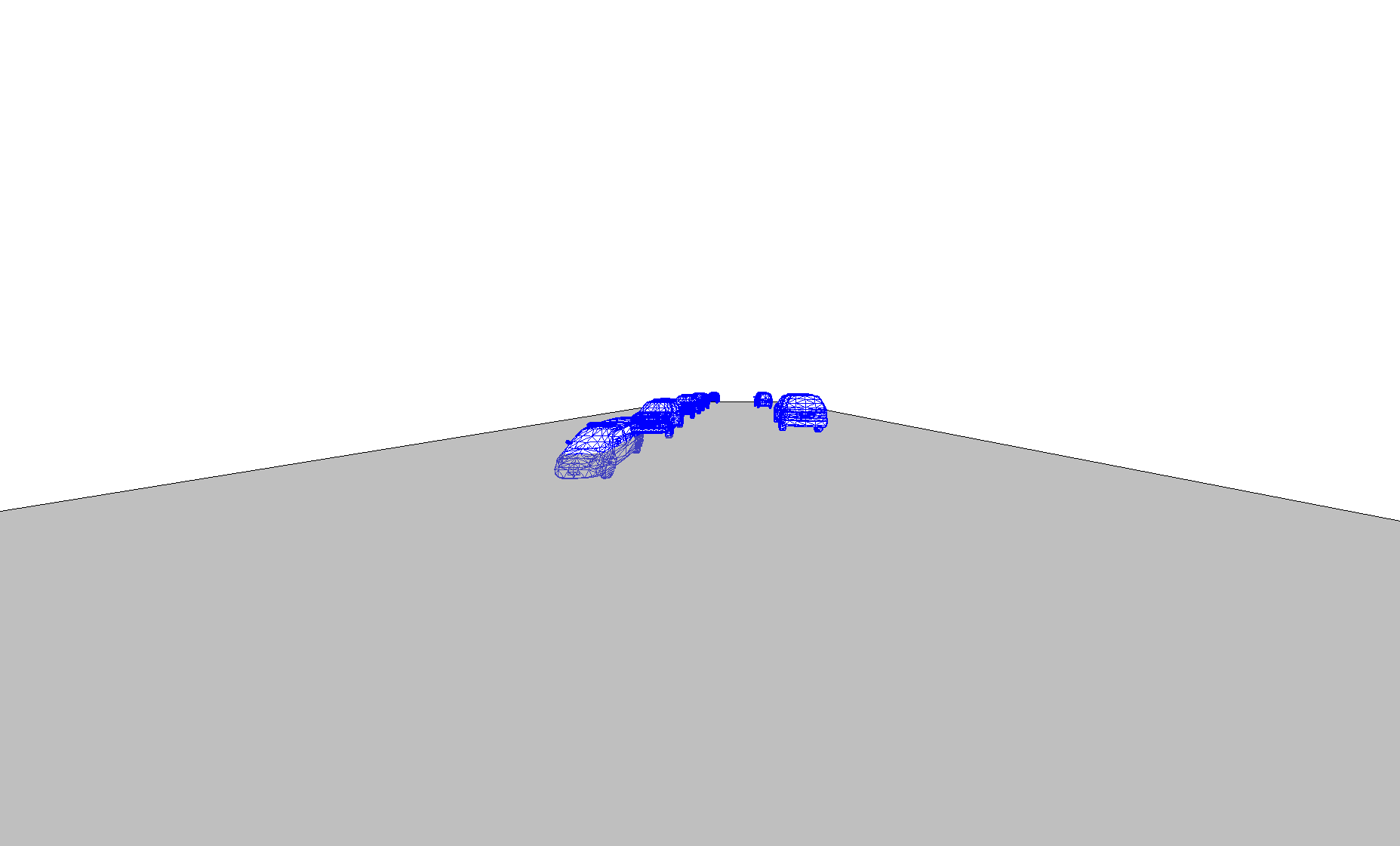

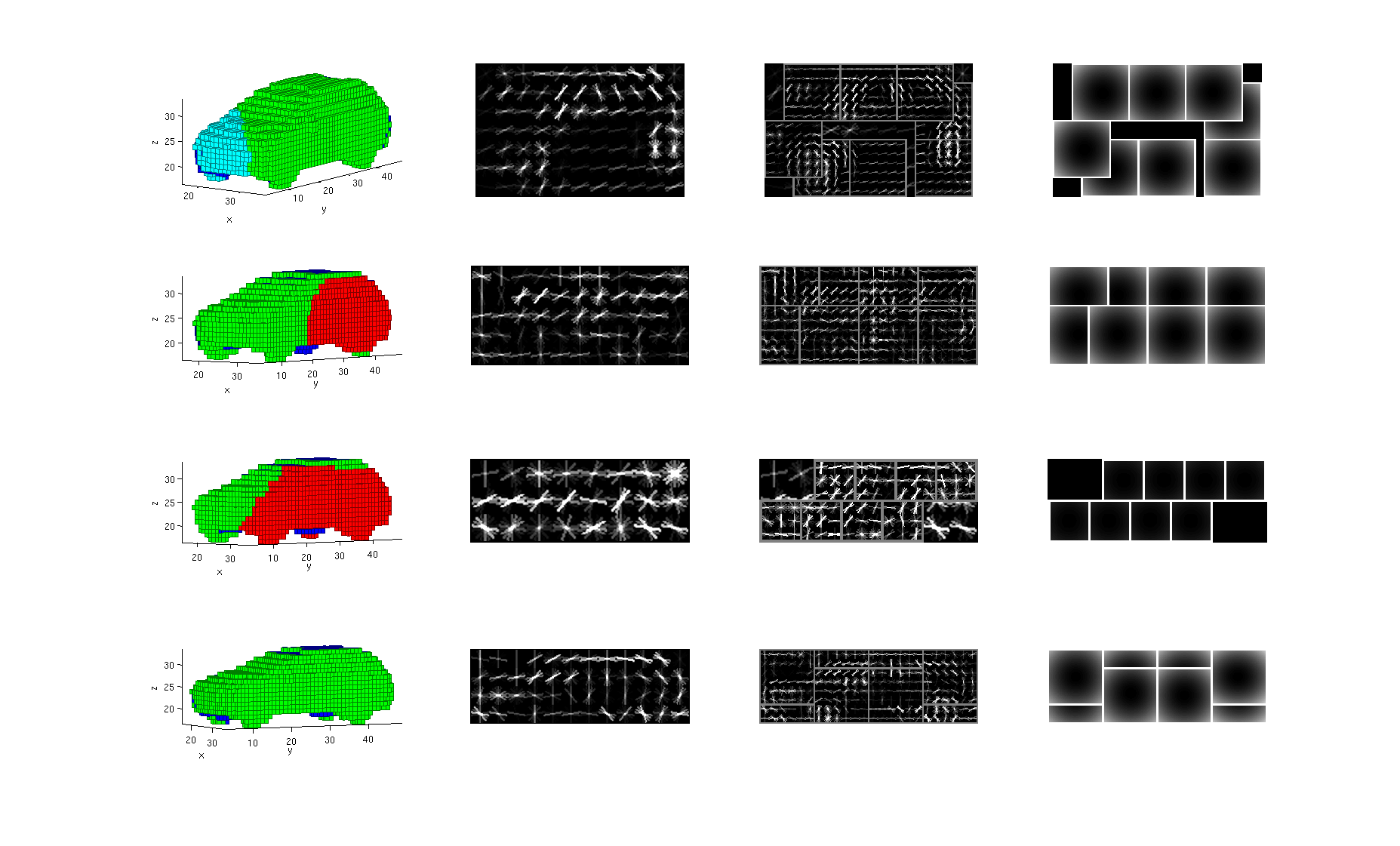

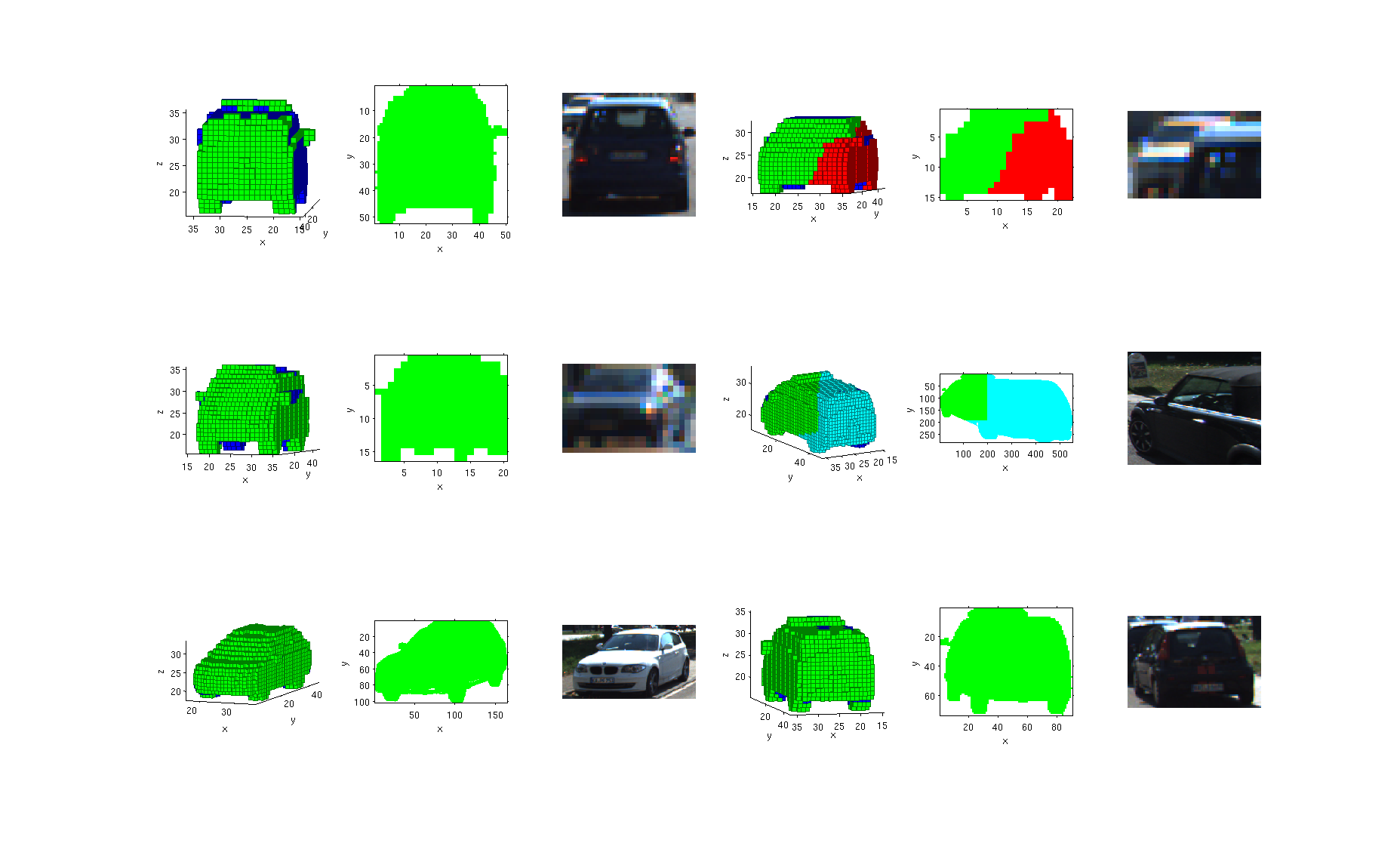

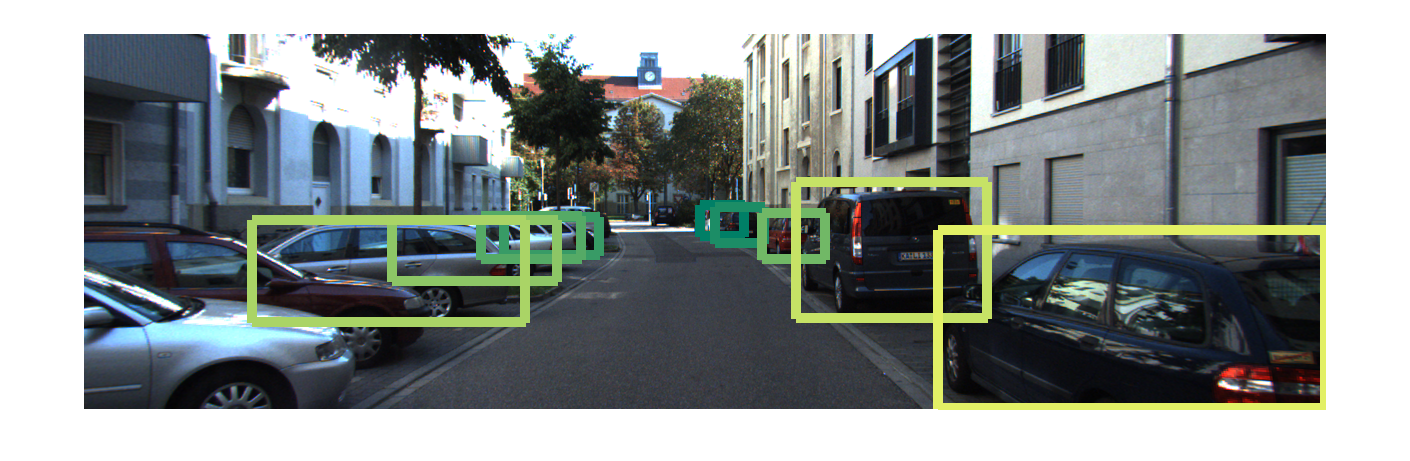

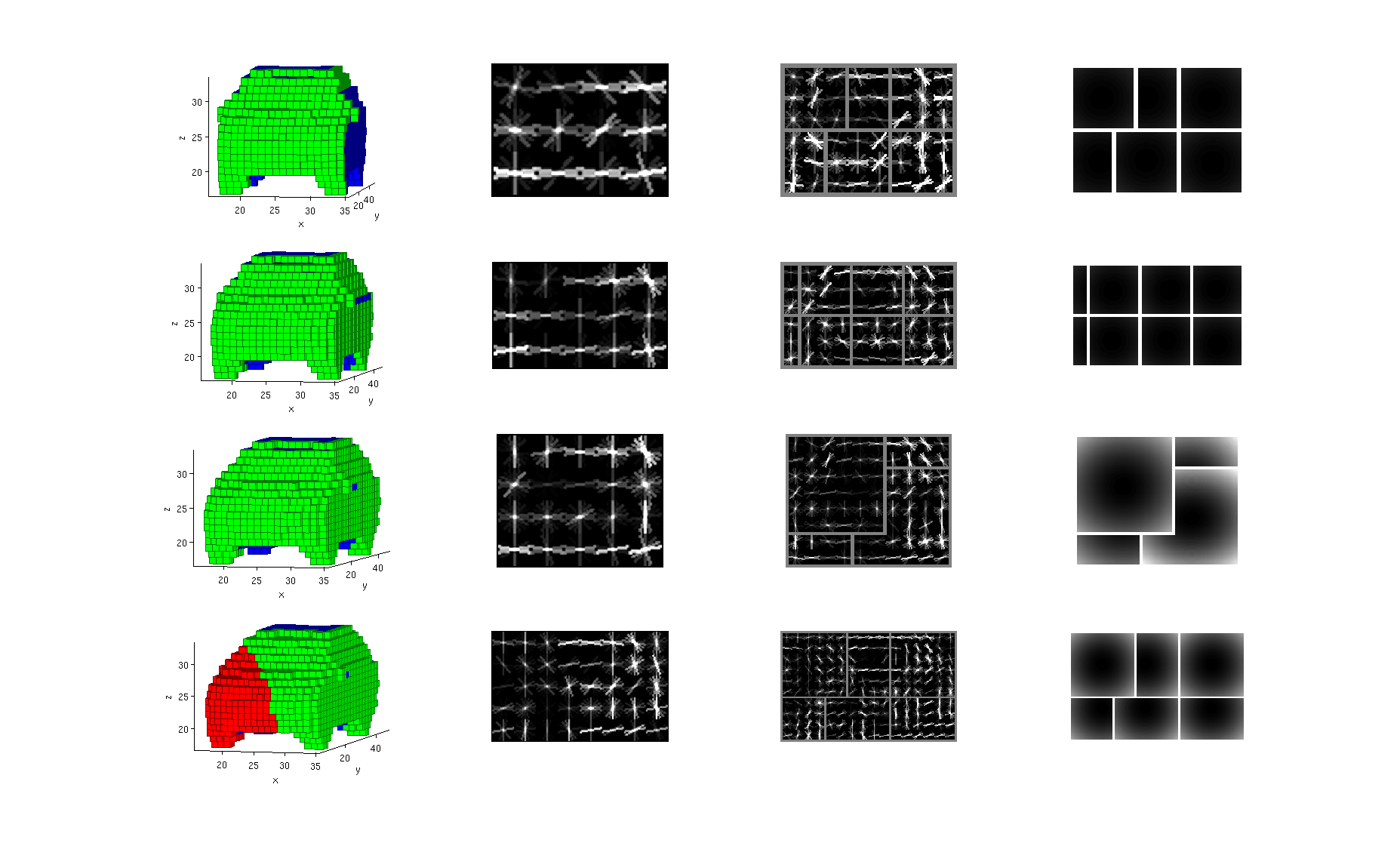

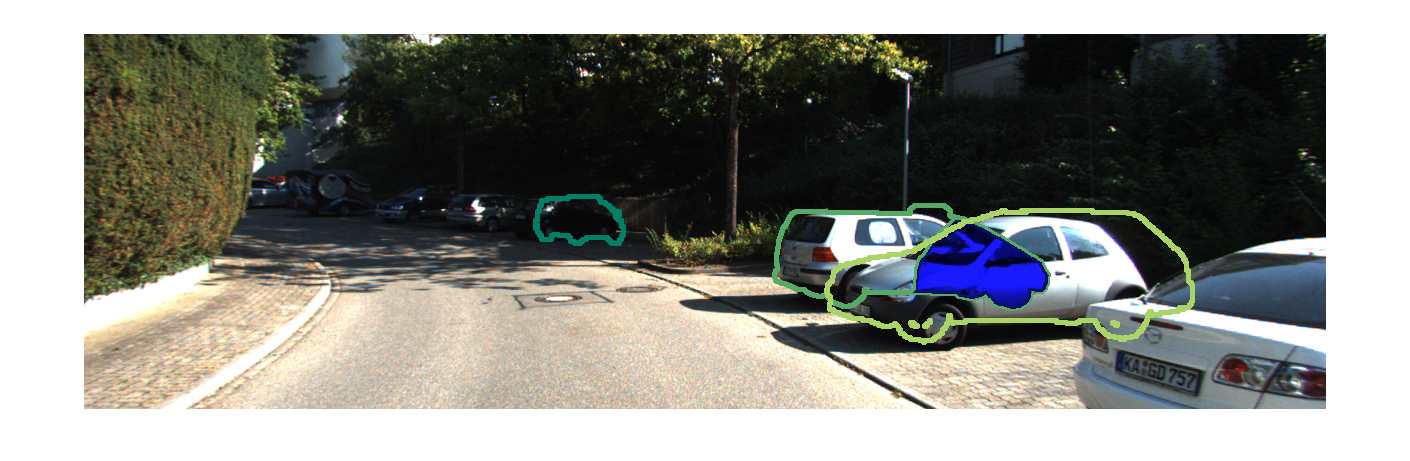

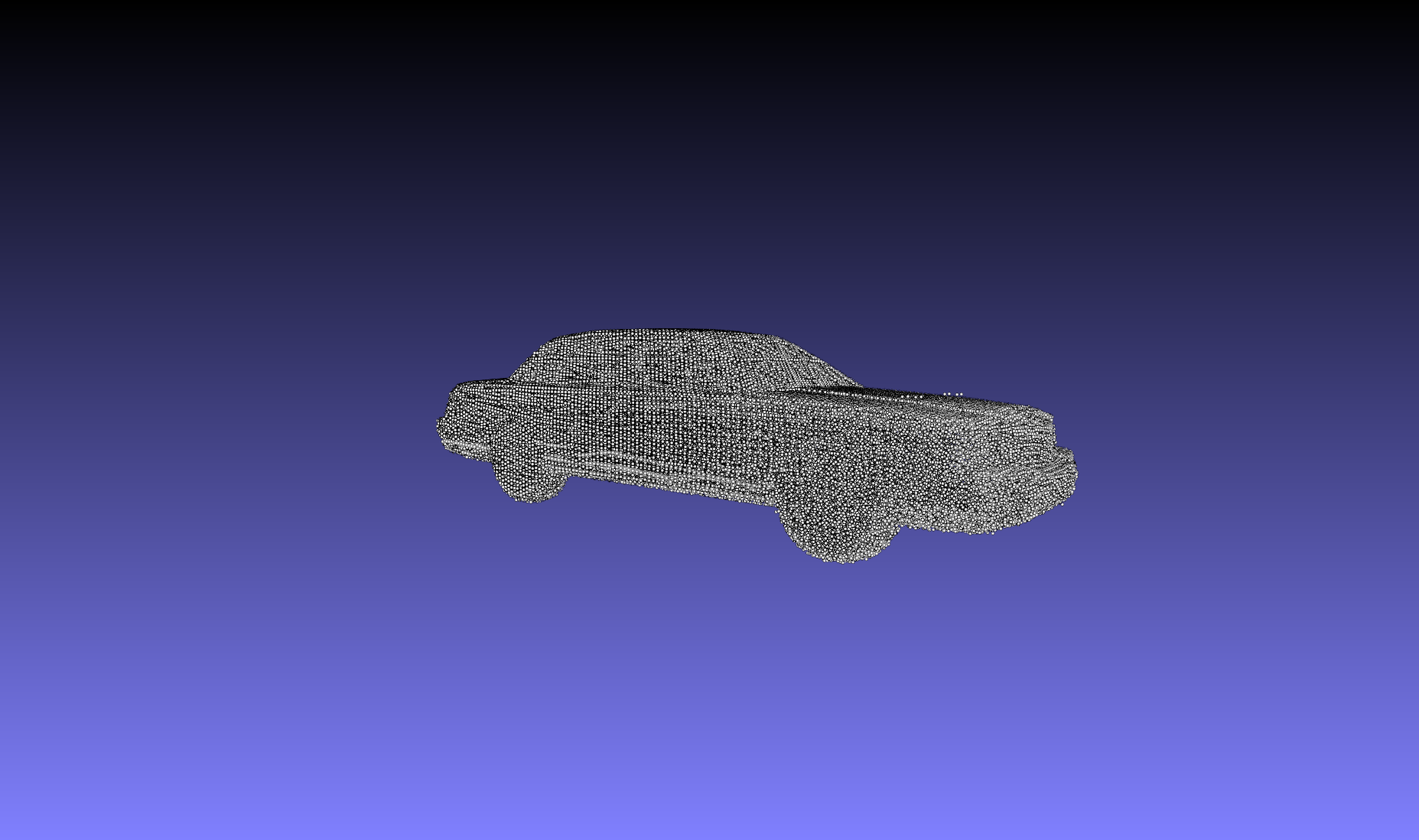

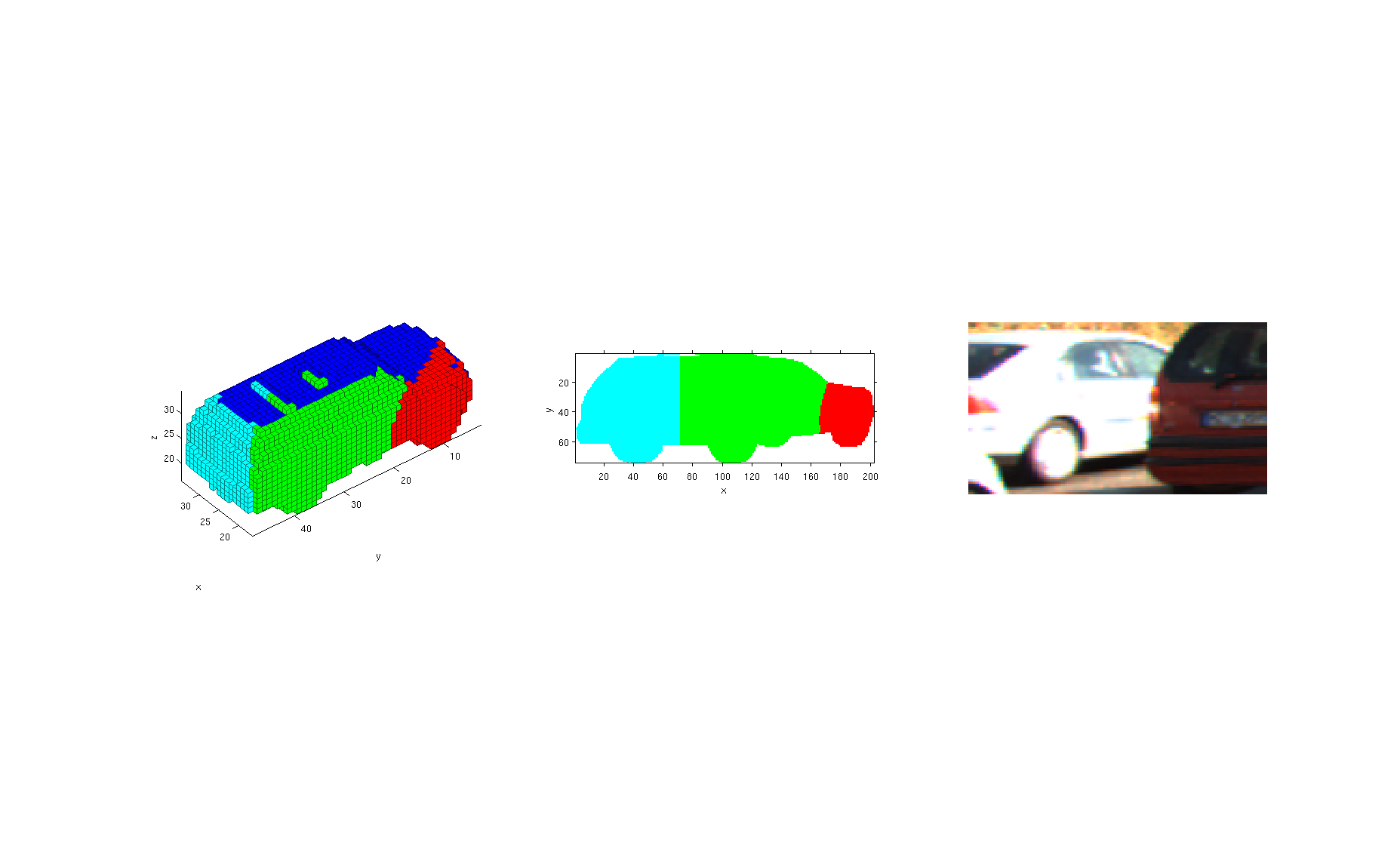

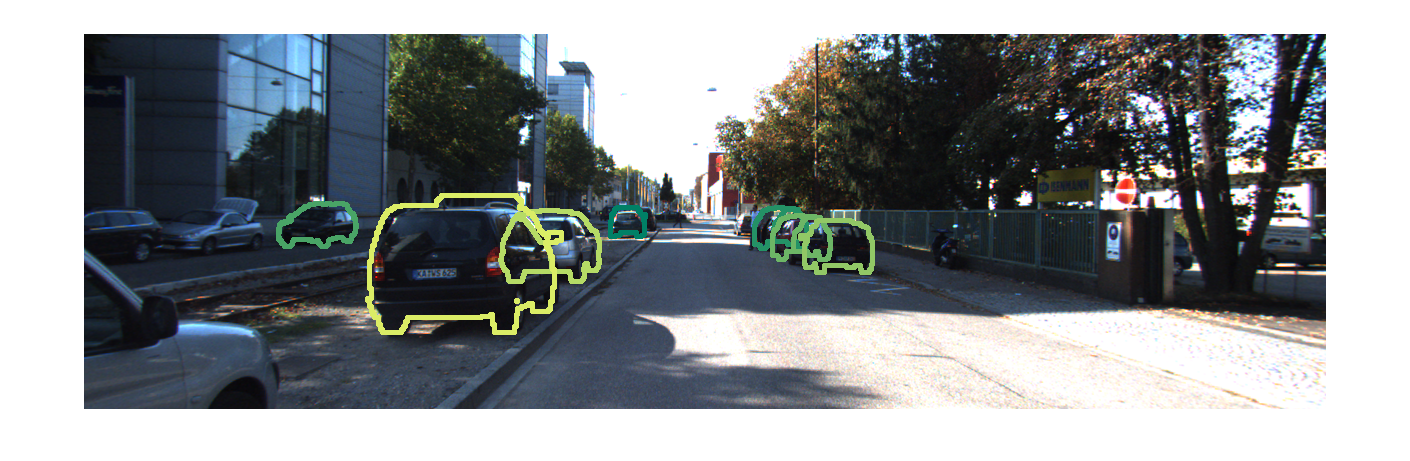

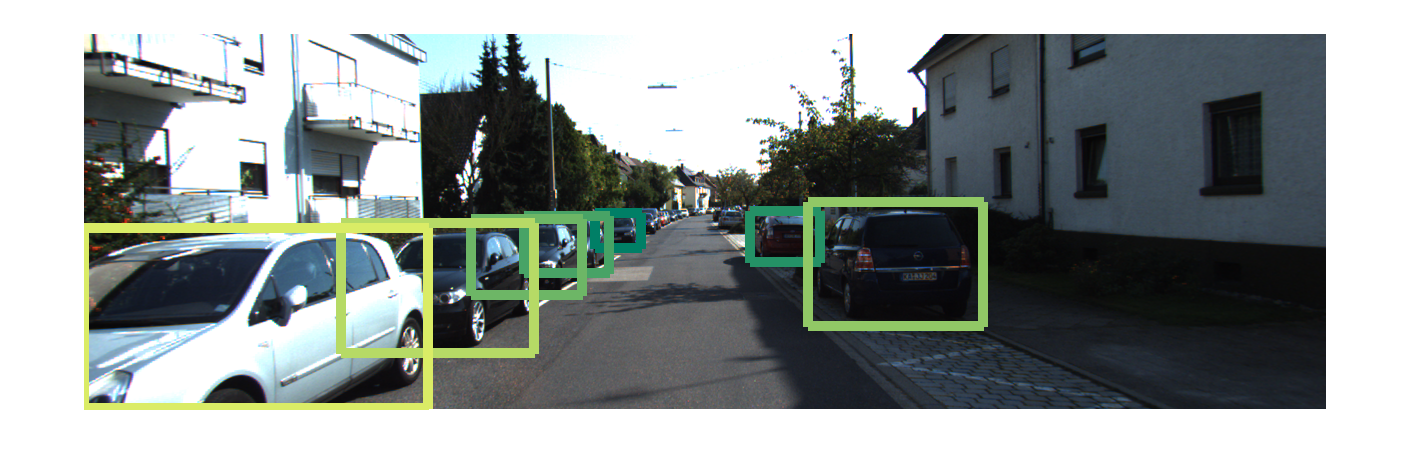

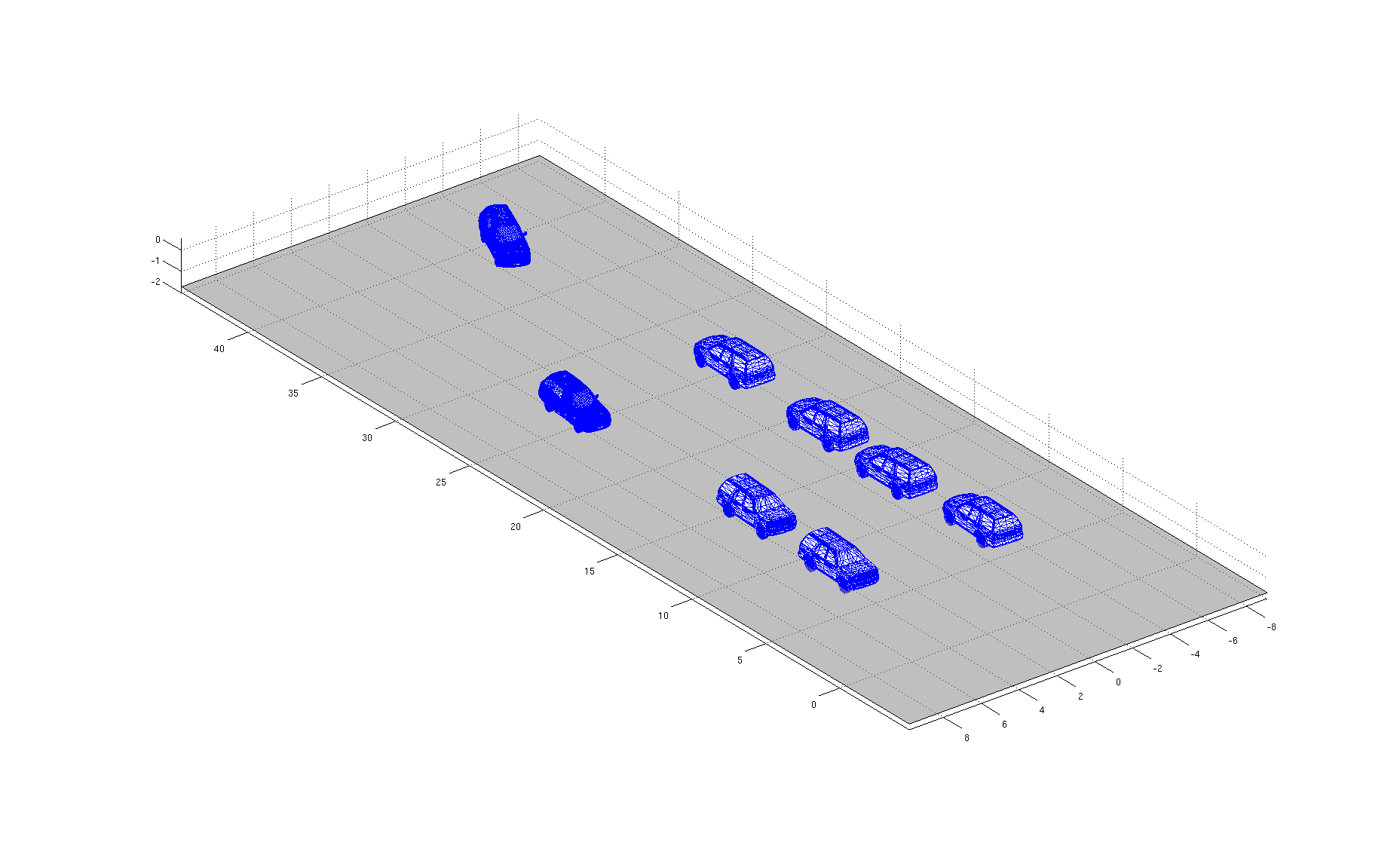

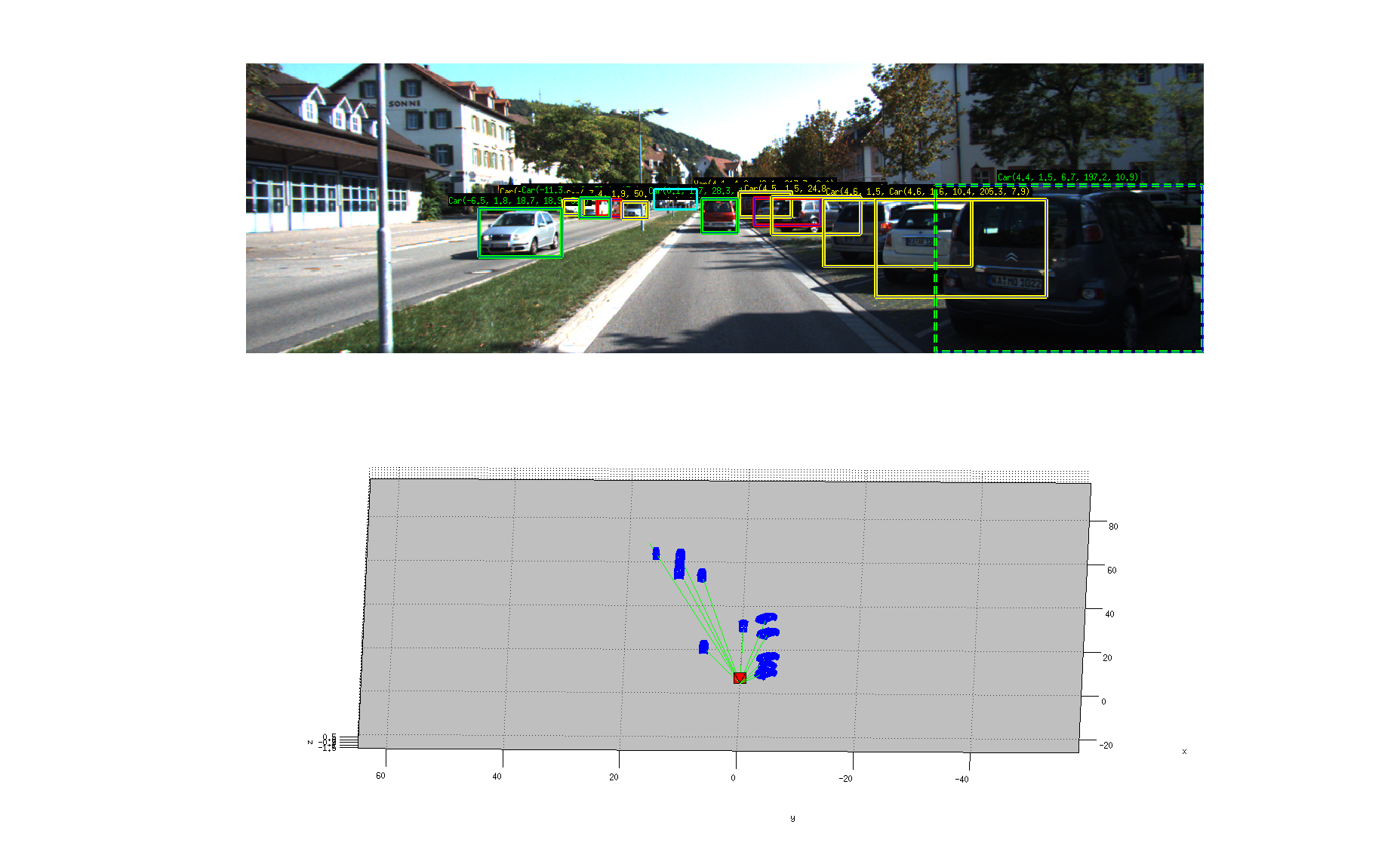

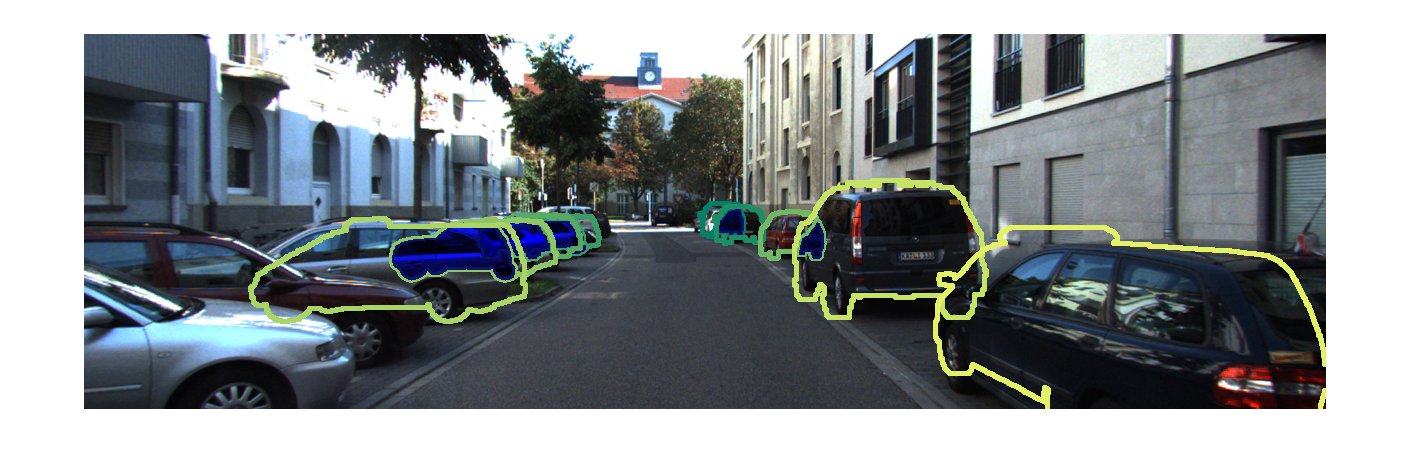

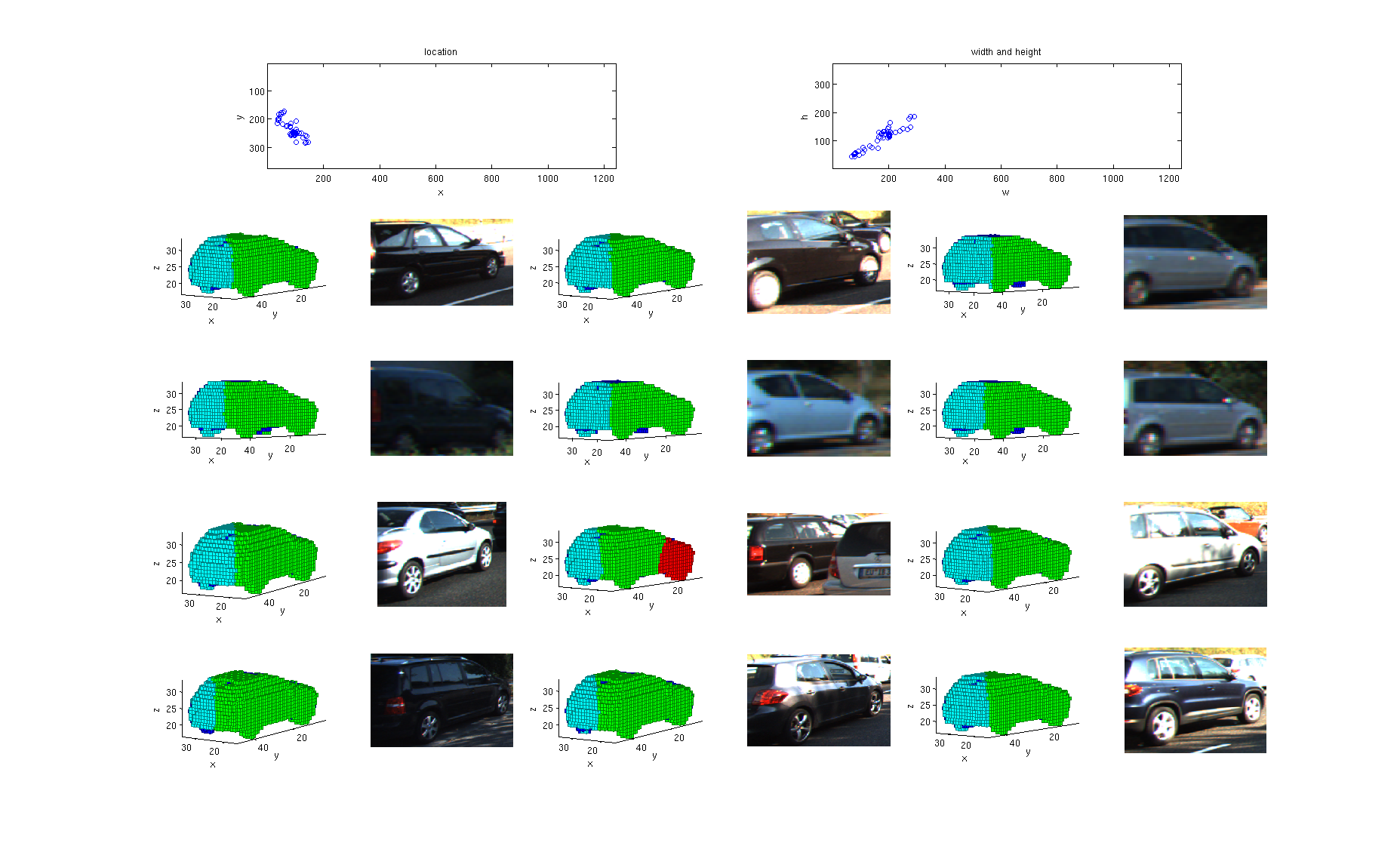

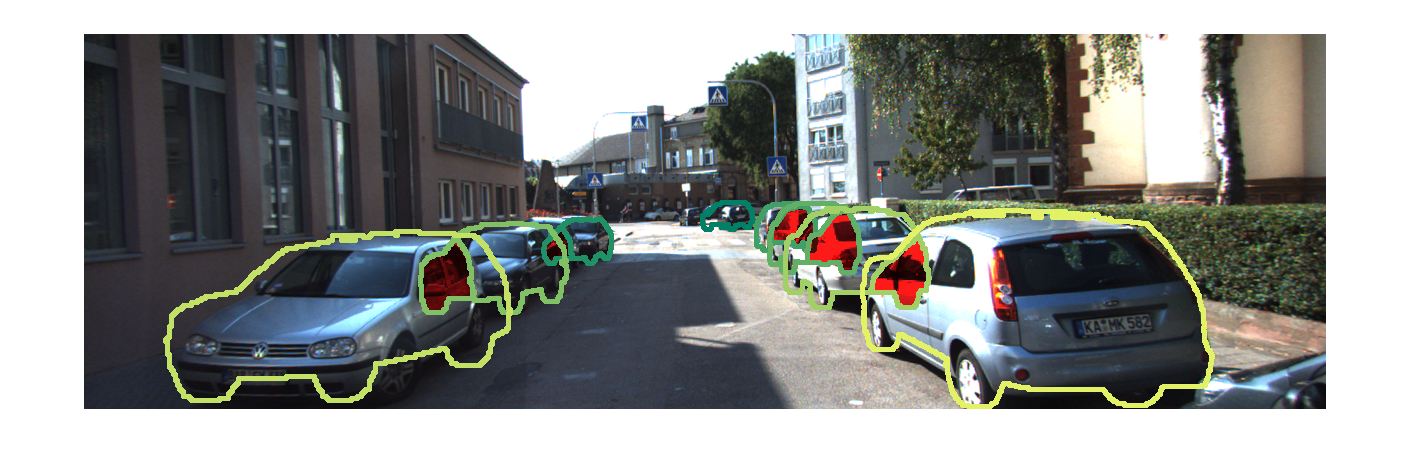

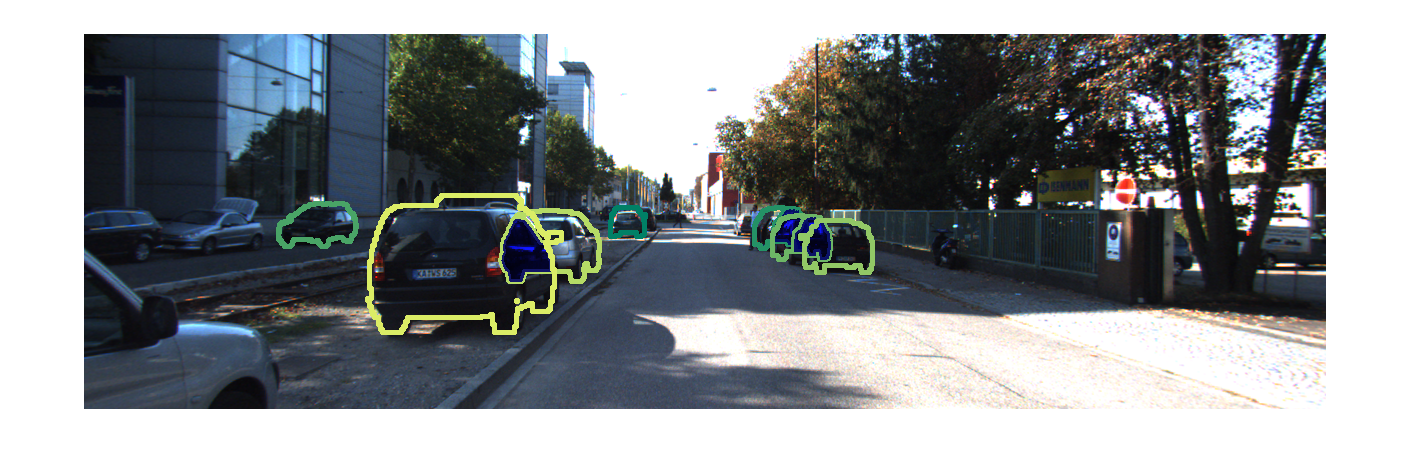

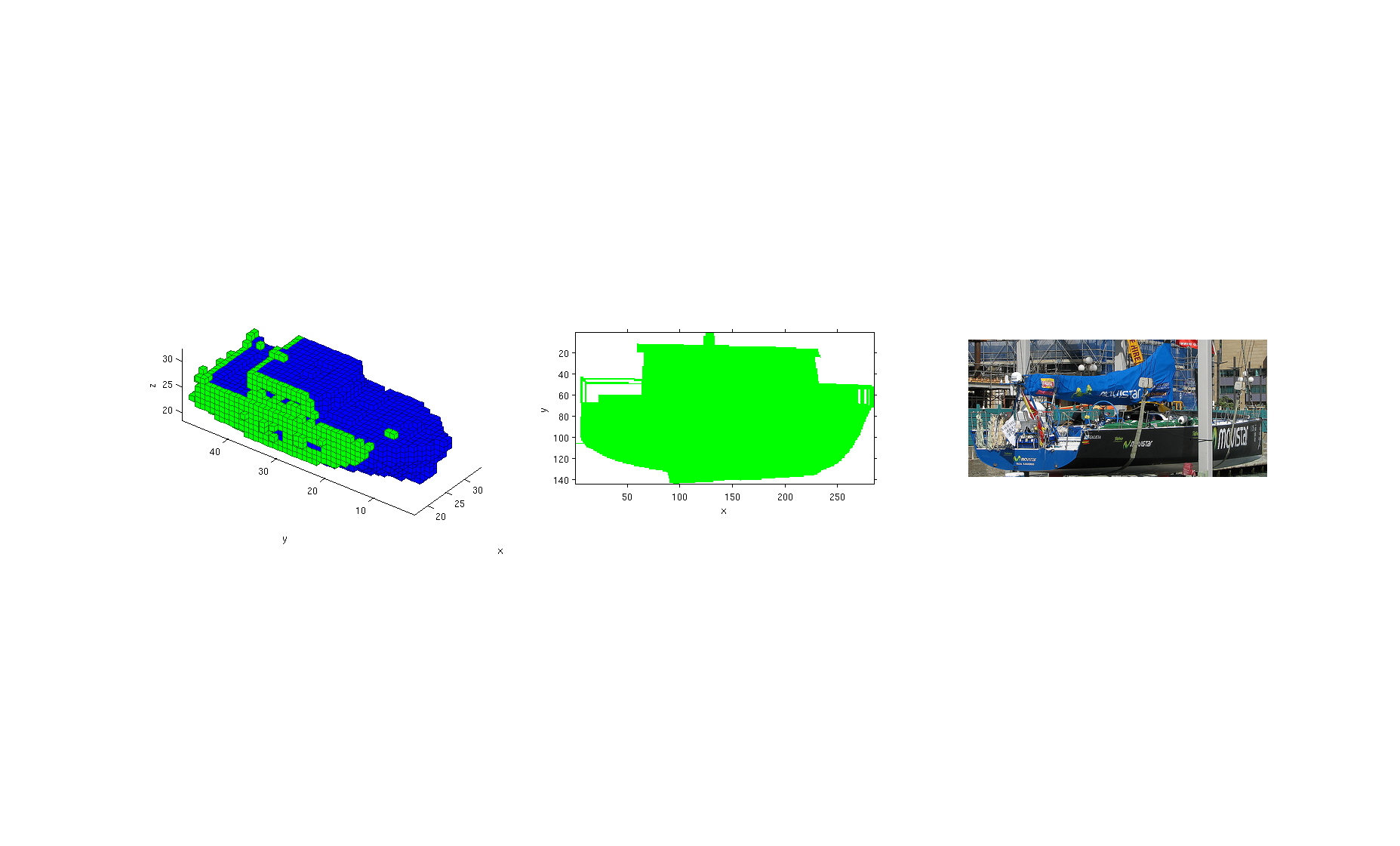

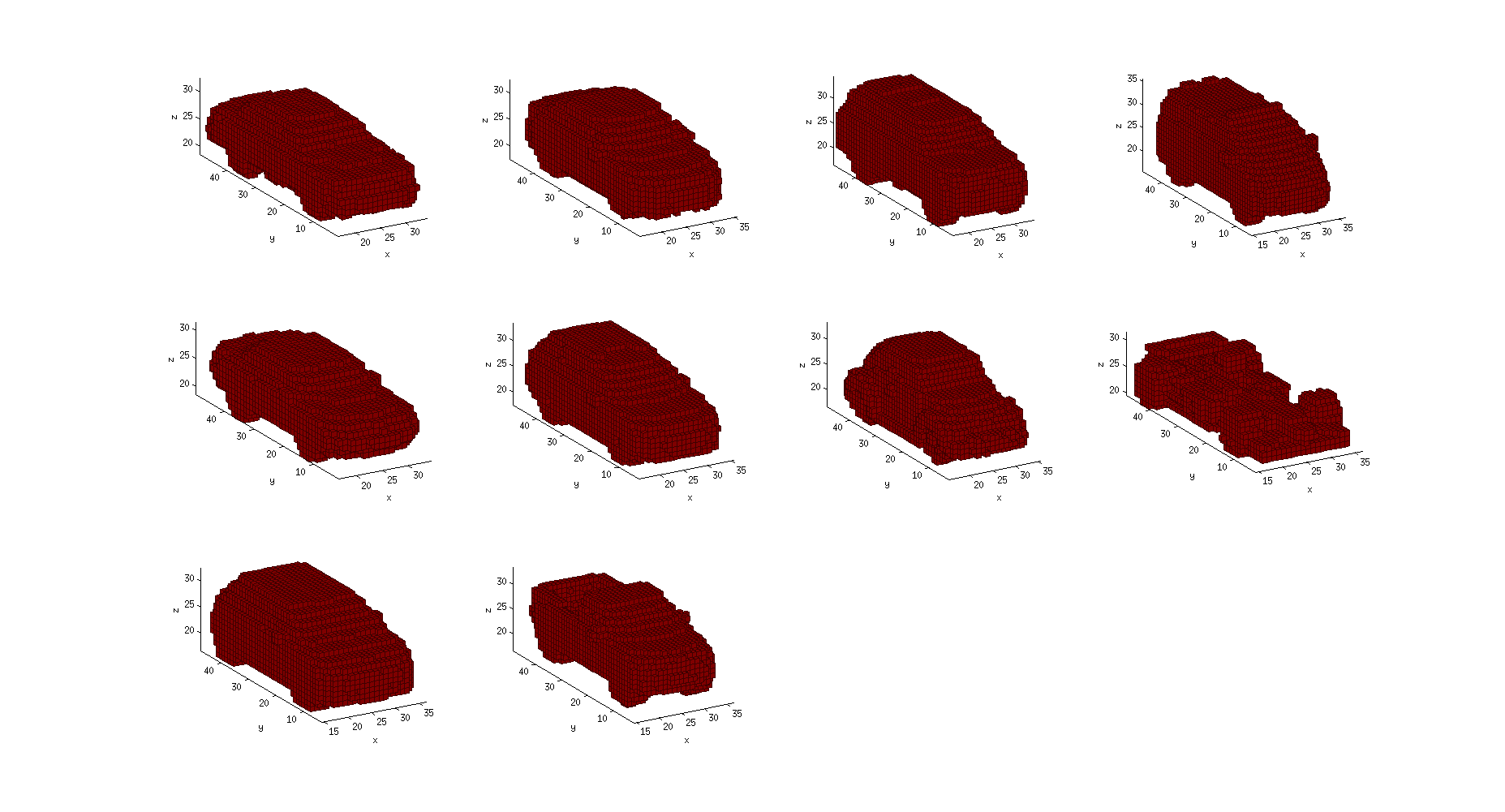

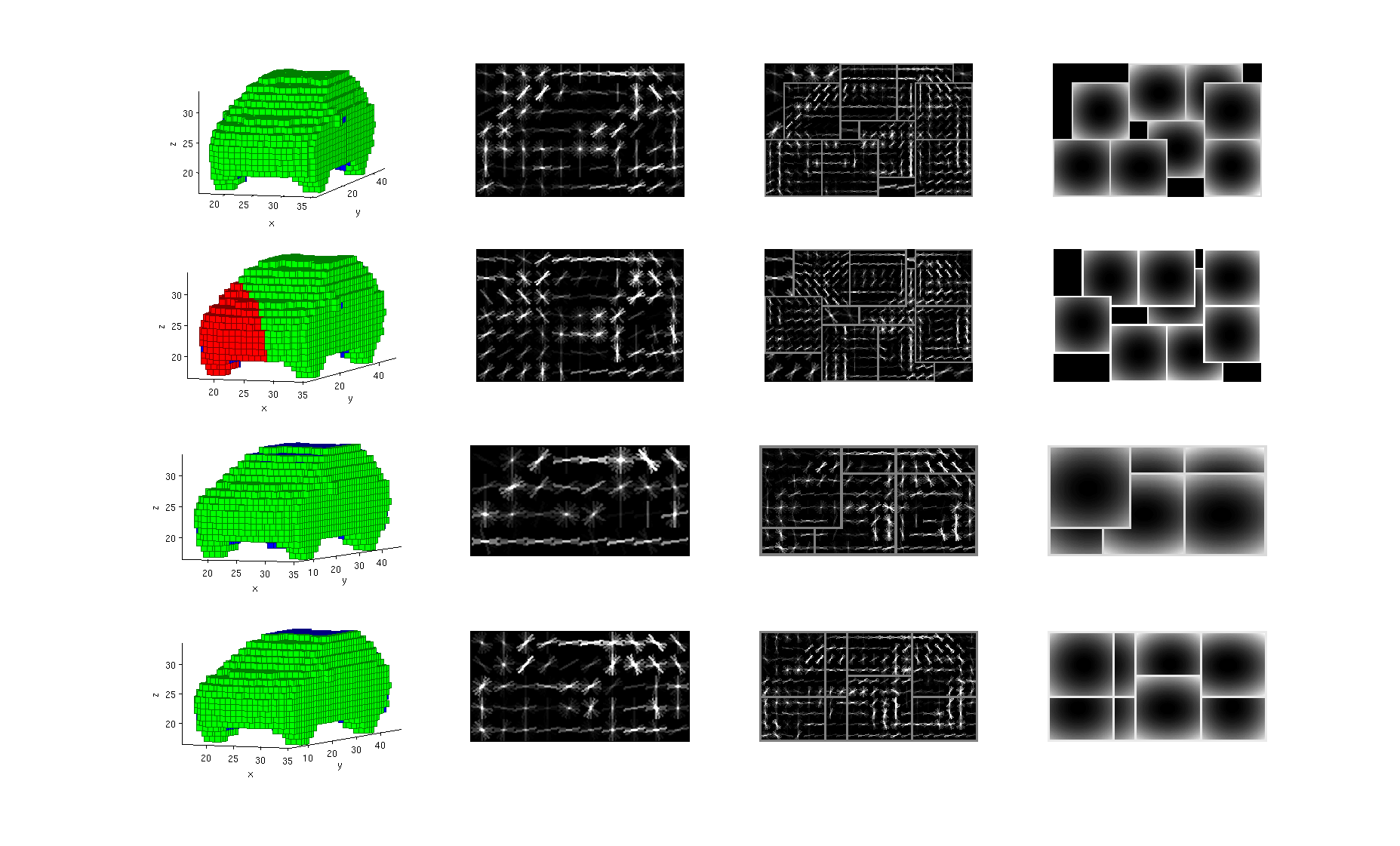

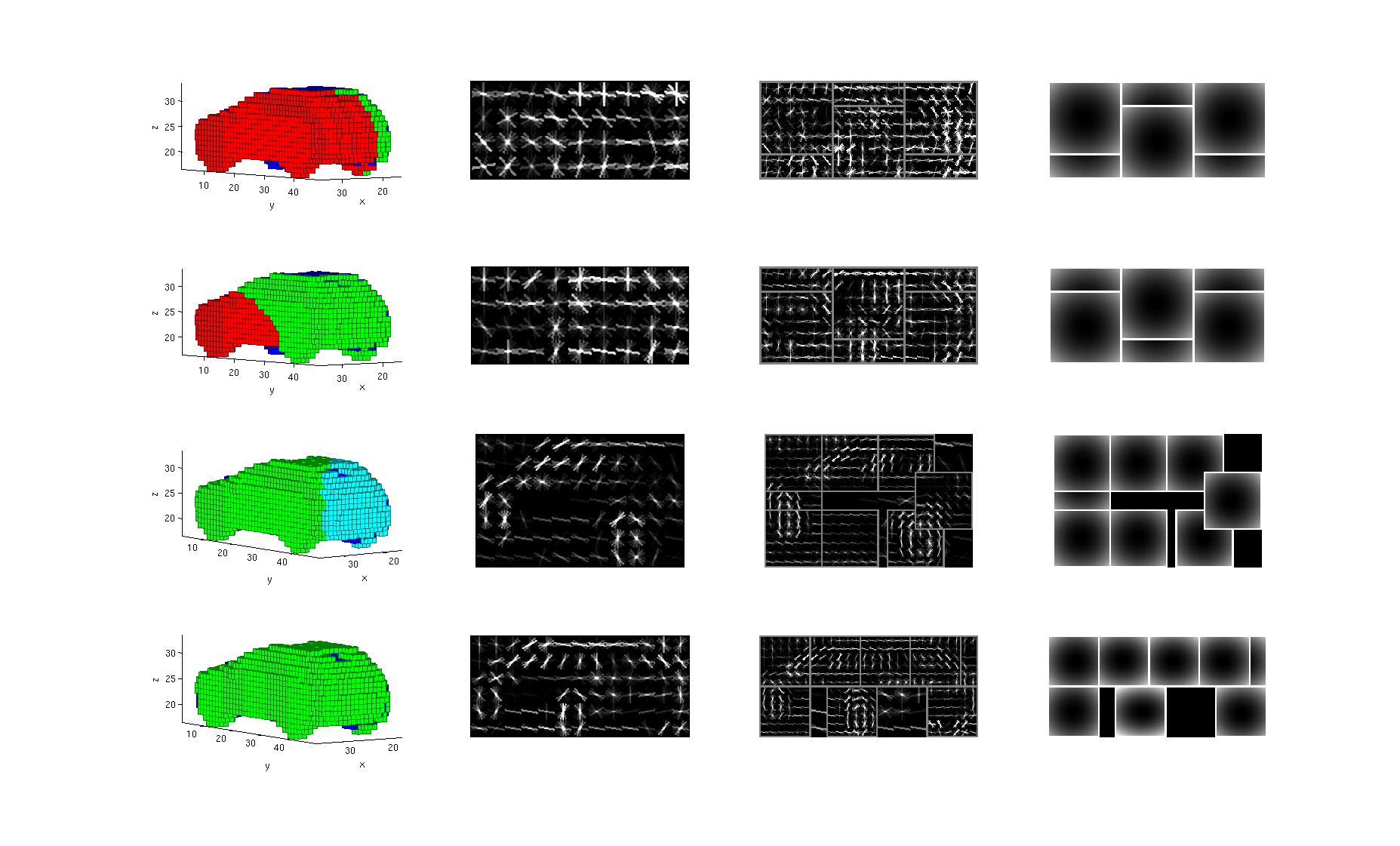

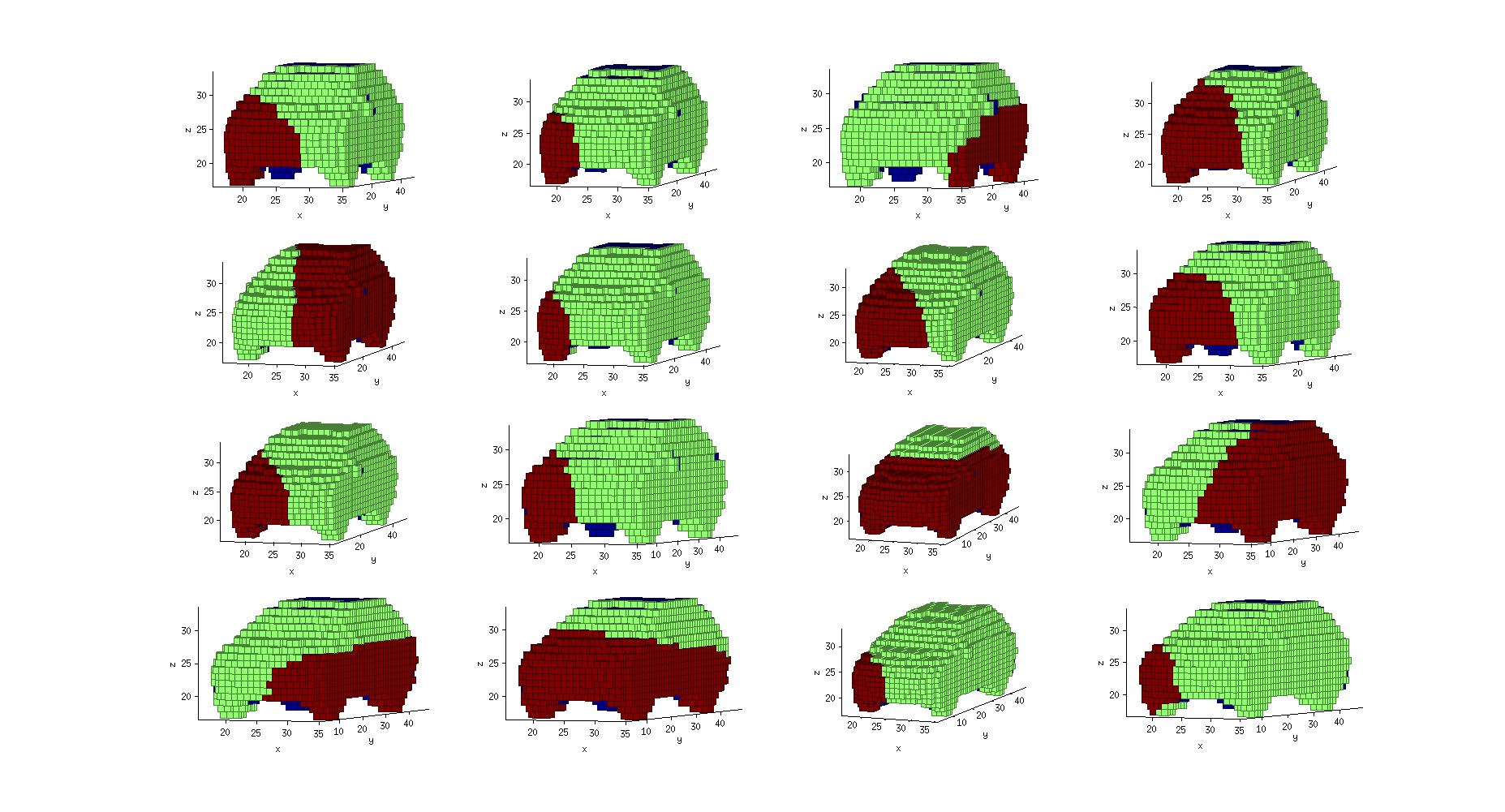

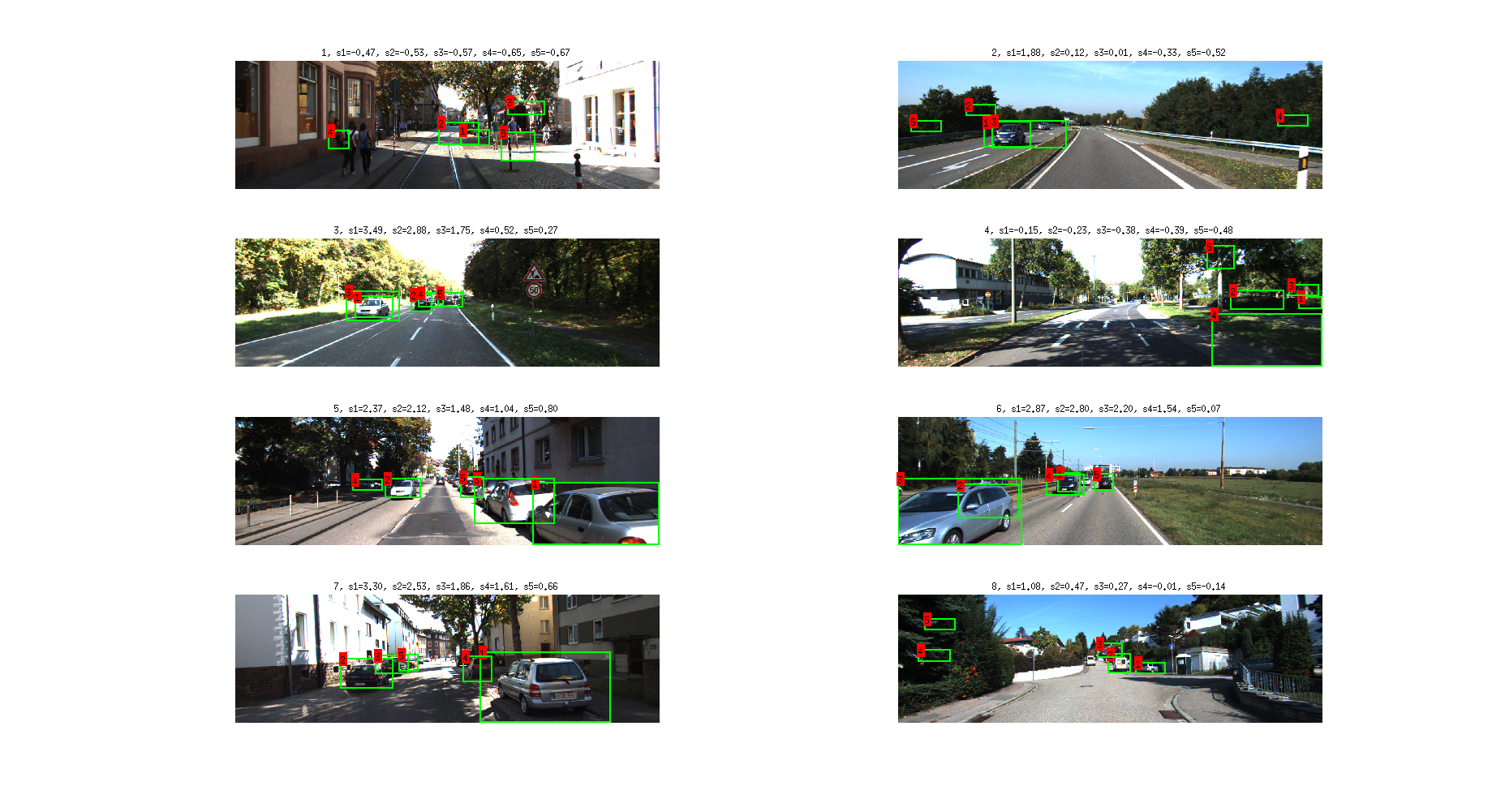

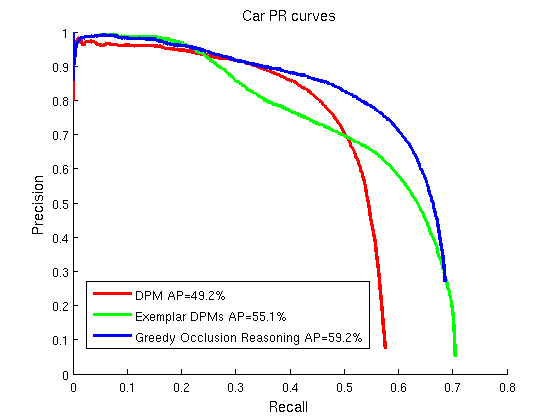

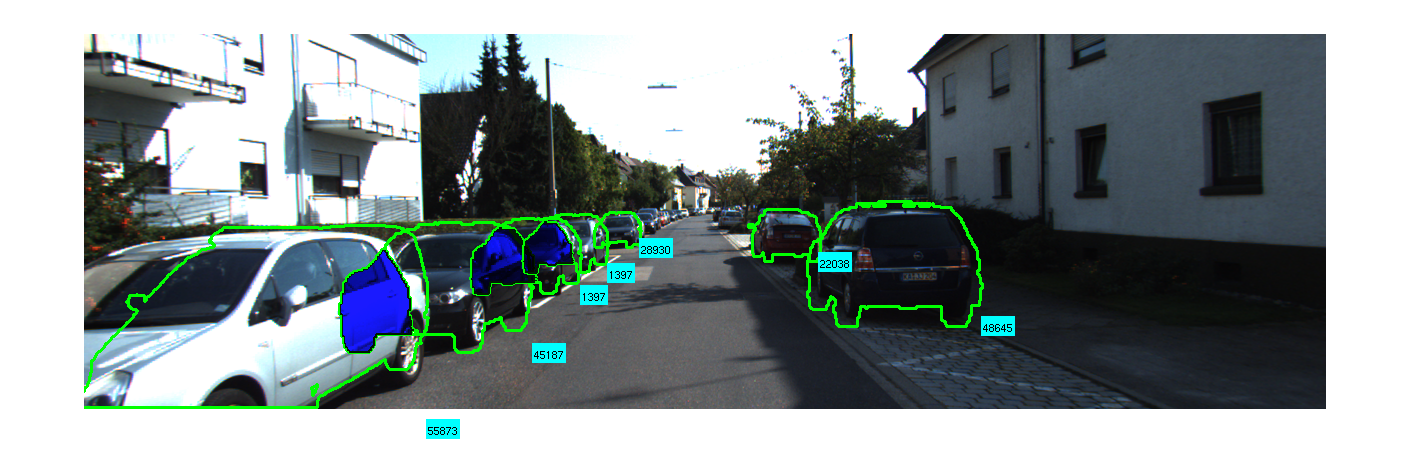

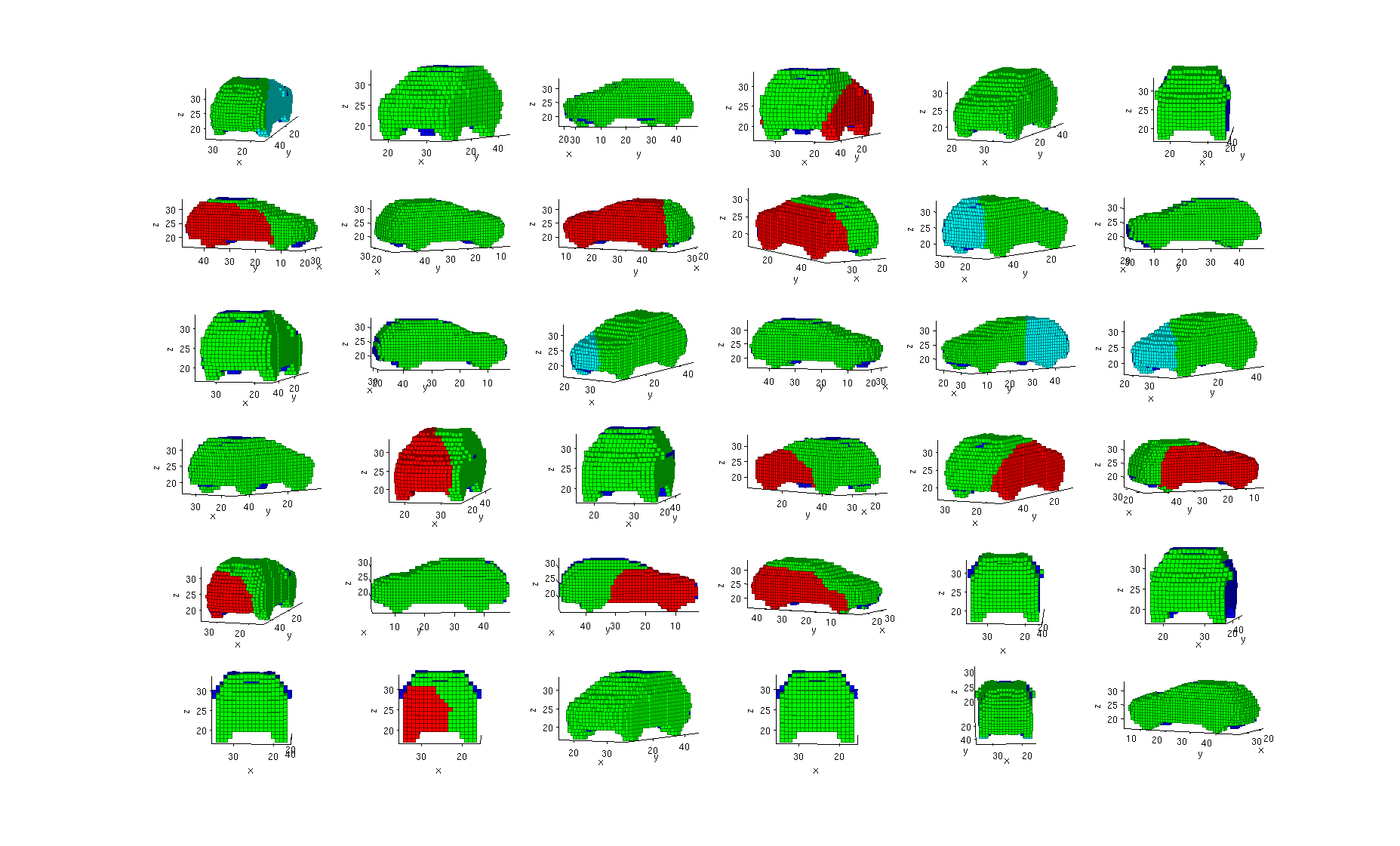

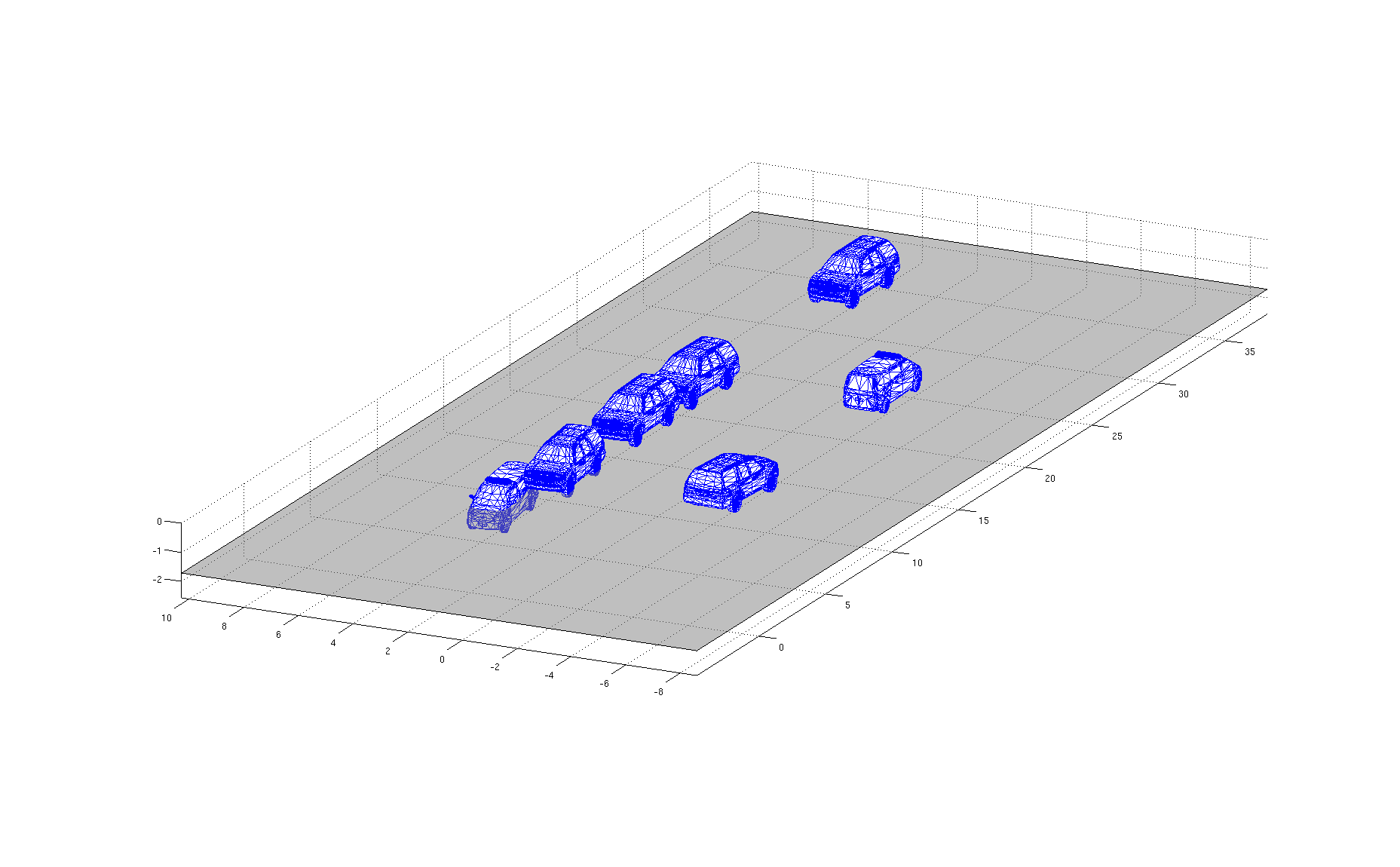

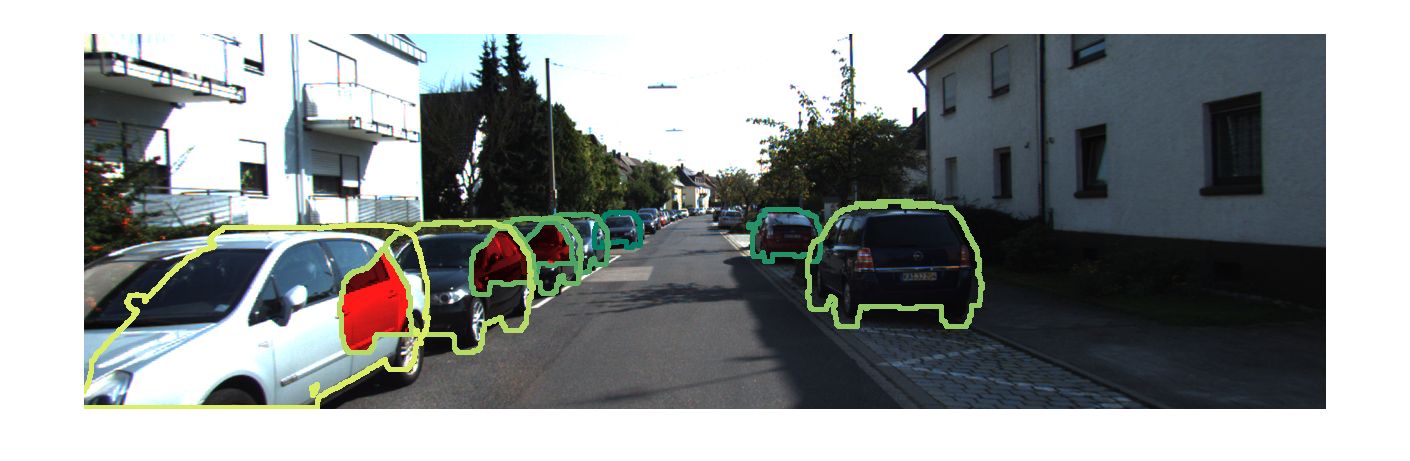

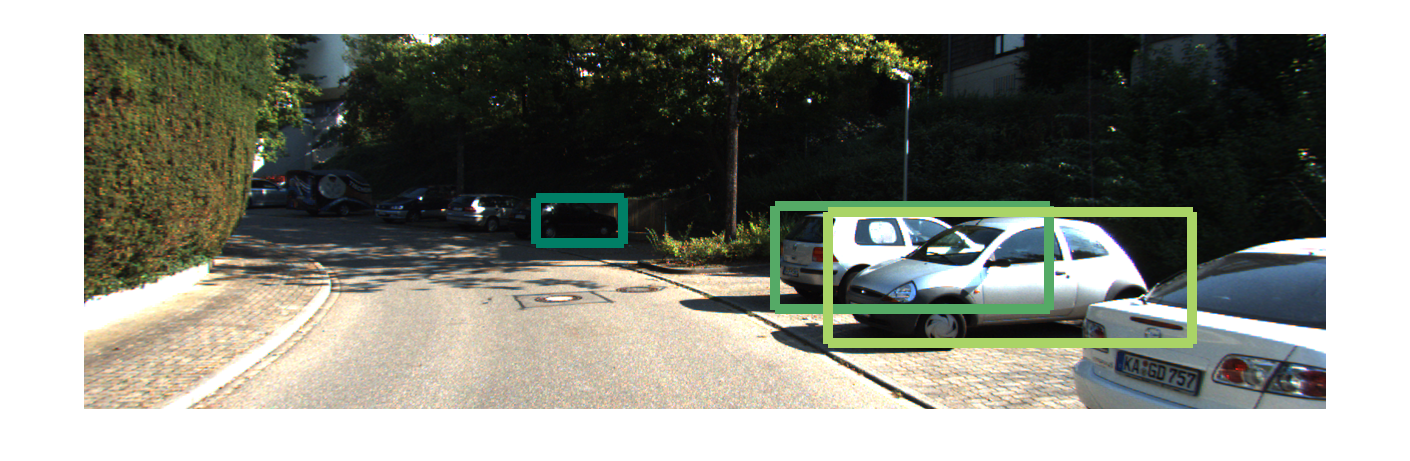

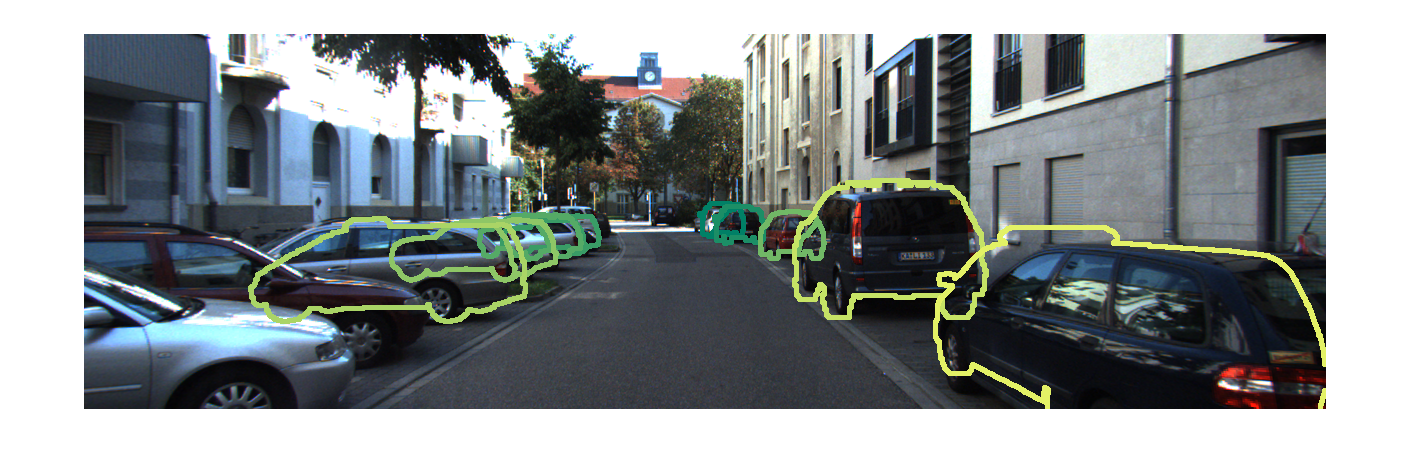

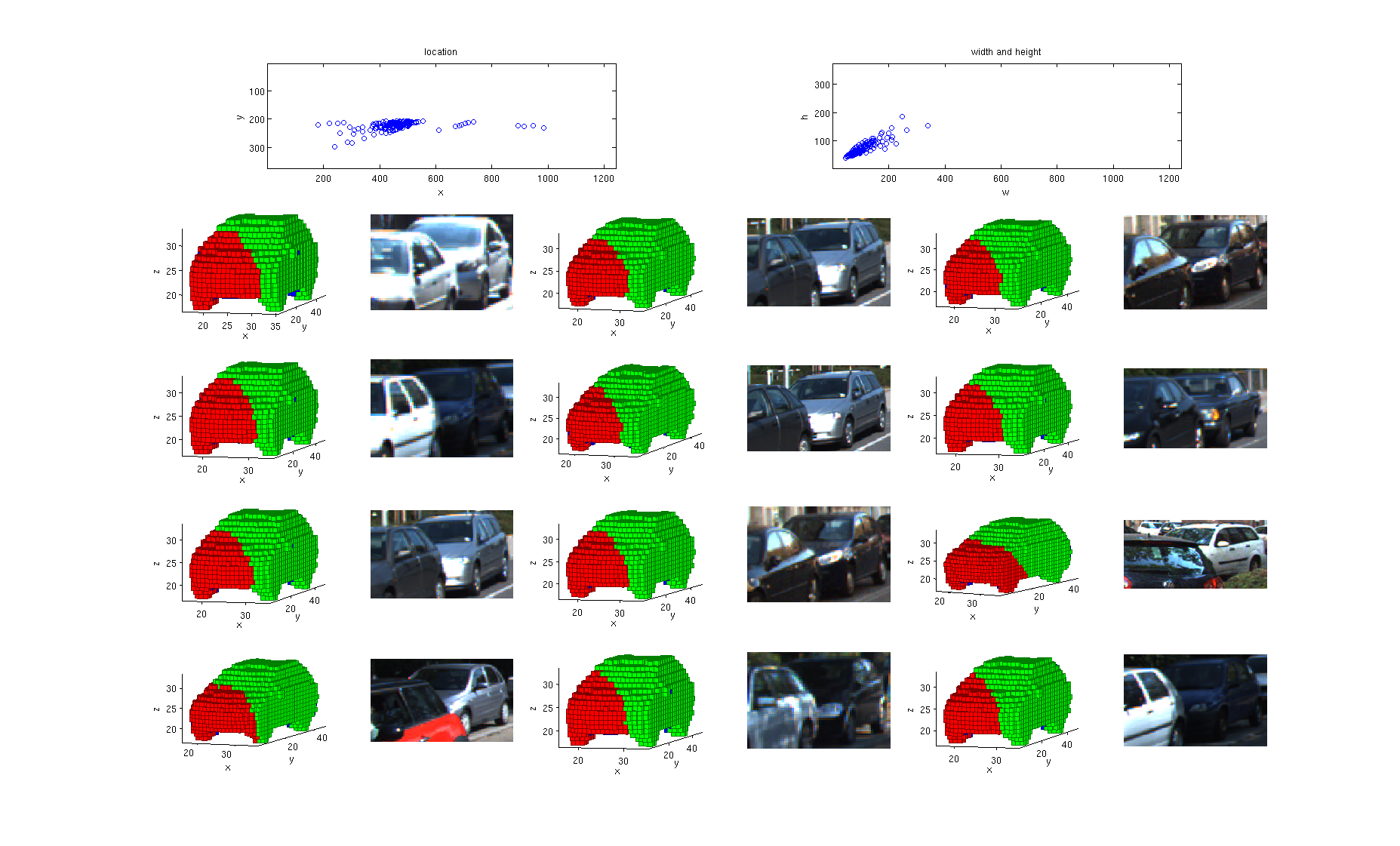

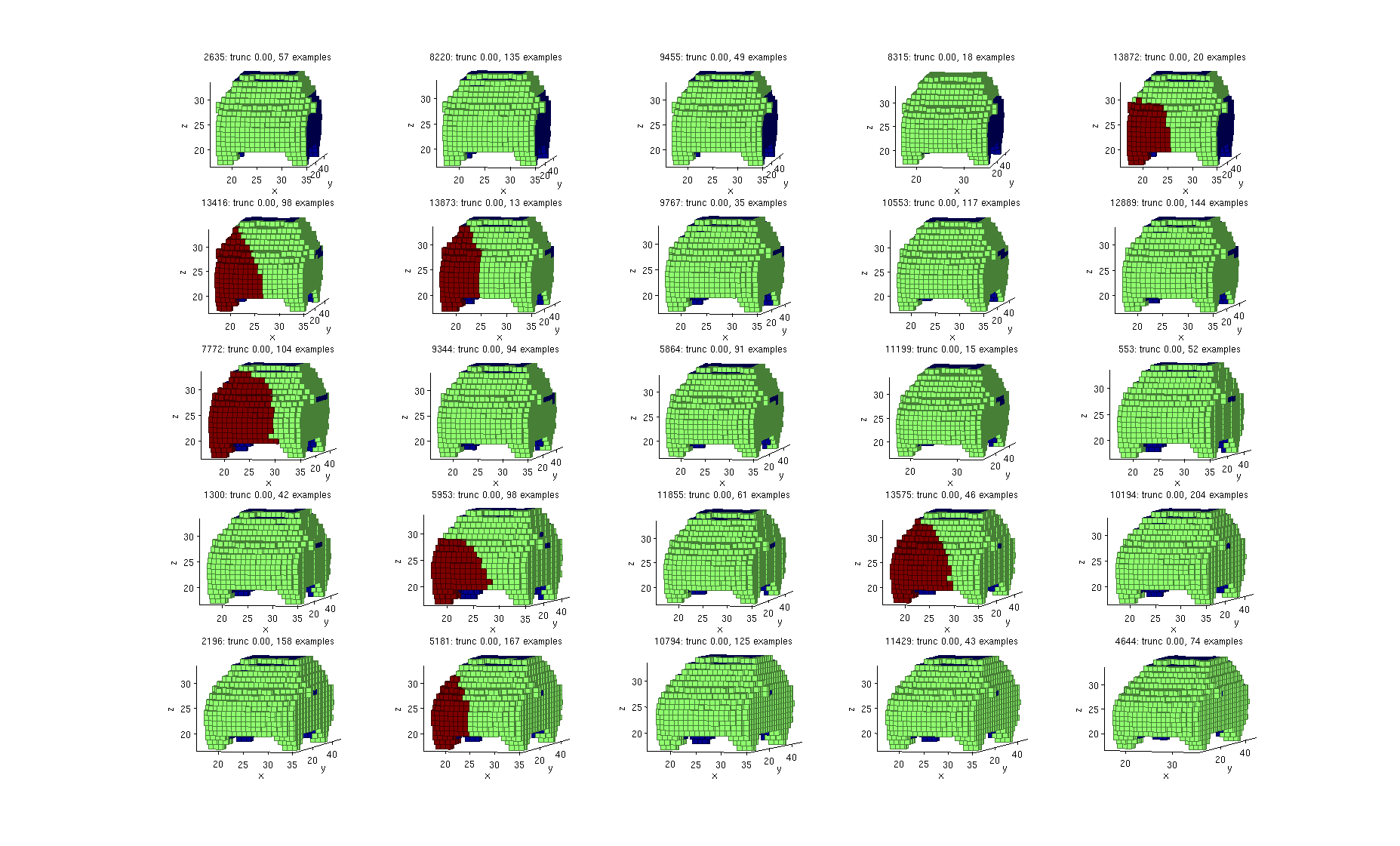

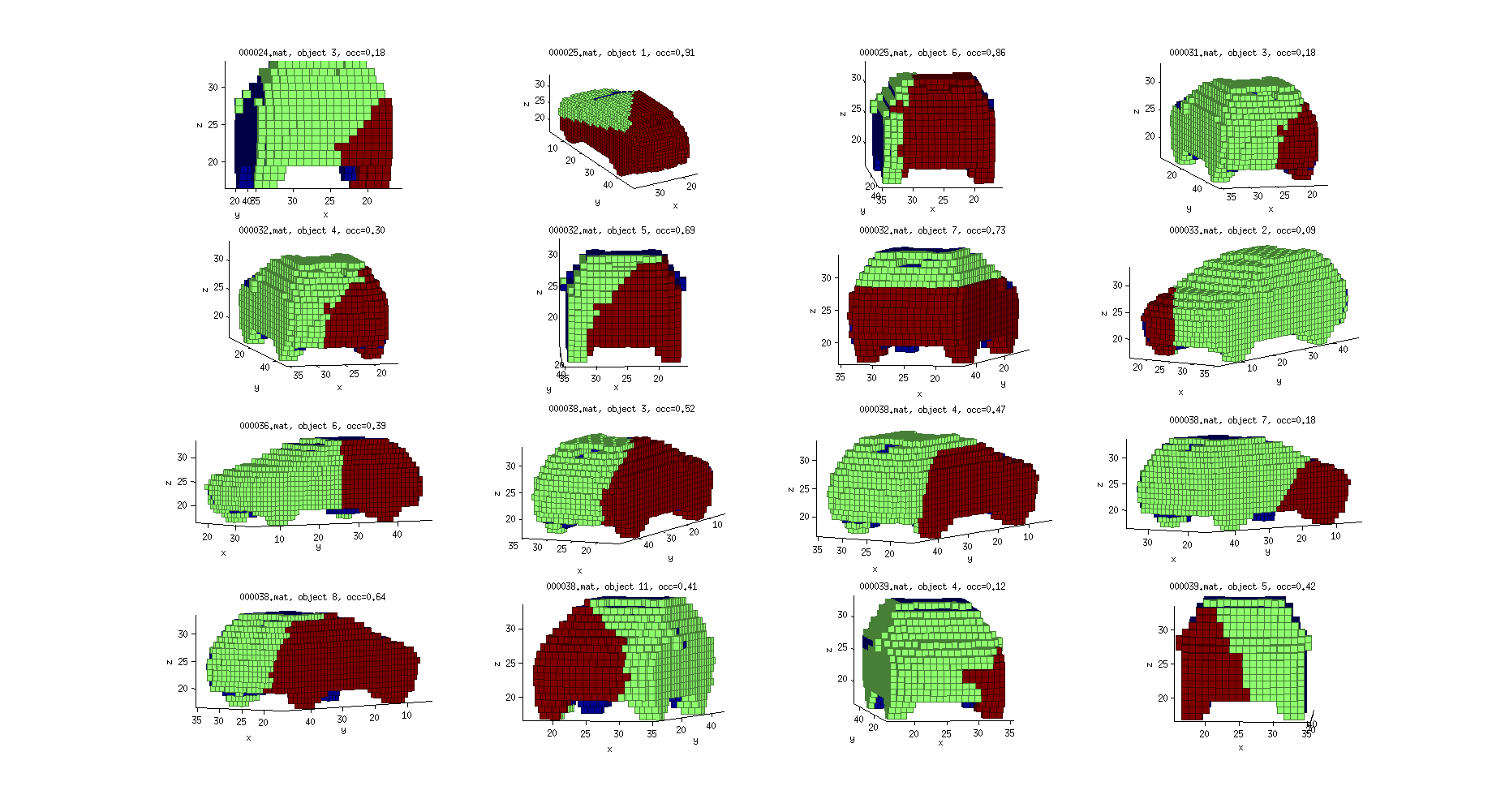

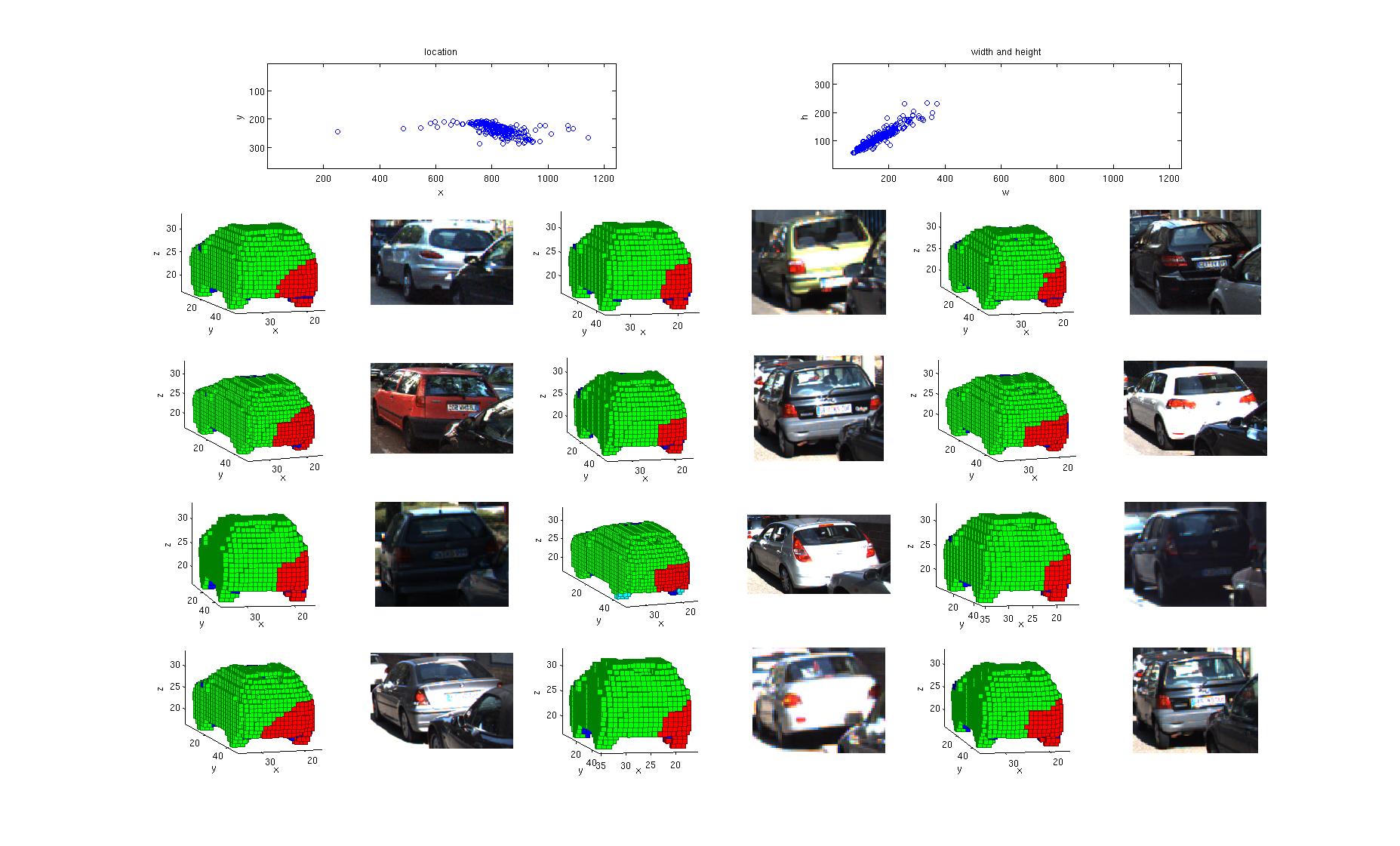

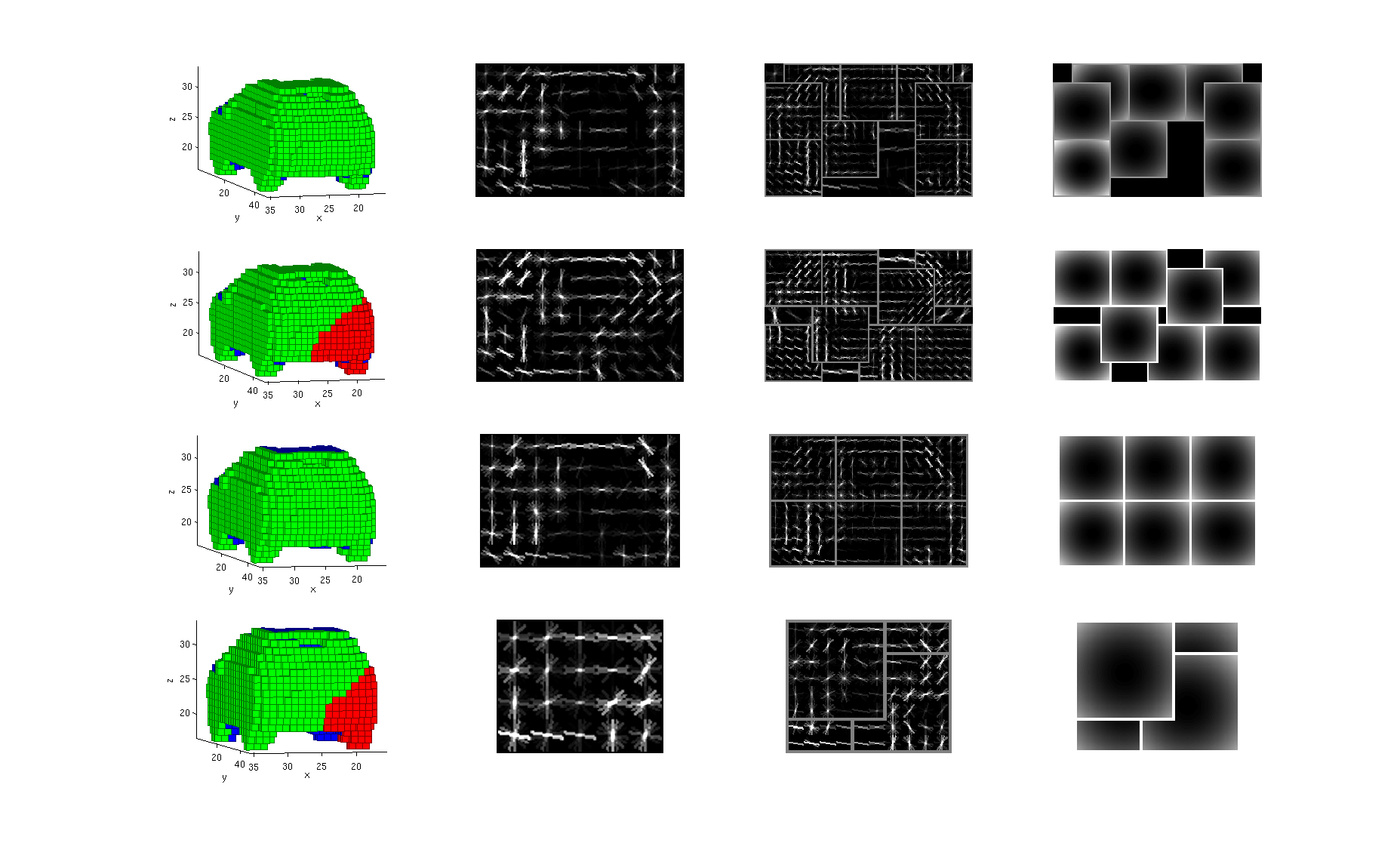

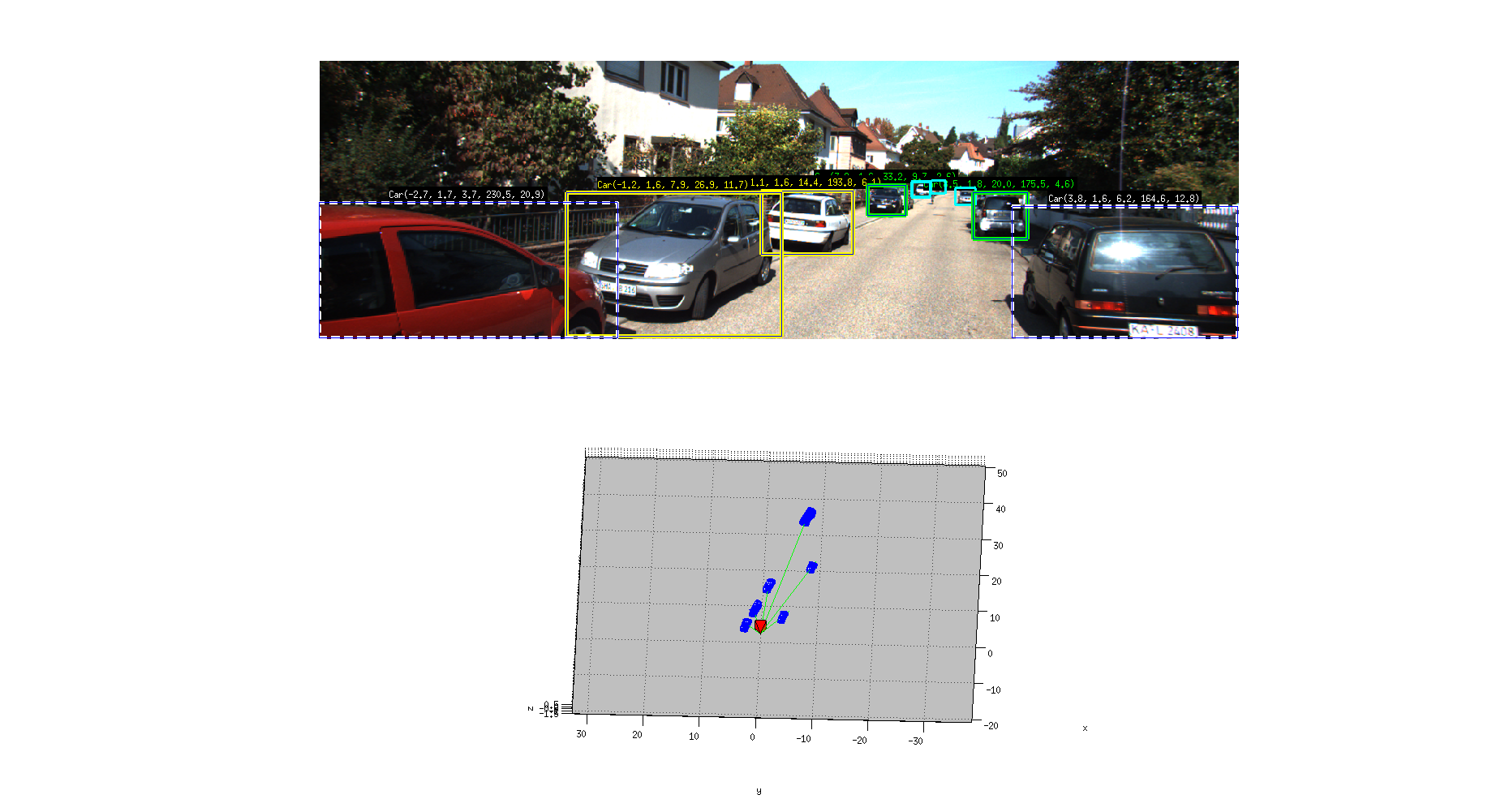

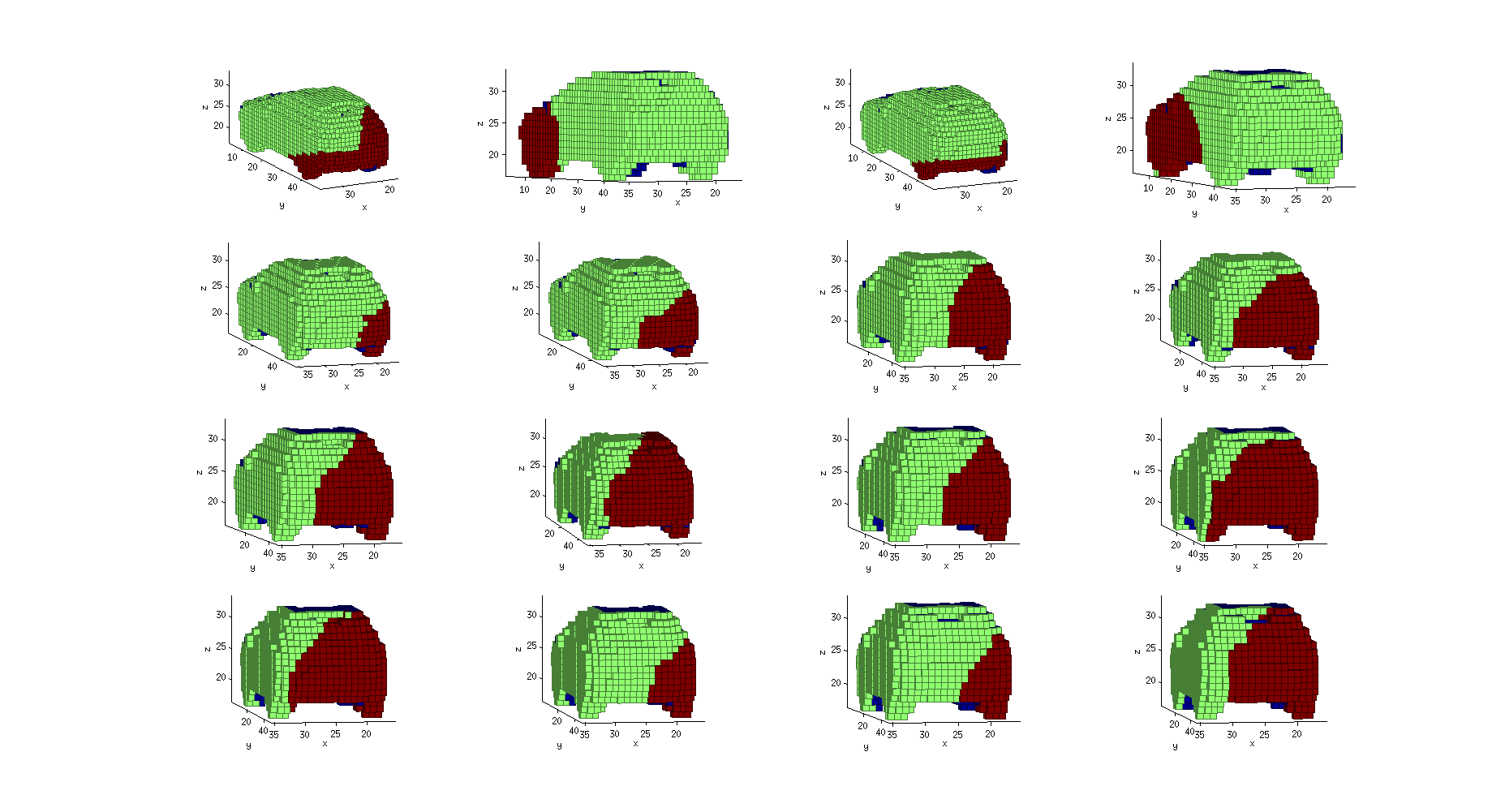

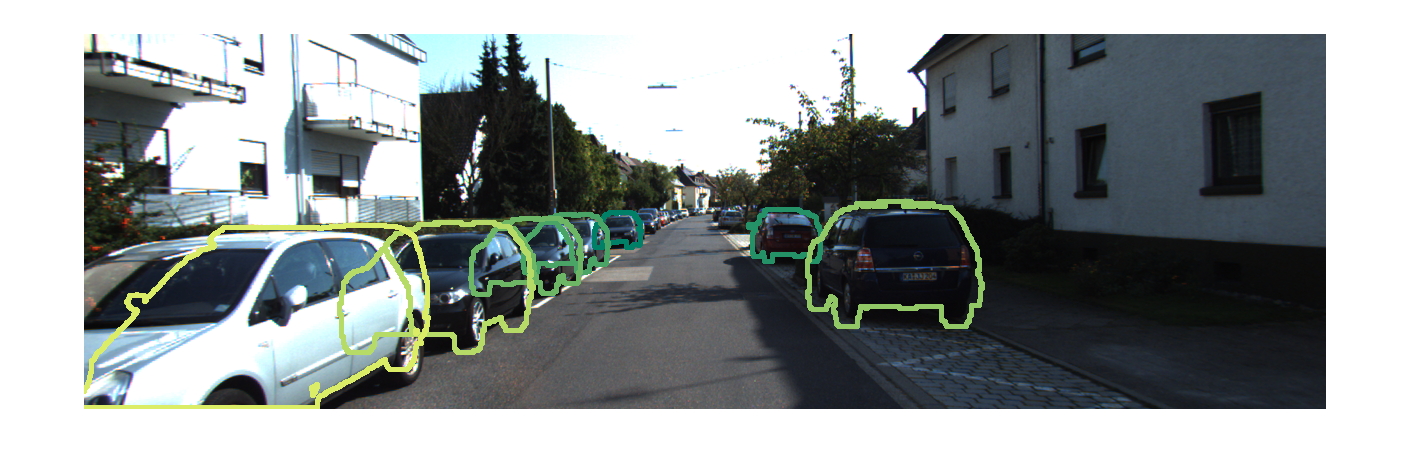

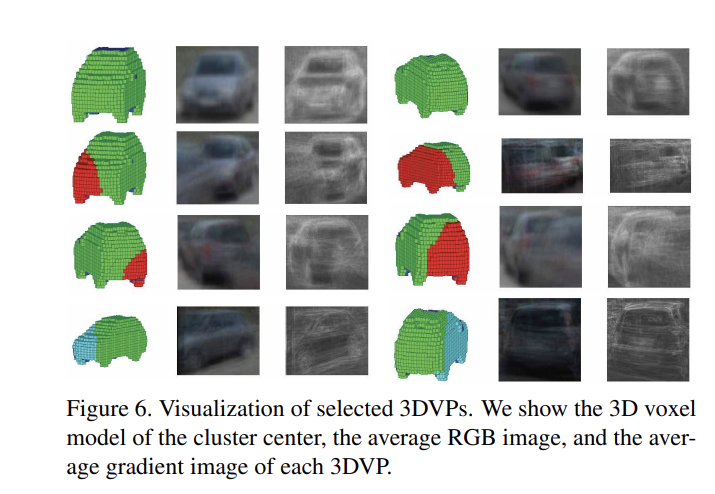

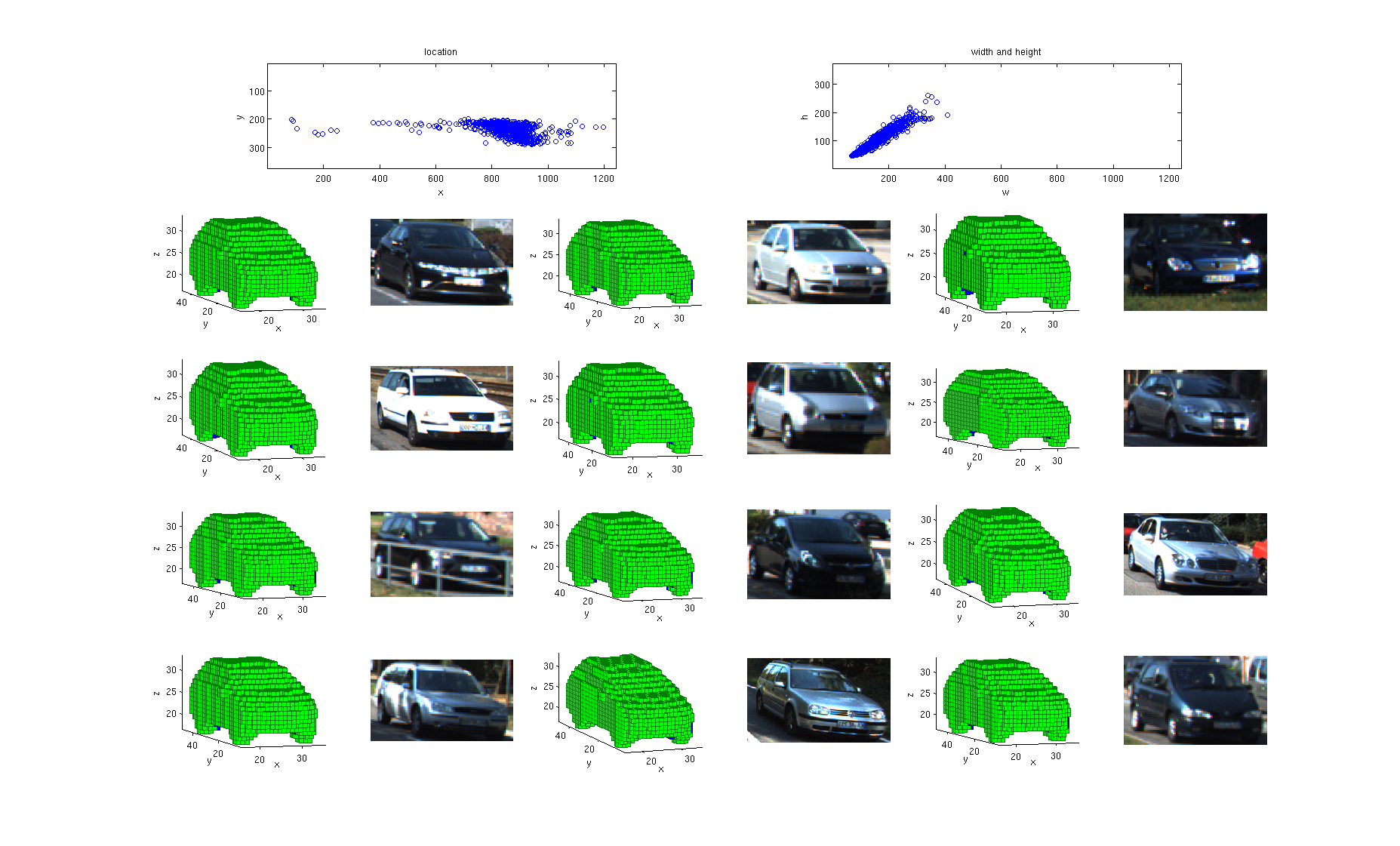

📚2 运行结果

部分代码：

function idx = cluster_2d_occlusion_patterns(cls, data, algorithm, K, pscale)

opt = globals;
pascal_init;

% select the clustering data
cls_ind = find(strcmp(cls, data.classes) == 1);
flag = data.cls_ind == cls_ind & data.difficult == 0 & data.is_pascal == 1;
fprintf('%d %s examples in clustering\n', sum(flag), cls);

% determine the canonical size of the bounding boxes
modelDs = compute_model_size(data.bbox(:,flag));

% compute features
if strcmp(cls, 'bottle') == 1
sbin = 4;
else
sbin = 8;
end
index = find(flag == 1);
X = [];
fprintf('computing features...\n');
for i = 1:numel(index)
ind = index(i);
% read the image
id = data.id{ind};
if data.is_pascal(ind) == 1
filename = sprintf(VOCopts.imgpath, id);
else
filename = [sprintf(path_img_imagenet, cls) '/' id '.JPEG'];
end
I = imread(filename);
if data.is_flip(ind) == 1
I = I(:, end:-1:1, :);
end
% crop image
bbox = data.bbox(:,ind);
gt = [bbox(1) bbox(2) bbox(3)-bbox(1) bbox(4)-bbox(2)];
Is = bbApply('crop', I, gt, 'replicate', modelDs([2 1]));
C = features(double(Is{1}), sbin);
X(:,i) = C(:);
end
fprintf('done\n');

switch algorithm
case 'kmeans'
% kmeans clustering
fprintf('%s 2d kmeans %d\n', cls, K);
opts = struct('maxiters', 1000, 'mindelta', eps, 'verbose', 1);
[center, sse] = vgg_kmeans(X, K, opts);
[idx_kmeans, d] = vgg_nearest_neighbour(X, center);

% construct idx
num = numel(data.imgname);
idx = zeros(num, 1);
idx(flag == 0) = -1;
index_all = find(flag == 1);
for i = 1:K
index = find(idx_kmeans == i);
[~, ind] = min(d(index));
cid = index_all(index(ind));
idx(index_all(index)) = cid;
end
case 'ap'
fprintf('2d AP %f\n', pscale);
fprintf('computing similarity scores...\n');
scores = compute_similarity_2d(X);
fprintf('done\n');

N = size(scores, 1);
M = N*N-N;
s = zeros(M,3); % Make ALL N^2-N similarities
j = 1;
for i = 1:N
for k = [1:i-1,i+1:N]
s(j,1) = i;
s(j,2) = k;
s(j,3) = scores(i,k);
j = j+1;
end
end

p = min(s(:,3)) * pscale;

% clustering
fprintf('Start AP clustering\n');
[idx_ap, netsim, dpsim, expref] = apclustermex(s, p);

fprintf('Number of clusters: %d\n', length(unique(idx_ap)));
fprintf('Fitness (net similarity): %f\n', netsim);

% construct idx
num = numel(data.imgname);
idx = zeros(num, 1);
idx(flag == 0) = -1;
index_all = find(flag == 1);

cids = unique(idx_ap);
K = numel(cids);
for i = 1:K
index = idx_ap == cids(i);
cid = index_all(cids(i));
idx(index_all(index)) = cid;
end
end

function modelDs = compute_model_size(bbox)

% pick mode of aspect ratios
h = bbox(4,:) - bbox(2,:) + 1;
w = bbox(3,:) - bbox(1,:) + 1;
xx = -2:.02:2;
filter = exp(-[-100:100].^2/400);
aspects = hist(log(h./w), xx);
aspects = convn(aspects, filter, 'same');
[~, I] = max(aspects);
aspect = exp(xx(I));

% pick 20 percentile area
areas = sort(h.*w);
area = areas(max(floor(length(areas) * 0.2), 1));
area = max(min(area, 10000), 500);

% pick dimensions
w = sqrt(area/aspect);
h = w*aspect;
modelDs = round([h w]);
