1.mapOptmization框架
mapOptmization.cpp进行的内容主要是地图优化,将得到的局部地图信息融合到全局地图中去。
1.1 节点代码主体
int main(int argc, char **argv) {
ros::init(argc, argv, "lego_loam");
ROS_INFO("\033[1;32m---->\033[0m Map Optimization Started.");
//调用构造函数,订阅话题上一帧的surf,corner,outlier点云,imu,和laser_odom,
mapOptimization MO;
// std::thread 构造函数,将MO作为参数传入构造的线程中使用
// 进行闭环检测与闭环的功能
std::thread loopthread(&mapOptimization::loopClosureThread, &MO);
// 该线程中进行的工作是publishGlobalMap(),将数据发布到ros中,可视化
std::thread visualizeMapThread(&mapOptimization::visualizeGlobalMapThread, &MO);
ros::Rate rate(200);
while (ros::ok())//200hz循环调用
{
ros::spinOnce();
//全局姿态优化的主要处理部分
MO.run();
rate.sleep();
}
loopthread.join();
visualizeMapThread.join();
return 0;
}
1.2 mapOptmization构造函数
//订阅话题:
"/laser_cloud_corner_last"(sensor_msgs::PointCloud2),数据处理函数laserCloudCornerLastHandler
"/laser_cloud_surf_last"(sensor_msgs::PointCloud2),数据处理函数laserCloudSurfLastHandler
"/outlier_cloud_last"(sensor_msgs::PointCloud2),数据处理函数laserCloudOutlierLastHandler
"/laser_odom_to_init"(nav_msgs::Odometry),数据处理函数laserOdometryHandler
imuTopic = "/imu/data"(sensor_msgs::Imu),数据处理函数imuHandler
//发布话题,这些topic有:
"/key_pose_origin"(sensor_msgs::PointCloud2)
"/laser_cloud_surround"(sensor_msgs::PointCloud2)
"/aft_mapped_to_init"(nav_msgs::Odometry)
"/history_cloud"(sensor_msgs::PointCloud2)
"/corrected_cloud"(sensor_msgs::PointCloud2)
"/recent_cloud"(sensor_msgs::PointCloud2)
"/registered_cloud"(sensor_msgs::PointCloud2)
各类参数的含义:
// 因子图优化相关变量
NonlinearFactorGraph gtSAMgraph;
Values initialEstimate;
Values optimizedEstimate;
ISAM2 *isam;
Values isamCurrentEstimate;
noiseModel::Diagonal::shared_ptr priorNoise;
noiseModel::Diagonal::shared_ptr odometryNoise;
noiseModel::Diagonal::shared_ptr constraintNoise;
// ROS句柄
ros::NodeHandle nh;
// 多个发布者
ros::Publisher pubLaserCloudSurround;
ros::Publisher pubOdomAftMapped;
ros::Publisher pubKeyPoses;
ros::Publisher pubHistoryKeyFrames;
ros::Publisher pubIcpKeyFrames;
ros::Publisher pubRecentKeyFrames;
ros::Publisher pubRegisteredCloud;
// 五个订阅者
ros::Subscriber subLaserCloudCornerLast;
ros::Subscriber subLaserCloudSurfLast;
ros::Subscriber subOutlierCloudLast;
ros::Subscriber subLaserOdometry;
ros::Subscriber subImu;
// 为了信息发布而定义的msg
nav_msgs::Odometry odomAftMapped;
tf::StampedTransform aftMappedTrans;
tf::TransformBroadcaster tfBroadcaster;
vector<pcl::PointCloud<PointType>::Ptr> cornerCloudKeyFrames;// 关键帧的角点点云集合
vector<pcl::PointCloud<PointType>::Ptr> surfCloudKeyFrames;// 关键帧的平面点点云集合
vector<pcl::PointCloud<PointType>::Ptr> outlierCloudKeyFrames;// 关键帧的离群点点云集合
deque<pcl::PointCloud<PointType>::Ptr> recentCornerCloudKeyFrames;
deque<pcl::PointCloud<PointType>::Ptr> recentSurfCloudKeyFrames;
deque<pcl::PointCloud<PointType>::Ptr> recentOutlierCloudKeyFrames;
int latestFrameID;
vector<int> surroundingExistingKeyPosesID; // 局部关键帧集合(ID集合),(随着最新关键帧的改变而逐步增减的)
deque<pcl::PointCloud<PointType>::Ptr> surroundingCornerCloudKeyFrames;//局部关键帧角点点云集合
deque<pcl::PointCloud<PointType>::Ptr> surroundingSurfCloudKeyFrames; // 局部关键帧平面点点云集合
deque<pcl::PointCloud<PointType>::Ptr> surroundingOutlierCloudKeyFrames;// 局部关键帧离群点点云集合
PointType previousRobotPosPoint; // 上一帧关键帧位姿点
PointType currentRobotPosPoint;// 使用经过 scan-to-model 优化的位姿创建当前位置点
pcl::PointCloud<PointType>::Ptr cloudKeyPoses3D;// 所有关键帧三自由度位置集合 (x,y,z表示位置,i表示位姿点在集合中的索引)(这是经过因子图优化后的位置)
pcl::PointCloud<PointTypePose>::Ptr cloudKeyPoses6D;//关键帧六自由度位姿集合 (x,y,z表示位置,i表示索引,rpy表示姿态,time记录里程计时间)(这是经过因子图优化后的位置)
pcl::PointCloud<PointType>::Ptr surroundingKeyPoses;// 局部关键帧位置集合——目标点附近的位置点集合。
pcl::PointCloud<PointType>::Ptr surroundingKeyPosesDS;// 上者的降采样结果
// 通过Msg接收到的Less角点点云
pcl::PointCloud<PointType>::Ptr laserCloudCornerLast; // corner feature set from odoOptimization
// 通过Msg接收到的Less平面点点云
pcl::PointCloud<PointType>::Ptr laserCloudSurfLast; // surf feature set from odoOptimization
// Less角点点云的降采样
pcl::PointCloud<PointType>::Ptr laserCloudCornerLastDS; // downsampled corner featuer set from odoOptimization
// Less平面点点云的降采样
pcl::PointCloud<PointType>::Ptr laserCloudSurfLastDS; // downsampled surf featuer set from odoOptimization
// 通过Msg接收到的离群点点云
pcl::PointCloud<PointType>::Ptr laserCloudOutlierLast; // corner feature set from odoOptimization
// 离群点点云的降采样
pcl::PointCloud<PointType>::Ptr laserCloudOutlierLastDS; // corner feature set from odoOptimization
// Less平面点和离群点的点云
pcl::PointCloud<PointType>::Ptr laserCloudSurfTotalLast; // surf feature set from odoOptimization
// 上者的降采样
pcl::PointCloud<PointType>::Ptr laserCloudSurfTotalLastDS; // downsampled corner featuer set from odoOptimization
pcl::PointCloud<PointType>::Ptr laserCloudOri;
pcl::PointCloud<PointType>::Ptr coeffSel;
pcl::PointCloud<PointType>::Ptr laserCloudCornerFromMap;// 局部角点点云地图 (每轮进行清空)
pcl::PointCloud<PointType>::Ptr laserCloudSurfFromMap; // 局部平面点点云地图 (每轮进行清空)
pcl::PointCloud<PointType>::Ptr laserCloudCornerFromMapDS;// 局部角点点云的降采样 (每轮进行清空)
pcl::PointCloud<PointType>::Ptr laserCloudSurfFromMapDS; // 局部角点点云的降采样 (每轮进行清空)
pcl::KdTreeFLANN<PointType>::Ptr kdtreeCornerFromMap; // 局部角点点云地图 的KD树
pcl::KdTreeFLANN<PointType>::Ptr kdtreeSurfFromMap; // 局部平面点点云地图 的KD树
pcl::KdTreeFLANN<PointType>::Ptr kdtreeSurroundingKeyPoses;//所有关键帧位置点集合的KD树
pcl::KdTreeFLANN<PointType>::Ptr kdtreeHistoryKeyPoses;
pcl::PointCloud<PointType>::Ptr nearHistoryCornerKeyFrameCloud;
pcl::PointCloud<PointType>::Ptr nearHistoryCornerKeyFrameCloudDS;
pcl::PointCloud<PointType>::Ptr nearHistorySurfKeyFrameCloud;
pcl::PointCloud<PointType>::Ptr nearHistorySurfKeyFrameCloudDS;
pcl::PointCloud<PointType>::Ptr latestCornerKeyFrameCloud;
pcl::PointCloud<PointType>::Ptr latestSurfKeyFrameCloud;
pcl::PointCloud<PointType>::Ptr latestSurfKeyFrameCloudDS;
pcl::KdTreeFLANN<PointType>::Ptr kdtreeGlobalMap;
pcl::PointCloud<PointType>::Ptr globalMapKeyPoses;
pcl::PointCloud<PointType>::Ptr globalMapKeyPosesDS;
pcl::PointCloud<PointType>::Ptr globalMapKeyFrames;
pcl::PointCloud<PointType>::Ptr globalMapKeyFramesDS;
std::vector<int> pointSearchInd;
std::vector<float> pointSearchSqDis;
pcl::VoxelGrid<PointType> downSizeFilterCorner;
pcl::VoxelGrid<PointType> downSizeFilterSurf;
pcl::VoxelGrid<PointType> downSizeFilterOutlier;
pcl::VoxelGrid<PointType> downSizeFilterHistoryKeyFrames; // for histor key frames of loop closure
pcl::VoxelGrid<PointType> downSizeFilterSurroundingKeyPoses; // for surrounding key poses of scan-to-map optimization
pcl::VoxelGrid<PointType> downSizeFilterGlobalMapKeyPoses; // for global map visualization
pcl::VoxelGrid<PointType> downSizeFilterGlobalMapKeyFrames; // for global map visualization
// 信息的时间戳
double timeLaserCloudCornerLast;// Less角点的时间
double timeLaserCloudSurfLast; // Less平面点的时间
double timeLaserOdometry; // 里程计时间
double timeLaserCloudOutlierLast; // 离群点点云 的时间
double timeLastGloalMapPublish;
// 信息接收的标志位
bool newLaserCloudCornerLast; //Less角点的标志位
bool newLaserCloudSurfLast;//Less平面点的标志位
bool newLaserOdometry;//里程计信息的标志位
bool newLaserCloudOutlierLast;//离群点点云的标志位
float transformLast[6]; // 上一关键帧 经过因子图优化后的位姿,用于添加因子图节点。
float transformSum[6]; // 里程计的六自由度位姿(p y r x y z)
float transformIncre[6]; // 两次位姿优化时,里程计的相对位姿变化,
float transformTobeMapped[6];// 机器人的位姿,全局姿态优化的目标变量:位姿优化的初始值->在地图优化过程中得到更新->经过因子图优化后的位姿
float transformBefMapped[6];// 未经过scan-to-model优化的位姿,即里程计位姿。
float transformAftMapped[6];// 由经过scan-to-model优化后的位姿赋值,并在因子图优化后进行修正。
int imuPointerFront;//与里程计时间对准的IMU数据索引
int imuPointerLast;//最新的IMU数据索引
// IMU时间、数据队列
double imuTime[imuQueLength];
float imuRoll[imuQueLength];
float imuPitch[imuQueLength];
std::mutex mtx;
double timeLastProcessing;// 上一次进行全局位姿优化的时间
PointType pointOri, pointSel, pointProj, coeff;
cv::Mat matA0; //存放距离平面点最近的五个点(5×3矩阵)
cv::Mat matB0;//5*1 的矩阵
cv::Mat matX0;//3*1 的矩阵
cv::Mat matA1;//3×3 的协方差矩阵
cv::Mat matD1;//1*3 的特征值向量
cv::Mat matV1;// 3个 特征向量
bool isDegenerate;
cv::Mat matP;
// 一些点云的数量
int laserCloudCornerFromMapDSNum;// 局部角点点云中点的数量(经过降采样)
int laserCloudSurfFromMapDSNum; // 局部平面点点云中点的数量(经过降采样)
int laserCloudCornerLastDSNum;
int laserCloudSurfLastDSNum;
int laserCloudOutlierLastDSNum;
int laserCloudSurfTotalLastDSNum;
bool potentialLoopFlag;
double timeSaveFirstCurrentScanForLoopClosure;
int closestHistoryFrameID;
int latestFrameIDLoopCloure;
bool aLoopIsClosed;
float cRoll, sRoll, cPitch, sPitch, cYaw, sYaw, tX, tY, tZ;// 点云相对于世界坐标系的关系
float ctRoll, stRoll, ctPitch, stPitch, ctYaw, stYaw, tInX, tInY, tInZ;//用来记录变换的三角函数值
另外,初始化了ISAM2
对象,以及下采样参数,和分配了内存。
1.3 run()主体函数
run()的运行流程:
- 判断是否有新的数据到来并且时间差值小于0.005;
- 如果
timeLaserOdometry -timeLastProcessing >= mappingProcessInterval
,则进行以下操作:
2.1 将坐标转移到世界坐标系下,得到可用于建图的Lidar坐标,即修改transformTobeMapped
的值;
2.2 提取周围的关键帧;
2.3 下采样当前scan;
2.4 当前scan进行图优化过程;
2.5 保存关键帧和因子;
2.6 校正位姿;
2.7 发布Tf;
2.8 发布关键位姿和帧数据;
void run() {
// 三种点云、以及里程计信息正常接收、且时间戳一致
if (newLaserCloudCornerLast && std::abs(timeLaserCloudCornerLast - timeLaserOdometry) < 0.005 &&
newLaserCloudSurfLast && std::abs(timeLaserCloudSurfLast - timeLaserOdometry) < 0.005 &&
newLaserCloudOutlierLast && std::abs(timeLaserCloudOutlierLast - timeLaserOdometry) < 0.005 &&
newLaserOdometry) {
//标志位重新置回false
newLaserCloudCornerLast = false;
newLaserCloudSurfLast = false;
newLaserCloudOutlierLast = false;
newLaserOdometry = false;
// 创建对象 lock 对mtx进行上锁,当lock被析构时,自动解锁
std::lock_guard<std::mutex> lock(mtx);
// 全局姿态优化的时间判断条件:距离上次优化已经过去0.3s
//mappingProcessInterval是0.3秒,以低频进行建图
if (timeLaserOdometry - timeLastProcessing >= mappingProcessInterval) {
timeLastProcessing = timeLaserOdometry;
//把点云坐标均转换到世界坐标系下
transformAssociateToMap();
// 根据当前和上一次全局姿态优化时的里程计 transformSum transformBefMapped
// 以及上一次全局姿态优化的结果 transformAftMapped
// 计算当前姿态优化的初始值,赋值给 transformTobeMapped
//由于帧数的频率大于建图的频率,因此需要提取关键帧进行匹配
extractSurroundingKeyFrames();
// 函数功能:根据当前位置,提取局部关键帧集合,以及对应的三个关键帧点云集合
// 步骤:
// 1. 在 关键帧位置集合cloudKeyPoses3D 中
// 检索 当前位置currentRobotPosPoint 附近的姿态点
// 获得局部位置点,赋值给 局部位置点集合surroundingKeyPoses
// 2. 根据 局部位置点集合surroundingKeyPoses 更新
// 局部关键帧集合 surroundingExistingKeyPosesID
// 局部关键帧 角点点云集合surroundingCornerCloudKeyFrames
// 局部关键帧 平面点点云集合surroundingSurfCloudKeyFrames
// 局部关键帧 离群点点云集合surroundingOutlierCloudKeyFrames
// 增加新进入局部的关键帧、并删除离开局部的关键帧。
// 3. 为局部点云地图赋值
// laserCloudCornerFromMap 所有局部关键帧的角点集合
// laserCloudSurfFromMap 所有局部关键帧平面点和离群点的集合
//降采样匹配以及增加地图点云,回环检测
downsampleCurrentScan();
// 对来自msg的点云进行降采样
// laserCloudCornerLast //角点点云
// laserCloudSurfLast // 平面点点云
// laserCloudOutlierLast // 离群点点云
// laserCloudSurfTotalLast // 平面点+离群点
// 当前扫描进行边缘优化,图优化以及进行LM优化的过程,
// 根据现有地图与最新点云数据进行配准,从而更新机器人精确位姿与融合建图,
// 它分为角点优化、平面点优化、配准与更新等部分。
//使用 scan-to-model 的策略优化了 变换 transformTobeMapped
scan2MapOptimization();
// 使用scan-to-model位姿优化,获得当前时间点机器人的位姿 transformTobeMapped
// 参考IMU的姿态 对 transformTobeMapped 进行中值滤波,获得最终的机器人位姿
// 为 transformBefMapped 赋值为 里程计位姿,即scan-to-model优化前的位姿
// 为 transformAftMapped 赋值为 transformTobeMapped 即scan-to-model优化后的位姿
//保存轨迹与位姿图,为回环检测做准备
saveKeyFramesAndFactor();
// 1选定关键帧
// 2根据新的关键帧更新因子图
// 3经过因子图优化后,更新当前位姿
// transformAftMapped
// transformTobeMapped
// 并用因子图优化后的位姿 创建关键帧位置点和位姿点,添加到集合
// cloudKeyPoses3D 关键帧位置点集合
// cloudKeyPoses6D 关键帧位姿点集合
// 并为 transformLast 赋值
// 更新
// cornerCloudKeyFrames 关键帧角点点云集合
// surfCloudKeyFrames 关键帧平面点点云集合
// outlierCloudKeyFrames关键帧离群点点云集合
//correctPoses是回环检测成功后将位姿图的数据依次更新
//闭环处理矫正、暂不考虑
correctPoses();
//发送tf变换
publishTF();
// 主题"/aft_mapped_to_init"发布优化后的位姿信息
// msg.header.stamp 取的是 里程计时间信息
// msg.pose 存储本坐标系位姿"/camera_init" 经过全局位姿优化的姿态
// msg.twist 存储子坐标系位姿"/aft_mapped" 未经过全局优化的姿态,即里程计信息
// 发布tf变换
// msg.frame_id_ = "/camera_init"
// msg.child_frame_id_ = "/aft_mapped";
// msg 的姿态变换为 transformAftMapped 即优化后的机器人位姿距离原点的位姿变换
publishKeyPosesAndFrames();
// 主题 "/key_pose_origin" 发布关键帧位姿点集合
// 主题 "/recent_cloud" 发布 局部平面点点云
// 主题 "/registered_cloud" 发布 当前帧点云
clearCloud();
}
}
}
};
2.回调函数
2.1 laserCloudOutlierLastHandler
主题
"/outlier_cloud_last"
的回调函数
laserCloudOutlierLastHandler
修改点云数据的时间戳,将点云数据从ROS定义的格式转化到pcl的格式。
void laserCloudOutlierLastHandler(const sensor_msgs::PointCloud2ConstPtr &msg) {
timeLaserCloudOutlierLast = msg->header.stamp.toSec();
laserCloudOutlierLast->clear();
pcl::fromROSMsg(*msg, *laserCloudOutlierLast);
newLaserCloudOutlierLast = true;
}
2.2 laserCloudCornerLastHandler
主题
"/laser_cloud_corner_last"
的回调函数
laserCloudCornerLastHandler
修改点云数据的时间戳,将点云数据从ROS定义的格式转化到pcl的格式。
void laserCloudCornerLastHandler(const sensor_msgs::PointCloud2ConstPtr &msg) {
timeLaserCloudCornerLast = msg->header.stamp.toSec();
laserCloudCornerLast->clear();
pcl::fromROSMsg(*msg, *laserCloudCornerLast);
newLaserCloudCornerLast = true;
}
2.3 laserCloudSurfLastHandler
主题
"/laser_cloud_surf_last"
的回调函数
laserCloudSurfLastHandler
修改点云数据的时间戳,将点云数据从ROS定义的格式转化到pcl的格式。
void laserCloudSurfLastHandler(const sensor_msgs::PointCloud2ConstPtr &msg) {
timeLaserCloudSurfLast = msg->header.stamp.toSec();
laserCloudSurfLast->clear();
pcl::fromROSMsg(*msg, *laserCloudSurfLast);
newLaserCloudSurfLast = true;
}
2.4 laserOdometryHandler
主题
“/laser_odom_to_init”
的回调函数,接收里程计信息,记录:
timeLaserOdometry
里程计时间
transformSum[]
记录六自由度位姿,即里程计位姿
newLaserOdometry
标志位置1
void laserOdometryHandler(const nav_msgs::Odometry::ConstPtr &laserOdometry) {
timeLaserOdometry = laserOdometry->header.stamp.toSec();
double roll, pitch, yaw;
geometry_msgs::Quaternion geoQuat = laserOdometry->pose.pose.orientation;
tf::Matrix3x3(tf::Quaternion(geoQuat.z, -geoQuat.x, -geoQuat.y, geoQuat.w)).getRPY(roll, pitch, yaw);
transformSum[0] = -pitch;
transformSum[1] = -yaw;
transformSum[2] = roll;
transformSum[3] = laserOdometry->pose.pose.position.x;
transformSum[4] = laserOdometry->pose.pose.position.y;
transformSum[5] = laserOdometry->pose.pose.position.z;
newLaserOdometry = true;
}
2.5 imuHandler
主题
imuTopic
的回调函数,接收IMU数据信息,并记录在IMU数据队列中:
imuTime
时间队列
imuRoll
、imuPitch RPY
队列(另外一个姿态值没有用到,所以就只记录了其中2个值)
void imuHandler(const sensor_msgs::Imu::ConstPtr &imuIn) {
double roll, pitch, yaw;
tf::Quaternion orientation;
tf::quaternionMsgToTF(imuIn->orientation, orientation);
tf::Matrix3x3(orientation).getRPY(roll, pitch, yaw);
imuPointerLast = (imuPointerLast + 1) % imuQueLength;
imuTime[imuPointerLast] = imuIn->header.stamp.toSec();
imuRoll[imuPointerLast] = roll;
imuPitch[imuPointerLast] = pitch;
}
3.闭环检测
3.1 loopClosureThread
主要功能是进行闭环检测和闭环修正。
关于std::thread的构造函数可以参考这里
void loopClosureThread() {
if (loopClosureEnableFlag == false)
return;
ros::Rate rate(1);
while (ros::ok()) {
rate.sleep();
performLoopClosure();
}
}
3.2 detectLoopClosure
闭环检测
bool detectLoopClosure() {
latestSurfKeyFrameCloud->clear();
nearHistorySurfKeyFrameCloud->clear();
nearHistorySurfKeyFrameCloudDS->clear();
// 资源分配时初始化
// 在互斥量被析构前不解锁
std::lock_guard<std::mutex> lock(mtx);
// find the closest history key frame
std::vector<int> pointSearchIndLoop;
std::vector<float> pointSearchSqDisLoop;
kdtreeHistoryKeyPoses->setInputCloud(cloudKeyPoses3D);
// 进行半径historyKeyframeSearchRadius内的邻域搜索,
// currentRobotPosPoint:需要查询的点,
// pointSearchIndLoop:搜索完的邻域点对应的索引
// pointSearchSqDisLoop:搜索完的每个邻域点与当前点之间的欧式距离
// 0:返回的邻域个数,为0表示返回全部的邻域点
kdtreeHistoryKeyPoses->radiusSearch(currentRobotPosPoint, historyKeyframeSearchRadius, pointSearchIndLoop,
pointSearchSqDisLoop, 0);
closestHistoryFrameID = -1;
for (int i = 0; i < pointSearchIndLoop.size(); ++i) {
int id = pointSearchIndLoop[i];
// 两个时间差值大于30秒
if (abs(cloudKeyPoses6D->points[id].time - timeLaserOdometry) > 30.0) {
closestHistoryFrameID = id;
break;
}
}
if (closestHistoryFrameID == -1) {
// 找到的点和当前时间上没有超过30秒的
return false;
}
// save latest key frames
latestFrameIDLoopCloure = cloudKeyPoses3D->points.size() - 1;
// 点云的xyz坐标进行坐标系变换(分别绕xyz轴旋转)
*latestSurfKeyFrameCloud += *transformPointCloud(cornerCloudKeyFrames[latestFrameIDLoopCloure],
&cloudKeyPoses6D->points[latestFrameIDLoopCloure]);
*latestSurfKeyFrameCloud += *transformPointCloud(surfCloudKeyFrames[latestFrameIDLoopCloure],
&cloudKeyPoses6D->points[latestFrameIDLoopCloure]);
// latestSurfKeyFrameCloud中存储的是下面公式计算后的index(intensity):
// thisPoint.intensity = (float)rowIdn + (float)columnIdn / 10000.0;
// 滤掉latestSurfKeyFrameCloud中index<0的点??? index值会小于0?
pcl::PointCloud<PointType>::Ptr hahaCloud(new pcl::PointCloud<PointType>());
int cloudSize = latestSurfKeyFrameCloud->points.size();
for (int i = 0; i < cloudSize; ++i) {
// intensity不小于0的点放进hahaCloud队列
// 初始化时intensity是-1,滤掉那些点
if ((int) latestSurfKeyFrameCloud->points[i].intensity >= 0) {
hahaCloud->push_back(latestSurfKeyFrameCloud->points[i]);
}
}
latestSurfKeyFrameCloud->clear();
*latestSurfKeyFrameCloud = *hahaCloud;
// save history near key frames
// historyKeyframeSearchNum在utility.h中定义为25,前后25个点进行变换
for (int j = -historyKeyframeSearchNum; j <= historyKeyframeSearchNum; ++j) {
if (closestHistoryFrameID + j < 0 || closestHistoryFrameID + j > latestFrameIDLoopCloure)
continue;
// 要求closestHistoryFrameID + j在0到cloudKeyPoses3D->points.size()-1之间,不能超过索引
//将搜索范围内的角点点云与平面点点云均叠加至nearHistorySurfKeyFrameCloud中
*nearHistorySurfKeyFrameCloud += *transformPointCloud(cornerCloudKeyFrames[closestHistoryFrameID + j],
&cloudKeyPoses6D->points[closestHistoryFrameID + j]);
*nearHistorySurfKeyFrameCloud += *transformPointCloud(surfCloudKeyFrames[closestHistoryFrameID + j],
&cloudKeyPoses6D->points[closestHistoryFrameID + j]);
}
// 下采样滤波减少数据量
downSizeFilterHistoryKeyFrames.setInputCloud(nearHistorySurfKeyFrameCloud);
downSizeFilterHistoryKeyFrames.filter(*nearHistorySurfKeyFrameCloudDS);
// publish history near key frames
if (pubHistoryKeyFrames.getNumSubscribers() != 0) {
sensor_msgs::PointCloud2 cloudMsgTemp;
pcl::toROSMsg(*nearHistorySurfKeyFrameCloudDS, cloudMsgTemp);
cloudMsgTemp.header.stamp = ros::Time().fromSec(timeLaserOdometry);
cloudMsgTemp.header.frame_id = "/camera_init";
pubHistoryKeyFrames.publish(cloudMsgTemp);
}
return true;
}
3.3 performLoopClosure
函数流程:
- 先进行闭环检测detectLoopClosure(),如果返回true,则可能可以进行闭环,否则直接返回,程序结束。
- 接着使用icp迭代进行对齐。
- 对齐之后判断迭代是否收敛以及噪声是否太大,是则返回并直接结束函数。否则进行迭代后的数据发布处理。
- 接下来得到latestSurfKeyFrameCloud和nearHistorySurfKeyFrameCloudDS之间的位置平移和旋转。
- 然后进行图优化过程。
void performLoopClosure() {
//1.先进行闭环检测detectLoopClosure(),
//如果返回true,则可能可以进行闭环,否则直接返回,程序结束。
if (cloudKeyPoses3D->points.empty() == true)
return;
// try to find close key frame if there are any
if (potentialLoopFlag == false) {
if (detectLoopClosure() == true) {
potentialLoopFlag = true; // find some key frames that is old enough or close enough for loop closure
timeSaveFirstCurrentScanForLoopClosure = timeLaserOdometry;
}
if (potentialLoopFlag == false)
return;
}
// reset the flag first no matter icp successes or not
potentialLoopFlag = false;
//2.接着使用icp迭代进行对齐
// ICP Settings
pcl::IterativeClosestPoint<PointType, PointType> icp;
icp.setMaxCorrespondenceDistance(100);
icp.setMaximumIterations(100);
icp.setTransformationEpsilon(1e-6);
icp.setEuclideanFitnessEpsilon(1e-6);
// 设置RANSAC运行次数
icp.setRANSACIterations(0);
// Align clouds
icp.setInputSource(latestSurfKeyFrameCloud);
// 使用detectLoopClosure()函数中下采样刚刚更新nearHistorySurfKeyFrameCloudDS
icp.setInputTarget(nearHistorySurfKeyFrameCloudDS);
pcl::PointCloud<PointType>::Ptr unused_result(new pcl::PointCloud<PointType>());
// 进行icp点云对齐
icp.align(*unused_result);
//3.对齐之后判断迭代是否收敛以及噪声是否太大,是则返回并直接结束函数。否则进行迭代后的数据发布处理。
// 为什么匹配分数高直接返回???------分数高代表噪声太多
if (icp.hasConverged() == false || icp.getFitnessScore() > historyKeyframeFitnessScore)
return;
// publish corrected cloud
//4.接下来得到latestSurfKeyFrameCloud和nearHistorySurfKeyFrameCloudDS之间的位置平移和旋转。
// 以下在点云icp收敛并且噪声量在一定范围内进行
if (pubIcpKeyFrames.getNumSubscribers() != 0) {
pcl::PointCloud<PointType>::Ptr closed_cloud(new pcl::PointCloud<PointType>());
pcl::transformPointCloud(*latestSurfKeyFrameCloud, *closed_cloud, icp.getFinalTransformation());
sensor_msgs::PointCloud2 cloudMsgTemp;
pcl::toROSMsg(*closed_cloud, cloudMsgTemp);
cloudMsgTemp.header.stamp = ros::Time().fromSec(timeLaserOdometry);
cloudMsgTemp.header.frame_id = "/camera_init";
pubIcpKeyFrames.publish(cloudMsgTemp);
}
/*
get pose constraint
*/
float x, y, z, roll, pitch, yaw;
Eigen::Affine3f correctionCameraFrame;
//最终匹配得到的坐标转换
// 得到平移和旋转的角度
correctionCameraFrame = icp.getFinalTransformation(); // get transformation in camera frame (because points are in camera frame)
pcl::getTranslationAndEulerAngles(correctionCameraFrame, x, y, z, roll, pitch, yaw);
Eigen::Affine3f correctionLidarFrame = pcl::getTransformation(z, x, y, yaw, roll, pitch);
// transform from world origin to wrong pose
Eigen::Affine3f tWrong = pclPointToAffine3fCameraToLidar(cloudKeyPoses6D->points[latestFrameIDLoopCloure]);
// transform from world origin to corrected pose
Eigen::Affine3f tCorrect =
correctionLidarFrame * tWrong; // pre-multiplying -> successive rotation about a fixed frame
pcl::getTranslationAndEulerAngles(tCorrect, x, y, z, roll, pitch, yaw);
gtsam::Pose3 poseFrom = Pose3(Rot3::RzRyRx(roll, pitch, yaw), Point3(x, y, z));
gtsam::Pose3 poseTo = pclPointTogtsamPose3(cloudKeyPoses6D->points[closestHistoryFrameID]);
gtsam::Vector Vector6(6);
float noiseScore = icp.getFitnessScore();
Vector6 << noiseScore, noiseScore, noiseScore, noiseScore, noiseScore, noiseScore;
constraintNoise = noiseModel::Diagonal::Variances(Vector6);
/*
add constraints
*/
//5.然后进行图优化过程。
std::lock_guard<std::mutex> lock(mtx);
//在位姿图中加入新匹配得到的位姿约束
gtSAMgraph.add(BetweenFactor<Pose3>(latestFrameIDLoopCloure, closestHistoryFrameID, poseFrom.between(poseTo),
constraintNoise));
isam->update(gtSAMgraph);
isam->update();
gtSAMgraph.resize(0);
aLoopIsClosed = true;
}
4.可视化地图
4.1 visualizeGlobalMapThread
void visualizeGlobalMapThread(){
ros::Rate rate(0.2);
while (ros::ok()){
rate.sleep();
publishGlobalMap();///laser_cloud_surround话题
// 1.通过KDTree进行最近邻搜索;
// 2.通过搜索得到的索引放进队列;
// 3.通过两次下采样,减小数据量;
//发布/laser_cloud_surround话题
}
}
4.2 publishGlobalMap
publishGlobalMap()
主要进行了3个步骤:
- 通过KDTree进行最近邻搜索;
- 通过搜索得到的索引放进队列;
- 通过两次下采样,减小数据量;
void publishGlobalMap(){
if (pubLaserCloudSurround.getNumSubscribers() == 0)
return;
if (cloudKeyPoses3D->points.empty() == true)
return;
std::vector<int> pointSearchIndGlobalMap;
std::vector<float> pointSearchSqDisGlobalMap;
mtx.lock();
kdtreeGlobalMap->setInputCloud(cloudKeyPoses3D);
// 通过KDTree进行最近邻搜索
kdtreeGlobalMap->radiusSearch(currentRobotPosPoint, globalMapVisualizationSearchRadius, pointSearchIndGlobalMap, pointSearchSqDisGlobalMap, 0);
mtx.unlock();
for (int i = 0; i < pointSearchIndGlobalMap.size(); ++i)
globalMapKeyPoses->points.push_back(cloudKeyPoses3D->points[pointSearchIndGlobalMap[i]]);
// 对globalMapKeyPoses进行下采样
downSizeFilterGlobalMapKeyPoses.setInputCloud(globalMapKeyPoses);
downSizeFilterGlobalMapKeyPoses.filter(*globalMapKeyPosesDS);
for (int i = 0; i < globalMapKeyPosesDS->points.size(); ++i){
int thisKeyInd = (int)globalMapKeyPosesDS->points[i].intensity;
*globalMapKeyFrames += *transformPointCloud(cornerCloudKeyFrames[thisKeyInd],&cloudKeyPoses6D->points[thisKeyInd]);
*globalMapKeyFrames += *transformPointCloud(surfCloudKeyFrames[thisKeyInd],&cloudKeyPoses6D->points[thisKeyInd]);
*globalMapKeyFrames += *transformPointCloud(outlierCloudKeyFrames[thisKeyInd],&cloudKeyPoses6D->points[thisKeyInd]);
}
// 对globalMapKeyFrames进行下采样
downSizeFilterGlobalMapKeyFrames.setInputCloud(globalMapKeyFrames);
downSizeFilterGlobalMapKeyFrames.filter(*globalMapKeyFramesDS);
sensor_msgs::PointCloud2 cloudMsgTemp;
pcl::toROSMsg(*globalMapKeyFramesDS, cloudMsgTemp);
cloudMsgTemp.header.stamp = ros::Time().fromSec(timeLaserOdometry);
cloudMsgTemp.header.frame_id = "/camera_init";
pubLaserCloudSurround.publish(cloudMsgTemp);
globalMapKeyPoses->clear();
globalMapKeyPosesDS->clear();
globalMapKeyFrames->clear();
globalMapKeyFramesDS->clear();
}
5.核心run函数
5.1 transformAssociateToMap
transformAssociateToMap()
函数将坐标转移到世界坐标系下,得到可用于建图的Lidar坐标,即修改了transformTobeMapped的值。
// 将坐标转移到世界坐标系下,得到可用于建图的Lidar坐标,即修改了transformTobeMapped的值
// 根据当前和上一次全局姿态优化时的里程计 transformSum transformBefMapped
// 以及上一次全局姿态优化的结果 transformAftMapped
// 计算当前姿态优化的初始值,赋值给 transformTobeMapped
void transformAssociateToMap() {
float x1 = cos(transformSum[1]) * (transformBefMapped[3] - transformSum[3])
- sin(transformSum[1]) * (transformBefMapped[5] - transformSum[5]);
float y1 = transformBefMapped[4] - transformSum[4];
float z1 = sin(transformSum[1]) * (transformBefMapped[3] - transformSum[3])
+ cos(transformSum[1]) * (transformBefMapped[5] - transformSum[5]);
float x2 = x1;
float y2 = cos(transformSum[0]) * y1 + sin(transformSum[0]) * z1;
float z2 = -sin(transformSum[0]) * y1 + cos(transformSum[0]) * z1;
transformIncre[3] = cos(transformSum[2]) * x2 + sin(transformSum[2]) * y2;
transformIncre[4] = -sin(transformSum[2]) * x2 + cos(transformSum[2]) * y2;
transformIncre[5] = z2;
float sbcx = sin(transformSum[0]);
float cbcx = cos(transformSum[0]);
float sbcy = sin(transformSum[1]);
float cbcy = cos(transformSum[1]);
float sbcz = sin(transformSum[2]);
float cbcz = cos(transformSum[2]);
float sblx = sin(transformBefMapped[0]);
float cblx = cos(transformBefMapped[0]);
float sbly = sin(transformBefMapped[1]);
float cbly = cos(transformBefMapped[1]);
float sblz = sin(transformBefMapped[2]);
float cblz = cos(transformBefMapped[2]);
float salx = sin(transformAftMapped[0]);
float calx = cos(transformAftMapped[0]);
float saly = sin(transformAftMapped[1]);
float caly = cos(transformAftMapped[1]);
float salz = sin(transformAftMapped[2]);
float calz = cos(transformAftMapped[2]);
float srx = -sbcx * (salx * sblx + calx * cblx * salz * sblz + calx * calz * cblx * cblz)
- cbcx * sbcy * (calx * calz * (cbly * sblz - cblz * sblx * sbly)
- calx * salz * (cbly * cblz + sblx * sbly * sblz) + cblx * salx * sbly)
- cbcx * cbcy * (calx * salz * (cblz * sbly - cbly * sblx * sblz)
- calx * calz * (sbly * sblz + cbly * cblz * sblx) + cblx * cbly * salx);
transformTobeMapped[0] = -asin(srx);
float srycrx = sbcx * (cblx * cblz * (caly * salz - calz * salx * saly)
- cblx * sblz * (caly * calz + salx * saly * salz) + calx * saly * sblx)
- cbcx * cbcy * ((caly * calz + salx * saly * salz) * (cblz * sbly - cbly * sblx * sblz)
+ (caly * salz - calz * salx * saly) * (sbly * sblz + cbly * cblz * sblx) -
calx * cblx * cbly * saly)
+ cbcx * sbcy * ((caly * calz + salx * saly * salz) * (cbly * cblz + sblx * sbly * sblz)
+ (caly * salz - calz * salx * saly) * (cbly * sblz - cblz * sblx * sbly) +
calx * cblx * saly * sbly);
float crycrx = sbcx * (cblx * sblz * (calz * saly - caly * salx * salz)
- cblx * cblz * (saly * salz + caly * calz * salx) + calx * caly * sblx)
+ cbcx * cbcy * ((saly * salz + caly * calz * salx) * (sbly * sblz + cbly * cblz * sblx)
+ (calz * saly - caly * salx * salz) * (cblz * sbly - cbly * sblx * sblz) +
calx * caly * cblx * cbly)
- cbcx * sbcy * ((saly * salz + caly * calz * salx) * (cbly * sblz - cblz * sblx * sbly)
+ (calz * saly - caly * salx * salz) * (cbly * cblz + sblx * sbly * sblz) -
calx * caly * cblx * sbly);
transformTobeMapped[1] = atan2(srycrx / cos(transformTobeMapped[0]),
crycrx / cos(transformTobeMapped[0]));
float srzcrx = (cbcz * sbcy - cbcy * sbcx * sbcz) * (calx * salz * (cblz * sbly - cbly * sblx * sblz)
- calx * calz * (sbly * sblz + cbly * cblz * sblx) +
cblx * cbly * salx)
- (cbcy * cbcz + sbcx * sbcy * sbcz) * (calx * calz * (cbly * sblz - cblz * sblx * sbly)
- calx * salz * (cbly * cblz + sblx * sbly * sblz) +
cblx * salx * sbly)
+ cbcx * sbcz * (salx * sblx + calx * cblx * salz * sblz + calx * calz * cblx * cblz);
float crzcrx = (cbcy * sbcz - cbcz * sbcx * sbcy) * (calx * calz * (cbly * sblz - cblz * sblx * sbly)
- calx * salz * (cbly * cblz + sblx * sbly * sblz) +
cblx * salx * sbly)
- (sbcy * sbcz + cbcy * cbcz * sbcx) * (calx * salz * (cblz * sbly - cbly * sblx * sblz)
- calx * calz * (sbly * sblz + cbly * cblz * sblx) +
cblx * cbly * salx)
+ cbcx * cbcz * (salx * sblx + calx * cblx * salz * sblz + calx * calz * cblx * cblz);
transformTobeMapped[2] = atan2(srzcrx / cos(transformTobeMapped[0]),
crzcrx / cos(transformTobeMapped[0]));
x1 = cos(transformTobeMapped[2]) * transformIncre[3] - sin(transformTobeMapped[2]) * transformIncre[4];
y1 = sin(transformTobeMapped[2]) * transformIncre[3] + cos(transformTobeMapped[2]) * transformIncre[4];
z1 = transformIncre[5];
x2 = x1;
y2 = cos(transformTobeMapped[0]) * y1 - sin(transformTobeMapped[0]) * z1;
z2 = sin(transformTobeMapped[0]) * y1 + cos(transformTobeMapped[0]) * z1;
transformTobeMapped[3] = transformAftMapped[3]
- (cos(transformTobeMapped[1]) * x2 + sin(transformTobeMapped[1]) * z2);
transformTobeMapped[4] = transformAftMapped[4] - y2;
transformTobeMapped[5] = transformAftMapped[5]
- (-sin(transformTobeMapped[1]) * x2 + cos(transformTobeMapped[1]) * z2);
}
5.2 extractSurroundingKeyFrames
extractSurroundingKeyFrames()
提取周围关键帧。
算法流程如下:
extractSurroundingKeyFrames(){
if(cloudKeyPoses3D为空) return;
if(进行闭环过程){
1.若recentCornerCloudKeyFrames中的点云数量不够, 清空后重新塞入新的点云直至数量够。
2.否则pop队列recentCornerCloudKeyFrames最前端的一个,再往队列尾部push一个;
*laserCloudCornerFromMap += *recentCornerCloudKeyFrames[i];
*laserCloudSurfFromMap += *recentSurfCloudKeyFrames[i];
*laserCloudSurfFromMap += *recentOutlierCloudKeyFrames[i];
}else{
/*这里不进行闭环过程*/
1.进行半径surroundingKeyframeSearchRadius内的邻域搜索
2.双重循环,不断对比surroundingExistingKeyPosesID和surroundingKeyPosesDS中点的index,
如果能够找到一样,说明存在关键帧。然后在队列中去掉找不到的元素,留下可以找到的。
3.再来一次双重循环,这部分比较有技巧,
这里把surroundingExistingKeyPosesID内没有对应的点放进一个队列里,
这个队列专门存放周围存在的关键帧,
但是和surroundingExistingKeyPosesID的点不在同一行。
关于行,需要参考intensity数据的存放格式,
整数部分和小数部分代表不同意义。
}
不管是否进行闭环过程,最后的输出都要进行一次下采样减小数据量的过程。
最后的输出结果是laserCloudCornerFromMapDS和laserCloudSurfFromMapDS。
}
// 函数功能:根据当前位置,提取局部关键帧集合,以及对应的三个关键帧点云集合
// 步骤:
// 1. 在 关键帧位置集合cloudKeyPoses3D 中
// 检索 当前位置currentRobotPosPoint 附近的姿态点
// 获得局部位置点,赋值给 局部位置点集合surroundingKeyPoses
// 2. 根据 局部位置点集合surroundingKeyPoses 更新
// 局部关键帧集合 surroundingExistingKeyPosesID
// 局部关键帧 角点点云集合surroundingCornerCloudKeyFrames
// 局部关键帧 平面点点云集合surroundingSurfCloudKeyFrames
// 局部关键帧 离群点点云集合surroundingOutlierCloudKeyFrames
// 增加新进入局部的关键帧、并删除离开局部的关键帧。
// 3. 为局部点云地图赋值
// laserCloudCornerFromMap 所有局部关键帧的角点集合
// laserCloudSurfFromMap 所有局部关键帧平面点和离群点的集合
void extractSurroundingKeyFrames() {
if (cloudKeyPoses3D->points.empty() == true)
return;
// loopClosureEnableFlag 这个变量另外只在loopthread这部分中有用到
if (loopClosureEnableFlag == true) {
// only use recent key poses for graph building
// recentCornerCloudKeyFrames保存的点云数量太少,则清空后重新塞入新的点云直至数量够
if (recentCornerCloudKeyFrames.size() <
surroundingKeyframeSearchNum) { // queue is not full (the beginning of mapping or a loop is just closed)
// clear recent key frames queue
recentCornerCloudKeyFrames.clear();
recentSurfCloudKeyFrames.clear();
recentOutlierCloudKeyFrames.clear();
int numPoses = cloudKeyPoses3D->points.size();
for (int i = numPoses - 1; i >= 0; --i) {
// cloudKeyPoses3D的intensity中存的是索引值?
// 保存的索引值从1开始编号;
int thisKeyInd = (int) cloudKeyPoses3D->points[i].intensity;
PointTypePose thisTransformation = cloudKeyPoses6D->points[thisKeyInd];
updateTransformPointCloudSinCos(&thisTransformation);
// 依据上面得到的变换thisTransformation,对cornerCloudKeyFrames,surfCloudKeyFrames,surfCloudKeyFrames
// 进行坐标变换
// extract surrounding map
recentCornerCloudKeyFrames.push_front(transformPointCloud(cornerCloudKeyFrames[thisKeyInd]));
recentSurfCloudKeyFrames.push_front(transformPointCloud(surfCloudKeyFrames[thisKeyInd]));
recentOutlierCloudKeyFrames.push_front(transformPointCloud(outlierCloudKeyFrames[thisKeyInd]));
if (recentCornerCloudKeyFrames.size() >= surroundingKeyframeSearchNum)
break;
}
} else { // queue is full, pop the oldest key frame and push the latest key frame
// recentCornerCloudKeyFrames中点云保存的数量较多
// pop队列最前端的一个,再push后面一个
if (latestFrameID != cloudKeyPoses3D->points.size() -
1) { // if the robot is not moving, no need to update recent frames
recentCornerCloudKeyFrames.pop_front();
recentSurfCloudKeyFrames.pop_front();
recentOutlierCloudKeyFrames.pop_front();
// 为什么要把recentCornerCloudKeyFrames最前面第一个元素弹出?
// (1个而不是好几个或者是全部)?
// push latest scan to the end of queue
latestFrameID = cloudKeyPoses3D->points.size() - 1;
PointTypePose thisTransformation = cloudKeyPoses6D->points[latestFrameID];
updateTransformPointCloudSinCos(&thisTransformation);
recentCornerCloudKeyFrames.push_back(transformPointCloud(cornerCloudKeyFrames[latestFrameID]));
recentSurfCloudKeyFrames.push_back(transformPointCloud(surfCloudKeyFrames[latestFrameID]));
recentOutlierCloudKeyFrames.push_back(transformPointCloud(outlierCloudKeyFrames[latestFrameID]));
}
}
for (int i = 0; i < recentCornerCloudKeyFrames.size(); ++i) {
// 两个pcl::PointXYZI相加?
// 注意这里把recentOutlierCloudKeyFrames也加入到了laserCloudSurfFromMap
*laserCloudCornerFromMap += *recentCornerCloudKeyFrames[i];
*laserCloudSurfFromMap += *recentSurfCloudKeyFrames[i];
*laserCloudSurfFromMap += *recentOutlierCloudKeyFrames[i];
}
} else {
// 下面这部分是没有闭环的代码
//
surroundingKeyPoses->clear();
surroundingKeyPosesDS->clear();
// extract all the nearby key poses and downsample them
kdtreeSurroundingKeyPoses->setInputCloud(cloudKeyPoses3D);
// 进行半径surroundingKeyframeSearchRadius内的邻域搜索,
// currentRobotPosPoint:需要查询的点,
// pointSearchInd:搜索完的邻域点对应的索引
// pointSearchSqDis:搜索完的每个领域点点与传讯点之间的欧式距离
// 0:返回的邻域个数,为0表示返回全部的邻域点
kdtreeSurroundingKeyPoses->radiusSearch(currentRobotPosPoint, (double) surroundingKeyframeSearchRadius,
pointSearchInd, pointSearchSqDis, 0);
for (int i = 0; i < pointSearchInd.size(); ++i)
surroundingKeyPoses->points.push_back(cloudKeyPoses3D->points[pointSearchInd[i]]);
downSizeFilterSurroundingKeyPoses.setInputCloud(surroundingKeyPoses);
downSizeFilterSurroundingKeyPoses.filter(*surroundingKeyPosesDS);
// delete key frames that are not in surrounding region
int numSurroundingPosesDS = surroundingKeyPosesDS->points.size();
for (int i = 0; i < surroundingExistingKeyPosesID.size(); ++i) {
bool existingFlag = false;
for (int j = 0; j < numSurroundingPosesDS; ++j) {
// 双重循环,不断对比surroundingExistingKeyPosesID[i]和surroundingKeyPosesDS的点的index
// 如果能够找到一样的,说明存在相同的关键点(因为surroundingKeyPosesDS从cloudKeyPoses3D中筛选而来)
if (surroundingExistingKeyPosesID[i] == (int) surroundingKeyPosesDS->points[j].intensity) {
existingFlag = true;
break;
}
}
if (existingFlag == false) {
// 如果surroundingExistingKeyPosesID[i]对比了一轮的已经存在的关键位姿的索引后(intensity保存的就是size())
// 没有找到相同的关键点,那么把这个点从当前队列中删除
// 否则的话,existingFlag为true,该关键点就将它留在队列中
surroundingExistingKeyPosesID.erase(surroundingExistingKeyPosesID.begin() + i);
surroundingCornerCloudKeyFrames.erase(surroundingCornerCloudKeyFrames.begin() + i);
surroundingSurfCloudKeyFrames.erase(surroundingSurfCloudKeyFrames.begin() + i);
surroundingOutlierCloudKeyFrames.erase(surroundingOutlierCloudKeyFrames.begin() + i);
--i;
}
}
// 上一个两重for循环主要用于删除数据,此处的两重for循环用来添加数据
// add new key frames that are not in calculated existing key frames
for (int i = 0; i < numSurroundingPosesDS; ++i) {
bool existingFlag = false;
for (auto iter = surroundingExistingKeyPosesID.begin();
iter != surroundingExistingKeyPosesID.end(); ++iter) {
// *iter就是不同的cloudKeyPoses3D->points.size(),
// 把surroundingExistingKeyPosesID内没有对应的点放进一个队列里
// 这个队列专门存放周围存在的关键帧,但是和surroundingExistingKeyPosesID的点没有对应的,也就是新的点
if ((*iter) == (int) surroundingKeyPosesDS->points[i].intensity) {
existingFlag = true;
break;
}
}
if (existingFlag == true) {
continue;
} else {
int thisKeyInd = (int) surroundingKeyPosesDS->points[i].intensity;
PointTypePose thisTransformation = cloudKeyPoses6D->points[thisKeyInd];
updateTransformPointCloudSinCos(&thisTransformation);
surroundingExistingKeyPosesID.push_back(thisKeyInd);
surroundingCornerCloudKeyFrames.push_back(transformPointCloud(cornerCloudKeyFrames[thisKeyInd]));
surroundingSurfCloudKeyFrames.push_back(transformPointCloud(surfCloudKeyFrames[thisKeyInd]));
surroundingOutlierCloudKeyFrames.push_back(transformPointCloud(outlierCloudKeyFrames[thisKeyInd]));
}
}
for (int i = 0; i < surroundingExistingKeyPosesID.size(); ++i) {
*laserCloudCornerFromMap += *surroundingCornerCloudKeyFrames[i];
*laserCloudSurfFromMap += *surroundingSurfCloudKeyFrames[i];
*laserCloudSurfFromMap += *surroundingOutlierCloudKeyFrames[i];
}
}
// 进行两次下采样
// 最后的输出结果是laserCloudCornerFromMapDS和laserCloudSurfFromMapDS
// Downsample the surrounding corner key frames (or map)
downSizeFilterCorner.setInputCloud(laserCloudCornerFromMap);
downSizeFilterCorner.filter(*laserCloudCornerFromMapDS);
laserCloudCornerFromMapDSNum = laserCloudCornerFromMapDS->points.size();
// Downsample the surrounding surf key frames (or map)
downSizeFilterSurf.setInputCloud(laserCloudSurfFromMap);
downSizeFilterSurf.filter(*laserCloudSurfFromMapDS);
laserCloudSurfFromMapDSNum = laserCloudSurfFromMapDS->points.size();
}
5.3 downsampleCurrentScan
downsampleCurrentScan
函数是将当前各类点云降采样,其中laserCloudSurfTotalLast是平面部分与异常部分的叠加。
算法流程如下:
- 下采样laserCloudCornerLast得到laserCloudCornerLastDS;
- 下采样laserCloudSurfLast得到laserCloudSurfLastDS;
- 下采样laserCloudOutlierLast得到laserCloudOutlierLastDS;
- laserCloudSurfLastDS和laserCloudOutlierLastDS相加,得到laserCloudSurfTotalLast;
- 下采样得到laserCloudSurfTotalLast,得到laserCloudSurfTotalLastDS;
// 对来自msg的点云进行降采样
// laserCloudCornerLast //角点点云
// laserCloudSurfLast // 平面点点云
// laserCloudOutlierLast // 离群点点云
// laserCloudSurfTotalLast // 平面点+离群点
void downsampleCurrentScan() {
laserCloudCornerLastDS->clear();
downSizeFilterCorner.setInputCloud(laserCloudCornerLast);
downSizeFilterCorner.filter(*laserCloudCornerLastDS);
laserCloudCornerLastDSNum = laserCloudCornerLastDS->points.size();
laserCloudSurfLastDS->clear();
downSizeFilterSurf.setInputCloud(laserCloudSurfLast);
downSizeFilterSurf.filter(*laserCloudSurfLastDS);
laserCloudSurfLastDSNum = laserCloudSurfLastDS->points.size();
laserCloudOutlierLastDS->clear();
downSizeFilterOutlier.setInputCloud(laserCloudOutlierLast);
downSizeFilterOutlier.filter(*laserCloudOutlierLastDS);
laserCloudOutlierLastDSNum = laserCloudOutlierLastDS->points.size();
laserCloudSurfTotalLast->clear();
laserCloudSurfTotalLastDS->clear();
*laserCloudSurfTotalLast += *laserCloudSurfLastDS;
*laserCloudSurfTotalLast += *laserCloudOutlierLastDS;
downSizeFilterSurf.setInputCloud(laserCloudSurfTotalLast);
downSizeFilterSurf.filter(*laserCloudSurfTotalLastDS);
laserCloudSurfTotalLastDSNum = laserCloudSurfTotalLastDS->points.size();
}
5.4 scan2MapOptimization
scan2MapOptimization
函数是根据现有地图与最新点云数据进行配准从而更新机器人精确位姿与融合建图,它分为角点优化、平面点优化、配准与更新等部分。
//使用 scan-to-model 的策略优化了 变换 transformTobeMapped
// 使用scan-to-model位姿优化,获得当前时间点机器人的位姿 transformTobeMapped
// 参考IMU的姿态 对 transformTobeMapped 进行中值滤波,获得最终的机器人位姿
// 为 transformBefMapped 赋值为 里程计位姿,即scan-to-model优化前的位姿
// 为 transformAftMapped 赋值为 transformTobeMapped 即scan-to-model优化后的位姿
void scan2MapOptimization() {
// laserCloudCornerFromMapDSNum是extractSurroundingKeyFrames()函数最后降采样得到的coner点云数
// laserCloudSurfFromMapDSNum是extractSurroundingKeyFrames()函数降采样得到的surface点云数
if (laserCloudCornerFromMapDSNum > 10 && laserCloudSurfFromMapDSNum > 100) {
// laserCloudCornerFromMapDS和laserCloudSurfFromMapDS的来源有2个:
// 当有闭环时,来源是:recentCornerCloudKeyFrames,没有闭环时,来源surroundingCornerCloudKeyFrames
kdtreeCornerFromMap->setInputCloud(laserCloudCornerFromMapDS);
kdtreeSurfFromMap->setInputCloud(laserCloudSurfFromMapDS);
for (int iterCount = 0; iterCount < 10; iterCount++) {
// 用for循环控制迭代次数,最多迭代10次
laserCloudOri->clear();
coeffSel->clear();
cornerOptimization(iterCount);
surfOptimization(iterCount);
if (LMOptimization(iterCount) == true)
break;
}
// 迭代结束更新相关的转移矩阵
transformUpdate();
}
}
上面
laserCloudCornerFromMapDSNum
和laserCloudSurfFromMapDSNum
是在函数extractSurroundingKeyFrames()
中刚刚更新的。
5.4.1 cornerOptimization
函数分成了几个部分:
- 进行坐标变换,转换到全局坐标中去;
- 进行5邻域搜索,得到结果后对搜索得到的5点求平均值;
- 求矩阵
matA1=[ax,ay,az]t*[ax,ay,az]
,例如ax代表的是x-cx,表示均值与每个实际值的差值,求取5个之后再次取平均,得到matA1
;- 求正交阵的特征值和特征向量,特征值:
matD1
,特征向量:保存在矩阵matV1
中。
因为求取的特征值是按照降序排列的,所以根据论文里面提到的:
1.如果这是一个边缘特征,则它的一个特征值远大于其余两个;
2.如果这是一个平面特征,那么其中一个特征值远小于其余两个特征值;
根据上面两个原则进行判断要不要进行优化。
如果没有满足条件1,就不进行优化过程,因为这不是一个边缘特征。- 如果进行优化,进行优化的过程是这样的:
先定义3组变量,
float x0 = pointSel.x;
float y0 = pointSel.y;
float z0 = pointSel.z;
float x1 = cx + 0.1 * matV1.at<float>(0, 0);
float y1 = cy + 0.1 * matV1.at<float>(0, 1);
float z1 = cz + 0.1 * matV1.at<float>(0, 2);
float x2 = cx - 0.1 * matV1.at<float>(0, 0);
float y2 = cy - 0.1 * matV1.at<float>(0, 1);
float z2 = cz - 0.1 * matV1.at<float>(0, 2);
然后求 ( x 0 − x 1 , y 0 − y 1 , z 0 − z 1 ) ( x 0 − x 1 , y 0 − y 1 , z 0 − z 1 ) (x_0−x_1,y_0−y_1,z_0−z_1)(x_0−x_1,y_0−y_1,z_0−z_1) (x0−x1,y0−y1,z0−z1)(x0−x1,y0−y1,z0−z1)与 ( x 0 − x 2 , y 0 − y 2 , z 0 − z 2 ) ( x 0 − x 2 , y 0 − y 2 , z 0 − z 2 ) (x_0−x_2,y_0−y_2,z_0−z_2)(x_0−x_2,y_0−y_2,z_0−z_2) (x0−x2,y0−y2,z0−z2)(x0−x2,y0−y2,z0−z2)叉乘得到的平行四边形的面积,即
的模长。
接着求底边的长度:
float l12 = sqrt((x1 - x2) * (x1 - x2) + (y1 - y2) * (y1 - y2) + (z1 - z2) * (z1 - z2));
最后再求一次叉乘,得到底边高上的单位向量:
// 求叉乘结果[la',lb',lc']=[(x1-x2),(y1-y2),(z1-z2)]x[XXX,YYY,ZZZ]
// [la,lb,lc]=[la',lb',lc']/a012/l12
// 得到底边上的高的方向向量[la,lb,lc]
float la =...
float lb =...
float lc =...
float ld2 = a012 / l12;
下面涉及到一个鲁棒核函数,作者简单地设计了这个核函数。
float s = 1 - 0.9 * fabs(ld2);
程序末尾根据
s
的值来判断是否将点云点放入点云集合laserCloudOri
以及coeffSel
中。
void cornerOptimization(int iterCount) {
updatePointAssociateToMapSinCos();
for (int i = 0; i < laserCloudCornerLastDSNum; i++) {
pointOri = laserCloudCornerLastDS->points[i];
// 进行坐标变换,转换到全局坐标中去(世界坐标系)
// pointSel:表示选中的点,point select
// 输入是pointOri,输出是pointSel
pointAssociateToMap(&pointOri, &pointSel);
// 进行5邻域搜索,
// pointSel为需要搜索的点,
// pointSearchInd搜索完的邻域对应的索引
// pointSearchSqDis 邻域点与查询点之间的距离
kdtreeCornerFromMap->nearestKSearch(pointSel, 5, pointSearchInd, pointSearchSqDis);
// 只有当最远的那个邻域点的距离pointSearchSqDis[4]小于1m时才进行下面的计算
// 以下部分的计算是在计算点集的协方差矩阵,Zhang Ji的论文中有提到这部分
if (pointSearchSqDis[4] < 1.0) {
// 先求5个样本的平均值
float cx = 0, cy = 0, cz = 0;
for (int j = 0; j < 5; j++) {
cx += laserCloudCornerFromMapDS->points[pointSearchInd[j]].x;
cy += laserCloudCornerFromMapDS->points[pointSearchInd[j]].y;
cz += laserCloudCornerFromMapDS->points[pointSearchInd[j]].z;
}
cx /= 5;
cy /= 5;
cz /= 5;
// 下面在求矩阵matA1=[ax,ay,az]^t*[ax,ay,az]
// 更准确地说应该是在求协方差matA1
float a11 = 0, a12 = 0, a13 = 0, a22 = 0, a23 = 0, a33 = 0;
for (int j = 0; j < 5; j++) {
// ax代表的是x-cx,表示均值与每个实际值的差值,求取5个之后再次取平均,得到matA1
float ax = laserCloudCornerFromMapDS->points[pointSearchInd[j]].x - cx;
float ay = laserCloudCornerFromMapDS->points[pointSearchInd[j]].y - cy;
float az = laserCloudCornerFromMapDS->points[pointSearchInd[j]].z - cz;
a11 += ax * ax;
a12 += ax * ay;
a13 += ax * az;
a22 += ay * ay;
a23 += ay * az;
a33 += az * az;
}
a11 /= 5;
a12 /= 5;
a13 /= 5;
a22 /= 5;
a23 /= 5;
a33 /= 5;
matA1.at<float>(0, 0) = a11;
matA1.at<float>(0, 1) = a12;
matA1.at<float>(0, 2) = a13;
matA1.at<float>(1, 0) = a12;
matA1.at<float>(1, 1) = a22;
matA1.at<float>(1, 2) = a23;
matA1.at<float>(2, 0) = a13;
matA1.at<float>(2, 1) = a23;
matA1.at<float>(2, 2) = a33;
// 求正交阵的特征值和特征向量
// 特征值:matD1,特征向量:matV1中
cv::eigen(matA1, matD1, matV1);
// 边缘:与较大特征值相对应的特征向量代表边缘线的方向(一大两小,大方向)
// 以下这一大块是在计算点到边缘的距离,最后通过系数s来判断是否距离很近
// 如果距离很近就认为这个点在边缘上,需要放到laserCloudOri中
if (matD1.at<float>(0, 0) > 3 * matD1.at<float>(0, 1)) {
float x0 = pointSel.x;
float y0 = pointSel.y;
float z0 = pointSel.z;
float x1 = cx + 0.1 * matV1.at<float>(0, 0);
float y1 = cy + 0.1 * matV1.at<float>(0, 1);
float z1 = cz + 0.1 * matV1.at<float>(0, 2);
float x2 = cx - 0.1 * matV1.at<float>(0, 0);
float y2 = cy - 0.1 * matV1.at<float>(0, 1);
float z2 = cz - 0.1 * matV1.at<float>(0, 2);
// 这边是在求[(x0-x1),(y0-y1),(z0-z1)]与[(x0-x2),(y0-y2),(z0-z2)]叉乘得到的向量的模长
// 这个模长是由0.2*V1[0]和点[x0,y0,z0]构成的平行四边形的面积

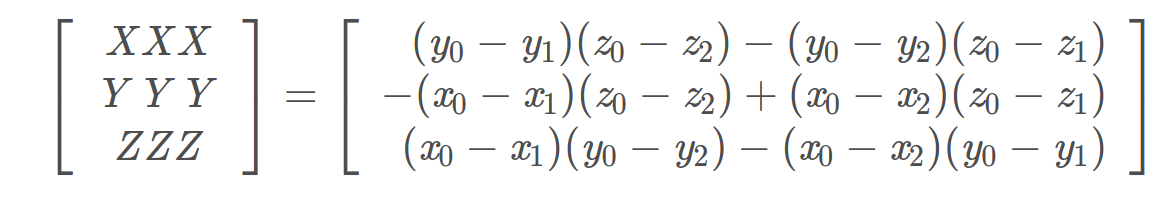

// 因为[(x0-x1),(y0-y1),(z0-z1)]x[(x0-x2),(y0-y2),(z0-z2)]=[XXX,YYY,ZZZ],
// [XXX,YYY,ZZZ]=[(y0-y1)(z0-z2)-(y0-y2)(z0-z1),-(x0-x1)(z0-z2)+(x0-x2)(z0-z1),(x0-x1)(y0-y2)-(x0-x2)(y0-y1)]
float a012 = sqrt(((x0 - x1) * (y0 - y2) - (x0 - x2) * (y0 - y1))
* ((x0 - x1) * (y0 - y2) - (x0 - x2) * (y0 - y1))
+ ((x0 - x1) * (z0 - z2) - (x0 - x2) * (z0 - z1))
* ((x0 - x1) * (z0 - z2) - (x0 - x2) * (z0 - z1))
+ ((y0 - y1) * (z0 - z2) - (y0 - y2) * (z0 - z1))
* ((y0 - y1) * (z0 - z2) - (y0 - y2) * (z0 - z1)));
// l12表示的是0.2*(||V1[0]||)
// 也就是平行四边形一条底的长度
float l12 = sqrt((x1 - x2) * (x1 - x2) + (y1 - y2) * (y1 - y2) + (z1 - z2) * (z1 - z2));
// 求叉乘结果[la',lb',lc']=[(x1-x2),(y1-y2),(z1-z2)]x[XXX,YYY,ZZZ]
// [la,lb,lc]=[la',lb',lc']/a012/l12
// LLL=[la,lb,lc]是0.2*V1[0]这条高上的单位法向量。||LLL||=1;
float la = ((y1 - y2) * ((x0 - x1) * (y0 - y2) - (x0 - x2) * (y0 - y1))
+ (z1 - z2) * ((x0 - x1) * (z0 - z2) - (x0 - x2) * (z0 - z1))) / a012 / l12;
float lb = -((x1 - x2) * ((x0 - x1) * (y0 - y2) - (x0 - x2) * (y0 - y1))
- (z1 - z2) * ((y0 - y1) * (z0 - z2) - (y0 - y2) * (z0 - z1))) / a012 / l12;
float lc = -((x1 - x2) * ((x0 - x1) * (z0 - z2) - (x0 - x2) * (z0 - z1))
+ (y1 - y2) * ((y0 - y1) * (z0 - z2) - (y0 - y2) * (z0 - z1))) / a012 / l12;
// 计算点pointSel到直线的距离
// 这里需要特别说明的是ld2代表的是点pointSel到过点[cx,cy,cz]的方向向量直线的距离
float ld2 = a012 / l12;
// 如果在最理想的状态的话,ld2应该为0,表示点在直线上
// 最理想状态s=1;
float s = 1 - 0.9 * fabs(ld2);
// coeff代表系数的意思
// coff用于保存距离的方向向量
coeff.x = s * la;
coeff.y = s * lb;
coeff.z = s * lc;
// intensity本质上构成了一个核函数,ld2越接近于1,增长越慢
// intensity=(1-0.9*ld2)*ld2=ld2-0.9*ld2*ld2
coeff.intensity = s * ld2;
// 所以就应该认为这个点是边缘点
// s>0.1 也就是要求点到直线的距离ld2要小于1m
// s越大说明ld2越小(离边缘线越近),这样就说明点pointOri在直线上
if (s > 0.1) {
laserCloudOri->push_back(pointOri);
coeffSel->push_back(coeff);
}
}
}
}
}
5.4.2 surfOptimization
void surfOptimization(int)
函数进行面优化,内容和函数cornerOptimization(int)
的内容基本相同。
步骤如下:
- 进行坐标变换,转换到全局坐标中去;
- 进行5邻域搜索,得到结果后判断搜索结果是否满足条件(
pointSearchSqDis[4] < 1.0
),不满足条件就不需要进行优化;- 将搜索结果全部保存到
matA0
中,形成一个5x3的矩阵;- 解这个矩阵
cv::solve(matA0, matB0, matX0, cv::DECOMP_QR)
;。
关于cv::solve函数,参考官网
matB0
是一个5x1的矩阵,需要求解的matX0
是3x1的矩阵;
所以函数其实是在求解方程
m a t A 0 ∗ m a t X 0 = m a t B 0 matA_0*matX_0=matB_0 matA0∗matX0=matB0 ,最后求得 m a t X 0 matX_0 matX0。 这个公式其实是在求由matA0中的点构成的平面的法向量matX0。- 求解得到的
matX0=[pa,pb,pc,pd]
,对[pa,pb,pc,pd]
进行单位化,
matB0=[-1,-1,-1,-1,-1]^t
if (fabs(pa * laserCloudSurfFromMapDS->points[pointSearchInd[j]].x +
pb * laserCloudSurfFromMapDS->points[pointSearchInd[j]].y +
pc * laserCloudSurfFromMapDS->points[pointSearchInd[j]].z + pd) > 0.2) {
planeValid = false;
break;
}
因为pd=1
,所以在求解的时候设置了matB0
全为-1。
这里再次判断求解的方向向量和每个点相乘,最后结果是不是在误差范围内。
如果误差太大就不把当前点pointSel
放到点云中去了。
- 误差在允许的范围内的话把这个点放到点云
laserCloudOri
中去,把对应的向量coeff
放到coeffSel
中。
void surfOptimization(int iterCount) {
updatePointAssociateToMapSinCos();
for (int i = 0; i < laserCloudSurfTotalLastDSNum; i++) {
pointOri = laserCloudSurfTotalLastDS->points[i];
pointAssociateToMap(&pointOri, &pointSel);
kdtreeSurfFromMap->nearestKSearch(pointSel, 5, pointSearchInd, pointSearchSqDis);
if (pointSearchSqDis[4] < 1.0) {
for (int j = 0; j < 5; j++) {
matA0.at<float>(j, 0) = laserCloudSurfFromMapDS->points[pointSearchInd[j]].x;
matA0.at<float>(j, 1) = laserCloudSurfFromMapDS->points[pointSearchInd[j]].y;
matA0.at<float>(j, 2) = laserCloudSurfFromMapDS->points[pointSearchInd[j]].z;
}
// matB0是一个5x1的矩阵
// matB0 = cv::Mat (5, 1, CV_32F, cv::Scalar::all(-1));
// matX0是3x1的矩阵
// 求解方程matA0*matX0=matB0
// 公式其实是在求由matA0中的点构成的平面的法向量matX0
cv::solve(matA0, matB0, matX0, cv::DECOMP_QR);
// [pa,pb,pc,pd]=[matX0,pd]
// 正常情况下(见后面planeValid判断条件),应该是
// pa * laserCloudSurfFromMapDS->points[pointSearchInd[j]].x +
// pb * laserCloudSurfFromMapDS->points[pointSearchInd[j]].y +
// pc * laserCloudSurfFromMapDS->points[pointSearchInd[j]].z = -1
// 所以pd设置为1
float pa = matX0.at<float>(0, 0);
float pb = matX0.at<float>(1, 0);
float pc = matX0.at<float>(2, 0);
float pd = 1;
// 对[pa,pb,pc,pd]进行单位化
float ps = sqrt(pa * pa + pb * pb + pc * pc);
pa /= ps;
pb /= ps;
pc /= ps;
pd /= ps;
// 求解后再次检查平面是否是有效平面
bool planeValid = true;
for (int j = 0; j < 5; j++) {
if (fabs(pa * laserCloudSurfFromMapDS->points[pointSearchInd[j]].x +
pb * laserCloudSurfFromMapDS->points[pointSearchInd[j]].y +
pc * laserCloudSurfFromMapDS->points[pointSearchInd[j]].z + pd) > 0.2) {
planeValid = false;
break;
}
}
if (planeValid) {
float pd2 = pa * pointSel.x + pb * pointSel.y + pc * pointSel.z + pd;
// 后面部分相除求的是[pa,pb,pc,pd]与pointSel的夹角余弦值(两个sqrt,其实并不是余弦值)
// 这个夹角余弦值越小越好,越小证明所求的[pa,pb,pc,pd]与平面越垂直
float s = 1 - 0.9 * fabs(pd2) / sqrt(sqrt(pointSel.x * pointSel.x
+ pointSel.y * pointSel.y + pointSel.z * pointSel.z));
coeff.x = s * pa;
coeff.y = s * pb;
coeff.z = s * pc;
coeff.intensity = s * pd2;
// 判断是否是合格平面,是就加入laserCloudOri
if (s > 0.1) {
laserCloudOri->push_back(pointOri);
coeffSel->push_back(coeff);
}
}
}
}
}
5.4.3 LMOptimization
bool LMOptimization(int)
函数是代码中最重要的一个函数,实现的功能是高斯牛顿优化(虽然写了是LMOptimization
,但其实是用的高斯牛顿的方法)。
首先是对laserCloudOri
中数据的处理,将它放到matA
中,matA
就是误差对旋转和平移变量的雅克比矩阵。
// 求雅克比矩阵中的元素,距离d对roll角度的偏导量即d(d)/d(roll)
// 更详细的数学推导参看wykxwyc.github.io
float arx = (crx * sry * srz * pointOri.x + crx * crz * sry * pointOri.y - srx * sry * pointOri.z) * coeff.x
+ (-srx * srz * pointOri.x - crz * srx * pointOri.y - crx * pointOri.z) * coeff.y
+ (crx * cry * srz * pointOri.x + crx * cry * crz * pointOri.y - cry * srx * pointOri.z) *
coeff.z;
// 同上,求解的是对pitch的偏导量
float ary = ((cry * srx * srz - crz * sry) * pointOri.x
+ (sry * srz + cry * crz * srx) * pointOri.y + crx * cry * pointOri.z) * coeff.x
+ ((-cry * crz - srx * sry * srz) * pointOri.x
+ (cry * srz - crz * srx * sry) * pointOri.y - crx * sry * pointOri.z) * coeff.z;
float arz = ((crz * srx * sry - cry * srz) * pointOri.x + (-cry * crz - srx * sry * srz) * pointOri.y) * coeff.x
+ (crx * crz * pointOri.x - crx * srz * pointOri.y) * coeff.y
+
((sry * srz + cry * crz * srx) * pointOri.x + (crz * sry - cry * srx * srz) * pointOri.y) * coeff.z;
求完
matA
之后,再计算matAtA
,matAtB
,matX
,方便后面的计算.
cv::transpose(matA, matAt);
matAtA = matAt * matA;
// matB每个对应点的coeff.intensity = s * pd2(在surfOptimization中和cornerOptimization中有)
matAtB = matAt * matB;
// 求解matAtA*matX=matAtB得到matX,高斯牛顿方程的解
cv::solve(matAtA, matAtB, matX, cv::DECOMP_QR);
初次优化时,特征值门限设置为100,小于这个值认为是退化了,修改
matX
,matX=matP*matX2
最后将
matX
作为6个量复制到transformTobeMapped
中去。
在判断是否是有效的优化时,要求旋转部分的模长小于0.05m,平移部分的模长也小于0.05度。
// 这部分的代码是基于高斯牛顿法的优化,不是zhang ji论文中提到的基于L-M的优化方法
// 这部分的代码使用旋转矩阵对欧拉角求导,优化欧拉角,不是zhang ji论文中提到的使用angle-axis的优化
bool LMOptimization(int iterCount) {
float srx = sin(transformTobeMapped[0]);
float crx = cos(transformTobeMapped[0]);
float sry = sin(transformTobeMapped[1]);
float cry = cos(transformTobeMapped[1]);
float srz = sin(transformTobeMapped[2]);
float crz = cos(transformTobeMapped[2]);
int laserCloudSelNum = laserCloudOri->points.size();
// laser cloud original 点云太少,就跳过这次循环
if (laserCloudSelNum < 50) {
return false;
}
cv::Mat matA(laserCloudSelNum, 6, CV_32F, cv::Scalar::all(0));
cv::Mat matAt(6, laserCloudSelNum, CV_32F, cv::Scalar::all(0));
cv::Mat matAtA(6, 6, CV_32F, cv::Scalar::all(0));
cv::Mat matB(laserCloudSelNum, 1, CV_32F, cv::Scalar::all(0));
cv::Mat matAtB(6, 1, CV_32F, cv::Scalar::all(0));
cv::Mat matX(6, 1, CV_32F, cv::Scalar::all(0));
for (int i = 0; i < laserCloudSelNum; i++) {
pointOri = laserCloudOri->points[i];
coeff = coeffSel->points[i];
// 求雅克比矩阵中的元素,距离d对roll角度的偏导量即d(d)/d(roll)
// 更详细的数学推导参看wykxwyc.github.io
float arx = (crx * sry * srz * pointOri.x + crx * crz * sry * pointOri.y - srx * sry * pointOri.z) * coeff.x
+ (-srx * srz * pointOri.x - crz * srx * pointOri.y - crx * pointOri.z) * coeff.y
+ (crx * cry * srz * pointOri.x + crx * cry * crz * pointOri.y - cry * srx * pointOri.z) *
coeff.z;
// 同上,求解的是对pitch的偏导量
float ary = ((cry * srx * srz - crz * sry) * pointOri.x
+ (sry * srz + cry * crz * srx) * pointOri.y + crx * cry * pointOri.z) * coeff.x
+ ((-cry * crz - srx * sry * srz) * pointOri.x
+ (cry * srz - crz * srx * sry) * pointOri.y - crx * sry * pointOri.z) * coeff.z;
float arz =
((crz * srx * sry - cry * srz) * pointOri.x + (-cry * crz - srx * sry * srz) * pointOri.y) * coeff.x
+ (crx * crz * pointOri.x - crx * srz * pointOri.y) * coeff.y
+
((sry * srz + cry * crz * srx) * pointOri.x + (crz * sry - cry * srx * srz) * pointOri.y) * coeff.z;
/*
在求点到直线的距离时,coeff表示的是如下内容
[la,lb,lc]表示的是点到直线的垂直连线方向,s是长度
coeff.x = s * la;
coeff.y = s * lb;
coeff.z = s * lc;
coeff.intensity = s * ld2;
在求点到平面的距离时,coeff表示的是
[pa,pb,pc]表示过外点的平面的法向量,s是线的长度
coeff.x = s * pa;
coeff.y = s * pb;
coeff.z = s * pc;
coeff.intensity = s * pd2;
*/
matA.at<float>(i, 0) = arx;
matA.at<float>(i, 1) = ary;
matA.at<float>(i, 2) = arz;
// 这部分是雅克比矩阵中距离对平移的偏导
matA.at<float>(i, 3) = coeff.x;
matA.at<float>(i, 4) = coeff.y;
matA.at<float>(i, 5) = coeff.z;
// 残差项
matB.at<float>(i, 0) = -coeff.intensity;
}
// 将矩阵由matA转置生成matAt
// 先进行计算,以便于后边调用 cv::solve求解
cv::transpose(matA, matAt);
matAtA = matAt * matA;
matAtB = matAt * matB;
// 利用高斯牛顿法进行求解,
// 高斯牛顿法的原型是J^(T)*J * delta(x) = -J*f(x)
// J是雅克比矩阵,这里是A,f(x)是优化目标,这里是-B(符号在给B赋值时候就放进去了)
// 通过QR分解的方式,求解matAtA*matX=matAtB,得到解matX
cv::solve(matAtA, matAtB, matX, cv::DECOMP_QR);
// iterCount==0 说明是第一次迭代,需要初始化
if (iterCount == 0) {
cv::Mat matE(1, 6, CV_32F, cv::Scalar::all(0));
cv::Mat matV(6, 6, CV_32F, cv::Scalar::all(0));
cv::Mat matV2(6, 6, CV_32F, cv::Scalar::all(0));
// 对近似的Hessian矩阵求特征值和特征向量,
cv::eigen(matAtA, matE, matV);
matV.copyTo(matV2);
isDegenerate = false;
float eignThre[6] = {100, 100, 100, 100, 100, 100};
for (int i = 5; i >= 0; i--) {
if (matE.at<float>(0, i) < eignThre[i]) {
for (int j = 0; j < 6; j++) {
matV2.at<float>(i, j) = 0;
}
isDegenerate = true;
} else {
break;
}
}
matP = matV.inv() * matV2;
}
if (isDegenerate) {
cv::Mat matX2(6, 1, CV_32F, cv::Scalar::all(0));
matX.copyTo(matX2);
matX = matP * matX2;
}
transformTobeMapped[0] += matX.at<float>(0, 0);
transformTobeMapped[1] += matX.at<float>(1, 0);
transformTobeMapped[2] += matX.at<float>(2, 0);
transformTobeMapped[3] += matX.at<float>(3, 0);
transformTobeMapped[4] += matX.at<float>(4, 0);
transformTobeMapped[5] += matX.at<float>(5, 0);
float deltaR = sqrt(
pow(pcl::rad2deg(matX.at<float>(0, 0)), 2) +
pow(pcl::rad2deg(matX.at<float>(1, 0)), 2) +
pow(pcl::rad2deg(matX.at<float>(2, 0)), 2));
float deltaT = sqrt(
pow(matX.at<float>(3, 0) * 100, 2) +
pow(matX.at<float>(4, 0) * 100, 2) +
pow(matX.at<float>(5, 0) * 100, 2));
// 旋转或者平移量足够小就停止这次迭代过程
if (deltaR < 0.05 && deltaT < 0.05) {
return true;
}
return false;
}
5.5 saveKeyFramesAndFactor
void saveKeyFramesAndFactor()
保存关键帧和进行优化的功能。
整个函数的运行流程如下:
程序开始:
saveKeyFramesAndFactor(){
1.把上次优化得到的transformAftMapped(3:5)坐标点作为当前的位置,
计算和再之前的位置的欧拉距离,距离太小并且cloudKeyPoses3D不为空(初始化时为空),则结束;
2.如果是刚刚初始化,cloudKeyPoses3D为空,
那么NonlinearFactorGraph增加一个PriorFactor因子,
initialEstimate的数据类型是Values(其实就是一个map),这里在0对应的值下面保存一个Pose3,
本次的transformTobeMapped参数保存到transformLast中去。
3.如果本次不是刚刚初始化,从transformLast得到上一次位姿,
从transformAftMapped得到本次位姿,
gtSAMgraph.add(BetweenFactor),到它的约束中去,
initialEstimate.insert(序号,位姿)。
4.不管是否是初始化,都进行优化,isam->update(gtSAMgraph, initialEstimate);
得到优化的结果:latestEstimate = isamCurrentEstimate.at<Pose3>(isamCurrentEstimate.size()-1),
将结果保存,cloudKeyPoses3D->push_back(thisPose3D);
cloudKeyPoses6D->push_back(thisPose6D);
5.对transformAftMapped进行更新;
6.最后保存最终的结果:
cornerCloudKeyFrames.push_back(thisCornerKeyFrame);
surfCloudKeyFrames.push_back(thisSurfKeyFrame);
outlierCloudKeyFrames.push_back(thisOutlierKeyFrame);
}
程序结束
关于
Rot3
,Point3
和Pose3
的定义:
// Rotations around Z, Y, then X axes;
static Rot3 RzRyRx (double x, double y, double z)
// 源码里面RzRyRx依次按照z(transformTobeMapped[2]),y(transformTobeMapped[0]),x(transformTobeMapped[1])坐标轴旋转
// Construct from x(transformTobeMapped[5]), y(transformTobeMapped[3]), and z(transformTobeMapped[4]) coordinates.
Point3 (double x, double y, double z)
// Construct from R,t 从旋转和平移构造姿态
Pose3 (const Rot3 &R, const Point3 &t)
关于
gtsam::ISAM2::update
函数原型:
ISAM2Result gtsam::ISAM2::update (const NonlinearFactorGraph & newFactors = NonlinearFactorGraph(),
const Values & newTheta = Values(),
const std::vector< size_t > & removeFactorIndices = std::vector<size_t>(),
const boost::optional< FastMap< Key, int > > & constrainedKeys = boost::none,
const boost::optional< FastList< Key > > & noRelinKeys = boost::none,
const boost::optional< FastList< Key > > & extraReelimKeys = boost::none,
bool force_relinearize = false )
在源码中,有对update的调用:
// gtSAMgraph是新加到系统中的因子
// initialEstimate是加到系统中的新变量的初始点
isam->update(gtSAMgraph, initialEstimate);
// 1选定关键帧
// 2根据新的关键帧更新因子图
// 3经过因子图优化后,更新当前位姿
// transformAftMapped
// transformTobeMapped
// 并用因子图优化后的位姿 创建关键帧位置点和位姿点,添加到集合
// cloudKeyPoses3D 关键帧位置点集合
// cloudKeyPoses6D 关键帧位姿点集合
// 并为 transformLast 赋值
// 更新
// cornerCloudKeyFrames 关键帧角点点云集合
// surfCloudKeyFrames 关键帧平面点点云集合
// outlierCloudKeyFrames 关键帧离群点点云集合
void saveKeyFramesAndFactor() {
currentRobotPosPoint.x = transformAftMapped[3];
currentRobotPosPoint.y = transformAftMapped[4];
currentRobotPosPoint.z = transformAftMapped[5];
bool saveThisKeyFrame = true;
if (sqrt((previousRobotPosPoint.x - currentRobotPosPoint.x) * (previousRobotPosPoint.x - currentRobotPosPoint.x)
+
(previousRobotPosPoint.y - currentRobotPosPoint.y) * (previousRobotPosPoint.y - currentRobotPosPoint.y)
+ (previousRobotPosPoint.z - currentRobotPosPoint.z) *
(previousRobotPosPoint.z - currentRobotPosPoint.z)) < 0.3) {
saveThisKeyFrame = false;
}
if (saveThisKeyFrame == false && !cloudKeyPoses3D->points.empty())
return;
previousRobotPosPoint = currentRobotPosPoint;
/**
* update grsam graph
*/
if (cloudKeyPoses3D->points.empty()) {
// static Rot3 RzRyRx (double x, double y, double z),Rotations around Z, Y, then X axes
// RzRyRx依次按照z(transformTobeMapped[2]),y(transformTobeMapped[0]),x(transformTobeMapped[1])坐标轴旋转
// Point3 (double x, double y, double z) Construct from x(transformTobeMapped[5]), y(transformTobeMapped[3]), and z(transformTobeMapped[4]) coordinates.
// Pose3 (const Rot3 &R, const Point3 &t) Construct from R,t. 从旋转和平移构造姿态
// NonlinearFactorGraph增加一个PriorFactor因子
gtSAMgraph.add(PriorFactor<Pose3>(0, Pose3(Rot3::RzRyRx(transformTobeMapped[2], transformTobeMapped[0],
transformTobeMapped[1]),
Point3(transformTobeMapped[5], transformTobeMapped[3],
transformTobeMapped[4])), priorNoise));
// initialEstimate的数据类型是Values,其实就是一个map,这里在0对应的值下面保存了一个Pose3
initialEstimate.insert(0, Pose3(Rot3::RzRyRx(transformTobeMapped[2], transformTobeMapped[0],
transformTobeMapped[1]),
Point3(transformTobeMapped[5], transformTobeMapped[3],
transformTobeMapped[4])));
for (int i = 0; i < 6; ++i)
transformLast[i] = transformTobeMapped[i];
} else {
gtsam::Pose3 poseFrom = Pose3(Rot3::RzRyRx(transformLast[2], transformLast[0], transformLast[1]),
Point3(transformLast[5], transformLast[3], transformLast[4]));
gtsam::Pose3 poseTo = Pose3(
Rot3::RzRyRx(transformAftMapped[2], transformAftMapped[0], transformAftMapped[1]),
Point3(transformAftMapped[5], transformAftMapped[3], transformAftMapped[4]));
// 构造函数原型:BetweenFactor (Key key1, Key key2, const VALUE &measured, const SharedNoiseModel &model)
gtSAMgraph.add(BetweenFactor<Pose3>(cloudKeyPoses3D->points.size() - 1, cloudKeyPoses3D->points.size(),
poseFrom.between(poseTo), odometryNoise));
initialEstimate.insert(cloudKeyPoses3D->points.size(),
Pose3(Rot3::RzRyRx(transformAftMapped[2], transformAftMapped[0],
transformAftMapped[1]),
Point3(transformAftMapped[5], transformAftMapped[3], transformAftMapped[4])));
}
/**
* update iSAM
*/
// gtsam::ISAM2::update函数原型:
// ISAM2Result gtsam::ISAM2::update ( const NonlinearFactorGraph & newFactors = NonlinearFactorGraph(),
// const Values & newTheta = Values(),
// const std::vector< size_t > & removeFactorIndices = std::vector<size_t>(),
// const boost::optional< FastMap< Key, int > > & constrainedKeys = boost::none,
// const boost::optional< FastList< Key > > & noRelinKeys = boost::none,
// const boost::optional< FastList< Key > > & extraReelimKeys = boost::none,
// bool force_relinearize = false )
// gtSAMgraph是新加到系统中的因子
// initialEstimate是加到系统中的新变量的初始点
isam->update(gtSAMgraph, initialEstimate);
// update 函数为什么需要调用两次?
isam->update();
// 删除内容?
gtSAMgraph.resize(0);
initialEstimate.clear();
/**
* save key poses
*/
PointType thisPose3D;
PointTypePose thisPose6D;
Pose3 latestEstimate;
// Compute an estimate from the incomplete linear delta computed during the last update.
isamCurrentEstimate = isam->calculateEstimate();
latestEstimate = isamCurrentEstimate.at<Pose3>(isamCurrentEstimate.size() - 1);
thisPose3D.x = latestEstimate.translation().y();
thisPose3D.y = latestEstimate.translation().z();
thisPose3D.z = latestEstimate.translation().x();
thisPose3D.intensity = cloudKeyPoses3D->points.size(); // this can be used as index
cloudKeyPoses3D->push_back(thisPose3D);
thisPose6D.x = thisPose3D.x;
thisPose6D.y = thisPose3D.y;
thisPose6D.z = thisPose3D.z;
thisPose6D.intensity = thisPose3D.intensity; // this can be used as index
thisPose6D.roll = latestEstimate.rotation().pitch();
thisPose6D.pitch = latestEstimate.rotation().yaw();
thisPose6D.yaw = latestEstimate.rotation().roll(); // in camera frame
thisPose6D.time = timeLaserOdometry;
cloudKeyPoses6D->push_back(thisPose6D);
/**
* save updated transform
*/
if (cloudKeyPoses3D->points.size() > 1) {
transformAftMapped[0] = latestEstimate.rotation().pitch();
transformAftMapped[1] = latestEstimate.rotation().yaw();
transformAftMapped[2] = latestEstimate.rotation().roll();
transformAftMapped[3] = latestEstimate.translation().y();
transformAftMapped[4] = latestEstimate.translation().z();
transformAftMapped[5] = latestEstimate.translation().x();
for (int i = 0; i < 6; ++i) {
transformLast[i] = transformAftMapped[i];
transformTobeMapped[i] = transformAftMapped[i];
}
}
pcl::PointCloud<PointType>::Ptr thisCornerKeyFrame(new pcl::PointCloud<PointType>());
pcl::PointCloud<PointType>::Ptr thisSurfKeyFrame(new pcl::PointCloud<PointType>());
pcl::PointCloud<PointType>::Ptr thisOutlierKeyFrame(new pcl::PointCloud<PointType>());
// PCL::copyPointCloud(const pcl::PCLPointCloud2 &cloud_in,pcl::PCLPointCloud2 &cloud_out )
pcl::copyPointCloud(*laserCloudCornerLastDS, *thisCornerKeyFrame);
pcl::copyPointCloud(*laserCloudSurfLastDS, *thisSurfKeyFrame);
pcl::copyPointCloud(*laserCloudOutlierLastDS, *thisOutlierKeyFrame);
cornerCloudKeyFrames.push_back(thisCornerKeyFrame);
surfCloudKeyFrames.push_back(thisSurfKeyFrame);
outlierCloudKeyFrames.push_back(thisOutlierKeyFrame);
}
5.6 correctPoses
void correctPoses()
的调用只在回环结束时进行(aLoopIsClosed == true
)
校正位姿的过程主要是将isamCurrentEstimate
的x,y,z平移坐标更新到cloudKeyPoses3D
中,另外还需要更新cloudKeyPoses6D
的姿态角。
关于isamCurrentEstimate
:
isamCurrentEstimate是gtsam库中的Values类。
在saveKeyFramesAndFactor()函数中的更新过程:
isamCurrentEstimate = isam->calculateEstimate();
void correctPoses() {
if (aLoopIsClosed == true) {
recentCornerCloudKeyFrames.clear();
recentSurfCloudKeyFrames.clear();
recentOutlierCloudKeyFrames.clear();
// update key poses
int numPoses = isamCurrentEstimate.size();
for (int i = 0; i < numPoses; ++i) {
cloudKeyPoses3D->points[i].x = isamCurrentEstimate.at<Pose3>(i).translation().y();
cloudKeyPoses3D->points[i].y = isamCurrentEstimate.at<Pose3>(i).translation().z();
cloudKeyPoses3D->points[i].z = isamCurrentEstimate.at<Pose3>(i).translation().x();
cloudKeyPoses6D->points[i].x = cloudKeyPoses3D->points[i].x;
cloudKeyPoses6D->points[i].y = cloudKeyPoses3D->points[i].y;
cloudKeyPoses6D->points[i].z = cloudKeyPoses3D->points[i].z;
cloudKeyPoses6D->points[i].roll = isamCurrentEstimate.at<Pose3>(i).rotation().pitch();
cloudKeyPoses6D->points[i].pitch = isamCurrentEstimate.at<Pose3>(i).rotation().yaw();
cloudKeyPoses6D->points[i].yaw = isamCurrentEstimate.at<Pose3>(i).rotation().roll();
}
aLoopIsClosed = false;
}
}
5.7 publishTF
void publishTF()
是进行发布坐标变换信息的函数,发布的消息类型是nav_msgs::Odometry
.
关于nav_msgs::Odometry,官方文档中提示需要注意的是:
pose
需要声明为header.frame_id
的坐标系下;
twist
需要声明为child_frame_id
的坐标系下;
odomAftMapped.header.frame_id = "/camera_init";
odomAftMapped.child_frame_id = "/aft_mapped";
aftMappedTrans.frame_id_ = "/camera_init";
aftMappedTrans.child_frame_id_ = "/aft_mapped";
publishTF()
中发布里程计信息是3个部分:
1. 发布transformAftMapped的信息到"/camera_init"这个frame下面;
2. 发布transformBefMapped的信息到"/aft_mapped"这个frame下面;
3. 发布 tf::StampedTransform aftMappedTrans作为一个姿态变换;
关于
nav_msgs::Odometry
数据格式的具体定义:
std_msgs/Header header
string child_frame_id
geometry_msgs/PoseWithCovariance pose
geometry_msgs/TwistWithCovariance twist
上面
std_msgs/Header header
的定义:
uint32 seq // 连续增加的ID
time stamp // 时间戳有两个整形变量,stamp.sec代表秒,stamp.nsec表示纳秒
string frame_id // 0: no frame,1: global frame
geometry_msgs/PoseWithCovariance
的定义:
geometry_msgs/Pose pose
float64[36] covariance // 6x6协方差的行主表示
上面
pose
的定义:
geometry_msgs/Point position // 位置
geometry_msgs/Quaternion orientation // 方向
geometry_msgs/TwistWithCovariance twist
的定义:
geometry_msgs/Twist twist
float64[36] covariance
上面
twist
的定义:
geometry_msgs/Vector3 linear // 线速度向量
geometry_msgs/Vector3 angular // 角速度向量
// 主题"/aft_mapped_to_init"发布优化后的位姿信息
// msg.header.stamp 取的是 里程计时间信息
// msg.pose 存储本坐标系位姿"/camera_init" 经过全局位姿优化的姿态
// msg.twist 存储子坐标系位姿"/aft_mapped" 未经过全局优化的姿态,即里程计信息
// 发布tf变换
// msg.frame_id_ = "/camera_init"
// msg.child_frame_id_ = "/aft_mapped";
// msg 的姿态变换为 transformAftMapped 即优化后的机器人位姿距离原点的位姿变换
void publishTF() {
geometry_msgs::Quaternion geoQuat = tf::createQuaternionMsgFromRollPitchYaw
(transformAftMapped[2], -transformAftMapped[0], -transformAftMapped[1]);
odomAftMapped.header.stamp = ros::Time().fromSec(timeLaserOdometry);
odomAftMapped.pose.pose.orientation.x = -geoQuat.y;
odomAftMapped.pose.pose.orientation.y = -geoQuat.z;
odomAftMapped.pose.pose.orientation.z = geoQuat.x;
odomAftMapped.pose.pose.orientation.w = geoQuat.w;
odomAftMapped.pose.pose.position.x = transformAftMapped[3];
odomAftMapped.pose.pose.position.y = transformAftMapped[4];
odomAftMapped.pose.pose.position.z = transformAftMapped[5];
odomAftMapped.twist.twist.angular.x = transformBefMapped[0];
odomAftMapped.twist.twist.angular.y = transformBefMapped[1];
odomAftMapped.twist.twist.angular.z = transformBefMapped[2];
odomAftMapped.twist.twist.linear.x = transformBefMapped[3];
odomAftMapped.twist.twist.linear.y = transformBefMapped[4];
odomAftMapped.twist.twist.linear.z = transformBefMapped[5];
pubOdomAftMapped.publish(odomAftMapped);
aftMappedTrans.stamp_ = ros::Time().fromSec(timeLaserOdometry);
aftMappedTrans.setRotation(tf::Quaternion(-geoQuat.y, -geoQuat.z, geoQuat.x, geoQuat.w));
aftMappedTrans.setOrigin(tf::Vector3(transformAftMapped[3], transformAftMapped[4], transformAftMapped[5]));
tfBroadcaster.sendTransform(aftMappedTrans);
}
5.8 publishKeyPosesAndFrames
如果有节点订阅
"/key_pose_origin"
这个话题,则用pubKeyPoses
发布cloudKeyPoses3D
;
如果有节点订阅"/recent_cloud"
这个话题,则用pubRecentKeyFrames
发布laserCloudSurfFromMapDS
;
// 主题 "/key_pose_origin" 发布关键帧位姿点集合
// 主题 "/recent_cloud" 发布 局部平面点点云
// 主题 "/registered_cloud" 发布 当前帧点云
void publishKeyPosesAndFrames() {
if (pubKeyPoses.getNumSubscribers() != 0) {
sensor_msgs::PointCloud2 cloudMsgTemp;
pcl::toROSMsg(*cloudKeyPoses3D, cloudMsgTemp);
cloudMsgTemp.header.stamp = ros::Time().fromSec(timeLaserOdometry);
cloudMsgTemp.header.frame_id = "/camera_init";
pubKeyPoses.publish(cloudMsgTemp);
}
if (pubRecentKeyFrames.getNumSubscribers() != 0) {
sensor_msgs::PointCloud2 cloudMsgTemp;
pcl::toROSMsg(*laserCloudSurfFromMapDS, cloudMsgTemp);
cloudMsgTemp.header.stamp = ros::Time().fromSec(timeLaserOdometry);
cloudMsgTemp.header.frame_id = "/camera_init";
pubRecentKeyFrames.publish(cloudMsgTemp);
}
if (pubRegisteredCloud.getNumSubscribers() != 0) {
pcl::PointCloud<PointType>::Ptr cloudOut(new pcl::PointCloud<PointType>());
PointTypePose thisPose6D = trans2PointTypePose(transformTobeMapped);
*cloudOut += *transformPointCloud(laserCloudCornerLastDS, &thisPose6D);
*cloudOut += *transformPointCloud(laserCloudSurfTotalLast, &thisPose6D);
sensor_msgs::PointCloud2 cloudMsgTemp;
pcl::toROSMsg(*cloudOut, cloudMsgTemp);
cloudMsgTemp.header.stamp = ros::Time().fromSec(timeLaserOdometry);
cloudMsgTemp.header.frame_id = "/camera_init";
pubRegisteredCloud.publish(cloudMsgTemp);
}
}
5.9 clearCloud
void clearCloud() {
laserCloudCornerFromMap->clear();
laserCloudSurfFromMap->clear();
laserCloudCornerFromMapDS->clear();
laserCloudSurfFromMapDS->clear();
}
6. 其它
6.1 allocateMemory
初始化,分配内存
6.2 transformUpdate
void transformUpdate() {
if (imuPointerLast >= 0) {
float imuRollLast = 0, imuPitchLast = 0;
while (imuPointerFront != imuPointerLast) {
if (timeLaserOdometry + scanPeriod < imuTime[imuPointerFront]) {
break;
}
imuPointerFront = (imuPointerFront + 1) % imuQueLength;
}
if (timeLaserOdometry + scanPeriod > imuTime[imuPointerFront]) {
imuRollLast = imuRoll[imuPointerFront];
imuPitchLast = imuPitch[imuPointerFront];
} else {
int imuPointerBack = (imuPointerFront + imuQueLength - 1) % imuQueLength;
float ratioFront = (timeLaserOdometry + scanPeriod - imuTime[imuPointerBack])
/ (imuTime[imuPointerFront] - imuTime[imuPointerBack]);
float ratioBack = (imuTime[imuPointerFront] - timeLaserOdometry - scanPeriod)
/ (imuTime[imuPointerFront] - imuTime[imuPointerBack]);
imuRollLast = imuRoll[imuPointerFront] * ratioFront + imuRoll[imuPointerBack] * ratioBack;
imuPitchLast = imuPitch[imuPointerFront] * ratioFront + imuPitch[imuPointerBack] * ratioBack;
}
transformTobeMapped[0] = 0.998 * transformTobeMapped[0] + 0.002 * imuPitchLast;
transformTobeMapped[2] = 0.998 * transformTobeMapped[2] + 0.002 * imuRollLast;
}
for (int i = 0; i < 6; i++) {
transformBefMapped[i] = transformSum[i];
transformAftMapped[i] = transformTobeMapped[i];
}
}
6.3 updatePointAssociateToMapSinCos
void updatePointAssociateToMapSinCos() {
// 先提前求好roll,pitch,yaw的sin和cos值
cRoll = cos(transformTobeMapped[0]);
sRoll = sin(transformTobeMapped[0]);
cPitch = cos(transformTobeMapped[1]);
sPitch = sin(transformTobeMapped[1]);
cYaw = cos(transformTobeMapped[2]);
sYaw = sin(transformTobeMapped[2]);
tX = transformTobeMapped[3];
tY = transformTobeMapped[4];
tZ = transformTobeMapped[5];
}
6.4 pointAssociateToMap
void pointAssociateToMap(PointType const *const pi, PointType *const po) {
// 进行6自由度的变换,先进行旋转,然后再平移
// 主要进行坐标变换,将局部坐标转换到全局坐标中去
// 先绕z轴旋转
// |cosrz -sinrz 0|
// Rz=|sinrz cosrz 0|
// |0 0 1|
// [x1,y1,z1]^T=Rz*[pi->x,pi->y,pi->z]
float x1 = cYaw * pi->x - sYaw * pi->y;
float y1 = sYaw * pi->x + cYaw * pi->y;
float z1 = pi->z;
// [x2,y2,z2]^T=Rx*[x1,y1,z1]
// |1 0 0|
// Rx=|0 cosrx -sinrx|
// |0 sinrx cosrx|
float x2 = x1;
float y2 = cRoll * y1 - sRoll * z1;
float z2 = sRoll * y1 + cRoll * z1;
// 最后再绕Y轴旋转,然后加上平移
// |cosry 0 sinry|
// Ry=|0 1 0|
// |-sinry 0 cosry|
po->x = cPitch * x2 + sPitch * z2 + tX;
po->y = y2 + tY;
po->z = -sPitch * x2 + cPitch * z2 + tZ;
po->intensity = pi->intensity;
}
6.5 updateTransformPointCloudSinCos
void updateTransformPointCloudSinCos(PointTypePose *tIn) {
ctRoll = cos(tIn->roll);
stRoll = sin(tIn->roll);
ctPitch = cos(tIn->pitch);
stPitch = sin(tIn->pitch);
ctYaw = cos(tIn->yaw);
stYaw = sin(tIn->yaw);
tInX = tIn->x;
tInY = tIn->y;
tInZ = tIn->z;
}
6.6 transformPointCloud
transformPointCloud—(1)
pcl::PointCloud<PointType>::Ptr transformPointCloud(pcl::PointCloud<PointType>::Ptr cloudIn) {
// !!! DO NOT use pcl for point cloud transformation, results are not accurate
// Reason: unkown
pcl::PointCloud<PointType>::Ptr cloudOut(new pcl::PointCloud<PointType>());
PointType *pointFrom;
PointType pointTo;
int cloudSize = cloudIn->points.size();
cloudOut->resize(cloudSize);
for (int i = 0; i < cloudSize; ++i) {
pointFrom = &cloudIn->points[i];
float x1 = ctYaw * pointFrom->x - stYaw * pointFrom->y;
float y1 = stYaw * pointFrom->x + ctYaw * pointFrom->y;
float z1 = pointFrom->z;
float x2 = x1;
float y2 = ctRoll * y1 - stRoll * z1;
float z2 = stRoll * y1 + ctRoll * z1;
pointTo.x = ctPitch * x2 + stPitch * z2 + tInX;
pointTo.y = y2 + tInY;
pointTo.z = -stPitch * x2 + ctPitch * z2 + tInZ;
pointTo.intensity = pointFrom->intensity;
cloudOut->points[i] = pointTo;
}
return cloudOut;
}
transformPointCloud----(2)
pcl::PointCloud<PointType>::Ptr
transformPointCloud(pcl::PointCloud<PointType>::Ptr cloudIn, PointTypePose *transformIn) {
pcl::PointCloud<PointType>::Ptr cloudOut(new pcl::PointCloud<PointType>());
PointType *pointFrom;
PointType pointTo;
int cloudSize = cloudIn->points.size();
cloudOut->resize(cloudSize);
for (int i = 0; i < cloudSize; ++i) {
pointFrom = &cloudIn->points[i];
float x1 = cos(transformIn->yaw) * pointFrom->x - sin(transformIn->yaw) * pointFrom->y;
float y1 = sin(transformIn->yaw) * pointFrom->x + cos(transformIn->yaw) * pointFrom->y;
float z1 = pointFrom->z;
float x2 = x1;
float y2 = cos(transformIn->roll) * y1 - sin(transformIn->roll) * z1;
float z2 = sin(transformIn->roll) * y1 + cos(transformIn->roll) * z1;
pointTo.x = cos(transformIn->pitch) * x2 + sin(transformIn->pitch) * z2 + transformIn->x;
pointTo.y = y2 + transformIn->y;
pointTo.z = -sin(transformIn->pitch) * x2 + cos(transformIn->pitch) * z2 + transformIn->z;
pointTo.intensity = pointFrom->intensity;
cloudOut->points[i] = pointTo;
}
return cloudOut;
}
