█ 【无人机学习之DroidPlanner】msg_heartbeat心跳处理
█ 系列文章目录
提示：这里是收集了无人机的相关文章
- 【无人机学习】无人机基础知识
- 【无人机学习】Mission Planner（pc端）和QGroundControl（android端）
- 【无人机学习之DroidPlanner】FlightActivity的启动过程
- 【无人机学习之DroidPlanner】msg_heartbeat心跳处理
- 【无人机学习之DroidPlanner】msg_sys_status系统状态
- 【无人机学习之QGroundControl】android端App初解1
- 【无人机学习之QGroundControl】android端App初解2-APMPowerComponent（含QML的介绍）
- 【无人机学习之QGroundControl】android端App初解3-ParameterEditorController
█ 文章目录
█ 读前说明
- 本文通过学习别人写demo,学习一些课件,参考一些博客,学习相关知识，如有涉及侵权请告知
- 本文可能只简单罗列了一些相关的代码实现过程，复制了一些大神的高论，如内容有误请自行辨别
- 涉及到的逻辑以及说明可能只做了简单的介绍，主要当做笔记，了解过程而已，如有不同看法，欢迎下方评论
- 本文源码：https://github.com/DroidPlanner/Tower
█ MAVLink
1.简介
- 官网：MAVLink
- MAVLink是一种非常轻量级的通信协议，主要是用于无人机上，还有无人车等；
- 目前MAVLink有两个版本：V1.0（2013年发布）和V2.0版本（2017年发布）；
- V2是V1的拓展版本，简化传输，向下兼容Ｖ1.0，是一个更加安全和可扩展的协议；
- MAVLink通信内容包含常见通信协议帧头、帧尾、长度、校验等。
- MAVLink目前最新版本是 V 2.3；
2.协议格式
官网：mavlink协议格式
比较重要的字段是msgid和payload，msgid用来区分消息类型，判断需要转换成什么类型的对话，payload是对应的值
uint8_t magic; ///< protocol magic marker
uint8_t len; ///< Length of payload
uint8_t incompat_flags; ///< flags that must be understood
uint8_t compat_flags; ///< flags that can be ignored if not understood
uint8_t seq; ///< Sequence of packet
uint8_t sysid; ///< ID of message sender system/aircraft
uint8_t compid; ///< ID of the message sender component
uint8_t msgid 0:7; ///< first 8 bits of the ID of the message
uint8_t msgid 8:15; ///< middle 8 bits of the ID of the message
uint8_t msgid 16:23; ///< last 8 bits of the ID of the message
uint8_t payload[max 255]; ///< A maximum of 255 payload bytes
uint16_t checksum; ///< CRC-16/MCRF4XX
uint8_t signature[13]; ///< Signature which allows ensuring that the link is tamper-proof (optional)
| 索引 | C 版 | 内容 | 值 | 说明 | |
|---|---|---|---|---|---|
| STX | 0 | uint8_t magic | 起始标志位 | 0xFD | 表示新数据包的开始，固定以“FD”开头 |
| LEN | 1 | uint8_t len | 载荷长度 | 0 - 255 | 有效载荷数据的字节长度（N） |
| INC FLAGS | 2 | uint8_t incompat_flags | 不兼容标志 | 不了解标志，则实现将丢弃数据包 | |
| CMP FLAGS | 3 | uint8_t compat_flags | 兼容性标志 | 不理解该标志，仍可以处理数据包 | |
| SEQ | 4 | uint8_t seq | 包序号 | 0 - 255 | 用于检测数据包丢失，每发送完一个消息，加1 |
| SYS ID | 5 | uint8_t sysid | 系统ID(发送者) | 1 - 255 | 发送消息的系统（飞机/车辆）的ID |
| COMP ID | 6 | uint8_t compid | 部件 ID (发送者) | 1 - 255 | 发送消息的部件的ID 。用来区分在系统中的不同组件，如自动驾驶仪和照相机 |
| MSG ID | 7 to 9 | uint32_t msgid:24 | 消息ID（低，中，高字节） | 0 - 16777215 | 有效载荷中消息类型的ID 。用于将数据解码回消息对象。 |
| PLAYLOAD | 10 to (n+10) | uint8_t payload[max 255] | 载荷 | 消息数据。取决于消息类型（即消息ID）和内容。 | |
| CHECKSUM | (n+10) to (n+11) | uint16_t checksum | 冗余校验/校验和（低字节，高字节） | 消息的CRC-16 / MCRF4XX（不包括magic字节）,包括CRC_EXTRA字节 | |
| SIGNATURE | (n+12) to (n+25) | uint8_t signature[13] | 签名 | （可选）签名以确保链接是防篡改的。 |
3.使用Python写的用于生成C、Java等语言的MavLink生成器软件：
█ 心跳包的消息格式

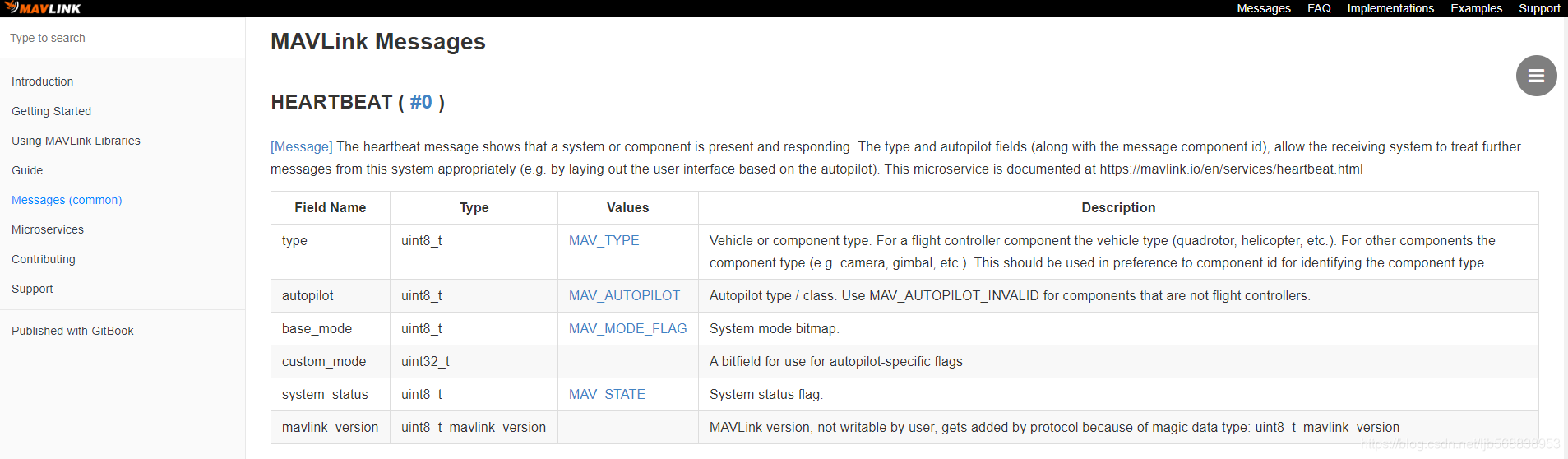

1.官网的描述
2.心跳包的消息格式
在心跳包的消息类msg_heartbeat.java中可以看出msgid=0,因此当收到msgid=0即可找到msg_heartbeat通过unpack将 payload 转换成msg_heartbeat对象，心跳包是时刻不断的发送消息的，频率为1Hz。
<mavlink>
<version>3</version>
<dialect>0</dialect>
<enums>。。。。。。</enums>
<messages>
<message id="0" name="HEARTBEAT">
<description>The heartbeat message shows that a system or component is present and responding. The type and autopilot fields (along with the message component id), allow the receiving system to treat further messages from this system appropriately (e.g. by laying out the user interface based on the autopilot). This microservice is documented at https://mavlink.io/en/services/heartbeat.html</description>
<field type="uint8_t" name="type" enum="MAV_TYPE">Vehicle or component type. For a flight controller component the vehicle type (quadrotor, helicopter, etc.). For other components the component type (e.g. camera, gimbal, etc.). This should be used in preference to component id for identifying the component type.</field>
<field type="uint8_t" name="autopilot" enum="MAV_AUTOPILOT">Autopilot type / class. Use MAV_AUTOPILOT_INVALID for components that are not flight controllers.</field>
<field type="uint8_t" name="base_mode" enum="MAV_MODE_FLAG" display="bitmask">System mode bitmap.</field>
<field type="uint32_t" name="custom_mode">A bitfield for use for autopilot-specific flags</field>
<field type="uint8_t" name="system_status" enum="MAV_STATE">System status flag.</field>
<field type="uint8_t_mavlink_version" name="mavlink_version">MAVLink version, not writable by user, gets added by protocol because of magic data type: uint8_t_mavlink_version</field>
</message>
。。。。。。
</messages>
</mavlink>
也可以将对应的信息打印出来：
E/org.droidplanner.services.android.impl.core.MAVLink.MavLinkMsgHandler - handleHeartbeat(msg_heartbeat heartbeat): MAVLINK_MSG_ID_HEARTBEAT - sysid:1 compid:1 msgid:0 custom_mode:2 type:3 autopilot:3 base_mode:81 system_status:3 mavlink_version:3
-
1.autopilot=3(MAV_AUTOPILOT.MAV_AUTOPILOT_ARDUPILOTMEGA)：表示ArduPilot - Plane/Copter/Rover/Sub/Tracker(飞机/直升机/探测器/子/跟踪器
-
2.type=3(MAV_TYPE.MAV_TYPE_COAXIAL)：表示Coaxial helicopter(同轴直升机 ),使用的硬件 FirmwareType.ARDU_COPTER（APM 硬件）
/* APM firmware types */
ARDU_PLANE(MAV_AUTOPILOT.MAV_AUTOPILOT_ARDUPILOTMEGA, "ArduPlane", "ArduPlane"),
ARDU_COPTER(MAV_AUTOPILOT.MAV_AUTOPILOT_ARDUPILOTMEGA, "ArduCopter2", "ArduCopter"),// 使用的硬件
ARDU_ROVER(MAV_AUTOPILOT.MAV_AUTOPILOT_ARDUPILOTMEGA, "ArduRover", "ArduRover"),
ARDU_SOLO(MAV_AUTOPILOT.MAV_AUTOPILOT_ARDUPILOTMEGA, "ArduCopter2", "ArduSolo"),
/**
* PX4 firmware type
*/
PX4_NATIVE(MAV_AUTOPILOT.MAV_AUTOPILOT_PX4, "", "PX4 Native"),
/**
* Generic firmware type
*/
GENERIC(MAV_AUTOPILOT.MAV_AUTOPILOT_GENERIC, "", "Generic");
3.msg_heartbeat.java源代码
此文件在Mavlink\src\com\MAVLink\common\msg_heartbeat.java中
public abstract class MAVLinkMessage implements Serializable {
private static final long serialVersionUID = -7754622750478538539L;
// The MAVLink message classes have been changed to implement Serializable,
// this way is possible to pass a mavlink message trought the Service-Acctivity interface
/**
* Simply a common interface for all MAVLink Messages
*/
public int sysid;
public int compid;
public int msgid;
public abstract MAVLinkPacket pack();
public abstract void unpack(MAVLinkPayload payload);
}
/**
* The heartbeat message shows that a system or component is present and responding. The type and autopilot fields (along with the message component id), allow the receiving system to treat further messages from this system appropriately (e.g. by laying out the user interface based on the autopilot). This microservice is documented at https://mavlink.io/en/services/heartbeat.html
*/
public class msg_heartbeat extends MAVLinkMessage{
public static final int MAVLINK_MSG_ID_HEARTBEAT = 0;
public static final int MAVLINK_MSG_LENGTH = 9;
private static final long serialVersionUID = MAVLINK_MSG_ID_HEARTBEAT;
/**
* A bitfield for use for autopilot-specific flags
*/
public long custom_mode;
/**
* Vehicle or component type. For a flight controller component the vehicle type (quadrotor, helicopter, etc.). For other components the component type (e.g. camera, gimbal, etc.). This should be used in preference to component id for identifying the component type.
*/
public short type;
/**
* Autopilot type / class. Use MAV_AUTOPILOT_INVALID for components that are not flight controllers.
*/
public short autopilot;
/**
* System mode bitmap.
*/
public short base_mode;
/**
* System status flag.
*/
public short system_status;
/**
* MAVLink version, not writable by user, gets added by protocol because of magic data type: uint8_t_mavlink_version
*/
public short mavlink_version;// MAVLink 版本，MAVLink有两个版本：V1和V2版本，V2是V1的拓展版本，是一个更加安全和可扩展的协议。
/**
* 为这种类型的消息生成mavlink消息的有效负载，组包数据
* Generates the payload for a mavlink message for a message of this type
* @return
*/
public MAVLinkPacket pack(){
MAVLinkPacket packet = new MAVLinkPacket(MAVLINK_MSG_LENGTH);
packet.sysid = 255;
packet.compid = 190;
packet.msgid = MAVLINK_MSG_ID_HEARTBEAT;
packet.payload.putUnsignedInt(custom_mode);
packet.payload.putUnsignedByte(type);
packet.payload.putUnsignedByte(autopilot);
packet.payload.putUnsignedByte(base_mode);
packet.payload.putUnsignedByte(system_status);
packet.payload.putUnsignedByte(mavlink_version);
return packet;
}
/**

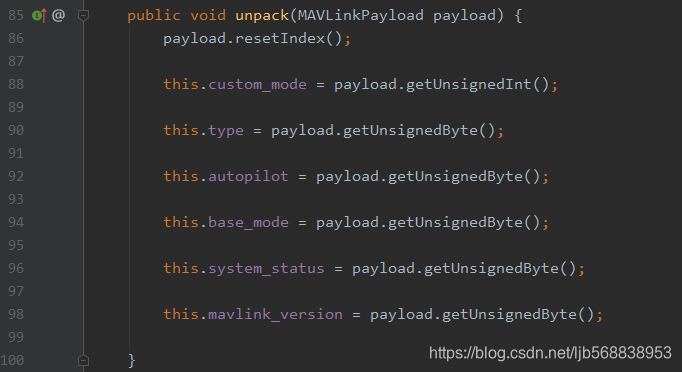

* 将心跳信息解码到该类字段中
* Decode a heartbeat message into this class fields
*
* @param payload The message to decode
*/
public void unpack(MAVLinkPayload payload) {
payload.resetIndex();
this.custom_mode = payload.getUnsignedInt();
this.type = payload.getUnsignedByte();
this.autopilot = payload.getUnsignedByte();
this.base_mode = payload.getUnsignedByte();
this.system_status = payload.getUnsignedByte();
this.mavlink_version = payload.getUnsignedByte();
}
/**
* 构造函数，只需初始化msgid
* Constructor for a new message, just initializes the msgid
*/
public msg_heartbeat(){
msgid = MAVLINK_MSG_ID_HEARTBEAT;
}
/**
* 构造函数，用有效负载初始化消息，从mavlink数据包
* Constructor for a new message, initializes the message with the payload
* from a mavlink packet
*
*/
public msg_heartbeat(MAVLinkPacket mavLinkPacket){
this.sysid = mavLinkPacket.sysid;
this.compid = mavLinkPacket.compid;
this.msgid = MAVLINK_MSG_ID_HEARTBEAT;
unpack(mavLinkPacket.payload);
}
}
4.大致过程
通过硬件接口（USB/蓝牙等）读取消息，通过msgid判断是msg_heartbeat类型，再通过msg_heartbeat自带的unpack方法解码MAVLinkPayload 信息成msg_heartbeat对象
5.待续
