一、前言
最近想实现AVM拼接，看了不少博客和论文，不过比较愚钝，一直没能很好理解原理，尤其是怎么在实现时把下文式1与式2中Z1和Z2消除的，所以严谨的推导了一下对应的公式，如有不对，水平有限，烦请指出~
IPM变换（逆透视变换），顾名思义，即将正常透视效应消除的变换，变换结果为鸟瞰图BEV（俯视图）；AVM环视拼接一般是将车身前后左右的四个鱼眼相机拼接成环视图（也是俯视），其使用的单应矩阵将四个相机转到同一个俯视坐标系。
投影变换的通俗理解就是：假设同一个相机分别在A、B两个不同位置，以不同的位姿拍摄同一个平面（重点是拍摄平面，例如桌面、墙面、地平面），生成了两张图象，这两张图象之间的关系就叫做投影变换。
二、公式推导

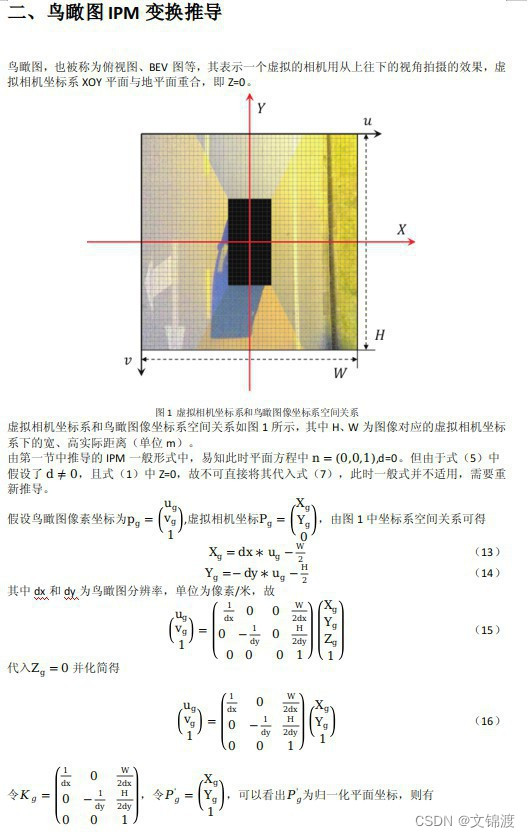

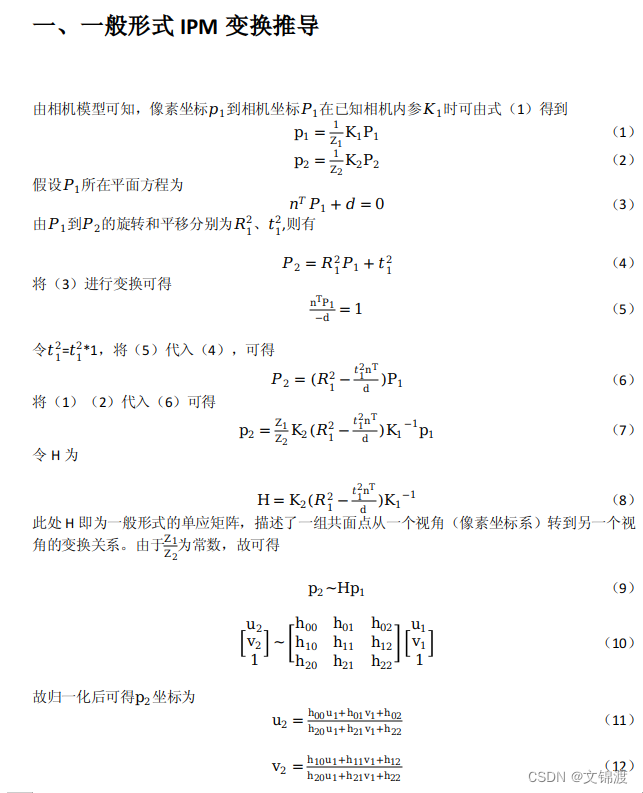

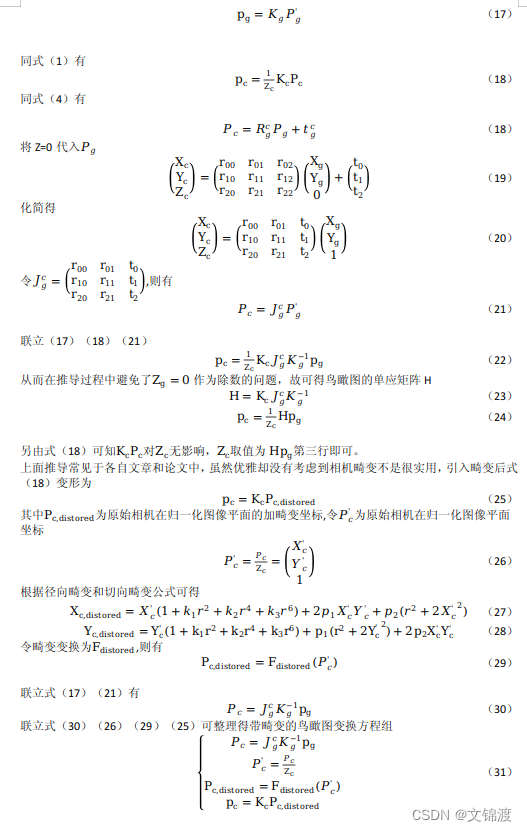

公式太难打了，全用word存了，在这直接截图
这也就解释了：为什么有的AVM算法是需要标定相机的内外参，而有的只提供单应矩阵H。
三、示例代码
#include <Eigen/Core>
#include <Eigen/Dense>
#include <iostream>
#include <opencv2/core/core.hpp>
#include <opencv2/core/eigen.hpp>
#include <opencv2/opencv.hpp>
#include <vector>
void DistortEigenPoints(const Eigen::Vector3d &undis_pt, Eigen::Vector3d &dis_pt, double k1, double k2, double p1,
double p2) {
double x2 = undis_pt[0] * undis_pt[0];
double y2 = undis_pt[1] * undis_pt[1];
double r2 = x2 + y2;
if (r2 == 0) return;
double r4 = r2 * r2;
double r6 = r2 * r4;
double xy = undis_pt[0] * undis_pt[1];
dis_pt[0] = undis_pt[0] * (1 + k1 * r2 + k2 * r4) + 2 * p1 * xy + p2 * (r2 + 2 * x2);
dis_pt[1] = undis_pt[1] * (1 + k1 * r2 + k2 * r4) + p1 * (r2 + 2 * y2) + 2 * p2 * xy;
dis_pt[2] = 1;
return;
}
float interp(const cv::Mat &img, float x, float y) {
int ix = x;
int iy = y;
float dx = x - ix;
float dy = y - iy;
float ddx = 1.0f - dx;
float ddy = 1.0f - dy;
return ddx * ddy * img.data[iy * img.cols + ix] + ddx * dy * img.data[(iy + 1) * img.cols + ix] +
dx * ddy * img.data[iy * img.cols + ix + 1] + dx * dy * img.data[(iy + 1) * img.cols + ix + 1];
}
int main() {
std::string img_path = "Mynt/00001772.jpg";
Eigen::Matrix3d K_c;
K_c << 1037.536376953125, 0, 600.182861328125, 0, 1038.532958984375, 358.40493774414062500, 0, 0, 1;
double k1 = 0.03784750;
double k2 = -0.051872;
double p1 = -0.000938;
double p2 = 0.000157;
Eigen::Matrix3d R_gc;
R_gc << 0.9962626012012678, -0.08634899803974432, -0.00216332734845117, -0.005878375212093168, -0.04279258802138065,
-0.9990666840182884, 0.08617583276389137, 0.9953454902434454, -0.0431402468639808;
Eigen::Vector3d t_gc;
t_gc << 0.283289952815021, 1.136073800639606, -2.129837994618606;
// 鸟瞰图设置为长宽20m，分辨率0.2m
double W_m = 20;
double H_m = 20;
double dx = 0.02;
double dy = 0.02;
Eigen::Matrix3d K_g;
K_g << 1.0 / dx, 0, W_m / (2 * dx), 0, -1.0 / dy, H_m / (2 * dy), 0, 0, 1;
Eigen::Matrix3d J_gc;
J_gc.block<3, 2>(0, 0) = R_gc.block<3, 2>(0, 0);
J_gc.block<3, 1>(0, 2) = t_gc;
//一定要带上图像类型，比如IMREAD_GRAYSCALE，默认的是IMREAD_COLOR
cv::Mat img = cv::imread(img_path, cv::IMREAD_GRAYSCALE);
//一、未去畸变鸟瞰图
Eigen::Matrix3d H = K_c * J_gc * K_g.inverse();
cv::Mat trans_mat;
cv::eigen2cv(H, trans_mat);
cv::Mat bev_img(H_m / dy, W_m / dx, CV_8UC1);
// warpPerspective是透视变换，所有trans_mat需要取逆
cv::warpPerspective(img, bev_img, trans_mat.inv(), bev_img.size());
//二、去畸变鸟瞰图
Eigen::Matrix3d H_gc = J_gc * K_g.inverse();
cv::Mat bev_img2(H_m / dy, W_m / dx, CV_8UC1);
for (int row = 0; row < bev_img2.rows; row++) {
for (int col = 0; col < bev_img2.cols; col++) {
Eigen::Vector3d p_g(col, row, 1);
Eigen::Vector3d P_c = H_gc * p_g;
// 去掉在相机后面的点
if (P_c[2] < 0) continue;
P_c /= P_c[2];
Eigen::Vector3d P_c_dis;
DistortEigenPoints(P_c, P_c_dis, k1, k2, p1, p2);
Eigen::Vector3d p_c = K_c * P_c_dis;
// 在原图范围内的才能映射
if (p_c[0] >= 0 && p_c[1] >= 0 && p_c[0] < img.cols - 1 && p_c[1] < img.rows - 1) {
bev_img2.at<uchar>(row, col) = interp(img, p_c[0], p_c[1]);
}
}
}
cv::imshow("img", img);
cv::imshow("bev_img", bev_img);
cv::imshow("bev_img2", bev_img2);
cv::waitKey(0);
return 0;

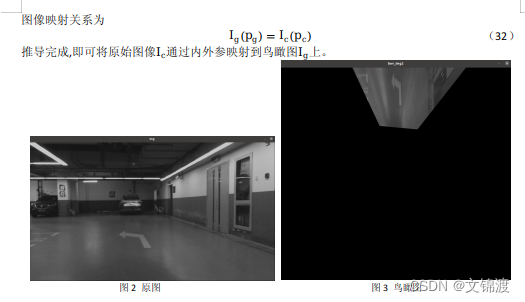

}效果展示
四、工程化
从二、三部分可以看出，如果在大量处理图片的时候可以先将图像映射关系求解，再对每一次输入的图片进行remap即可，在工程上能节约大量不必要的计算（思路来源于相机畸变矫正时的UndistortImage()由initUndistortRectifyMap()和remap()的简单组合）
#include <Eigen/Core>
#include <Eigen/Dense>
#include <fstream>
#include <iostream>
#include <opencv2/core/core.hpp>
#include <opencv2/core/eigen.hpp>
#include <opencv2/opencv.hpp>
#include <vector>
void DistortInNormalizedPlane(const Eigen::MatrixXd& P_c_eigen, Eigen::MatrixXd& P_c_dis_eigen,
const Eigen::Matrix<double, 6, 1> distort_par, const double focal) {
for (int i = 0; i < P_c_eigen.cols(); ++i) {
double r = sqrt(P_c_eigen(0, i) * P_c_eigen(0, i) + P_c_eigen(1, i) * P_c_eigen(1, i));
if (r == 0.0) {
P_c_dis_eigen(0, i) = P_c_dis_eigen(1, i) = P_c_dis_eigen(2, i) = 0;
continue;
}
double theta = atanf(r);
theta *= 180 / 3.141592653;
double theta2 = theta * theta;
double theta3 = theta2 * theta;
double theta4 = theta3 * theta;
double theta5 = theta4 * theta;
double rd = distort_par[5] * theta5 + distort_par[4] * theta4 + distort_par[3] * theta3 +
distort_par[2] * theta2 + distort_par[1] * theta + distort_par[0];
double tmp = rd / (r * focal);
P_c_dis_eigen(0, i) = P_c_eigen(0, i) * tmp;
P_c_dis_eigen(1, i) = P_c_eigen(1, i) * tmp;
P_c_dis_eigen(2, i) = 1;
}
return;
}
int main() {
double alpha = 1.270;
double beta = -0.019;
double sigma = 0.005;
double install_x = 0.0;
double install_y = 2220;
double install_z = 846;
int plr_image_height = 830;
int plr_image_width = 600;
int plr_image_size = plr_image_height * plr_image_width;
double focal = 0.7;
Eigen::Matrix<double, 6, 1> distort_par;
distort_par << 2.602669463289515e-4, 0.016492905052440, 8.654874453589382e-6, 3.522621922928950e-7,
2.190540817132008e-9, -3.361245302349930e-11;
float fSinAlpha = sinf(alpha);
float fCosAlpha = cosf(alpha);
float fSinBeta = sinf(-beta);
float fCosBeta = cosf(-beta);
float fSinSigma = sinf(sigma);
float fCosSigma = cosf(sigma);
Eigen::Matrix3d R_car_mid_camera;
R_car_mid_camera << fCosBeta * fCosSigma, fSinAlpha * fSinBeta * fCosSigma - fCosAlpha * fSinSigma,
fCosAlpha * fSinBeta * fCosSigma + fSinAlpha * fSinSigma, fCosBeta * fSinSigma,
fSinAlpha * fSinBeta * fSinSigma + fCosAlpha * fCosSigma,
fCosAlpha * fSinBeta * fSinSigma - fSinAlpha * fCosSigma, -fSinBeta, fSinAlpha * fCosBeta, fCosAlpha * fCosBeta;
Eigen::Matrix3d R_camera_car_mid = R_car_mid_camera.transpose();
Eigen::Vector3d t_car_mid_camera = Eigen::Vector3d(install_x / 1000., -install_y / 1000., -install_z / 1000.);
Eigen::Vector3d t_camera_car_mid = -R_car_mid_camera.transpose() * t_car_mid_camera;
std::cout << "R_camera_car_mid " << R_camera_car_mid << std::endl;
std::cout << "t_camera_car_mid " << t_camera_car_mid << std::endl;
Eigen::Matrix3d K_c, J_gc, K_g;
K_c << 120.69, 0, 320, 0, 120.69, 240, 0, 0, 1;
K_g << 50, 0, plr_image_width / 2, 0, 50, plr_image_height / 2, 0, 0, 1;
J_gc.block<3, 2>(0, 0) = R_camera_car_mid.block<3, 2>(0, 0);
J_gc.block<3, 1>(0, 2) = t_camera_car_mid;
Eigen::Matrix3d H = J_gc * K_g.inverse();
// //******************eigen remap ******************************
Eigen::MatrixXd p_g_eigen(3, plr_image_size);
for (int i = 0; i < plr_image_height; i++) {
for (int j = 0; j < plr_image_width; j++) {
p_g_eigen(0, plr_image_width * i + j) = j;
p_g_eigen(1, plr_image_width * i + j) = i;
p_g_eigen(2, plr_image_width * i + j) = 1;
}
}
Eigen::MatrixXd P_c_eigen(3, plr_image_size);
P_c_eigen = J_gc * K_g.inverse() * p_g_eigen;
for (int i = 0; i < plr_image_size; i++) {
P_c_eigen(0, i) = P_c_eigen(0, i) / P_c_eigen(2, i);
P_c_eigen(1, i) = P_c_eigen(1, i) / P_c_eigen(2, i);
P_c_eigen(2, i) = 1;
}
Eigen::MatrixXd P_c_dis_eigen(3, plr_image_size);
DistortInNormalizedPlane(P_c_eigen, P_c_dis_eigen, distort_par, focal);
Eigen::MatrixXd p_c_eigen(3, plr_image_size);
p_c_eigen = K_c * P_c_dis_eigen;
cv::Mat p_C1 = cv::Mat::zeros(1, plr_image_size, CV_64FC2);
std::vector<cv::Mat> channels(2);
cv::split(p_C1, channels);
Eigen::MatrixXd p_c_eigen1 = p_c_eigen.row(0);
Eigen::MatrixXd p_c_eigen2 = p_c_eigen.row(1);
cv::eigen2cv(p_c_eigen1, channels[0]);
cv::eigen2cv(p_c_eigen2, channels[1]);
cv::merge(channels, p_C1);
p_C1.reshape(plr_image_height, plr_image_width);
cv::Mat p_GC_table = p_C1.reshape(0, plr_image_height);
std::vector<cv::Mat> p_GC_table_channels(2);
cv::split(p_GC_table, p_GC_table_channels);
// 求得图像映射关系(无法剔除z<0部分 但可以按照固定行列取值)
cv::Mat p_GC_table_32F;
p_GC_table.convertTo(p_GC_table_32F, CV_32FC2);
for (int img_num = 0; img_num < 2000; img_num += 5) {
std::string img_path =
"/home/vedio_img/" + std::to_string(img_num) + ".png";
cv::Mat image = cv::imread(img_path, 0);
cv::resize(image, image, cv::Size(image.cols / 2, image.rows / 2));
// 计算反投影矩阵投影
cv::Mat bev_img;
cv::remap(image, bev_img, p_GC_table_32F, cv::Mat(), cv::INTER_LINEAR);
cv::imshow("img", image);
cv::imshow("img_GC", bev_img);
cv::waitKey(0);
}
return 0;
}ps.
// 1. 读取图像
cv::Mat img = cv::imread(img_path, cv::IMREAD_GRAYSCALE);使用时一定要记得加对应图像类型 ,比如灰度的为cv::IMREAD_GRAYSCALE，否则读取的会为三通道的IMREAD_COLOR，导致整个转换出问题，查了个半死。。。
