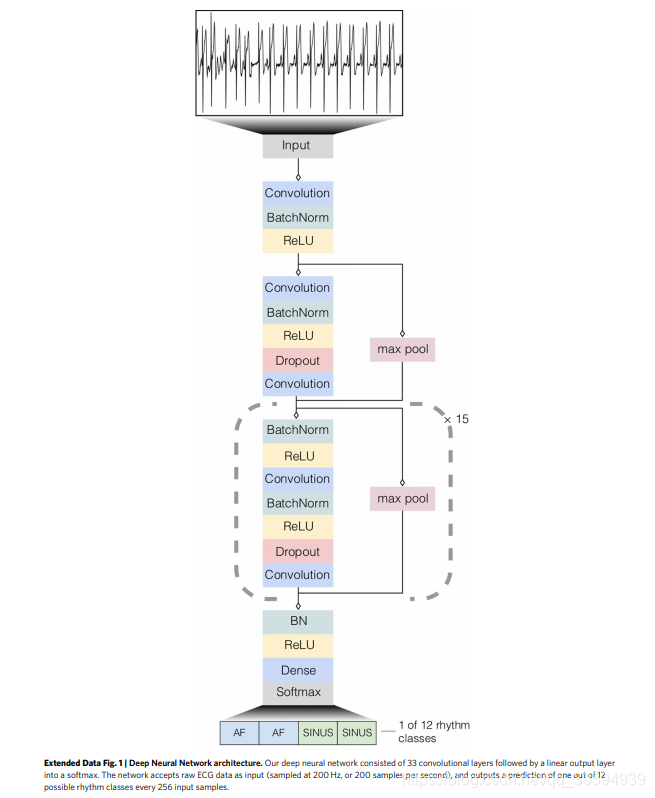

该深度卷积神经网络以原始心电图数据（以200Hz或每秒200个样本为样本）作为输入，并且每256个样本（或每1.28秒）生成一个预测，我们称之为输出间隔。网络仅以原始心电图样本为输入，网络架构有34层：为了使这种网络的优化变得可处理，采用类似残差网络的架构进行快捷连接。该网络由16个残差块组成，每个块有两个卷积层。卷积层的过滤宽度为16和 $32*2^K$ 过滤器，其中K是超参，从0开始，每四个残差块增加一个。每个备用残差块对其输入进行子采样2次。在每个卷积层之前，应用批量归一化和Relui激活，采用预激活块设计。由于这种预激活块结构，网络的第一层和最后一层是特殊的。另外还在卷积层之间和非线性之后应用Dropout，概率为0.2。最终完全连接的softmax层输出12类心率时长的概率。网络是从头训练的，随机初始化权重。使用Adam optimizer，默认参数为β1= 0.9，β2= 0.999，minibatch大小为128。学习率初始化为1×10-3，并且当连续两个epoch的训练损失没有改观时其降低10倍。通过grid search和手动调整的组合来选择网络架构和优化算法的超参数。对于该体系结构，主要搜索的超参数与为卷积层的数量，卷积滤波器的大小和数量，以及残差连接的使用。实验中发现，一旦模型的深度超过八层，残差连接就很有用。论文还尝试了RNN，包括LSTM和BiRNN，但发现准确性没有提高，运行时间却大幅增加;因此，因此文章抛弃了这类模型。

仿真实现

源代码

在这里插入图片描述

原来的网络结构是用pytorch实现的，而且结构理解比较困难，这里尝试用keras实现。

config.json

{
    "conv_subsample_lengths": [1, 2, 1, 2, 1, 2, 1, 2, 1, 2, 1, 2, 1, 2, 1, 2],
    "conv_filter_length": 16,
    "conv_num_filters_start": 32,
    "conv_init": "he_normal",
    "conv_activation": "relu",
    "conv_dropout": 0.2,
    "conv_num_skip": 2,
    "conv_increase_channels_at": 4,

    "learning_rate": 0.001,
    "batch_size": 32,

}

network


def model_build(params):

    def zeropad(x):
        y = K.zeros_like(x)
        return K.concatenate([x, y], axis=2)

    def zeropad_output_shape(input_shape):
        shape = list(input_shape)
        assert len(shape) == 3
        shape[2] *= 2
        return tuple(shape)

    def type_1(input_data, n_filters, filter_size, max_pool_size,index):
        x = Conv1D(n_filters, filter_size, strides=1, padding='same',
                   name='type_1' + '_' + 'conv_1'+str(index),
                   kernel_initializer=params["conv_init"])(input_data)
        x = BatchNormalization(name='type_1'+ '_' + 'BN_1'+str(index))(x)
        x = Activation('relu', name='type_1'+ '_' + 'relu_1'+str(index))(x)
        x = Dropout(rate=0.1)(x)
        x = Conv1D(n_filters, filter_size, strides=1, padding='same',
                   name='type_1'+ '_' + 'conv_2'+str(index),
                   kernel_initializer=params["conv_init"])(x)

        shortcut = MaxPooling1D(pool_size=max_pool_size,name='short'+ '_' + 'max_pooling_'+str(index))(input_data)
        x = add([x, shortcut], name='type_1' + '_' + 'add'+str(index))

        return x



    def type_2(input_data, n_filters, filter_size, max_pool_size,index):
        x = BatchNormalization(name='type_2'+ '_' + 'BN_1'+str(index))(input_data)
        x = Activation('relu', name='type_2'+ '_' + 'relu_1'+str(index))(x)
        x = Conv1D(n_filters, filter_size, strides=max_pool_size, padding='same',
                   name='type_2'+ '_' + 'conv_1'+str(index),
                   kernel_initializer=params["conv_init"])(x)
        x = BatchNormalization(name='type_2'+ '_' + 'BN_2'+str(index))(x)
        x = Activation('relu', name='type_2'+ '_' + 'relu_2'+str(index))(x)
        x = Dropout(rate=0.1)(x)
        x = Conv1D(n_filters, filter_size, strides=1, padding='same',
                   name='type_2'+ '_' + 'conv_2'+str(index),
                   kernel_initializer=params["conv_init"])(x)


        shortcut = MaxPooling1D(pool_size=max_pool_size,padding='same',name='short'+ '_' + 'max_pooling_'+str(index))(input_data)

        if index in (5,9,13):
            shortcut = Lambda(zeropad, output_shape=zeropad_output_shape)(shortcut)
        x = add([x, shortcut], name='type_2' + str(index) + '_' + 'add')


        return x

    input_ecg = Input(shape=(5000, 12), name='input')
    x = Conv1D(filters=32, kernel_size=16,
               strides=1, padding='same', kernel_initializer=params["conv_init"], name='conv_1')(input_ecg)
    x = BatchNormalization(name='BN_1')(x)
    x = Activation('relu', name='relu_1')(x)

    x = type_1(x, n_filters=params["conv_num_filters_start"], filter_size=params["conv_filter_length"], max_pool_size=1,index=1)
    x = type_2(x, n_filters=params["conv_num_filters_start"], filter_size=params["conv_filter_length"], max_pool_size=2,index=2)
    x = type_2(x, n_filters=params["conv_num_filters_start"], filter_size=params["conv_filter_length"], max_pool_size=1,index=3)
    x = type_2(x, n_filters=params["conv_num_filters_start"], filter_size=params["conv_filter_length"], max_pool_size=2,index=4)
    x = type_2(x, n_filters=params["conv_num_filters_start"]*2, filter_size=params["conv_filter_length"], max_pool_size=1,index=5)
    x = type_2(x, n_filters=params["conv_num_filters_start"]*2, filter_size=params["conv_filter_length"], max_pool_size=2,index=6)
    x = type_2(x, n_filters=params["conv_num_filters_start"]*2, filter_size=params["conv_filter_length"]//2, max_pool_size=1,index=7)
    x = type_2(x, n_filters=params["conv_num_filters_start"]*2, filter_size=params["conv_filter_length"]//2, max_pool_size=2,index=8)
    x = type_2(x, n_filters=params["conv_num_filters_start"]*4, filter_size=params["conv_filter_length"]//2, max_pool_size=1,index=9)
    x = type_2(x, n_filters=params["conv_num_filters_start"]*4, filter_size=params["conv_filter_length"]//2, max_pool_size=2,index=10)
    x = type_2(x, n_filters=params["conv_num_filters_start"]*4, filter_size=params["conv_filter_length"]//2, max_pool_size=1,index=11)
    x = type_2(x, n_filters=params["conv_num_filters_start"]*4, filter_size=params["conv_filter_length"]//2, max_pool_size=2,index=12)
    x = type_2(x, n_filters=params["conv_num_filters_start"]*8, filter_size=params["conv_filter_length"]//2, max_pool_size=1,index=13)
    x = type_2(x, n_filters=params["conv_num_filters_start"]*8, filter_size=params["conv_filter_length"]//2, max_pool_size=2,index=14)
    x = type_2(x, n_filters=params["conv_num_filters_start"]*8, filter_size=params["conv_filter_length"]//2, max_pool_size=1,index=15)
    x = type_2(x, n_filters=params["conv_num_filters_start"]*8, filter_size=params["conv_filter_length"]//2, max_pool_size=2,index=16)

    x = BatchNormalization(name='BN_2')(x)
    x = Activation('relu', name='relu_2')(x)


    #x = TimeDistributed(Dense(5, activation='softmax', name='output'))(x)
    x = GlobalAveragePooling1D(name='average_pooling')(x)
    #x = MaxPooling1D(name='max_pooling')(x)
    #x = Concatenate(axis=1)([x1, x2])
    #x = Flatten(name='flatten')(x)#全连接层
    #x = Dense(64,kernel_regularizer=l2(0.01), name='FC1')(x)#隐藏层
    #x = Activation('relu', name='Dense_relu_1')(x)
    #x = Dropout(rate=0.2)(x)

    x = Dense(12, activation='softmax', name='output')(x)
   model = Model(inputs=input_ecg, outputs=x)

    return model
