YOLOv8源码修改（2）- 解耦检测推理类+融合多个YOLOv8模型的检测推理结果

背景

YOLOv8对代码实现了高度的封装，如进行推理只需运行：

from ultralytics import YOLO

data_path = r"/path/to/data/*.mp4"
model = YOLO(task="detect", model='/path/to/model/*.pt')
results = model.predict(source=data_path, show=True, save=False, stream=True)

通过对模型类的高度封装，只需调用 model.predict() 即可实现推理。然而，实际工程中，一个模型可能只检测部分类别（如‘人’、‘车’等常见类别，用官方预训练模型即可，可以减少人工标注和重新训练的成本）。

YOLOv8官方代码的最终推理结果通过先调用YOLO类，再调用Predictor类获取，这在简单场景中较为方便。但在实际场景中，一张图片可能需要经过几个检测网络，不同网络的配置还会有差异，用前述方法获取结果反而变得麻烦繁琐。因此，需要解耦推理类，用其直接加载模型，并在不同模型获取部分结果后，融合多个模型的推理结果。

YOLOv8官方代码

1.修改思路

改进点1：重写predict.py中推理类。

改进点2：矫正不同模型的预测结果。

2.涉及修改相关的文件

预测类基类文件：ultralytics/engine/predictor.py

预测类子类文件：ultralytics/task_bank/predict.py        【根据任务新建文件夹和predict.py】

预测的配置文件：ultralytics/cfg/bank_monitor/detect_predict.yaml  【默认配置选择部分参数】

3.新建预测配置文件

从ultralytics/cfg/default.yaml选择只与预测相关的参数，并重新设置（用官方默认配置，大部分都不需要改）。保存到：ultralytics/cfg/bank_monitor/detect_predict.yaml

model和source空出，后续用预测类的overrides参数传入。

# 需要修改的参数
task: "detect"
mode: "predict"
model:
source: # (str, optional) source directory for images or videos


batch: 16           # (int) number of images per batch (-1 for AutoBatch)
conf: 0.25          # (float, optional) object confidence threshold for detection (default 0.25 predict, 0.001 val)
iou: 0.7            # (float) intersection over union (IoU) threshold for NMS
data:               # (str, optional) path to data file, i.e. coco8.yaml
vid_stride: 1       # (int) video frame-rate stride
verbose: True       # (bool) whether to print verbose output，控制台是否打印信息

# Result save settings -------------------------------------------------------------------------------------------------
save: False         # (bool) save predict results
project:            # (str, optional) project name. 为空保存到 test/tmp/runs/task 文件夹下
name:               # (str, optional) experiment name, results saved to 'project/name' directory
exist_ok: False     # (bool) whether to overwrite existing experiment
save_dir:           # 保存的路径，为空就按默认设置，保存在 run/project/name/task/mode_num 文件夹下
save_frames: False  # (bool) save predicted individual video frames
save_txt: False     # (bool) save results as .txt file
save_conf: False    # (bool) save results with confidence scores
save_crop: False    # (bool) save cropped images with results

# Visualize settings ---------------------------------------------------------------------------------------------------
show: False           # (bool) show predicted images and videos if environment allows
show_labels: True     # (bool) show prediction labels, i.e. 'person'
show_conf: True       # (bool) show prediction confidence, i.e. '0.99'
show_boxes: True      # (bool) show prediction boxes
line_width:           # (int, optional) line width of the bounding boxes. Scaled to image size if None.

# 可能修改的参数
classes:                # (int | list[int], optional) filter results by class, i.e. classes=0, or classes=[0,2,3]
imgsz: 640              # (int | list) input images size as int for train and val modes, or list[w,h] for predict and export modes
device: 0               # (int | str | list, optional) device to run on, i.e. cuda device=0 or device=0,1,2,3 or device=cpu
stream_buffer: False    # (bool) buffer all streaming frames (True) or return the most recent frame (False)
dnn: False              # (bool) use OpenCV DNN for ONNX inference
half: False             # (bool) use half precision (FP16)

# 基本不用修改的参数
visualize: False        # (bool) visualize model features，用于可视化模型推理中每一层的特征
augment: False          # (bool) apply image augmentation to prediction sources
embed:                  # (list[int], optional) return feature vectors/embeddings from given layers
agnostic_nms: False     # (bool) class-agnostic NMS，False考虑检测框的类别进行极大值抑制（True会导致几类同框只选最大那个框）
max_det: 300            # (int) maximum number of detections per image
crop_fraction: 1.0      # (float) image crop fraction for classification (0.1-1), 1.0 means no crop, must be greater than 0.
retina_masks: False     # (bool) use high-resolution segmentation masks

4.重写推理子类

预测基类 ultralytics/engine/predictor.py，原预测子类 ultralytics/models/yolo/detect/predict.py

由上述两部分代码可知：

数据读取--数据前处理--模型加载--模型推理--推理结果后处理，整个基本流程是完整的。只需重新给定默认读取配置文件地址即可。

预测子类文件：ultralytics/task_bank/predict.py 中，只需修改DEFAULT_CFG。

from ultralytics.engine.predictor import BasePredictor
from ultralytics.engine.results import Results
from ultralytics.utils import ops
from ultralytics.task_bank import DEFAULT_CFG    # 需要自己添加


class BankDetectionPredictor(BasePredictor):
    """
    A class extending the BasePredictor class for prediction based on a detection model.

    Example:
        ```python
        from ultralytics.utils import ASSETS
        from ultralytics.models.yolo.detect import DetectionPredictor

        args = dict(model='yolov8n.pt', source=ASSETS)
        predictor = DetectionPredictor(overrides=args)
        predictor.predict_cli()
        ```
    """
    def __init__(self, cfg=DEFAULT_CFG, overrides=None, _callbacks=None):
        """
        Initializes the CustomPredictor class with a custom configuration path.

        Args:
            cfg (str, optional): Path to a configuration file. Defaults to '/path/to/custom/config.yaml'.
            overrides (dict, optional): Configuration overrides. Defaults to None.
        """
        super().__init__(cfg=cfg, overrides=overrides, _callbacks=_callbacks)

    def postprocess(self, preds, img, orig_imgs):    # 原预测子类类复制即可，不需要修改
        """Post-processes predictions and returns a list of Results objects."""
        preds = ops.non_max_suppression(
            preds,
            self.args.conf,
            self.args.iou,
            agnostic=self.args.agnostic_nms,
            max_det=self.args.max_det,
            classes=self.args.classes,
        )

        if not isinstance(orig_imgs, list):  # input images are a torch.Tensor, not a list
            orig_imgs = ops.convert_torch2numpy_batch(orig_imgs)

        results = []
        for i, pred in enumerate(preds):
            orig_img = orig_imgs[i]
            pred[:, :4] = ops.scale_boxes(img.shape[2:], pred[:, :4], orig_img.shape)
            img_path = self.batch[0][i]
            results.append(Results(orig_img, path=img_path, names=self.model.names, boxes=pred))

        return results

DEFAULT_CFG根据原文件 ultralytics/utils/__init__.py 修改得到。

重写的文件保存于：ultralytics/task_bank/__init__.py

from ultralytics.utils import yaml_load, IterableSimpleNamespace
from pathlib import Path

# Default configuration
FILE = Path(__file__).resolve()
ROOT = FILE.parents[1]  # YOLO
BANK_DEFAULT_CFG_PATH = ROOT / "cfg/bank_monitor/detect_predict.yaml"
DEFAULT_CFG_DICT = yaml_load(BANK_DEFAULT_CFG_PATH)

for k, v in DEFAULT_CFG_DICT.items():
    if isinstance(v, str) and v.lower() == "none":
        DEFAULT_CFG_DICT[k] = None

DEFAULT_CFG = IterableSimpleNamespace(**DEFAULT_CFG_DICT)

5.利用参数overrides自定义加载模型

overrides需要传入一个字典，主要修改model获取模型路径，和classes获取需要的类比。返回结果是res，第i条数据的标签名称在res[i].name中，坐标、标签和置信度在对象res[i].boxes中。

from ultralytics.task_bank.predict import BankDetectionPredictor
import torch


overrides_1 = {"task": "detect",
               "mode": "predict",
               "model": r'path/to/weight1/yolov8m.pt',    # 模型1：官方模型
               "verbose": False,     # 控制太不打印信息
               "classes": [0]        # COCO预训练模型有80类，只选取0类别（person）
               }

overrides_2 = {"task": "detect",
               "mode": "predict",
               "model": r'path/to/weight2/best.pt',        # 模型2：自训练模型
               "verbose": False,
               "classes": [0, 1, 2, 3]    # 自训练模型，省略则给出全部类的预测结果
               }

predictor_1 = BankDetectionPredictor(overrides=overrides_1)    # 加载模型
predictor_2 = BankDetectionPredictor(overrides=overrides_2)
predictors = [predictor_1, predictor_2]

img_path = r'path/to/img/img_00000.jpg'
p_1 = predictor_1(source=img_path)[0]    # 返回结果是列表，多张图片则依次遍历
p_2 = predictor_2(source=img_path)[0]

"""
返回结果对象包含的内容：
boxes: ultralytics.engine.results.Boxes object    # 目标框
keypoints: None    # 没用
masks: None        # 没用
names: {0: 'person',..., 79: 'toothbrush'}    # 类别标签
obb: None          # 没用
orig_img: array([[[...]]], dtype=uint8)       # 原始图片
orig_shape: (586, 1216)    # 原图大小
path: 'path/to/img/img_00000.jpg'    # 原图保存路径
probs: None        # 没用
save_dir: None     # 保存路径，没设置就没保存
speed: {'preprocess': , 'inference': , 'postprocess': }   # 每阶段时间(ms)

返回的boxes对象包含的内容：
cls: tensor([2.,...], device='cuda:0')
conf: tensor([0.9186,...], device='cuda:0')
data: tensor([[7.3435e+02,...]], device='cuda:0')    # xyxy, confs, cls
id: None
is_track: False
orig_shape: (586, 1216)
shape: torch.Size([7, 6])
xywh: tensor([[816.2213, ...]], device='cuda:0')
xywhn: tensor([[0.6712, ...]], device='cuda:0')
xyxy: tensor([[ 734.3535, ...]], device='cuda:0')
xyxyn: tensor([[0.6039,...]], device='cuda:0')
"""

6.修改标签，融合多模型预测结果

修改原因：不同模型的标签一般均从0开始，如官方COCO预训练模型0号标签为peroson，自定义训练的模型也存在0号标签，所以会产生冲突，因此希望重排标签：

# 官方预训练模型所用的标签id和名称
names:
  0: person
  1: bicycle
  2: car
  ...
  79: toothbrush

# 自己训练的模型所用的标签id和名称
names:
  0: ycj
  1: kx
  2: kx_dk
  3: money

# 希望结合不同模型后，对应的标签id和名称
class_name:
  0: ycj
  1: kx
  2: kx_dk
  3: money
  4: person

修改思路：模型的类别标签字典：{int: str}，目标的类别标签字典：{int_new, str}，模型的预测结果：[int]。所以，只需根据预测结果int找到原模型类别标签字典key对应的str，然后在目标类别标签字典中找到相同的str，再把预测中的int替换为int_new。

class_name_num_str = {    # 这部分实际从配置文件中读取为字典
    0: 'ycj',
    1: 'kx',
    2: 'kx_dk',
    3: 'money',
    4: 'person'
}


def transform_and_concat_tensors(tensor_list, k1_v1_dict_list, k2_v2_dict):
    def transform_tensor(tensor, k1_v1_dict):
        original_dtype = tensor.dtype       # 获取输入tensor的数据类型
        original_device = tensor.device     # 获取输入tensor的device
        v1_to_k2 = {v: k for k, v in k2_v2_dict.items()}    # 创建 v1 到 k2 的映射字典
        transformed_list = []               # 创建一个新的列表来存储转换后的值

        for value in tensor:
            v1 = k1_v1_dict[value.item()]   # 获取原模型的

            if v1 not in v1_to_k2:          # 合并后的类别标签不存在
                raise ValueError(f"label [{v1}] from model not found in new labels.")

            k2 = v1_to_k2[v1]
            transformed_list.append(k2)

        transformed_tensor = torch.tensor(transformed_list, dtype=original_dtype, device=original_device)
        return transformed_tensor

    transformed_tensors = [transform_tensor(tensor, k1_v1_dict) for tensor, k1_v1_dict in
                           zip(tensor_list, k1_v1_dict_list)]   # 对每个 tensor 进行转换

    result_tensor = torch.cat(transformed_tensors, dim=0)       # 将转换后的 tensor 按 dim=1 进行连接

    return result_tensor


tensor_list = [p_1.boxes.cls, p_2.boxes.cls]    # 不同模型的张量列表
k1_v2_dict_list = [p_1.names, p_2.names]        # 不同模型的label列表

res = transform_and_concat_tensors(tensor_list, k1_v2_dict_list, class_name_num_str)
print(res)

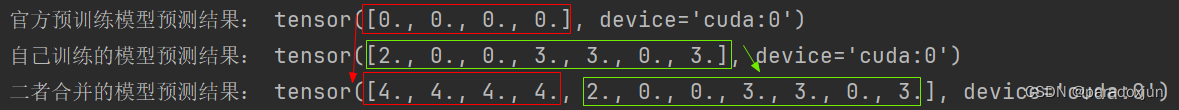

修改后的效果（原官方预训练模型的预测结果的[类别0]修改成了新的[类别4]）：
