从参考数据集到查询数据集的注释又被称为迁移注释,其实属于自动注释,只不过这里的注释更具有领域特性,因为我们想在指定的参考数据集上训练深度学习模型,然后迁移到查询数据集,这种AI注释方式适合用于自动化注释特定疾病。目前TOSICA是迁移注释的代表方法。
参考:
[1] https://github.com/Starlitnightly/single_cell_tutorial
[2] https://github.com/theislab/single-cell-best-practices
加载参考数据集
参考数据需要与查询数据保持一致的预处理方法。归一化一般受到sc.pp.normalize_total
中target_sum
参数的影响,在scanpy中,默认值是自适应的,这是导致注释出错的一个原因,因此,我们固定设置target_sum
参数为1e4
。
在下面的案例中,我们使用omicverse来预处理原始counts,target_sum
参数设置为50*1e4
。
高质量的参考数据集是必要的,这里介绍了Cell Blast的参考数据集,Cell Blast收集了100多个高质量的单细胞带注释数据集,下面我们使用Zheng数据集来注释前面的骨髓数据集。Zheng作为参考数据集:
import omicverse as ov
import scanpy as sc
ov.ov_plot_set()
ref_adata = ov.utils.read('./data/Zheng.h5ad')
print(ref_adata)
TOSICA要求参考数据集的细胞数量不能少于30,000个,否则模型训练效果不佳。如果参考数据集的规模为100,000,随机选择30,000个细胞作为训练集也足够保持TOSICA的性能。
因此,我们在Zheng中随机选取30,000个细胞,使用random.sample
进行无放回采样:
import random
cell_idx=list(random.sample(ref_adata.obs.index.tolist(),30000))
ref_adata=ref_adata[cell_idx]
print(ref_adata)
注释的细胞类型在cell_ontology_class
中查看:
ref_adata.obs['cell_ontology_class'].cat.categories
检查归一化程度:
ref_adata.X.max() # 173.0
这是一个较大的整数,表明是原始counts,因此,我们对它进行预处理:
ref_adata = ov.pp.preprocess(ref_adata, mode='shiftlog|pearson', n_HVGs=3000)
加载查询数据集
这里的查询数据集使用前面的骨髓数据集,为了使预处理过程与参考数据集一致,我们需要提取counts,然后进行预处理,由于之前预处理流程一样,所以这里不再重新预处理。直接加载查询数据集:
adata = ov.utils.read('data/s4d8_dimensionality_reduction.h5ad')
# adata=adata.raw.to_adata()
# ov.utils.retrieve_layers(adata,layers='counts')
# print('raw count adata:',adata.X.max())
# adata=ov.pp.preprocess(adata,mode='shiftlog|pearson',n_HVGs=3000)
我们发现,参考数据集和查询数据集分别提取了3000个和2000个HVG,但是它们是不一致的,我们需要提取重叠的高变基因:
# 获取参考数据集和查询数据集重叠的HVG
print(ref_adata)
ref_adata = ref_adata[:, ref_adata.var.highly_variable_features]
ref_adata.var_names_make_unique()
adata.var_names_make_unique()
ret_gene=list(set(adata.var_names) & set(ref_adata.var_names))
print(len(ret_gene))
# 根据共同HVG切片数据集
print(ret_gene)
print(adata)
adata=adata[:,ret_gene]
ref_adata=ref_adata[:,ret_gene]
print(f"The max of ref_adata is {ref_adata.X.max()}, query_data is {adata.X.max()}",)
# The max of ref_adata is 11.3140869140625, query_data is 10.989398002624512
此时看ref_adata与adata的最大值,发现其相接近,表明二者具有相似的归一化值。
TOSICA训练以及预测
TOSICA需要知识库,omicverse可以自动下载:
ov.utils.download_tosica_gmt()
然后初始化TOSICA,这里涉及到以下参数:
- adata:参考 adata 对象
- gmt_path:默认的预先准备的掩码,或者 .gmt 文件的路径。可以使用 ov.utils.download_tosica_gmt() 来获取基因集。
- depth:Transformer 模型的深度,设置为 2 时可能会发生内存泄漏。
- label_name:在 adata.obs 中表示细胞类型的参考键。
- project_path:TOSICA 模型的保存路径。
- batch_size:表示在单次传递中传递给程序进行训练的细胞数量。
初始化如下:
tosica_obj=ov.single.pyTOSICA(adata=ref_adata,
gmt_path='genesets/GO_bp.gmt', depth=1,
label_name='cell_ontology_class',
project_path='hGOBP_demo',
batch_size=8)
然后训练TOSICA:
# pre_weights: 预训练权重的路径
# lr: 学习率
# epochs:epochs 的个数
# lrf: 最后一层的学习率
tosica_obj.train(epochs=5)
tosica_obj.save()
tosica_obj.load()
在查询数据集上预测:
new_adata=tosica_obj.predicted(pre_adata=adata)
new_adata.obsm=adata[new_adata.obs.index].obsm.copy()
new_adata.obsp=adata[new_adata.obs.index].obsp.copy()
print(new_adata)
"""
AnnData object with n_obs × n_vars = 14814 × 299
obs: 'Prediction', 'Probability', 'n_genes_by_counts', 'log1p_n_genes_by_counts', 'total_counts', 'log1p_total_counts', 'pct_counts_in_top_20_genes', 'total_counts_mt', 'log1p_total_counts_mt', 'pct_counts_mt', 'total_counts_ribo', 'log1p_total_counts_ribo', 'pct_counts_ribo', 'total_counts_hb', 'log1p_total_counts_hb', 'pct_counts_hb', 'outlier', 'mt_outlier', 'scDblFinder_score', 'scDblFinder_class', 'log2_nUMIs', 'log2_nGenes'
obsm: 'X_tsne', 'X_tsne_counts', 'X_tsne_scaled', 'X_umap', 'X_umap_counts', 'X_umap_scaled', 'counts|original|X_pca', 'scaled|original|X_pca'
obsp: 'connectivities', 'distances'
"""

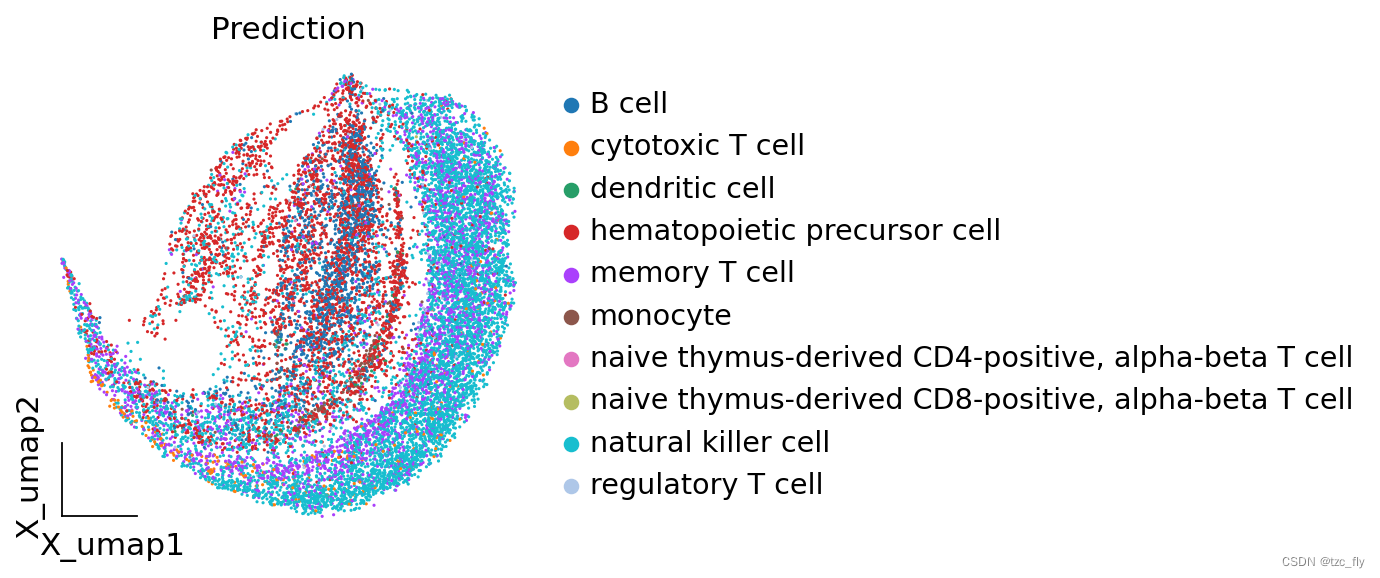

ov.utils.embedding(
new_adata,
basis="X_umap",
color=['Prediction'],
frameon='small',
#ncols=1,
# wspace=0.5,
#palette=ov.utils.pyomic_palette()[11:],
show=False,
)
TOSICA的可解释性
TOSICA根据注意力来解释预测,首先我们将预测细胞类型数量小于5的细胞给过滤掉:
cell_idx=new_adata.obs['Prediction'].value_counts()[new_adata.obs['Prediction'].value_counts()<5].index
new_adata=new_adata[~new_adata.obs['Prediction'].isin(cell_idx)]
然后,用scanpy的差异计算,得到各细胞类型中注意力最高的差异通路:
sc.tl.rank_genes_groups(new_adata, 'Prediction', method='wilcoxon')
sc.pl.rank_genes_groups_dotplot(new_adata,
n_genes=3,standard_scale='var',)
如果想获取特定细胞的通路,可以使用 sc.get.rank_genes_groups_df
,比如,想获取B细胞特定的通路:
degs = sc.get.rank_genes_groups_df(new_adata, group='B cell', key='rank_genes_groups',
pval_cutoff=0.05)
degs.head()
可视化通路的表达情况:
ov.utils.embedding(
new_adata,
basis="X_umap",
color=['Prediction','GOBP_REACTIVE_OXYGEN_SPECIES_BIOSYNTHETIC_PROCESS'],
frameon='small',
#ncols=1,
wspace=0.5,
#palette=ov.utils.pyomic_palette()[11:],
show=False,
)
