对于经验不够丰富的人员,手动注释是不可行的。因此现在自动注释变得更容易让人接受。自动注释分为统计模型和深度学习模型。
参考:
[1] https://github.com/Starlitnightly/single_cell_tutorial
[2] https://github.com/theislab/single-cell-best-practices
基于统计模型的SCSA
SCSA是早期的一个细胞类型自动注释工具,可以根据簇特异性marker,查询数据库中每一种细胞类型的marker,选出吻合度最高的一类细胞,如果差异性不够大,被认为是Unknown细胞。
首先,加载数据:
import omicverse as ov
import scanpy as sc
ov.ov_plot_set()
adata = ov.read('./data/s4d8_dimensionality_reduction.h5ad')

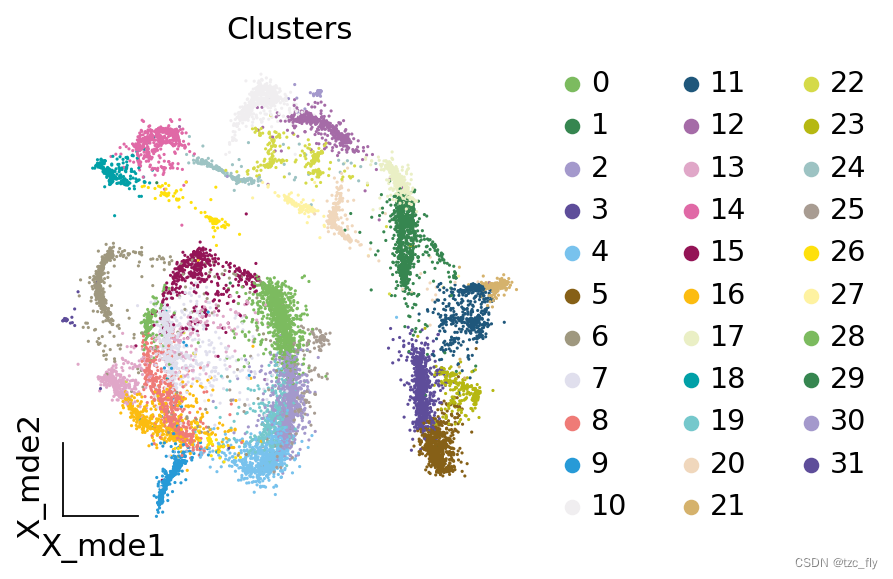

聚类,这里把resolution设置为2,用于识别更多细胞小类。聚类结果如下:
SCSA有两个数据库可以选择:CellMarker和panglaodb。在omicverse中,SCSA具有以下参数:
- foldchange:每个簇相对于别的簇的差异倍数,一般设置为1.5,值越大,使用的marker越少
- pvalue:与foldchange对应,在计算差异倍数的时候会进行统计学差异显著性分析,一般为0.01
- celltype:该参数包括了normal和cancer两个参数,当设置为cancer,会注释出来自cancersea数据库的12种肿瘤细胞亚型
- target:要使用的数据库,目前SCSA支持CellMarker和panglaodb,其实也包括cancersea
- tissue:可以使用
scsa.get_model_tissue()
列出所有支持的组织,默认是使用全部tissue - model_path:设置数据库的本地存放路径
使用CellMarker数据库
初始化方式如下:
scsa=ov.single.pySCSA(adata=adata,
foldchange=1.5,
pvalue=0.01,
celltype='normal',
target='cellmarker',
tissue='All',
model_path='./database/pySCSA_2023_v2_plus.db'
)
正式的注释环节涉及三个参数:
- clustertype:注释依据的簇名,存放在adata.obs
- cluster:需要注释的簇,默认是all
- rank_rep: 是否需要重新计算差异表达基因,如果在注释之前已经运算了
sc.tl.rank_genes_groups
,我们可以设置成False
我们使用SCSA注释细胞,并打印簇的类型:
adata.uns['log1p']['base']=10
res=scsa.cell_anno(clustertype='leiden_res1',
cluster='all',rank_rep=True)
# 自动打印注释结果
scsa.cell_anno_print()
# 注释结果添加到adata
scsa.cell_auto_anno(adata,clustertype='leiden_res1',
key='scsa_celltype_cellmarker')
Cluster:0 Cell_type:Natural killer cell|T cell Z-score:13.328|9.099
Nice:Cluster:1 Cell_type:B cell Z-score:17.324
Cluster:2 Cell_type:Natural killer cell|T cell Z-score:12.711|7.851
Nice:Cluster:3 Cell_type:B cell Z-score:12.564
Nice:Cluster:4 Cell_type:Natural killer cell Z-score:11.75
Nice:Cluster:5 Cell_type:B cell Z-score:17.695
Nice:Cluster:6 Cell_type:Natural killer cell Z-score:14.859
Nice:Cluster:7 Cell_type:T cell Z-score:12.816
Cluster:8 Cell_type:T cell|Naive CD4+ T cell Z-score:5.584|3.975
Cluster:9 Cell_type:T cell|Natural killer cell Z-score:8.559|5.724
Nice:Cluster:10 Cell_type:Monocyte Z-score:14.734
Nice:Cluster:11 Cell_type:B cell Z-score:15.721
Cluster:12 Cell_type:Monocyte|Natural killer T (NKT) cell Z-score:14.965|12.388
Cluster:13 Cell_type:T cell|Natural killer cell Z-score:10.451|8.418
Nice:Cluster:14 Cell_type:Natural killer T (NKT) cell Z-score:16.389
Cluster:15 Cell_type:Natural killer T (NKT) cell|T cell Z-score:13.173|11.666
Cluster:16 Cell_type:Natural killer cell|T cell Z-score:7.567|7.555
Cluster:17 Cell_type:Natural killer T (NKT) cell|B cell Z-score:16.351|14.131
Nice:Cluster:18 Cell_type:Red blood cell (erythrocyte) Z-score:12.859
Nice:Cluster:19 Cell_type:Natural killer cell Z-score:9.203
Nice:Cluster:20 Cell_type:B cell Z-score:16.841
Nice:Cluster:21 Cell_type:B cell Z-score:15.203
Cluster:22 Cell_type:Monocyte|Microglial cell Z-score:12.065|7.22
Nice:Cluster:23 Cell_type:B cell Z-score:12.986
Cluster:24 Cell_type:Hematopoietic stem cell|Natural killer T (NKT) cell Z-score:10.647|10.385
Nice:Cluster:25 Cell_type:Natural killer cell Z-score:14.398
Nice:Cluster:26 Cell_type:Red blood cell (erythrocyte) Z-score:2.196
Nice:Cluster:27 Cell_type:B cell Z-score:14.338
Cluster:28 Cell_type:T cell|Naive CD8+ T cell Z-score:8.457|6.469
Nice:Cluster:29 Cell_type:B cell Z-score:15.06
Cluster:30 Cell_type:Monocyte|Macrophage Z-score:12.186|8.279
Nice:Cluster:31 Cell_type:Natural killer cell Z-score:11.614
我们可视化注释结果:
# 可视化
ov.utils.embedding(adata,
basis='X_mde',
color=[ "leiden_res1","scsa_celltype_cellmarker",],
title=['clustering', 'SCSA cell type'],
palette=ov.palette()[15:],
show=False,frameon='small',wspace=0.6)
使用panglaodb数据库
流程与使用CellMarker的一样:
scsa=ov.single.pySCSA(adata=adata,
foldchange=1.5,
pvalue=0.01,
celltype='normal',
target='panglaodb',
tissue='All',
model_path='./database/pySCSA_2023_v2_plus.db'
)
res=scsa.cell_anno(clustertype='leiden_res1',
cluster='all',rank_rep=True)
scsa.cell_auto_anno(adata,clustertype='leiden_res1',
key='scsa_celltype_panglaodb')
ov.utils.embedding(adata,
basis='X_mde',
color=[ "scsa_celltype_panglaodb","scsa_celltype_cellmarker",],
#title=['Cell type'],
palette=ov.palette()[15:],
show=False,frameon='small',wspace=0.6)
两个数据库的注释结果对比如下所示:
我们发现,panglaodb注释出了Reticulocytes,Erythroid-like两种红细胞,T cells,T memory cells两种T细胞亚群。虽然看起来更准确了,但实际上我们在大类注释时不需要将细胞类型精细化。
omicverse中还提供了get_celltype_marker用于获取指定细胞类型的marker基因,其中会根据分类结果重新计算差异:
marker_dict=ov.single.get_celltype_marker(adata,clustertype='scsa_celltype_cellmarker')
我们在进行注释之前,可以先查看数据库中支持的tissue,目前支持的物种为Human和Mouse,以Human为例,支持的tissue可以通过以下方式查看:
scsa.get_model_tissue(species='Human')
基于深度学习的CellTypist
CellTypist来自Cross-tissue immune cell analysis reveals tissue-specific features in humans, Science, 2022,这算是第一篇发表在正刊的单细胞注释方法。CellTypist可以自定义高精度和低精度,对于不认识的细胞类型,会标记为新细胞。
首先加载数据:
import omicverse as ov
import scanpy as sc
ov.ov_plot_set()
import celltypist
from celltypist import models
adata = ov.read('./data/s4d8_dimensionality_reduction.h5ad')
CellTypist要求使用的归一化值为10,000,之前预处理的归一化值为500,000,所以我们提取原始counts,重新预处理归一化:
adata=adata.raw.to_adata()
ov.utils.retrieve_layers(adata,layers='counts')
# print(adata.X)
adata=ov.pp.preprocess(adata,mode='shiftlog|pearson',n_HVGs=2000,
target_sum=1e4)
下载官方训练好的模型,以及查看模型保存的目录:
# Enabling `force_update = True` will overwrite existing (old) models.
models.download_models(force_update = True)
# 查看模型保存的目录
print(models.models_path)
CellTypist训练了很多模型,分别用于不同的精度和tissue,可以通过以下方式查看每个模型的描述信息:
models.models_description().head()
选择要使用的模型,比如,免疫细胞亚型的所有组织组合模型:
model = models.Model.load(model = 'Immune_All_Low.pkl')
print(model)
使用celltypist.annotate
将细胞类型标签从模型知识传输到query数据集:
# Not run; predict cell identities using this loaded model.
#predictions = celltypist.annotate(adata_500, model = model, majority_voting = True, mode = 'best match')
# Alternatively, just specify the model name (recommended as this ensures the model is intact every time it is loaded).
# `p_thres` defaults to 0.5.
predictions = celltypist.annotate(adata, model = 'Immune_All_Low.pkl', majority_voting = True, mode = 'prob match', p_thres = 0.5)
结果包括预测的细胞类型标签(predicted_labels)、过度聚类结果(over_clustering)和局部子聚类中多数投票后的预测标签(majority_voting):
adata_new = predictions.to_adata()
print(adata_new)
根据PCA表示进行UMAP可视化,然后查看这些标签的分布情况,由于部分簇是很多细胞预测类型都并行排列,可视化很长,我们只保留第一个细胞类型字符串:
adata_new.obs["simple_predict"] = adata_new.obs["majority_voting"].str.split('|').str[0]
print(adata_new.obs["simple_predict"])
sc.pp.neighbors(adata_new, n_neighbors=15,
n_pcs=30, use_rep='scaled|original|X_pca')
sc.tl.leiden(adata_new, key_added="leiden_res1", resolution=1.0)
adata_new.obsm["X_mde"] = ov.utils.mde(adata.obsm["scaled|original|X_pca"])
ov.utils.embedding(adata_new,
basis='X_mde',
color=[
# "predicted_labels",
# "over_clustering",
# "majority_voting",
"simple_predict"
],
#title=['Cell type'],
palette=sc.pl.palettes.default_102,
show=False,frameon='small',wspace=0.45)
大部分细胞被标记为Unassigned,这是由于我们设定了预测概率0.5作为阈值,低于该阈值的细胞不被注释,表明CellTypist在注释未知的数据上效果有待提升。
Pan-cancer细胞类型注释-MetaTiME
一般的深度学习模型都是在健康样本上训练,对癌症或者疾病数据集缺乏知识。MetaTiME 学习了数百个肿瘤 scRNA-seq 数据中的数百万个单细胞。来自:MetaTiME integrates single-cell gene expression to characterize the meta-components of the tumor immune microenvironment,Nature communications,2023。
MetaTiME要求预处理过的数据,首先加载数据,这里已经是预处理过的数据:
import omicverse as ov
import scanpy as sc
ov.ov_plot_set()
adata = ov.read('./data/BCC_GSE123813_aPD1_with_metainfo.h5ad')
print(adata)
print(adata.X)
然后要去除恶性肿瘤细胞(用inferCNV识别),以获得更好的肿瘤微环境注释表现,在案例中,“isTME”保存了肿瘤微环境细胞。使用UMAP可视化肿瘤微环境细胞和身份:
ov.utils.embedding(adata,
basis='X_umap',
color=[ "isTME", "assign_ident"],
# title=['Cell type'],
#palette=sc.pl.palettes.default_102,
show=False,frameon='small', wspace=0.45)
我们在这里就不去除恶性肿瘤了。然后,加载训练好的MetaTiME:
TiME_object=ov.single.MetaTiME(adata,mode='table')
我们可以对细胞进行过度聚类,这对细粒度的细胞注释非常有用。随着分辨率的提高,聚类的数量也会增加,为了尽最大可能地增加注释精度,我们将resolution设置为8:
TiME_object.overcluster(resolution=8,clustercol = 'overcluster',)
使用 TiME_object.predictTiME()
来预测 TME 中的潜在细胞类型:
- 细胞亚型将存储在
adata.obs['MetaTiME']
中 - 细胞类型将存储在
adata.obs['Major_MetaTiME']
中
TiME_object.predictTiME(save_obs_name='MetaTiME')
print(adata.obs['MetaTiME'])
print(adata.obs['Major_MetaTiME'])
用UMAP可视化:
ov.utils.embedding(adata,
basis='X_umap',
color=['Major_MetaTiME','MetaTiME'],
show=False, add_outline=False,
frameon='small',legend_fontoutline=2, wspace=0.6)
