本文介绍了一个GSE数据集的整合过程及批次效应处理方法，包括多个子系列数据集的下载、整合、样本匹配、批次效应的识别与校正等步骤。通过对GSE83521和GSE89143两个数据集进行实例演示，展示了使用R语言及Bioconductor包进行批次效应校正的具体操作。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

GSE70867
This SuperSeries is composed of the following SubSeries: Less…

GSE70864 BAL cell gene expression is predictive of Mortality in Idiopathic Pulmonary Fibrosis and enriched for Genes of Airway Basal Cells (I)

GSE70866 BAL cell gene expression is predictiveof Mortality in Idiopathic Pulmonary Fibrosis and enriched for Genesof Airway Basal Cells (II)

GSE73394 BAL cell gene expression is predictive of Mortality in Idiopathic Pulmonary Fibrosis and enrichedfor Genes of Airway Basal Cells (III)

GSE73395 BAL cell geneexpression is predictive of Mortality in Idiopathic Pulmonary Fibrosis and enriched for Genes of Airway Basal Cells (IV)

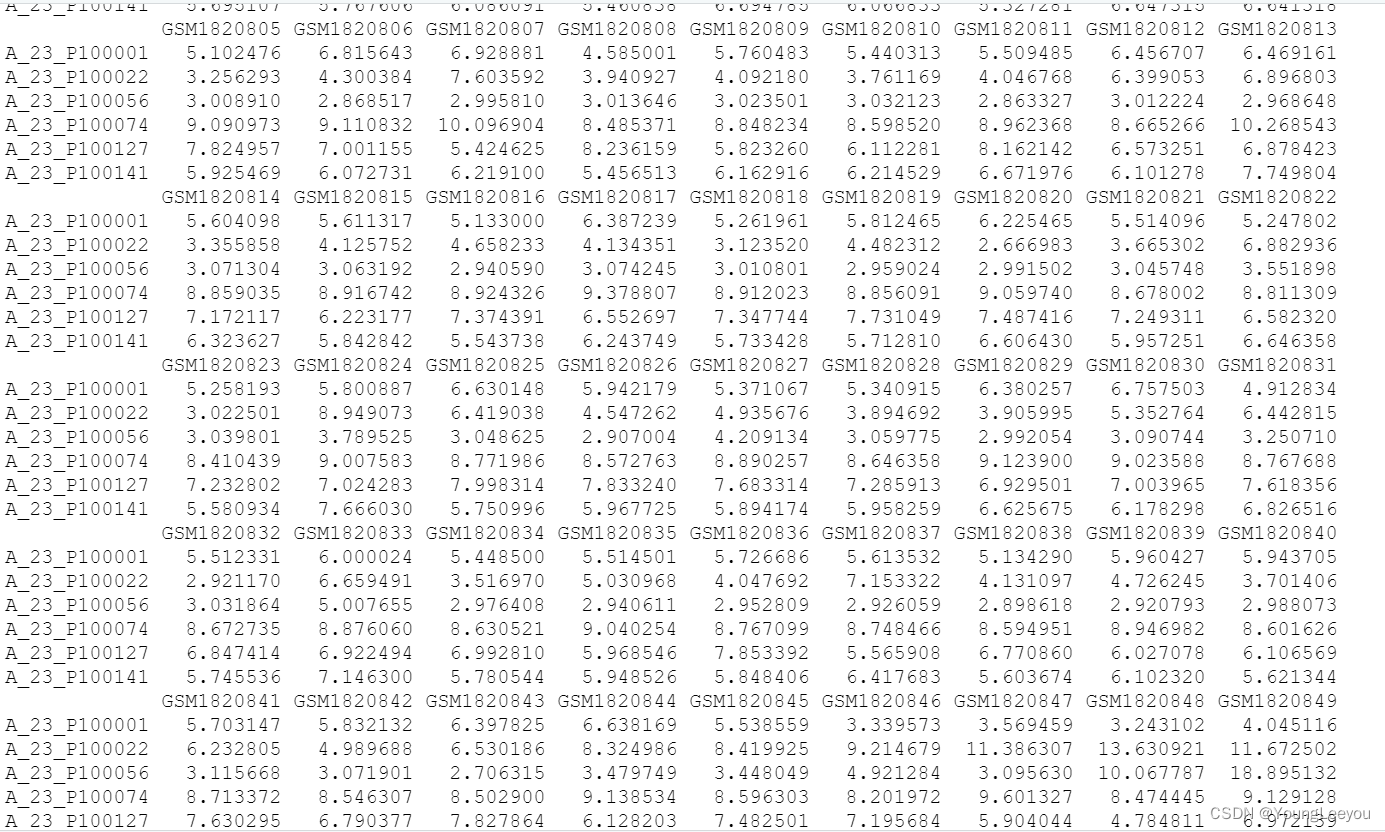

head(exprs(gset[[2]])) #gseGSE70867

在这里插入图片描述

我发现超gse号里面的矩阵表达值和其子集的表达值一致，怎么会这样呢超gse号里面多了其他样本啊怎么最后归一化的矩阵表达量没有变呢难道这是原始数据rawdata 不是normalized之后的数据？

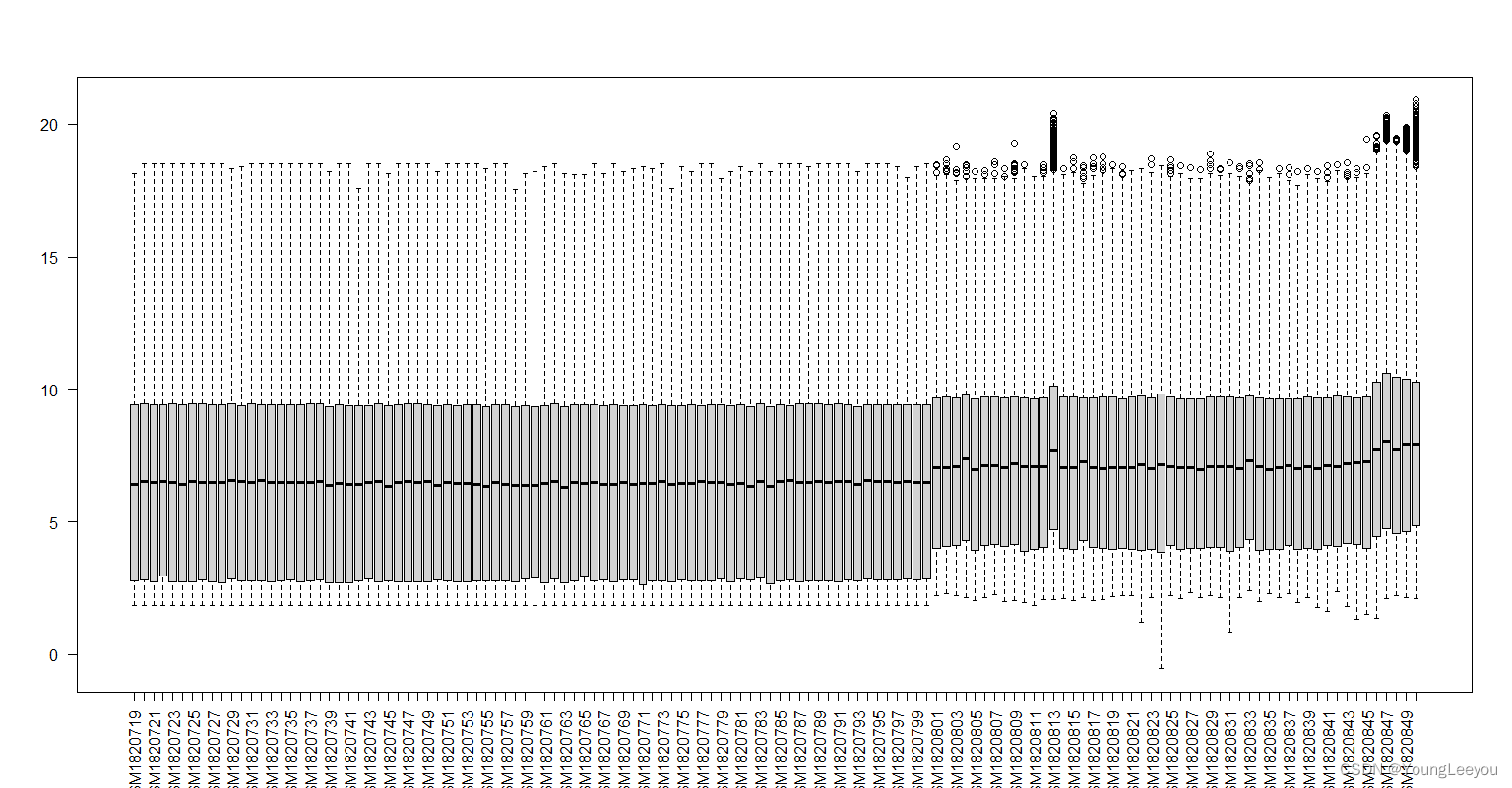

同一个gse数据集里存在不同的测序平台产生的数据

**
在这里插入图片描述

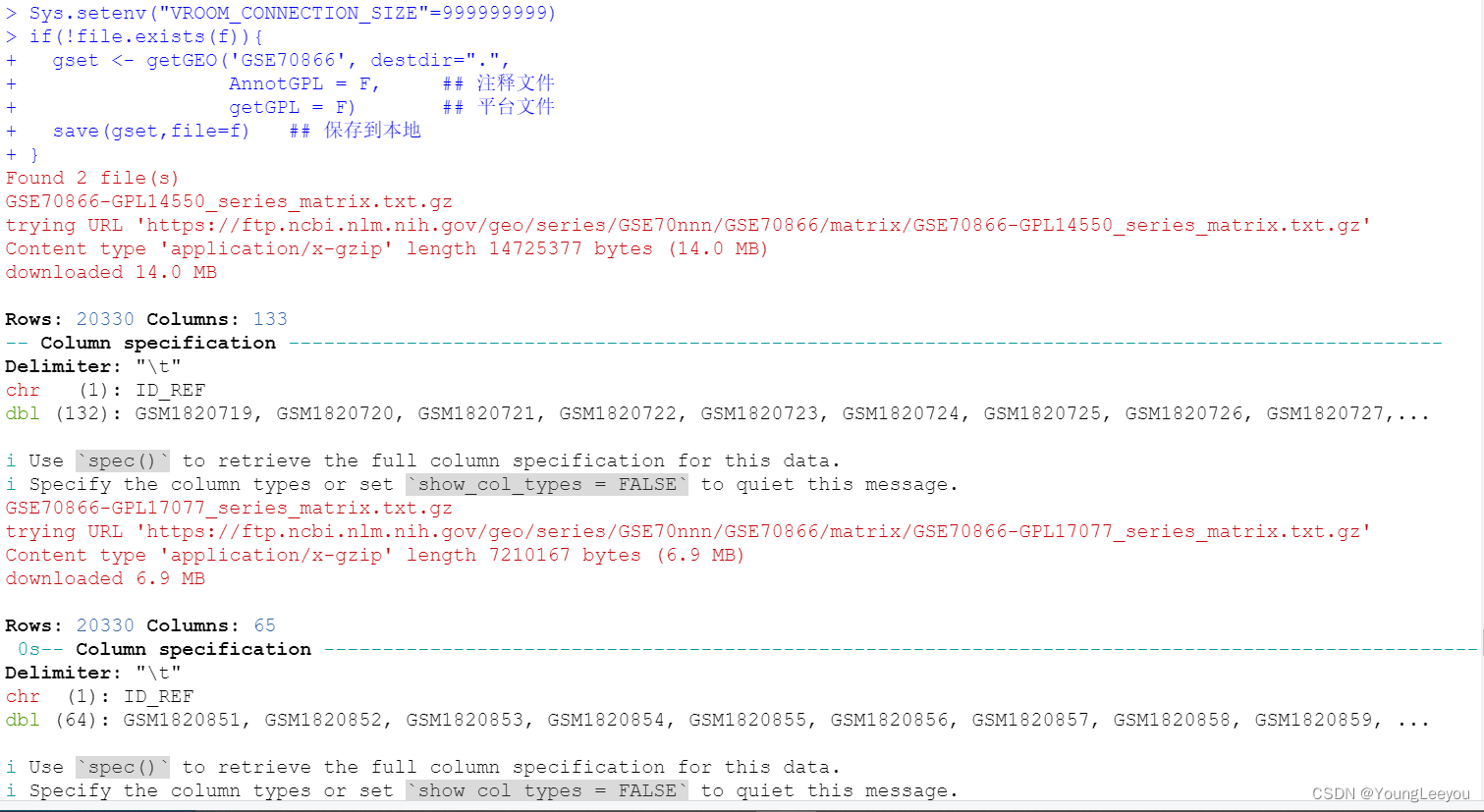

> getwd()
[1] "G:/r/duqiang_IPF/GSE70866—true—_BAL_IPF_donors_RNA-seq"
> class(gset)  #查看数据类型
[1] "list"
> length(gset)  #
[1] 2
> class(gset[[1]])
[1] "ExpressionSet"
attr(,"package")
[1] "Biobase"
> gset
$`GSE70866-GPL14550_series_matrix.txt.gz`
ExpressionSet (storageMode: lockedEnvironment)
assayData: 20330 features, 132 samples
  element names: exprs
protocolData: none
phenoData
  sampleNames: GSM1820719 GSM1820720 ... GSM1820850 (132 total)
  varLabels: title geo_accession ... time to death (days):ch1 (46 total)
  varMetadata: labelDescription
featureData: none
experimentData: use 'experimentData(object)'
  pubMedIds: 30141961
Annotation: GPL14550

$`GSE70866-GPL17077_series_matrix.txt.gz`
ExpressionSet (storageMode: lockedEnvironment)
assayData: 20330 features, 64 samples
  element names: exprs
protocolData: none
phenoData
  sampleNames: GSM1820851 GSM1820852 ... GSM1820914 (64 total)
  varLabels: title geo_accession ... time to death (days):ch1 (46 total)
  varMetadata: labelDescription
featureData: none
experimentData: use 'experimentData(object)'
  pubMedIds: 30141961
Annotation: GPL17077

> gset[[1]]@annotation # 平台信息——提取芯片平台编号
[1] "GPL14550"

在这里插入图片描述

$GSE70866-GPL17077_series_matrix.txt.gz :

colnames(exprs(gset[[2]]))
[1] “GSM1820851” “GSM1820852” “GSM1820853” “GSM1820854” “GSM1820855”
[6] “GSM1820856” “GSM1820857” “GSM1820858” “GSM1820859” “GSM1820860”
[11] “GSM1820861” “GSM1820862” “GSM1820863” “GSM1820864” “GSM1820865”
[16] “GSM1820866” “GSM1820867” “GSM1820868” “GSM1820869” “GSM1820870”
[21] “GSM1820871” “GSM1820872” “GSM1820873” “GSM1820874” “GSM1820875”
[26] “GSM1820876” “GSM1820877” “GSM1820878” “GSM1820879” “GSM1820880”
[31] “GSM1820881” “GSM1820882” “GSM1820883” “GSM1820884” “GSM1820885”
[36] “GSM1820886” “GSM1820887” “GSM1820888” “GSM1820889” “GSM1820890”
[41] “GSM1820891” “GSM1820892” “GSM1820893” “GSM1820894” “GSM1820895”
[46] “GSM1820896” “GSM1820897” “GSM1820898” “GSM1820899” “GSM1820900”
[51] “GSM1820901” “GSM1820902” “GSM1820903” “GSM1820904” “GSM1820905”
[56] “GSM1820906” “GSM1820907” “GSM1820908” “GSM1820909” “GSM1820910”
[61] “GSM1820911” “GSM1820912” “GSM1820913” “GSM1820914”

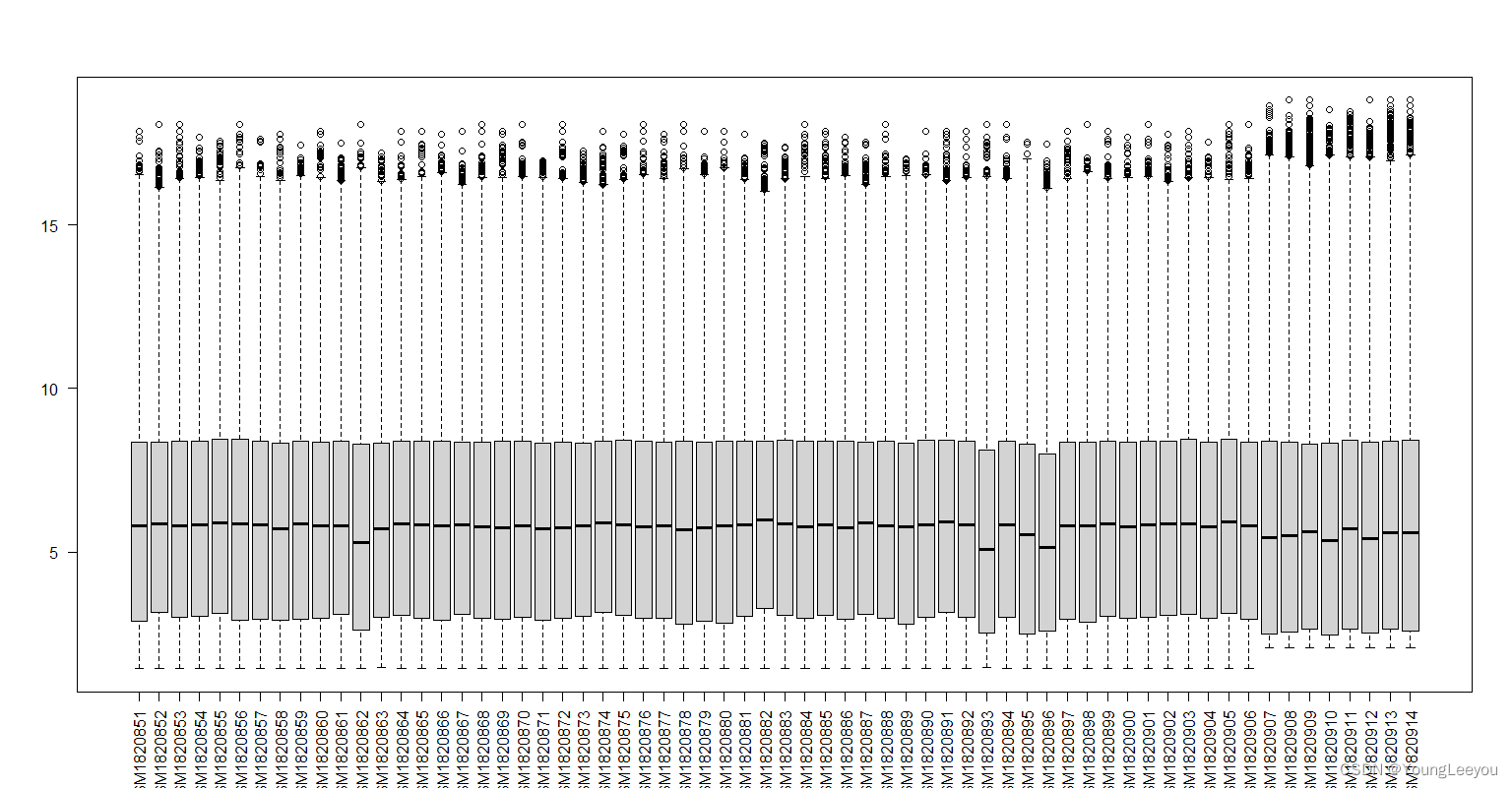

boxplot(exprs(gset[[2]]),las=2)

在这里插入图片描述

如何去除批次效应

GSE83521和GSE89143数据合并
1.下载数据
rm(list = ls())
library(GEOquery)
library(stringr)
gse = "GSE83521"
eSet1 <- getGEO("GSE83521",
                destdir = '.',
                getGPL = F)
eSet2 <- getGEO("GSE89143",
                destdir = '.',
                getGPL = F)
#(1)提取表达矩阵exp
exp1 <- exprs(eSet1[[1]])
exp1[1:4,1:4]
exp2 <- exprs(eSet2[[1]])
exp2[1:4,1:4]
exp2 = log2(exp2+1)
table(rownames(exp1) %in% rownames(exp2))
length(intersect(rownames(exp1),rownames(exp2)))
exp1 <- exp1[intersect(rownames(exp1),rownames(exp2)),]
exp2 <- exp2[intersect(rownames(exp1),rownames(exp2)),]
boxplot(exp1)
boxplot(exp2)

#(2)提取临床信息
pd1 <- pData(eSet1[[1]])
pd2 <- pData(eSet2[[1]])
if(!identical(rownames(pd1),colnames(exp1))) exp1 = exp1[,match(rownames(pd1),colnames(exp1))]
if(!identical(rownames(pd2),colnames(exp2))) exp2 = exp2[,match(rownames(pd2),colnames(exp2))]

#(3)提取芯片平台编号
gpl <- eSet2[[1]]@annotation

#(4)合并表达矩阵
# exp2的第三个样本有些异常，可以去掉或者用normalizeBetweenArrays标准化，把它拉回正常水平。

exp2 = exp2[,-3]

exp = cbind(exp1,exp2)
boxplot(exp)
Group1 = ifelse(str_detect(pd1$title,"Tumour"),"Tumour","Normal")
Group2 = ifelse(str_detect(pd2$source_name_ch1,"Paracancerous"),"Normal","Tumour")[-3]

Group = c(Group1,Group2)
table(Group)
Group = factor(Group,levels = c("Normal","Tumour"))
save(gse,Group,exp,gpl,file = "exp.Rdata")

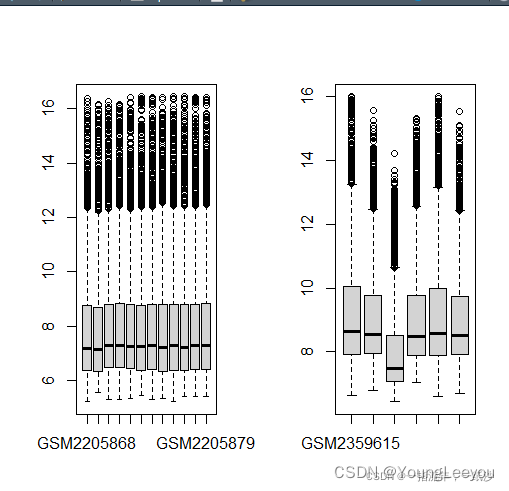

两个数据集样本的情况
在这里插入图片描述
合并之后的数据

2.针对不同数据集数据的差异，需要处理批次效应
2.1 使用limma包里的removeBatchEffect()函数
rm(list = ls())
load("exp.Rdata")
#处理批次效应
library(limma)
#?removeBatchEffect()
batch <- c(rep("A",12),rep("B",5))
exp2 <- removeBatchEffect(exp, batch)

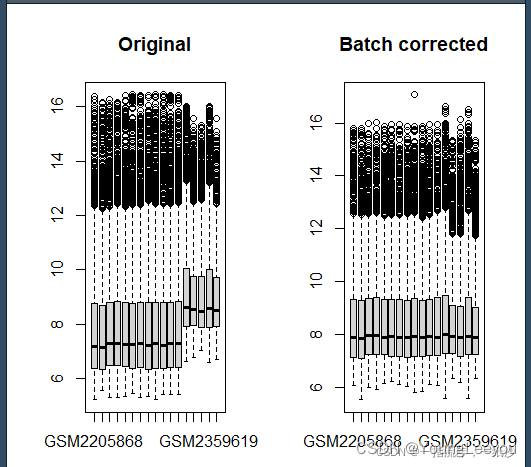

par(mfrow=c(1,2))  # 展示的图片为一行两列
boxplot(as.data.frame(exp),main="Original")
boxplot(as.data.frame(exp2),main="Batch corrected")

在这里插入图片描述

2.2 使用sva包中的combat() 函数
rm(list = ls())
load("exp.Rdata")
#处理批次效应(combat)
library(sva)
#?ComBat

batch <- c(rep("A",12),rep("B",5))
mod = model.matrix(~Group)
exp2 = ComBat(dat=exp, batch=batch,
              mod=mod, par.prior=TRUE, ref.batch="A")

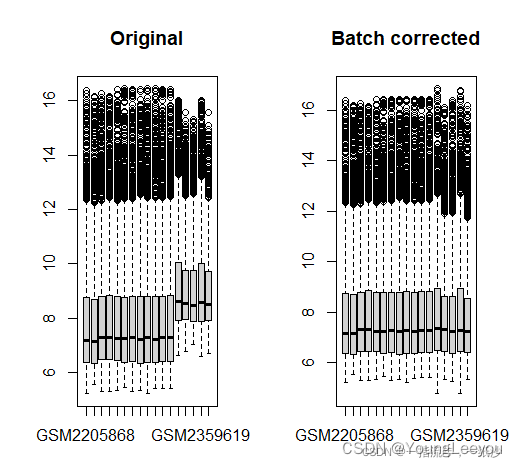

par(mfrow=c(1,2))
boxplot(as.data.frame(exp),main="Original")
boxplot(as.data.frame(exp2),main="Batch corrected")
