LIO_SAM实测运行,论文学习及代码注释[附对应google driver数据]

LIO-SAM: Tightly-coupled Lidar Inertial Odometry via Smoothing and Mapping

作者Tixiao Shan在2018年发表过LeGO-LOAM,当时他还在史蒂文斯理工学院读博士,19年毕业之后去了MIT做助理研究员(羡慕.jpg)。。。这篇文章LIO-SAM实际上是LeGO-LOAM的扩展版本,添加了IMU预积分因子和GPS因子,去除了帧帧匹配部分,然后更详细地描述了LeGO-LOAM帧图匹配部分的设计动机和细节。(引用于知乎大佬文章【论文阅读38】LIO-SAM)现在论文已经被IROS2020录用,作为高精度,imu,雷达,gps结合,程序还少的开源slam,非常值得学习。

目录

原文代码和数据

安装和运行

论文分析

程序注释

程序ros节点图

全部函数说明

imageProjection.cpp

featureExtraction.cpp

imuPreintegration.cpp

mapOptmization.cpp


原文代码和数据

原文:https://github.com/TixiaoShan/LIO-SAM/blob/master/config/doc/paper.pdf

代码:https://github.com/TixiaoShan/LIO-SAM

数据:链接: https://pan.baidu.com/s/1-sAB_cNlYPqTjDuaFgz9pg 提取码: ejmu (walk不需要改配置文件,其他两个需要下文有)

安装和运行

ros

sudo apt-get install -y ros-kinetic-navigation
sudo apt-get install -y ros-kinetic-robot-localization
sudo apt-get install -y ros-kinetic-robot-state-publisher

gtsam4.0.2(网速慢用国内的码云https://gitee.com/eminbogen/gtsam/tags

wget -O ~/Downloads/gtsam.zip https://github.com/borglab/gtsam/archive/4.0.2.zip
cd ~/Downloads/ && unzip gtsam.zip -d ~/Downloads/
cd ~/Downloads/gtsam-4.0.2/
mkdir build && cd build
cmake -DGTSAM_BUILD_WITH_MARCH_NATIVE=OFF ..
sudo make install -j8

install(同上https://gitee.com/eminbogen/LIOSAM

cd ~/catkin_ws/src
git clone https://github.com/TixiaoShan/LIO-SAM.git
cd ..
catkin_make

运行walk数据包不需要改params.yaml文件。其他两个数据包运行要修改topics和extrinsicRPY,extrinsicRot。需要保存pcd请修改保存true和路径。之后

sudo gedit /opt/ros/kinetic/lib/python2.7/dist-packages/roslaunch/nodeprocess.py

调大_TIMEOUT_SIGINT

具体params.yaml配置修改:

lio_sam:

  # Topics
  pointCloudTopic: "points_raw"               # Point cloud data
  imuTopic: "imu_correct"                         # IMU data
  odomTopic: "odometry/imu"                   # IMU pre-preintegration odometry, same frequency as IMU
  gpsTopic: "odometry/gpsz"                   # GPS odometry topic from navsat, see module_navsat.launch file

  # GPS Settings
  useImuHeadingInitialization: false           # if using GPS data, set to "true"
  useGpsElevation: false                      # if GPS elevation is bad, set to "false"
  gpsCovThreshold: 2.0                        # m^2, threshold for using GPS data
  poseCovThreshold: 25.0                      # m^2, threshold for using GPS data

  # Export settings
  savePCD: true                              # https://github.com/TixiaoShan/LIO-SAM/issues/3
  savePCDDirectory: "/data/lio/"        # in your home folder, starts and ends with "/". Warning: the code deletes "LOAM" folder then recreates it. See "mapOptimization" for implementation

  # Sensor Settings
  N_SCAN: 16                                  # number of lidar channel (i.e., 16, 32, 64, 128)
  Horizon_SCAN: 1800                          # lidar horizontal resolution (Velodyne:1800, Ouster:512,1024,2048)
  timeField: "time"                           # point timestamp field, Velodyne - "time", Ouster - "t"
  downsampleRate: 1                           # default: 1. Downsample your data if too many points. i.e., 16 = 64 / 4, 16 = 16 / 1

  # IMU Settings
  imuAccNoise: 3.9939570888238808e-03
  imuGyrNoise: 1.5636343949698187e-03
  imuAccBiasN: 6.4356659353532566e-05
  imuGyrBiasN: 3.5640318696367613e-05
  imuGravity: 9.80511

  # Extrinsics (lidar -> IMU)
  extrinsicTrans: [0.0, 0.0, 0.0]
  extrinsicRPY: [1,  0, 0,
                 0, 1, 0,
                  0, 0, 1]
  extrinsicRot: [1, 0, 0,
                   0, 1, 0,
                   0, 0, 1]
  # extrinsicRPY: [1, 0, 0,
  #                 0, 1, 0,
  #                 0, 0, 1]

  # LOAM feature threshold
  edgeThreshold: 1.0
  surfThreshold: 0.1
  edgeFeatureMinValidNum: 10
  surfFeatureMinValidNum: 100

  # voxel filter paprams
  odometrySurfLeafSize: 0.4                     # default: 0.4
  mappingCornerLeafSize: 0.2                    # default: 0.2
  mappingSurfLeafSize: 0.4                      # default: 0.4

  # robot motion constraint (in case you are using a 2D robot)
  z_tollerance: 1000                            # meters
  rotation_tollerance: 1000                     # radians

  # CPU Params
  numberOfCores: 4                              # number of cores for mapping optimization
  mappingProcessInterval: 0.15                  # seconds, regulate mapping frequency

  # Surrounding map
  surroundingkeyframeAddingDistThreshold: 1.0   # meters, regulate keyframe adding threshold
  surroundingkeyframeAddingAngleThreshold: 0.2  # radians, regulate keyframe adding threshold
  surroundingKeyframeDensity: 2.0               # meters, downsample surrounding keyframe poses
  surroundingKeyframeSearchRadius: 50.0         # meters, within n meters scan-to-map optimization (when loop closure disabled)

  # Loop closure
  loopClosureEnableFlag: false
  surroundingKeyframeSize: 25                   # submap size (when loop closure enabled)
  historyKeyframeSearchRadius: 15.0             # meters, key frame that is within n meters from current pose will be considerd for loop closure
  historyKeyframeSearchTimeDiff: 30.0           # seconds, key frame that is n seconds older will be considered for loop closure
  historyKeyframeSearchNum: 25                  # number of hostory key frames will be fused into a submap for loop closure
  historyKeyframeFitnessScore: 0.3              # icp threshold, the smaller the better alignment

  # Visualization
  globalMapVisualizationSearchRadius: 1000.0    # meters, global map visualization radius
  globalMapVisualizationPoseDensity: 10.0       # meters, global map visualization keyframe density
  globalMapVisualizationLeafSize: 1.0           # meters, global map visualization cloud density




# Navsat (convert GPS coordinates to Cartesian)
navsat:
  frequency: 50
  wait_for_datum: false
  delay: 0.0
  magnetic_declination_radians: 0
  yaw_offset: 0
  zero_altitude: true
  broadcast_utm_transform: false
  broadcast_utm_transform_as_parent_frame: false
  publish_filtered_gps: false

# EKF for Navsat
ekf_gps:
  publish_tf: false
  map_frame: map
  odom_frame: odom
  base_link_frame: base_link
  world_frame: odom

  frequency: 50
  two_d_mode: false
  sensor_timeout: 0.01
  # -------------------------------------
  # External IMU:
  # -------------------------------------
  imu0: imu_correct
  # make sure the input is aligned with ROS REP105. "imu_correct" is manually transformed by myself. EKF can also transform the data using tf between your imu and base_link
  imu0_config: [false, false, false,
                true,  true,  true,
                false, false, false,
                false, false, true,
                true,  true,  true]
  imu0_differential: false
  imu0_queue_size: 50
  imu0_remove_gravitational_acceleration: true
  # -------------------------------------
  # Odometry (From Navsat):
  # -------------------------------------
  odom0: odometry/gps
  odom0_config: [true,  true,  true,
                 false, false, false,
                 false, false, false,
                 false, false, false,
                 false, false, false]
  odom0_differential: false
  odom0_queue_size: 10

  #                            x     y     z     r     p     y   x_dot  y_dot  z_dot  r_dot p_dot y_dot x_ddot y_ddot z_ddot
  process_noise_covariance: [  1.0,  0,    0,    0,    0,    0,    0,     0,     0,     0,    0,    0,    0,    0,      0,
                               0,    1.0,  0,    0,    0,    0,    0,     0,     0,     0,    0,    0,    0,    0,      0,
                               0,    0,    10.0, 0,    0,    0,    0,     0,     0,     0,    0,    0,    0,    0,      0,
                               0,    0,    0,    0.03, 0,    0,    0,     0,     0,     0,    0,    0,    0,    0,      0,
                               0,    0,    0,    0,    0.03, 0,    0,     0,     0,     0,    0,    0,    0,    0,      0,
                               0,    0,    0,    0,    0,    0.1,  0,     0,     0,     0,    0,    0,    0,    0,      0,
                               0,    0,    0,    0,    0,    0,    0.25,  0,     0,     0,    0,    0,    0,    0,      0,
                               0,    0,    0,    0,    0,    0,    0,     0.25,  0,     0,    0,    0,    0,    0,      0,
                               0,    0,    0,    0,    0,    0,    0,     0,     0.04,  0,    0,    0,    0,    0,      0,
                               0,    0,    0,    0,    0,    0,    0,     0,     0,     0.01, 0,    0,    0,    0,      0,
                               0,    0,    0,    0,    0,    0,    0,     0,     0,     0,    0.01, 0,    0,    0,      0,
                               0,    0,    0,    0,    0,    0,    0,     0,     0,     0,    0,    0.5,  0,    0,      0,
                               0,    0,    0,    0,    0,    0,    0,     0,     0,     0,    0,    0,    0.01, 0,      0,
                               0,    0,    0,    0,    0,    0,    0,     0,     0,     0,    0,    0,    0,    0.01,   0,
                               0,    0,    0,    0,    0,    0,    0,     0,     0,     0,    0,    0,    0,    0,      0.015]

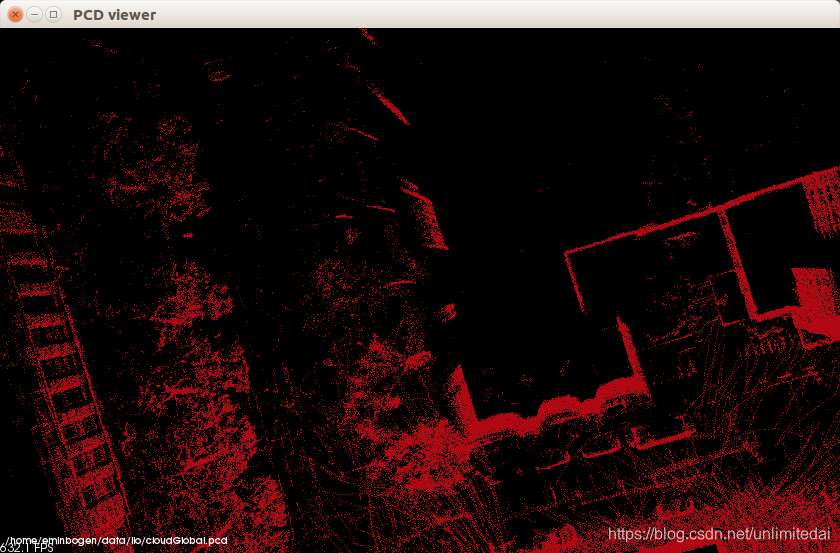

效果从地面平整,墙面贴合,墙体厚薄看还是非常好的。

论文分析

论文认为loam系列文章存在一些问题。

1.将其数据保存在全局体素地图中
2.难以执行闭环检测
3.没有结合其他绝对测量(GPS,指南针等)
4.当该体素地图变得密集时,在线优化过程的效率降低

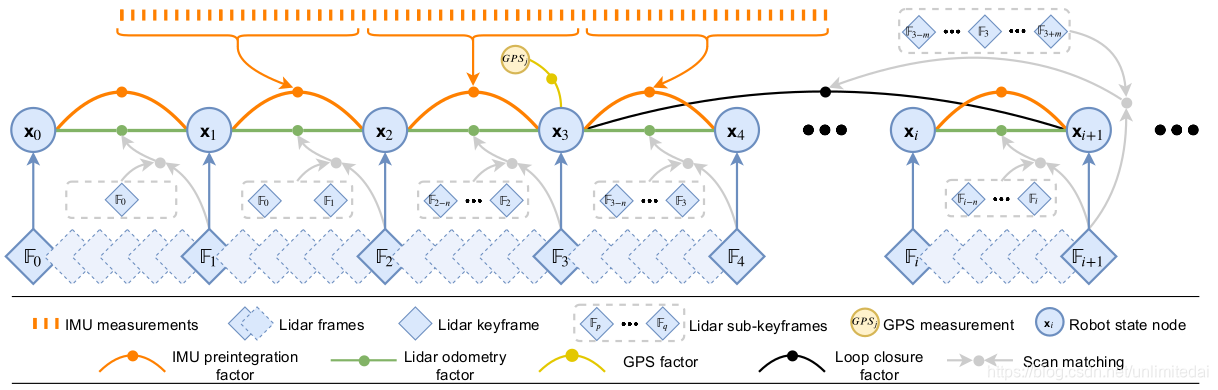

决定使用因子图的思想优化激光SLAM,引入四种因子。

1.IMU预积分因子
2.激光雷达里程因子
3.GPS因子
4.闭环因子

对于预积分因子。计算采用常见的角速度,加速度,线速度,位置的公式推导方式即s=vt+1/2at^2

对于里程计因子。采用三步。

1.粗计算新帧与前关键帧的相对位姿变换,按阈值提取关键帧,五个关键帧合成一次区域的体素化点云地图。e,p代表edge和plane。M代表合成点云地图,F代表单关键帧点云,取∪集是合成。

2.edge和plane进行匹配。

3.优化也是常规优化。点对线和面对面来优化变换矩阵。

对于GPS因子。作者提出。

1.GPS测量值的时间戳根据里程计时间戳进行线性插值。
2.无需不断添加GPS因子。
3.当估计的位置协方差大于接收的GPS位置协方差时,添加GPS因子。
4.GPS在z方向可信度较低。

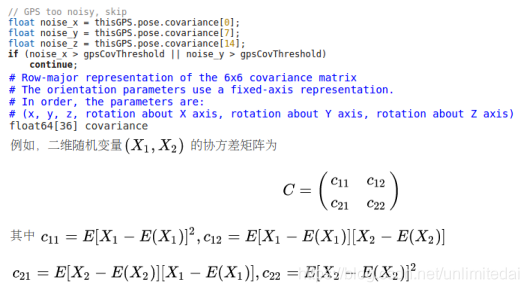

这里计算协方差是提取0,7,14号位置,根据ros手册和协方差知识,只是指xyz的测量方差。因为常见GPS为50HZ,所以短时间内能测多次,可以求方差。

对于闭环因子。作者提出。

1.使用的是一种简单但有效的基于欧氏距离的闭环检测方法。
2.闭环系数对于校正机器人高度的漂移特别有用,因为GPS的海拔高度测量非常不准确。

成果

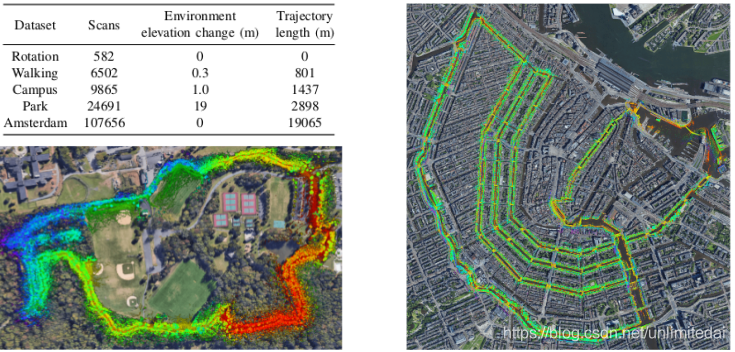

1.精度对比

2.时间上特征多的区域即使scan少也更耗时,park时间少于Amsterdam。左图park

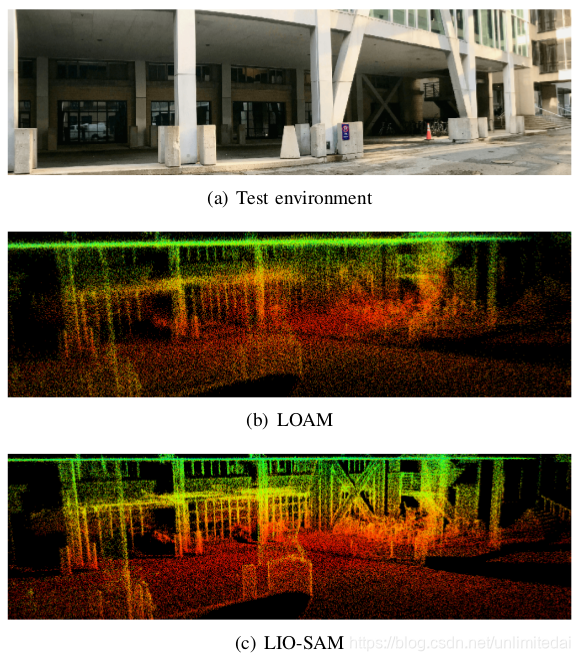

3.程序上作者注释,如果运动慢,点云由于运动导致的矫正不如没有

程序注释

程序ros节点图

全部函数说明

imageProjection.cpp:

PointXYZIPT 类型,点和强度,线数,时间。可以进pcl库使用。

Main ImageProjection():接收rosbag和lidar信息,imu的数值,来自imuPreintegration的odom数据;内存+参数初始化重置

void allocateMemory():点云输入,全部点云,提取点云空间重置(pointColInd与pointRange的定义问题)

void resetParameters():输入点云,提取点云,各点与光心距,imu数据清零

void imuHandler(const sensor_msgs::Imu::ConstPtr &imuMsg):仅接收放队列

void odometryHandler(const nav_msgs::Odometry::ConstPtr &odometryMsg):仅接收放队列

void cloudHandler(const sensor_msgs::PointCloud2ConstPtr &laserCloudMsg):深度图生成,去畸变;深度图中提取点云,发布,重置参数

bool cachePointCloud(const sensor_msgs::PointCloud2ConstPtr &laserCloudMsg):清除临时点云,并检查点云帧里面是否有ring和time通道

bool deskewInfo():检测队列数量,

void imuDeskewInfo():计算imu转角

void odomDeskewInfo():读取odom数据,并根据协方差判断是否相信

void findRotation(double pointTime, float *rotXCur, float *rotYCur, float *rotZCur):将imuDeskewInfo数值用于每个点云点在一条线中的位置

void findPosition(double relTime, float *posXCur, float *posYCur, float *posZCur):高速时按位移百分比平移点云

PointType deskewPoint(PointType *point, double relTime):根据时间戳,对每个点去畸变

void projectPointCloud():将点云投影成深度图

void cloudExtraction():去边缘与过远点

void publishClouds():ros输出

featureExtraction.cpp:

struct smoothness_t 曲率与序号

struct by_value 大小排序函数

Main FeatureExtraction():获取imageProjection修正后输入点云,输出特征点和输入点云;参数初始化

void initializationValue():曲率储存,降采样,特征点,临近标签初始化

void laserCloudInfoHandler(const lio_sam::cloud_infoConstPtr &msgIn):点云句柄,包括下面所有内容

void calculateSmoothness():计算每个点的曲率

void markOccludedPoints():边界过远一侧去除,上下三线变化过大去除

void extractFeatures():特征点提取

void publishFeatureCloud():ros输出

imuPreintegration.cpp:

Main IMUPreintegration(): 接收imu数据,map来的odom数据,输出imu的odom,path;预积分参数设置,gtsam参数设置

void resetOptimization():gtsam相关优化参数重置

void resetParams():初始参数设定;是否第一帧;是否进行过优化;系统初始化

void odometryHandler(const nav_msgs::Odometry::ConstPtr &odomMsg):接收map里的odom数据

  1. 获取map里的odom位置和四元数数据,转换到imu坐标系
  2. 初始化优化参数,引入PVB数据,优化,重置优化器
  3. 更新bias重新预积分

bool failureDetection(const gtsam::Vector3 &velCur, const gtsam::imuBias::ConstantBias &biasCur):判断优化后速度和bias是否计算过大

void imuHandler(const sensor_msgs::Imu::ConstPtr &imu_raw):接收imu原始数据,使用gtsam短暂预积分,计算PVB,输出暂时轨迹

mapOptmization.cpp:

struct PointXYZIRPYT 位置欧拉角时间

Main mapOptimization():接收imageProjection的lidar,IMU信息;数据集的GPS信息,发布位姿,周围点,路径,历史帧,icp帧,局部帧;定义滤波参数与内存;

void allocateMemory():历史,局部位姿,棱面点,特征值,协方差,协方差添加标志,降采样点云,KD树,最近关键帧点云,临近历史帧点云

void pointAssociateToMap(PointType const *const pi, PointType *const po):点云点到世界坐标系转换

gtsam::Pose3 pclPointTogtsamPose3(PointTypePose thisPoint):pcl到gtsam格式

gtsam::Pose3 trans2gtsamPose(float transformIn[]):数组到gtsam格式

Eigen::Affine3f pclPointToAffine3f(PointTypePose thisPoint):pcl到仿射矩阵格式(实际欧拉角)

Eigen::Affine3f trans2Affine3f(float transformIn[]):矩阵到仿射矩阵格式

PointTypePose trans2PointTypePose(float transformIn[]):数组到pcl格式

三个线程:

1.接收数据

void gpsHandler(const nav_msgs::Odometry::ConstPtr &gpsMsg):GPS数据进队列

void laserCloudInfoHandler(const lio_sam::cloud_infoConstPtr &msgIn):

void updateInitialGuess():更新初始位姿

void extractSurroundingKeyFrames():从关键帧里面提取附近回环候选帧

void downsampleCurrentScan():进行下采样

void scan2MapOptimization(): 构建点到平面、点到直线的残差, 用高斯牛顿法进行优化

void saveKeyFramesAndFactor():添加factor到gtsam

void correctPoses():更新位姿

void publishOdometry():ros输出

void publishFrames():ros输出

2.闭环检测

void loopClosureThread():定期启动performLoopClosure()进行闭环检测

void performLoopClosure():根据两帧计算icp引入到gtsam优化中

bool detectLoopClosure(int *latestID, int *closestID):寻找临近历史帧和关键帧

3.显示

void visualizeGlobalMapThread():循环调用publishGlobalMap();ros环境关闭时退出循环并生成pcd

void publishGlobalMap():输出临近点云

imageProjection.cpp

#include "utility.h"
#include "lio_sam/cloud_info.h"

// Velodyne点云点结构体构造,point4d是xyz和强度intensity.ring是线数,EIGEN_MAKE_ALIGNED_OPERATOR_NEW字符对齐
struct PointXYZIRT
{
    PCL_ADD_POINT4D
    PCL_ADD_INTENSITY;
    uint16_t ring;
    float time;
    EIGEN_MAKE_ALIGNED_OPERATOR_NEW
} EIGEN_ALIGN16;

POINT_CLOUD_REGISTER_POINT_STRUCT (PointXYZIRT,
    (float, x, x) (float, y, y) (float, z, z) (float, intensity, intensity)
    (uint16_t, ring, ring) (float, time, time)
)

// Ouster
// struct PointXYZIRT {
//     PCL_ADD_POINT4D;
//     float intensity;
//     uint32_t t;
//     uint16_t reflectivity;
//     uint8_t ring;
//     uint16_t noise;
//     uint32_t range;
//     EIGEN_MAKE_ALIGNED_OPERATOR_NEW
// }EIGEN_ALIGN16;

// POINT_CLOUD_REGISTER_POINT_STRUCT(PointXYZIRT,
//     (float, x, x) (float, y, y) (float, z, z) (float, intensity, intensity)
//     (uint32_t, t, t) (uint16_t, reflectivity, reflectivity)
//     (uint8_t, ring, ring) (uint16_t, noise, noise) (uint32_t, range, range)
// )

//循环imu长度,作者imu Microstrain 3DM-GX5-25,为500hz,使用loam数据集时要修改
const int queueLength = 500;

//引用参数
class ImageProjection : public ParamServer
{
private:

    std::mutex imuLock;
    std::mutex odoLock;

    ros::Subscriber subLaserCloud;
    ros::Publisher  pubLaserCloud;

    //输出距离不过近的点云点
    ros::Publisher pubExtractedCloud;
    //输出下文的cloudInfo
    ros::Publisher pubLaserCloudInfo;

    ros::Subscriber subImu;
    std::deque<sensor_msgs::Imu> imuQueue;

    ros::Subscriber subOdom;
    std::deque<nav_msgs::Odometry> odomQueue;

    std::deque<sensor_msgs::PointCloud2> cloudQueue;
    sensor_msgs::PointCloud2 currentCloudMsg;

    double *imuTime = new double[queueLength];
    double *imuRotX = new double[queueLength];
    double *imuRotY = new double[queueLength];
    double *imuRotZ = new double[queueLength];

    int imuPointerCur;
    bool firstPointFlag;
    Eigen::Affine3f transStartInverse;

    pcl::PointCloud<PointXYZIRT>::Ptr laserCloudIn;
    pcl::PointCloud<PointType>::Ptr   fullCloud;
    pcl::PointCloud<PointType>::Ptr   extractedCloud;

    int deskewFlag;
    cv::Mat rangeMat;

    bool odomDeskewFlag;
    float odomIncreX;
    float odomIncreY;
    float odomIncreZ;

    //这里面有imu是否可用,odo是否可用,lidar的位姿,scan中各点对应线号,各点与光心距离的信息
    lio_sam::cloud_info cloudInfo;
    double timeScanCur;
    double timeScanNext;
    std_msgs::Header cloudHeader;


public:
    ImageProjection():
    deskewFlag(0)
    {
        subImu        = nh.subscribe<sensor_msgs::Imu>(imuTopic, 2000, &ImageProjection::imuHandler, this, ros::TransportHints().tcpNoDelay());
        subOdom       = nh.subscribe<nav_msgs::Odometry>(odomTopic, 2000, &ImageProjection::odometryHandler, this, ros::TransportHints().tcpNoDelay());
        subLaserCloud = nh.subscribe<sensor_msgs::PointCloud2>(pointCloudTopic, 5, &ImageProjection::cloudHandler, this, ros::TransportHints().tcpNoDelay());

        pubExtractedCloud = nh.advertise<sensor_msgs::PointCloud2> ("lio_sam/deskew/cloud_deskewed", 1);
        pubLaserCloudInfo = nh.advertise<lio_sam::cloud_info> ("lio_sam/deskew/cloud_info", 10);

	//配置内存,重置参数
        allocateMemory();
        resetParameters();

	//pcl控制台输出error信息
        pcl::console::setVerbosityLevel(pcl::console::L_ERROR);
    }

    void allocateMemory()
    {
        laserCloudIn.reset(new pcl::PointCloud<PointXYZIRT>());
        fullCloud.reset(new pcl::PointCloud<PointType>());
        extractedCloud.reset(new pcl::PointCloud<PointType>());

        fullCloud->points.resize(N_SCAN*Horizon_SCAN);

        cloudInfo.startRingIndex.assign(N_SCAN, 0);
        cloudInfo.endRingIndex.assign(N_SCAN, 0);

	//从h文件看是16*1800
        cloudInfo.pointColInd.assign(N_SCAN*Horizon_SCAN, 0);
        cloudInfo.pointRange.assign(N_SCAN*Horizon_SCAN, 0);

        resetParameters();
    }

    void resetParameters()
    {
        laserCloudIn->clear();
        extractedCloud->clear();
        // reset range matrix for range image projection 全部默认初值为最大浮点数
        rangeMat = cv::Mat(N_SCAN, Horizon_SCAN, CV_32F, cv::Scalar::all(FLT_MAX));

        imuPointerCur = 0;
        firstPointFlag = true;
        odomDeskewFlag = false;

        for (int i = 0; i < queueLength; ++i)
        {
            imuTime[i] = 0;
            imuRotX[i] = 0;
            imuRotY[i] = 0;
            imuRotZ[i] = 0;
        }
    }

    ~ImageProjection(){}

    void imuHandler(const sensor_msgs::Imu::ConstPtr& imuMsg)
    {
        sensor_msgs::Imu thisImu = imuConverter(*imuMsg);

        std::lock_guard<std::mutex> lock1(imuLock);
        imuQueue.push_back(thisImu);

        // debug IMU data
        // cout << std::setprecision(6);
        // cout << "IMU acc: " << endl;
        // cout << "x: " << thisImu.linear_acceleration.x <<
        //       ", y: " << thisImu.linear_acceleration.y <<
        //       ", z: " << thisImu.linear_acceleration.z << endl;
        // cout << "IMU gyro: " << endl;
        // cout << "x: " << thisImu.angular_velocity.x <<
        //       ", y: " << thisImu.angular_velocity.y <<
        //       ", z: " << thisImu.angular_velocity.z << endl;
        // double imuRoll, imuPitch, imuYaw;
        // tf::Quaternion orientation;
        // tf::quaternionMsgToTF(thisImu.orientation, orientation);
        // tf::Matrix3x3(orientation).getRPY(imuRoll, imuPitch, imuYaw);
        // cout << "IMU roll pitch yaw: " << endl;
        // cout << "roll: " << imuRoll << ", pitch: " << imuPitch << ", yaw: " << imuYaw << endl << endl;
    }

    void odometryHandler(const nav_msgs::Odometry::ConstPtr& odometryMsg)
    {
        std::lock_guard<std::mutex> lock2(odoLock);
        odomQueue.push_back(*odometryMsg);
    }

    void cloudHandler(const sensor_msgs::PointCloud2ConstPtr& laserCloudMsg)
    {
        //检测一下点数量是否够2个,线数通道和时间通道是否存在
	if (!cachePointCloud(laserCloudMsg))
            return;

	//IMU不是空,imu序列的第一个时间戳大于当前帧雷达时间戳,IMU最后一个时间戳小于下一帧雷达时间戳
        if (!deskewInfo())
            return;

        projectPointCloud();

        cloudExtraction();

        publishClouds();

        resetParameters();
    }

    //检测一下点数量是否够2个,线数通道和时间通道是否存在
    bool cachePointCloud(const sensor_msgs::PointCloud2ConstPtr& laserCloudMsg)
    {
        // cache point cloud
        cloudQueue.push_back(*laserCloudMsg);

        if (cloudQueue.size() <= 2)
            return false;
        else
        {
            //提取队列第一个做timeScanCur,之后pop出第一个,选第二个做timeScanNext。后面与imu对比时间戳。
	    currentCloudMsg = cloudQueue.front();
            cloudQueue.pop_front();

            cloudHeader = currentCloudMsg.header;
            timeScanCur = cloudHeader.stamp.toSec();
            timeScanNext = cloudQueue.front().header.stamp.toSec();
        }

        // convert cloud
        pcl::fromROSMsg(currentCloudMsg, *laserCloudIn);

        // check dense flag
        if (laserCloudIn->is_dense == false)
        {
            ROS_ERROR("Point cloud is not in dense format, please remove NaN points first!");
            ros::shutdown();
        }

        // check ring channel
        static int ringFlag = 0;
        if (ringFlag == 0)
        {
            ringFlag = -1;
            for (int i = 0; i < (int)currentCloudMsg.fields.size(); ++i)
            {
                if (currentCloudMsg.fields[i].name == "ring")
                {
                    ringFlag = 1;
                    break;
                }
            }
            if (ringFlag == -1)
            {
                ROS_ERROR("Point cloud ring channel not available, please configure your point cloud data!");
                ros::shutdown();
            }
        }

        // check point time
        if (deskewFlag == 0)
        {
            deskewFlag = -1;
            for (int i = 0; i < (int)currentCloudMsg.fields.size(); ++i)
            {
                if (currentCloudMsg.fields[i].name == timeField)
                {
                    deskewFlag = 1;
                    break;
                }
            }
            if (deskewFlag == -1)
                ROS_WARN("Point cloud timestamp not available, deskew function disabled, system will drift significantly!");
        }

        return true;
    }

    //IMU不是空,imu序列的第一个时间戳大于当前帧雷达时间戳,IMU最后一个时间戳小于下一帧雷达时间戳
    bool deskewInfo()
    {
        std::lock_guard<std::mutex> lock1(imuLock);
        std::lock_guard<std::mutex> lock2(odoLock);

        // make sure IMU data available for the scan
        if (imuQueue.empty() || imuQueue.front().header.stamp.toSec() > timeScanCur || imuQueue.back().header.stamp.toSec() < timeScanNext)
        {
            ROS_DEBUG("Waiting for IMU data ...");
            return false;
        }

        imuDeskewInfo();

        odomDeskewInfo();

        return true;
    }

    //计算当前激光时间戳前,每个时刻imu累计出的角速度,并判定imu数据是否可用(数量够)
    void imuDeskewInfo()
    {
        cloudInfo.imuAvailable = false;

	//直到imu的时间戳到当前scan时间戳前0.01s以内
        while (!imuQueue.empty())
        {
            if (imuQueue.front().header.stamp.toSec() < timeScanCur - 0.01)
                imuQueue.pop_front();
            else
                break;
        }

        if (imuQueue.empty())
            return;

        imuPointerCur = 0;

        for (int i = 0; i < (int)imuQueue.size(); ++i)
        {
            sensor_msgs::Imu thisImuMsg = imuQueue[i];
            double currentImuTime = thisImuMsg.header.stamp.toSec();

            //当前imu时间戳小于当前帧点云时间戳转换,大于下一帧+0.01s退出
	    // get roll, pitch, and yaw estimation for this scan
            if (currentImuTime <= timeScanCur)
                imuRPY2rosRPY(&thisImuMsg, &cloudInfo.imuRollInit, &cloudInfo.imuPitchInit, &cloudInfo.imuYawInit);

            if (currentImuTime > timeScanNext + 0.01)
                break;

            //赋值0
	    if (imuPointerCur == 0){
                imuRotX[0] = 0;
                imuRotY[0] = 0;
                imuRotZ[0] = 0;
                imuTime[0] = currentImuTime;
                ++imuPointerCur;
                continue;
            }

            // get angular velocity
            double angular_x, angular_y, angular_z;
            imuAngular2rosAngular(&thisImuMsg, &angular_x, &angular_y, &angular_z);

            // integrate rotation 用a×t累加
            double timeDiff = currentImuTime - imuTime[imuPointerCur-1];
            imuRotX[imuPointerCur] = imuRotX[imuPointerCur-1] + angular_x * timeDiff;
            imuRotY[imuPointerCur] = imuRotY[imuPointerCur-1] + angular_y * timeDiff;
            imuRotZ[imuPointerCur] = imuRotZ[imuPointerCur-1] + angular_z * timeDiff;
            imuTime[imuPointerCur] = currentImuTime;
            ++imuPointerCur;
        }

        //把赋值0后面的自加减回去
        --imuPointerCur;

	//如果数量为0直接返回,不为0,该imu属性为可用
        if (imuPointerCur <= 0)
            return;

        cloudInfo.imuAvailable = true;
    }

    //应该是为了groundtruth对比用的,pose信息保存在cloudInfo里
    void odomDeskewInfo()
    {
        cloudInfo.odomAvailable = false;

        while (!odomQueue.empty())
        {
            if (odomQueue.front().header.stamp.toSec() < timeScanCur - 0.01)
                odomQueue.pop_front();
            else
                break;
        }

        if (odomQueue.empty())
            return;

        if (odomQueue.front().header.stamp.toSec() > timeScanCur)
            return;

        // get start odometry at the beinning of the scan
        nav_msgs::Odometry startOdomMsg;

        for (int i = 0; i < (int)odomQueue.size(); ++i)
        {
            startOdomMsg = odomQueue[i];

            if (ROS_TIME(&startOdomMsg) < timeScanCur)
                continue;
            else
                break;
        }

        tf::Quaternion orientation;
        tf::quaternionMsgToTF(startOdomMsg.pose.pose.orientation, orientation);

        double roll, pitch, yaw;
        tf::Matrix3x3(orientation).getRPY(roll, pitch, yaw);

        // Initial guess used in mapOptimization
        cloudInfo.initialGuessX = startOdomMsg.pose.pose.position.x;
        cloudInfo.initialGuessY = startOdomMsg.pose.pose.position.y;
        cloudInfo.initialGuessZ = startOdomMsg.pose.pose.position.z;
        cloudInfo.initialGuessRoll  = roll;
        cloudInfo.initialGuessPitch = pitch;
        cloudInfo.initialGuessYaw   = yaw;
        cloudInfo.imuPreintegrationResetId = round(startOdomMsg.pose.covariance[0]);

        cloudInfo.odomAvailable = true;

        // get end odometry at the end of the scan
        odomDeskewFlag = false;

        if (odomQueue.back().header.stamp.toSec() < timeScanNext)
            return;

        nav_msgs::Odometry endOdomMsg;

        for (int i = 0; i < (int)odomQueue.size(); ++i)
        {
            endOdomMsg = odomQueue[i];

            if (ROS_TIME(&endOdomMsg) < timeScanNext)
                continue;
            else
                break;
        }

        if (int(round(startOdomMsg.pose.covariance[0])) != int(round(endOdomMsg.pose.covariance[0])))
            return;

        Eigen::Affine3f transBegin = pcl::getTransformation(startOdomMsg.pose.pose.position.x, startOdomMsg.pose.pose.position.y, startOdomMsg.pose.pose.position.z, roll, pitch, yaw);

        tf::quaternionMsgToTF(endOdomMsg.pose.pose.orientation, orientation);
        tf::Matrix3x3(orientation).getRPY(roll, pitch, yaw);
        Eigen::Affine3f transEnd = pcl::getTransformation(endOdomMsg.pose.pose.position.x, endOdomMsg.pose.pose.position.y, endOdomMsg.pose.pose.position.z, roll, pitch, yaw);

        Eigen::Affine3f transBt = transBegin.inverse() * transEnd;

        float rollIncre, pitchIncre, yawIncre;
        pcl::getTranslationAndEulerAngles(transBt, odomIncreX, odomIncreY, odomIncreZ, rollIncre, pitchIncre, yawIncre);

        odomDeskewFlag = true;
    }

    //根据点云中某点的时间戳赋予其对应插值得到的旋转量
    void findRotation(double pointTime, float *rotXCur, float *rotYCur, float *rotZCur)
    {
        *rotXCur = 0; *rotYCur = 0; *rotZCur = 0;

        int imuPointerFront = 0;
	//要么imuPointerFront计数大于了imu一组的数量imuPointerCur,(异常跳出)
	//要么该次imu时间戳大于了该点时间戳(话说这函数一个点调用一次,是不是静态变量好一些)
        while (imuPointerFront < imuPointerCur)
        {
            if (pointTime < imuTime[imuPointerFront])
                break;
            ++imuPointerFront;
        }

        //如果计数为0或该次imu时间戳小于了该点时间戳(异常退出)
        if (pointTime > imuTime[imuPointerFront] || imuPointerFront == 0)
        {
            *rotXCur = imuRotX[imuPointerFront];
            *rotYCur = imuRotY[imuPointerFront];
            *rotZCur = imuRotZ[imuPointerFront];
        }

        else {
            int imuPointerBack = imuPointerFront - 1;
	    //算一下该点时间戳在本组imu中的位置
            double ratioFront = (pointTime - imuTime[imuPointerBack]) / (imuTime[imuPointerFront] - imuTime[imuPointerBack]);
            double ratioBack = (imuTime[imuPointerFront] - pointTime) / (imuTime[imuPointerFront] - imuTime[imuPointerBack]);
	    //按前后百分比赋予旋转量
            *rotXCur = imuRotX[imuPointerFront] * ratioFront + imuRotX[imuPointerBack] * ratioBack;
            *rotYCur = imuRotY[imuPointerFront] * ratioFront + imuRotY[imuPointerBack] * ratioBack;
            *rotZCur = imuRotZ[imuPointerFront] * ratioFront + imuRotZ[imuPointerBack] * ratioBack;
        }
    }

    void findPosition(double relTime, float *posXCur, float *posYCur, float *posZCur)
    {
        *posXCur = 0; *posYCur = 0; *posZCur = 0;
        // If the sensor moves relatively slow, like walking speed, positional deskew seems to have little benefits. Thus code below is commented.
//         if (cloudInfo.odomAvailable == false || odomDeskewFlag == false)
//             return;
//
//         float ratio = relTime / (timeScanNext - timeScanCur);
//
//         *posXCur = ratio * odomIncreX;
//         *posYCur = ratio * odomIncreY;
//         *posZCur = ratio * odomIncreZ;
    }

    //这个类型是pcl::PointXYZI
    PointType deskewPoint(PointType *point, double relTime)
    {
        //这个来源于上文的时间戳通道和imu可用判断,没有或是不可用则返回点
	if (deskewFlag == -1 || cloudInfo.imuAvailable == false)
            return *point;

	//点的时间等于scan时间加relTime(后文的laserCloudIn->points[i].time)
        double pointTime = timeScanCur + relTime;

	//根据时间戳插值获取imu计算的旋转量与位置量(注意imu计算的)
        float rotXCur, rotYCur, rotZCur;
        findRotation(pointTime, &rotXCur, &rotYCur, &rotZCur);

        float posXCur, posYCur, posZCur;
        findPosition(relTime, &posXCur, &posYCur, &posZCur);

	//这里的firstPointFlag来源于resetParameters函数,而resetParameters函数每次ros调用cloudHandler都会启动
	//也就是求扫描第一个点时lidar的世界坐标系下变换矩阵的逆
        if (firstPointFlag == true)
        {
            transStartInverse = (pcl::getTransformation(posXCur, posYCur, posZCur, rotXCur, rotYCur, rotZCur)).inverse();
            firstPointFlag = false;
        }

        // transform points to start
        //扫描当前点时lidar的世界坐标系下变换矩阵
        Eigen::Affine3f transFinal = pcl::getTransformation(posXCur, posYCur, posZCur, rotXCur, rotYCur, rotZCur);
        //扫描该点相对扫描本次scan第一个点的lidar变换矩阵=第一个点时lidar世界坐标系下变换矩阵的逆×当前点时lidar世界坐标系下变换矩阵
	Eigen::Affine3f transBt = transStartInverse * transFinal;

	//根据lidar位姿变换,修正点云位置
        PointType newPoint;
        newPoint.x = transBt(0,0) * point->x + transBt(0,1) * point->y + transBt(0,2) * point->z + transBt(0,3);
        newPoint.y = transBt(1,0) * point->x + transBt(1,1) * point->y + transBt(1,2) * point->z + transBt(1,3);
        newPoint.z = transBt(2,0) * point->x + transBt(2,1) * point->y + transBt(2,2) * point->z + transBt(2,3);
        newPoint.intensity = point->intensity;

        return newPoint;
    }

    void projectPointCloud()
    {
        int cloudSize = laserCloudIn->points.size();
        // range image projection
        for (int i = 0; i < cloudSize; ++i)
        {
            PointType thisPoint;
            thisPoint.x = laserCloudIn->points[i].x;
            thisPoint.y = laserCloudIn->points[i].y;
            thisPoint.z = laserCloudIn->points[i].z;
            thisPoint.intensity = laserCloudIn->points[i].intensity;

            int rowIdn = laserCloudIn->points[i].ring;

	    //0--N_SCAN内,且是整数
            if (rowIdn < 0 || rowIdn >= N_SCAN)
                continue;

            if (rowIdn % downsampleRate != 0)
                continue;

	    //仰角
            float horizonAngle = atan2(thisPoint.x, thisPoint.y) * 180 / M_PI;

	    //每线Horizon_SCAN(1800)的点,占据360度除一下
            static float ang_res_x = 360.0/float(Horizon_SCAN);
            int columnIdn = -round((horizonAngle-90.0)/ang_res_x) + Horizon_SCAN/2;
            if (columnIdn >= Horizon_SCAN)
                columnIdn -= Horizon_SCAN;

	    //如果线数不正确
            if (columnIdn < 0 || columnIdn >= Horizon_SCAN)
                continue;

	    //该点云点距离光心距离
            float range = pointDistance(thisPoint);

            if (range < 1.0)
                continue;

	    //如果没有初始赋值
            if (rangeMat.at<float>(rowIdn, columnIdn) != FLT_MAX)
                continue;

            // for the amsterdam dataset
            // if (range < 6.0 && rowIdn <= 7 && (columnIdn >= 1600 || columnIdn <= 200))
            //     continue;
            // if (thisPoint.z < -2.0)
            //     continue;

            thisPoint = deskewPoint(&thisPoint, laserCloudIn->points[i].time); // Velodyne
            // thisPoint = deskewPoint(&thisPoint, (float)laserCloudIn->points[i].t / 1000000000.0); // Ouster

	    //计算各点距离
            rangeMat.at<float>(rowIdn, columnIdn) = pointDistance(thisPoint);

            int index = columnIdn  + rowIdn * Horizon_SCAN;
            fullCloud->points[index] = thisPoint;
        }
    }

    void cloudExtraction()
    {
        int count = 0;
        // extract segmented cloud for lidar odometry
        for (int i = 0; i < N_SCAN; ++i)
        {
            cloudInfo.startRingIndex[i] = count - 1 + 5;

            for (int j = 0; j < Horizon_SCAN; ++j)
            {
                if (rangeMat.at<float>(i,j) != FLT_MAX)
                {
                    // mark the points' column index for marking occlusion later
                    cloudInfo.pointColInd[count] = j;
                    // save range info
                    cloudInfo.pointRange[count] = rangeMat.at<float>(i,j);
                    // save extracted cloud
                    extractedCloud->push_back(fullCloud->points[j + i*Horizon_SCAN]);
                    // size of extracted cloud
                    ++count;
                }
            }
            cloudInfo.endRingIndex[i] = count -1 - 5;
        }
    }

    void publishClouds()
    {
        cloudInfo.header = cloudHeader;
	//publishCloud在h文件里
        cloudInfo.cloud_deskewed  = publishCloud(&pubExtractedCloud, extractedCloud, cloudHeader.stamp, "base_link");
        pubLaserCloudInfo.publish(cloudInfo);
    }
};

int main(int argc, char** argv)
{
    ros::init(argc, argv, "lio_sam");

    ImageProjection IP;

    ROS_INFO("\033[1;32m----> Image Projection Started.\033[0m");

    ros::MultiThreadedSpinner spinner(3);
    spinner.spin();

    return 0;
}

featureExtraction.cpp

#include "utility.h"
#include "lio_sam/cloud_info.h"

//曲率值和序号
struct smoothness_t{
    float value;
    size_t ind;
};

//曲率值对比
struct by_value{
    bool operator()(smoothness_t const &left, smoothness_t const &right) {
        return left.value < right.value;
    }
};

class FeatureExtraction : public ParamServer
{

public:

    ros::Subscriber subLaserCloudInfo;

    ros::Publisher pubLaserCloudInfo;
    ros::Publisher pubCornerPoints;
    ros::Publisher pubSurfacePoints;

    pcl::PointCloud<PointType>::Ptr extractedCloud;
    pcl::PointCloud<PointType>::Ptr cornerCloud;
    pcl::PointCloud<PointType>::Ptr surfaceCloud;

    pcl::VoxelGrid<PointType> downSizeFilter;

    lio_sam::cloud_info cloudInfo;
    std_msgs::Header cloudHeader;

    //曲率存放
    std::vector<smoothness_t> cloudSmoothness;
    float *cloudCurvature;
    int *cloudNeighborPicked;
    int *cloudLabel;

    FeatureExtraction()
    {
        subLaserCloudInfo = nh.subscribe<lio_sam::cloud_info>("lio_sam/deskew/cloud_info", 10, &FeatureExtraction::laserCloudInfoHandler, this, ros::TransportHints().tcpNoDelay());

        pubLaserCloudInfo = nh.advertise<lio_sam::cloud_info> ("lio_sam/feature/cloud_info", 10);
        pubCornerPoints = nh.advertise<sensor_msgs::PointCloud2>("lio_sam/feature/cloud_corner", 1);
        pubSurfacePoints = nh.advertise<sensor_msgs::PointCloud2>("lio_sam/feature/cloud_surface", 1);

        initializationValue();
    }

    void initializationValue()
    {
        cloudSmoothness.resize(N_SCAN*Horizon_SCAN);

        downSizeFilter.setLeafSize(odometrySurfLeafSize, odometrySurfLeafSize, odometrySurfLeafSize);

        extractedCloud.reset(new pcl::PointCloud<PointType>());
        cornerCloud.reset(new pcl::PointCloud<PointType>());
        surfaceCloud.reset(new pcl::PointCloud<PointType>());

        cloudCurvature = new float[N_SCAN*Horizon_SCAN];
        cloudNeighborPicked = new int[N_SCAN*Horizon_SCAN];
        cloudLabel = new int[N_SCAN*Horizon_SCAN];
    }

    void laserCloudInfoHandler(const lio_sam::cloud_infoConstPtr& msgIn)
    {
        cloudInfo = *msgIn; // new cloud info
        cloudHeader = msgIn->header; // new cloud header
        pcl::fromROSMsg(msgIn->cloud_deskewed, *extractedCloud); // new cloud for extraction

	//10点算曲率
        calculateSmoothness();

	//相邻两点距光心差距大则设为不进行特征提取的状态,差距过大,周围点也设置为不进行特征提取的状态
        markOccludedPoints();

	//对于scan中的棱点和面点进行提取
        extractFeatures();

        publishFeatureCloud();
    }

    //10点算曲率
    void calculateSmoothness()
    {
        int cloudSize = extractedCloud->points.size();
        for (int i = 5; i < cloudSize - 5; i++)
        {
            float diffRange = cloudInfo.pointRange[i-5] + cloudInfo.pointRange[i-4]
                            + cloudInfo.pointRange[i-3] + cloudInfo.pointRange[i-2]
                            + cloudInfo.pointRange[i-1] - cloudInfo.pointRange[i] * 10
                            + cloudInfo.pointRange[i+1] + cloudInfo.pointRange[i+2]
                            + cloudInfo.pointRange[i+3] + cloudInfo.pointRange[i+4]
                            + cloudInfo.pointRange[i+5];

            cloudCurvature[i] = diffRange*diffRange;//diffX * diffX + diffY * diffY + diffZ * diffZ;

            cloudNeighborPicked[i] = 0;
            cloudLabel[i] = 0;
            // cloudSmoothness for sorting
            cloudSmoothness[i].value = cloudCurvature[i];
            cloudSmoothness[i].ind = i;
        }
    }

    //相邻两点距光心差距大则设为不进行特征提取的状态,差距过大,周围点也设置为不进行特征提取的状态
    void markOccludedPoints()
    {
        int cloudSize = extractedCloud->points.size();
        // mark occluded points and parallel beam points
        for (int i = 5; i < cloudSize - 6; ++i)
        {
            // occluded points
            float depth1 = cloudInfo.pointRange[i];
            float depth2 = cloudInfo.pointRange[i+1];
            int columnDiff = std::abs(int(cloudInfo.pointColInd[i+1] - cloudInfo.pointColInd[i]));

            if (columnDiff < 10){
                // 10 pixel diff in range image
                if (depth1 - depth2 > 0.3){
                    cloudNeighborPicked[i - 5] = 1;
                    cloudNeighborPicked[i - 4] = 1;
                    cloudNeighborPicked[i - 3] = 1;
                    cloudNeighborPicked[i - 2] = 1;
                    cloudNeighborPicked[i - 1] = 1;
                    cloudNeighborPicked[i] = 1;
                }else if (depth2 - depth1 > 0.3){
                    cloudNeighborPicked[i + 1] = 1;
                    cloudNeighborPicked[i + 2] = 1;
                    cloudNeighborPicked[i + 3] = 1;
                    cloudNeighborPicked[i + 4] = 1;
                    cloudNeighborPicked[i + 5] = 1;
                    cloudNeighborPicked[i + 6] = 1;
                }
            }
            // parallel beam
            float diff1 = std::abs(float(cloudInfo.pointRange[i-1] - cloudInfo.pointRange[i]));
            float diff2 = std::abs(float(cloudInfo.pointRange[i+1] - cloudInfo.pointRange[i]));

            if (diff1 > 0.02 * cloudInfo.pointRange[i] && diff2 > 0.02 * cloudInfo.pointRange[i])
                cloudNeighborPicked[i] = 1;
        }
    }

    //对于scan中的棱点和面点进行提取
    void extractFeatures()
    {
        cornerCloud->clear();
        surfaceCloud->clear();

        pcl::PointCloud<PointType>::Ptr surfaceCloudScan(new pcl::PointCloud<PointType>());
        pcl::PointCloud<PointType>::Ptr surfaceCloudScanDS(new pcl::PointCloud<PointType>());

	//和loam一样,对于每条线分为六部分,各自取20棱点和全部面点
        for (int i = 0; i < N_SCAN; i++)
        {
            surfaceCloudScan->clear();

            for (int j = 0; j < 6; j++)
            {

                //获取六段的初始截止位置
		int sp = (cloudInfo.startRingIndex[i] * (6 - j) + cloudInfo.endRingIndex[i] * j) / 6;
                int ep = (cloudInfo.startRingIndex[i] * (5 - j) + cloudInfo.endRingIndex[i] * (j + 1)) / 6 - 1;

                if (sp >= ep)
                    continue;

		//按曲率排序
                std::sort(cloudSmoothness.begin()+sp, cloudSmoothness.begin()+ep, by_value());

                int largestPickedNum = 0;
                for (int k = ep; k >= sp; k--)
                {
                    int ind = cloudSmoothness[k].ind;
		    //可特征提取的状态+曲率大于0.1,保存20个棱点,周围点除非光心距差距极大,不然都设置为可特征提取的状态
		    //达到均匀分布的目的
                    if (cloudNeighborPicked[ind] == 0 && cloudCurvature[ind] > edgeThreshold)
                    {
                        largestPickedNum++;
                        if (largestPickedNum <= 20){
                            cloudLabel[ind] = 1;
                            cornerCloud->push_back(extractedCloud->points[ind]);
                        } else {
                            break;
                        }

                        cloudNeighborPicked[ind] = 1;
                        for (int l = 1; l <= 5; l++)
                        {
                            int columnDiff = std::abs(int(cloudInfo.pointColInd[ind + l] - cloudInfo.pointColInd[ind + l - 1]));
                            if (columnDiff > 10)
                                break;
                            cloudNeighborPicked[ind + l] = 1;
                        }
                        for (int l = -1; l >= -5; l--)
                        {
                            int columnDiff = std::abs(int(cloudInfo.pointColInd[ind + l] - cloudInfo.pointColInd[ind + l + 1]));
                            if (columnDiff > 10)
                                break;
                            cloudNeighborPicked[ind + l] = 1;
                        }
                    }
                }

                //可特征提取的状态+曲率小于0.1,保存全部面点,周围点除非光心距差距极大,不然都设置为可特征提取的状态
		//达到均匀分布的目的
                for (int k = sp; k <= ep; k++)
                {
                    int ind = cloudSmoothness[k].ind;
                    if (cloudNeighborPicked[ind] == 0 && cloudCurvature[ind] < surfThreshold)
                    {

                        cloudLabel[ind] = -1;
                        cloudNeighborPicked[ind] = 1;

                        for (int l = 1; l <= 5; l++) {

                            int columnDiff = std::abs(int(cloudInfo.pointColInd[ind + l] - cloudInfo.pointColInd[ind + l - 1]));
                            if (columnDiff > 10)
                                break;

                            cloudNeighborPicked[ind + l] = 1;
                        }
                        for (int l = -1; l >= -5; l--) {

                            int columnDiff = std::abs(int(cloudInfo.pointColInd[ind + l] - cloudInfo.pointColInd[ind + l + 1]));
                            if (columnDiff > 10)
                                break;

                            cloudNeighborPicked[ind + l] = 1;
                        }
                    }
                }

                for (int k = sp; k <= ep; k++)
                {
                    if (cloudLabel[k] <= 0){
                        surfaceCloudScan->push_back(extractedCloud->points[k]);
                    }
                }
            }

            surfaceCloudScanDS->clear();
            downSizeFilter.setInputCloud(surfaceCloudScan);
            downSizeFilter.filter(*surfaceCloudScanDS);

            *surfaceCloud += *surfaceCloudScanDS;
        }
    }

    void freeCloudInfoMemory()
    {
        cloudInfo.startRingIndex.clear();
        cloudInfo.endRingIndex.clear();
        cloudInfo.pointColInd.clear();
        cloudInfo.pointRange.clear();
    }

    void publishFeatureCloud()
    {
        // free cloud info memory
        freeCloudInfoMemory();
        // save newly extracted features
        cloudInfo.cloud_corner  = publishCloud(&pubCornerPoints,  cornerCloud,  cloudHeader.stamp, "base_link");
        cloudInfo.cloud_surface = publishCloud(&pubSurfacePoints, surfaceCloud, cloudHeader.stamp, "base_link");
        // publish to mapOptimization
        pubLaserCloudInfo.publish(cloudInfo);
    }
};


int main(int argc, char** argv)
{
    ros::init(argc, argv, "lio_sam");

    FeatureExtraction FE;

    ROS_INFO("\033[1;32m----> Feature Extraction Started.\033[0m");

    ros::spin();

    return 0;
}

imuPreintegration.cpp

发现已经有写的更好的博客了,引用一下他的注释

#include "utility.h"

#include <gtsam/geometry/Rot3.h>
#include <gtsam/geometry/Pose3.h>
#include <gtsam/slam/PriorFactor.h>
#include <gtsam/slam/BetweenFactor.h>
#include <gtsam/navigation/GPSFactor.h>
#include <gtsam/navigation/ImuFactor.h>
#include <gtsam/navigation/CombinedImuFactor.h>
#include <gtsam/nonlinear/NonlinearFactorGraph.h>
#include <gtsam/nonlinear/LevenbergMarquardtOptimizer.h>
#include <gtsam/nonlinear/Marginals.h>
#include <gtsam/nonlinear/Values.h>
#include <gtsam/inference/Symbol.h>

#include <gtsam/nonlinear/ISAM2.h>
#include <gtsam_unstable/nonlinear/IncrementalFixedLagSmoother.h>

using gtsam::symbol_shorthand::X; // Pose3 (x,y,z,r,p,y)
using gtsam::symbol_shorthand::V; // Vel   (xdot,ydot,zdot)
using gtsam::symbol_shorthand::B; // Bias  (ax,ay,az,gx,gy,gz)

class IMUPreintegration : public ParamServer {
 public:
  IMUPreintegration() {

    // subscriber 订阅imu数据和激光Odom
    // 业务逻辑都在callback里面写, 两个数据是耦合关系, imu通过激光odom给出优化后的预积分预测
    // odom根据预测的位姿优化、融合出新的odom
    subImu = nh.subscribe<sensor_msgs::Imu>(imuTopic, 2000, &IMUPreintegration::imuHandler, this,
                                            ros::TransportHints().tcpNoDelay());
    subOdometry = nh.subscribe<nav_msgs::Odometry>("lio_sam/mapping/odometry", 5,
                                                   &IMUPreintegration::odometryHandler, this,
                                                   ros::TransportHints().tcpNoDelay());

    // publisher 发布融合后的imu path和预积分完成优化后预测的odom
    pubImuOdometry = nh.advertise<nav_msgs::Odometry>(odomTopic, 2000);
    pubImuPath = nh.advertise<nav_msgs::Path>("lio_sam/imu/path", 1);

    map_to_odom = tf::Transform(tf::createQuaternionFromRPY(0, 0, 0), tf::Vector3(0, 0, 0));

    // 下面是预积分使用到的gtsam的一些参数配置
    boost::shared_ptr<gtsam::PreintegrationParams> p = gtsam::PreintegrationParams::MakeSharedU(imuGravity);
    p->accelerometerCovariance = gtsam::Matrix33::Identity(3, 3) * pow(imuAccNoise, 2); // acc white noise in continuous
    p->gyroscopeCovariance = gtsam::Matrix33::Identity(3, 3) * pow(imuGyrNoise, 2); // gyro white noise in continuous
    p->integrationCovariance =
        gtsam::Matrix33::Identity(3, 3) * pow(1e-4, 2); // error committed in integrating position from velocities
    gtsam::imuBias::ConstantBias
        prior_imu_bias((gtsam::Vector(6) << 0, 0, 0, 0, 0, 0).finished());; // assume zero initial bias

    priorPoseNoise = gtsam::noiseModel::Diagonal::Sigmas((gtsam::Vector(6)
        << 1e-2, 1e-2, 1e-2, 1e-2, 1e-2, 1e-2).finished()); // rad,rad,rad,m, m, m
    priorVelNoise = gtsam::noiseModel::Isotropic::Sigma(3, 1e2); // m/s
    priorBiasNoise = gtsam::noiseModel::Isotropic::Sigma(6, 1e-3); // 1e-2 ~ 1e-3 seems to be good
    correctionNoise = gtsam::noiseModel::Isotropic::Sigma(6, 1e-2); // meter
    noiseModelBetweenBias =
        (gtsam::Vector(6) << imuAccBiasN, imuAccBiasN, imuAccBiasN, imuGyrBiasN, imuGyrBiasN, imuGyrBiasN).finished();

    // 优化前后的imu
    imuIntegratorImu_ = new gtsam::PreintegratedImuMeasurements(p, prior_imu_bias); // setting up the IMU integration for IMU message thread
    imuIntegratorOpt_ =new gtsam::PreintegratedImuMeasurements(p, prior_imu_bias); // setting up the IMU integration for optimization
  }

  void resetOptimization() {
    // gtsam相关优化参数重置
    gtsam::ISAM2Params optParameters;
    optParameters.relinearizeThreshold = 0.1;
    optParameters.relinearizeSkip = 1;
    optimizer = gtsam::ISAM2(optParameters);

    gtsam::NonlinearFactorGraph newGraphFactors;
    graphFactors = newGraphFactors;

    gtsam::Values NewGraphValues;
    graphValues = NewGraphValues;
  }

  void resetParams() {
    lastImuT_imu = -1;
    doneFirstOpt = false;
    systemInitialized = false;
  }

  void odometryHandler(const nav_msgs::Odometry::ConstPtr &odomMsg) {
    double currentCorrectionTime = ROS_TIME(odomMsg);

    // make sure we have imu data to integrate
    // 保证有imu数据,两个回调函数是互有联系的,
    // 在imu的回调里就强调要完成一次优化才往下执行
    if (imuQueOpt.empty())
      return;

    // 从雷达odom中取出位姿数据
    float p_x = odomMsg->pose.pose.position.x;
    float p_y = odomMsg->pose.pose.position.y;
    float p_z = odomMsg->pose.pose.position.z;
    float r_x = odomMsg->pose.pose.orientation.x;
    float r_y = odomMsg->pose.pose.orientation.y;
    float r_z = odomMsg->pose.pose.orientation.z;
    float r_w = odomMsg->pose.pose.orientation.w;
    int currentResetId = round(odomMsg->pose.covariance[0]);
    gtsam::Pose3 lidarPose = gtsam::Pose3(gtsam::Rot3::Quaternion(r_w, r_x, r_y, r_z),
                                          gtsam::Point3(p_x, p_y, p_z));

    // correction pose jumped, reset imu pre-integration
    if (currentResetId != imuPreintegrationResetId) {
      resetParams();
      imuPreintegrationResetId = currentResetId;
    }


    // 0. initialize system
    // 第一帧进来初始化系统
    if (systemInitialized == false) {
      resetOptimization(); // 重置优化参数

      // pop old IMU message
      // 去掉一些比较旧的imu数据, 只需要保证雷达odom时间戳在imu队列中间
      // 因为imu是高频数据, 这里是有效的
      while (!imuQueOpt.empty()) {
        if (ROS_TIME(&imuQueOpt.front()) < currentCorrectionTime - delta_t) {
          lastImuT_opt = ROS_TIME(&imuQueOpt.front());
          imuQueOpt.pop_front();
        } else
          break;
      }
      // initial pose
      prevPose_ = lidarPose.compose(lidar2Imu); // 雷达odom转到imu系下
      //PriorFactor,包括了位姿、速度和bias
      //加入PriorFactor在图优化中基本都是必需的前提
      gtsam::PriorFactor<gtsam::Pose3> priorPose(X(0), prevPose_, priorPoseNoise);
      graphFactors.add(priorPose);
      // initial velocity
      prevVel_ = gtsam::Vector3(0, 0, 0);
      gtsam::PriorFactor<gtsam::Vector3> priorVel(V(0), prevVel_, priorVelNoise);
      graphFactors.add(priorVel);
      // initial bias
      prevBias_ = gtsam::imuBias::ConstantBias();
      gtsam::PriorFactor<gtsam::imuBias::ConstantBias> priorBias(B(0), prevBias_, priorBiasNoise);
      graphFactors.add(priorBias);
      // add values、
      // 除了因子外, 还要有节点value
      graphValues.insert(X(0), prevPose_);
      graphValues.insert(V(0), prevVel_);
      graphValues.insert(B(0), prevBias_);
      // optimize once
      // 进行一次优化
      optimizer.update(graphFactors, graphValues);
      graphFactors.resize(0);
      graphValues.clear();     //图和节点均清零, 为什么要清零?

      // 重置积分器
      imuIntegratorImu_->resetIntegrationAndSetBias(prevBias_);
      imuIntegratorOpt_->resetIntegrationAndSetBias(prevBias_);

      key = 1; // 计数
      systemInitialized = true;
      return;
    }


    // reset graph for speed
    // key超过设定的100则重置整个图
    // 减小计算压力,保存最后的噪声值
    if (key == 100) {
      // get updated noise before reset
      gtsam::noiseModel::Gaussian::shared_ptr updatedPoseNoise = gtsam::noiseModel::Gaussian::Covariance(
          optimizer.marginalCovariance(X(key - 1)));
      gtsam::noiseModel::Gaussian::shared_ptr updatedVelNoise = gtsam::noiseModel::Gaussian::Covariance(
          optimizer.marginalCovariance(V(key - 1)));
      gtsam::noiseModel::Gaussian::shared_ptr updatedBiasNoise = gtsam::noiseModel::Gaussian::Covariance(
          optimizer.marginalCovariance(B(key - 1)));
      // reset graph 重置参数
      resetOptimization();

      // 重置之后还有类似与初始化的过程 区别在于噪声值不同
      // add pose
      gtsam::PriorFactor<gtsam::Pose3> priorPose(X(0), prevPose_, updatedPoseNoise);
      graphFactors.add(priorPose);
      // add velocity
      gtsam::PriorFactor<gtsam::Vector3> priorVel(V(0), prevVel_, updatedVelNoise);
      graphFactors.add(priorVel);
      // add bias
      gtsam::PriorFactor<gtsam::imuBias::ConstantBias> priorBias(B(0), prevBias_, updatedBiasNoise);
      graphFactors.add(priorBias);
      // add values
      graphValues.insert(X(0), prevPose_);
      graphValues.insert(V(0), prevVel_);
      graphValues.insert(B(0), prevBias_);
      // optimize once
      // 优化一次, 相当于初始化
      optimizer.update(graphFactors, graphValues);
      graphFactors.resize(0);
      graphValues.clear();

      key = 1;
    }


    // 1. integrate imu data and optimize
    // 这里才开始主要的优化流程
    while (!imuQueOpt.empty()) {
      // pop and integrate imu data that is between two optimizations
      // 对两次优化的之间的imu数据进行优化
      sensor_msgs::Imu *thisImu = &imuQueOpt.front(); // 最新的imu数据帧
      double imuTime = ROS_TIME(thisImu);
      if (imuTime < currentCorrectionTime - delta_t) {
        // 求dt,初始是1/500,后续是两帧imu数据的时间差
        double dt = (lastImuT_opt < 0) ? (1.0 / 500.0) : (imuTime - lastImuT_opt);

        // 进行预积分得到新的状态值,注意用到的是imu数据的加速度和角速度
        // 作者要求的9轴imu数据中欧拉角在本程序中没有任何用到, 全在地图优化里用到的
        imuIntegratorOpt_->integrateMeasurement(
            gtsam::Vector3(thisImu->linear_acceleration.x, thisImu->linear_acceleration.y,
                           thisImu->linear_acceleration.z),
            gtsam::Vector3(thisImu->angular_velocity.x, thisImu->angular_velocity.y,
                           thisImu->angular_velocity.z), dt);

        //在pop出一次数据前保存上一个数据的时间戳
        lastImuT_opt = imuTime;
        imuQueOpt.pop_front();
      } else
        break;
    }

    // add imu factor to graph
    // 利用两帧之间的IMU数据完成了预积分后增加imu因子到因子图中
    // add imu factor to graph
    const gtsam::PreintegratedImuMeasurements
        &preint_imu = dynamic_cast<const gtsam::PreintegratedImuMeasurements &>(*imuIntegratorOpt_);
    gtsam::ImuFactor imu_factor(X(key - 1), V(key - 1), X(key), V(key), B(key - 1), preint_imu);
    graphFactors.add(imu_factor);
    // add imu bias between factor
    graphFactors.add(
        gtsam::BetweenFactor<gtsam::imuBias::ConstantBias>(B(key - 1), B(key), gtsam::imuBias::ConstantBias(),
                                                           gtsam::noiseModel::Diagonal::Sigmas(
                                                               sqrt(imuIntegratorOpt_->deltaTij()) *
                                                                   noiseModelBetweenBias)));
    // add pose factor
    //  还加入了pose factor,其实对应于作者论文中的因子图结构
    //  就是与imu因子一起的 Lidar odometry factor
    gtsam::Pose3 curPose = lidarPose.compose(lidar2Imu);
    gtsam::PriorFactor<gtsam::Pose3> pose_factor(X(key), curPose, correctionNoise);
    graphFactors.add(pose_factor);
    // insert predicted values
    // 插入预测的值 即因子图中x0 x1 x2……节点
    gtsam::NavState propState_ = imuIntegratorOpt_->predict(prevState_, prevBias_);
    graphValues.insert(X(key), propState_.pose());
    graphValues.insert(V(key), propState_.v());
    graphValues.insert(B(key), prevBias_);

    // optimize 优化后重置
    optimizer.update(graphFactors, graphValues);
    optimizer.update();
    graphFactors.resize(0);
    graphValues.clear();
    // Overwrite the beginning of the preintegration for the next step.
    // 用这次的优化结果重写或者说是覆盖相关初始值, 为下一次优化准备
    gtsam::Values result = optimizer.calculateEstimate();
    prevPose_ = result.at<gtsam::Pose3>(X(key));
    prevVel_ = result.at<gtsam::Vector3>(V(key));
    prevState_ = gtsam::NavState(prevPose_, prevVel_);
    prevBias_ = result.at<gtsam::imuBias::ConstantBias>(B(key));
    // Reset the optimization preintegration object.
    imuIntegratorOpt_->resetIntegrationAndSetBias(prevBias_);
    // check optimization
    // 检查是否有失败情况,如有则重置参数
    if (failureDetection(prevVel_, prevBias_)) {
      resetParams();
      return;
    }


    // 2. after optiization, re-propagate imu odometry preintegration
    // 为了维持实时性imuIntegrateImu就得在每次odom触发优化后立刻获取最新的bias,
    // 同时对imu测量值imuQueImu执行bias改变的状态重传播处理, 这样可以最大限度的保证实时性和准确性?
    prevStateOdom = prevState_;
    prevBiasOdom = prevBias_;
    // first pop imu message older than current correction data
    // 去除旧的imu数据
    double lastImuQT = -1;
    while (!imuQueImu.empty() && ROS_TIME(&imuQueImu.front()) < currentCorrectionTime - delta_t) {
      lastImuQT = ROS_TIME(&imuQueImu.front());
      imuQueImu.pop_front();
    }
    // repropogate
    // 重传播?
    if (!imuQueImu.empty()) {
      // reset bias use the newly optimized bias
      // 使用最新的优化后的bias更新bias值
      imuIntegratorImu_->resetIntegrationAndSetBias(prevBiasOdom);
      // integrate imu message from the beginning of this optimization
      // 利用imuQueImu中的数据进行预积分,主要区别旧在于上一行的更新了bias
      for (int i = 0; i < (int) imuQueImu.size(); ++i) {
        sensor_msgs::Imu *thisImu = &imuQueImu[i];
        double imuTime = ROS_TIME(thisImu); // 时间戳
        double dt = (lastImuQT < 0) ? (1.0 / 500.0) : (imuTime - lastImuQT);

        // 进行预计分
        imuIntegratorImu_->integrateMeasurement(
            gtsam::Vector3(thisImu->linear_acceleration.x, thisImu->linear_acceleration.y,
                           thisImu->linear_acceleration.z),
            gtsam::Vector3(thisImu->angular_velocity.x, thisImu->angular_velocity.y,
                           thisImu->angular_velocity.z), dt);
        lastImuQT = imuTime;
      }
    }

    ++key;
    doneFirstOpt = true;
  }

  bool failureDetection(const gtsam::Vector3 &velCur, const gtsam::imuBias::ConstantBias &biasCur) {
    // 检测预计分失败的函数, 即时爆出错误,重置积分器
    Eigen::Vector3f vel(velCur.x(), velCur.y(), velCur.z());
    if (vel.norm() > 10) {
      ROS_WARN("Large velocity, reset IMU-preintegration!");
      return true;
    }

    Eigen::Vector3f ba(biasCur.accelerometer().x(), biasCur.accelerometer().y(), biasCur.accelerometer().z());
    Eigen::Vector3f bg(biasCur.gyroscope().x(), biasCur.gyroscope().y(), biasCur.gyroscope().z());
    if (ba.norm() > 0.1 || bg.norm() > 0.1) {
      ROS_WARN("Large bias, reset IMU-preintegration!");
      return true;
    }

    return false;
  }

  void imuHandler(const sensor_msgs::Imu::ConstPtr &imu_raw) {
    // imu数据转换到雷达坐标系下
    sensor_msgs::Imu thisImu = imuConverter(*imu_raw);
    // publish static tf map->odom
    tfMap2Odom.sendTransform(tf::StampedTransform(map_to_odom, thisImu.header.stamp, "map", "odom"));

    // 两个双端队列分别装着优化前后的imu数据
    imuQueOpt.push_back(thisImu);
    imuQueImu.push_back(thisImu);

    // 检查有没有执行过一次优化,这里需要先在odomhandler中优化一次后再进行该函数后续的工作
    if (doneFirstOpt == false)
      return;

    // 获得时间间隔, 第一次为1/500,之后是两次imuTime间的差
    double imuTime = ROS_TIME(&thisImu);
    double dt = (lastImuT_imu < 0) ? (1.0 / 500.0) : (imuTime - lastImuT_imu);
    lastImuT_imu = imuTime;

    // integrate this single imu message
    // 进行预积分
    imuIntegratorImu_->integrateMeasurement(gtsam::Vector3(thisImu.linear_acceleration.x, thisImu.linear_acceleration.y,
                                                           thisImu.linear_acceleration.z),
                                            gtsam::Vector3(thisImu.angular_velocity.x,
                                                           thisImu.angular_velocity.y,
                                                           thisImu.angular_velocity.z), dt);

    // predict odometry
    // 根据预计分结果, 预测odom
    gtsam::NavState currentState = imuIntegratorImu_->predict(prevStateOdom, prevBiasOdom);

    // publish odometry 发布新的odom
    nav_msgs::Odometry odometry;
    odometry.header.stamp = thisImu.header.stamp;
    odometry.header.frame_id = "odom";
    odometry.child_frame_id = "odom_imu";

    // transform imu pose to ldiar imu位姿转到雷达系
    // 预测值currentState获得imu位姿, 再由imu到雷达变换, 获得雷达位姿
    gtsam::Pose3 imuPose = gtsam::Pose3(currentState.quaternion(), currentState.position());
    gtsam::Pose3 lidarPose = imuPose.compose(imu2Lidar);

    odometry.pose.pose.position.x = lidarPose.translation().x();
    odometry.pose.pose.position.y = lidarPose.translation().y();
    odometry.pose.pose.position.z = lidarPose.translation().z();
    odometry.pose.pose.orientation.x = lidarPose.rotation().toQuaternion().x();
    odometry.pose.pose.orientation.y = lidarPose.rotation().toQuaternion().y();
    odometry.pose.pose.orientation.z = lidarPose.rotation().toQuaternion().z();
    odometry.pose.pose.orientation.w = lidarPose.rotation().toQuaternion().w();

    odometry.twist.twist.linear.x = currentState.velocity().x();
    odometry.twist.twist.linear.y = currentState.velocity().y();
    odometry.twist.twist.linear.z = currentState.velocity().z();
    odometry.twist.twist.angular.x = thisImu.angular_velocity.x + prevBiasOdom.gyroscope().x();
    odometry.twist.twist.angular.y = thisImu.angular_velocity.y + prevBiasOdom.gyroscope().y();
    odometry.twist.twist.angular.z = thisImu.angular_velocity.z + prevBiasOdom.gyroscope().z();
    odometry.pose.covariance[0] = double(imuPreintegrationResetId);
    pubImuOdometry.publish(odometry);

    // publish imu path
    // 预测的imu path, 只保留3s内的轨迹
    static nav_msgs::Path imuPath;
    static double last_path_time = -1;
    if (imuTime - last_path_time > 0.1) {
      last_path_time = imuTime;
      geometry_msgs::PoseStamped pose_stamped;
      pose_stamped.header.stamp = thisImu.header.stamp;
      pose_stamped.header.frame_id = "odom";
      pose_stamped.pose = odometry.pose.pose;
      imuPath.poses.push_back(pose_stamped);
      while (!imuPath.poses.empty() &&
          abs(imuPath.poses.front().header.stamp.toSec() - imuPath.poses.back().header.stamp.toSec()) > 3.0)
        imuPath.poses.erase(imuPath.poses.begin());
      if (pubImuPath.getNumSubscribers() != 0) {
        imuPath.header.stamp = thisImu.header.stamp;
        imuPath.header.frame_id = "odom";
        pubImuPath.publish(imuPath);
      }
    }

    // publish transformation
    // 发布odom->base_link的变换
    tf::Transform tCur;
    tf::poseMsgToTF(odometry.pose.pose, tCur);
    tf::StampedTransform odom_2_baselink = tf::StampedTransform(tCur, thisImu.header.stamp, "odom", "base_link");
    tfOdom2BaseLink.sendTransform(odom_2_baselink);
  }

 public:
  ros::Subscriber subImu;
  ros::Subscriber subOdometry;
  ros::Publisher pubImuOdometry;
  ros::Publisher pubImuPath;

  // map -> odom
  tf::Transform map_to_odom;
  tf::TransformBroadcaster tfMap2Odom;
  // odom -> base_link
  tf::TransformBroadcaster tfOdom2BaseLink;

  bool systemInitialized = false;

  gtsam::noiseModel::Diagonal::shared_ptr priorPoseNoise;
  gtsam::noiseModel::Diagonal::shared_ptr priorVelNoise;
  gtsam::noiseModel::Diagonal::shared_ptr priorBiasNoise;
  gtsam::noiseModel::Diagonal::shared_ptr correctionNoise;
  gtsam::Vector noiseModelBetweenBias;

  gtsam::PreintegratedImuMeasurements *imuIntegratorOpt_;
  gtsam::PreintegratedImuMeasurements *imuIntegratorImu_;

  std::deque<sensor_msgs::Imu> imuQueOpt;
  std::deque<sensor_msgs::Imu> imuQueImu;

  gtsam::Pose3 prevPose_;
  gtsam::Vector3 prevVel_;
  gtsam::NavState prevState_;
  gtsam::imuBias::ConstantBias prevBias_;

  gtsam::NavState prevStateOdom;
  gtsam::imuBias::ConstantBias prevBiasOdom;

  bool doneFirstOpt = false;
  double lastImuT_imu = -1;
  double lastImuT_opt = -1;

  gtsam::ISAM2 optimizer;
  gtsam::NonlinearFactorGraph graphFactors;
  gtsam::Values graphValues;

  const double delta_t = 0;

  int key = 1;
  int imuPreintegrationResetId = 0;

  // 雷达->imu外餐
  gtsam::Pose3 imu2Lidar = gtsam::Pose3(gtsam::Rot3(1, 0, 0, 0),
                                        gtsam::Point3(-extTrans.x(), -extTrans.y(), -extTrans.z()));
  gtsam::Pose3 lidar2Imu = gtsam::Pose3(gtsam::Rot3(1, 0, 0, 0),
                                        gtsam::Point3(extTrans.x(), extTrans.y(), extTrans.z()));;

};

int main(int argc, char **argv) {
  ros::init(argc, argv, "roboat_loam");

  IMUPreintegration ImuP;

  ROS_INFO("\033[1;32m----> IMU Preintegration Started.\033[0m");

  ros::spin();

  return 0;
}

mapOptmization.cpp

#include "utility.h"
#include "lio_sam/cloud_info.h"

#include <gtsam/geometry/Rot3.h>
#include <gtsam/geometry/Pose3.h>
#include <gtsam/slam/PriorFactor.h>
#include <gtsam/slam/BetweenFactor.h>
#include <gtsam/navigation/GPSFactor.h>
#include <gtsam/navigation/ImuFactor.h>
#include <gtsam/navigation/CombinedImuFactor.h>
#include <gtsam/nonlinear/NonlinearFactorGraph.h>
#include <gtsam/nonlinear/LevenbergMarquardtOptimizer.h>
#include <gtsam/nonlinear/Marginals.h>
#include <gtsam/nonlinear/Values.h>
#include <gtsam/inference/Symbol.h>

#include <gtsam/nonlinear/ISAM2.h>

using namespace gtsam;

using symbol_shorthand::X; // Pose3 (x,y,z,r,p,y)
using symbol_shorthand::V; // Vel   (xdot,ydot,zdot)
using symbol_shorthand::B; // Bias  (ax,ay,az,gx,gy,gz)
using symbol_shorthand::G; // GPS pose

/*
    * A point cloud type that has 6D pose info ([x,y,z,roll,pitch,yaw] intensity is time stamp)
    */
struct PointXYZIRPYT {
  PCL_ADD_POINT4D

  PCL_ADD_INTENSITY;                  // preferred way of adding a XYZ+padding
  float roll;
  float pitch;
  float yaw;
  double time;

  EIGEN_MAKE_ALIGNED_OPERATOR_NEW   // make sure our new allocators are aligned
} EIGEN_ALIGN16;                    // enforce SSE padding for correct memory alignment

POINT_CLOUD_REGISTER_POINT_STRUCT (PointXYZIRPYT,
                                   (float, x, x)(float, y, y)
                                       (float, z, z)(float, intensity, intensity)
                                       (float, roll, roll)(float, pitch, pitch)(float, yaw, yaw)
                                       (double, time, time))

typedef PointXYZIRPYT PointTypePose;

class mapOptimization : public ParamServer {

 public:

  mapOptimization() {
    ISAM2Params parameters;
    parameters.relinearizeThreshold = 0.1;
    parameters.relinearizeSkip = 1;
    isam = new ISAM2(parameters);

    // subscriber 主要订阅分类好的cloud_info以及gps,用于后端优化和回环检测,
    // 注意gps接受的是nav_msgs::Odometry消息, 是通过robot_localization节点融合imu和gps数据得到的
    //  callback里面只是装数据到队列
    subLaserCloudInfo = nh.subscribe<lio_sam::cloud_info>("lio_sam/feature/cloud_info", 1,
                                                          &mapOptimization::laserCloudInfoHandler, this,
                                                          ros::TransportHints().tcpNoDelay());
    subGPS = nh.subscribe<nav_msgs::Odometry>(gpsTopic, 200, &mapOptimization::gpsHandler, this,
                                              ros::TransportHints().tcpNoDelay());

    // publisher 发布一些odometry之类的
    pubKeyPoses = nh.advertise<sensor_msgs::PointCloud2>("lio_sam/mapping/trajectory", 1);
    pubLaserCloudSurround = nh.advertise<sensor_msgs::PointCloud2>("lio_sam/mapping/map_global", 1); // 全局地图
    pubOdomAftMappedROS = nh.advertise<nav_msgs::Odometry>("lio_sam/mapping/odometry", 1); // 优化后的odom
    pubPath = nh.advertise<nav_msgs::Path>("lio_sam/mapping/path", 1);

    // 回环检测相关的一些历史帧
    pubHistoryKeyFrames = nh.advertise<sensor_msgs::PointCloud2>("lio_sam/mapping/icp_loop_closure_history_cloud", 1);
    pubIcpKeyFrames = nh.advertise<sensor_msgs::PointCloud2>("lio_sam/mapping/icp_loop_closure_corrected_cloud", 1);

    //  local map
    pubRecentKeyFrames = nh.advertise<sensor_msgs::PointCloud2>("lio_sam/mapping/map_local", 1);
    pubRecentKeyFrame = nh.advertise<sensor_msgs::PointCloud2>("lio_sam/mapping/cloud_registered", 1);
    pubCloudRegisteredRaw = nh.advertise<sensor_msgs::PointCloud2>("lio_sam/mapping/cloud_registered_raw", 1);

    // 不同的特征进行滤波
    downSizeFilterCorner.setLeafSize(mappingCornerLeafSize, mappingCornerLeafSize, mappingCornerLeafSize);
    downSizeFilterSurf.setLeafSize(mappingSurfLeafSize, mappingSurfLeafSize, mappingSurfLeafSize);
    downSizeFilterICP.setLeafSize(mappingSurfLeafSize, mappingSurfLeafSize, mappingSurfLeafSize);
    downSizeFilterSurroundingKeyPoses.setLeafSize(surroundingKeyframeDensity, surroundingKeyframeDensity,
                                                  surroundingKeyframeDensity); // for surrounding key poses of scan-to-map optimization

    allocateMemory();
  }

  void allocateMemory() {
    // 初始化一些参数
    cloudKeyPoses3D.reset(new pcl::PointCloud<PointType>());
    cloudKeyPoses6D.reset(new pcl::PointCloud<PointTypePose>());

    kdtreeSurroundingKeyPoses.reset(new pcl::KdTreeFLANN<PointType>());
    kdtreeHistoryKeyPoses.reset(new pcl::KdTreeFLANN<PointType>());

    laserCloudCornerLast.reset(new pcl::PointCloud<PointType>()); // corner feature set from odoOptimization
    laserCloudSurfLast.reset(new pcl::PointCloud<PointType>()); // surf feature set from odoOptimization
    laserCloudCornerLastDS.reset(
        new pcl::PointCloud<PointType>()); // downsampled corner featuer set from odoOptimization
    laserCloudSurfLastDS.reset(
        new pcl::PointCloud<PointType>()); // downsampled surf featuer set from odoOptimization

    laserCloudOri.reset(new pcl::PointCloud<PointType>());
    coeffSel.reset(new pcl::PointCloud<PointType>());

    laserCloudOriCornerVec.resize(N_SCAN * Horizon_SCAN);
    coeffSelCornerVec.resize(N_SCAN * Horizon_SCAN);
    laserCloudOriCornerFlag.resize(N_SCAN * Horizon_SCAN);
    laserCloudOriSurfVec.resize(N_SCAN * Horizon_SCAN);
    coeffSelSurfVec.resize(N_SCAN * Horizon_SCAN);
    laserCloudOriSurfFlag.resize(N_SCAN * Horizon_SCAN);

    std::fill(laserCloudOriCornerFlag.begin(), laserCloudOriCornerFlag.end(), false);
    std::fill(laserCloudOriSurfFlag.begin(), laserCloudOriSurfFlag.end(), false);

    laserCloudCornerFromMap.reset(new pcl::PointCloud<PointType>());
    laserCloudSurfFromMap.reset(new pcl::PointCloud<PointType>());
    laserCloudCornerFromMapDS.reset(new pcl::PointCloud<PointType>());
    laserCloudSurfFromMapDS.reset(new pcl::PointCloud<PointType>());

    kdtreeCornerFromMap.reset(new pcl::KdTreeFLANN<PointType>());
    kdtreeSurfFromMap.reset(new pcl::KdTreeFLANN<PointType>());

    latestKeyFrameCloud.reset(new pcl::PointCloud<PointType>());
    nearHistoryKeyFrameCloud.reset(new pcl::PointCloud<PointType>());

    for (int i = 0; i < 6; ++i) {
      transformTobeMapped[i] = 0;
    }

    matP.setZero();
  }

  void laserCloudInfoHandler(const lio_sam::cloud_infoConstPtr &msgIn) {
    // extract time stamp
    timeLaserInfoStamp = msgIn->header.stamp;
    timeLaserCloudInfoLast = msgIn->header.stamp.toSec();

    // extract info and feature cloud
    // corner和surface点云
    cloudInfo = *msgIn;
    pcl::fromROSMsg(msgIn->cloud_corner, *laserCloudCornerLast);
    pcl::fromROSMsg(msgIn->cloud_surface, *laserCloudSurfLast);

    std::lock_guard<std::mutex> lock(mtx);

    // 0.15s更新一下map
    if (timeLaserCloudInfoLast - timeLastProcessing >= mappingProcessInterval) {

      timeLastProcessing = timeLaserCloudInfoLast;

      updateInitialGuess(); // imu预积分更新初始位姿

      extractSurroundingKeyFrames(); // 从关键帧里面提取附近回环候选帧

      downsampleCurrentScan();  // 不同的leaf size进行下采样,主要是corner cloud和surface cloud

      scan2MapOptimization(); // 构建点到平面、点到直线的残差, 用高斯牛顿法进行优化

      saveKeyFramesAndFactor(); // 添加factor,保存key pose之类的

      correctPoses();  // 更新位姿

      // publish odom
      publishOdometry(); // 发布增量平滑后的odom

      publishFrames();  // 发布一些关键帧点云之类的
    }
  }

  void gpsHandler(const nav_msgs::Odometry::ConstPtr &gpsMsg) {
    gpsQueue.push_back(*gpsMsg);
  }

  void pointAssociateToMap(PointType const *const pi, PointType *const po) {
    po->x = transPointAssociateToMap(0, 0) * pi->x + transPointAssociateToMap(0, 1) * pi->y +
        transPointAssociateToMap(0, 2) * pi->z + transPointAssociateToMap(0, 3);
    po->y = transPointAssociateToMap(1, 0) * pi->x + transPointAssociateToMap(1, 1) * pi->y +
        transPointAssociateToMap(1, 2) * pi->z + transPointAssociateToMap(1, 3);
    po->z = transPointAssociateToMap(2, 0) * pi->x + transPointAssociateToMap(2, 1) * pi->y +
        transPointAssociateToMap(2, 2) * pi->z + transPointAssociateToMap(2, 3);
    po->intensity = pi->intensity;
  }

  pcl::PointCloud<PointType>::Ptr
  transformPointCloud(pcl::PointCloud<PointType>::Ptr cloudIn, PointTypePose *transformIn) {
    pcl::PointCloud<PointType>::Ptr cloudOut(new pcl::PointCloud<PointType>());

    PointType *pointFrom;

    int cloudSize = cloudIn->size();
    cloudOut->resize(cloudSize);

    Eigen::Affine3f transCur = pcl::getTransformation(transformIn->x, transformIn->y, transformIn->z,
                                                      transformIn->roll, transformIn->pitch, transformIn->yaw);

    for (int i = 0; i < cloudSize; ++i) {

      pointFrom = &cloudIn->points[i];
      cloudOut->points[i].x =
          transCur(0, 0) * pointFrom->x + transCur(0, 1) * pointFrom->y + transCur(0, 2) * pointFrom->z +
              transCur(0, 3);
      cloudOut->points[i].y =
          transCur(1, 0) * pointFrom->x + transCur(1, 1) * pointFrom->y + transCur(1, 2) * pointFrom->z +
              transCur(1, 3);
      cloudOut->points[i].z =
          transCur(2, 0) * pointFrom->x + transCur(2, 1) * pointFrom->y + transCur(2, 2) * pointFrom->z +
              transCur(2, 3);
      cloudOut->points[i].intensity = pointFrom->intensity;
    }
    return cloudOut;
  }

  gtsam::Pose3 pclPointTogtsamPose3(PointTypePose thisPoint) {
    return gtsam::Pose3(gtsam::Rot3::RzRyRx(double(thisPoint.roll), double(thisPoint.pitch), double(thisPoint.yaw)),
                        gtsam::Point3(double(thisPoint.x), double(thisPoint.y), double(thisPoint.z)));
  }

  gtsam::Pose3 trans2gtsamPose(float transformIn[]) {
    return gtsam::Pose3(gtsam::Rot3::RzRyRx(transformIn[0], transformIn[1], transformIn[2]),
                        gtsam::Point3(transformIn[3], transformIn[4], transformIn[5]));
  }

  Eigen::Affine3f pclPointToAffine3f(PointTypePose thisPoint) {
    return pcl::getTransformation(thisPoint.x, thisPoint.y, thisPoint.z, thisPoint.roll, thisPoint.pitch,
                                  thisPoint.yaw);
  }

  Eigen::Affine3f trans2Affine3f(float transformIn[]) {
    return pcl::getTransformation(transformIn[3], transformIn[4], transformIn[5], transformIn[0], transformIn[1],
                                  transformIn[2]);
  }

  PointTypePose trans2PointTypePose(float transformIn[]) {
    PointTypePose thisPose6D;
    thisPose6D.x = transformIn[3];
    thisPose6D.y = transformIn[4];
    thisPose6D.z = transformIn[5];
    thisPose6D.roll = transformIn[0];
    thisPose6D.pitch = transformIn[1];
    thisPose6D.yaw = transformIn[2];
    return thisPose6D;
  }

  void visualizeGlobalMapThread() {
    // 按一定的频率发布全局地图
    ros::Rate rate(0.2);
    while (ros::ok()) {
      rate.sleep();
      publishGlobalMap();
    }

    //  下面是保存各种地图
    if (savePCD == false)
      return;

    cout << "****************************************************" << endl;
    cout << "Saving map to pcd files ..." << endl;
    // create directory and remove old files;
    savePCDDirectory = std::getenv("HOME") + savePCDDirectory;
    int unused = system((std::string("exec rm -r ") + savePCDDirectory).c_str());
    unused = system((std::string("mkdir ") + savePCDDirectory).c_str());
    // save key frame transformations
    pcl::io::savePCDFileASCII(savePCDDirectory + "trajectory.pcd", *cloudKeyPoses3D);
    pcl::io::savePCDFileASCII(savePCDDirectory + "transformations.pcd", *cloudKeyPoses6D);
    // extract global point cloud map
    pcl::PointCloud<PointType>::Ptr globalCornerCloud(new pcl::PointCloud<PointType>());
    pcl::PointCloud<PointType>::Ptr globalCornerCloudDS(new pcl::PointCloud<PointType>());
    pcl::PointCloud<PointType>::Ptr globalSurfCloud(new pcl::PointCloud<PointType>());
    pcl::PointCloud<PointType>::Ptr globalSurfCloudDS(new pcl::PointCloud<PointType>());
    pcl::PointCloud<PointType>::Ptr globalMapCloud(new pcl::PointCloud<PointType>());
    for (int i = 0; i < cloudKeyPoses3D->size(); i++) {
      *globalCornerCloud += *transformPointCloud(cornerCloudKeyFrames[i], &cloudKeyPoses6D->points[i]);
      *globalSurfCloud += *transformPointCloud(surfCloudKeyFrames[i], &cloudKeyPoses6D->points[i]);
      cout << "\r" << std::flush << "Processing feature cloud " << i << " of " << cloudKeyPoses6D->size()
           << " ...";
    }
    // down-sample and save corner cloud
    downSizeFilterCorner.setInputCloud(globalCornerCloud);
    downSizeFilterCorner.filter(*globalCornerCloudDS);
    pcl::io::savePCDFileASCII(savePCDDirectory + "cloudCorner.pcd", *globalCornerCloudDS);
    // down-sample and save surf cloud
    downSizeFilterSurf.setInputCloud(globalSurfCloud);
    downSizeFilterSurf.filter(*globalSurfCloudDS);
    pcl::io::savePCDFileASCII(savePCDDirectory + "cloudSurf.pcd", *globalSurfCloudDS);
    // down-sample and save global point cloud map
    *globalMapCloud += *globalCornerCloud;
    *globalMapCloud += *globalSurfCloud;
    pcl::io::savePCDFileASCII(savePCDDirectory + "cloudGlobal.pcd", *globalMapCloud);
    cout << "****************************************************" << endl;
    cout << "Saving map to pcd files completed" << endl;
  }

  void publishGlobalMap() {
    if (pubLaserCloudSurround.getNumSubscribers() == 0)
      return;

    // cloudKeyPoses3Dc存的是关键帧的位姿
    if (cloudKeyPoses3D->points.empty() == true)
      return;

    pcl::KdTreeFLANN<PointType>::Ptr kdtreeGlobalMap(new pcl::KdTreeFLANN<PointType>());;
    pcl::PointCloud<PointType>::Ptr globalMapKeyPoses(new pcl::PointCloud<PointType>());
    pcl::PointCloud<PointType>::Ptr globalMapKeyPosesDS(new pcl::PointCloud<PointType>());
    pcl::PointCloud<PointType>::Ptr globalMapKeyFrames(new pcl::PointCloud<PointType>());
    pcl::PointCloud<PointType>::Ptr globalMapKeyFramesDS(new pcl::PointCloud<PointType>());

    // kd-tree to find near key frames to visualize
    std::vector<int> pointSearchIndGlobalMap;
    std::vector<float> pointSearchSqDisGlobalMap;
    // search near key frames to visualize
    mtx.lock();
    kdtreeGlobalMap->setInputCloud(cloudKeyPoses3D);
    kdtreeGlobalMap->radiusSearch(cloudKeyPoses3D->back(), globalMapVisualizationSearchRadius,
                                  pointSearchIndGlobalMap, pointSearchSqDisGlobalMap, 0);
    mtx.unlock();

    // 找到附近的点云帧并发布出来
    for (int i = 0; i < pointSearchIndGlobalMap.size(); ++i)
      globalMapKeyPoses->push_back(cloudKeyPoses3D->points[pointSearchIndGlobalMap[i]]);
    // downsample near selected key frames
    pcl::VoxelGrid<PointType> downSizeFilterGlobalMapKeyPoses; // for global map visualization
    downSizeFilterGlobalMapKeyPoses.setLeafSize(globalMapVisualizationPoseDensity,
                                                globalMapVisualizationPoseDensity,
                                                globalMapVisualizationPoseDensity); // for global map visualization
    downSizeFilterGlobalMapKeyPoses.setInputCloud(globalMapKeyPoses);
    downSizeFilterGlobalMapKeyPoses.filter(*globalMapKeyPosesDS);

    // extract visualized and downsampled key frames
    for (int i = 0; i < globalMapKeyPosesDS->size(); ++i) {
      if (pointDistance(globalMapKeyPosesDS->points[i], cloudKeyPoses3D->back()) >
          globalMapVisualizationSearchRadius)
        continue;
      int thisKeyInd = (int) globalMapKeyPosesDS->points[i].intensity;
      *globalMapKeyFrames += *transformPointCloud(cornerCloudKeyFrames[thisKeyInd],
                                                  &cloudKeyPoses6D->points[thisKeyInd]);
      *globalMapKeyFrames += *transformPointCloud(surfCloudKeyFrames[thisKeyInd],
                                                  &cloudKeyPoses6D->points[thisKeyInd]);
    }
    // downsample visualized points
    pcl::VoxelGrid<PointType> downSizeFilterGlobalMapKeyFrames; // for global map visualization
    downSizeFilterGlobalMapKeyFrames.setLeafSize(globalMapVisualizationLeafSize, globalMapVisualizationLeafSize,
                                                 globalMapVisualizationLeafSize); // for global map visualization
    downSizeFilterGlobalMapKeyFrames.setInputCloud(globalMapKeyFrames);
    downSizeFilterGlobalMapKeyFrames.filter(*globalMapKeyFramesDS);
    publishCloud(&pubLaserCloudSurround, globalMapKeyFramesDS, timeLaserInfoStamp, "odom");
  }

  void loopClosureThread() {
    //  什么时候才进行回环检测?
    if (loopClosureEnableFlag == false)
      return;

    // 以一定的频率执行回环检测
    ros::Rate rate(0.2);
    while (ros::ok()) {
      rate.sleep();
      performLoopClosure();
    }
  }

  bool detectLoopClosure(int *latestID, int *closestID) {
    int latestFrameIDLoopCloure;
    int closestHistoryFrameID;

    latestKeyFrameCloud->clear();
    nearHistoryKeyFrameCloud->clear();

    std::lock_guard<std::mutex> lock(mtx);

    // find the closest history key frame
    std::vector<int> pointSearchIndLoop;
    std::vector<float> pointSearchSqDisLoop;
    kdtreeHistoryKeyPoses->setInputCloud(cloudKeyPoses3D);
    kdtreeHistoryKeyPoses->radiusSearch(cloudKeyPoses3D->back(), historyKeyframeSearchRadius, pointSearchIndLoop,
                                        pointSearchSqDisLoop, 0);

    //  两帧时间差也满足最小要求
    closestHistoryFrameID = -1;
    for (int i = 0; i < pointSearchIndLoop.size(); ++i) {
      int id = pointSearchIndLoop[i];
      if (abs(cloudKeyPoses6D->points[id].time - timeLaserCloudInfoLast) > historyKeyframeSearchTimeDiff) {
        closestHistoryFrameID = id;
        break;
      }
    }

    if (closestHistoryFrameID == -1)
      return false;

    if (cloudKeyPoses3D->size() - 1 == closestHistoryFrameID)
      return false;

    // save latest key frames
    latestFrameIDLoopCloure = cloudKeyPoses3D->size() - 1;
    *latestKeyFrameCloud += *transformPointCloud(cornerCloudKeyFrames[latestFrameIDLoopCloure],
                                                 &cloudKeyPoses6D->points[latestFrameIDLoopCloure]);
    *latestKeyFrameCloud += *transformPointCloud(surfCloudKeyFrames[latestFrameIDLoopCloure],
                                                 &cloudKeyPoses6D->points[latestFrameIDLoopCloure]);

    // save history near key frames
    bool nearFrameAvailable = false;
    for (int j = -historyKeyframeSearchNum; j <= historyKeyframeSearchNum; ++j) {
      if (closestHistoryFrameID + j < 0 || closestHistoryFrameID + j > latestFrameIDLoopCloure)
        continue;
      *nearHistoryKeyFrameCloud += *transformPointCloud(cornerCloudKeyFrames[closestHistoryFrameID + j],
                                                        &cloudKeyPoses6D->points[closestHistoryFrameID + j]);
      *nearHistoryKeyFrameCloud += *transformPointCloud(surfCloudKeyFrames[closestHistoryFrameID + j],
                                                        &cloudKeyPoses6D->points[closestHistoryFrameID + j]);
      nearFrameAvailable = true;
    }

    if (nearFrameAvailable == false)
      return false;

    *latestID = latestFrameIDLoopCloure;
    *closestID = closestHistoryFrameID;

    return true;
  }

  void performLoopClosure() {
    if (cloudKeyPoses3D->points.empty() == true)
      return;

    int latestFrameIDLoopCloure; // 关键帧队列中最新的关键帧id
    int closestHistoryFrameID;  // 最近的关键帧id
    if (detectLoopClosure(&latestFrameIDLoopCloure, &closestHistoryFrameID) == false)
      return;

    //  检测到了回环进入以下流程,将两帧点云进行icp配准得到最终的trans
    // ICP Settings
    pcl::IterativeClosestPoint<PointType, PointType> icp;
    icp.setMaxCorrespondenceDistance(100);
    icp.setMaximumIterations(100);
    icp.setTransformationEpsilon(1e-6);
    icp.setEuclideanFitnessEpsilon(1e-6);
    icp.setRANSACIterations(0);

    // Downsample map cloud
    pcl::PointCloud<PointType>::Ptr cloud_temp(new pcl::PointCloud<PointType>());
    downSizeFilterICP.setInputCloud(nearHistoryKeyFrameCloud);
    downSizeFilterICP.filter(*cloud_temp);
    *nearHistoryKeyFrameCloud = *cloud_temp;
    // publish history near key frames
    publishCloud(&pubHistoryKeyFrames, nearHistoryKeyFrameCloud, timeLaserInfoStamp, "odom");

    // Align clouds 将回环帧与local map进行匹配
    icp.setInputSource(latestKeyFrameCloud);
    icp.setInputTarget(nearHistoryKeyFrameCloud);
    pcl::PointCloud<PointType>::Ptr unused_result(new pcl::PointCloud<PointType>());
    icp.align(*unused_result);

    // 通过icp score阈值判断是否匹配成功
    // std::cout << "ICP converg flag:" << icp.hasConverged() << ". Fitness score: " << icp.getFitnessScore() << std::endl;
    if (icp.hasConverged() == false || icp.getFitnessScore() > historyKeyframeFitnessScore)
      return;

    // publish corrected cloud
    if (pubIcpKeyFrames.getNumSubscribers() != 0) {
      pcl::PointCloud<PointType>::Ptr closed_cloud(new pcl::PointCloud<PointType>());
      pcl::transformPointCloud(*latestKeyFrameCloud, *closed_cloud, icp.getFinalTransformation());
      publishCloud(&pubIcpKeyFrames, closed_cloud, timeLaserInfoStamp, "odom");
    }

    // Get pose transformation
    float x, y, z, roll, pitch, yaw;
    Eigen::Affine3f correctionLidarFrame;
    // icp得到的两帧之间的转换
    correctionLidarFrame = icp.getFinalTransformation();
    // transform from world origin to wrong pose
    Eigen::Affine3f tWrong = pclPointToAffine3f(cloudKeyPoses6D->points[latestFrameIDLoopCloure]);
    // transform from world origin to corrected pose
    Eigen::Affine3f tCorrect =
        correctionLidarFrame * tWrong;// pre-multiplying -> successive rotation about a fixed frame
    pcl::getTranslationAndEulerAngles(tCorrect, x, y, z, roll, pitch, yaw);

    // gtsam中添加回环的约束
    gtsam::Pose3 poseFrom = Pose3(Rot3::RzRyRx(roll, pitch, yaw), Point3(x, y, z));
    gtsam::Pose3 poseTo = pclPointTogtsamPose3(cloudKeyPoses6D->points[closestHistoryFrameID]);
    gtsam::Vector Vector6(6);
    float noiseScore = icp.getFitnessScore();
    Vector6 << noiseScore, noiseScore, noiseScore, noiseScore, noiseScore, noiseScore;
    noiseModel::Diagonal::shared_ptr constraintNoise = noiseModel::Diagonal::Variances(Vector6);

    // Add pose constraint
    std::lock_guard<std::mutex> lock(mtx);
    gtSAMgraph.add(BetweenFactor<Pose3>(latestFrameIDLoopCloure, closestHistoryFrameID, poseFrom.between(poseTo),
                                        constraintNoise));
    isam->update(gtSAMgraph);
    isam->update();
    isam->update();
    isam->update();
    isam->update();
    isam->update();
    gtSAMgraph.resize(0);

    aLoopIsClosed = true;
  }

  void updateInitialGuess() {
    // 更新初始位姿, 来源可以是GPS ODOM, 也可以是上一帧的位姿, 存在transformTobeMapped中
    // initialization
    if (cloudKeyPoses3D->points.empty()) {
      // 第一帧点云进来
      transformTobeMapped[0] = cloudInfo.imuRollInit;
      transformTobeMapped[1] = cloudInfo.imuPitchInit;
      transformTobeMapped[2] = cloudInfo.imuYawInit;

      if (!useImuHeadingInitialization)
        transformTobeMapped[2] = 0;

      // 获取初始的transform
      lastImuTransformation = pcl::getTransformation(0, 0, 0, cloudInfo.imuRollInit, cloudInfo.imuPitchInit,
                                                     cloudInfo.imuYawInit); // save imu before return;
      return;
    }

    // use imu pre-integration estimation for pose guess
    // odom可用的话, 使用mu odom作为初始位姿, 每个点在imuPreintexx.cpp中会实时进行预计分优化, 并存储其优化后的odom
    if (cloudInfo.odomAvailable == true && cloudInfo.imuPreintegrationResetId == imuPreintegrationResetId) {
      transformTobeMapped[0] = cloudInfo.initialGuessRoll;
      transformTobeMapped[1] = cloudInfo.initialGuessPitch;
      transformTobeMapped[2] = cloudInfo.initialGuessYaw;

      transformTobeMapped[3] = cloudInfo.initialGuessX;
      transformTobeMapped[4] = cloudInfo.initialGuessY;
      transformTobeMapped[5] = cloudInfo.initialGuessZ;

      lastImuTransformation = pcl::getTransformation(0, 0, 0, cloudInfo.imuRollInit, cloudInfo.imuPitchInit,
                                                     cloudInfo.imuYawInit); // save imu before return;
      return;
    }

    // use imu incremental estimation for pose guess (only rotation)
    // imu可用的话, 使用imu计算一个旋转增量, 这里?
    if (cloudInfo.imuAvailable == true) {
      Eigen::Affine3f transBack = pcl::getTransformation(0, 0, 0, cloudInfo.imuRollInit, cloudInfo.imuPitchInit,
                                                         cloudInfo.imuYawInit);
      Eigen::Affine3f transIncre = lastImuTransformation.inverse() * transBack;

      Eigen::Affine3f transTobe = trans2Affine3f(transformTobeMapped);
      Eigen::Affine3f transFinal = transTobe * transIncre;
      pcl::getTranslationAndEulerAngles(transFinal, transformTobeMapped[3], transformTobeMapped[4],
                                        transformTobeMapped[5],
                                        transformTobeMapped[0], transformTobeMapped[1], transformTobeMapped[2]);

      lastImuTransformation = pcl::getTransformation(0, 0, 0, cloudInfo.imuRollInit, cloudInfo.imuPitchInit,
                                                     cloudInfo.imuYawInit); // save imu before return;
      return;
    }
  }

  void extractForLoopClosure() {
    // 提取回环候选帧
    pcl::PointCloud<PointType>::Ptr cloudToExtract(new pcl::PointCloud<PointType>());
    int numPoses = cloudKeyPoses3D->size();
    for (int i = numPoses - 1; i >= 0; --i) {
      if (cloudToExtract->size() <= surroundingKeyframeSize)
        cloudToExtract->push_back(cloudKeyPoses3D->points[i]);
      else
        break;
    }

    extractCloud(cloudToExtract);
  }

  void extractNearby() {
    // 提取附近的点云帧, 包括corner和surface, cloudKeyPoses3D
    pcl::PointCloud<PointType>::Ptr surroundingKeyPoses(new pcl::PointCloud<PointType>());
    pcl::PointCloud<PointType>::Ptr surroundingKeyPosesDS(new pcl::PointCloud<PointType>());
    std::vector<int> pointSearchInd;
    std::vector<float> pointSearchSqDis;

    // extract all the nearby key poses and downsample them, 50m范围内的关键帧
    kdtreeSurroundingKeyPoses->setInputCloud(cloudKeyPoses3D); // create kd-tree
    kdtreeSurroundingKeyPoses->radiusSearch(cloudKeyPoses3D->back(), (double) surroundingKeyframeSearchRadius,
                                            pointSearchInd, pointSearchSqDis);
    // 将满足要求的点云帧加到surroundingKeyPoses中
    for (int i = 0; i < pointSearchInd.size(); ++i) {
      int id = pointSearchInd[i];
      surroundingKeyPoses->push_back(cloudKeyPoses3D->points[id]);
    }

    downSizeFilterSurroundingKeyPoses.setInputCloud(surroundingKeyPoses);
    downSizeFilterSurroundingKeyPoses.filter(*surroundingKeyPosesDS);

    // also extract some latest key frames in case the robot rotates in one position
    // 把10s内同方向的关键帧也加到surroundingKeyPosesDS中
    int numPoses = cloudKeyPoses3D->size();
    for (int i = numPoses - 1; i >= 0; --i) {
      // 10s内的位姿态都加进来
      if (timeLaserCloudInfoLast - cloudKeyPoses6D->points[i].time < 10.0)
        surroundingKeyPosesDS->push_back(cloudKeyPoses3D->points[i]);
      else
        break;
    }

    extractCloud(surroundingKeyPosesDS);
  }

  void extractCloud(pcl::PointCloud<PointType>::Ptr cloudToExtract) {
    // 根据pose提取点云
    std::vector<pcl::PointCloud<PointType>> laserCloudCornerSurroundingVec;
    std::vector<pcl::PointCloud<PointType>> laserCloudSurfSurroundingVec;

    laserCloudCornerSurroundingVec.resize(cloudToExtract->size());
    laserCloudSurfSurroundingVec.resize(cloudToExtract->size());

    // extract surrounding map
#pragma omp parallel for num_threads(numberOfCores)
    for (int i = 0; i < cloudToExtract->size(); ++i) {
      // 遍历每个位姿
      if (pointDistance(cloudToExtract->points[i], cloudKeyPoses3D->back()) > surroundingKeyframeSearchRadius)
        continue;
      int thisKeyInd = (int) cloudToExtract->points[i].intensity;
      laserCloudCornerSurroundingVec[i] = *transformPointCloud(cornerCloudKeyFrames[thisKeyInd],
                                                               &cloudKeyPoses6D->points[thisKeyInd]);
      laserCloudSurfSurroundingVec[i] = *transformPointCloud(surfCloudKeyFrames[thisKeyInd],
                                                             &cloudKeyPoses6D->points[thisKeyInd]);
    }

    // fuse the map
    // 构建local map
    laserCloudCornerFromMap->clear();
    laserCloudSurfFromMap->clear();
    for (int i = 0; i < cloudToExtract->size(); ++i) {
      *laserCloudCornerFromMap += laserCloudCornerSurroundingVec[i];
      *laserCloudSurfFromMap += laserCloudSurfSurroundingVec[i];
    }

    // Downsample the surrounding corner key frames (or map)
    downSizeFilterCorner.setInputCloud(laserCloudCornerFromMap);
    downSizeFilterCorner.filter(*laserCloudCornerFromMapDS);
    laserCloudCornerFromMapDSNum = laserCloudCornerFromMapDS->size();
    // Downsample the surrounding surf key frames (or map)
    downSizeFilterSurf.setInputCloud(laserCloudSurfFromMap);
    downSizeFilterSurf.filter(*laserCloudSurfFromMapDS);
    laserCloudSurfFromMapDSNum = laserCloudSurfFromMapDS->size();
  }

  void extractSurroundingKeyFrames() {
    if (cloudKeyPoses3D->points.empty() == true)
      return;

    // 检测到了回环就提取回环帧,否则提取附近点云
    // 第一次进来loopClosureEnableFlag = false, 直接提取附近关键帧
    if (loopClosureEnableFlag == true) {
      extractForLoopClosure();
    } else {
      extractNearby();
    }
  }

  void downsampleCurrentScan() {
    // Downsample cloud from current scan
    laserCloudCornerLastDS->clear();
    downSizeFilterCorner.setInputCloud(laserCloudCornerLast);
    downSizeFilterCorner.filter(*laserCloudCornerLastDS);
    laserCloudCornerLastDSNum = laserCloudCornerLastDS->size();

    laserCloudSurfLastDS->clear();
    downSizeFilterSurf.setInputCloud(laserCloudSurfLast);
    downSizeFilterSurf.filter(*laserCloudSurfLastDS);
    laserCloudSurfLastDSNum = laserCloudSurfLastDS->size();
  }

  void updatePointAssociateToMap() {
    // 根据初始位姿将点云转换到Map系下
    transPointAssociateToMap = trans2Affine3f(transformTobeMapped);
  }

  void cornerOptimization() {
    updatePointAssociateToMap(); // 将points转到地图系

#pragma omp parallel for num_threads(numberOfCores)
    // 遍历点云, 构建点到直线的约束
    for (int i = 0; i < laserCloudCornerLastDSNum; i++) {
      PointType pointOri, pointSel, coeff;
      std::vector<int> pointSearchInd;
      std::vector<float> pointSearchSqDis;

      // 在map中搜索当前点的5个紧邻点
      pointOri = laserCloudCornerLastDS->points[i];
      pointAssociateToMap(&pointOri, &pointSel);
      kdtreeCornerFromMap->nearestKSearch(pointSel, 5, pointSearchInd, pointSearchSqDis);

      cv::Mat matA1(3, 3, CV_32F, cv::Scalar::all(0));
      cv::Mat matD1(1, 3, CV_32F, cv::Scalar::all(0));
      cv::Mat matV1(3, 3, CV_32F, cv::Scalar::all(0));

      // 只有最近的点都在一定阈值内(1米)才进行计算
      if (pointSearchSqDis[4] < 1.0) {
        float cx = 0, cy = 0, cz = 0;
        for (int j = 0; j < 5; j++) {
          cx += laserCloudCornerFromMapDS->points[pointSearchInd[j]].x;
          cy += laserCloudCornerFromMapDS->points[pointSearchInd[j]].y;
          cz += laserCloudCornerFromMapDS->points[pointSearchInd[j]].z;
        }
        // 计算其算数平均值/均值
        cx /= 5;
        cy /= 5;
        cz /= 5;

        // 计算协方差
        float a11 = 0, a12 = 0, a13 = 0, a22 = 0, a23 = 0, a33 = 0;
        for (int j = 0; j < 5; j++) {
          float ax = laserCloudCornerFromMapDS->points[pointSearchInd[j]].x - cx;
          float ay = laserCloudCornerFromMapDS->points[pointSearchInd[j]].y - cy;
          float az = laserCloudCornerFromMapDS->points[pointSearchInd[j]].z - cz;

          a11 += ax * ax;
          a12 += ax * ay;
          a13 += ax * az;
          a22 += ay * ay;
          a23 += ay * az;
          a33 += az * az;
        }
        a11 /= 5;
        a12 /= 5;
        a13 /= 5;
        a22 /= 5;
        a23 /= 5;
        a33 /= 5;

        matA1.at<float>(0, 0) = a11;
        matA1.at<float>(0, 1) = a12;
        matA1.at<float>(0, 2) = a13;
        matA1.at<float>(1, 0) = a12;
        matA1.at<float>(1, 1) = a22;
        matA1.at<float>(1, 2) = a23;
        matA1.at<float>(2, 0) = a13;
        matA1.at<float>(2, 1) = a23;
        matA1.at<float>(2, 2) = a33;

        // 求协方差矩阵的特征值和特征向量, 特征值:matD1,特征向量:保存在矩阵matV1中。
        cv::eigen(matA1, matD1, matV1);

        // 其中一个特征值远远大于其他两个,则呈线状
        if (matD1.at<float>(0, 0) > 3 * matD1.at<float>(0, 1)) {
          float x0 = pointSel.x;
          float y0 = pointSel.y;
          float z0 = pointSel.z;
          float x1 = cx + 0.1 * matV1.at<float>(0, 0);
          float y1 = cy + 0.1 * matV1.at<float>(0, 1);
          float z1 = cz + 0.1 * matV1.at<float>(0, 2);
          float x2 = cx - 0.1 * matV1.at<float>(0, 0);
          float y2 = cy - 0.1 * matV1.at<float>(0, 1);
          float z2 = cz - 0.1 * matV1.at<float>(0, 2);

          // 与里程计的计算类似,计算到直线的距离
          float a012 = sqrt(((x0 - x1) * (y0 - y2) - (x0 - x2) * (y0 - y1)) *
              ((x0 - x1) * (y0 - y2) - (x0 - x2) * (y0 - y1))
                                + ((x0 - x1) * (z0 - z2) - (x0 - x2) * (z0 - z1)) *
                                    ((x0 - x1) * (z0 - z2) - (x0 - x2) * (z0 - z1))
                                + ((y0 - y1) * (z0 - z2) - (y0 - y2) * (z0 - z1)) *
                                    ((y0 - y1) * (z0 - z2) - (y0 - y2) * (z0 - z1)));

          float l12 = sqrt((x1 - x2) * (x1 - x2) + (y1 - y2) * (y1 - y2) + (z1 - z2) * (z1 - z2));

          float la = ((y1 - y2) * ((x0 - x1) * (y0 - y2) - (x0 - x2) * (y0 - y1))
              + (z1 - z2) * ((x0 - x1) * (z0 - z2) - (x0 - x2) * (z0 - z1))) / a012 / l12;

          float lb = -((x1 - x2) * ((x0 - x1) * (y0 - y2) - (x0 - x2) * (y0 - y1))
              - (z1 - z2) * ((y0 - y1) * (z0 - z2) - (y0 - y2) * (z0 - z1))) / a012 / l12;

          float lc = -((x1 - x2) * ((x0 - x1) * (z0 - z2) - (x0 - x2) * (z0 - z1))
              + (y1 - y2) * ((y0 - y1) * (z0 - z2) - (y0 - y2) * (z0 - z1))) / a012 / l12;

          float ld2 = a012 / l12;

          // 下面涉及到一个鲁棒核函数,作者简单地设计了这个核函数。
          float s = 1 - 0.9 * fabs(ld2);

          coeff.x = s * la;
          coeff.y = s * lb;
          coeff.z = s * lc;
          coeff.intensity = s * ld2;

          // 程序末尾根据s的值来判断是否将点云点放入点云集合laserCloudOri以及coeffSel中。
          if (s > 0.1) {
            laserCloudOriCornerVec[i] = pointOri;
            coeffSelCornerVec[i] = coeff;
            laserCloudOriCornerFlag[i] = true;
          }
        }
      }
    }
  }

  void surfOptimization() {
    updatePointAssociateToMap();

#pragma omp parallel for num_threads(numberOfCores)
    for (int i = 0; i < laserCloudSurfLastDSNum; i++) {
      PointType pointOri, pointSel, coeff;
      std::vector<int> pointSearchInd;
      std::vector<float> pointSearchSqDis;

      // 寻找5个紧邻点, 计算其特征值和特征向量
      pointOri = laserCloudSurfLastDS->points[i];
      pointAssociateToMap(&pointOri, &pointSel);
      kdtreeSurfFromMap->nearestKSearch(pointSel, 5, pointSearchInd, pointSearchSqDis);

      Eigen::Matrix<float, 5, 3> matA0;
      Eigen::Matrix<float, 5, 1> matB0;
      Eigen::Vector3f matX0;

      matA0.setZero();  // 5*3 存储5个紧邻点
      matB0.fill(-1);
      matX0.setZero();

      // 只考虑附近1.0m内
      if (pointSearchSqDis[4] < 1.0) {
        for (int j = 0; j < 5; j++) {
          matA0(j, 0) = laserCloudSurfFromMapDS->points[pointSearchInd[j]].x;
          matA0(j, 1) = laserCloudSurfFromMapDS->points[pointSearchInd[j]].y;
          matA0(j, 2) = laserCloudSurfFromMapDS->points[pointSearchInd[j]].z;
        }

        // 求maxA0中点构成的平面法向量
        matX0 = matA0.colPivHouseholderQr().solve(matB0);

        // 法向量参数 ax+by+cz +d = 0
        float pa = matX0(0, 0);
        float pb = matX0(1, 0);
        float pc = matX0(2, 0);
        float pd = 1;

        float ps = sqrt(pa * pa + pb * pb + pc * pc);
        pa /= ps;
        pb /= ps;
        pc /= ps;
        pd /= ps;

        // 这里再次判断求解的方向向量和每个点相乘,最后结果是不是在误差范围内。
        bool planeValid = true;
        for (int j = 0; j < 5; j++) {
          if (fabs(pa * laserCloudSurfFromMapDS->points[pointSearchInd[j]].x +
              pb * laserCloudSurfFromMapDS->points[pointSearchInd[j]].y +
              pc * laserCloudSurfFromMapDS->points[pointSearchInd[j]].z + pd) > 0.2) {
            planeValid = false;
            break;
          }
        }

        // 是有效的平面
        if (planeValid) {
          float pd2 = pa * pointSel.x + pb * pointSel.y + pc * pointSel.z + pd;

          float s = 1 - 0.9 * fabs(pd2) / sqrt(sqrt(pointSel.x * pointSel.x
                                                        + pointSel.y * pointSel.y + pointSel.z * pointSel.z));

          coeff.x = s * pa;
          coeff.y = s * pb;
          coeff.z = s * pc;
          coeff.intensity = s * pd2;

          // 误差在允许的范围内的话把这个点放到点云laserCloudOri中去,把对应的向量coeff放到coeffSel中
          if (s > 0.1) {
            laserCloudOriSurfVec[i] = pointOri;
            coeffSelSurfVec[i] = coeff;
            laserCloudOriSurfFlag[i] = true;
          }
        }
      }
    }
  }

  void combineOptimizationCoeffs() {
    // 把两类损失和协方差丢到laserCloudOri和coeffSel中, 后续进行联合优化
    // combine corner coeffs
    for (int i = 0; i < laserCloudCornerLastDSNum; ++i) {
      if (laserCloudOriCornerFlag[i] == true) {
        laserCloudOri->push_back(laserCloudOriCornerVec[i]);
        coeffSel->push_back(coeffSelCornerVec[i]);
      }
    }
    // combine surf coeffs
    for (int i = 0; i < laserCloudSurfLastDSNum; ++i) {
      if (laserCloudOriSurfFlag[i] == true) {
        laserCloudOri->push_back(laserCloudOriSurfVec[i]);
        coeffSel->push_back(coeffSelSurfVec[i]);
      }
    }
    // reset flag for next iteration 重置参数, 下一帧还要继续用
    std::fill(laserCloudOriCornerFlag.begin(), laserCloudOriCornerFlag.end(), false);
    std::fill(laserCloudOriSurfFlag.begin(), laserCloudOriSurfFlag.end(), false);
  }

  bool LMOptimization(int iterCount) {
    // This optimization is from the original loam_velodyne by Ji Zhang, need to cope with coordinate transformation
    // lidar <- camera      ---     camera <- lidar
    // x = z                ---     x = y
    // y = x                ---     y = z
    // z = y                ---     z = x
    // roll = yaw           ---     roll = pitch
    // pitch = roll         ---     pitch = yaw
    // yaw = pitch          ---     yaw = roll

    // 高斯牛顿优化, 参考LOAM
    // lidar -> camera
    float srx = sin(transformTobeMapped[1]);
    float crx = cos(transformTobeMapped[1]);
    float sry = sin(transformTobeMapped[2]);
    float cry = cos(transformTobeMapped[2]);
    float srz = sin(transformTobeMapped[0]);
    float crz = cos(transformTobeMapped[0]);

    // 初次优化时,特征值门限设置为50,小于这个值认为是退化了,修改matX,matX=matP*matX2
    int laserCloudSelNum = laserCloudOri->size();
    if (laserCloudSelNum < 50) {
      return false;
    }

    cv::Mat matA(laserCloudSelNum, 6, CV_32F, cv::Scalar::all(0));
    cv::Mat matAt(6, laserCloudSelNum, CV_32F, cv::Scalar::all(0));
    cv::Mat matAtA(6, 6, CV_32F, cv::Scalar::all(0));
    cv::Mat matB(laserCloudSelNum, 1, CV_32F, cv::Scalar::all(0));
    cv::Mat matAtB(6, 1, CV_32F, cv::Scalar::all(0));
    cv::Mat matX(6, 1, CV_32F, cv::Scalar::all(0));
    cv::Mat matP(6, 6, CV_32F, cv::Scalar::all(0));

    PointType pointOri, coeff;

    for (int i = 0; i < laserCloudSelNum; i++) {
      // lidar -> camera
      pointOri.x = laserCloudOri->points[i].y;
      pointOri.y = laserCloudOri->points[i].z;
      pointOri.z = laserCloudOri->points[i].x;
      // lidar -> camera
      coeff.x = coeffSel->points[i].y;
      coeff.y = coeffSel->points[i].z;
      coeff.z = coeffSel->points[i].x;
      coeff.intensity = coeffSel->points[i].intensity;
      // in camera
      // 计算雅克比
      float arx = (crx * sry * srz * pointOri.x + crx * crz * sry * pointOri.y - srx * sry * pointOri.z) * coeff.x
          + (-srx * srz * pointOri.x - crz * srx * pointOri.y - crx * pointOri.z) * coeff.y
          + (crx * cry * srz * pointOri.x + crx * cry * crz * pointOri.y - cry * srx * pointOri.z) *
              coeff.z;

      float ary = ((cry * srx * srz - crz * sry) * pointOri.x
          + (sry * srz + cry * crz * srx) * pointOri.y + crx * cry * pointOri.z) * coeff.x
          + ((-cry * crz - srx * sry * srz) * pointOri.x
              + (cry * srz - crz * srx * sry) * pointOri.y - crx * sry * pointOri.z) * coeff.z;

      float arz =
          ((crz * srx * sry - cry * srz) * pointOri.x + (-cry * crz - srx * sry * srz) * pointOri.y) * coeff.x
              + (crx * crz * pointOri.x - crx * srz * pointOri.y) * coeff.y
              +
                  ((sry * srz + cry * crz * srx) * pointOri.x + (crz * sry - cry * srx * srz) * pointOri.y) * coeff.z;
      // lidar -> camera
      matA.at<float>(i, 0) = arz;
      matA.at<float>(i, 1) = arx;
      matA.at<float>(i, 2) = ary;
      matA.at<float>(i, 3) = coeff.z;
      matA.at<float>(i, 4) = coeff.x;
      matA.at<float>(i, 5) = coeff.y;
      matB.at<float>(i, 0) = -coeff.intensity;
    }

    cv::transpose(matA, matAt);
    matAtA = matAt * matA;
    matAtB = matAt * matB;
    cv::solve(matAtA, matAtB, matX, cv::DECOMP_QR);

    if (iterCount == 0) {

      cv::Mat matE(1, 6, CV_32F, cv::Scalar::all(0));
      cv::Mat matV(6, 6, CV_32F, cv::Scalar::all(0));
      cv::Mat matV2(6, 6, CV_32F, cv::Scalar::all(0));

      cv::eigen(matAtA, matE, matV);
      matV.copyTo(matV2);

      isDegenerate = false;
      float eignThre[6] = {100, 100, 100, 100, 100, 100};
      for (int i = 5; i >= 0; i--) {
        if (matE.at<float>(0, i) < eignThre[i]) {
          for (int j = 0; j < 6; j++) {
            matV2.at<float>(i, j) = 0;
          }
          isDegenerate = true;
        } else {
          break;
        }
      }
      matP = matV.inv() * matV2;
    }

    if (isDegenerate) {
      cv::Mat matX2(6, 1, CV_32F, cv::Scalar::all(0));
      matX.copyTo(matX2);
      matX = matP * matX2;
    }

    transformTobeMapped[0] += matX.at<float>(0, 0);
    transformTobeMapped[1] += matX.at<float>(1, 0);
    transformTobeMapped[2] += matX.at<float>(2, 0);
    transformTobeMapped[3] += matX.at<float>(3, 0);
    transformTobeMapped[4] += matX.at<float>(4, 0);
    transformTobeMapped[5] += matX.at<float>(5, 0);

    float deltaR = sqrt(
        pow(pcl::rad2deg(matX.at<float>(0, 0)), 2) +
            pow(pcl::rad2deg(matX.at<float>(1, 0)), 2) +
            pow(pcl::rad2deg(matX.at<float>(2, 0)), 2));
    float deltaT = sqrt(
        pow(matX.at<float>(3, 0) * 100, 2) +
            pow(matX.at<float>(4, 0) * 100, 2) +
            pow(matX.at<float>(5, 0) * 100, 2));

    // 在判断是否是有效的优化时,要求旋转部分的模长小于0.05m,平移部分的模长也小于0.05度
    if (deltaR < 0.05 && deltaT < 0.05) {
      return true; // converged
    }
    return false; // keep optimizing
  }

  void scan2MapOptimization() {
    if (cloudKeyPoses3D->points.empty())
      return;

    //  特征需要满足一定要求才可以进行
    if (laserCloudCornerLastDSNum > edgeFeatureMinValidNum && laserCloudSurfLastDSNum > surfFeatureMinValidNum) {
      // 构建kdtree搜索的map, 两类
      kdtreeCornerFromMap->setInputCloud(laserCloudCornerFromMapDS);
      kdtreeSurfFromMap->setInputCloud(laserCloudSurfFromMapDS);

      // 迭代30次进行优化
      for (int iterCount = 0; iterCount < 30; iterCount++) {
        laserCloudOri->clear();
        coeffSel->clear();

        // 点到平面, 点到直线的残差, 这里写法还与aloam有点区别
        cornerOptimization();
        surfOptimization();

        // 联合两类的残差
        combineOptimizationCoeffs();

        // 高斯牛顿法迭代优化
        if (LMOptimization(iterCount) == true)
          break;
      }

      // 更新transform
      transformUpdate();
    } else {
      ROS_WARN("Not enough features! Only %d edge and %d planar features available.", laserCloudCornerLastDSNum,
               laserCloudSurfLastDSNum);
    }
  }

  void transformUpdate() {
    // IMU可用的话更新transformTobeMapped
    if (cloudInfo.imuAvailable == true) {
      if (std::abs(cloudInfo.imuPitchInit) < 1.4) {
        double imuWeight = 0.05;
        tf::Quaternion imuQuaternion;
        tf::Quaternion transformQuaternion;
        double rollMid, pitchMid, yawMid;

        // slerp roll
        transformQuaternion.setRPY(transformTobeMapped[0], 0, 0);
        imuQuaternion.setRPY(cloudInfo.imuRollInit, 0, 0);
        // 线性插值
        tf::Matrix3x3(transformQuaternion.slerp(imuQuaternion, imuWeight)).getRPY(rollMid, pitchMid, yawMid);
        transformTobeMapped[0] = rollMid;

        // slerp pitch
        transformQuaternion.setRPY(0, transformTobeMapped[1], 0);
        imuQuaternion.setRPY(0, cloudInfo.imuPitchInit, 0);
        tf::Matrix3x3(transformQuaternion.slerp(imuQuaternion, imuWeight)).getRPY(rollMid, pitchMid, yawMid);
        transformTobeMapped[1] = pitchMid;
      }
    }

    transformTobeMapped[0] = constraintTransformation(transformTobeMapped[0], rotation_tollerance);
    transformTobeMapped[1] = constraintTransformation(transformTobeMapped[1], rotation_tollerance);
    transformTobeMapped[5] = constraintTransformation(transformTobeMapped[5], z_tollerance);
  }

  float constraintTransformation(float value, float limit) {
    if (value < -limit)
      value = -limit;
    if (value > limit)
      value = limit;

    return value;
  }

  bool saveFrame() {
    if (cloudKeyPoses3D->points.empty())
      return true;

    Eigen::Affine3f transStart = pclPointToAffine3f(cloudKeyPoses6D->back());
    Eigen::Affine3f transFinal = pcl::getTransformation(transformTobeMapped[3], transformTobeMapped[4],
                                                        transformTobeMapped[5],
                                                        transformTobeMapped[0], transformTobeMapped[1],
                                                        transformTobeMapped[2]);
    Eigen::Affine3f transBetween = transStart.inverse() * transFinal;
    float x, y, z, roll, pitch, yaw;
    pcl::getTranslationAndEulerAngles(transBetween, x, y, z, roll, pitch, yaw);

    if (abs(roll) < surroundingkeyframeAddingAngleThreshold &&
        abs(pitch) < surroundingkeyframeAddingAngleThreshold &&
        abs(yaw) < surroundingkeyframeAddingAngleThreshold &&
        sqrt(x * x + y * y + z * z) < surroundingkeyframeAddingDistThreshold)
      return false;

    return true;
  }

  void addOdomFactor() {
    if (cloudKeyPoses3D->points.empty()) {
      // 第一帧进来时初始化gtsam参数
      noiseModel::Diagonal::shared_ptr priorNoise = noiseModel::Diagonal::Variances(
          (Vector(6) << 1e-2, 1e-2, M_PI * M_PI, 1e8, 1e8, 1e8).finished()); // rad*rad, meter*meter
          // 先验因子
      gtSAMgraph.add(PriorFactor<Pose3>(0, trans2gtsamPose(transformTobeMapped), priorNoise));
      initialEstimate.insert(0, trans2gtsamPose(transformTobeMapped));
    } else {
      noiseModel::Diagonal::shared_ptr odometryNoise = noiseModel::Diagonal::Variances(
          (Vector(6) << 1e-6, 1e-6, 1e-6, 1e-4, 1e-4, 1e-4).finished());
      gtsam::Pose3 poseFrom = pclPointTogtsamPose3(cloudKeyPoses6D->points.back());
      gtsam::Pose3 poseTo = trans2gtsamPose(transformTobeMapped);
      // 二元因子
      gtSAMgraph.add(
          BetweenFactor<Pose3>(cloudKeyPoses3D->size() - 1, cloudKeyPoses3D->size(), poseFrom.between(poseTo),
                               odometryNoise));
      initialEstimate.insert(cloudKeyPoses3D->size(), poseTo); // 添加值
    }
  }

  void addGPSFactor() {
    if (gpsQueue.empty())
      return;

    // wait for system initialized and settles down
    if (cloudKeyPoses3D->points.empty())
      return;
    else {
      if (pointDistance(cloudKeyPoses3D->front(), cloudKeyPoses3D->back()) < 5.0)
        return;
    }

    // pose covariance small, no need to correct
    if (poseCovariance(3, 3) < poseCovThreshold && poseCovariance(4, 4) < poseCovThreshold)
      return;

    // pose的协方差比较大的时候才去添加gps factor
    while (!gpsQueue.empty()) {
      // 时间戳对齐
      if (gpsQueue.front().header.stamp.toSec() < timeLaserCloudInfoLast - 0.2) {
        // message too old
        gpsQueue.pop_front();
      } else if (gpsQueue.front().header.stamp.toSec() > timeLaserCloudInfoLast + 0.2) {
        // message too new
        break;
      } else {
        nav_msgs::Odometry thisGPS = gpsQueue.front();
        gpsQueue.pop_front();

        // GPS too noisy, skip
        float noise_x = thisGPS.pose.covariance[0];
        float noise_y = thisGPS.pose.covariance[7];
        float noise_z = thisGPS.pose.covariance[14];
        if (noise_x > gpsCovThreshold || noise_y > gpsCovThreshold)
          continue;

        float gps_x = thisGPS.pose.pose.position.x;
        float gps_y = thisGPS.pose.pose.position.y;
        float gps_z = thisGPS.pose.pose.position.z;
        if (!useGpsElevation) {
          gps_z = transformTobeMapped[5];  // gps的z一般不可信
          noise_z = 0.01;
        }

        // GPS not properly initialized (0,0,0)
        if (abs(gps_x) < 1e-6 && abs(gps_y) < 1e-6)
          continue;

        // 添加GPS因子
        gtsam::Vector Vector3(3);
        Vector3 << noise_x, noise_y, noise_z;
        noiseModel::Diagonal::shared_ptr gps_noise = noiseModel::Diagonal::Variances(Vector3); // 噪声定义
        gtsam::GPSFactor gps_factor(cloudKeyPoses3D->size(), gtsam::Point3(gps_x, gps_y, gps_z), gps_noise);
        gtSAMgraph.add(gps_factor);

        aLoopIsClosed = true;
        break;
      }
    }
  }

  void saveKeyFramesAndFactor() {
    if (saveFrame() == false)
      return;
    // 添加各种factor、保存关键帧
    // odom factor
    addOdomFactor();

    // gps factor
    addGPSFactor();

    // cout << "****************************************************" << endl;
    // gtSAMgraph.print("GTSAM Graph:\n");

    // update iSAM
    isam->update(gtSAMgraph, initialEstimate);
    isam->update();

    // update multiple-times till converge
    if (aLoopIsClosed == true) {
      isam->update();
      isam->update();
      isam->update();
      isam->update();
      isam->update();
    }

    gtSAMgraph.resize(0);
    initialEstimate.clear();

    //save key poses
    PointType thisPose3D;
    PointTypePose thisPose6D;
    Pose3 latestEstimate;

    // 最新的pose
    isamCurrentEstimate = isam->calculateEstimate();
    latestEstimate = isamCurrentEstimate.at<Pose3>(isamCurrentEstimate.size() - 1);
    // cout << "****************************************************" << endl;
    // isamCurrentEstimate.print("Current estimate: ");

    // 这里不断的增加关键帧到cloudKeyPoses3D、cloudKeyPoses6D中
    thisPose3D.x = latestEstimate.translation().x();
    thisPose3D.y = latestEstimate.translation().y();
    thisPose3D.z = latestEstimate.translation().z();
    thisPose3D.intensity = cloudKeyPoses3D->size(); // this can be used as index
    cloudKeyPoses3D->push_back(thisPose3D);

    thisPose6D.x = thisPose3D.x;
    thisPose6D.y = thisPose3D.y;
    thisPose6D.z = thisPose3D.z;
    thisPose6D.intensity = thisPose3D.intensity; // this can be used as index
    thisPose6D.roll = latestEstimate.rotation().roll();
    thisPose6D.pitch = latestEstimate.rotation().pitch();
    thisPose6D.yaw = latestEstimate.rotation().yaw();
    thisPose6D.time = timeLaserCloudInfoLast;
    cloudKeyPoses6D->push_back(thisPose6D);

    // cout << "****************************************************" << endl;
    // cout << "Pose covariance:" << endl;
    // cout << isam->marginalCovariance(isamCurrentEstimate.size()-1) << endl << endl;
    // 边缘化得到每个变量的协方差
    poseCovariance = isam->marginalCovariance(isamCurrentEstimate.size() - 1);

    // save updated transform
    transformTobeMapped[0] = latestEstimate.rotation().roll();
    transformTobeMapped[1] = latestEstimate.rotation().pitch();
    transformTobeMapped[2] = latestEstimate.rotation().yaw();
    transformTobeMapped[3] = latestEstimate.translation().x();
    transformTobeMapped[4] = latestEstimate.translation().y();
    transformTobeMapped[5] = latestEstimate.translation().z();

    // save all the received edge and surf points
    pcl::PointCloud<PointType>::Ptr thisCornerKeyFrame(new pcl::PointCloud<PointType>());
    pcl::PointCloud<PointType>::Ptr thisSurfKeyFrame(new pcl::PointCloud<PointType>());
    pcl::copyPointCloud(*laserCloudCornerLastDS, *thisCornerKeyFrame);
    pcl::copyPointCloud(*laserCloudSurfLastDS, *thisSurfKeyFrame);

    // save key frame cloud
    cornerCloudKeyFrames.push_back(thisCornerKeyFrame);
    surfCloudKeyFrames.push_back(thisSurfKeyFrame);

    // save path for visualization
    updatePath(thisPose6D);
  }

  void correctPoses() {
    if (cloudKeyPoses3D->points.empty())
      return;

    if (aLoopIsClosed == true) {
      // clear path
      globalPath.poses.clear();
      // update key poses 更新位姿
      int numPoses = isamCurrentEstimate.size();
      for (int i = 0; i < numPoses; ++i) {
        cloudKeyPoses3D->points[i].x = isamCurrentEstimate.at<Pose3>(i).translation().x();
        cloudKeyPoses3D->points[i].y = isamCurrentEstimate.at<Pose3>(i).translation().y();
        cloudKeyPoses3D->points[i].z = isamCurrentEstimate.at<Pose3>(i).translation().z();

        cloudKeyPoses6D->points[i].x = cloudKeyPoses3D->points[i].x;
        cloudKeyPoses6D->points[i].y = cloudKeyPoses3D->points[i].y;
        cloudKeyPoses6D->points[i].z = cloudKeyPoses3D->points[i].z;
        cloudKeyPoses6D->points[i].roll = isamCurrentEstimate.at<Pose3>(i).rotation().roll();
        cloudKeyPoses6D->points[i].pitch = isamCurrentEstimate.at<Pose3>(i).rotation().pitch();
        cloudKeyPoses6D->points[i].yaw = isamCurrentEstimate.at<Pose3>(i).rotation().yaw();

        updatePath(cloudKeyPoses6D->points[i]);
      }

      aLoopIsClosed = false;
      // ID for reseting IMU pre-integration
      ++imuPreintegrationResetId;
    }
  }

  void updatePath(const PointTypePose &pose_in) {
    geometry_msgs::PoseStamped pose_stamped;
    pose_stamped.header.stamp = timeLaserInfoStamp;
    pose_stamped.header.frame_id = "odom";
    pose_stamped.pose.position.x = pose_in.x;
    pose_stamped.pose.position.y = pose_in.y;
    pose_stamped.pose.position.z = pose_in.z;
    tf::Quaternion q = tf::createQuaternionFromRPY(pose_in.roll, pose_in.pitch, pose_in.yaw);
    pose_stamped.pose.orientation.x = q.x();
    pose_stamped.pose.orientation.y = q.y();
    pose_stamped.pose.orientation.z = q.z();
    pose_stamped.pose.orientation.w = q.w();

    globalPath.poses.push_back(pose_stamped);
  }

  void publishOdometry() {
    // Publish odometry for ROS
    nav_msgs::Odometry laserOdometryROS;
    laserOdometryROS.header.stamp = timeLaserInfoStamp;
    laserOdometryROS.header.frame_id = "odom";
    laserOdometryROS.child_frame_id = "odom_mapping";
    laserOdometryROS.pose.pose.position.x = transformTobeMapped[3];
    laserOdometryROS.pose.pose.position.y = transformTobeMapped[4];
    laserOdometryROS.pose.pose.position.z = transformTobeMapped[5];
    laserOdometryROS.pose.pose.orientation = tf::createQuaternionMsgFromRollPitchYaw(transformTobeMapped[0],
                                                                                     transformTobeMapped[1],
                                                                                     transformTobeMapped[2]);
    laserOdometryROS.pose.covariance[0] = double(imuPreintegrationResetId);
    pubOdomAftMappedROS.publish(laserOdometryROS);
  }

  void publishFrames() {
    if (cloudKeyPoses3D->points.empty())
      return;
    // publish key poses
    publishCloud(&pubKeyPoses, cloudKeyPoses3D, timeLaserInfoStamp, "odom");
    // Publish surrounding key frames
    publishCloud(&pubRecentKeyFrames, laserCloudSurfFromMapDS, timeLaserInfoStamp, "odom");
    // publish registered key frame
    if (pubRecentKeyFrame.getNumSubscribers() != 0) {
      pcl::PointCloud<PointType>::Ptr cloudOut(new pcl::PointCloud<PointType>());
      PointTypePose thisPose6D = trans2PointTypePose(transformTobeMapped);
      *cloudOut += *transformPointCloud(laserCloudCornerLastDS, &thisPose6D);
      *cloudOut += *transformPointCloud(laserCloudSurfLastDS, &thisPose6D);
      publishCloud(&pubRecentKeyFrame, cloudOut, timeLaserInfoStamp, "odom");
    }
    // publish registered high-res raw cloud
    if (pubCloudRegisteredRaw.getNumSubscribers() != 0) {
      pcl::PointCloud<PointType>::Ptr cloudOut(new pcl::PointCloud<PointType>());
      pcl::fromROSMsg(cloudInfo.cloud_deskewed, *cloudOut);
      PointTypePose thisPose6D = trans2PointTypePose(transformTobeMapped);
      *cloudOut = *transformPointCloud(cloudOut, &thisPose6D);
      publishCloud(&pubCloudRegisteredRaw, cloudOut, timeLaserInfoStamp, "odom");
    }
    // publish path
    if (pubPath.getNumSubscribers() != 0) {
      globalPath.header.stamp = timeLaserInfoStamp;
      globalPath.header.frame_id = "odom";
      pubPath.publish(globalPath);
    }
  }

 public:
  // gtsam
  NonlinearFactorGraph gtSAMgraph;
  Values initialEstimate;
  Values optimizedEstimate;
  ISAM2 *isam;
  Values isamCurrentEstimate;
  Eigen::MatrixXd poseCovariance;

  ros::Publisher pubLaserCloudSurround;
  ros::Publisher pubOdomAftMappedROS;
  ros::Publisher pubKeyPoses;
  ros::Publisher pubPath;

  ros::Publisher pubHistoryKeyFrames;
  ros::Publisher pubIcpKeyFrames;
  ros::Publisher pubRecentKeyFrames;
  ros::Publisher pubRecentKeyFrame;
  ros::Publisher pubCloudRegisteredRaw;

  ros::Subscriber subLaserCloudInfo;
  ros::Subscriber subGPS;

  std::deque<nav_msgs::Odometry> gpsQueue;
  lio_sam::cloud_info cloudInfo;

  vector<pcl::PointCloud<PointType>::Ptr> cornerCloudKeyFrames;
  vector<pcl::PointCloud<PointType>::Ptr> surfCloudKeyFrames;

  pcl::PointCloud<PointType>::Ptr cloudKeyPoses3D;
  pcl::PointCloud<PointTypePose>::Ptr cloudKeyPoses6D;

  pcl::PointCloud<PointType>::Ptr laserCloudCornerLast; // corner feature set from odoOptimization
  pcl::PointCloud<PointType>::Ptr laserCloudSurfLast; // surf feature set from odoOptimization
  pcl::PointCloud<PointType>::Ptr laserCloudCornerLastDS; // downsampled corner featuer set from odoOptimization
  pcl::PointCloud<PointType>::Ptr laserCloudSurfLastDS; // downsampled surf featuer set from odoOptimization

  pcl::PointCloud<PointType>::Ptr laserCloudOri;
  pcl::PointCloud<PointType>::Ptr coeffSel;

  std::vector<PointType> laserCloudOriCornerVec; // corner point holder for parallel computation
  std::vector<PointType> coeffSelCornerVec;
  std::vector<bool> laserCloudOriCornerFlag;
  std::vector<PointType> laserCloudOriSurfVec; // surf point holder for parallel computation
  std::vector<PointType> coeffSelSurfVec;
  std::vector<bool> laserCloudOriSurfFlag;

  pcl::PointCloud<PointType>::Ptr laserCloudCornerFromMap;
  pcl::PointCloud<PointType>::Ptr laserCloudSurfFromMap;
  pcl::PointCloud<PointType>::Ptr laserCloudCornerFromMapDS;
  pcl::PointCloud<PointType>::Ptr laserCloudSurfFromMapDS;

  pcl::KdTreeFLANN<PointType>::Ptr kdtreeCornerFromMap;
  pcl::KdTreeFLANN<PointType>::Ptr kdtreeSurfFromMap;

  pcl::KdTreeFLANN<PointType>::Ptr kdtreeSurroundingKeyPoses;
  pcl::KdTreeFLANN<PointType>::Ptr kdtreeHistoryKeyPoses;

  pcl::PointCloud<PointType>::Ptr latestKeyFrameCloud;
  pcl::PointCloud<PointType>::Ptr nearHistoryKeyFrameCloud;

  pcl::VoxelGrid<PointType> downSizeFilterCorner;
  pcl::VoxelGrid<PointType> downSizeFilterSurf;
  pcl::VoxelGrid<PointType> downSizeFilterICP;
  pcl::VoxelGrid<PointType> downSizeFilterSurroundingKeyPoses; // for surrounding key poses of scan-to-map optimization

  ros::Time timeLaserInfoStamp;
  double timeLaserCloudInfoLast;

  float transformTobeMapped[6];

  std::mutex mtx;

  double timeLastProcessing = -1;

  bool isDegenerate = false;
  Eigen::Matrix<float, 6, 6> matP;

  int laserCloudCornerFromMapDSNum = 0;
  int laserCloudSurfFromMapDSNum = 0;
  int laserCloudCornerLastDSNum = 0;
  int laserCloudSurfLastDSNum = 0;

  bool aLoopIsClosed = false;
  int imuPreintegrationResetId = 0;

  nav_msgs::Path globalPath;

  Eigen::Affine3f transPointAssociateToMap;

  Eigen::Affine3f lastImuTransformation;

};

int main(int argc, char **argv) {
  ros::init(argc, argv, "lio_sam");

  mapOptimization MO;

  ROS_INFO("\033[1;32m----> Map Optimization Started.\033[0m");

  // 两个线程,一边按固定的频率进行回环检测、添加约束边,另外一边进行地图发布和保存
  std::thread loopthread(&mapOptimization::loopClosureThread, &MO);
  std::thread visualizeMapThread(&mapOptimization::visualizeGlobalMapThread, &MO);

  // 这里不间断的执行callback
  ros::spin();

  return 0;
}



  • 89
    点赞
  • 661
    收藏
    觉得还不错? 一键收藏
  • 91
    评论
评论 91
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
