三维点云学习（9）5-实现RANSAC Registration配准
参考博客：
机器视觉之 ICP算法和RANSAC算法
三维点云配准
ICP点云配准原理及优化
本章因个人能力有限，大部分代码摘自github大神的code
数据集
链接：https://pan.baidu.com/s/11OhSCA2Ck-WA6_b-iCNsfA
提取码：hyi3
效果图：
本次以 数据集 643.bin ; 456.bin为例

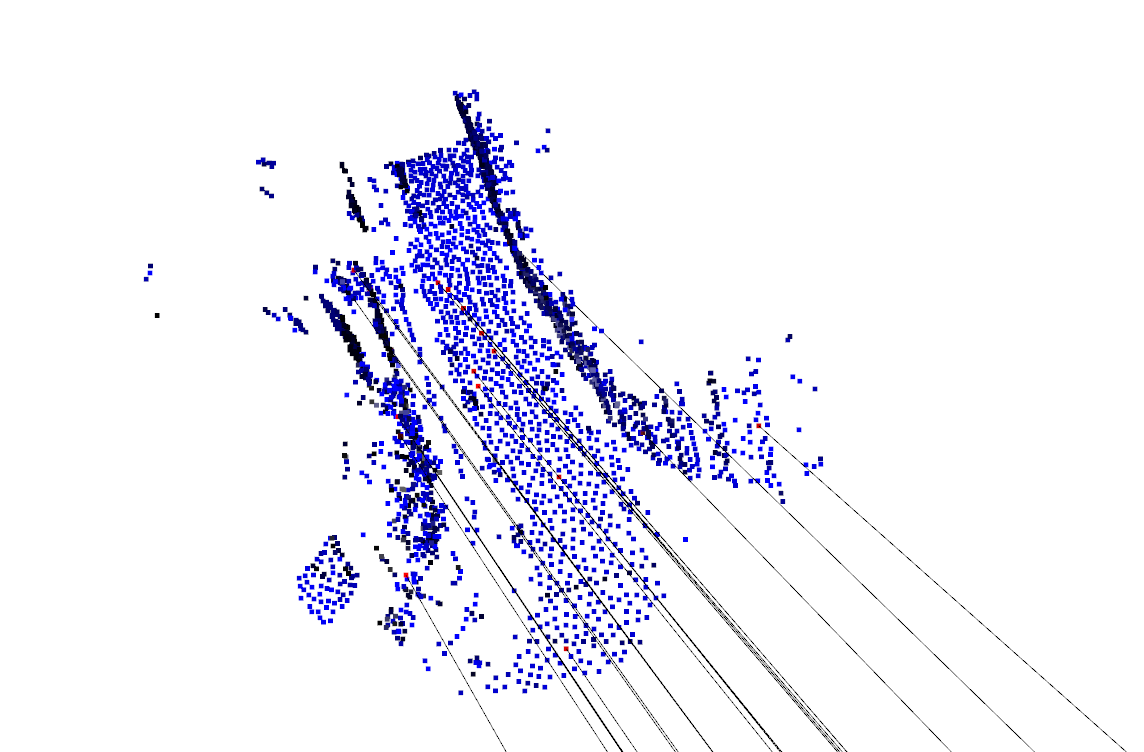

蓝色和绿色分别为 source 点云图和 target 点云图；彩色为经过配准后拼接效果图，黑色为 特征点与特征点之间的连线
189.bin 270.bin
编码思路：
step1 读取数据
step2 对点云进行降采样downsample
step3 iss 特征点提取
step4 fpfh特征点描述 feature description
step5 RANSAC Registration,初配准、得到初始旋转、平移矩阵
step5.1 Establish correspondences(point pairs) 建立 pairs
step5.2 select 4 pairs at each iteration,选择4对corresponding 进行模型拟合
step5.3 iter 迭代， iter_match() ,选择出 vaild T
step6 ICP for refined estimation,优化配准 ICP对初始T进行迭代优化:
部分编码模块
svd 求解选准平移矩阵
def solve_procrustes_transf(P,Q): # 求解平移旋转矩阵 solve_procrustes_transformation
up = P.mean(axis=0)
uq = Q.mean(axis=0)
# move to center:
P_centered = P - up
Q_centered = Q - uq
U, s, V = np.linalg.svd(np.dot(Q_centered.T, P_centered), full_matrices=True, compute_uv=True)
R = np.dot(U, V)
t = uq - np.dot(R, up)
# format as transform:
T = np.zeros((4, 4))
T[0:3, 0:3] = R
T[0:3, 3] = t
T[3, 3] = 1.0
return T
ransac 初配准
def ransac_match(
idx_target,idx_source,
pcd_source, pcd_target,
feature_source, feature_target,
ransac_params, checker_params
):
#step5.1 Establish correspondences(point pairs) 建立 pairs
matches = get_init_matches(feature_source, feature_target) #通过 fpfh 建立的feature squre map 建立最初的 pairs
##build search tree on the target:
search_tree_target = o3d.geometry.KDTreeFlann(pcd_target)
N, _ = matches.shape
idx_matches = np.arange(N) #对每队 pair 打标签
T = None #translation martix
#step5.2 select 4 pairs at each iteration,选择4对corresponding 进行模型拟合
proposal_generator = (
matches[np.random.choice(idx_matches, ransac_params.num_samples, replace=False)] for _ in iter(int, 1)
)
##step5.3 iter 迭代， iter_match() ,选择出 vaild T
validator = lambda proposal: iter_match(idx_target,idx_source,pcd_source, pcd_target, proposal, checker_params)
with concurrent.futures.ThreadPoolExecutor(max_workers=ransac_params.max_workers) as executor:
for T in map(
validator,
proposal_generator #map()是 Python 内置的高阶函数，它接收一个函数 f 和一个 list，并通过把函数 f 依次作用在 list 的每个元素上，得到一个新的 list 并返回。
):
print(T)
if not (T is None):
break
#set baseline
print('[RANSAC ICP]: Get first valid proposal. Start registration...')
best_result = icp_exact_match(
pcd_source, pcd_target, search_tree_target,
T,
ransac_params.max_correspondence_distance,
ransac_params.max_refinement
)
# RANSAC:
num_validation = 0
for i in range(ransac_params.max_iteration):
# get proposal:
T = validator(next(proposal_generator))
# check validity:
if (not (T is None)) and (num_validation < ransac_params.max_validation):
num_validation += 1
# refine estimation on all keypoints:
result = icp_exact_match(
pcd_source, pcd_target, search_tree_target,
T,
ransac_params.max_correspondence_distance,
ransac_params.max_refinement
)
# update best result:
best_result = best_result if best_result.fitness > result.fitness else result
if num_validation == ransac_params.max_validation:
break
return best_result
ICP配准优化
def icp_exact_match(
pcd_source, pcd_target, search_tree_target,
T,
max_correspondence_distance, max_iteration
):
# num. points in the source:
N = len(pcd_source.points)
# evaluate relative change for early stopping:
result_prev = result_curr = o3d.registration.evaluate_registration(
pcd_source, pcd_target, max_correspondence_distance, T
)
for _ in range(max_iteration):
# TODO: transform is actually an in-place operation. deep copy first otherwise the result will be WRONG
pcd_source_current = copy.deepcopy(pcd_source)
# apply transform:
pcd_source_current = pcd_source_current.transform(T)
# find correspondence:
matches = []
for n in range(N):
query = np.asarray(pcd_source_current.points)[n]
_, idx_nn_target, dis_nn_target = search_tree_target.search_knn_vector_3d(query, 1)
if dis_nn_target[0] <= max_correspondence_distance:
matches.append(
[n, idx_nn_target[0]]
)
matches = np.asarray(matches)
#icp
if len(matches) >= 4:
# sovle ICP:
P = np.asarray(pcd_source.points)[matches[:, 0]]
Q = np.asarray(pcd_target.points)[matches[:, 1]]
T = solve_procrustes_transf(P, Q)
# evaluate:
result_curr = o3d.registration.evaluate_registration(
pcd_source, pcd_target, max_correspondence_distance, T
)
# if no significant improvement:提前中止
if shall_terminate(result_curr, result_prev):
print('[RANSAC ICP]: Early stopping.')
break
return result_curr
全部代码：(utils/io.py、utils/visualize.py、main.py、RANSAC.py、ICP.pyiss.py)
main.py
import os
import argparse
import progressbar
import collections
import numpy as np
import open3d as o3d
#IO utils:
import utils.io as io
import utils.visualize as visualize
import matplotlib.pyplot as plt
#导入iss feature detection 模块
from iss import detect
from RANSAC import ransac_match
from ICP import icp_exact_match
#RANSAC configuration:
RANSACParams = collections.namedtuple(
'RANSACParams',
[
'max_workers',
'num_samples',
'max_correspondence_distance', 'max_iteration', 'max_validation', 'max_refinement'
]
)
# fast pruning algorithm configuration:
CheckerParams = collections.namedtuple(
'CheckerParams',
['max_correspondence_distance', 'max_edge_length_ratio', 'normal_angle_threshold']
)
if __name__ == '__main__':
radius = 0.5
#step1 读取数据
input_dir = "registration_dataset"
registration_results = io.read_registration_results(os.path.join(input_dir,'reg_result.txt')) #读取 reg_result.txt 结果
##init output
df_output = io.init_output()
##批量读取
# for i,r in (
# list(registration_results.iterrows())
# ):
# idx_target = int(r['idx1'])
# idx_source = int(r['idx2'])
idx_target = 643
idx_source = 456
##load point cloud
pcd_source = io.read_point_cloud_bin(
os.path.join(input_dir,'point_clouds',f'{idx_source}.bin')
)
pcd_target = io.read_point_cloud_bin(
os.path.join(input_dir,'point_clouds',f'{idx_target}.bin')
)
#step2 对点云进行降采样downsample
pcd_source,idx_inliers = pcd_source.remove_radius_outlier(nb_points=4,radius=radius)
pcd_target, idx_inliers = pcd_target.remove_radius_outlier(nb_points=4, radius=radius)
## 构建 kd-tree
search_tree_source = o3d.geometry.KDTreeFlann(pcd_source)
search_tree_target = o3d.geometry.KDTreeFlann(pcd_target)
#step3 iss 特征点提取
keypoints_source = detect(pcd_source, search_tree_source, radius)
keypoints_target = detect(pcd_target, search_tree_target, radius)
#step4 fpfh特征点描述 feature description
pcd_source_keypoints = pcd_source.select_by_index(keypoints_source['id'].values)
##fpfh 进行 特征点描述
fpfh_source_keypoints = o3d.registration.compute_fpfh_feature(
pcd_source_keypoints,
o3d.geometry.KDTreeSearchParamHybrid(radius=radius*5,max_nn=100)
).data
pcd_target_keypoints = pcd_target.select_by_index(keypoints_target['id'].values)
fpfh_target_keypoints = o3d.registration.compute_fpfh_feature(
pcd_target_keypoints,
o3d.geometry.KDTreeSearchParamHybrid(radius=radius*5,max_nn=100)
).data
# generate matches:
distance_threshold_init = 1.5 * radius
distance_threshold_final = 1.0 * radius
#step5 RANSAC Registration,初配准、得到初始旋转、平移矩阵
init_result = ransac_match(
idx_target,idx_source,
pcd_source_keypoints, pcd_target_keypoints,
fpfh_source_keypoints, fpfh_target_keypoints,
ransac_params=RANSACParams(
max_workers=5,
num_samples=4,
max_correspondence_distance=distance_threshold_init,
max_iteration=200000,
max_validation=500,
max_refinement=30
),
checker_params=CheckerParams(
max_correspondence_distance=distance_threshold_init,
max_edge_length_ratio=0.9,
normal_angle_threshold=None
)
)
#step6 ICP for refined estimation,优化配准 ICP对初始T进行迭代优化:
final_result = icp_exact_match(
pcd_source, pcd_target, search_tree_target,
init_result.transformation,
distance_threshold_final, 60
)
# visualize:
visualize.show_registration_result(
pcd_source_keypoints, pcd_target_keypoints, init_result.correspondence_set,
pcd_source, pcd_target, final_result.transformation
)
#
# # add result:
# io.add_to_output(df_output, idx_target, idx_source, final_result.transformation)
#
# # write output:
# io.write_output(
# os.path.join(input_dir, 'reg_result_yaogefad.txt'),
# df_output
# )
RANSAC.py
import os
import argparse
import progressbar
import collections
import numpy as np
import open3d as o3d
import copy
import concurrent.futures
from scipy.spatial.distance import pdist
from scipy.spatial.transform import Rotation
#IO utils:
import utils.io as io
import utils.visualize as visualize
import matplotlib.pyplot as plt
from ICP import icp_exact_match
def solve_procrustes_transf(P,Q): # 求解平移旋转矩阵 solve_procrustes_transformation
up = P.mean(axis=0)
uq = Q.mean(axis=0)
# move to center:
P_centered = P - up
Q_centered = Q - uq
U, s, V = np.linalg.svd(np.dot(Q_centered.T, P_centered), full_matrices=True, compute_uv=True)
R = np.dot(U, V)
t = uq - np.dot(R, up)
# format as transform:
T = np.zeros((4, 4))
T[0:3, 0:3] = R
T[0:3, 3] = t
T[3, 3] = 1.0
return T
def get_init_matches(feature_source, feature_target):
##对 feature target fpfh 建立 kd—tree
fpfh_search_tree = o3d.geometry.KDTreeFlann(feature_target)
##建立 pairs
_,N = feature_source.shape
matches = []
for i in range(N):
query = feature_source[:,i]
_, idx_nn_target, _ = fpfh_search_tree.search_knn_vector_xd(query, 1) #source -> target
matches.append([i,idx_nn_target[0]]) #通过knn 寻找唯一 的 nearest points 一一配对 构建pair
matches = np.asarray(matches)
return matches
def iter_match(
idx_target,idx_source,
pcd_source, pcd_target,
proposal,
checker_params
):
idx_source, idx_target = proposal[:, 0], proposal[:, 1]
#法向量校准
if not checker_params.normal_angle_threshold is None:
# get corresponding normals:
normals_source = np.asarray(pcd_source.normals)[idx_source]
normals_target = np.asarray(pcd_target.normals)[idx_target]
# a. normal direction check:
normal_cos_distances = (normals_source*normals_target).sum(axis = 1)
is_valid_normal_match = np.all(normal_cos_distances >= np.cos(checker_params.normal_angle_threshold))
if not is_valid_normal_match:
return None
# get corresponding points:
points_source = np.asarray(pcd_source.points)[idx_source]
points_target = np.asarray(pcd_target.points)[idx_target]
# b. edge length ratio check:
#构建距离矩阵，使用 Mutual nearest descriptor matching
pdist_source = pdist(points_source)
pdist_target = pdist(points_target)
is_valid_edge_length = np.all(
np.logical_and(
pdist_source > checker_params.max_edge_length_ratio * pdist_target,
pdist_target > checker_params.max_edge_length_ratio * pdist_source
)
)
if not is_valid_edge_length:
return None
# c. fast correspondence distance check:s
T = solve_procrustes_transf(points_source, points_target) #通过 svd 初步求解 旋转、平移矩阵
R, t = T[0:3, 0:3], T[0:3, 3]
#deviation：偏差 区分 inline outline 通过 距离判断
deviation = np.linalg.norm(
points_target - np.dot(points_source, R.T) - t,
axis = 1
)
#判断数目
is_valid_correspondence_distance = np.all(deviation <= checker_params.max_correspondence_distance)
return T if is_valid_correspondence_distance else None
def ransac_match(
idx_target,idx_source,
pcd_source, pcd_target,
feature_source, feature_target,
ransac_params, checker_params
):
#step5.1 Establish correspondences(point pairs) 建立 pairs
matches = get_init_matches(feature_source, feature_target) #通过 fpfh 建立的feature squre map 建立最初的 pairs
##build search tree on the target:
search_tree_target = o3d.geometry.KDTreeFlann(pcd_target)
N, _ = matches.shape
idx_matches = np.arange(N) #对每队 pair 打标签
T = None #translation martix
#step5.2 select 4 pairs at each iteration,选择4对corresponding 进行模型拟合
proposal_generator = (
matches[np.random.choice(idx_matches, ransac_params.num_samples, replace=False)] for _ in iter(int, 1)
)
##step5.3 iter 迭代， iter_match() ,选择出 vaild T
validator = lambda proposal: iter_match(idx_target,idx_source,pcd_source, pcd_target, proposal, checker_params)
with concurrent.futures.ThreadPoolExecutor(max_workers=ransac_params.max_workers) as executor:
for T in map(
validator,
proposal_generator #map()是 Python 内置的高阶函数，它接收一个函数 f 和一个 list，并通过把函数 f 依次作用在 list 的每个元素上，得到一个新的 list 并返回。
):
print(T)
if not (T is None):
break
#set baseline
print('[RANSAC ICP]: Get first valid proposal. Start registration...')
best_result = icp_exact_match(
pcd_source, pcd_target, search_tree_target,
T,
ransac_params.max_correspondence_distance,
ransac_params.max_refinement
)
# RANSAC:
num_validation = 0
for i in range(ransac_params.max_iteration):
# get proposal:
T = validator(next(proposal_generator))
# check validity:
if (not (T is None)) and (num_validation < ransac_params.max_validation):
num_validation += 1
# refine estimation on all keypoints:
result = icp_exact_match(
pcd_source, pcd_target, search_tree_target,
T,
ransac_params.max_correspondence_distance,
ransac_params.max_refinement
)
# update best result:
best_result = best_result if best_result.fitness > result.fitness else result
if num_validation == ransac_params.max_validation:
break
return best_result
ICP.py
import os
import argparse
import progressbar
import collections
import numpy as np
import open3d as o3d
import copy
import concurrent.futures
from scipy.spatial.distance import pdist
from scipy.spatial.transform import Rotation
#IO utils:
import utils.io as io
import utils.visualize as visualize
import matplotlib.pyplot as plt
def solve_procrustes_transf(P,Q): # 求解平移旋转矩阵 solve_procrustes_transformation
up = P.mean(axis=0)
uq = Q.mean(axis=0)
# move to center:
P_centered = P - up
Q_centered = Q - uq
U, s, V = np.linalg.svd(np.dot(Q_centered.T, P_centered), full_matrices=True, compute_uv=True)
R = np.dot(U, V)
t = uq - np.dot(R, up)
# format as transform:
T = np.zeros((4, 4))
T[0:3, 0:3] = R
T[0:3, 3] = t
T[3, 3] = 1.0
return T
def shall_terminate(result_curr, result_prev):
# relative fitness improvement:
relative_fitness_gain = result_curr.fitness / result_prev.fitness - 1
return relative_fitness_gain < 0.01
def icp_exact_match(
pcd_source, pcd_target, search_tree_target,
T,
max_correspondence_distance, max_iteration
):
# num. points in the source:
N = len(pcd_source.points)
# evaluate relative change for early stopping:
result_prev = result_curr = o3d.registration.evaluate_registration(
pcd_source, pcd_target, max_correspondence_distance, T
)
for _ in range(max_iteration):
# TODO: transform is actually an in-place operation. deep copy first otherwise the result will be WRONG
pcd_source_current = copy.deepcopy(pcd_source)
# apply transform:
pcd_source_current = pcd_source_current.transform(T)
# find correspondence:
matches = []
for n in range(N):
query = np.asarray(pcd_source_current.points)[n]
_, idx_nn_target, dis_nn_target = search_tree_target.search_knn_vector_3d(query, 1)
if dis_nn_target[0] <= max_correspondence_distance:
matches.append(
[n, idx_nn_target[0]]
)
matches = np.asarray(matches)
#icp
if len(matches) >= 4:
# sovle ICP:
P = np.asarray(pcd_source.points)[matches[:, 0]]
Q = np.asarray(pcd_target.points)[matches[:, 1]]
T = solve_procrustes_transf(P, Q)
# evaluate:
result_curr = o3d.registration.evaluate_registration(
pcd_source, pcd_target, max_correspondence_distance, T
)
# if no significant improvement:提前中止
if shall_terminate(result_curr, result_prev):
print('[RANSAC ICP]: Early stopping.')
break
return result_curr
io.py
import numpy as np
import pandas as pd
import open3d as o3d
from scipy.spatial.transform import Rotation as R
def read_point_cloud_bin(bin_path):
"""
Read point cloud in bin format
Parameters
----------
bin_path: str
Input path of Oxford point cloud bin
Returns
----------
"""
data = np.fromfile(bin_path, dtype=np.float32)
# format:
N, D = data.shape[0]// 6, 6
point_cloud_with_normal = np.reshape(data, (N, D))
point_cloud = o3d.geometry.PointCloud()
point_cloud.points = o3d.utility.Vector3dVector(point_cloud_with_normal[:, 0:3])
point_cloud.normals = o3d.utility.Vector3dVector(point_cloud_with_normal[:, 3:6])
return point_cloud
def read_registration_results(results_path):
"""
Read
Parameters
----------
results_path: str
Input path of point cloud registration results
Returns
----------
"""
# load csv:
df_results = pd.read_csv(
results_path
)
return df_results
def init_output():
"""
Get registration result output template
"""
df_output = {
'idx1': [],
'idx2': [],
't_x': [],
't_y': [],
't_z': [],
'q_w': [],
'q_x': [],
'q_y': [],
'q_z': []
}
return df_output
def add_to_output(df_output, idx1, idx2, T):
"""
Add record to output
"""
def format_transform_matrix(T):
r = R.from_matrix(T[:3, :3])
q = r.as_quat()
t = T[:3, 3]
return (t, q)
df_output['idx1'].append(idx1)
df_output['idx2'].append(idx2)
(t, q) = format_transform_matrix(T)
# translation:
df_output['t_x'].append(t[0])
df_output['t_y'].append(t[1])
df_output['t_z'].append(t[2])
# rotation:
df_output['q_w'].append(q[3])
df_output['q_x'].append(q[0])
df_output['q_y'].append(q[1])
df_output['q_z'].append(q[2])
def write_output(filename, df_output):
"""
Write output
"""
df_output = pd.DataFrame.from_dict(
df_output
)
print(f'write output to {filename}')
df_output[
[
'idx1', 'idx2',
't_x', 't_y', 't_z',
'q_w', 'q_x', 'q_y', 'q_z'
]
].to_csv(filename, index=False)
visualize.py
import numpy as np
import open3d as o3d
def show_inlier_outlier(cloud, ind):
"""
Visualize inliers and outliers
"""
inlier_cloud = cloud.select_by_index(ind)
outlier_cloud = cloud.select_by_index(ind, invert=True)
outlier_cloud.paint_uniform_color([1, 0, 0])
inlier_cloud.paint_uniform_color([0.5, 0.5, 0.5])
o3d.visualization.draw_geometries([inlier_cloud, outlier_cloud])
def get_point_cloud_diameter(pcd):
"""
Get point cloud diameter by min-max bounding box
"""
diameter = np.linalg.norm(
pcd.get_max_bound() - pcd.get_min_bound()
)
return diameter
def show_registration_result(
pcd_source_keypoints, pcd_target_keypoints, association,
pcd_source_dense, pcd_target_dense, transformation
):
"""
Visualize point cloud registration results.
Parameters
----------
pcd_source_keypoints: open3d.geometry.PointCloud
keypoints in source point cloud
pcd_target_keypoints: open3d.geometry.PointCloud
keypoints in target point cloud
association: numpy.ndarray
keypoint associations from feature matching
pcd_source_dense: open3d.geometry.PointCloud
filtered source point cloud
pcd_target_dense: open3d.geometry.PointCloud
filtered target point cloud
transformation: numpy.ndarray
transformation matrix
Returns
----------
None
"""
#
# group 01 -- registration result:
#
# apply transform:
pcd_source_dense.transform(transformation)
# move registration result to origin:
center_source, _ = pcd_source_dense.compute_mean_and_covariance()
center_target, _ = pcd_target_dense.compute_mean_and_covariance()
translation = 0.5 * (center_source + center_target)
pcd_source_dense_centered = pcd_source_dense.translate(-translation)
pcd_target_dense_centered = pcd_target_dense.translate(-translation)
# draw result:
pcd_source_dense_centered.paint_uniform_color([1, 0.706, 0])
pcd_target_dense_centered.paint_uniform_color([0, 0.651, 0.929])
#
# group 02 -- keypoint association result:
#
# get diameters of source and target:
diameter_source = get_point_cloud_diameter(pcd_source_dense)
diameter_target = get_point_cloud_diameter(pcd_target_dense)
# shift correspondence sets:
diameter = max(diameter_source, diameter_target)
pcd_source_keypoints_shifted = pcd_source_keypoints.translate(
-translation + np.asarray([diameter, -diameter, 0.0])
)
pcd_target_keypoints_shifted = pcd_target_keypoints.translate(
-translation + np.asarray([diameter, +diameter, 0.0])
)
# draw associations:
association = np.asarray(association)[:20,:]
N, _ = association.shape
# keep only 20 pairs:
points = np.vstack(
(
np.asarray(pcd_source_keypoints_shifted.points)[association[:, 0]],
np.asarray(pcd_target_keypoints_shifted.points)[association[:, 1]]
)
)
correspondences = np.asarray(
[
[i, i + N] for i in np.arange(N)
]
)
colors = [
[0.0, 0.0, 0.0] for i in range(N)
]
correspondence_set = o3d.geometry.LineSet(
points = o3d.utility.Vector3dVector(points),
lines = o3d.utility.Vector2iVector(correspondences),
)
correspondence_set.colors = o3d.utility.Vector3dVector(colors)
pcd_source_keypoints_shifted.paint_uniform_color([0.0, 1.0, 0.0])
np.asarray(pcd_source_keypoints_shifted.colors)[association[:, 0], :] = [1.0, 0.0, 0.0]
pcd_target_keypoints_shifted.paint_uniform_color([0.0, 0.0, 1.0])
np.asarray(pcd_target_keypoints_shifted.colors)[association[:, 1], :] = [1.0, 0.0, 0.0]
o3d.visualization.draw_geometries(
[
# registration result:
pcd_source_dense_centered, pcd_target_dense_centered,
# feature point association:
pcd_source_keypoints_shifted, pcd_target_keypoints_shifted,correspondence_set
]
)
iss.py
import heapq
import numpy as np
import pandas as pd
import open3d as o3d
def detect(point_cloud, search_tree, radius):
"""
Detect point cloud key points using Intrinsic Shape Signature(ISS)
Parameters
----------
point_cloud: Open3D.geometry.PointCloud
input point cloud
search_tree: Open3D.geometry.KDTree
point cloud search tree
radius: float
radius for ISS computing
Returns
----------
point_cloud: numpy.ndarray
Velodyne measurements as N-by-3 numpy ndarray
"""
# points handler:
points = np.asarray(point_cloud.points)
# keypoints container:
keypoints = {
'id': [],
'x': [],
'y': [],
'z': [],
'lambda_0': [],
'lambda_1': [],
'lambda_2': []
}
# cache for number of radius nearest neighbors:
num_rnn_cache = {}
# heapq for non-maximum suppression:
pq = []
for idx_center, center in enumerate(
points
):
# find radius nearest neighbors:
[k, idx_neighbors, _] = search_tree.search_radius_vector_3d(center, radius)
# use the heuristics from NDT to filter outliers:
if k < 6:
continue
# for each point get its nearest neighbors count:
w = []
deviation = []
for idx_neighbor in np.asarray(idx_neighbors[1:]):
# check cache:
if not idx_neighbor in num_rnn_cache:
[k_, _, _] = search_tree.search_radius_vector_3d(
points[idx_neighbor],
radius
)
num_rnn_cache[idx_neighbor] = k_
# update:
w.append(num_rnn_cache[idx_neighbor])
deviation.append(points[idx_neighbor] - center)
# calculate covariance matrix:
w = np.asarray(w)
deviation = np.asarray(deviation)
cov = (1.0 / w.sum()) * np.dot(
deviation.T,
np.dot(np.diag(w), deviation)
)
# get eigenvalues:
w, _ = np.linalg.eig(cov)
w = w[w.argsort()[::-1]]
# add to pq:
heapq.heappush(pq, (-w[2], idx_center))
# add to dataframe:
keypoints['id'].append(idx_center)
keypoints['x'].append(center[0])
keypoints['y'].append(center[1])
keypoints['z'].append(center[2])
keypoints['lambda_0'].append(w[0])
keypoints['lambda_1'].append(w[1])
keypoints['lambda_2'].append(w[2])
# non-maximum suppression:
suppressed = set()
while pq:
_, idx_center = heapq.heappop(pq)
if not idx_center in suppressed:
# suppress its neighbors:
[_, idx_neighbors, _] = search_tree.search_radius_vector_3d(
points[idx_center],
radius
)
for idx_neighbor in np.asarray(idx_neighbors[1:]):
suppressed.add(idx_neighbor)
else:
continue
# format:
keypoints = pd.DataFrame.from_dict(
keypoints
)
# first apply non-maximum suppression:
keypoints = keypoints.loc[
keypoints['id'].apply(lambda id: not id in suppressed),
keypoints.columns
]
# then apply decreasing ratio test:
keypoints = keypoints.loc[
(keypoints['lambda_0'] > keypoints['lambda_1']) &
(keypoints['lambda_1'] > keypoints['lambda_2']),
keypoints.columns
]
# finally, return the keypoint in decreasing lambda 2 order:
keypoints = keypoints.sort_values('lambda_2', axis=0, ascending=False, ignore_index=True)
return keypoints
3万+
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
