BuildIn和URP在传参和语义上区别

------------------------------------------------------------------------------------------------------------------
BuildIn管线CG和URP管线HLSL
------------------------------------------------------------------------------------------------------------------
Unity内置源码：
------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------
BuildIn管线下最简光照shader框架
URP管线下最简光照shader框架
URP管线下最简GUI 不透明Opaque shader框架
URP管线下最简GUI 透明Transparent shader框架
- - HLSL阴影部分的Pass
HDRP管线下最简Unlit shader框架

------------------------------------------------------------------------------------------------------------------

BuildIn管线CG和URP管线HLSL

Tag和CGPROGRAM不赘述
Tag和HLSLPROGRAM不赘述

CG光照宏定义

            ...
            #pragma multi_compile_fwdbase
            ...

HLSL光照宏定义

            ...
//支持多个平行光，只支持一个平行光的阴影，主光源阴影，屏幕空间阴影，级联阴影
            #pragma multi_compile _ _MAIN_LIGHT_SHADOWS _MAIN_LIGHT_SHADOWS_CASCADE _MAIN_LIGHT_SHADOWS_SCREEN
            //软阴影
            #pragma multi_compile_fragment _ _SHADOWS_SOFT
//支持多光源和多光源阴影的宏
            //#pragma multi_compile _ _ADDITIONAL_LIGHTS_VERTEX _ADDITIONAL_LIGHTS
            //#pragma multi_compile_fragment _ _ADDITIONAL_LIGHT_SHADOWS
//反射、环境遮蔽和烘焙相关宏定义
            //#pragma multi_compile_fragment _ _REFLECTION_PROBE_BLENDING
            //#pragma multi_compile_fragment _ _REFLECTION_PROBE_BOX_PROJECTION
            //#pragma multi_compile_fragment _ _SCREEN_SPACE_OCCLUSION
            //#pragma multi_compile_fragment _ _DBUFFER_MRT1 _DBUFFER_MRT2 _DBUFFER_MRT3
            //#pragma multi_compile_fragment _ _LIGHT_LAYERS
            //#pragma multi_compile_fragment _ _LIGHT_COOKIES
            //#pragma multi_compile _ _CLUSTERED_RENDERING
            ...

CG包含文件

            ...
            #include "UnityCG.cginc"
            #include "AutoLight.cginc"
            ...

HLSL包含文件

			...
			//HLSL包含文件
			#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
			#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl"
			...

Include文件/包含文件

包含文件核心	内置管线	URP管线
Content	Built-in	URP
Core	Unity.cginc	Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl
Light	AutoLight.cginc	Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl
Shadows	AutoLight.cginc	Packages/com.unity.render-pipelines.universal/ShaderLibrary/Shadows.hlsl
Surface shaders	Lighting.cginc	无

CG纹理采样

			...
            sampler2D _MainTex;
            float4 _MainTex_ST;
            ...
            half4 col= tex2D(_MainTex, i.uv);

HLSL纹理采样

            ...
                TEXTURE2D(_BaseMap);				   SAMPLER(sampler_BaseMap);

                CBUFFER_START(UnityPerMaterial)//用“CBUFFER_START”包围起来，主要是做SRP Batcher性能优化。
                float4 _BaseMap_ST;
				CBUFFER_END
				...
				float4 col = SAMPLE_TEXTURE2D(_MainTex, sampler_MainTex, i.uv);
				...

CG获取灯光信息

Shader "1"
{
    Properties
    {
    }
    SubShader
    {
        Tags { "RenderType"="Opaque" }
        LOD 100
        Pass
        {
            Tags{"LightMode" = "ForwardBase"}
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag
            #pragma multi_compile_fwdbase
            #include "UnityCG.cginc"
            #include "AutoLight.cginc"

            struct appdata
            {
                ...
            };

            struct v2f
            {
                ...
            };
            ...
            float4 _LightColor0;
            ...
            v2f vert (appdata v)
            {
                v2f o;
                ...
                return o;
            }

            half4 frag (v2f i) : SV_Target
            {
                ...
                //主灯平行光
                half3 light_dir = normalize(_WorldSpaceLightPos0.xyz);
                half3 LightColor = _LightColor0.xyz;
                ...
            }
            ENDCG
        }
        Pass
        {
            Tags{"LightMode" = "ForwardAdd"}
            Blend One One
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag
            #pragma multi_compile_fwdadd
            #include "UnityCG.cginc"
            #include "AutoLight.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
            };

            struct v2f
            {
                float4 pos : SV_POSITION;
                float3 pos_world : TEXCOORD2;
                LIGHTING_COORDS(5, 6)
            };
            ...
            float4 _LightColor0;
            ...
            v2f vert(appdata v)
            {
                v2f o;
                o.pos = UnityObjectToClipPos(v.vertex);
                o.pos_world = mul(unity_ObjectToWorld, v.vertex).xyz;
                TRANSFER_VERTEX_TO_FRAGMENT(o);
                return o;
            }

            half4 frag(v2f i) : SV_Target
            {
                ...
                //点光源
                half3 light_dir_point = normalize(_WorldSpaceLightPos0.xyz - i.pos_world);
                half3 light_dir = normalize(_WorldSpaceLightPos0.xyz);
                light_dir = lerp(light_dir, light_dir_point, _WorldSpaceLightPos0.w);
                ...
            }
            ENDCG
        }
    }
    Fallback "Diffuse"
}

HLSL获取灯光信息

Shader "NewShader"
{
    Properties
    {
        _MainTex ("Texture", 2D) = "white" {}
    }
    SubShader
    {
        Tags { "RenderType"="Opaque" }
        LOD 100
        ...
        Pass
        {
            Tags { "LightMode" = "UniversalForward" }
            ...
            //支持多个平行光，只支持一个平行光的阴影，主光源阴影，屏幕空间阴影，级联阴影
            #pragma multi_compile _ _MAIN_LIGHT_SHADOWS _MAIN_LIGHT_SHADOWS_CASCADE _MAIN_LIGHT_SHADOWS_SCREEN
            //软阴影
            #pragma multi_compile_fragment _ _SHADOWS_SOFT
            //支持多光源和多光源阴影的宏
            //#pragma multi_compile _ _ADDITIONAL_LIGHTS_VERTEX _ADDITIONAL_LIGHTS
            //#pragma multi_compile_fragment _ _ADDITIONAL_LIGHT_SHADOWS
            //反射、环境遮蔽和烘焙相关宏定义
            //#pragma multi_compile_fragment _ _REFLECTION_PROBE_BLENDING
            //#pragma multi_compile_fragment _ _REFLECTION_PROBE_BOX_PROJECTION
            //#pragma multi_compile_fragment _ _SCREEN_SPACE_OCCLUSION
            //#pragma multi_compile_fragment _ _DBUFFER_MRT1 _DBUFFER_MRT2 _DBUFFER_MRT3
            //#pragma multi_compile_fragment _ _LIGHT_LAYERS
            //#pragma multi_compile_fragment _ _LIGHT_COOKIES
            //#pragma multi_compile _ _CLUSTERED_RENDERING
            ...
            //HLSL包含文件
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl"
            ...
            //HLSLPROGRAM
            HLSLPROGRAM

            struct Attributes
            {
                float4 positionOS   : POSITION;
                float3 normalOS     : NORMAL;
                float4 tangentOS    : TANGENT;
                float2 texcoord     : TEXCOORD0;
                UNITY_VERTEX_INPUT_INSTANCE_ID
            };

            struct Varyings
            {
                float2 uv : TEXCOORD0;
                float2 uv : TEXCOORD0;
                float3 positionWS : TEXCOORD1;
                half3 normalWS : TEXCOORD2;
                half4 tangentWS : TEXCOORD3;    // xyz: tangent, w: sign
                float4 shadowCoord : TEXCOORD4;
                float4 positionCS : SV_POSITION;
                UNITY_FOG_COORDS(5)
                SHADOW_COORDS(6)//阴影
            };

            ...
            TEXTURE2D(_MainTex );				   SAMPLER(sampler_MainTex );
            CBUFFER_START(UnityPerMaterial)//用“CBUFFER_START”包围起来，主要是做性能优化。
                float4 _MainTex _ST;
            CBUFFER_END
            ...

            Varyings LitPassVertex(Attributes input)
            {
                Varyings output = (Varyings)0;
                UNITY_SETUP_INSTANCE_ID(input);
                UNITY_TRANSFER_INSTANCE_ID(input, output);
                VertexPositionInputs vertexInput = GetVertexPositionInputs(input.positionOS.xyz);
                VertexNormalInputs normalInput = GetVertexNormalInputs(input.normalOS, input.tangentOS);
                output.uv = input.texcoord;
                output.normalWS = normalInput.normalWS;
                real sign = input.tangentOS.w * GetOddNegativeScale();
                half4 tangentWS = half4(normalInput.tangentWS.xyz, sign);
                output.tangentWS = tangentWS;
                //half3 viewDirWS = GetWorldSpaceNormalizeViewDir(vertexInput.positionWS);
                output.positionWS = vertexInput.positionWS;
                output.shadowCoord = GetShadowCoord(vertexInput);
                output.positionCS = vertexInput.positionCS;
                UNITY_TRANSFER_FOG(o,o.vertex);
                TRANSFER_SHADOW(o)//阴影
                return o;
            }

            half4 LitPassFragment(Varyings input) : SV_Target
            {
                UNITY_SETUP_INSTANCE_ID(input);
                Light mainLight = GetMainLight(input.shadowCoord,input.positionWS,float4(1.0,1.0,1.0,1.0));
                float3 lightDir = mainLight.direction;
                half shadow = mainLight.shadowAttenuation;
                //视线方向
                half3 view_dir = normalize(_WorldSpaceCameraPos.xyz - i.pos_world);
                //灯光方向
                half3 light_dir = normalize(_WorldSpaceLightPos0.xyz);
                //主光源颜色信息
                half3 mainlight = _LightColor0.xyz;
                //多光源
                #ifdef _ADDITIONAL_LIGHTS
                    uint pixelLightCount = GetAdditionalLightsCount();
                    for(uint lightIndex = 0; lightIndex < pixelLightCount; ++lightIndex)
                    {
                        Light light = GetAdditionalLight(lightIndex,input.positionWS,float4(1.0,1.0,1.0,1.0));
                        half NdotL_add = dot(normalDir, light.direction);
                        half half_lambert_add = (NdotL_add + 1.0) * 0.5;
                        float atten_add = lerp(1 , light.shadowAttenuation * light.distanceAttenuation , input.vertexColor.g);
                        half labmbert_term_add = half_lambert_add * ao * atten_add + diffuse_control;
                        toon_diffuse += saturate((labmbert_term_add * light.color - _ToonThesHold) * _ToonHardness);
                    }
                #endif
                //半角向量
                half3 half_dir = normalize(light_dir + view_dir);
                //NdotH
                half NdotH = dot(normal_dir, half_dir);
                // sample the texture
                float4 col = SAMPLE_TEXTURE2D(_MainTex, sampler_MainTex, i.uv);
                // apply fog
                UNITY_APPLY_FOG(i.fogCoord, col);
                return col;
            }
            ENDHLSL
        }
    }
}

CG Cast Shadows生成阴影

在shader中新增一个ShadowCaster的Pass，渲染物体的投影。

			...
		// Pass to render object as a shadow caster
		Pass
		{
			//Name "ShadowCaster"
			Tags { "LightMode" = "ShadowCaster" }
			CGPROGRAM
			#pragma vertex vert
			#pragma fragment frag
			#pragma multi_compile_shadowcaster
			#pragma multi_compile_instancing // allow instanced shadow pass for most of the shaders
			#include "UnityCG.cginc"
			struct appdata
			{
				float4 vertex:POSITION;
				half3 normal:NORMAL;
				UNITY_VERTEX_INPUT_INSTANCE_ID
			};
			struct v2f
			{
				V2F_SHADOW_CASTER;
				UNITY_VERTEX_OUTPUT_STEREO
			};
			v2f vert( appdata_base v )
			{
				v2f o;
				UNITY_SETUP_INSTANCE_ID(v);
				UNITY_INITIALIZE_VERTEX_OUTPUT_STEREO(o);
				TRANSFER_SHADOW_CASTER_NORMALOFFSET(o)
				return o;
			}
			float4 frag( v2f i ) : SV_Target
			{
				SHADOW_CASTER_FRAGMENT(i)
			}
			ENDCG
		}
            ...

添加"LightMode" = "ShadowCaster"的Pass。
添加宏定义 #pragma multi_compile_shadowcaster，使投影语义V2F_SHADOW_CASTER被定义。
appdata中声明float4 vertex:POSITION;和half3 normal:NORMAL;这是生成阴影所需要的语义。
v2f中添加V2F_SHADOW_CASTER;用于声明需要传送到片断的数据。
在顶点着色器中添加TRANSFER_SHADOW_CASTER_NORMALOFFSET(o)，主要是计算阴影的偏移以解决不正确的Shadow Acne和Peter Panning现象。
在片断着色器中添加SHADOW_CASTER_FRAGMENT(i)

HLSL Cast Shadows生成阴影

新增两个pass，ShadowCaster和DepthOnly，生成阴影，

			...
		Pass
        {
            Name "ShadowCaster"
            Tags{"LightMode" = "ShadowCaster"}

            ZWrite On
            ZTest LEqual
            ColorMask 0
            Cull[_Cull]

            HLSLPROGRAM
            #pragma exclude_renderers gles gles3 glcore
            #pragma target 4.5

            // -------------------------------------
            // Material Keywords
            #pragma shader_feature_local_fragment _ALPHATEST_ON
            #pragma shader_feature_local_fragment _SMOOTHNESS_TEXTURE_ALBEDO_CHANNEL_A

            //--------------------------------------
            // GPU Instancing
            #pragma multi_compile_instancing
            #pragma multi_compile _ DOTS_INSTANCING_ON

            // -------------------------------------
            // Universal Pipeline keywords

            // This is used during shadow map generation to differentiate between directional and punctual light shadows, as they use different formulas to apply Normal Bias
            #pragma multi_compile_vertex _ _CASTING_PUNCTUAL_LIGHT_SHADOW

            #pragma vertex ShadowPassVertex
            #pragma fragment ShadowPassFragment

            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitInput.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/Shaders/ShadowCasterPass.hlsl"
            ENDHLSL
        }
		Pass
        {
            Name "DepthOnly"
            Tags{"LightMode" = "DepthOnly"}

            ZWrite On
            ColorMask 0
            Cull[_Cull]

            HLSLPROGRAM
            #pragma exclude_renderers gles gles3 glcore
            #pragma target 4.5

            #pragma vertex DepthOnlyVertex
            #pragma fragment DepthOnlyFragment

            // -------------------------------------
            // Material Keywords
            #pragma shader_feature_local_fragment _ALPHATEST_ON
            #pragma shader_feature_local_fragment _SMOOTHNESS_TEXTURE_ALBEDO_CHANNEL_A

            //--------------------------------------
            // GPU Instancing
            #pragma multi_compile_instancing
            #pragma multi_compile _ DOTS_INSTANCING_ON

            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitInput.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/Shaders/DepthOnlyPass.hlsl"
            ENDHLSL
        }
            ...

CG Receive Shadows接收阴影

			...
Shader "SHADOWS"
{
    Properties
    {
        _MainTex ("Texture", 2D) = "white" {}
    }
    SubShader
    {
        Tags { "RenderType"="Opaque" }
        LOD 100
        Pass
        {
            Tags { "LightMode" = "ForwardBase" }
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag
            #pragma multi_compile_fwdbase
            // #pragma multi_compile DIRECTIONAL SHADOWS_SCREEN
            #include "UnityCG.cginc"
            #include "AutoLight.cginc"
            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
            };
            struct v2f
            {
                float4 pos : SV_POSITION;
                float2 uv : TEXCOORD0;
                float4 worldPos : TEXCOORD1;
                UNITY_SHADOW_COORDS(2)
            };
            sampler2D _MainTex;
            float4 _MainTex_ST;
            v2f vert (appdata v)
            {
                v2f o;
                o.pos = UnityObjectToClipPos(v.vertex);
                o.uv = TRANSFORM_TEX(v.uv, _MainTex);
                o.worldPos = mul(unity_ObjectToWorld,v.vertex);
                TRANSFER_SHADOW(o)//阴影
                return o;
            }
            fixed4 frag (v2f i) : SV_Target
            {
                UNITY_LIGHT_ATTENUATION(atten, i, i.worldPos)
                fixed4 col = tex2D(_MainTex, i.uv) * atten;
                return col;
            }
            ENDCG
        }
        // Pass to render object as a shadow caster
        Pass
        {
            //Name "ShadowCaster"
            Tags { "LightMode" = "ShadowCaster" }
            CGPROGRAM
            ...
            ENDCG
        }
    }
}
            ...

在v2f中添加UNITY_SHADOW_COORDS(idx),unity会自动声明一个叫_ShadowCoord的float4变量，用作阴影的采样坐标。
在顶点着色器中添加TRANSFER_SHADOW(o)，用于将上面定义的_ShadowCoord纹理采样坐标变换到相应的屏幕空间纹理坐标，为采样阴影纹理使用。
在片断着色器中添加UNITY_LIGHT_ATTENUATION(atten, i, i.worldPos)，其中atten即存储了采样后的阴影。
Receive Shadows接收阴影Pass和光照Pass是在一个Pass内计算。Shader中如果没有ShadowCaster的Pass，接收阴影会失效。
但如果只是让物体有阴影，添加一个ShadowCaster的Pass既可。

HLSL Receive Shadows接收阴影

在UniversalForwardPass下采样阴影，如图

            ...
		Pass
		{
			Tags { "LightMode" = "UniversalForward" }
			HLSLPROGRAM
			#pragma vertex vert
			#pragma fragment frag
			#pragma multi_compile _ _MAIN_LIGHT_SHADOWS _MAIN_LIGHT_SHADOWS_CASCADE _MAIN_LIGHT_SHADOWS_SCREEN
			#pragma multi_compile_fragment _ _SHADOWS_SOFT
			#pragma multi_compile _ _ADDITIONAL_LIGHTS
			#pragma multi_compile_fragment _ _ADDITIONAL_LIGHT_SHADOWS
			#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
			#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl"

			struct Attritubes
			{
				float4 positionOS : POSITION;
				...
			};

			struct Varyings
			{
				float4 positionCS : SV_POSITION;
				...
				float3 positionWS : TEXCOORD1;
				float4 shadowCoord : TEXCOORD4;
			};
			...
			Varyings vert (Attritubes input)
			{
				Varyings output = (Varyings)0;
				VertexPositionInputs vertexInput = GetVertexPositionInputs(input.positionOS.xyz);
				output.positionCS = vertexInput.positionCS;
				output.positionWS = vertexInput.positionWS;
				//output.positionWS = TransformObjectToWorld(input.positionOS.xyz);
				output.shadowCoord = GetShadowCoord(vertexInput);
				return output;
			}
			half4 frag (Varyings input) : SV_Target
			{
				...
				Light mainLight = GetMainLight(input.shadowCoord,input.positionWS,float4(1.0,1.0,1.0,1.0));
				float3 lightDir = mainLight.direction;
				float shadow = mainLight.shadowAttenuation;
				//float shadow = MainLightRealtimeShadow(input.shadowCoord);
				...
			}
			ENDHLSL
		}
		...

------------------------------------------------------------------------------------------------------------------

Unity内置源码：

CG生成阴影ShadowCaster Pass

        //  Shadow rendering pass
        Pass {
            Name "ShadowCaster"
            Tags { "LightMode" = "ShadowCaster" }
            ZWrite On ZTest LEqual
            CGPROGRAM
            #pragma target 3.5
            // -------------------------------------
            #pragma shader_feature_local _ _ALPHATEST_ON _ALPHABLEND_ON _ALPHAPREMULTIPLY_ON
            #pragma shader_feature_local _METALLICGLOSSMAP
            #pragma shader_feature_local _PARALLAXMAP
            #pragma multi_compile_shadowcaster
            #pragma multi_compile_instancing
            #pragma vertex vertShadowCaster
            #pragma fragment fragShadowCaster
            #include "UnityStandardShadow.cginc"
            ENDCG
        }

UnityStandardShadow

“UnityStandardShadow.cginc”

// Unity built-in shader source. Copyright (c) 2016 Unity Technologies. MIT license (see license.txt)

#ifndef UNITY_STANDARD_SHADOW_INCLUDED
#define UNITY_STANDARD_SHADOW_INCLUDED

// NOTE: had to split shadow functions into separate file,
// otherwise compiler gives trouble with LIGHTING_COORDS macro (in UnityStandardCore.cginc)


#include "UnityCG.cginc"
#include "UnityShaderVariables.cginc"
#include "UnityStandardConfig.cginc"
#include "UnityStandardUtils.cginc"

#if (defined(_ALPHABLEND_ON) || defined(_ALPHAPREMULTIPLY_ON)) && defined(UNITY_USE_DITHER_MASK_FOR_ALPHABLENDED_SHADOWS)
    #define UNITY_STANDARD_USE_DITHER_MASK 1
#endif

// Need to output UVs in shadow caster, since we need to sample texture and do clip/dithering based on it
#if defined(_ALPHATEST_ON) || defined(_ALPHABLEND_ON) || defined(_ALPHAPREMULTIPLY_ON)
#define UNITY_STANDARD_USE_SHADOW_UVS 1
#endif

// Has a non-empty shadow caster output struct (it's an error to have empty structs on some platforms...)
#if !defined(V2F_SHADOW_CASTER_NOPOS_IS_EMPTY) || defined(UNITY_STANDARD_USE_SHADOW_UVS)
#define UNITY_STANDARD_USE_SHADOW_OUTPUT_STRUCT 1
#endif

#ifdef UNITY_STEREO_INSTANCING_ENABLED
#define UNITY_STANDARD_USE_STEREO_SHADOW_OUTPUT_STRUCT 1
#endif


half4       _Color;
half        _Cutoff;
sampler2D   _MainTex;
float4      _MainTex_ST;
#ifdef UNITY_STANDARD_USE_DITHER_MASK
sampler3D   _DitherMaskLOD;
#endif

// Handle PremultipliedAlpha from Fade or Transparent shading mode
half4       _SpecColor;
half        _Metallic;
#ifdef _SPECGLOSSMAP
sampler2D   _SpecGlossMap;
#endif
#ifdef _METALLICGLOSSMAP
sampler2D   _MetallicGlossMap;
#endif

#if defined(UNITY_STANDARD_USE_SHADOW_UVS) && defined(_PARALLAXMAP)
sampler2D   _ParallaxMap;
half        _Parallax;
#endif

half MetallicSetup_ShadowGetOneMinusReflectivity(half2 uv)
{
    half metallicity = _Metallic;
    #ifdef _METALLICGLOSSMAP
        metallicity = tex2D(_MetallicGlossMap, uv).r;
    #endif
    return OneMinusReflectivityFromMetallic(metallicity);
}

half RoughnessSetup_ShadowGetOneMinusReflectivity(half2 uv)
{
    half metallicity = _Metallic;
#ifdef _METALLICGLOSSMAP
    metallicity = tex2D(_MetallicGlossMap, uv).r;
#endif
    return OneMinusReflectivityFromMetallic(metallicity);
}

half SpecularSetup_ShadowGetOneMinusReflectivity(half2 uv)
{
    half3 specColor = _SpecColor.rgb;
    #ifdef _SPECGLOSSMAP
        specColor = tex2D(_SpecGlossMap, uv).rgb;
    #endif
    return (1 - SpecularStrength(specColor));
}

// SHADOW_ONEMINUSREFLECTIVITY(): workaround to get one minus reflectivity based on UNITY_SETUP_BRDF_INPUT
#define SHADOW_JOIN2(a, b) a##b
#define SHADOW_JOIN(a, b) SHADOW_JOIN2(a,b)
#define SHADOW_ONEMINUSREFLECTIVITY SHADOW_JOIN(UNITY_SETUP_BRDF_INPUT, _ShadowGetOneMinusReflectivity)

struct VertexInput
{
    float4 vertex   : POSITION;
    float3 normal   : NORMAL;
    float2 uv0      : TEXCOORD0;
    #if defined(UNITY_STANDARD_USE_SHADOW_UVS) && defined(_PARALLAXMAP)
        half4 tangent   : TANGENT;
    #endif
    UNITY_VERTEX_INPUT_INSTANCE_ID
};

#ifdef UNITY_STANDARD_USE_SHADOW_OUTPUT_STRUCT
struct VertexOutputShadowCaster
{
    V2F_SHADOW_CASTER_NOPOS
    #if defined(UNITY_STANDARD_USE_SHADOW_UVS)
        float2 tex : TEXCOORD1;

        #if defined(_PARALLAXMAP)
            half3 viewDirForParallax : TEXCOORD2;
        #endif
    #endif
};
#endif

#ifdef UNITY_STANDARD_USE_STEREO_SHADOW_OUTPUT_STRUCT
struct VertexOutputStereoShadowCaster
{
    UNITY_VERTEX_OUTPUT_STEREO
};
#endif

// We have to do these dances of outputting SV_POSITION separately from the vertex shader,
// and inputting VPOS in the pixel shader, since they both map to "POSITION" semantic on
// some platforms, and then things don't go well.


void vertShadowCaster (VertexInput v
    , out float4 opos : SV_POSITION
    #ifdef UNITY_STANDARD_USE_SHADOW_OUTPUT_STRUCT
    , out VertexOutputShadowCaster o
    #endif
    #ifdef UNITY_STANDARD_USE_STEREO_SHADOW_OUTPUT_STRUCT
    , out VertexOutputStereoShadowCaster os
    #endif
)
{
    UNITY_SETUP_INSTANCE_ID(v);
    #ifdef UNITY_STANDARD_USE_STEREO_SHADOW_OUTPUT_STRUCT
        UNITY_INITIALIZE_VERTEX_OUTPUT_STEREO(os);
    #endif
    TRANSFER_SHADOW_CASTER_NOPOS(o,opos)
    #if defined(UNITY_STANDARD_USE_SHADOW_UVS)
        o.tex = TRANSFORM_TEX(v.uv0, _MainTex);

        #ifdef _PARALLAXMAP
            TANGENT_SPACE_ROTATION;
            o.viewDirForParallax = mul (rotation, ObjSpaceViewDir(v.vertex));
        #endif
    #endif
}

half4 fragShadowCaster (UNITY_POSITION(vpos)
#ifdef UNITY_STANDARD_USE_SHADOW_OUTPUT_STRUCT
    , VertexOutputShadowCaster i
#endif
) : SV_Target
{
    #if defined(UNITY_STANDARD_USE_SHADOW_UVS)
        #if defined(_PARALLAXMAP) && (SHADER_TARGET >= 30)
            half3 viewDirForParallax = normalize(i.viewDirForParallax);
            fixed h = tex2D (_ParallaxMap, i.tex.xy).g;
            half2 offset = ParallaxOffset1Step (h, _Parallax, viewDirForParallax);
            i.tex.xy += offset;
        #endif

        #if defined(_SMOOTHNESS_TEXTURE_ALBEDO_CHANNEL_A)
            half alpha = _Color.a;
        #else
            half alpha = tex2D(_MainTex, i.tex.xy).a * _Color.a;
        #endif
        #if defined(_ALPHATEST_ON)
            clip (alpha - _Cutoff);
        #endif
        #if defined(_ALPHABLEND_ON) || defined(_ALPHAPREMULTIPLY_ON)
            #if defined(_ALPHAPREMULTIPLY_ON)
                half outModifiedAlpha;
                PreMultiplyAlpha(half3(0, 0, 0), alpha, SHADOW_ONEMINUSREFLECTIVITY(i.tex), outModifiedAlpha);
                alpha = outModifiedAlpha;
            #endif
            #if defined(UNITY_STANDARD_USE_DITHER_MASK)
                // Use dither mask for alpha blended shadows, based on pixel position xy
                // and alpha level. Our dither texture is 4x4x16.
                #ifdef LOD_FADE_CROSSFADE
                    #define _LOD_FADE_ON_ALPHA
                    alpha *= unity_LODFade.y;
                #endif
                half alphaRef = tex3D(_DitherMaskLOD, float3(vpos.xy*0.25,alpha*0.9375)).a;
                clip (alphaRef - 0.01);
            #else
                clip (alpha - _Cutoff);
            #endif
        #endif
    #endif // #if defined(UNITY_STANDARD_USE_SHADOW_UVS)

    #ifdef LOD_FADE_CROSSFADE
        #ifdef _LOD_FADE_ON_ALPHA
            #undef _LOD_FADE_ON_ALPHA
        #else
            UnityApplyDitherCrossFade(vpos.xy);
        #endif
    #endif

    SHADOW_CASTER_FRAGMENT(i)
}

#endif // UNITY_STANDARD_SHADOW_INCLUDED

HLSL阴影ShadowCaster Pass

        Pass
        {
            Name "ShadowCaster"
            Tags{"LightMode" = "ShadowCaster"}

            ZWrite On
            ZTest LEqual
            ColorMask 0
            Cull[_Cull]

            HLSLPROGRAM
            #pragma exclude_renderers gles gles3 glcore
            #pragma target 4.5

            // -------------------------------------
            // Material Keywords
            #pragma shader_feature_local_fragment _ALPHATEST_ON
            #pragma shader_feature_local_fragment _SMOOTHNESS_TEXTURE_ALBEDO_CHANNEL_A

            //--------------------------------------
            // GPU Instancing
            #pragma multi_compile_instancing
            #pragma multi_compile _ DOTS_INSTANCING_ON

            // -------------------------------------
            // Universal Pipeline keywords

            // This is used during shadow map generation to differentiate between directional and punctual light shadows, as they use different formulas to apply Normal Bias
            #pragma multi_compile_vertex _ _CASTING_PUNCTUAL_LIGHT_SHADOW

            #pragma vertex ShadowPassVertex
            #pragma fragment ShadowPassFragment

            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitInput.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/Shaders/ShadowCasterPass.hlsl"
            ENDHLSL
        }

ShadowCasterPass

Packages/com.unity.render-pipelines.universal/Shaders/ShadowCasterPass.hlsl

#ifndef UNIVERSAL_SHADOW_CASTER_PASS_INCLUDED
#define UNIVERSAL_SHADOW_CASTER_PASS_INCLUDED

#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Shadows.hlsl"

// Shadow Casting Light geometric parameters. These variables are used when applying the shadow Normal Bias and are set by UnityEngine.Rendering.Universal.ShadowUtils.SetupShadowCasterConstantBuffer in com.unity.render-pipelines.universal/Runtime/ShadowUtils.cs
// For Directional lights, _LightDirection is used when applying shadow Normal Bias.
// For Spot lights and Point lights, _LightPosition is used to compute the actual light direction because it is different at each shadow caster geometry vertex.
float3 _LightDirection;
float3 _LightPosition;

struct Attributes
{
    float4 positionOS   : POSITION;
    float3 normalOS     : NORMAL;
    float2 texcoord     : TEXCOORD0;
    UNITY_VERTEX_INPUT_INSTANCE_ID
};

struct Varyings
{
    float2 uv           : TEXCOORD0;
    float4 positionCS   : SV_POSITION;
};

float4 GetShadowPositionHClip(Attributes input)
{
    float3 positionWS = TransformObjectToWorld(input.positionOS.xyz);
    float3 normalWS = TransformObjectToWorldNormal(input.normalOS);

#if _CASTING_PUNCTUAL_LIGHT_SHADOW
    float3 lightDirectionWS = normalize(_LightPosition - positionWS);
#else
    float3 lightDirectionWS = _LightDirection;
#endif

    float4 positionCS = TransformWorldToHClip(ApplyShadowBias(positionWS, normalWS, lightDirectionWS));

#if UNITY_REVERSED_Z
    positionCS.z = min(positionCS.z, UNITY_NEAR_CLIP_VALUE);
#else
    positionCS.z = max(positionCS.z, UNITY_NEAR_CLIP_VALUE);
#endif

    return positionCS;
}

Varyings ShadowPassVertex(Attributes input)
{
    Varyings output;
    UNITY_SETUP_INSTANCE_ID(input);

    output.uv = TRANSFORM_TEX(input.texcoord, _BaseMap);
    output.positionCS = GetShadowPositionHClip(input);
    return output;
}

half4 ShadowPassFragment(Varyings input) : SV_TARGET
{
    Alpha(SampleAlbedoAlpha(input.uv, TEXTURE2D_ARGS(_BaseMap, sampler_BaseMap)).a, _BaseColor, _Cutoff);
    return 0;
}

#endif

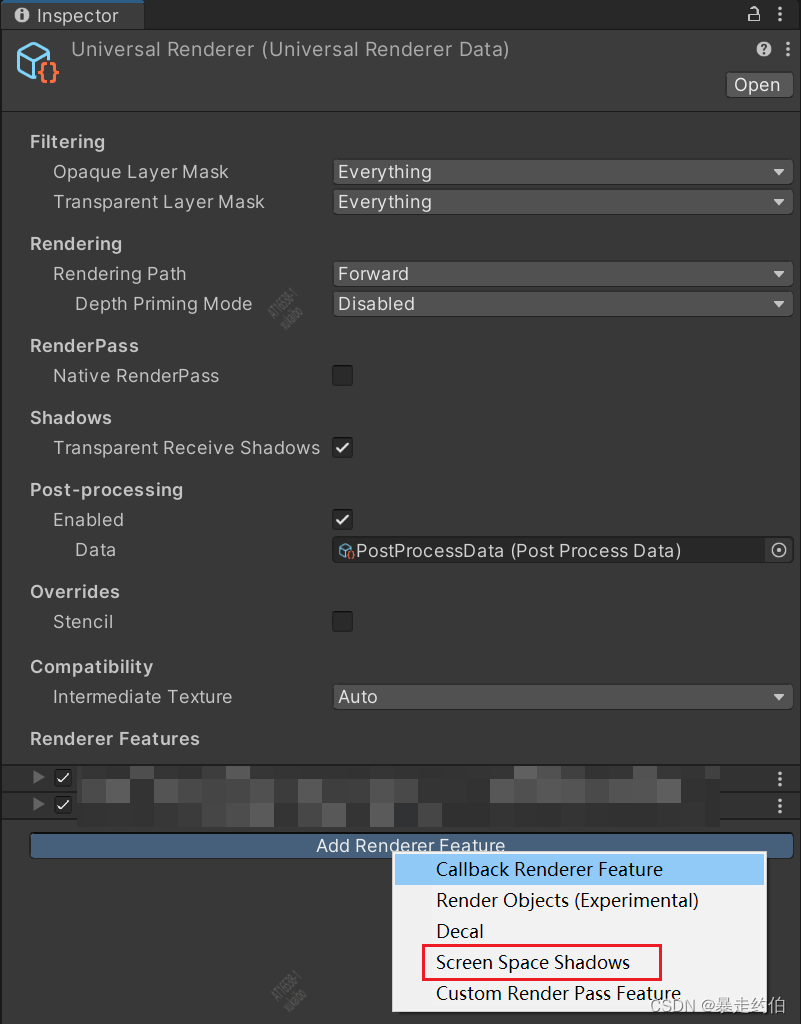

HLSL屏幕空间阴影

        Pass
        {
            Name "DepthOnly"
            Tags{"LightMode" = "DepthOnly"}

            ZWrite On
            ColorMask 0
            Cull[_Cull]

            HLSLPROGRAM
            #pragma exclude_renderers gles gles3 glcore
            #pragma target 4.5

            #pragma vertex DepthOnlyVertex
            #pragma fragment DepthOnlyFragment

            // -------------------------------------
            // Material Keywords
            #pragma shader_feature_local_fragment _ALPHATEST_ON
            #pragma shader_feature_local_fragment _SMOOTHNESS_TEXTURE_ALBEDO_CHANNEL_A

            //--------------------------------------
            // GPU Instancing
            #pragma multi_compile_instancing
            #pragma multi_compile _ DOTS_INSTANCING_ON

            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitInput.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/Shaders/DepthOnlyPass.hlsl"
            ENDHLSL
        }

Shadows

Packages/com.unity.render-pipelines.universal/ShaderLibrary/Shadows.hlsl

half MainLightRealtimeShadow(float4 shadowCoord)
{
#if !defined(MAIN_LIGHT_CALCULATE_SHADOWS)
    return half(1.0);
#elif defined(_MAIN_LIGHT_SHADOWS_SCREEN) && !defined(_SURFACE_TYPE_TRANSPARENT)
    return SampleScreenSpaceShadowmap(shadowCoord);
#else
    ShadowSamplingData shadowSamplingData = GetMainLightShadowSamplingData();
    half4 shadowParams = GetMainLightShadowParams();
    return SampleShadowmap(TEXTURE2D_ARGS(_MainLightShadowmapTexture, sampler_MainLightShadowmapTexture), shadowCoord, shadowSamplingData, shadowParams, false);
#endif
}

URP屏幕空间阴影在这里添加

在这里插入图片描述

------------------------------------------------------------------------------------------------------------------

HLSL的SpaceTransforms合集

文件在工程这个位置：Packages/com.unity.render-pipelines.core/ShaderLibrary/SpaceTransforms.hlsl
内有注释，挺详细的。主要是一些封装好的函数，可以将传入数据做空间转换。

代码如下：

#ifndef UNITY_SPACE_TRANSFORMS_INCLUDED
#define UNITY_SPACE_TRANSFORMS_INCLUDED

#if SHADER_API_MOBILE || SHADER_API_GLES || SHADER_API_GLES3
#pragma warning (disable : 3205) // conversion of larger type to smaller
#endif

// Caution: For HDRP, adding a function in this file requires adding the appropriate #define in PickingSpaceTransforms.hlsl

// Return the PreTranslated ObjectToWorld Matrix (i.e matrix with _WorldSpaceCameraPos apply to it if we use camera relative rendering)
float4x4 GetObjectToWorldMatrix()
{
    return UNITY_MATRIX_M;
}

float4x4 GetWorldToObjectMatrix()
{
    return UNITY_MATRIX_I_M;
}

float4x4 GetPrevObjectToWorldMatrix()
{
    return UNITY_PREV_MATRIX_M;
}

float4x4 GetPrevWorldToObjectMatrix()
{
    return UNITY_PREV_MATRIX_I_M;
}

float4x4 GetWorldToViewMatrix()
{
    return UNITY_MATRIX_V;
}

// Transform to homogenous clip space
float4x4 GetWorldToHClipMatrix()
{
    return UNITY_MATRIX_VP;
}

// Transform to homogenous clip space
float4x4 GetViewToHClipMatrix()
{
    return UNITY_MATRIX_P;
}

// This function always return the absolute position in WS
float3 GetAbsolutePositionWS(float3 positionRWS)
{
#if (SHADEROPTIONS_CAMERA_RELATIVE_RENDERING != 0)
    positionRWS += _WorldSpaceCameraPos.xyz;
#endif
    return positionRWS;
}

// This function return the camera relative position in WS
float3 GetCameraRelativePositionWS(float3 positionWS)
{
#if (SHADEROPTIONS_CAMERA_RELATIVE_RENDERING != 0)
    positionWS -= _WorldSpaceCameraPos.xyz;
#endif
    return positionWS;
}

real GetOddNegativeScale()
{
    // FIXME: We should be able to just return unity_WorldTransformParams.w, but it is not
    // properly set at the moment, when doing ray-tracing; once this has been fixed in cpp,
    // we can revert back to the former implementation.
    return unity_WorldTransformParams.w >= 0.0 ? 1.0 : -1.0;
}

float3 TransformObjectToWorld(float3 positionOS)
{
    #if defined(SHADER_STAGE_RAY_TRACING)
    return mul(ObjectToWorld3x4(), float4(positionOS, 1.0)).xyz;
    #else
    return mul(GetObjectToWorldMatrix(), float4(positionOS, 1.0)).xyz;
    #endif
}

float3 TransformWorldToObject(float3 positionWS)
{
    #if defined(SHADER_STAGE_RAY_TRACING)
    return mul(WorldToObject3x4(), float4(positionWS, 1.0)).xyz;
    #else
    return mul(GetWorldToObjectMatrix(), float4(positionWS, 1.0)).xyz;
    #endif
}

float3 TransformWorldToView(float3 positionWS)
{
    return mul(GetWorldToViewMatrix(), float4(positionWS, 1.0)).xyz;
}

// Transforms position from object space to homogenous space
float4 TransformObjectToHClip(float3 positionOS)
{
    // More efficient than computing M*VP matrix product
    return mul(GetWorldToHClipMatrix(), mul(GetObjectToWorldMatrix(), float4(positionOS, 1.0)));
}

// Tranforms position from world space to homogenous space
float4 TransformWorldToHClip(float3 positionWS)
{
    return mul(GetWorldToHClipMatrix(), float4(positionWS, 1.0));
}

// Tranforms position from view space to homogenous space
float4 TransformWViewToHClip(float3 positionVS)
{
    return mul(GetViewToHClipMatrix(), float4(positionVS, 1.0));
}

// Normalize to support uniform scaling
float3 TransformObjectToWorldDir(float3 dirOS, bool doNormalize = true)
{
    #ifndef SHADER_STAGE_RAY_TRACING
    float3 dirWS = mul((float3x3)GetObjectToWorldMatrix(), dirOS);
    #else
    float3 dirWS = mul((float3x3)ObjectToWorld3x4(), dirOS);
    #endif
    if (doNormalize)
        return SafeNormalize(dirWS);

    return dirWS;
}

// Normalize to support uniform scaling
float3 TransformWorldToObjectDir(float3 dirWS, bool doNormalize = true)
{
    #ifndef SHADER_STAGE_RAY_TRACING
    float3 dirOS = mul((float3x3)GetWorldToObjectMatrix(), dirWS);
    #else
    float3 dirOS = mul((float3x3)WorldToObject3x4(), dirWS);
    #endif
    if (doNormalize)
        return normalize(dirOS);

    return dirOS;
}

// Tranforms vector from world space to view space
real3 TransformWorldToViewDir(real3 dirWS, bool doNormalize = false)
{
    float3 dirVS = mul((real3x3)GetWorldToViewMatrix(), dirWS).xyz;
    if (doNormalize)
        return normalize(dirVS);

    return dirVS;
}

// Tranforms vector from world space to homogenous space
real3 TransformWorldToHClipDir(real3 directionWS, bool doNormalize = false)
{
    float3 dirHCS = mul((real3x3)GetWorldToHClipMatrix(), directionWS).xyz;
    if (doNormalize)
        return normalize(dirHCS);

    return dirHCS;
}

// Transforms normal from object to world space
float3 TransformObjectToWorldNormal(float3 normalOS, bool doNormalize = true)
{
#ifdef UNITY_ASSUME_UNIFORM_SCALING
    return TransformObjectToWorldDir(normalOS, doNormalize);
#else
    // Normal need to be multiply by inverse transpose
    float3 normalWS = mul(normalOS, (float3x3)GetWorldToObjectMatrix());
    if (doNormalize)
        return SafeNormalize(normalWS);

    return normalWS;
#endif
}

// Transforms normal from world to object space
float3 TransformWorldToObjectNormal(float3 normalWS, bool doNormalize = true)
{
#ifdef UNITY_ASSUME_UNIFORM_SCALING
    return TransformWorldToObjectDir(normalWS, doNormalize);
#else
    // Normal need to be multiply by inverse transpose
    float3 normalOS = mul(normalWS, (float3x3)GetObjectToWorldMatrix());
    if (doNormalize)
        return SafeNormalize(normalOS);

    return normalOS;
#endif
}

real3x3 CreateTangentToWorld(real3 normal, real3 tangent, real flipSign)
{
    // For odd-negative scale transforms we need to flip the sign
    real sgn = flipSign * GetOddNegativeScale();
    real3 bitangent = cross(normal, tangent) * sgn;

    return real3x3(tangent, bitangent, normal);
}

real3 TransformTangentToWorld(real3 dirTS, real3x3 tangentToWorld)
{
    // Note matrix is in row major convention with left multiplication as it is build on the fly
    return mul(dirTS, tangentToWorld);
}

// This function does the exact inverse of TransformTangentToWorld() and is
// also decribed within comments in mikktspace.h and it follows implicitly
// from the scalar triple product (google it).
real3 TransformWorldToTangent(real3 dirWS, real3x3 tangentToWorld)
{
    // Note matrix is in row major convention with left multiplication as it is build on the fly
    float3 row0 = tangentToWorld[0];
    float3 row1 = tangentToWorld[1];
    float3 row2 = tangentToWorld[2];

    // these are the columns of the inverse matrix but scaled by the determinant
    float3 col0 = cross(row1, row2);
    float3 col1 = cross(row2, row0);
    float3 col2 = cross(row0, row1);

    float determinant = dot(row0, col0);
    float sgn = determinant<0.0 ? (-1.0) : 1.0;

    // inverse transposed but scaled by determinant
    // Will remove transpose part by using matrix as the first arg in the mul() below
    // this makes it the exact inverse of what TransformTangentToWorld() does.
    real3x3 matTBN_I_T = real3x3(col0, col1, col2);

    return SafeNormalize( sgn * mul(matTBN_I_T, dirWS) );
}

real3 TransformTangentToObject(real3 dirTS, real3x3 tangentToWorld)
{
    // Note matrix is in row major convention with left multiplication as it is build on the fly
    real3 normalWS = TransformTangentToWorld(dirTS, tangentToWorld);
    return TransformWorldToObjectNormal(normalWS);
}

real3 TransformObjectToTangent(real3 dirOS, real3x3 tangentToWorld)
{
    // Note matrix is in row major convention with left multiplication as it is build on the fly

    // don't normalize, as normalWS will be normalized after TransformWorldToTangent
    float3 normalWS = TransformObjectToWorldNormal(dirOS, false);

    // transform from world to tangent
    return TransformWorldToTangent(normalWS, tangentToWorld);
}

#if SHADER_API_MOBILE || SHADER_API_GLES || SHADER_API_GLES3
#pragma warning (enable : 3205) // conversion of larger type to smaller
#endif

#endif

ShaderVariablesFunctions合集

Packages/com.unity.render-pipelines.universal/ShaderLibrary/ShaderVariablesFunctions.hlsl
主要目的是做了一系列的转换，可以用语义名称直接获取需要的数据。
比如：

VertexPositionInputs GetVertexPositionInputs(float3 positionOS)
{
    VertexPositionInputs input;
    input.positionWS = TransformObjectToWorld(positionOS);
    input.positionVS = TransformWorldToView(input.positionWS);
    input.positionCS = TransformWorldToHClip(input.positionWS);

    float4 ndc = input.positionCS * 0.5f;
    input.positionNDC.xy = float2(ndc.x, ndc.y * _ProjectionParams.x) + ndc.w;
    input.positionNDC.zw = input.positionCS.zw;

    return input;
}

GetVertexPositionInputs 这个函数内就已经准备好，positionWS positionVS和positionCS 这些数据。
其中 WS代表的是W = World，S = Space；V = View；C = Clip也就是裁剪。

代码如下：

#ifndef UNITY_SHADER_VARIABLES_FUNCTIONS_INCLUDED
#define UNITY_SHADER_VARIABLES_FUNCTIONS_INCLUDED

#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/ShaderVariablesFunctions.deprecated.hlsl"
#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Debug/DebuggingCommon.hlsl"

VertexPositionInputs GetVertexPositionInputs(float3 positionOS)
{
    VertexPositionInputs input;
    input.positionWS = TransformObjectToWorld(positionOS);
    input.positionVS = TransformWorldToView(input.positionWS);
    input.positionCS = TransformWorldToHClip(input.positionWS);

    float4 ndc = input.positionCS * 0.5f;
    input.positionNDC.xy = float2(ndc.x, ndc.y * _ProjectionParams.x) + ndc.w;
    input.positionNDC.zw = input.positionCS.zw;

    return input;
}

VertexNormalInputs GetVertexNormalInputs(float3 normalOS)
{
    VertexNormalInputs tbn;
    tbn.tangentWS = real3(1.0, 0.0, 0.0);
    tbn.bitangentWS = real3(0.0, 1.0, 0.0);
    tbn.normalWS = TransformObjectToWorldNormal(normalOS);
    return tbn;
}

VertexNormalInputs GetVertexNormalInputs(float3 normalOS, float4 tangentOS)
{
    VertexNormalInputs tbn;

    // mikkts space compliant. only normalize when extracting normal at frag.
    real sign = real(tangentOS.w) * GetOddNegativeScale();
    tbn.normalWS = TransformObjectToWorldNormal(normalOS);
    tbn.tangentWS = real3(TransformObjectToWorldDir(tangentOS.xyz));
    tbn.bitangentWS = real3(cross(tbn.normalWS, float3(tbn.tangentWS))) * sign;
    return tbn;
}

float4 GetScaledScreenParams()
{
    return _ScaledScreenParams;
}

// Returns 'true' if the current view performs a perspective projection.
bool IsPerspectiveProjection()
{
    return (unity_OrthoParams.w == 0);
}

float3 GetCameraPositionWS()
{
    // Currently we do not support Camera Relative Rendering so
    // we simply return the _WorldSpaceCameraPos until then
    return _WorldSpaceCameraPos;

    // We will replace the code above with this one once
    // we start supporting Camera Relative Rendering
    //#if (SHADEROPTIONS_CAMERA_RELATIVE_RENDERING != 0)
    //    return float3(0, 0, 0);
    //#else
    //    return _WorldSpaceCameraPos;
    //#endif
}

// Could be e.g. the position of a primary camera or a shadow-casting light.
float3 GetCurrentViewPosition()
{
    // Currently we do not support Camera Relative Rendering so
    // we simply return the _WorldSpaceCameraPos until then
    return GetCameraPositionWS();

    // We will replace the code above with this one once
    // we start supporting Camera Relative Rendering
    //#if defined(SHADERPASS) && (SHADERPASS != SHADERPASS_SHADOWS)
    //    return GetCameraPositionWS();
    //#else
    //    // This is a generic solution.
    //    // However, for the primary camera, using '_WorldSpaceCameraPos' is better for cache locality,
    //    // and in case we enable camera-relative rendering, we can statically set the position is 0.
    //    return UNITY_MATRIX_I_V._14_24_34;
    //#endif
}

// Returns the forward (central) direction of the current view in the world space.
float3 GetViewForwardDir()
{
    float4x4 viewMat = GetWorldToViewMatrix();
    return -viewMat[2].xyz;
}

// Computes the world space view direction (pointing towards the viewer).
float3 GetWorldSpaceViewDir(float3 positionWS)
{
    if (IsPerspectiveProjection())
    {
        // Perspective
        return GetCurrentViewPosition() - positionWS;
    }
    else
    {
        // Orthographic
        return -GetViewForwardDir();
    }
}

// Computes the object space view direction (pointing towards the viewer).
half3 GetObjectSpaceNormalizeViewDir(float3 positionOS)
{
    if (IsPerspectiveProjection())
    {
        // Perspective
        float3 V = TransformWorldToObject(GetCurrentViewPosition()) - positionOS;
        return half3(normalize(V));
    }
    else
    {
        // Orthographic
        return half3(TransformWorldToObjectNormal(-GetViewForwardDir()));
    }
}

half3 GetWorldSpaceNormalizeViewDir(float3 positionWS)
{
    if (IsPerspectiveProjection())
    {
        // Perspective
        float3 V = GetCurrentViewPosition() - positionWS;
        return half3(normalize(V));
    }
    else
    {
        // Orthographic
        return half3(-GetViewForwardDir());
    }
}

// UNITY_MATRIX_V defines a right-handed view space with the Z axis pointing towards the viewer.
// This function reverses the direction of the Z axis (so that it points forward),
// making the view space coordinate system left-handed.
void GetLeftHandedViewSpaceMatrices(out float4x4 viewMatrix, out float4x4 projMatrix)
{
    viewMatrix = UNITY_MATRIX_V;
    viewMatrix._31_32_33_34 = -viewMatrix._31_32_33_34;

    projMatrix = UNITY_MATRIX_P;
    projMatrix._13_23_33_43 = -projMatrix._13_23_33_43;
}

void AlphaDiscard(real alpha, real cutoff, real offset = real(0.0))
{
    #ifdef _ALPHATEST_ON
    if (IsAlphaDiscardEnabled())
        clip(alpha - cutoff + offset);
    #endif
}

half OutputAlpha(half outputAlpha, half surfaceType = half(0.0))
{
    return surfaceType == 1 ? outputAlpha : half(1.0);
}

// A word on normalization of normals:
// For better quality normals should be normalized before and after
// interpolation.
// 1) In vertex, skinning or blend shapes might vary significantly the lenght of normal.
// 2) In fragment, because even outputting unit-length normals interpolation can make it non-unit.
// 3) In fragment when using normal map, because mikktspace sets up non orthonormal basis.
// However we will try to balance performance vs quality here as also let users configure that as
// shader quality tiers.
// Low Quality Tier: Don't normalize per-vertex.
// Medium Quality Tier: Always normalize per-vertex.
// High Quality Tier: Always normalize per-vertex.
//
// Always normalize per-pixel.
// Too many bug like lighting quality issues otherwise.
half3 NormalizeNormalPerVertex(half3 normalWS)
{
    #if defined(SHADER_QUALITY_LOW) && defined(_NORMALMAP)
        return normalWS;
    #else
        return normalize(normalWS);
    #endif
}

float3 NormalizeNormalPerVertex(float3 normalWS)
{
    #if defined(SHADER_QUALITY_LOW) && defined(_NORMALMAP)
        return normalWS;
    #else
        return normalize(normalWS);
    #endif
}

half3 NormalizeNormalPerPixel(half3 normalWS)
{
// With XYZ normal map encoding we sporadically sample normals with near-zero-length causing Inf/NaN
#if defined(UNITY_NO_DXT5nm) && defined(_NORMALMAP)
    return SafeNormalize(normalWS);
#else
    return normalize(normalWS);
#endif
}

float3 NormalizeNormalPerPixel(float3 normalWS)
{
#if defined(UNITY_NO_DXT5nm) && defined(_NORMALMAP)
    return SafeNormalize(normalWS);
#else
    return normalize(normalWS);
#endif
}



real ComputeFogFactorZ0ToFar(float z)
{
    #if defined(FOG_LINEAR)
    // factor = (end-z)/(end-start) = z * (-1/(end-start)) + (end/(end-start))
    float fogFactor = saturate(z * unity_FogParams.z + unity_FogParams.w);
    return real(fogFactor);
    #elif defined(FOG_EXP) || defined(FOG_EXP2)
    // factor = exp(-(density*z)^2)
    // -density * z computed at vertex
    return real(unity_FogParams.x * z);
    #else
        return real(0.0);
    #endif
}

real ComputeFogFactor(float zPositionCS)
{
    float clipZ_0Far = UNITY_Z_0_FAR_FROM_CLIPSPACE(zPositionCS);
    return ComputeFogFactorZ0ToFar(clipZ_0Far);
}

half ComputeFogIntensity(half fogFactor)
{
    half fogIntensity = half(0.0);
    #if defined(FOG_LINEAR) || defined(FOG_EXP) || defined(FOG_EXP2)
        #if defined(FOG_EXP)
            // factor = exp(-density*z)
            // fogFactor = density*z compute at vertex
            fogIntensity = saturate(exp2(-fogFactor));
        #elif defined(FOG_EXP2)
            // factor = exp(-(density*z)^2)
            // fogFactor = density*z compute at vertex
            fogIntensity = saturate(exp2(-fogFactor * fogFactor));
        #elif defined(FOG_LINEAR)
            fogIntensity = fogFactor;
        #endif
    #endif
    return fogIntensity;
}

// Force enable fog fragment shader evaluation
#define _FOG_FRAGMENT 1
real InitializeInputDataFog(float4 positionWS, real vertFogFactor)
{
    real fogFactor = 0.0;
#if defined(_FOG_FRAGMENT)
    #if (defined(FOG_LINEAR) || defined(FOG_EXP) || defined(FOG_EXP2))
        // Compiler eliminates unused math --> matrix.column_z * vec
        float viewZ = -(mul(UNITY_MATRIX_V, positionWS).z);
        // View Z is 0 at camera pos, remap 0 to near plane.
        float nearToFarZ = max(viewZ - _ProjectionParams.y, 0);
        fogFactor = ComputeFogFactorZ0ToFar(nearToFarZ);
    #endif
#else
    fogFactor = vertFogFactor;
#endif
    return fogFactor;
}

float ComputeFogIntensity(float fogFactor)
{
    float fogIntensity = 0.0;
    #if defined(FOG_LINEAR) || defined(FOG_EXP) || defined(FOG_EXP2)
        #if defined(FOG_EXP)
            // factor = exp(-density*z)
            // fogFactor = density*z compute at vertex
            fogIntensity = saturate(exp2(-fogFactor));
        #elif defined(FOG_EXP2)
            // factor = exp(-(density*z)^2)
            // fogFactor = density*z compute at vertex
            fogIntensity = saturate(exp2(-fogFactor * fogFactor));
        #elif defined(FOG_LINEAR)
            fogIntensity = fogFactor;
        #endif
    #endif
    return fogIntensity;
}

half3 MixFogColor(half3 fragColor, half3 fogColor, half fogFactor)
{
    #if defined(FOG_LINEAR) || defined(FOG_EXP) || defined(FOG_EXP2)
        half fogIntensity = ComputeFogIntensity(fogFactor);
        fragColor = lerp(fogColor, fragColor, fogIntensity);
    #endif
    return fragColor;
}

float3 MixFogColor(float3 fragColor, float3 fogColor, float fogFactor)
{
    #if defined(FOG_LINEAR) || defined(FOG_EXP) || defined(FOG_EXP2)
    if (IsFogEnabled())
    {
        float fogIntensity = ComputeFogIntensity(fogFactor);
        fragColor = lerp(fogColor, fragColor, fogIntensity);
    }
    #endif
    return fragColor;
}

half3 MixFog(half3 fragColor, half fogFactor)
{
    return MixFogColor(fragColor, unity_FogColor.rgb, fogFactor);
}

float3 MixFog(float3 fragColor, float fogFactor)
{
    return MixFogColor(fragColor, unity_FogColor.rgb, fogFactor);
}

// Linear depth buffer value between [0, 1] or [1, 0] to eye depth value between [near, far]
half LinearDepthToEyeDepth(half rawDepth)
{
    #if UNITY_REVERSED_Z
        return half(_ProjectionParams.z - (_ProjectionParams.z - _ProjectionParams.y) * rawDepth);
    #else
        return half(_ProjectionParams.y + (_ProjectionParams.z - _ProjectionParams.y) * rawDepth);
    #endif
}

float LinearDepthToEyeDepth(float rawDepth)
{
    #if UNITY_REVERSED_Z
        return _ProjectionParams.z - (_ProjectionParams.z - _ProjectionParams.y) * rawDepth;
    #else
        return _ProjectionParams.y + (_ProjectionParams.z - _ProjectionParams.y) * rawDepth;
    #endif
}

void TransformScreenUV(inout float2 uv, float screenHeight)
{
    #if UNITY_UV_STARTS_AT_TOP
    uv.y = screenHeight - (uv.y * _ScaleBiasRt.x + _ScaleBiasRt.y * screenHeight);
    #endif
}

void TransformScreenUV(inout float2 uv)
{
    #if UNITY_UV_STARTS_AT_TOP
    TransformScreenUV(uv, GetScaledScreenParams().y);
    #endif
}

void TransformNormalizedScreenUV(inout float2 uv)
{
    #if UNITY_UV_STARTS_AT_TOP
    TransformScreenUV(uv, 1.0);
    #endif
}

float2 GetNormalizedScreenSpaceUV(float2 positionCS)
{
    float2 normalizedScreenSpaceUV = positionCS.xy * rcp(GetScaledScreenParams().xy);
    TransformNormalizedScreenUV(normalizedScreenSpaceUV);
    return normalizedScreenSpaceUV;
}

float2 GetNormalizedScreenSpaceUV(float4 positionCS)
{
    return GetNormalizedScreenSpaceUV(positionCS.xy);
}

#if defined(UNITY_SINGLE_PASS_STEREO)
    float2 TransformStereoScreenSpaceTex(float2 uv, float w)
    {
        // TODO: RVS support can be added here, if Universal decides to support it
        float4 scaleOffset = unity_StereoScaleOffset[unity_StereoEyeIndex];
        return uv.xy * scaleOffset.xy + scaleOffset.zw * w;
    }

    float2 UnityStereoTransformScreenSpaceTex(float2 uv)
    {
        return TransformStereoScreenSpaceTex(saturate(uv), 1.0);
    }
#else
    #define UnityStereoTransformScreenSpaceTex(uv) uv
#endif // defined(UNITY_SINGLE_PASS_STEREO)

#endif // UNITY_SHADER_VARIABLES_FUNCTIONS_INCLUDED

------------------------------------------------------------------------------------------------------------------

BuildIn管线下最简光照shader框架

Shader "NewShader"
{
    Properties
    {
        _MainTex ("Texture", 2D) = "white" {}
    }
    SubShader
    {
        Tags { "RenderType"="Opaque" }
        LOD 100
        Pass
        {
            Tags { "LightMode" = "ForwardBase" }
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag
            #pragma multi_compile_fwdbase
            // #pragma multi_compile DIRECTIONAL SHADOWS_SCREEN
            #include "UnityCG.cginc"
            #include "AutoLight.cginc"
            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
            };
            struct v2f
            {
                float4 pos : SV_POSITION;
                float2 uv : TEXCOORD0;
                float4 worldPos : TEXCOORD1;
                UNITY_SHADOW_COORDS(2)
            };
            sampler2D _MainTex;
            float4 _MainTex_ST;
            v2f vert (appdata v)
            {
                v2f o;
                o.pos = UnityObjectToClipPos(v.vertex);
                o.uv = TRANSFORM_TEX(v.uv, _MainTex);
                o.worldPos = mul(unity_ObjectToWorld,v.vertex);
                TRANSFER_SHADOW(o)//阴影
                return o;
            }
            fixed4 frag (v2f i) : SV_Target
            {
                UNITY_LIGHT_ATTENUATION(atten, i, i.worldPos)
                fixed4 col = tex2D(_MainTex, i.uv) * atten;
                return col;
            }
            ENDCG
        }
        // Pass to render object as a shadow caster
        Pass
        {
            //Name "ShadowCaster"
            Tags { "LightMode" = "ShadowCaster" }
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag
            #pragma multi_compile_shadowcaster
            #pragma multi_compile_instancing // allow instanced shadow pass for most of the shaders
            #include "UnityCG.cginc"
            struct appdata
            {
                float4 vertex:POSITION;
                half3 normal:NORMAL;
                UNITY_VERTEX_INPUT_INSTANCE_ID
            };
            struct v2f
            {
                V2F_SHADOW_CASTER;
                UNITY_VERTEX_OUTPUT_STEREO
            };
            v2f vert( appdata_base v )
            {
                v2f o;
                UNITY_SETUP_INSTANCE_ID(v);
                UNITY_INITIALIZE_VERTEX_OUTPUT_STEREO(o);
                TRANSFER_SHADOW_CASTER_NORMALOFFSET(o)
                return o;
            }
            float4 frag( v2f i ) : SV_Target
            {
                SHADOW_CASTER_FRAGMENT(i)
            }
            ENDCG
        }
    }
}

URP管线下最简光照shader框架

Shader "NewShader"
{
    Properties
    {
        _MainTex ("Texture", 2D) = "white" {}
    }
    SubShader
    {
        Tags { "RenderType"="Opaque" }
        LOD 100
		...
        Pass
        {
            Tags { "LightMode" = "UniversalForward" }
            ...
//支持多个平行光，只支持一个平行光的阴影，主光源阴影，屏幕空间阴影，级联阴影
            #pragma multi_compile _ _MAIN_LIGHT_SHADOWS _MAIN_LIGHT_SHADOWS_CASCADE _MAIN_LIGHT_SHADOWS_SCREEN
            //软阴影
            #pragma multi_compile_fragment _ _SHADOWS_SOFT
//支持多光源和多光源阴影的宏
            //#pragma multi_compile _ _ADDITIONAL_LIGHTS_VERTEX _ADDITIONAL_LIGHTS
            //#pragma multi_compile_fragment _ _ADDITIONAL_LIGHT_SHADOWS
//反射、环境遮蔽和烘焙相关宏定义
            //#pragma multi_compile_fragment _ _REFLECTION_PROBE_BLENDING
            //#pragma multi_compile_fragment _ _REFLECTION_PROBE_BOX_PROJECTION
            //#pragma multi_compile_fragment _ _SCREEN_SPACE_OCCLUSION
            //#pragma multi_compile_fragment _ _DBUFFER_MRT1 _DBUFFER_MRT2 _DBUFFER_MRT3
            //#pragma multi_compile_fragment _ _LIGHT_LAYERS
            //#pragma multi_compile_fragment _ _LIGHT_COOKIES
            //#pragma multi_compile _ _CLUSTERED_RENDERING
            ...
            #pragma vertex LitPassVertex
            #pragma fragment LitPassFragment
			//HLSL包含文件
			#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
			#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl"
			...
			//HLSLPROGRAM
            HLSLPROGRAM

            struct Attributes
            {
                float4 positionOS : POSITION;
                float2 uv : TEXCOORD0;
            };

            struct Varyings
            {
                float2 uv : TEXCOORD0;
                UNITY_FOG_COORDS(1)
                SHADOW_COORDS(2)//阴影
                float4 vertex : SV_POSITION;
            };

            ...
                TEXTURE2D(_MainTex );				   SAMPLER(sampler_MainTex );
                CBUFFER_START(UnityPerMaterial)//用“CBUFFER_START”包围起来，主要是做性能优化。
                float4 _MainTex _ST;
				CBUFFER_END
			...

			Varyings LitPassVertex(Attributes input)
			{
			    Varyings output = (Varyings)0;
                output.vertex = TransformObjectToHClip(input.positionOS);
                output.uv = TRANSFORM_TEX(input.uv, _MainTex);
                UNITY_TRANSFER_FOG(input,input.positionOS);
                TRANSFER_SHADOW(input)//阴影
                return o;
            }

			half4 LitPassFragment(Varyings input) : SV_Target
			{
			UNITY_SETUP_INSTANCE_ID(input);
			Light mainLight = GetMainLight(input.shadowCoord,input.positionWS,float4(1.0,1.0,1.0,1.0));
			float3 lightDir = mainLight.direction;
			half shadow = mainLight.shadowAttenuation;
			//视线方向
			half3 view_dir = normalize(_WorldSpaceCameraPos.xyz - i.pos_world);
			//灯光方向
			half3 light_dir = normalize(_WorldSpaceLightPos0.xyz);
			//主光源颜色信息
			half3 mainlight = _LightColor0.xyz;
			//多光源
			#ifdef _ADDITIONAL_LIGHTS
				uint pixelLightCount = GetAdditionalLightsCount();
				for(uint lightIndex = 0; lightIndex < pixelLightCount; ++lightIndex)
				{
					Light light = GetAdditionalLight(lightIndex,input.positionWS,float4(1.0,1.0,1.0,1.0));
					half NdotL_add = dot(normalDir, light.direction);
					half half_lambert_add = (NdotL_add + 1.0) * 0.5;
					float atten_add = lerp(1 , light.shadowAttenuation * light.distanceAttenuation , input.vertexColor.g);
					half labmbert_term_add = half_lambert_add * ao * atten_add + diffuse_control;
					toon_diffuse += saturate((labmbert_term_add * light.color - _ToonThesHold) * _ToonHardness);
				}
			#endif
			//半角向量
			half3 half_dir = normalize(light_dir + view_dir);
			//NdotH
			half NdotH = dot(normal_dir, half_dir);
			// sample the texture
			float4 col = SAMPLE_TEXTURE2D(_MainTex, sampler_MainTex, input.uv);
			// apply fog
			UNITY_APPLY_FOG(input.fogCoord, col);
			return col;
            }
            ENDHLSL
        }
    }
    FallBack "Hidden/Universal Render Pipeline/FallbackError"
}

URP管线下最简GUI 不透明Opaque shader框架

Shader "xukaibo/URP/BaseShader_Opaque"
{
    Properties
    {
        [Enum(UnityEngine.Rendering.CompareFunction)] _CustomZTest ("最上层=>Disable/Always||默认=>LessEqual", Int) = 4
        [MainTexture] _MainTex("MainTex", 2D) = "white" {}
        [HDR]_BaseColor("Color", Color) = (1, 1, 1, 1)
        _Contrast("对比度",  Range(0,2)) = 0.5
    }
    SubShader
    {
        Tags { "RenderType"="Opaque" }
        ZTest [_CustomZTest]
        Pass
        {
            HLSLPROGRAM
            #pragma vertex LitPassVertex
            #pragma fragment LitPassFragment
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl"

            struct Attributes
            {
                float4 positionOS : POSITION;
                float2 uv : TEXCOORD0;
            };

            struct Varyings
            {
                float4 vertex : SV_POSITION;
                float2 uv : TEXCOORD0;
            };

            TEXTURE2D(_MainTex);				   SAMPLER(sampler_MainTex);
            CBUFFER_START(UnityPerMaterial)
                half4 _MainTex_ST,_BaseColor;
                half _Contrast;
                half _UVBase;
            CBUFFER_END

            Varyings LitPassVertex(Attributes input)
            {
                Varyings output = (Varyings)0;
                output.vertex = TransformObjectToHClip(input.positionOS.xyz);
                output.uv = TRANSFORM_TEX(input.uv, _MainTex);
                return output;
            }

            half4 LitPassFragment(Varyings input) : SV_Target
            {
                float4 col = SAMPLE_TEXTURE2D(_MainTex, sampler_MainTex, input.uv) * _BaseColor;
                col.a = col.a > 0.5 ? col.a : 0;
                col.rgb = col.rgb * (1 + _Contrast);
                return col;
            }
            ENDHLSL
        }
    }
    FallBack "Hidden/Universal Render Pipeline/FallbackError"
}

URP管线下最简GUI 透明Transparent shader框架

Shader "xukaibo/URP/BaseShader_Transparent"
{
    Properties
    {
        [Enum(UnityEngine.Rendering.CompareFunction)] _CustomZTest ("最上层=>Disable/Always||默认=>LessEqual", Int) = 4
        [HDR]_BaseColor("Color", Color) = (1, 1, 1, 1)
        _MainTex ("Texture", 2D) = "white" {}
        _Alpha("背景透明度",  Range(0,1)) = 0.5
        _ColorInt("强度",  Range(0,1)) = 0.5
        [HideInInspector]_DetailTex ("Detail (RGB)", 2D) = "white" {}
        [HideInInspector]_Strength ("Detail Strength", Range(0.0, 1.0)) = 0.2
        [HideInInspector]_StencilComp ("Stencil Comparison", Float) = 8
        [HideInInspector]_Stencil ("Stencil ID", Float) = 0
        [HideInInspector]_StencilOp ("Stencil Operation", Float) = 0
        [HideInInspector]_StencilWriteMask ("Stencil Write Mask", Float) = 255
        [HideInInspector]_StencilReadMask ("Stencil Read Mask", Float) = 255
        [HideInInspector]_ColorMask ("Color Mask", Float) = 15
        [HideInInspector]_ZWrite ("ZWrite", Int) = 0.0 // On
        // [Toggle(UNITY_UI_ALPHACLIP)] _UseUIAlphaClip ("Use Alpha Clip", Float) = 0
    }
    SubShader
    {
        LOD 100
        Tags
        {
            "Queue"="Transparent"
            "IgnoreProjector"="True"
            "RenderType"="Transparent"
            "PreviewType"="Plane"
            "CanUseSpriteAtlas"="True"
        }
        Stencil
        {
            Ref [_Stencil]
            Comp [_StencilComp]
            Pass [_StencilOp]
            ReadMask [_StencilReadMask]
            WriteMask [_StencilWriteMask]
        }
        Cull Off
        Lighting Off
        ZWrite Off
        ZTest [_CustomZTest]
        Blend SrcAlpha OneMinusSrcAlpha
        ColorMask [_ColorMask]
        Pass
        {
            HLSLPROGRAM
            #pragma vertex LitPassVertex
            #pragma fragment LitPassFragment
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl"

            struct Attributes
            {
                float4 positionOS : POSITION;
                float2 uv : TEXCOORD0;
            };

            struct Varyings
            {
                float4 vertex : SV_POSITION;
                float2 uv : TEXCOORD0;
            };

            TEXTURE2D(_MainTex);				   SAMPLER(sampler_MainTex);
            CBUFFER_START(UnityPerMaterial)
                half4 _MainTex_ST,_BaseColor;
                float _Alpha,_ColorInt;
            CBUFFER_END

            Varyings LitPassVertex(Attributes input)
            {
                Varyings output = (Varyings)0;
                output.vertex = TransformObjectToHClip(input.positionOS.xyz);
                output.uv = TRANSFORM_TEX(input.uv, _MainTex);
                return output;
            }

            half4 LitPassFragment(Varyings input) : SV_Target
            {
                float4 col = SAMPLE_TEXTURE2D(_MainTex, sampler_MainTex, input.uv) * _BaseColor;
                // #ifdef UNITY_UI_ALPHACLIP
                //     clip (col.a - 0.001);
                // #endif
                col.rgb *= _ColorInt;
                col.a += _Alpha;
                return col;
            }
            ENDHLSL
        }
    }
    FallBack "Hidden/Universal Render Pipeline/FallbackError"
}

HLSL阴影部分的Pass

在UniversalForward Pass之后新增两个ShadowCaster和DepthOnly Pass。

        //阴影pass
        Pass
        {
            Name "ShadowCaster"
            Tags{"LightMode" = "ShadowCaster"}

            ZWrite On
            ZTest LEqual
            ColorMask 0
            Cull[_Cull]

            HLSLPROGRAM
            #pragma exclude_renderers gles gles3 glcore
            #pragma target 4.5

            // -------------------------------------
            // Material Keywords
            #pragma shader_feature_local_fragment _ALPHATEST_ON
            #pragma shader_feature_local_fragment _SMOOTHNESS_TEXTURE_ALBEDO_CHANNEL_A

            //--------------------------------------
            // GPU Instancing
            #pragma multi_compile_instancing
            #pragma multi_compile _ DOTS_INSTANCING_ON

            // -------------------------------------
            // Universal Pipeline keywords

            // This is used during shadow map generation to differentiate between directional and punctual light shadows, as they use different formulas to apply Normal Bias
            #pragma multi_compile_vertex _ _CASTING_PUNCTUAL_LIGHT_SHADOW

            #pragma vertex ShadowPassVertex
            #pragma fragment ShadowPassFragment

            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitInput.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/Shaders/ShadowCasterPass.hlsl"
            ENDHLSL
        }
        //深度pass，用在屏幕空间阴影和环境遮蔽
        Pass
        {
            Name "DepthOnly"
            Tags{"LightMode" = "DepthOnly"}

            ZWrite On
            ColorMask 0
            Cull[_Cull]

            HLSLPROGRAM
            #pragma exclude_renderers gles gles3 glcore
            #pragma target 4.5

            #pragma vertex DepthOnlyVertex
            #pragma fragment DepthOnlyFragment

            // -------------------------------------
            // Material Keywords
            #pragma shader_feature_local_fragment _ALPHATEST_ON
            #pragma shader_feature_local_fragment _SMOOTHNESS_TEXTURE_ALBEDO_CHANNEL_A

            //--------------------------------------
            // GPU Instancing
            #pragma multi_compile_instancing
            #pragma multi_compile _ DOTS_INSTANCING_ON

            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitInput.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/Shaders/DepthOnlyPass.hlsl"
            ENDHLSL
        }

        // This pass is used when drawing to a _CameraNormalsTexture texture
        Pass
        {
            Name "DepthNormals"
            Tags{"LightMode" = "DepthNormals"}

            ZWrite On
            Cull[_Cull]

            HLSLPROGRAM
            #pragma exclude_renderers gles gles3 glcore
            #pragma target 4.5

            #pragma vertex DepthNormalsVertex
            #pragma fragment DepthNormalsFragment

            // -------------------------------------
            // Material Keywords
            #pragma shader_feature_local _NORMALMAP
            #pragma shader_feature_local _PARALLAXMAP
            #pragma shader_feature_local _ _DETAIL_MULX2 _DETAIL_SCALED
            #pragma shader_feature_local_fragment _ALPHATEST_ON
            #pragma shader_feature_local_fragment _SMOOTHNESS_TEXTURE_ALBEDO_CHANNEL_A

            //--------------------------------------
            // GPU Instancing
            #pragma multi_compile_instancing
            #pragma multi_compile _ DOTS_INSTANCING_ON

            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitInput.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/Shaders/LitDepthNormalsPass.hlsl"
            ENDHLSL
        }

HDRP管线下最简Unlit shader框架

Shader "Unlit/12"
{
    Properties
    {
        _MainTex ("Texture", 2D) = "white" {}
        _Color("Color", Color) = (1, 1, 1, 1)
    }
    SubShader
    {
        Tags { "RenderType"="Opaque" }
        LOD 100

        Pass
        {
            HLSLPROGRAM
            #pragma vertex LitPassVertex
            #pragma fragment LitPassFragment

			#include "Packages/com.unity.render-pipelines.core/ShaderLibrary/Common.hlsl"
			#include "Packages/com.unity.render-pipelines.high-definition/Runtime/ShaderLibrary/ShaderVariables.hlsl"
			#include "Packages/com.unity.render-pipelines.high-definition/Runtime/RenderPipeline/ShaderPass/FragInputs.hlsl"
			#include "Packages/com.unity.render-pipelines.high-definition/Runtime/RenderPipeline/ShaderPass/ShaderPass.cs.hlsl"
			#include "Packages/com.unity.render-pipelines.high-definition/Runtime/Material/Material.hlsl"

            TEXTURE2D(_MainTex);
            SAMPLER(sampler_MainTex);

            CBUFFER_START(UnityPerMaterial)
                float4 _MainTex_ST;
            CBUFFER_END
            struct Attributes
            {
                float3 positionOS : POSITION;
                float2 uv : TEXCOORD0;
            };

            struct Varyings
            {
                float2 uv : TEXCOORD0;
                float4 vertex : SV_POSITION;
            };

            Varyings LitPassVertex(Attributes input)
            {
                Varyings output = (Varyings)0;
                output.vertex = TransformObjectToHClip(input.positionOS);
                output.uv = TRANSFORM_TEX(input.uv, _MainTex);
                return output;
            }

            half4 LitPassFragment(Varyings input) : SV_Target
            {
                half4 col = SAMPLE_TEXTURE2D(_MainTex, sampler_MainTex , input.uv);
                return col;
            }
            ENDHLSL
        }
    }
}
