ue4-shader-自定义模板CustomStencil

---

title: ue4-shader-自定义模板CustomStencil
categories: UnrealEngine4-Shader
tags: [ue4, shader, stencil, 模板测试]
date: 2019-05-09 21:00:50
comments: false

Custom Depth Stencil is an extension of Custom Depth. 自定义深度模板 是 自定义深度 的一个扩展.

---

前篇

• 官方文档: CustomDepth Stencil - https://docs.unrealengine.com/en-US/Engine/Rendering/PostProcessEffects/PostProcessMaterials
• Multi-color Outline Post Process in Unreal Engine 4 - http://www.tomlooman.com/multi-color-outline-post-process-in-unreal-engine-4/

---

使用流程

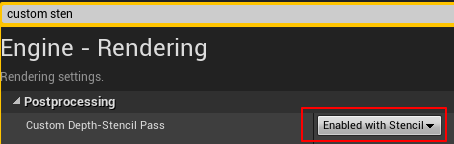

1. 项目开启模板测试, 默认是关闭的. project settings -> engine -> rendering -> postprocessing -> custom depth-stencil pass, 选取 enabled with stencil

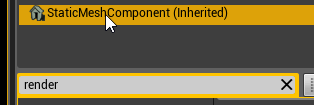

2. 给物体指定 模板值. 在 mesh 组件下搜索 render,

   勾选 render customDepth pass, 给 customDepth stencil value 指定模板值 180 (自定义)



   • 如果使用c++, 相关代码

     GetMesh()->SetRenderCustomDepth(true);
     GetMesh()->SetCustomDepthStencilValue(255); // assign an int32 within 1-255 range.


   • 可以查看一下. lit -> buffer visualization -> custom stencil



---

测试-outline

参考: Outline effect (Part 1) - https://www.parallelcube.com/2017/12/05/outline-effect-part-1/

• 效果图

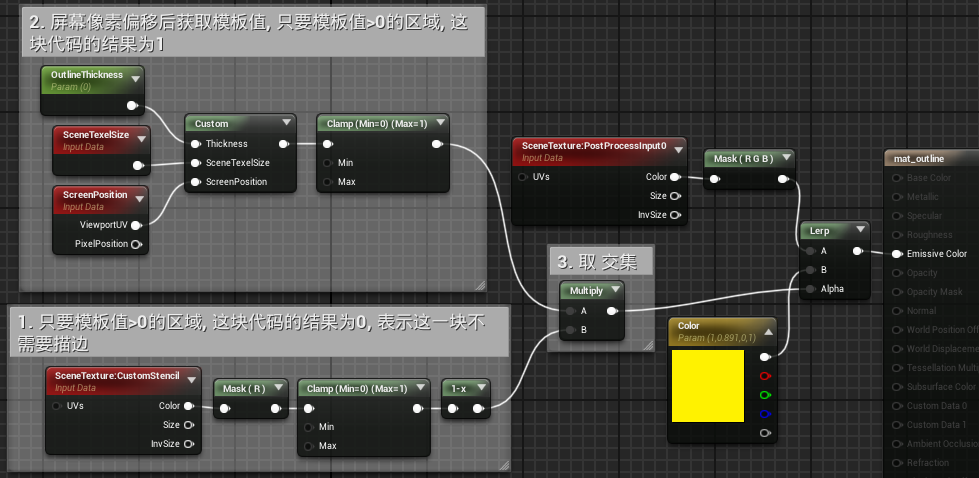

• 这是一个 post process 材质, 搭配 post process volume 使用



  • custom 节点代码. 作用是偏移屏幕像素对应的缓冲, 然后再冲 GBuffer 中获取模板值.

    GetScreenSpaceData 函数可以从 GBuffer 中获取到数据, 这是 延迟管线 的函数. 参考: Base Pass Pixel Shader

    #if SCENE_TEXTURES_DISABLED
    return 0;
    #endif
    float offset_h = SceneTexelSize.r * Thickness;
    float offset_v = SceneTexelSize.g * Thickness;

    float TL = GetScreenSpaceData(ViewportUVToBufferUV(ScreenPosition + float2(-offset_h, -offset_v)), false).GBuffer.CustomStencil.r;
    float TM = GetScreenSpaceData(ViewportUVToBufferUV(ScreenPosition + float2(0, -offset_v)), false).GBuffer.CustomStencil.r;
    float TR = GetScreenSpaceData(ViewportUVToBufferUV(ScreenPosition + float2(offset_h, -offset_v)), false).GBuffer.CustomStencil.r;

    float ML = GetScreenSpaceData(ViewportUVToBufferUV(ScreenPosition + float2(-offset_h, 0)), false).GBuffer.CustomStencil.r;
    float MR = GetScreenSpaceData(ViewportUVToBufferUV(ScreenPosition + float2(offset_h, 0)), false).GBuffer.CustomStencil.r;

    float BL = GetScreenSpaceData(ViewportUVToBufferUV(ScreenPosition + float2(-offset_h, offset_v)), false).GBuffer.CustomStencil.r;
    float BM = GetScreenSpaceData(ViewportUVToBufferUV(ScreenPosition + float2(0, offset_v)), false).GBuffer.CustomStencil.r;
    float BR = GetScreenSpaceData(ViewportUVToBufferUV(ScreenPosition + float2(offset_h, offset_v)), false).GBuffer.CustomStencil.r;

    return max(TL, max(TM, max(TR, max(ML, max(MR, max(BL, max(BM, BR ) ) ) ) ) ) );

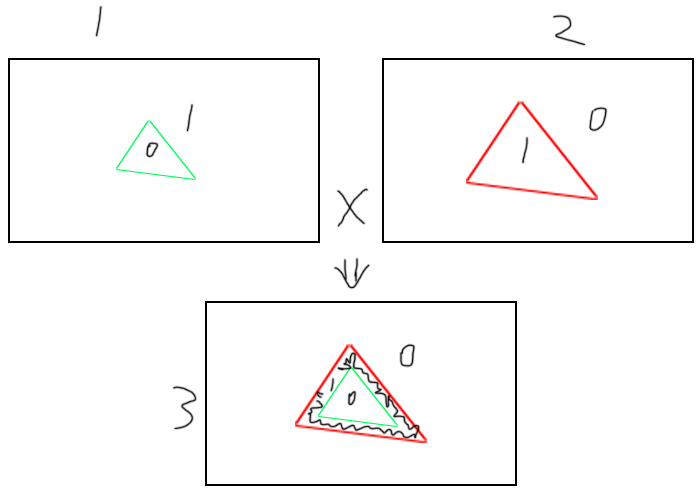

• 辅助理解图示意图


  最后只有交集的地方才是值才是1, 也就是描边的区域. lerp 函数 0 的地方就是 原颜色, 1 的地方就是 描边颜色

---
