一、导言

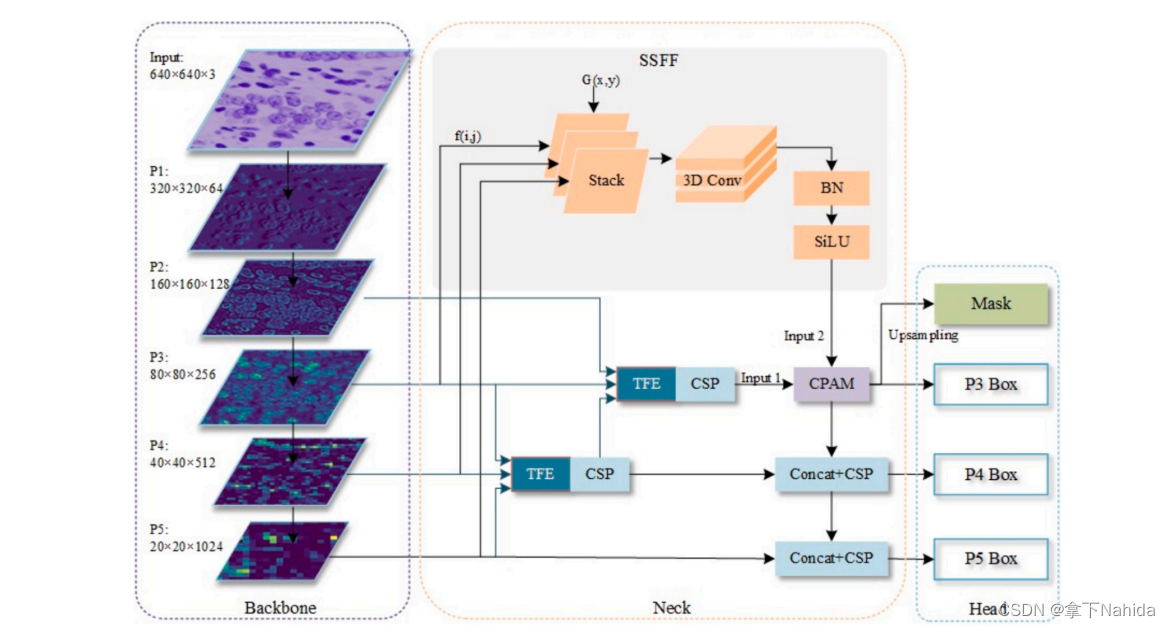

ASF-YOLO结合空间和尺度特征以实现精确且快速的细胞实例分割。在YOLO分割框架的基础上，通过引入尺度序列特征融合(SSFF)模块来增强网络的多尺度信息提取能力，并利用三重特征编码器(TFE)模块融合不同尺度的特征图以增加细节信息。此外，还引入了通道和位置注意力机制(CPAM)，整合SSFF和TFE模块，专注于有信息的通道和与小物体空间位置相关的特征，从而提升检测和分割性能。实验验证显示，ASF-YOLO模型在两个细胞数据集上取得了显著的分割精度和速度，包括在2018年数据科学碗数据集上的框mAP为0.91，掩码mAP为0.887，推理速度为47.3 FPS，优于当时最先进的方法。

优点：

1.创新性模块设计

提出了Scale Sequence Feature Fusion (SSFF) 和 Triple Feature Encoder (TFE) 模块，能够有效融合多尺度特征，增强了网络对不同尺寸、方向和长宽比细胞对象的处理能力。这克服了现有模型如FPN在YOLov5中的局限性，后者无法充分利用金字塔特征图之间的相关性。

2.注意力机制的集成

Channel and Position Attention Mechanism (CPAM) 的引入使模型能自适应地聚焦于与小物体相关的通道和空间位置，这对于提高密集重叠细胞的分割性能至关重要。

3.改进的损失函数与后处理

使用Enhanced Intersection over Union (EIoU) 损失函数优化边界框定位，相比YOLOv5和YOLOv8中使用的CIoU，EIoU更能精确捕捉小对象的位置。同时应用Soft Non-Maximum Suppression (Soft-NMS) 减少密集重叠问题，提高了检测精度。

4.高性能表现

实验结果显示，ASF-YOLO在DSB2018和BCC两个基准细胞数据集上，不仅在分割精度上（box mAP为0.91，mask mAP为0.887）超越了当前最优方法，而且保持了较快的推理速度（47.3 FPS），这在医学和生物学应用中尤为重要。

5.实际应用潜力

作为首个基于YOLO框架用于细胞实例分割的工作，ASF-YOLO展示了在细胞图像分析领域的广泛适用性和潜力，对于推动医疗和生物领域研究有积极影响。

二、准备工作

首先在YOLOv5/v7的models文件夹下新建文件asfyolo.py，导入如下代码

from models.common import *


class Zoom_cat(nn.Module):
    def __init__(self):
        super().__init__()

    def forward(self, x):
        l, m, s = x[0], x[1], x[2]
        tgt_size = m.shape[2:]
        l = F.adaptive_max_pool2d(l, tgt_size) + F.adaptive_avg_pool2d(l, tgt_size)
        s = F.interpolate(s, m.shape[2:], mode='nearest')
        lms = torch.cat([l, m, s], dim=1)
        return lms


class ScalSeq(nn.Module):
    def __init__(self, inc, channel):
        super(ScalSeq, self).__init__()
        self.conv0 = Conv(inc[0], channel, 1)
        self.conv1 = Conv(inc[1], channel, 1)
        self.conv2 = Conv(inc[2], channel, 1)
        self.conv3d = nn.Conv3d(channel, channel, kernel_size=(1, 1, 1))
        self.bn = nn.BatchNorm3d(channel)
        self.act = nn.LeakyReLU(0.1)
        self.pool_3d = nn.MaxPool3d(kernel_size=(3, 1, 1))

    def forward(self, x):
        p3, p4, p5 = x[0], x[1], x[2]
        p3 = self.conv0(p3)
        p4_2 = self.conv1(p4)
        p4_2 = F.interpolate(p4_2, p3.size()[2:], mode='nearest')
        p5_2 = self.conv2(p5)
        p5_2 = F.interpolate(p5_2, p3.size()[2:], mode='nearest')
        p3_3d = torch.unsqueeze(p3, -3)
        p4_3d = torch.unsqueeze(p4_2, -3)
        p5_3d = torch.unsqueeze(p5_2, -3)
        combine = torch.cat([p3_3d, p4_3d, p5_3d], dim=2)
        conv_3d = self.conv3d(combine)
        bn = self.bn(conv_3d)
        act = self.act(bn)
        x = self.pool_3d(act)
        x = torch.squeeze(x, 2)
        return x


class Add(nn.Module):
    # Concatenate a list of tensors along dimension
    def __init__(self):
        super().__init__()

    def forward(self, x):
        input1, input2 = x[0], x[1]
        x = input1 + input2
        return x


class channel_att(nn.Module):
    def __init__(self, channel, b=1, gamma=2):
        super(channel_att, self).__init__()
        kernel_size = int(abs((math.log(channel, 2) + b) / gamma))
        kernel_size = kernel_size if kernel_size % 2 else kernel_size + 1

        self.avg_pool = nn.AdaptiveAvgPool2d(1)
        self.conv = nn.Conv1d(1, 1, kernel_size=kernel_size, padding=(kernel_size - 1) // 2, bias=False)
        self.sigmoid = nn.Sigmoid()

    def forward(self, x):
        y = self.avg_pool(x)
        y = y.squeeze(-1)
        y = y.transpose(-1, -2)
        y = self.conv(y).transpose(-1, -2).unsqueeze(-1)
        y = self.sigmoid(y)
        return x * y.expand_as(x)


class local_att(nn.Module):
    def __init__(self, channel, reduction=16):
        super(local_att, self).__init__()

        self.conv_1x1 = nn.Conv2d(in_channels=channel, out_channels=channel // reduction, kernel_size=1, stride=1,
                                  bias=False)

        self.relu = nn.ReLU()
        self.bn = nn.BatchNorm2d(channel // reduction)

        self.F_h = nn.Conv2d(in_channels=channel // reduction, out_channels=channel, kernel_size=1, stride=1,
                             bias=False)
        self.F_w = nn.Conv2d(in_channels=channel // reduction, out_channels=channel, kernel_size=1, stride=1,
                             bias=False)

        self.sigmoid_h = nn.Sigmoid()
        self.sigmoid_w = nn.Sigmoid()

    def forward(self, x):
        _, _, h, w = x.size()

        x_h = torch.mean(x, dim=3, keepdim=True).permute(0, 1, 3, 2)
        x_w = torch.mean(x, dim=2, keepdim=True)

        x_cat_conv_relu = self.relu(self.bn(self.conv_1x1(torch.cat((x_h, x_w), 3))))

        x_cat_conv_split_h, x_cat_conv_split_w = x_cat_conv_relu.split([h, w], 3)

        s_h = self.sigmoid_h(self.F_h(x_cat_conv_split_h.permute(0, 1, 3, 2)))
        s_w = self.sigmoid_w(self.F_w(x_cat_conv_split_w))

        out = x * s_h.expand_as(x) * s_w.expand_as(x)
        return out


class attention_model(nn.Module):
    # Concatenate a list of tensors along dimension
    def __init__(self, ch=256):
        super().__init__()
        self.channel_att = channel_att(ch)
        self.local_att = local_att(ch)

    def forward(self, x):
        input1, input2 = x[0], x[1]
        input1 = self.channel_att(input1)
        x = input1 + input2
        x = self.local_att(x)
        return x

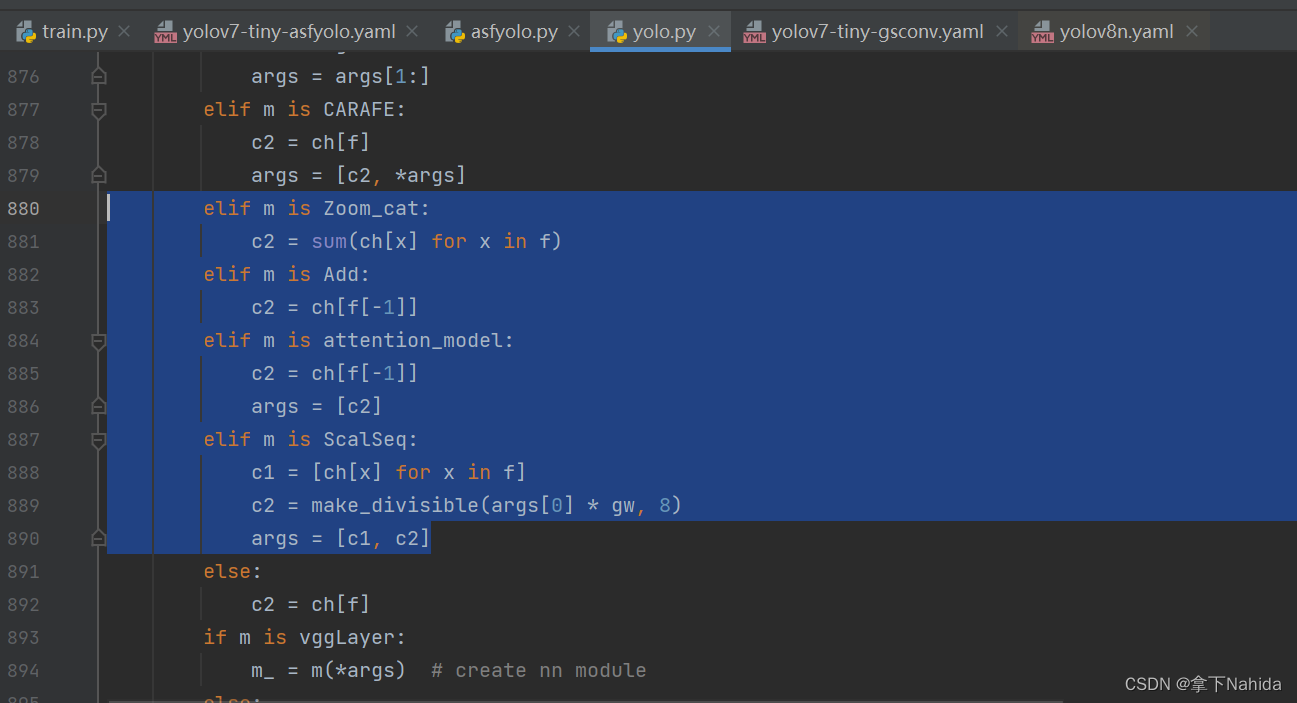

其次在在YOLOv5/v7项目文件下的models/yolo.py中在文件首部添加代码

from models.asfyolo import *

并搜索def parse_model(d, ch)

定位到如下行添加以下代码

        elif m is Zoom_cat:
            c2 = sum(ch[x] for x in f)
        elif m is Add:
            c2 = ch[f[-1]]
        elif m is attention_model:
            c2 = ch[f[-1]]
            args = [c2]
        elif m is ScalSeq:
            c1 = [ch[x] for x in f]
            c2 = make_divisible(args[0] * gw, 8)
            args = [c1, c2]

三、YOLOv7-tiny改进工作

完成二后，在YOLOv7项目文件下的models文件夹下创建新的文件yolov7-tiny-asfyolo.yaml，导入如下代码。

# parameters
nc: 80  # number of classes
depth_multiple: 1.0  # model depth multiple
width_multiple: 1.0  # layer channel multiple

# anchors
anchors:
  - [10,13, 16,30, 33,23]  # P3/8
  - [30,61, 62,45, 59,119]  # P4/16
  - [116,90, 156,198, 373,326]  # P5/32

# yolov7-tiny backbone
backbone:
  # [from, number, module, args] c2, k=1, s=1, p=None, g=1, act=True
  [[-1, 1, Conv, [32, 3, 2, None, 1, nn.LeakyReLU(0.1)]],  # 0-P1/2

   [-1, 1, Conv, [64, 3, 2, None, 1, nn.LeakyReLU(0.1)]],  # 1-P2/4

   [-1, 1, Conv, [32, 1, 1, None, 1, nn.LeakyReLU(0.1)]],
   [-2, 1, Conv, [32, 1, 1, None, 1, nn.LeakyReLU(0.1)]],
   [-1, 1, Conv, [32, 3, 1, None, 1, nn.LeakyReLU(0.1)]],
   [-1, 1, Conv, [32, 3, 1, None, 1, nn.LeakyReLU(0.1)]],
   [[-1, -2, -3, -4], 1, Concat, [1]],
   [-1, 1, Conv, [64, 1, 1, None, 1, nn.LeakyReLU(0.1)]],  # 7

   [-1, 1, MP, []],  # 8-P3/8
   [-1, 1, Conv, [64, 1, 1, None, 1, nn.LeakyReLU(0.1)]],
   [-2, 1, Conv, [64, 1, 1, None, 1, nn.LeakyReLU(0.1)]],
   [-1, 1, Conv, [64, 3, 1, None, 1, nn.LeakyReLU(0.1)]],
   [-1, 1, Conv, [64, 3, 1, None, 1, nn.LeakyReLU(0.1)]],
   [[-1, -2, -3, -4], 1, Concat, [1]],
   [-1, 1, Conv, [128, 1, 1, None, 1, nn.LeakyReLU(0.1)]],  # 14

   [-1, 1, MP, []],  # 15-P4/16
   [-1, 1, Conv, [128, 1, 1, None, 1, nn.LeakyReLU(0.1)]],
   [-2, 1, Conv, [128, 1, 1, None, 1, nn.LeakyReLU(0.1)]],
   [-1, 1, Conv, [128, 3, 1, None, 1, nn.LeakyReLU(0.1)]],
   [-1, 1, Conv, [128, 3, 1, None, 1, nn.LeakyReLU(0.1)]],
   [[-1, -2, -3, -4], 1, Concat, [1]],
   [-1, 1, Conv, [256, 1, 1, None, 1, nn.LeakyReLU(0.1)]],  # 21

   [-1, 1, MP, []],  # 22-P5/32
   [-1, 1, Conv, [256, 1, 1, None, 1, nn.LeakyReLU(0.1)]],
   [-2, 1, Conv, [256, 1, 1, None, 1, nn.LeakyReLU(0.1)]],
   [-1, 1, Conv, [256, 3, 1, None, 1, nn.LeakyReLU(0.1)]],
   [-1, 1, Conv, [256, 3, 1, None, 1, nn.LeakyReLU(0.1)]],
   [[-1, -2, -3, -4], 1, Concat, [1]],
   [-1, 1, Conv, [512, 1, 1, None, 1, nn.LeakyReLU(0.1)]],  # 28
  ]

# yolov7-tiny head
head:
  [[-1, 1, v7tiny_SPP, [256]], # 29

   [-1, 1, Conv, [256, 1, 1, None, 1, nn.LeakyReLU(0.1)]],
   [14, 1, Conv, [256, 1, 1, None, 1, nn.LeakyReLU(0.1)]],
   [[-1, 21, -2], 1, Zoom_cat, []],

   [-1, 1, Conv, [64, 1, 1, None, 1, nn.LeakyReLU(0.1)]],
   [-2, 1, Conv, [64, 1, 1, None, 1, nn.LeakyReLU(0.1)]],
   [-1, 1, Conv, [64, 3, 1, None, 1, nn.LeakyReLU(0.1)]],
   [-1, 1, Conv, [64, 3, 1, None, 1, nn.LeakyReLU(0.1)]],
   [[-1, -2, -3, -4], 1, Concat, [1]],
   [-1, 1, Conv, [128, 1, 1, None, 1, nn.LeakyReLU(0.1)]],  # 38

   [-1, 1, Conv, [128, 1, 1, None, 1, nn.LeakyReLU(0.1)]],
   [7, 1, Conv, [128, 1, 1, None, 1, nn.LeakyReLU(0.1)]], # 40
   [[-1, 14, -2], 1, Zoom_cat, []],

   [-1, 1, Conv, [32, 1, 1, None, 1, nn.LeakyReLU(0.1)]],
   [-2, 1, Conv, [32, 1, 1, None, 1, nn.LeakyReLU(0.1)]],
   [-1, 1, Conv, [32, 3, 1, None, 1, nn.LeakyReLU(0.1)]],
   [-1, 1, Conv, [32, 3, 1, None, 1, nn.LeakyReLU(0.1)]],
   [[-1, -2, -3, -4], 1, Concat, [1]],
   [-1, 1, Conv, [64, 1, 1, None, 1, nn.LeakyReLU(0.1)]],  # 47

   [-1, 1, Conv, [128, 3, 2, None, 1, nn.LeakyReLU(0.1)]],
   [[-1, 38], 1, Concat, [1]],

   [-1, 1, Conv, [64, 1, 1, None, 1, nn.LeakyReLU(0.1)]],
   [-2, 1, Conv, [64, 1, 1, None, 1, nn.LeakyReLU(0.1)]],
   [-1, 1, Conv, [64, 3, 1, None, 1, nn.LeakyReLU(0.1)]],
   [-1, 1, Conv, [64, 3, 1, None, 1, nn.LeakyReLU(0.1)]],
   [[-1, -2, -3, -4], 1, Concat, [1]],
   [-1, 1, Conv, [128, 1, 1, None, 1, nn.LeakyReLU(0.1)]],  # 55

   [-1, 1, Conv, [256, 3, 2, None, 1, nn.LeakyReLU(0.1)]],
   [[-1, 29], 1, Concat, [1]],

   [-1, 1, Conv, [128, 1, 1, None, 1, nn.LeakyReLU(0.1)]],
   [-2, 1, Conv, [128, 1, 1, None, 1, nn.LeakyReLU(0.1)]],
   [-1, 1, Conv, [128, 3, 1, None, 1, nn.LeakyReLU(0.1)]],
   [-1, 1, Conv, [128, 3, 1, None, 1, nn.LeakyReLU(0.1)]],
   [[-1, -2, -3, -4], 1, Concat, [1]],
   [-1, 1, Conv, [256, 1, 1, None, 1, nn.LeakyReLU(0.1)]],  # 63

   [[14, 21, 28], 1, ScalSeq, [64]],
   [[47, -1], 1, attention_model, []], #65

   [65, 1, Conv, [128, 3, 1, None, 1, nn.LeakyReLU(0.1)]],
   [63, 1, Conv, [256, 3, 1, None, 1, nn.LeakyReLU(0.1)]],
   [55, 1, Conv, [512, 3, 1, None, 1, nn.LeakyReLU(0.1)]],

   [[66, 67, 68], 1, IDetect, [nc, anchors]],   # Detect(P3, P4, P5)
  ]


                 from  n    params  module                                  arguments
  0                -1  1       928  models.common.Conv                      [3, 32, 3, 2, None, 1, LeakyReLU(negative_slope=0.1)]
  1                -1  1     18560  models.common.Conv                      [32, 64, 3, 2, None, 1, LeakyReLU(negative_slope=0.1)]
  2                -1  1      2112  models.common.Conv                      [64, 32, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
  3                -2  1      2112  models.common.Conv                      [64, 32, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
  4                -1  1      9280  models.common.Conv                      [32, 32, 3, 1, None, 1, LeakyReLU(negative_slope=0.1)]
  5                -1  1      9280  models.common.Conv                      [32, 32, 3, 1, None, 1, LeakyReLU(negative_slope=0.1)]
  6  [-1, -2, -3, -4]  1         0  models.common.Concat                    [1]
  7                -1  1      8320  models.common.Conv                      [128, 64, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
  8                -1  1         0  models.common.MP                        []
  9                -1  1      4224  models.common.Conv                      [64, 64, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 10                -2  1      4224  models.common.Conv                      [64, 64, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 11                -1  1     36992  models.common.Conv                      [64, 64, 3, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 12                -1  1     36992  models.common.Conv                      [64, 64, 3, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 13  [-1, -2, -3, -4]  1         0  models.common.Concat                    [1]
 14                -1  1     33024  models.common.Conv                      [256, 128, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 15                -1  1         0  models.common.MP                        []
 16                -1  1     16640  models.common.Conv                      [128, 128, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 17                -2  1     16640  models.common.Conv                      [128, 128, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 18                -1  1    147712  models.common.Conv                      [128, 128, 3, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 19                -1  1    147712  models.common.Conv                      [128, 128, 3, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 20  [-1, -2, -3, -4]  1         0  models.common.Concat                    [1]
 21                -1  1    131584  models.common.Conv                      [512, 256, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 22                -1  1         0  models.common.MP                        []
 23                -1  1     66048  models.common.Conv                      [256, 256, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 24                -2  1     66048  models.common.Conv                      [256, 256, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 25                -1  1    590336  models.common.Conv                      [256, 256, 3, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 26                -1  1    590336  models.common.Conv                      [256, 256, 3, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 27  [-1, -2, -3, -4]  1         0  models.common.Concat                    [1]
 28                -1  1    525312  models.common.Conv                      [1024, 512, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 29                -1  1    657408  models.common.v7tiny_SPP                [512, 256]
 30                -1  1     66048  models.common.Conv                      [256, 256, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 31                14  1     33280  models.common.Conv                      [128, 256, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 32      [-1, 21, -2]  1         0  models.asfyolo.Zoom_cat                 []
 33                -1  1     49280  models.common.Conv                      [768, 64, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 34                -2  1     49280  models.common.Conv                      [768, 64, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 35                -1  1     36992  models.common.Conv                      [64, 64, 3, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 36                -1  1     36992  models.common.Conv                      [64, 64, 3, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 37  [-1, -2, -3, -4]  1         0  models.common.Concat                    [1]
 38                -1  1     33024  models.common.Conv                      [256, 128, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 39                -1  1     16640  models.common.Conv                      [128, 128, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 40                 7  1      8448  models.common.Conv                      [64, 128, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 41      [-1, 14, -2]  1         0  models.asfyolo.Zoom_cat                 []
 42                -1  1     12352  models.common.Conv                      [384, 32, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 43                -2  1     12352  models.common.Conv                      [384, 32, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 44                -1  1      9280  models.common.Conv                      [32, 32, 3, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 45                -1  1      9280  models.common.Conv                      [32, 32, 3, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 46  [-1, -2, -3, -4]  1         0  models.common.Concat                    [1]
 47                -1  1      8320  models.common.Conv                      [128, 64, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 48                -1  1     73984  models.common.Conv                      [64, 128, 3, 2, None, 1, LeakyReLU(negative_slope=0.1)]
 49          [-1, 38]  1         0  models.common.Concat                    [1]
 50                -1  1     16512  models.common.Conv                      [256, 64, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 51                -2  1     16512  models.common.Conv                      [256, 64, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 52                -1  1     36992  models.common.Conv                      [64, 64, 3, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 53                -1  1     36992  models.common.Conv                      [64, 64, 3, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 54  [-1, -2, -3, -4]  1         0  models.common.Concat                    [1]
 55                -1  1     33024  models.common.Conv                      [256, 128, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 56                -1  1    295424  models.common.Conv                      [128, 256, 3, 2, None, 1, LeakyReLU(negative_slope=0.1)]
 57          [-1, 29]  1         0  models.common.Concat                    [1]
 58                -1  1     65792  models.common.Conv                      [512, 128, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 59                -2  1     65792  models.common.Conv                      [512, 128, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 60                -1  1    147712  models.common.Conv                      [128, 128, 3, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 61                -1  1    147712  models.common.Conv                      [128, 128, 3, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 62  [-1, -2, -3, -4]  1         0  models.common.Concat                    [1]
 63                -1  1    131584  models.common.Conv                      [512, 256, 1, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 64      [14, 21, 28]  1     62016  models.asfyolo.ScalSeq                  [[128, 256, 512], 64]
 65          [47, -1]  1       779  models.asfyolo.attention_model          [64]
 66                65  1     73984  models.common.Conv                      [64, 128, 3, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 67                63  1    590336  models.common.Conv                      [256, 256, 3, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 68                55  1    590848  models.common.Conv                      [128, 512, 3, 1, None, 1, LeakyReLU(negative_slope=0.1)]
 69      [66, 67, 68]  1     17132  models.yolo.IDetect                     [1, [[10, 13, 16, 30, 33, 23], [30, 61, 62, 45, 59, 119], [116, 90, 156, 198, 373, 326]], [128, 256, 512]]

Model Summary: 288 layers, 5906519 parameters, 5906519 gradients, 15.2 GFLOPS

运行后若打印出如上文本代表改进成功。

四、YOLOv5s改进工作

完成二后，在YOLOv5项目文件下的models文件夹下创建新的文件yolov5s-asfyolo.yaml，导入如下代码。

# Parameters
nc: 80  # number of classes
depth_multiple: 0.33  # model depth multiple
width_multiple: 0.50  # layer channel multiple
anchors:
  - [10,13, 16,30, 33,23]  # P3/8
  - [30,61, 62,45, 59,119]  # P4/16
  - [116,90, 156,198, 373,326]  # P5/32

# YOLOv5 v6.0 backbone
backbone:
  # [from, number, module, args]
  [[-1, 1, Conv, [64, 6, 2, 2]],  # 0-P1/2
   [-1, 1, Conv, [128, 3, 2]],  # 1-P2/4
   [-1, 3, C3, [128]],
   [-1, 1, Conv, [256, 3, 2]],  # 3-P3/8
   [-1, 6, C3, [256]],
   [-1, 1, Conv, [512, 3, 2]],  # 5-P4/16
   [-1, 9, C3, [512]],
   [-1, 1, Conv, [1024, 3, 2]],  # 7-P5/32
   [-1, 3, C3, [1024]],
   [-1, 1, SPPF, [1024, 5]],  # 9
  ]

# YOLOv5 v6.0 head
head:
  [[-1, 1, Conv, [512, 1, 1]], #10
   [4, 1, Conv, [512, 1, 1]], #11
   [[-1, 6, -2], 1, Zoom_cat, []],  # 12 cat backbone P4
   [-1, 3, C3, [512, False]],  # 13

   [-1, 1, Conv, [256, 1, 1]], #14
   [2, 1, Conv, [256, 1, 1]], #15
   [[-1, 4, -2], 1, Zoom_cat, []],  #16  cat backbone P3
   [-1, 3, C3, [256, False]],  # 17 (P3/8-small)

   [-1, 1, Conv, [256, 3, 2]], #18
   [[-1, 14], 1, Concat, [1]],  #19 cat head P4
   [-1, 3, C3, [512, False]],  # 20 (P4/16-medium)

   [-1, 1, Conv, [512, 3, 2]], #21
   [[-1, 10], 1, Concat, [1]],  #22 cat head P5
   [-1, 3, C3, [1024, False]],  # 23 (P5/32-large)

   [[4, 6, 8], 1, ScalSeq, [256]],
   [[17, -1], 1, attention_model, []], #25

   [[25, 20, 23], 1, Detect, [nc, anchors]],  # Detect(P3, P4, P5)
  ]


                 from  n    params  module                                  arguments
  0                -1  1      3520  models.common.Conv                      [3, 32, 6, 2, 2]
  1                -1  1     18560  models.common.Conv                      [32, 64, 3, 2]
  2                -1  1     18816  models.common.C3                        [64, 64, 1]
  3                -1  1     73984  models.common.Conv                      [64, 128, 3, 2]
  4                -1  2    115712  models.common.C3                        [128, 128, 2]
  5                -1  1    295424  models.common.Conv                      [128, 256, 3, 2]
  6                -1  3    625152  models.common.C3                        [256, 256, 3]
  7                -1  1   1180672  models.common.Conv                      [256, 512, 3, 2]
  8                -1  1   1182720  models.common.C3                        [512, 512, 1]
  9                -1  1    656896  models.common.SPPF                      [512, 512, 5]
 10                -1  1    131584  models.common.Conv                      [512, 256, 1, 1]
 11                 4  1     33280  models.common.Conv                      [128, 256, 1, 1]
 12       [-1, 6, -2]  1         0  models.asfyolo.Zoom_cat                 []
 13                -1  1    427520  models.common.C3                        [768, 256, 1, False]
 14                -1  1     33024  models.common.Conv                      [256, 128, 1, 1]
 15                 2  1      8448  models.common.Conv                      [64, 128, 1, 1]
 16       [-1, 4, -2]  1         0  models.asfyolo.Zoom_cat                 []
 17                -1  1    107264  models.common.C3                        [384, 128, 1, False]
 18                -1  1    147712  models.common.Conv                      [128, 128, 3, 2]
 19          [-1, 14]  1         0  models.common.Concat                    [1]
 20                -1  1    296448  models.common.C3                        [256, 256, 1, False]
 21                -1  1    590336  models.common.Conv                      [256, 256, 3, 2]
 22          [-1, 10]  1         0  models.common.Concat                    [1]
 23                -1  1   1182720  models.common.C3                        [512, 512, 1, False]
 24         [4, 6, 8]  1    132224  models.asfyolo.ScalSeq                  [[128, 256, 512], 128]
 25          [17, -1]  1      3093  models.asfyolo.attention_model          [128]
 26      [25, 20, 23]  1     16182  models.yolo.Detect                      [1, [[10, 13, 16, 30, 33, 23], [30, 61, 62, 45, 59, 119], [116, 90, 156, 198, 373, 326]], [128, 256, 512]]

Model Summary: 306 layers, 7281291 parameters, 7281291 gradients, 18.3 GFLOPs

运行后若打印出如上文本代表改进成功。

五、YOLOv5n改进工作

完成二后，在YOLOv5项目文件下的models文件夹下创建新的文件yolov5n-asfyolo.yaml，导入如下代码。

# Parameters
nc: 80  # number of classes
depth_multiple: 0.33  # model depth multiple
width_multiple: 0.25  # layer channel multiple
anchors:
  - [10,13, 16,30, 33,23]  # P3/8
  - [30,61, 62,45, 59,119]  # P4/16
  - [116,90, 156,198, 373,326]  # P5/32

# YOLOv5 v6.0 backbone
backbone:
  # [from, number, module, args]
  [[-1, 1, Conv, [64, 6, 2, 2]],  # 0-P1/2
   [-1, 1, Conv, [128, 3, 2]],  # 1-P2/4
   [-1, 3, C3, [128]],
   [-1, 1, Conv, [256, 3, 2]],  # 3-P3/8
   [-1, 6, C3, [256]],
   [-1, 1, Conv, [512, 3, 2]],  # 5-P4/16
   [-1, 9, C3, [512]],
   [-1, 1, Conv, [1024, 3, 2]],  # 7-P5/32
   [-1, 3, C3, [1024]],
   [-1, 1, SPPF, [1024, 5]],  # 9
  ]

# YOLOv5 v6.0 head
head:
  [[-1, 1, Conv, [512, 1, 1]], #10
   [4, 1, Conv, [512, 1, 1]], #11
   [[-1, 6, -2], 1, Zoom_cat, []],  # 12 cat backbone P4
   [-1, 3, C3, [512, False]],  # 13

   [-1, 1, Conv, [256, 1, 1]], #14
   [2, 1, Conv, [256, 1, 1]], #15
   [[-1, 4, -2], 1, Zoom_cat, []],  #16  cat backbone P3
   [-1, 3, C3, [256, False]],  # 17 (P3/8-small)

   [-1, 1, Conv, [256, 3, 2]], #18
   [[-1, 14], 1, Concat, [1]],  #19 cat head P4
   [-1, 3, C3, [512, False]],  # 20 (P4/16-medium)

   [-1, 1, Conv, [512, 3, 2]], #21
   [[-1, 10], 1, Concat, [1]],  #22 cat head P5
   [-1, 3, C3, [1024, False]],  # 23 (P5/32-large)

   [[4, 6, 8], 1, ScalSeq, [256]],
   [[17, -1], 1, attention_model, []], #25

   [[25, 20, 23], 1, Detect, [nc, anchors]],  # Detect(P3, P4, P5)
  ]


                 from  n    params  module                                  arguments
  0                -1  1      1760  models.common.Conv                      [3, 16, 6, 2, 2]
  1                -1  1      4672  models.common.Conv                      [16, 32, 3, 2]
  2                -1  1      4800  models.common.C3                        [32, 32, 1]
  3                -1  1     18560  models.common.Conv                      [32, 64, 3, 2]
  4                -1  2     29184  models.common.C3                        [64, 64, 2]
  5                -1  1     73984  models.common.Conv                      [64, 128, 3, 2]
  6                -1  3    156928  models.common.C3                        [128, 128, 3]
  7                -1  1    295424  models.common.Conv                      [128, 256, 3, 2]
  8                -1  1    296448  models.common.C3                        [256, 256, 1]
  9                -1  1    164608  models.common.SPPF                      [256, 256, 5]
 10                -1  1     33024  models.common.Conv                      [256, 128, 1, 1]
 11                 4  1      8448  models.common.Conv                      [64, 128, 1, 1]
 12       [-1, 6, -2]  1         0  models.asfyolo.Zoom_cat                 []
 13                -1  1    107264  models.common.C3                        [384, 128, 1, False]
 14                -1  1      8320  models.common.Conv                      [128, 64, 1, 1]
 15                 2  1      2176  models.common.Conv                      [32, 64, 1, 1]
 16       [-1, 4, -2]  1         0  models.asfyolo.Zoom_cat                 []
 17                -1  1     27008  models.common.C3                        [192, 64, 1, False]
 18                -1  1     36992  models.common.Conv                      [64, 64, 3, 2]
 19          [-1, 14]  1         0  models.common.Concat                    [1]
 20                -1  1     74496  models.common.C3                        [128, 128, 1, False]
 21                -1  1    147712  models.common.Conv                      [128, 128, 3, 2]
 22          [-1, 10]  1         0  models.common.Concat                    [1]
 23                -1  1    296448  models.common.C3                        [256, 256, 1, False]
 24         [4, 6, 8]  1     33344  models.asfyolo.ScalSeq                  [[64, 128, 256], 64]
 25          [17, -1]  1       779  models.asfyolo.attention_model          [64]
 26      [25, 20, 23]  1      8118  models.yolo.Detect                      [1, [[10, 13, 16, 30, 33, 23], [30, 61, 62, 45, 59, 119], [116, 90, 156, 198, 373, 326]], [64, 128, 256]]

Model Summary: 306 layers, 1830497 parameters, 1830497 gradients, 4.8 GFLOPs

运行后打印如上代码说明改进成功。

六、附各个创新模块优缺点以及简略解释

1.Zoom_cat

功能: 此模块接收三个不同尺度的特征图（大、中、小），通过自适应最大池化和平均池化调整较大尺度特征图（l）的尺寸，使得其与中尺度（m）特征图尺寸相同，并使用最近邻插值方法调整小尺度特征图（s）的尺寸。随后，将这三个调整后的特征图沿着通道维度拼接起来，以融合不同尺度的信息。

优点: 通过这种方式，Zoom_cat模块能够整合来自不同层级的特征信息，提高模型对于不同尺寸目标的检测和分割能力，特别是在处理包含密集小对象的图像时。

2.ScalSeq (Scale Sequence Feature Fusion)

功能: ScalSeq模块首先对输入的三个特征图（p3, p4, p5）应用单独的卷积操作，然后调整尺寸，确保它们可以被有效地融合。之后，将这些特征图转换成三维张量，并通过三维卷积进行融合，以捕捉多尺度特征。最后，通过最大池化操作进一步提炼这些特征。

优点: 该模块通过独特的三维卷积策略，有效融合不同尺度的特征，提高了模型在处理多尺度问题时的性能，尤其是在细胞图像分析这样的任务中，能够更精确地捕捉不同大小和形状的细胞。

3.channel_att (Channel Attention)

功能: 实现通道注意力机制，通过全局平均池化减少空间维度，然后使用一维卷积和sigmoid函数生成通道重要性权重，最后将这些权重应用于输入特征图以增强重要通道。

优点: 通过强调重要的特征通道，减少不必要信息的影响，从而提升模型的特征表达能力和识别精度。

4.local_att (Local Attention)

功能: 引入空间注意力机制，通过计算特征图在宽度和高度方向上的均值，然后通过一系列卷积操作生成空间注意力图，用于突出图像中的特定位置信息。

优点: 能够更好地定位图像中的关键区域，尤其是对小而密集的对象，提高了模型的空间定位精度和分割效果。

5.attention_model

功能: 综合了通道注意力和局部注意力机制，先通过通道注意力机制调整特征图的通道权重，然后结合两个特征图，最后应用局部注意力机制进一步优化特征表示。

优点: 通过集成两种注意力机制，该模块能够更精细地调整和优化特征，增强模型对复杂场景下目标的检测和分割能力，特别适用于细胞实例分割这类需要精确处理小对象的任务。

6.Add

功能: 这是一个简单的模块，用于将两个张量在指定维度上相加，常用于特征图的直接融合。

优点: 提供了一种直接且高效的特征合并方式，有助于简化模型架构并加速计算过程。

更多文章产出中，主打简洁和准确，欢迎关注我，共同探讨！

拿下Nahida

关注

21
点赞
踩
8

收藏

觉得还不错? 一键收藏
0
评论
【YOLOv5/v7改进系列】引入特征融合网络——ASFYOLO

【YOLOv5/v7改进系列】引入特征融合网络——ASFYOLO。实验验证显示，ASF-YOLO模型在两个细胞数据集上取得了显著的分割精度和速度，包括在2018年数据科学碗数据集上的框mAP为0.91，掩码mAP为0.887，推理速度为47.3 FPS，优于当时最先进的方法。
复制链接

扫一扫
