HDLBit刷题记录（二）

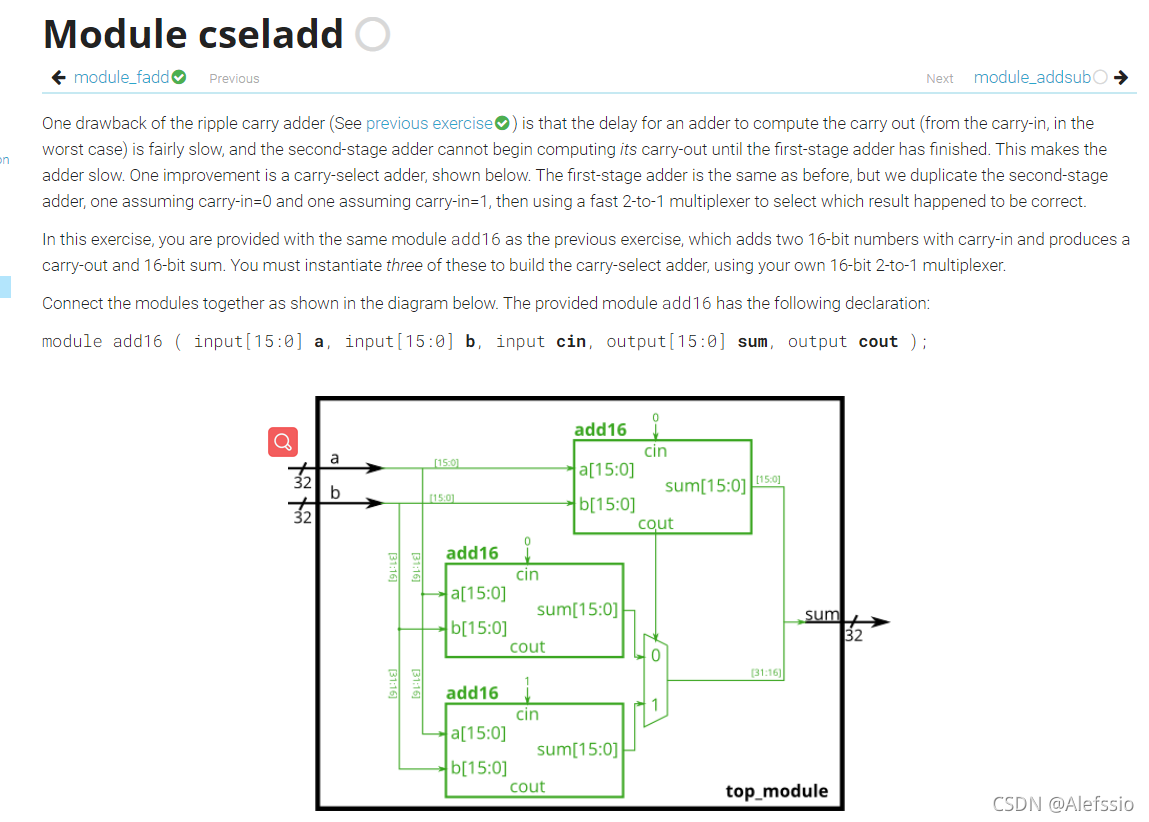

• Module cseladd

 用一个多路选择器选择使用哪一个的后8位.

    module top_module(
        input [31:0] a,
        input [31:0] b,
        output [31:0] sum
    );
        wire [15:0]sum1;
        wire [15:0]sum2;
        wire cout1;
        add16 addbuff1(a[15:0],b[15:0], 0,sum[15:0], cout1);
        add16 addbuff2(a[31:16],b[31:16], 0,sum1);
        add16 addbuff3(a[31:16],b[31:16], 1,sum2);
        assign sum[31:16] = cout1?sum2:sum1;  //作为一个两路选择器

    endmodule

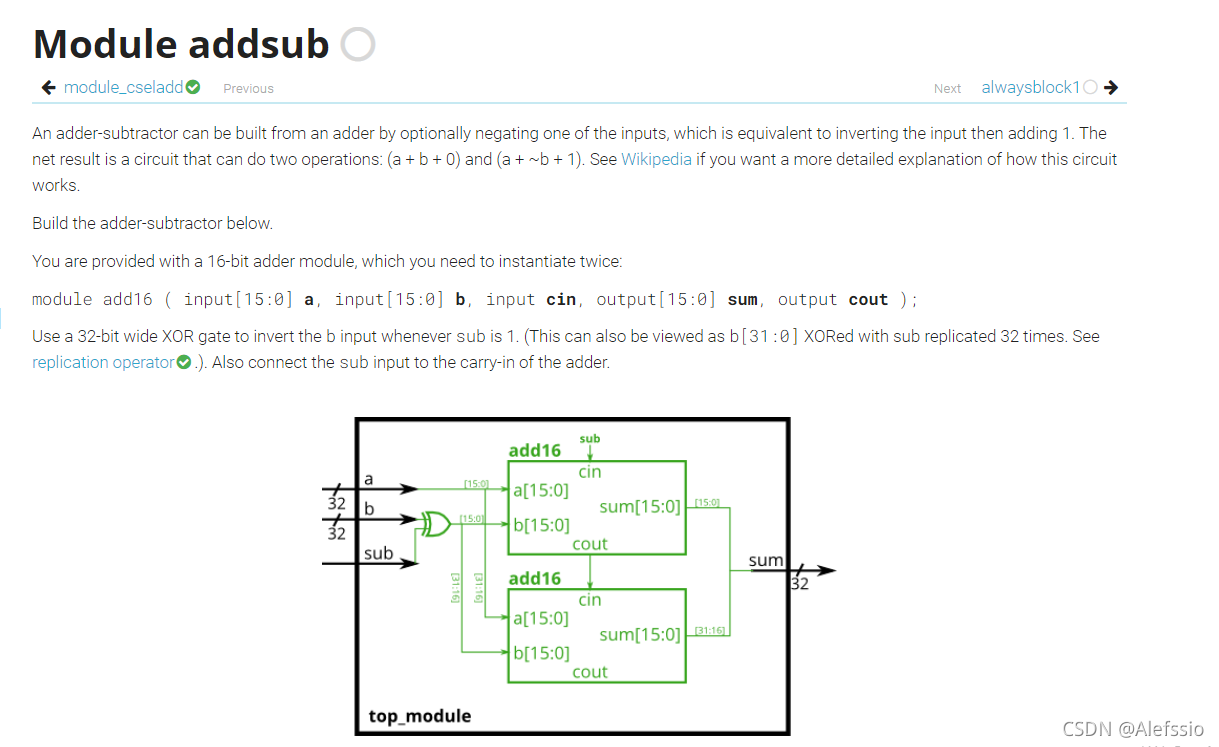

• Module addsub

加减法器：减法取反+1



module top_module(
    input [31:0] a,
    input [31:0] b,
    input sub,
    output [31:0] sum
);
    wire [31:0] Re_b;
    wire cout1;
    assign Re_b = {32{sub}}^b;      //复制32次 sub^b只有一次
    add16 addbuff1( a[15:0], Re_b[15:0], sub, sum[15:0],cout1);
    add16 addbuff2( a[31:16], Re_b[31:16], cout1, sum[31:16]);

endmodule

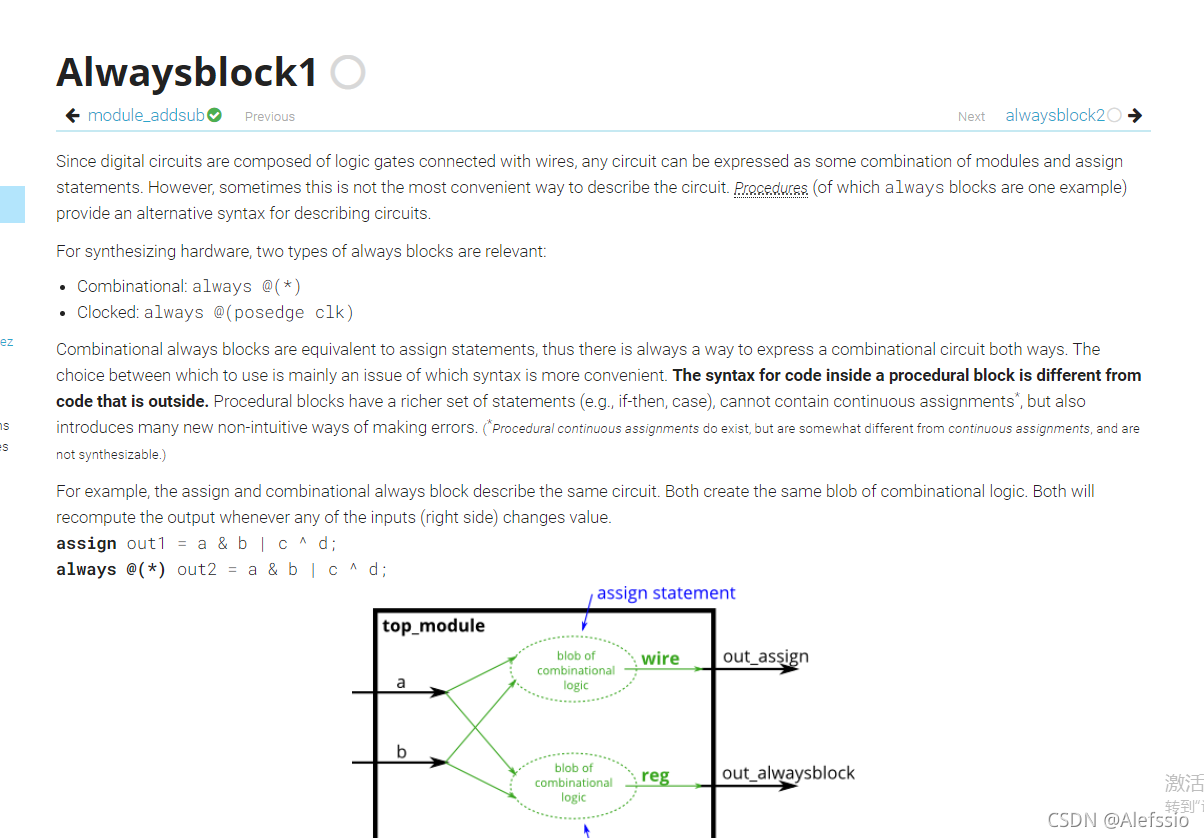

• Alwaysblock1

组合逻辑和时序逻辑

// synthesis verilog_input_version verilog_2001
module top_module(
    input a,
    input b,
    output wire out_assign,
    output reg out_alwaysblock
);
    assign out_assign = a&b;
    always@(*) out_alwaysblock = a&b;

endmodule

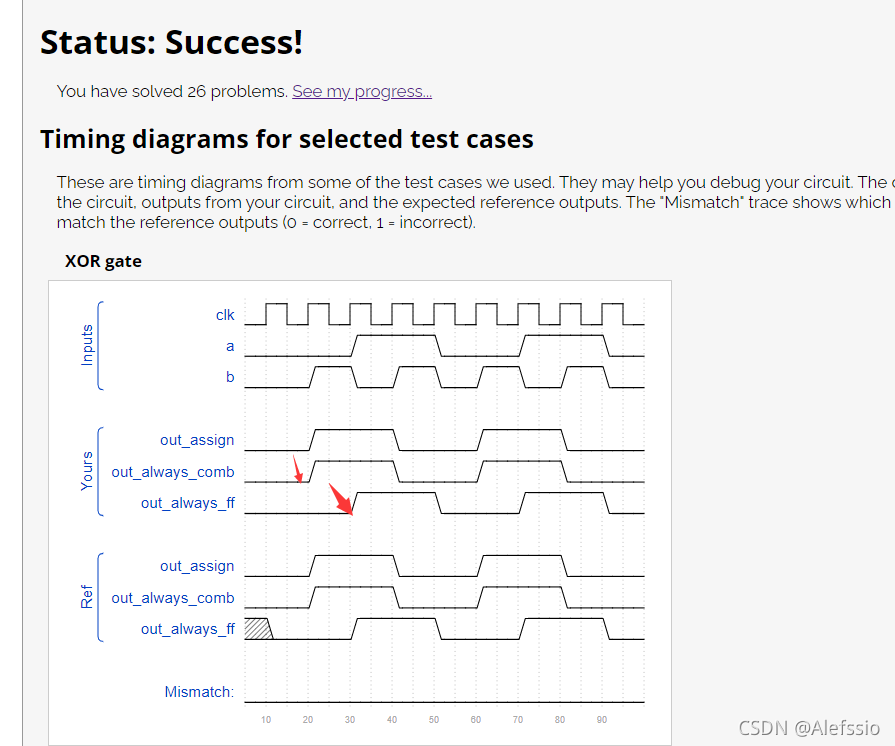

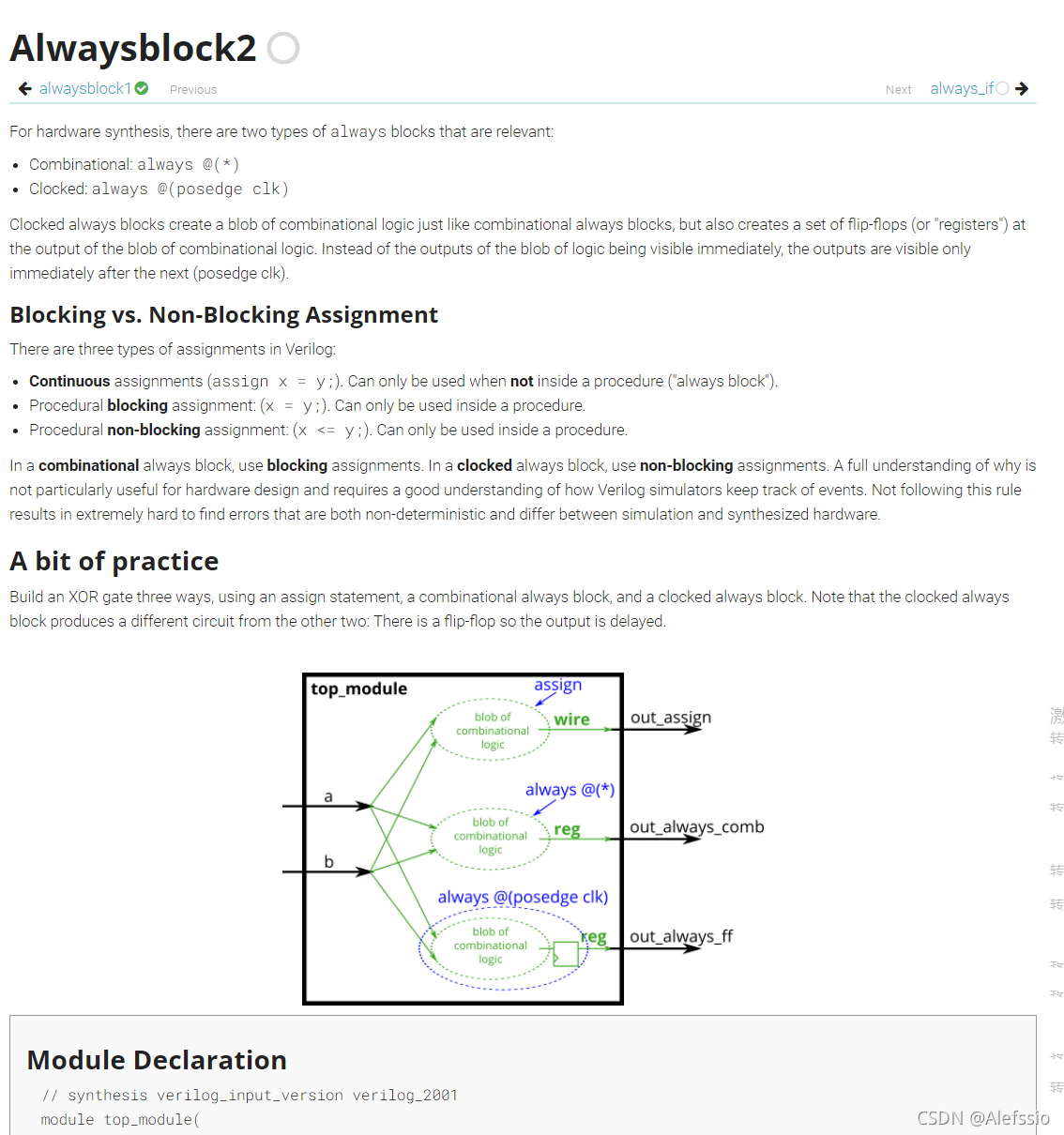

•  Alwaysblock2

本题主要描述组合逻辑和时序组合逻辑以及时钟always块的区别在，时序图里面可以看到时钟always有延迟，是因为他有一个触发器。



module top_module(
    input clk,
    input a,
    input b,
    output wire out_assign,
    output reg out_always_comb,
    output reg out_always_ff   );
    assign out_assign = a^b;
    always@(*) out_always_comb = a^b;
    always@(posedge clk) out_always_ff = a^b;

endmodule

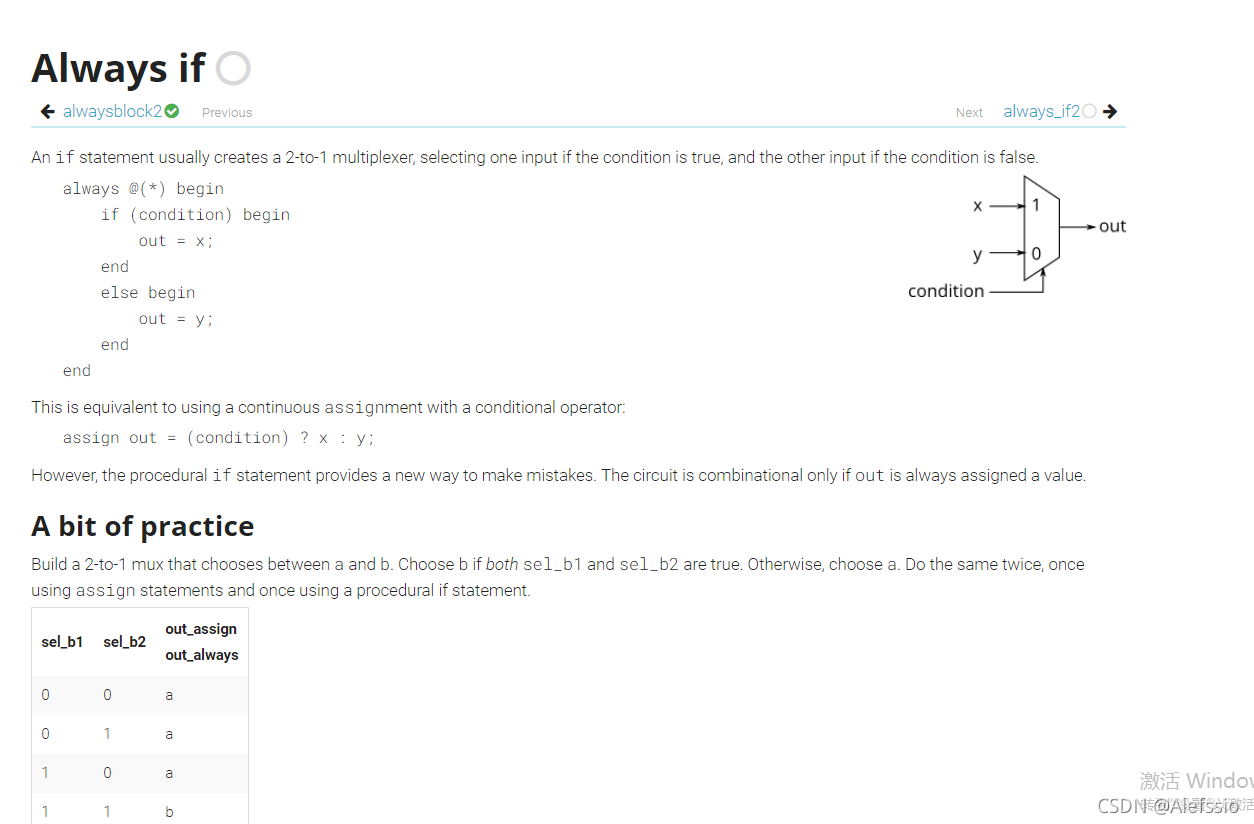

•  Always if



// synthesis verilog_input_version verilog_2001
module top_module(
    input a,
    input b,
    input sel_b1,
    input sel_b2,
    output wire out_assign,
    output reg out_always   );

    assign out_assign = (sel_b1&sel_b2)?b:a;
    always@(*)
    begin
        if(sel_b1&sel_b2)
            out_always = b;
        else out_always = a;

    end

endmodule

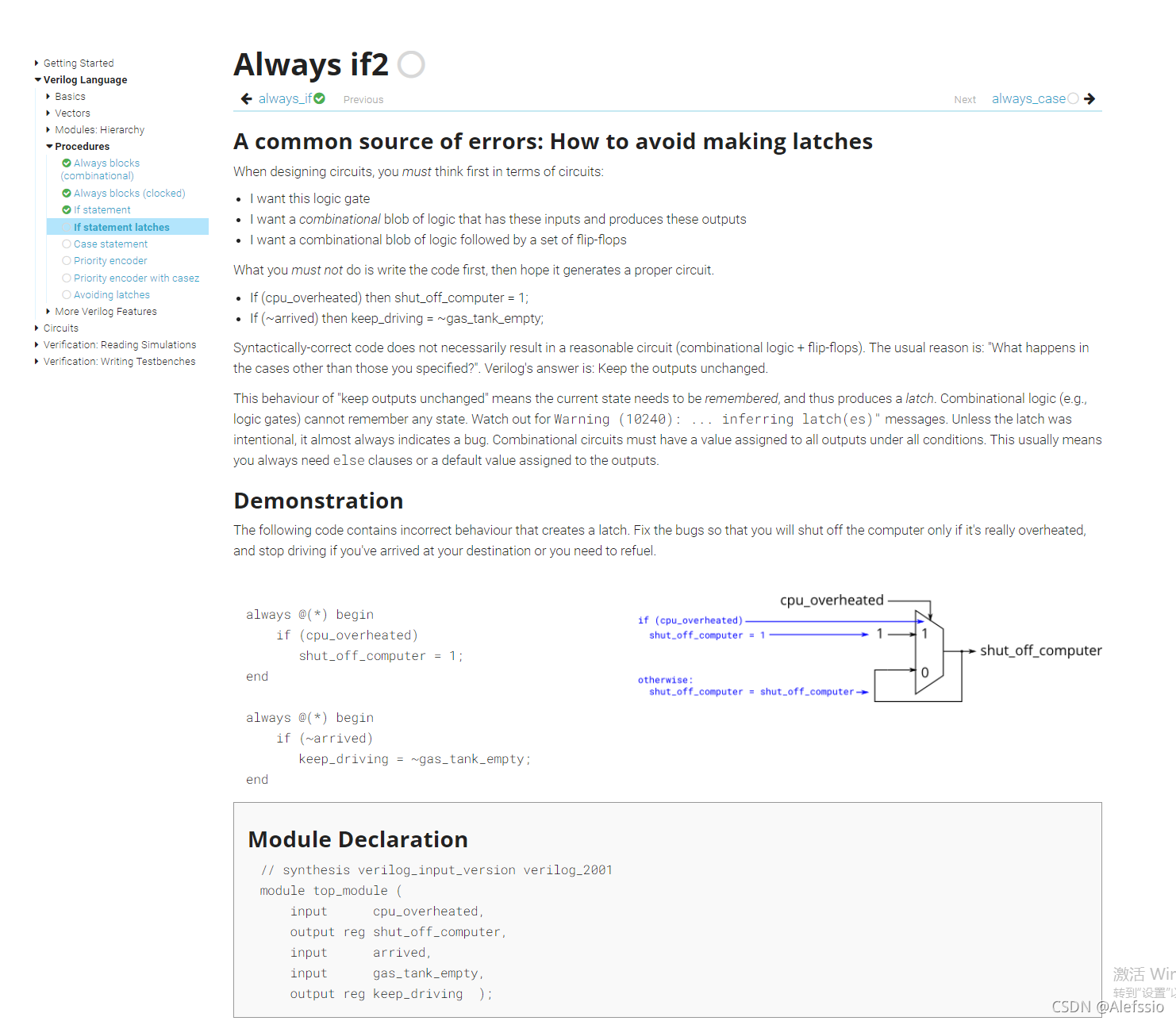

• Always if2

 描述锁存错误的情况。上面图片的代码就是错误实例。在条件为真的情况下，赋值没问题，但是在其他情况下仍然保持赋值情况，导致数据一直被锁存。

module top_module (
    input      cpu_overheated,
    output reg shut_off_computer,
    input      arrived,
    input      gas_tank_empty,
    output reg keep_driving  ); //

    always @(*) begin
        if (cpu_overheated)
           shut_off_computer = 1;
        else  shut_off_computer = 0;
    end

    always @(*) begin
        if (~arrived)
           keep_driving = ~gas_tank_empty;
        else
           keep_driving = 0;
    end

endmodule

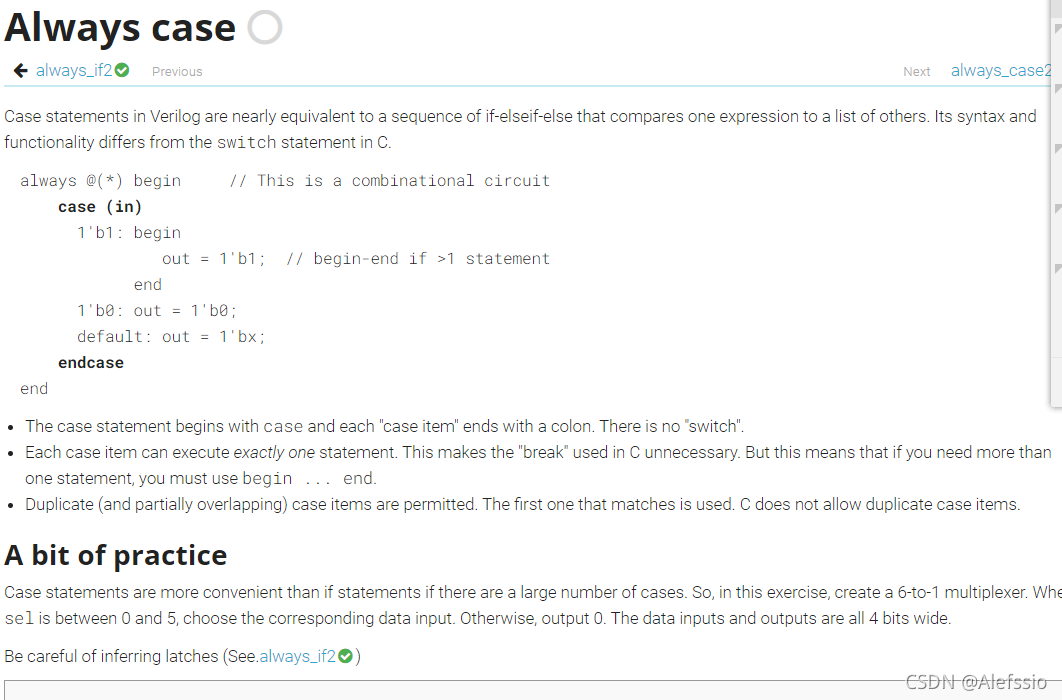

• Always case

 如何使用case

module top_module (
    input [2:0] sel,
    input [3:0] data0,
    input [3:0] data1,
    input [3:0] data2,
    input [3:0] data3,
    input [3:0] data4,
    input [3:0] data5,
    output reg [3:0] out   );//

    always@(*) begin  // This is a combinational circuit
        case(sel)
            3'b0: out = data0;
            3'd1: out = data1;
            3'd2: out = data2;
            3'd3: out = data3;
            3'd4: out = data4;
            3'd5: out = data5;
           default:out = 4'd0;
        endcase
    end

endmodule
