Python不同采样周期的多折线图

提示：文章写完后，目录可以自动生成，如何生成可参考右边的帮助文档

---

前言

数据分析记录

---

一、需求

两个数据源，总的采样时间相同，但是采样周期不同，绘制在同一张折线图上进行对比分析。

二、步骤

1.提取数据

代码如下：

#!/usr/bin/python3
import os

# key words to extract
# str_start = "R: ["
str_start = "L: ["
str_end   = "]"
str_start_len = len(str_start)
f_orig = open('velData_1.txt') # original file
f_extra = open('velData_save_L.txt', 'w')  # target file used to save
# f_extra = open('velData_save_R.txt', 'w')  # target file used to save
line = f_orig.readline()
while line:
    # find index according to the key words
    index_start = line.find(str_start)
    index_end = line.find(str_end)
    text = line[index_start : index_end]
    if text != '':
        # If there is more than one [], we can use "extra" and "End" as str_start and str_end
        f_extra.write(str(line[index_start + str_start_len : index_end]) + '\n')
    line = f_orig.readline()
f_orig.close()
f_extra.close()

2.读入数据并绘图

代码如下：

# encoding=utf-8
from matplotlib import pyplot
import matplotlib.pyplot as plt
import numpy as np
from fractions import gcd
import sys

lidar_file = "velData_save_L.txt"
lidar = []
with open(lidar_file) as f:
    for line in f:
        lidar.extend([float(i) for i in line.split()])
radar_file = "velData_save_R.txt"
radar = []
with open(radar_file) as fr:
    for line in fr:
        radar.extend([float(m) for m in line.split()])

print(lidar)
print(radar)

source_one_y = lidar
source_two_y = radar
# 由于range的采样间隔不能为小数，于是先求最小公倍数。
LeastCommonMultiple = len(source_one_y)*len(source_two_y)/gcd(len(source_one_y),len(source_two_y)) # 最小公倍数
source_one_x = range(0,LeastCommonMultiple,LeastCommonMultiple/len(source_one_y))
source_two_x = range(0,LeastCommonMultiple,LeastCommonMultiple/len(source_two_y))
plt.plot(source_one_x, source_one_y,label='source_one', linestyle = 'solid')
plt.plot(source_two_x, source_two_y,label='source_two', linestyle = 'dotted')
plt.legend()  # 让图例生效
# # 设置横轴记号
# pyplot.xticks(np.arange(0, 500, 100))

plt.margins(0)
plt.subplots_adjust(bottom=0.10)
plt.xlabel('Sample Time')           # X轴标签
plt.ylabel("velocity km/h")         # Y轴标签
pyplot.yticks(np.arange(0, 50, 2))
plt.title("A simple plot")          # 标题
plt.show()

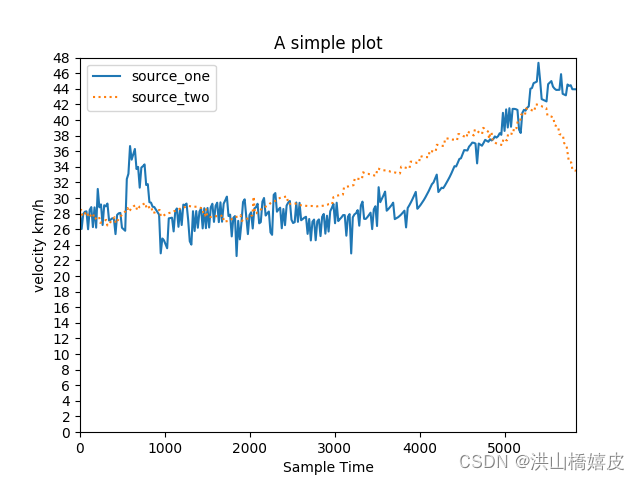

效果如下

---

总结

后续将优化绘图效果
