伯克利BLAM纯激光SLAM

属于只用3D激光雷达所做的SLAM，其代码地址为：

github：GitHub - erik-nelson/blam

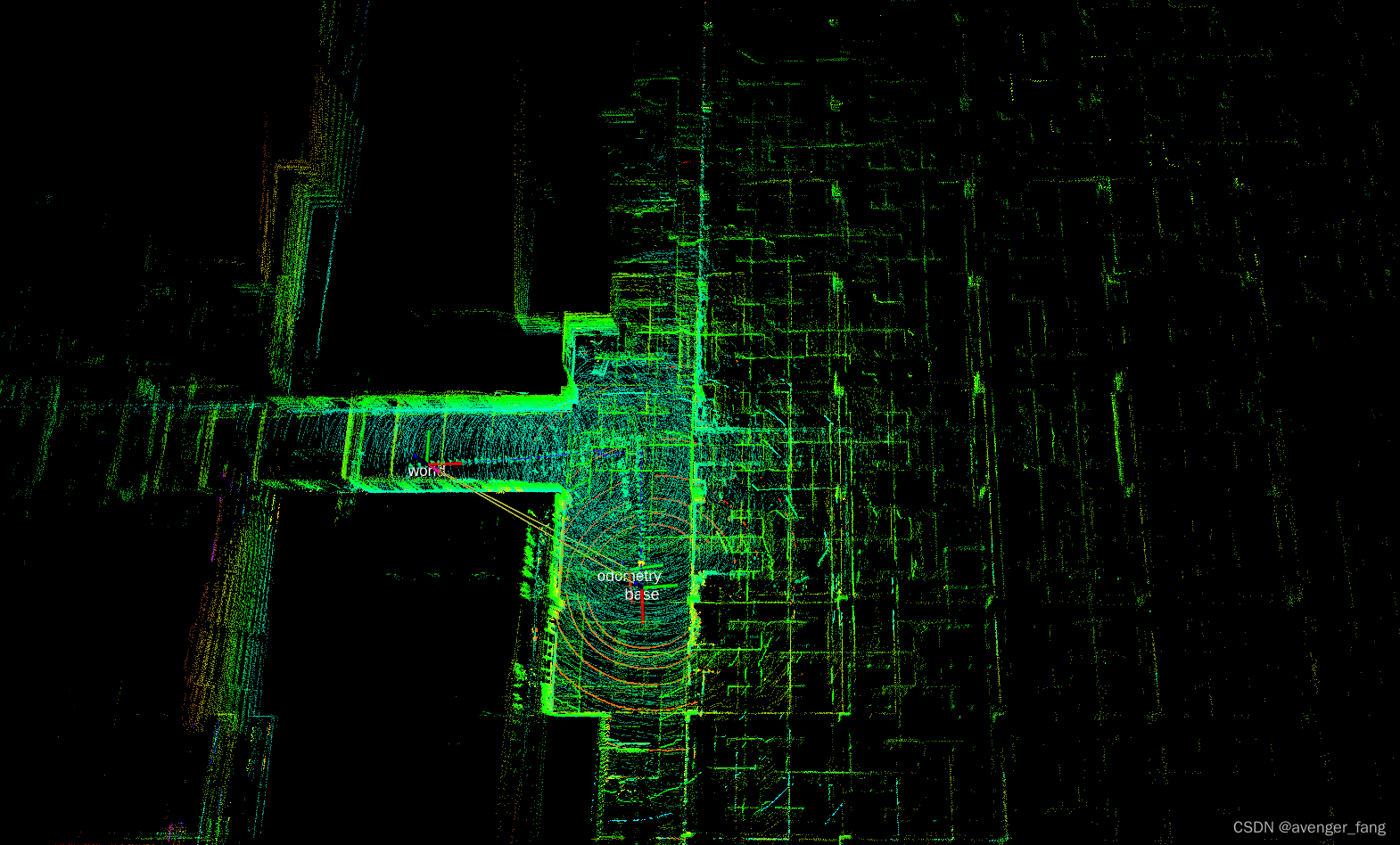

自测效果还是比较好的

BLAM系统框架：

​

 代码主要分为下列几个大部分

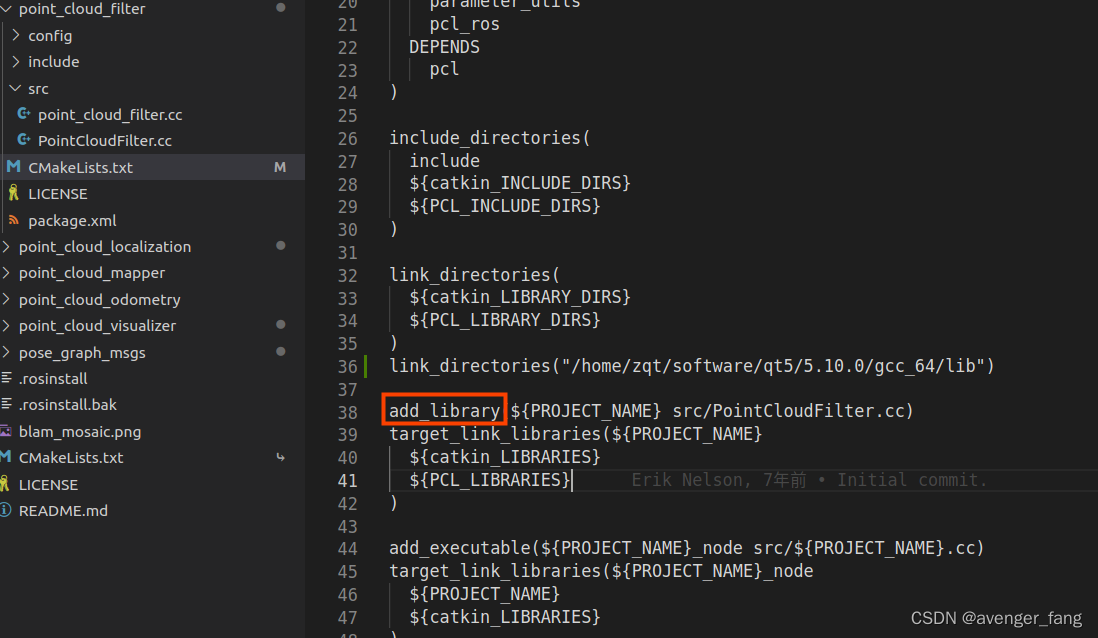

代码目录结构：

​

1. blam_example 没有代码，只有launch文件、rviz文件、yaml文件配置。

2. blam_slam文件夹

​

 blam_slam.cc为系统启动节点，即main程序入口

而BlamSlam.cc为为SLAM算法接口，它封装成库， main程序通过它进入算法，包括ros的初始化、参数读取、传感器数据回调等。

3.geometry_utils文件夹是对矩阵操作、几何旋转操作的声明定义的头文件，通用的

​

 4.MeasurementSynchronizer

封装ros的传感器测量时间同步

5.parameter_utils 参数读取的公共代码

因为整个SLAM的节点只有一个

6.point_cloud_filter

 PointCloudFilter.cc是点云预处理算法，封装成库，而point_cloud_filter.cc只是提供测试的一个接口，用来 验证点云预处理，只有ros初始化和main入口。

​
- point_cloud_filter：对输入的点云数据进行如进行统计滤波处理，得到过滤后的点云数据

7.point_cloud_odometry 需要先初始化，给出先验位姿，通过使用默认值也可

bool PointCloudOdometry::UpdateEstimate(const PointCloud& points) {
  // Store input point cloud's time stamp for publishing.
  stamp_.fromNSec(points.header.stamp*1e3);

  // If this is the first point cloud, store it and wait for another.
  if (!initialized_) {
    copyPointCloud(points, *query_);
    initialized_ = true;
    return false;
  }

  // Move current query points (acquired last iteration) to reference points.
  copyPointCloud(*query_, *reference_);

  // Set the incoming point cloud as the query point cloud.
  copyPointCloud(points, *query_);

  // Update pose estimate via ICP.
  return UpdateICP();
}

bool PointCloudOdometry::UpdateICP() {
  // Compute the incremental transformation.
  GeneralizedIterativeClosestPoint<PointXYZ, PointXYZ> icp;
  icp.setTransformationEpsilon(params_.icp_tf_epsilon);
  icp.setMaxCorrespondenceDistance(params_.icp_corr_dist);
  icp.setMaximumIterations(params_.icp_iterations);
  icp.setRANSACIterations(0);

  icp.setInputSource(query_);
  icp.setInputTarget(reference_);

  PointCloud unused_result;
  icp.align(unused_result);

  const Eigen::Matrix4f T = icp.getFinalTransformation();

  // Update pose estimates.
  incremental_estimate_.translation = gu::Vec3(T(0, 3), T(1, 3), T(2, 3));
  incremental_estimate_.rotation = gu::Rot3(T(0, 0), T(0, 1), T(0, 2),
                                            T(1, 0), T(1, 1), T(1, 2),
                                            T(2, 0), T(2, 1), T(2, 2));

  // Only update if the incremental transform is small enough.
  if (!transform_thresholding_ ||
      (incremental_estimate_.translation.Norm() <= max_translation_ &&
       incremental_estimate_.rotation.ToEulerZYX().Norm() <= max_rotation_)) {
    integrated_estimate_ =
        gu::PoseUpdate(integrated_estimate_, incremental_estimate_);
  } else {
    ROS_WARN(
        "%s: Discarding incremental transformation with norm (t: %lf, r: %lf)",
        name_.c_str(), incremental_estimate_.translation.Norm(),
        incremental_estimate_.rotation.ToEulerZYX().Norm());
  }

  // Convert pose estimates to ROS format and publish.
  PublishPose(incremental_estimate_, incremental_estimate_pub_);
  PublishPose(integrated_estimate_, integrated_estimate_pub_);

  // Publish point clouds for visualization.
  PublishPoints(query_, query_pub_);
  PublishPoints(reference_, reference_pub_);

  // Convert transform between fixed frame and odometry frame.
  geometry_msgs::TransformStamped tf;
  tf.transform = gr::ToRosTransform(integrated_estimate_);
  tf.header.stamp = stamp_;
  tf.header.frame_id = fixed_frame_id_;
  tf.child_frame_id = odometry_frame_id_;
  tfbr_.sendTransform(tf);

  return true;
}

通过GICP算法计算两帧点云数据的位姿变换（初步计算），只有符合一定要求的里程计才会作为位姿更新，然后发布里程计和TF。

8. point_cloud_localization：通过初步计算的位姿变换来获取当前帧对应的地图中最近临点，再次执行GICP得到精确的位姿变换（第二次计算）

bool PointCloudLocalization::MeasurementUpdate(const PointCloud::Ptr& query,
                                               const PointCloud::Ptr& reference,
                                               PointCloud* aligned_query) {
  if (aligned_query == NULL) {
    ROS_ERROR("%s: Output is null.", name_.c_str());
    return false;
  }

  // Store time stamp.
  stamp_.fromNSec(query->header.stamp*1e3);

  // ICP-based alignment. Generalized ICP does (roughly) plane-to-plane
  // matching, and is much more robust than standard ICP.
  GeneralizedIterativeClosestPoint<pcl::PointXYZ, pcl::PointXYZ> icp;
  icp.setTransformationEpsilon(params_.tf_epsilon);
  icp.setMaxCorrespondenceDistance(params_.corr_dist);
  icp.setMaximumIterations(params_.iterations);
  icp.setRANSACIterations(0);
  icp.setMaximumOptimizerIterations(50); // default 20

  icp.setInputSource(query);
  icp.setInputTarget(reference);

  PointCloud unused;
  icp.align(unused);

  // Retrieve transformation and estimate and update.
  const Eigen::Matrix4f T = icp.getFinalTransformation();
  pcl::transformPointCloud(*query, *aligned_query, T);

  gu::Transform3 pose_update;
  pose_update.translation = gu::Vec3(T(0, 3), T(1, 3), T(2, 3));
  pose_update.rotation = gu::Rot3(T(0, 0), T(0, 1), T(0, 2),
                                  T(1, 0), T(1, 1), T(1, 2),
                                  T(2, 0), T(2, 1), T(2, 2));

  // Only update if the transform is small enough.
  if (!transform_thresholding_ ||
      (pose_update.translation.Norm() <= max_translation_ &&
       pose_update.rotation.ToEulerZYX().Norm() <= max_rotation_)) {
    incremental_estimate_ = gu::PoseUpdate(incremental_estimate_, pose_update);
  } else {
    ROS_WARN(
        " %s: Discarding incremental transformation with norm (t: %lf, r: %lf)",
        name_.c_str(), pose_update.translation.Norm(),
        pose_update.rotation.ToEulerZYX().Norm());
  }

  integrated_estimate_ =
      gu::PoseUpdate(integrated_estimate_, incremental_estimate_);

  // Convert pose estimates to ROS format and publish.
  PublishPose(incremental_estimate_, incremental_estimate_pub_);
  PublishPose(integrated_estimate_, integrated_estimate_pub_);

  // Publish point clouds for visualization.
  PublishPoints(*query, query_pub_);
  PublishPoints(*reference, reference_pub_);
  PublishPoints(*aligned_query, aligned_pub_);

  // Publish transform between fixed frame and localization frame.
  geometry_msgs::TransformStamped tf;
  tf.transform = gr::ToRosTransform(integrated_estimate_);
  tf.header.stamp = stamp_;
  tf.header.frame_id = fixed_frame_id_;
  tf.child_frame_id = base_frame_id_;
  tfbr_.sendTransform(tf);

  return true;
}

9. laser_loop_closure：

通过GICP寻找两帧的回环，

bool LaserLoopClosure::PerformICP(const PointCloud::ConstPtr& scan1,
                                  const PointCloud::ConstPtr& scan2,
                                  const gu::Transform3& pose1,
                                  const gu::Transform3& pose2,
                                  gu::Transform3* delta,
                                  LaserLoopClosure::Mat66* covariance) {
  if (delta == NULL || covariance == NULL) {
    ROS_ERROR("%s: Output pointers are null.", name_.c_str());
    return false;
  }

  // Set up ICP.
  pcl::GeneralizedIterativeClosestPoint<pcl::PointXYZ, pcl::PointXYZ> icp;
  icp.setTransformationEpsilon(icp_tf_epsilon_);
  icp.setMaxCorrespondenceDistance(icp_corr_dist_);
  icp.setMaximumIterations(icp_iterations_);
  icp.setRANSACIterations(0);

  // Filter the two scans. They are stored in the pose graph as dense scans for
  // visualization.
  PointCloud::Ptr scan1_filtered(new PointCloud);
  PointCloud::Ptr scan2_filtered(new PointCloud);
  filter_.Filter(scan1, scan1_filtered);
  filter_.Filter(scan2, scan2_filtered);

  // Set source point cloud. Transform it to pose 2 frame to get a delta.
  const Eigen::Matrix<double, 3, 3> R1 = pose1.rotation.Eigen();
  const Eigen::Matrix<double, 3, 1> t1 = pose1.translation.Eigen();
  Eigen::Matrix4d body1_to_world;
  body1_to_world.block(0, 0, 3, 3) = R1;
  body1_to_world.block(0, 3, 3, 1) = t1;

  const Eigen::Matrix<double, 3, 3> R2 = pose2.rotation.Eigen();
  const Eigen::Matrix<double, 3, 1> t2 = pose2.translation.Eigen();
  Eigen::Matrix4d body2_to_world;
  body2_to_world.block(0, 0, 3, 3) = R2;
  body2_to_world.block(0, 3, 3, 1) = t2;

  PointCloud::Ptr source(new PointCloud);
  pcl::transformPointCloud(*scan1_filtered, *source, body1_to_world);
  icp.setInputSource(source);

  // Set target point cloud in its own frame.
  PointCloud::Ptr target(new PointCloud);
  pcl::transformPointCloud(*scan2_filtered, *target, body2_to_world);
  icp.setInputTarget(target);

  // Perform ICP.
  PointCloud unused_result;
  icp.align(unused_result);

  // Get resulting transform.
  const Eigen::Matrix4f T = icp.getFinalTransformation();
  gu::Transform3 delta_icp;
  delta_icp.translation = gu::Vec3(T(0, 3), T(1, 3), T(2, 3));
  delta_icp.rotation = gu::Rot3(T(0, 0), T(0, 1), T(0, 2),
                                T(1, 0), T(1, 1), T(1, 2),
                                T(2, 0), T(2, 1), T(2, 2));

  // Is the transform good?
  if (!icp.hasConverged())
    return false;

  if (icp.getFitnessScore() > max_tolerable_fitness_) {
    return false;
  }

  // Update the pose-to-pose odometry estimate using the output of ICP.
  const gu::Transform3 update =
      gu::PoseUpdate(gu::PoseInverse(pose1),
                     gu::PoseUpdate(gu::PoseInverse(delta_icp), pose1));

  *delta = gu::PoseUpdate(update, gu::PoseDelta(pose1, pose2));

  // TODO: Use real ICP covariance.
  covariance->Zeros();
  for (int i = 0; i < 3; ++i)
    (*covariance)(i, i) = 0.01;
  for (int i = 3; i < 6; ++i)
    (*covariance)(i, i) = 0.04;

  // If the loop closure was a success, publish the two scans.
  source->header.frame_id = fixed_frame_id_;
  target->header.frame_id = fixed_frame_id_;
  scan1_pub_.publish(*source);
  scan2_pub_.publish(*target);

  return true;
}

通过isam构建的因子图，若出现回环则加入到因子图中进行优化

bool LaserLoopClosure::AddBetweenFactor(
    const gu::Transform3& delta, const LaserLoopClosure::Mat66& covariance,
    const ros::Time& stamp, unsigned int* key) {
  if (key == NULL) {
    ROS_ERROR("%s: Output key is null.", name_.c_str());
    return false;
  }

  // Append the new odometry.
  Pose3 new_odometry = ToGtsam(delta);

  NonlinearFactorGraph new_factor;
  Values new_value;
  new_factor.add(MakeBetweenFactor(new_odometry, ToGtsam(covariance)));

  Pose3 last_pose = values_.at<Pose3>(key_-1);
  new_value.insert(key_, last_pose.compose(new_odometry));

  // Store this timestamp so that we can publish the pose graph later.
  keyed_stamps_.insert(std::pair<unsigned int, ros::Time>(key_, stamp));

  // Update ISAM2.
  isam_->update(new_factor, new_value);
  values_ = isam_->calculateEstimate();

  // Assign output and get ready to go again!
  *key = key_++;

  // We always add new poses, but only return true if the pose is far enough
  // away from the last one (keyframes). This lets the caller know when they
  // can add a laser scan.

  // Is the odometry translation large enough to add a new keyframe to the graph?
  odometry_ = odometry_.compose(new_odometry);
  if (odometry_.translation().norm() > translation_threshold_) {
    odometry_ = Pose3::identity();
    return true;
  }

  return false;
}

对当前帧的点云数据与历史点云数据对比判断回环是否发生，发布位姿数据
10.point_cloud_mapper：构建点云地图，发布地图数据，通过插入点的形式增加地图点云，代码精简

 11.pose_graph_msgs为了RVIZ显示位姿图，新建的自定义的消息，从而能够在rviz上进行显示
