UE蓝图 序列(Sequence)节点和源码

---

---

一、序列节点功能

UE（Unreal Engine）蓝图中的ExecutionSequence节点是一个非常重要的节点，用于控制执行序列中的不同分支。它主要用于生成两种类型的语句：KCST_PushState和KCST_UnconditionGoto。

KCST_PushState语句通过EmitPushExecState函数处理，它首先输出指令EX_PushExecutionFlow，然后写入执行序列节点的下一个分支的字节码偏移。这样，当这个执行流程结束时，会执行EX_PopExecutionFlow指令，从而取出这个偏移并执行接下来的字节码。

二、ExecutionSequence节点用法

UE蓝图中的ExecutionSequence节点主要用于控制执行序列中的不同分支。以下是ExecutionSequence节点的基本用法：

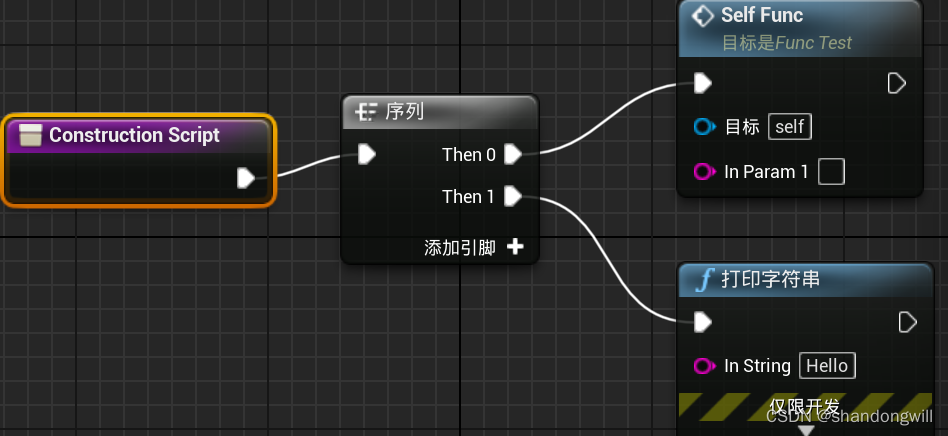

1. 创建ExecutionSequence节点：在UE蓝图中，可以通过右键点击空白处弹出选择列表窗口，然后选择“Sequence”来创建一个ExecutionSequence节点。
2. 连接其他节点：将需要执行的节点连接到ExecutionSequence节点上。可以根据需要添加多个节点，并按照执行的顺序将它们连接到ExecutionSequence节点上。
3. 设置执行条件：ExecutionSequence节点可以根据条件选择执行不同的分支。可以通过添加Condition节点或其他条件判断节点来设置执行条件。
4. 控制执行流程：ExecutionSequence节点会按照连接的节点的顺序执行它们。当遇到条件判断节点时，会根据条件的结果选择执行不同的分支。
5. 使用KCST_PushState和KCST_UnconditionGoto：ExecutionSequence节点主要会生成KCST_PushState和KCST_UnconditionGoto两个Statement。这些Statement用于控制执行流程的跳转和状态管理。

三、序列使用场景

在Unreal Engine（UE）的蓝图中，序列节点（如ExecutionSequence节点）的使用场景非常广泛。这些节点主要用于控制游戏逻辑的流程，确保各个事件和动作按照预定的顺序执行。以下是一些常见的UE蓝图序列节点的使用场景：

1. 初始化流程：在游戏对象的初始化过程中，可以使用序列节点来组织和管理初始化流程。例如，在角色创建时，可以使用序列节点来确保先加载角色的模型，然后设置角色的初始状态，最后为角色添加技能和装备。

2. 任务与事件触发：在游戏任务或事件系统中，序列节点可以用于定义任务或事件的执行流程。例如，在任务执行过程中，可以使用序列节点来控制任务目标的完成顺序，或者在任务完成后触发特定的奖励或事件。

3. 状态管理：序列节点可以用于实现游戏对象的状态管理。通过创建不同的状态转换逻辑，可以在不同状态之间进行切换，以满足游戏的各种需求。例如，在角色控制系统中，可以使用序列节点来管理角色的不同战斗状态、移动状态等。

4. 动画与音效同步：在游戏动画和音效处理方面，序列节点可以用于控制动画和音效的播放顺序和同步。通过精心设计的序列节点，可以实现动画、音效与游戏逻辑的完美融合，提升游戏体验。

5. 资源加载与释放：在游戏资源管理方面，序列节点可以用于控制资源的加载、释放和更新流程。通过合理地组织资源加载和释放流程，可以提高游戏的性能和响应速度。

四、实现原理

• 创建输入输出引脚

void UK2Node_ExecutionSequence::AllocateDefaultPins()
{
	CreatePin(EGPD_Input, UEdGraphSchema_K2::PC_Exec, UEdGraphSchema_K2::PN_Execute);
	CreatePin(EGPD_Output, UEdGraphSchema_K2::PC_Exec, GetPinNameGivenIndex(0));
	CreatePin(EGPD_Output, UEdGraphSchema_K2::PC_Exec, GetPinNameGivenIndex(1));
}

• 调用FKCHandler_ExecutionSequence.RegisterNets注册函数引脚
• 调用Compile编译创建Statement

for (int32 i = OutputPins.Num() - 1; i > 0; i--)
{
	FBlueprintCompiledStatement& PushExecutionState = Context.AppendStatementForNode(Node);
	PushExecutionState.Type = KCST_PushState;
	Context.GotoFixupRequestMap.Add(&PushExecutionState, OutputPins[i]);
}
// Immediately jump to the first pin
UEdGraphNode* NextNode = OutputPins[0]->LinkedTo[0]->GetOwningNode();
FBlueprintCompiledStatement& NextExecutionState = Context.AppendStatementForNode(Node);
NextExecutionState.Type = KCST_UnconditionalGoto;
Context.GotoFixupRequestMap.Add(&NextExecutionState, OutputPins[0]);

五、相关源码

源码文件：
K2Node_ExecutionSequence.h
K2Node_ExecutionSequence.cpp
相关类：
FKCHandler_ExecutionSequence
K2Node_ExecutionSequence

class FKCHandler_ExecutionSequence : public FNodeHandlingFunctor
{
public:
	FKCHandler_ExecutionSequence(FKismetCompilerContext& InCompilerContext)
		: FNodeHandlingFunctor(InCompilerContext)
	{
	}

	virtual void Compile(FKismetFunctionContext& Context, UEdGraphNode* Node) override
	{
		// Make sure that the input pin is connected and valid for this block
		FEdGraphPinType ExpectedPinType;
		ExpectedPinType.PinCategory = UEdGraphSchema_K2::PC_Exec;

		UEdGraphPin* ExecTriggeringPin = Context.FindRequiredPinByName(Node, UEdGraphSchema_K2::PN_Execute, EGPD_Input);
		if ((ExecTriggeringPin == nullptr) || !Context.ValidatePinType(ExecTriggeringPin, ExpectedPinType))
		{
			CompilerContext.MessageLog.Error(*LOCTEXT("NoValidExecutionPinForExecSeq_Error", "@@ must have a valid execution pin @@").ToString(), Node, ExecTriggeringPin);
			return;
		}
		else if (ExecTriggeringPin->LinkedTo.Num() == 0)
		{
			CompilerContext.MessageLog.Warning(*LOCTEXT("NodeNeverExecuted_Warning", "@@ will never be executed").ToString(), Node);
			return;
		}

		// Find the valid, connected output pins, and add them to the processing list
		TArray<UEdGraphPin*> OutputPins;
		for (UEdGraphPin* CurrentPin : Node->Pins)
		{
			if ((CurrentPin->Direction == EGPD_Output) && (CurrentPin->LinkedTo.Num() > 0) && (CurrentPin->PinName.ToString().StartsWith(UEdGraphSchema_K2::PN_Then.ToString())))
			{
				OutputPins.Add(CurrentPin);
			}
		}

		//@TODO: Sort the pins by the number appended to the pin!

		// Process the pins, if there are any valid entries
		if (OutputPins.Num() > 0)
		{
			if (Context.IsDebuggingOrInstrumentationRequired() && (OutputPins.Num() > 1))
			{
				const FString NodeComment = Node->NodeComment.IsEmpty() ? Node->GetName() : Node->NodeComment;

				// Assuming sequence X goes to A, B, C, we want to emit:
				//   X: push X1
				//      goto A
				//  X1: debug site
				//      push X2
				//      goto B
				//  X2: debug site
				//      goto C

				// A push statement we need to patch up on the next pass (e.g., push X1 before we know where X1 is)
				FBlueprintCompiledStatement* LastPushStatement = NULL;

				for (int32 i = 0; i < OutputPins.Num(); ++i)
				{
					// Emit the debug site and patch up the previous jump if we're on subsequent steps
					const bool bNotFirstIndex = i > 0;
					if (bNotFirstIndex)
					{
						// Emit a debug site
						FBlueprintCompiledStatement& DebugSiteAndJumpTarget = Context.AppendStatementForNode(Node);
						DebugSiteAndJumpTarget.Type = Context.GetBreakpointType();
						DebugSiteAndJumpTarget.Comment = NodeComment;
						DebugSiteAndJumpTarget.bIsJumpTarget = true;

						// Patch up the previous push jump target
						check(LastPushStatement);
						LastPushStatement->TargetLabel = &DebugSiteAndJumpTarget;
					}

					// Emit a push to get to the next step in the sequence, unless we're the last one or this is an instrumented build
					const bool bNotLastIndex = ((i + 1) < OutputPins.Num());
					if (bNotLastIndex)
					{
						FBlueprintCompiledStatement& PushExecutionState = Context.AppendStatementForNode(Node);
						PushExecutionState.Type = KCST_PushState;
						LastPushStatement = &PushExecutionState;
					}

					// Emit the goto to the actual state
					FBlueprintCompiledStatement& GotoSequenceLinkedState = Context.AppendStatementForNode(Node);
					GotoSequenceLinkedState.Type = KCST_UnconditionalGoto;
					Context.GotoFixupRequestMap.Add(&GotoSequenceLinkedState, OutputPins[i]);
				}

				check(LastPushStatement);
			}
			else
			{
				// Directly emit pushes to execute the remaining branches
				for (int32 i = OutputPins.Num() - 1; i > 0; i--)
				{
					FBlueprintCompiledStatement& PushExecutionState = Context.AppendStatementForNode(Node);
					PushExecutionState.Type = KCST_PushState;
					Context.GotoFixupRequestMap.Add(&PushExecutionState, OutputPins[i]);
				}

				// Immediately jump to the first pin
				UEdGraphNode* NextNode = OutputPins[0]->LinkedTo[0]->GetOwningNode();
				FBlueprintCompiledStatement& NextExecutionState = Context.AppendStatementForNode(Node);
				NextExecutionState.Type = KCST_UnconditionalGoto;
				Context.GotoFixupRequestMap.Add(&NextExecutionState, OutputPins[0]);
			}
		}
		else
		{
			FBlueprintCompiledStatement& NextExecutionState = Context.AppendStatementForNode(Node);
			NextExecutionState.Type = KCST_EndOfThread;
		}
	}
};

UK2Node_ExecutionSequence::UK2Node_ExecutionSequence(const FObjectInitializer& ObjectInitializer)
	: Super(ObjectInitializer)
{
}

void UK2Node_ExecutionSequence::AllocateDefaultPins()
{
	CreatePin(EGPD_Input, UEdGraphSchema_K2::PC_Exec, UEdGraphSchema_K2::PN_Execute);

	// Add two default pins
	CreatePin(EGPD_Output, UEdGraphSchema_K2::PC_Exec, GetPinNameGivenIndex(0));
	CreatePin(EGPD_Output, UEdGraphSchema_K2::PC_Exec, GetPinNameGivenIndex(1));

	Super::AllocateDefaultPins();
}

FText UK2Node_ExecutionSequence::GetNodeTitle(ENodeTitleType::Type TitleType) const
{
	return NSLOCTEXT("K2Node", "Sequence", "Sequence");
}

FSlateIcon UK2Node_ExecutionSequence::GetIconAndTint(FLinearColor& OutColor) const
{
	static FSlateIcon Icon("EditorStyle", "GraphEditor.Sequence_16x");
	return Icon;
}

FLinearColor UK2Node_ExecutionSequence::GetNodeTitleColor() const
{
	return FLinearColor::White;
}

FText UK2Node_ExecutionSequence::GetTooltipText() const
{
	return NSLOCTEXT("K2Node", "ExecutePinInOrder_Tooltip", "Executes a series of pins in order");
}

FName UK2Node_ExecutionSequence::GetUniquePinName()
{
	FName NewPinName;
	int32 i = 0;
	while (true)
	{
		NewPinName = GetPinNameGivenIndex(i++);
		if (!FindPin(NewPinName))
		{
			break;
		}
	}

	return NewPinName;
}

void UK2Node_ExecutionSequence::AddInputPin()
{
	Modify();
	CreatePin(EGPD_Output, UEdGraphSchema_K2::PC_Exec, GetUniquePinName());
}

void UK2Node_ExecutionSequence::InsertPinIntoExecutionNode(UEdGraphPin* PinToInsertBefore, EPinInsertPosition Position)
{
	Modify();

	int32 DesiredPinIndex = Pins.Find(PinToInsertBefore);
	if (DesiredPinIndex != INDEX_NONE)
	{
		if (Position == EPinInsertPosition::After)
		{
			DesiredPinIndex = DesiredPinIndex + 1;
		}

		FCreatePinParams Params;
		Params.Index = DesiredPinIndex;
		CreatePin(EGPD_Output, UEdGraphSchema_K2::PC_Exec, GetUniquePinName(), Params);

		// refresh names on the pin list:
		int32 ThenIndex = 0;
		for (int32 Idx = 0; Idx < Pins.Num(); ++Idx)
		{
			UEdGraphPin* PotentialPin = Pins[Idx];
			if (UEdGraphSchema_K2::IsExecPin(*PotentialPin) && (PotentialPin->Direction == EGPD_Output))
			{
				PotentialPin->PinName = GetPinNameGivenIndex(ThenIndex);
				++ThenIndex;
			}
		}
	}
}

void UK2Node_ExecutionSequence::RemovePinFromExecutionNode(UEdGraphPin* TargetPin)
{
	UK2Node_ExecutionSequence* OwningSeq = Cast<UK2Node_ExecutionSequence>( TargetPin->GetOwningNode() );
	if (OwningSeq)
	{
		OwningSeq->Pins.Remove(TargetPin);
		TargetPin->MarkPendingKill();

		// Renumber the pins so the numbering is compact
		int32 ThenIndex = 0;
		for (int32 i = 0; i < OwningSeq->Pins.Num(); ++i)
		{
			UEdGraphPin* PotentialPin = OwningSeq->Pins[i];
			if (UEdGraphSchema_K2::IsExecPin(*PotentialPin) && (PotentialPin->Direction == EGPD_Output))
			{
				PotentialPin->PinName = GetPinNameGivenIndex(ThenIndex);
				++ThenIndex;
			}
		}
	}
}

bool UK2Node_ExecutionSequence::CanRemoveExecutionPin() const
{
	int32 NumOutPins = 0;

	for (int32 i = 0; i < Pins.Num(); ++i)
	{
		UEdGraphPin* PotentialPin = Pins[i];
		if (UEdGraphSchema_K2::IsExecPin(*PotentialPin) && (PotentialPin->Direction == EGPD_Output))
		{
			NumOutPins++;
		}
	}

	return (NumOutPins > 2);
}

FName UK2Node_ExecutionSequence::GetPinNameGivenIndex(int32 Index) const
{
	return *FString::Printf(TEXT("%s_%d"), *UEdGraphSchema_K2::PN_Then.ToString(), Index);
}

void UK2Node_ExecutionSequence::ReallocatePinsDuringReconstruction(TArray<UEdGraphPin*>& OldPins)
{
	Super::AllocateDefaultPins();

	// Create the execution input pin
	CreatePin(EGPD_Input, UEdGraphSchema_K2::PC_Exec, UEdGraphSchema_K2::PN_Execute);

	// Create a new pin for each old execution output pin, and coerce the names to match on both sides
	int32 ExecOutPinCount = 0;
	for (int32 i = 0; i < OldPins.Num(); ++i)
	{
		UEdGraphPin* TestPin = OldPins[i];
		if (UEdGraphSchema_K2::IsExecPin(*TestPin) && (TestPin->Direction == EGPD_Output))
		{
			const FName NewPinName(GetPinNameGivenIndex(ExecOutPinCount));
			ExecOutPinCount++;

			// Make sure the old pin and new pin names match
			TestPin->PinName = NewPinName;

			// Create the new output pin to match
			CreatePin(EGPD_Output, UEdGraphSchema_K2::PC_Exec, NewPinName);
		}
	}
}

UEdGraphPin* UK2Node_ExecutionSequence::GetThenPinGivenIndex(const int32 Index)
{
	return FindPin(GetPinNameGivenIndex(Index));
}

FNodeHandlingFunctor* UK2Node_ExecutionSequence::CreateNodeHandler(FKismetCompilerContext& CompilerContext) const
{
	return new FKCHandler_ExecutionSequence(CompilerContext);
}
}
