【verilog】 Vivado-Simple Dual-Port RAM IP的使用（Xilinx FPGA，双口RAM，IP使用）

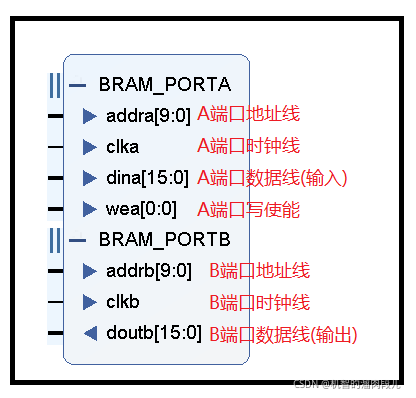

简单双口RAM的IP核

分A端口和B端口
A为输入端口，负责数据的写入
B端口为输出端口，负责数据的读出
两端的时钟可以不同，还允许在写入A的同时读B。

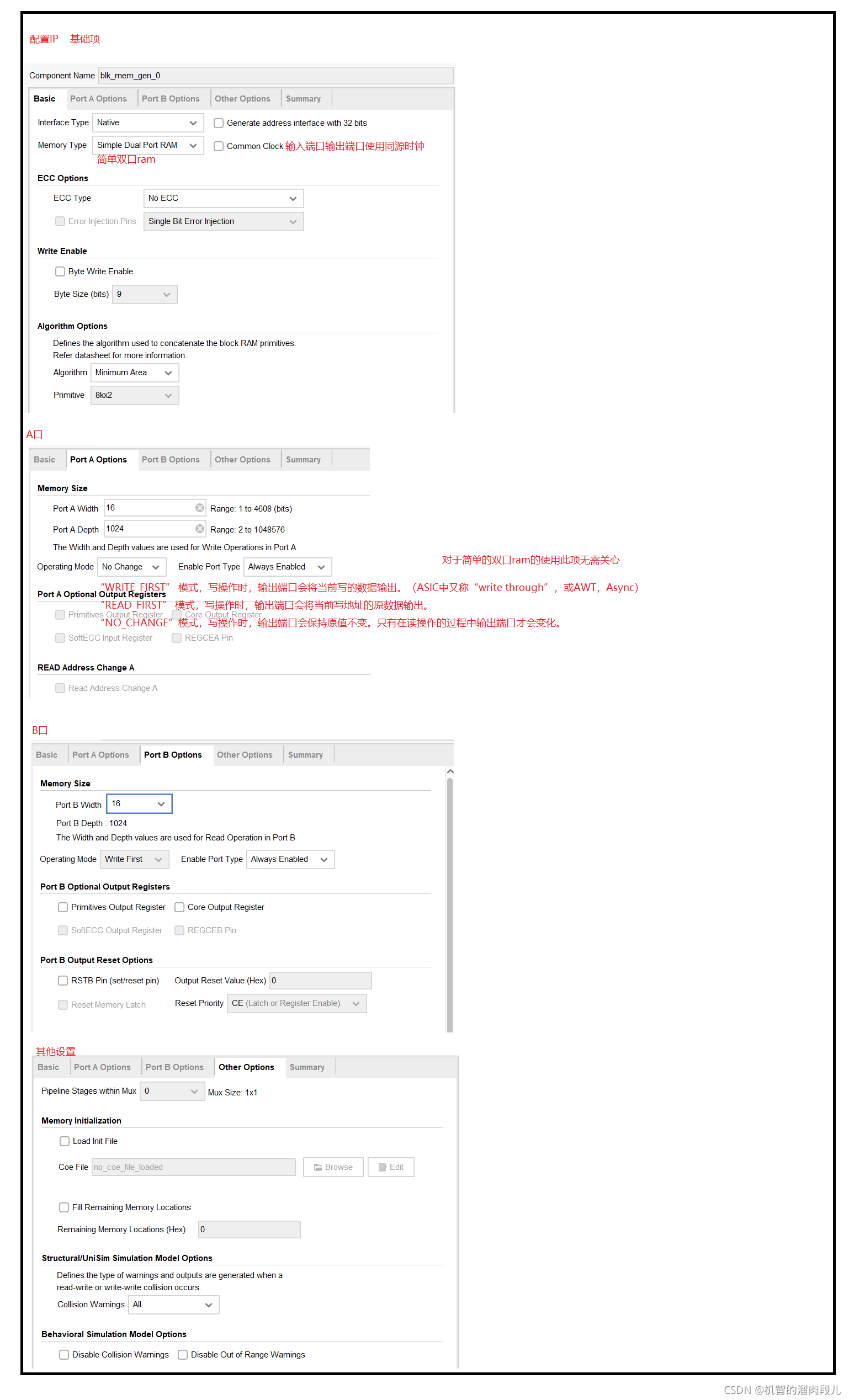

配置IP

vivado 2019.2
IP catalog -> Memories & Storage Elements -> RAMs & ROMs & BRAM -> …

例化顶层

module top(
  input clka,
  input wea,
  input [9:0]addra,
  input [15:0]dina,

 input clkb,
 input [9:0] addrb,
 output [15:0] doutb
    );

blk_mem_gen_0 u1 (
  .clka(clka),
  .wea(wea),
  .addra(addra),
  .dina(dina),

  .clkb(clkb),
  .addrb(addrb),
  .doutb(doutb)
);
endmodule

测试

主要内容为两个alwas块，一个负责操作Aport，另一个负责操作Bport

`timescale 1ns / 1ps
module tb_dram();

reg clk; //cha/chb common clk
reg rst_n;

//chnl a
reg cha_write_en;
reg[15:0] cha_data;
reg[9:0] sdpram_addr_cha;
//chnl b
wire[15:0] chb_data;
reg[9:0] sdpram_addr_chb;
reg [15:0] data1;
reg [15:0] data2;
reg [15:0] data3;

//state chicken
reg[10:0] cnta_state;
reg[10:0] cntb_state;


//cha:data input chnl
//对ram进行写操作，在选择地址的同时给予数据。
always @ (posedge clk or negedge rst_n)
begin
    if(!rst_n)begin
    	cnta_state <= 1'b0;
	cha_write_en <=1'b0;
	sdpram_addr_cha <= 10'd0;
	cha_data <= 16'd0;
    end
    else begin
	case(cnta_state)
	0,1,2,3,4,5,6,7,8,9:cnta_state <= cnta_state + 1'b1;
	10:begin cha_write_en <= 1'b1;sdpram_addr_cha <= 10'd1;cha_data <= 16'h5555;
	         cnta_state <= cnta_state + 1'b1;
	   end
	11:begin cha_write_en <= 1'b1;sdpram_addr_cha <= 10'd2;cha_data <= 16'haaaa;
	         cnta_state <= cnta_state + 1'b1;
           end
	12:begin cha_write_en <= 1'b1;sdpram_addr_cha <= 10'd3;cha_data <= 16'hcccc;
	         cnta_state <= cnta_state + 1'b1;
           end
	default:begin
    		 cnta_state <= 10'd13;
		 cha_write_en <=1'b0;
		 sdpram_addr_cha <= 10'd0;
		 cha_data <= 16'd0;
    	   end
        endcase
   end
end

//chb:data output chnl
//对ram做读操作，与写操作不同。
//读操作需要等2个clk才能在dout上输出选定地址的有效数据
//配置地址 -> 时序逻辑延迟经过一个clk才成功写入 -> 再过一个clk ->有效数据
always @ (posedge clk or negedge rst_n)
begin
    if(!rst_n)begin
    	cntb_state <= 1'b0;
	data1 <= 1'b0;
	data2 <= 1'b0;
	data3 <= 1'b0;
	sdpram_addr_chb <= 10'd0;
    end
    else begin
	case(cntb_state)
	0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19:
		 cntb_state <= cntb_state + 1'b1;
	20:begin sdpram_addr_chb <= 10'd1;        //选择地址1
	         cntb_state <= cntb_state + 1'b1;
	   end
	21:begin  sdpram_addr_chb <= 10'd2;        //选择地址2
	          cntb_state <= cntb_state + 1'b1;
           end
	22:begin data1 <= chb_data;          //寄存地址1上吐出的数据
		 sdpram_addr_chb <= 10'd3;        //选择地址3
	         cntb_state <= cntb_state + 1'b1;
           end
	23:begin data2 <= chb_data;          //寄存地址2上吐出的数据
	         cntb_state <= cntb_state + 1'b1;
           end
	24:begin data3 <= chb_data;          //寄存地址3上吐出的数据
	         cntb_state <= cntb_state + 1'b1;
           end
	default:begin
    		 cntb_state <= 10'd24;
		 sdpram_addr_chb <= 10'd0;
    	   end
        endcase
   end
end


initial begin clk = 0; rst_n = 0; #50; rst_n = 1'b1; end
initial begin #600; $stop(); end
always # 10 clk = ~clk;


top u2 (
  .clka(clk), // input clka
  .wea(cha_write_en), // input [3 : 0] wea
  .addra(sdpram_addr_cha), // input [31 : 0] addra
  .dina(cha_data), // input [31 : 0] dina

  .clkb(clk), // input clkb
  .addrb(sdpram_addr_chb), // input [31 : 0] addrb
  .doutb(chb_data) // output [31 : 0] doutb
);
endmodule

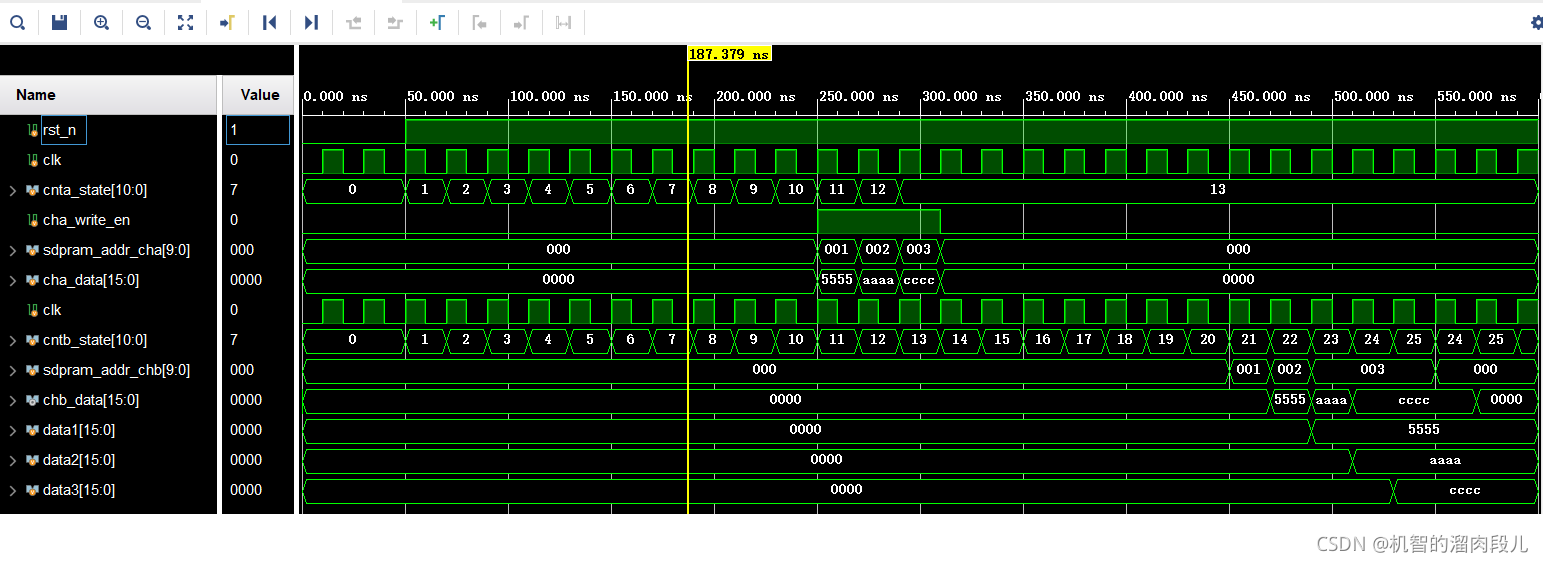

波形
