Content

1. Get prepared with codes

1.1. Install visual studio code as IDE

refer to https://blog.csdn.net/huangdianye/article/details/126574121

1.2. Create a ROS workspace

refer to https://blog.csdn.net/huangdianye/article/details/126562693

1.3. Download iiwa_stack and compile it

introduction of iiwa_stack: https://github.com/IFL-CAMP/iiwa_stack/wiki

cd <to_the_src_directory_of_the_ros_workspace>
git clone https://github.com/IFL-CAMP/iiwa_stack.git src/iiwa_stack

ctrl+shift+B to huild the project

2. Laptop configuration (the Leading side - test connection)

2.1 Bashrc setting

$ gedit ~/.bashrc

and add the following two command lines into the bashrc file:

export ROS_IP=172.31.1.150
export ROS_MASTER_URI=http://$ROS_IP:11311

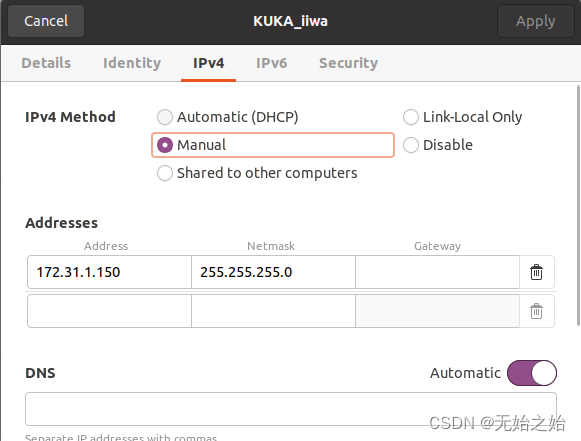

2.2 Wired setting

ipv4setting

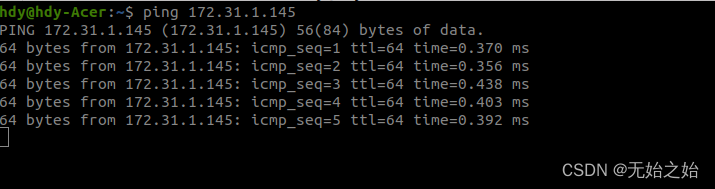

2.3 Test the connection

mind the ip address setting from the following side:

ping 172.31.1.145 # for iiwa7
ping 172.31.1.147 # for iiwa14

ping result
PS: the ip address is preset to the sunrise workbench running on the kuka control carbinet.

3. Get Started

to get started with KUKA iiwa, we have to take care of two sides, your laptop and the smart pad.

3.1 Run roscore first!!! (From the Laptop side)

roscore

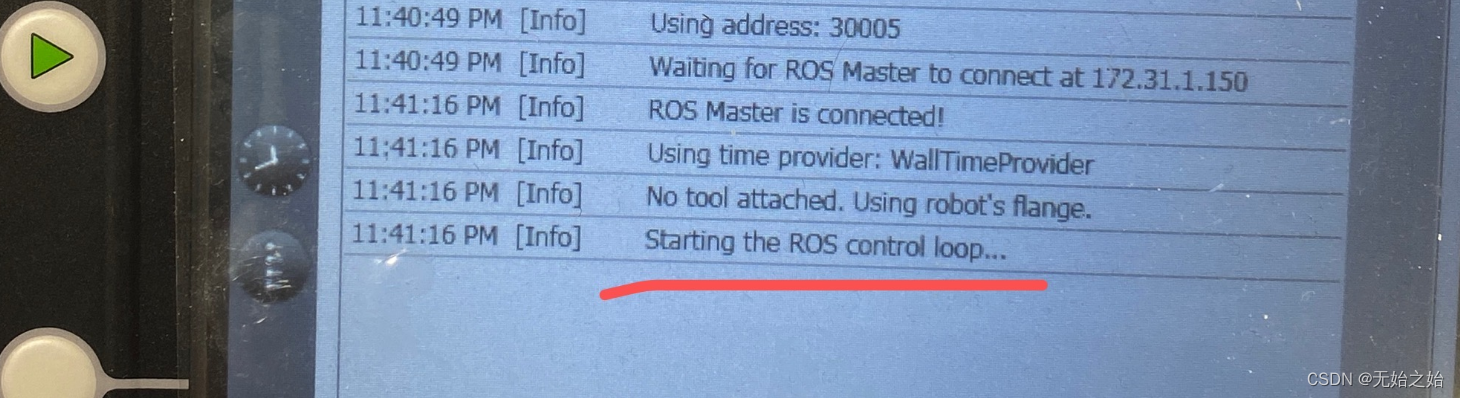

3.2 Turn on the “ROSSmartServo” application (From the Smart pad side)

One could consider the “ROSSmartServo” as a roslaunch file to be launched by physically press the button on the smart pad.

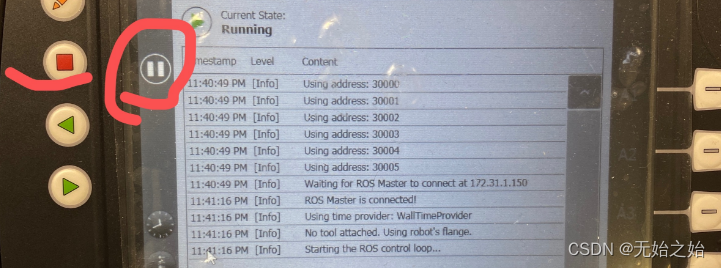

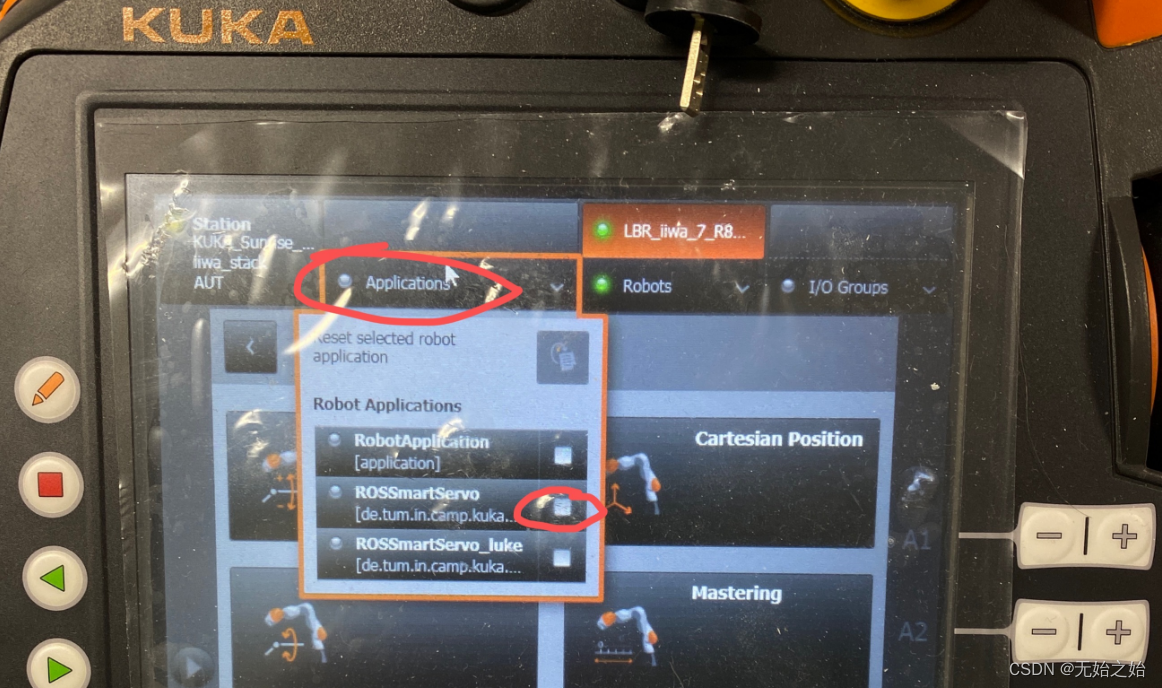

  • start ROSSmartServo via the SmartPad. Attention: Do not open the other one!!!
    在这里插入图片描述
    在这里插入图片描述

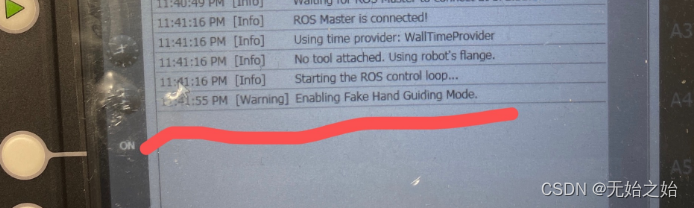

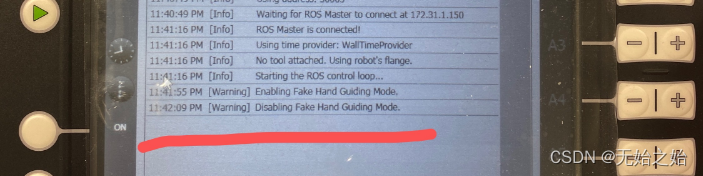

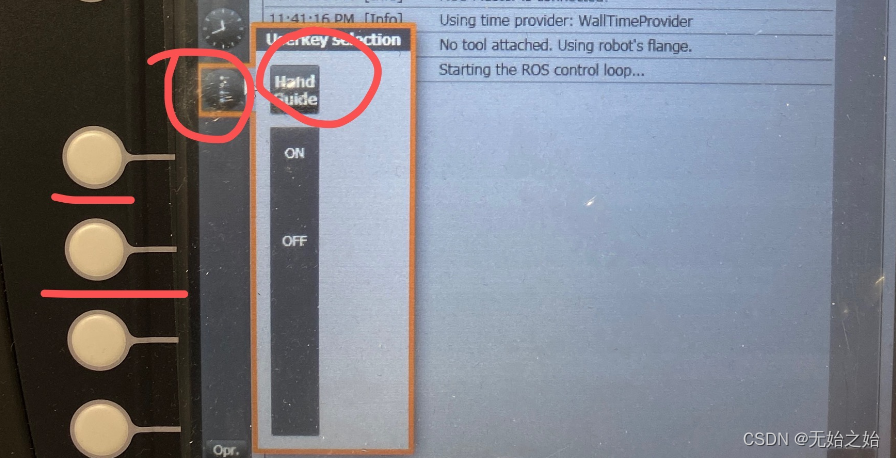

  • start handguide mode
    在这里插入图片描述
    在这里插入图片描述

3.3 Confirm the rostopic is sucessfully transmitted

3.3.1 get the topic list

rostopic list

在这里插入图片描述

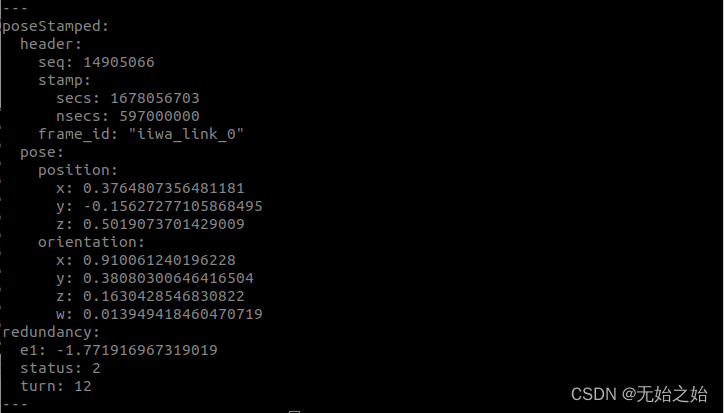

3.3.2 get the topic content

cd <to_the_root_directory_of_the_workspace>
source devel/setup.bash
rostopic echo /iiwa/state/CartesianPose

在这里插入图片描述
在这里插入图片描述

4 Run Moveit and get TF tree

4.1 Prepare

sudo apt install ros-noetic-moveit

create a ros package called iiwa_core

4.2 launch file

roslaunch iiwa_core iiwa_model.launch

4.3 recall other file

  • iiwa_model.launch
<?xml version="1.0"?>
<launch>
    <arg name="sim" default="false" doc="If true, the robot will be simulated in Gazebo" />
    <!-- hardware_interface to use : PositionJointInterface, EffortJointInterface, VelocityJointInterface. -->
    <arg name="hardware_interface" default="PositionJointInterface"/>
    <!-- The is gonna have its nodes/topics under a namespace with the same name. -->
    <arg name="robot_name" default="iiwa"/>
    <!-- Model of the iiwa to use : iiwa7, iiwa14 -->
    <arg name="model" default="iiwa7"/>
    <arg name="rviz" default="true" />

    <remap from="/$(arg hardware_interface)_trajectory_controller/follow_joint_trajectory"
           to="/$(arg robot_name)/$(arg hardware_interface)_trajectory_controller/follow_joint_trajectory" />
    <remap from="robot_description" to="/$(arg robot_name)/robot_description" />
    <remap from="/get_planning_scene" to="/$(arg robot_name)/get_planning_scene" />

    <!-- Working with the real robot.  -->
    <group ns="$(arg robot_name)" unless="$(arg sim)">
        <!-- Load controllers accordingly to parameters -->
        <include file="$(find iiwa_control)/launch/iiwa_control.launch">
            <arg name="hardware_interface" value="$(arg hardware_interface)" />
            <arg name="controllers" value="joint_state_controller $(arg hardware_interface)_trajectory_controller" />
            <arg name="robot_name" value="$(arg robot_name)" />
            <arg name="model" value="$(arg model)" />
        </include>
        <!-- Robot interface -->
        <include file="$(find iiwa_hw)/launch/iiwa_hw.launch" >
            <arg name="hardware_interface" value="$(arg hardware_interface)" />
        </include>
    </group>

    <!-- Load move_group -->
    <group ns="$(arg robot_name)">
        <include file="$(find iiwa_moveit)/launch/move_group.launch">
            <arg name="publish_monitored_planning_scene" value="true" />
            <arg name="hardware_interface" value="$(arg hardware_interface)"/>
            <arg name="robot_name" value="$(arg robot_name)"/>
            <arg name="model" value="$(arg model)" />
        </include>

        <include if="$(arg rviz)" file="$(find iiwa_core)/launch/iiwa_rviz.launch">
            <arg name="config" value="true"/>
        </include>
    </group>

</launch>
  • iiwa_rviz.launch
<?xml version="1.0"?>
<launch>

  <arg name="debug" default="false" />
  <arg unless="$(arg debug)" name="launch_prefix" value="" />
  <arg     if="$(arg debug)" name="launch_prefix" value="gdb --ex run --args" />

  <arg name="config" default="false" />
  <arg unless="$(arg config)" name="command_args" value="" />
  <arg     if="$(arg config)" name="command_args" value="-d $(find iiwa_core)/launch/iiwa_model.rviz" />

  <node name="$(anon rviz)" launch-prefix="$(arg launch_prefix)" pkg="rviz" type="rviz" respawn="false"
	args="$(arg command_args)" output="screen">
    <rosparam command="load" file="$(find iiwa_moveit)/config/kinematics.yaml"/>
  </node>

</launch>
  • iiwa_model.rviz
Panels:
  - Class: rviz/Displays
    Help Height: 84
    Name: Displays
    Property Tree Widget:
      Expanded:
        - /TF1/Status1
        - /RobotModel1
      Splitter Ratio: 0.7425600290298462
    Tree Height: 781
  - Class: rviz/Help
    Name: Help
  - Class: rviz/Views
    Expanded:
      - /Current View1
    Name: Views
    Splitter Ratio: 0.5
Preferences:
  PromptSaveOnExit: true
Toolbars:
  toolButtonStyle: 2
Visualization Manager:
  Class: ""
  Displays:
    - Alpha: 0.5
      Cell Size: 1
      Class: rviz/Grid
      Color: 160; 160; 164
      Enabled: true
      Line Style:
        Line Width: 0.029999999329447746
        Value: Lines
      Name: Grid
      Normal Cell Count: 0
      Offset:
        X: 0
        Y: 0
        Z: 0
      Plane: XY
      Plane Cell Count: 10
      Reference Frame: <Fixed Frame>
      Value: true
    - Acceleration_Scaling_Factor: 0.1
      Class: moveit_rviz_plugin/MotionPlanning
      Enabled: false
      Move Group Namespace: ""
      MoveIt_Allow_Approximate_IK: false
      MoveIt_Allow_External_Program: false
      MoveIt_Allow_Replanning: false
      MoveIt_Allow_Sensor_Positioning: false
      MoveIt_Planning_Attempts: 10
      MoveIt_Planning_Time: 5
      MoveIt_Use_Cartesian_Path: false
      MoveIt_Use_Constraint_Aware_IK: true
      MoveIt_Workspace:
        Center:
          X: 0
          Y: 0
          Z: 0
        Size:
          X: 2
          Y: 2
          Z: 2
      Name: MotionPlanning
      Planned Path:
        Color Enabled: false
        Interrupt Display: false
        Links:
          All Links Enabled: true
          Expand Joint Details: false
          Expand Link Details: false
          Expand Tree: false
          Link Tree Style: Links in Alphabetic Order
          iiwa_link_0:
            Alpha: 1
            Show Axes: false
            Show Trail: false
            Value: true
          iiwa_link_1:
            Alpha: 1
            Show Axes: false
            Show Trail: false
            Value: true
          iiwa_link_2:
            Alpha: 1
            Show Axes: false
            Show Trail: false
            Value: true
          iiwa_link_3:
            Alpha: 1
            Show Axes: false
            Show Trail: false
            Value: true
          iiwa_link_4:
            Alpha: 1
            Show Axes: false
            Show Trail: false
            Value: true
          iiwa_link_5:
            Alpha: 1
            Show Axes: false
            Show Trail: false
            Value: true
          iiwa_link_6:
            Alpha: 1
            Show Axes: false
            Show Trail: false
            Value: true
          iiwa_link_7:
            Alpha: 1
            Show Axes: false
            Show Trail: false
            Value: true
          iiwa_link_ee:
            Alpha: 1
            Show Axes: false
            Show Trail: false
          world:
            Alpha: 1
            Show Axes: false
            Show Trail: false
        Loop Animation: true
        Robot Alpha: 0.5
        Robot Color: 150; 50; 150
        Show Robot Collision: false
        Show Robot Visual: true
        Show Trail: false
        State Display Time: 0.05 s
        Trail Step Size: 1
        Trajectory Topic: move_group/display_planned_path
        Use Sim Time: false
      Planning Metrics:
        Payload: 1
        Show Joint Torques: false
        Show Manipulability: false
        Show Manipulability Index: false
        Show Weight Limit: false
        TextHeight: 0.07999999821186066
      Planning Request:
        Colliding Link Color: 255; 0; 0
        Goal State Alpha: 1
        Goal State Color: 250; 128; 0
        Interactive Marker Size: 0
        Joint Violation Color: 255; 0; 255
        Planning Group: manipulator
        Query Goal State: true
        Query Start State: false
        Show Workspace: false
        Start State Alpha: 1
        Start State Color: 0; 255; 0
      Planning Scene Topic: move_group/monitored_planning_scene
      Robot Description: robot_description
      Scene Geometry:
        Scene Alpha: 1
        Scene Color: 50; 230; 50
        Scene Display Time: 0.20000000298023224
        Show Scene Geometry: true
        Voxel Coloring: Z-Axis
        Voxel Rendering: Occupied Voxels
      Scene Robot:
        Attached Body Color: 150; 50; 150
        Links:
          All Links Enabled: true
          Expand Joint Details: false
          Expand Link Details: false
          Expand Tree: false
          Link Tree Style: Links in Alphabetic Order
          iiwa_link_0:
            Alpha: 1
            Show Axes: false
            Show Trail: false
            Value: true
          iiwa_link_1:
            Alpha: 1
            Show Axes: false
            Show Trail: false
            Value: true
          iiwa_link_2:
            Alpha: 1
            Show Axes: false
            Show Trail: false
            Value: true
          iiwa_link_3:
            Alpha: 1
            Show Axes: false
            Show Trail: false
            Value: true
          iiwa_link_4:
            Alpha: 1
            Show Axes: false
            Show Trail: false
            Value: true
          iiwa_link_5:
            Alpha: 1
            Show Axes: false
            Show Trail: false
            Value: true
          iiwa_link_6:
            Alpha: 1
            Show Axes: false
            Show Trail: false
            Value: true
          iiwa_link_7:
            Alpha: 1
            Show Axes: false
            Show Trail: false
            Value: true
          iiwa_link_ee:
            Alpha: 1
            Show Axes: false
            Show Trail: false
          world:
            Alpha: 1
            Show Axes: false
            Show Trail: false
        Robot Alpha: 0.5
        Show Robot Collision: false
        Show Robot Visual: true
      Value: false
      Velocity_Scaling_Factor: 0.1
    - Class: rviz/TF
      Enabled: true
      Frame Timeout: 15
      Frames:
        All Enabled: true
        iiwa_link_0:
          Value: true
        iiwa_link_1:
          Value: true
        iiwa_link_2:
          Value: true
        iiwa_link_3:
          Value: true
        iiwa_link_4:
          Value: true
        iiwa_link_5:
          Value: true
        iiwa_link_6:
          Value: true
        iiwa_link_7:
          Value: true
        iiwa_link_ee:
          Value: true
        world:
          Value: true
      Marker Alpha: 1
      Marker Scale: 0.30000001192092896
      Name: TF
      Show Arrows: true
      Show Axes: true
      Show Names: true
      Tree:
        world:
          iiwa_link_0:
            iiwa_link_1:
              iiwa_link_2:
                iiwa_link_3:
                  iiwa_link_4:
                    iiwa_link_5:
                      iiwa_link_6:
                        iiwa_link_7:
                          iiwa_link_ee:
                            {}
      Update Interval: 0
      Value: true
    - Alpha: 0.800000011920929
      Class: rviz/RobotModel
      Collision Enabled: false
      Enabled: true
      Links:
        All Links Enabled: true
        Expand Joint Details: false
        Expand Link Details: false
        Expand Tree: false
        Link Tree Style: Links in Alphabetic Order
        iiwa_link_0:
          Alpha: 1
          Show Axes: false
          Show Trail: false
          Value: true
        iiwa_link_1:
          Alpha: 1
          Show Axes: false
          Show Trail: false
          Value: true
        iiwa_link_2:
          Alpha: 1
          Show Axes: false
          Show Trail: false
          Value: true
        iiwa_link_3:
          Alpha: 1
          Show Axes: false
          Show Trail: false
          Value: true
        iiwa_link_4:
          Alpha: 1
          Show Axes: false
          Show Trail: false
          Value: true
        iiwa_link_5:
          Alpha: 1
          Show Axes: false
          Show Trail: false
          Value: true
        iiwa_link_6:
          Alpha: 1
          Show Axes: false
          Show Trail: false
          Value: true
        iiwa_link_7:
          Alpha: 1
          Show Axes: false
          Show Trail: false
          Value: true
        iiwa_link_ee:
          Alpha: 1
          Show Axes: false
          Show Trail: false
        world:
          Alpha: 1
          Show Axes: false
          Show Trail: false
      Name: RobotModel
      Robot Description: robot_description
      TF Prefix: ""
      Update Interval: 0
      Value: true
      Visual Enabled: true
  Enabled: true
  Global Options:
    Background Color: 48; 48; 48
    Default Light: true
    Fixed Frame: world
    Frame Rate: 30
  Name: root
  Tools:
    - Class: rviz/Interact
      Hide Inactive Objects: true
    - Class: rviz/MoveCamera
    - Class: rviz/Select
  Value: true
  Views:
    Current:
      Class: rviz/XYOrbit
      Distance: 1.8138381242752075
      Enable Stereo Rendering:
        Stereo Eye Separation: 0.05999999865889549
        Stereo Focal Distance: 1
        Swap Stereo Eyes: false
        Value: false
      Field of View: 0.7853981852531433
      Focal Point:
        X: 0.4586904048919678
        Y: -0.09752808511257172
        Z: -4.6193542857508874e-07
      Focal Shape Fixed Size: true
      Focal Shape Size: 0.05000000074505806
      Invert Z Axis: false
      Name: Current View
      Near Clip Distance: 0.009999999776482582
      Pitch: 0.44479644298553467
      Target Frame: world
      Yaw: 5.634957313537598
    Saved: ~
Window Geometry:
  Displays:
    collapsed: false
  Height: 1016
  Help:
    collapsed: false
  Hide Left Dock: false
  Hide Right Dock: false
  MotionPlanning:
    collapsed: false
  MotionPlanning - Trajectory Slider:
    collapsed: false
  QMainWindow State: 000000ff00000000fd0000000100000000000001c00000039efc0200000007fb000000100044006900730070006c006100790073010000003d0000039e000000c900fffffffb0000000800480065006c00700000000342000000bb0000006e00fffffffb0000000a0056006900650077007300000003b0000000b0000000a400fffffffb0000000c00430061006d00650072006100000002ff000001610000000000000000fb0000001e004d006f00740069006f006e00200050006c0061006e006e0069006e006701000002db0000017a0000000000000000fb00000044004d006f00740069006f006e0050006c0061006e006e0069006e00670020002d0020005400720061006a006500630074006f0072007900200053006c00690064006500720000000000ffffffff0000001600000016fb0000001c004d006f00740069006f006e0050006c0061006e006e0069006e00670000000243000001980000017d00ffffff000005720000039e00000001000000020000000100000002fc0000000100000002000000010000000a0054006f006f006c00730100000000ffffffff0000000000000000
  Views:
    collapsed: false
  Width: 1848
  X: 72
  Y: 27

5. Turn of KUKA iiwa

Always keep in mind that the ROSSmartServo should be turned off first before close the roscore running on the laptop or the desktop PC.

  • turn off the handguide mode
    在这里插入图片描述

  • turn off the ROSSmartServo application
    在这里插入图片描述

  • finally turn off the roscore

  • close the terminal

03, March, 2023
Dianye Huang
Munchen

无始之始
关注
  • 0
    点赞
  • 踩
  • 3
    收藏
    觉得还不错? 一键收藏
  • 0
    评论
专栏目录
ROS中遇到的问题６
Yao_Z_X的博客
10-18 1349
ROS中遇到的问题６： 我用的环境是： Ubuntu版本：16.04 ROS版本：kinetic error： 类似如以下问题： In file included from /opt/ros/kinetic/include/moveit/robot_model/joint_model_group.h:41:0, from /opt/ros/kinetic/include/moveit/robot_...
kuka_iiwa_kinematics_src
09-27
本资源“kuka_iiwa_kinematics_src”提供了KUKA iiwa运动学的源代码，这对于我们深入理解机器人的工作原理和进行定制化开发有着极大的帮助。 运动学是机器人学的一个关键分支，主要研究机器人关节变量与末端执行器...
fatal error: iiwa_msgs/ConfigureSmartServo.h: No such file or directory
Yao_Z_X的博客
10-24 787
ROS中使用iiwa时遇到的问题： 我的使用环境： Ubuntu的版本：16.04； ROS的版本：kinetic /home/yzx/ws/src/iiwa_force_control/src/…/…/iiwa_force_control/include/iiwa_force_control/ForceTrackStiffness.h:7:43: fatal error: iiwa_msgs/C...
通过ROS控制真实机械臂(15) --- 视觉抓取之手眼标定
热门推荐
工大机器人工作室
12-28 1万+
通过视觉传感器赋予机械臂“眼睛”的功能，配合ATI力和力矩传感器，就可以完成机械臂“手眼”结合的能力，完成视觉抓取过程。目前测试的视觉传感器为 ZED mini双目相机，配置安装过程https://blog.csdn.net/qq_34935373/article/details/103481401。 1.手眼标定（内参） 对于单目usb相机，可以通过ROS包usb_cam来启动相机，通过...
【手眼标定】ROS + usb_cam + aruco_ros + easy_handeye_demo
weixin_48319333的博客
08-17 3447
这个库是easy_handeye的一个demo，不需要真实的机械臂就可以实现easy_handeye，并且easy_handeye_demo可以作为将easy_handeye与自己的机械臂整合的一个例子。（2） 依次点击 Next Pose，Plan，Execute，机械臂会移动至新的位置，若二维码在相机视野范围内，且能检测成功，则进行下一步。正常情况下会出现四个界面，一个是相机画面，一个是同上文的rviz仿真界面，下面的两个标定界面。，解决办法：拖动小球找到能够进行标定的位姿（有点麻烦，我也找了很久）..
mm_stack:这是我的移动机器人遵循给定轨迹的规划方法的源代码
03-12
移动机械手计划堆栈 这是用于移动主机计划的算法的源代码 mm_manipulator 在mm_manipulator程序包中，我们使用基于采样的方法在操纵器（KUKA iiwa14）的关节空间中进行采样，以计算其可达性和相应的操纵性至于iiwa的运动学，我们使用和moveit使其 roslaunch iiwa_moveit move_group.launch 并进入脚本目录并运行 ./reachability.py 结果以* /数字显示。 采样结果没有上传，因为它太大了reachability_fitting.py用于获取采样结果的拟合范围 mm_planning 在此程序包中，我们使用成本函数和梯度设计方法来计算移动基地的轨迹F = F距离+ Fmoothness + Fbound 结果通过opencv4显示
ROS 之 KUKA iiwa编程
lovely_yoshino的博客
04-12 6434
目录 背景介绍 ROS API说明 ROS环境搭建 背景介绍 目前，市面上大多数的拖动试教机器人是UR的协作机器人和DLR-KUKA的iiwa机器人，相比于UR机器人，iiwa机器人在结构上有一点重要的不同。 UR在每个关节上采取的是双编码器的方式，分别测量电机角度和连杆角度。而iiwa机器人在每个关节上还加入了一个单轴力矩传感器（一般位于减速器输出端与末端连杆间），用于测量每个关节的输出力矩。如图所示，iiwa在牵引拖动时表现更好，同时iiwa机器人拥有更小的运动盲区。用户可以施加更.
kuka LBR iiwa7 & iiwa14机器人参数及MDH表
罗伯特祥的博客
02-08 1449
LBR iiwa关节运动范围、尺寸等数据
探索未来机器人控制的无限可能：iiwa_ros——你的KUKA IIWA机器人ROS栈
最新发布
gitblog_00080的博客
06-21 236
探索未来机器人控制的无限可能：iiwa_ros——你的KUKA IIWA机器人ROS栈 项目地址:https://gitcode.com/epfl-lasa/iiwa_ros 项目介绍 在机器人的世界里，每一步创新都推动着行业向前迈进。今天，我们聚焦于一个令人兴奋的开源项目——iiwa_ros，它专为KUKA的IIWA系列机器人设计，旨在通过集成Fast Research Interface（FR...
机械臂项目kuka_iiwa.zip
04-30
《KUKA_IIWA机械臂的强化学习应用解析》 KUKA_IIWA是一款在工业自动化领域广泛应用的智能机器人手臂，它以其高精度、稳定性强和灵活度高等特点，成为了众多研究者和工程师的关注焦点。在这个项目中，我们探讨的是...
KUKA基本编程手册.zip_KUKA程序_kuka _kuka编程_机器人
07-15
KUKA机器人的基本编程手册中文版的，当前KUKA机器人所有型号都有
iiwa_kinematics:iiwa14手臂使用IK拾取并放置
05-15
KUKA LBR IIWA R820（14 Kg）的运动学实施。 视频： ： 入门 如果没有活动的ROS工作空间，则可以通过以下方法创建一个： $ mkdir -p ~/catkin_ws/src $ cd ~/catkin_ws/ $ catkin_make 将此仓库克隆到工作区的...
KUKA编程语法大全.rar_KUKA语言_kuka _kuka robot language_kuka编程_kuka语法
09-22
《KUKA编程语法大全》是一份详尽的资料，主要涵盖了KUKA机器人的编程语言——KL（KUKA Language）的相关知识。KUKA是全球知名的工业机器人制造商，其开发的KL语言是用于控制KUKA机器人进行各种任务编程的重要工具。...
kuka iiwa 控制接口开源项目
dbdxnuliba的博客
10-11 1253
https://github.com/edoardolamon/HRII_kuka
【转】kuka iiwa 机器人是怎么控制的
罗伯特祥的博客
12-30 3118
文章目录首先来看一下iiwa的几个演示视频LWR的电流控制系统建模和辨识关节传感器分级控制关节层面控制 首先来看一下iiwa的几个演示视频 Teaching by Demonstration： http://v.youku.com/v_show/id_XODE3MzQ0MTk2.html 末端I/O实现示教点示教功能 Teaching by Demonstration II：http...

“相关推荐”对你有帮助么？

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
