ROS项目迁移至ROS2教程

1. 项目整体结构对比（左均为ROS2，右为ROS1）

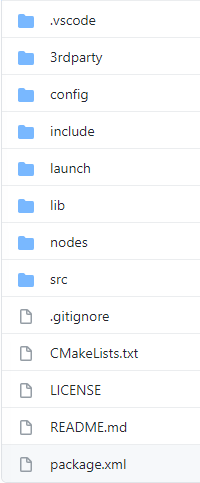

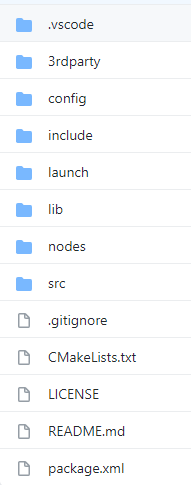

根目录：可以看出来结构是类似的

​

config文件夹：添加了一个params.yaml文件，之前的yaml是通过roslaunch加载，ROS2的yaml后续会讲解


其他文件夹没有变化，就不一一列举了

2. CMakeLists.txt修改（上为ROS2，下为ROS1）

相比于ROS1，ROS2最主要的变化体现在CMakeLists.txt上，下面将对比ROS2与ROS1在这部分的区别

cmake_minimum_required(VERSION 3.5)
project(bitcq_camera)

set(CMAKE_CXX_STANDARD 17)
set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -std=c++17 -fPIC -Wall -g -Wno-sign-compare -pthread")

set(CMAKE_EXE_LINKER_FLAGS "${CMAKE_EXE_LINKER_FLAGS} -Wl,-rpath,'$ORIGIN/'" )
set(CMAKE_SHARED_LINKER_FLAGS "${CMAKE_SHARED_LINKER_FLAGS} -Wl,-rpath,'$ORIGIN/'" )

set(LIBRARY_OUTPUT_PATH "${PROJECT_BINARY_DIR}")
set(EXECUTABLE_OUTPUT_PATH "${PROJECT_BINARY_DIR}")

cmake_minimum_required(VERSION 3.0.2)
project(bitcq_camera)

set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -std=c++17 -fPIC -Wall -g -Wno-sign-compare -pthread")

首先是cmake_minimum_required的版本，ROS2强制要求CMake版本在3.5以上，所以这里需要修改
其次是CMAKE_CXX_STANDARD, ROS2强制要求C++版本为C++14以上，这里选择C++17是为了使用新特性
​

然后是CMAKE_EXE_LINKER_FLAGS CMAKE_SHARED_LINKER_FLAGS 这两个参数，是用于设置输出的程序与.so处于同一文件夹下，可以寻找到动态路径下的.so文件，使用该命令是由于ROS2特殊的编译机制，下面将详细解释


同理，下面设置LIBRARY_OUTPUT_PATH EXECUTABLE_OUTPUT_PATH 也是因为ROS2的编译机制问题
​

​

find_package(ament_cmake REQUIRED)

find_package(rclcpp REQUIRED)
find_package(rosidl_default_generators REQUIRED)

find_package(std_msgs REQUIRED)
find_package(message_filters REQUIRED)
find_package(sensor_msgs REQUIRED)
find_package(image_transport REQUIRED)
find_package(cv_bridge REQUIRED)

find_package(catkin REQUIRED COMPONENTS
  roscpp
  std_msgs
  image_transport
  cv_bridge
  sensor_msgs
)

可以看出来，ROS2使用ament_cmake 代替了catkin_make， 并且roscpp 也替换为了rclcpp， 其他包差异不大
​

​

set(msg_files
    "msg/Detector2D.msg"
    "msg/Detector2DArray.msg"
    "msg/BoundingBox2D.msg"
    "msg/BoundingBox.msg"
    "msg/BoundingBoxes.msg"
    "msg/ObjectHypothesis.msg"
)

rosidl_generate_interfaces(${PROJECT_NAME}_Message
    ${msg_files}
    DEPENDENCIES std_msgs geometry_msgs
    LIBRARY_NAME ${PROJECT_NAME}
)

ament_register_extension(
    "rosidl_generate_interfaces"
    "rosidl_generator_cpp"
    "rosidl_generator_cpp_generate_interfaces.cmake"
)

ament_export_dependencies(rosidl_default_runtime)

add_message_files(
  FILES
  Detector2D.msg
  Detector2DArray.msg
  BoundingBox2D.msg
  BoundingBox.msg
  BoundingBoxes.msg
  ObjectHypothesis.msg
)

generate_messages(DEPENDENCIES std_msgs vision_msgs)

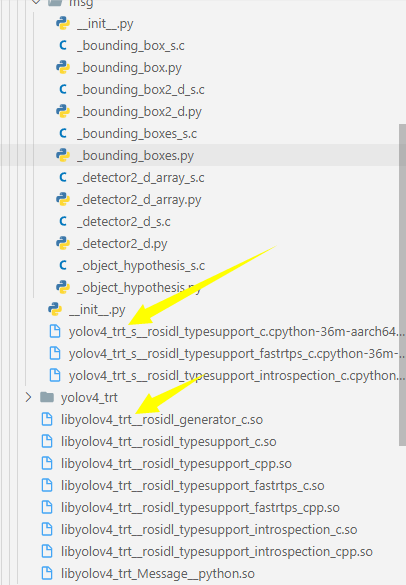

这里使用了之前find_package 获取到的rosidl_generate_interfaces来进行消息的生成，相比于ROS1，ROS2这里消息需要添加参数 LIBRARY_NAME ${PROJECT_NAME}，这样才能在cpp中正常获取需要的消息，这是由于ROS2
的消息生成为.so文件并且放置到install文件夹下，否则会在后面生成带_Message的消息，会无法正确链接源程序。

add_library(${PROJECT_NAME} SHARED src/${PROJECT_NAME}.cpp src/display.cpp src/yolo_with_plugins.cpp)

add_executable(${PROJECT_NAME}_node nodes/${PROJECT_NAME}_node.cpp)

add_executable(trt_yolo_v4 src/trt_yolo_v4.cpp ${util_src})

这里做了一点优化，将Main函数放置于node中，符合ROS2的项目结构。
​

​

target_include_directories(${PROJECT_NAME} PRIVATE
    include
    ${ament_INCLUDE_DIRS}
    ${OpenCV_INCLUDE_DIRS}
    ${CUDA_INCLUDE_DIRS}
)

target_include_directories(${PROJECT_NAME}_node PRIVATE
    include
)

include_directories(
    ${catkin_INCLUDE_DIRS}
    ${CUDA_INCLUDE_DIRS}
    ${OpenCV_INCLUDE_DIRS}
    ${CMAKE_CURRENT_SOURCE_DIR}/include
)

这里使用target_include_directories代替了原有的include_directories，由于include_directories的作用范围是全局，且include需要在add_executable之前，使用target_include_directories可以更针对性的导入包，使项目结构更加清晰。
​

​

ament_target_dependencies(${PROJECT_NAME}
    rclcpp
    rclcpp_lifecycle
    rclcpp_components
    rosidl_default_generators
    std_msgs
    geometry_msgs
    message_filters
    sensor_msgs
    image_transport
    cv_bridge
)

ament_target_dependencies(${PROJECT_NAME}_node
    rclcpp
)

rosidl_target_interfaces(${PROJECT_NAME}
    ${PROJECT_NAME}_Message
    "rosidl_typesupport_cpp"
)

catkin_package(
  CATKIN_DEPENDS nodelet rospy image_transport sensor_msgs vision_msgs cv_bridge message_runtime
)

这也是一个替换方式，使用了ament_target_dependencies代替catkin_package的作用
​

​

install(DIRECTORY launch
    DESTINATION share/${PROJECT_NAME}
    FILES_MATCHING PATTERN "*.py"
)

install(DIRECTORY config
    DESTINATION share/${PROJECT_NAME}
    FILES_MATCHING PATTERN "*.yaml"
)

install(PROGRAMS
    ${PROJECT_BINARY_DIR}/libyaml-cpp.so.0.7
    $/{PROJECT_BINARY_DIR}/libgxiapi.so
    ${PROJECT_BINARY_DIR}/GxGVTL.cti
    ${PROJECT_BINARY_DIR}/GxU3VTL.cti
    DESTINATION lib/${PROJECT_NAME}
)

install(TARGETS ${PROJECT_NAME}_node
    RUNTIME DESTINATION lib/${PROJECT_NAME}
    ARCHIVE DESTINATION lib/${PROJECT_NAME}
    LIBRARY DESTINATION lib/${PROJECT_NAME}
    DESTINATION lib/${PROJECT_NAME}
)

install(TARGETS ${PROJECT_NAME}_node ${PROJECT_NAME}
  ARCHIVE DESTINATION ${CATKIN_PACKAGE_LIB_DESTINATION}
  RUNTIME DESTINATION ${CATKIN_PACKAGE_BIN_DESTINATION}
  LIBRARY DESTINATION ${CATKIN_PACKAGE_LIB_DESTINATION}
)

install(DIRECTORY launch/
  DESTINATION ${CATKIN_PACKAGE_SHARE_DESTINATION}/launch
  FILES_MATCHING PATTERN "*.launch"
)

install(DIRECTORY config/Galaxy_Camera/
  DESTINATION ${CATKIN_PACKAGE_SHARE_DESTINATION}/config
  FILES_MATCHING PATTERN "*.yaml"
)

这里需要着重讲解一下ROS2与ROS1在安装文件上的区别。可以看到
在ROS1中使用install，只需指定{CATKIN_PACKAGE_LIB_DESTINATION}，会将库文件安装到devel下面，无需手动指定，但是可以通过ldd命令查看链接的项目内含的库文件是链接至源库目录，如下图。

而在ROS2中则是默认将程序安装到install目录，而外部依赖的库文件如果不手动指定rpath路径，则会出现Not Found的问题。

但是上图中的可执行文件是在install目录中的执行文件，我们看一下这个文件实际编译的位置（也就是Build文件夹中）的可执行文件，发现可以正常链接。

也就是ROS2实际上在Build文件夹中进行编译，在执行install之后会将可执行文件以及库文件安装至install文件夹中，因此我们需要设置rpath，来满足同目录下的相对路径库文件查找，并且我们使用了${PROJECT_BINARY_DIR} 这个指令来指定安装位置与Bin文件的输出路径一致，如果不指定rpath，则在ldconfig中程序无法查找当前相对路径下链接到的库文件。

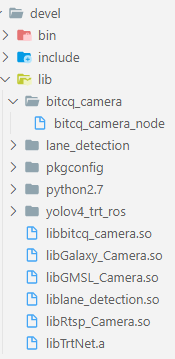

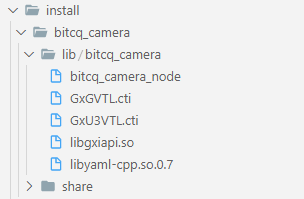

下图可以看下在build和install文件夹中分别是如何分布的。

              ROS1                            ROS2 build                                           ROS2 install
​

​

ament_package()

在CMakeLists.txt中最后一行请添加这句语句，声明这是ament package。

3. Launch文件对比（上为ROS2，下为ROS1）

import os
import launch
from ament_index_python.packages import get_package_share_directory
from launch.substitutions import EnvironmentVariable
from launch.substitutions import LaunchConfiguration
from launch import LaunchDescription
from launch_ros.actions import Node
from launch.actions import DeclareLaunchArgument

def generate_launch_description():
    param_dir = os.path.join(get_package_share_directory('bitcq_camera'), 'config', 'params.yaml')
    print(param_dir)

    return LaunchDescription([
        Node(
            package='bitcq_camera',
            executable='bitcq_camera_node',
            # namespace='bc',
            name='bitcq_camera_node',
            prefix=['stdbuf -o L'],
            output='screen',
            parameters=[
                param_dir
            ]
         )
    ])

<launch>
    <!-- DEBUG: launch-prefix="gdb -ex run -(delete)-args" -->
    <node name="bitcq_camera" pkg="bitcq_camera" type="bitcq_camera_node" output="screen">
        <rosparam command="load" file="$(find bitcq_camera)/config/bitcq_camera.yaml"/>
        <param name="galaxy_yaml_path" value="$(find bitcq_camera)/config/Galaxy_Camera/galaxy_camera.yaml"/>
        <param name="rtsp_yaml_path" value="$(find bitcq_camera)/config/Rtsp_Camera/rtsp_camera.yaml"/>
        <param name="gmsl_yaml_path" value="$(find bitcq_camera)/config/GMSL_Camera/gmsl_camera.yaml"/>
    </node>
</launch>

ROS2中将launch替换为了python文件，通过运行此文件进行节点的启动。这里对这个文件里面的一些参数进行解释。
package： 项目的包名
executable：输出的可执行文件（node）的名字
namespace：可选的设置，只要设置了，你发布的rostopic的前面就会添加上这个namespace，如/bc/image_source_0，同时在params.yaml中也需要添加上namespace，否则无法正常读取配置文件
prefix：这一句添加了才可以正常的在程序中使用std进行语句输出
output：这个参数也是类似于ROS1中的output


Params.yaml：该文件是用于在python文件中加载参数，类似于在ROS1的launch中的param标签。请注意写法。

bitcq_camera_node:
  ros__parameters:
    bitcq_yaml_path: "/root/ros2_ws/install/bitcq_camera/share/bitcq_camera/config/bitcq_camera.yaml"
    galaxy_yaml_path: "/root/ros2_ws/install/bitcq_camera/share/bitcq_camera/config/Galaxy_Camera/galaxy_camera.yaml"
    gmsl_yaml_path: "/root/ros2_ws/install/bitcq_camera/share/bitcq_camera/config/Rtsp_Camera/rtsp_camera.yaml"
    rtsp_yaml_path: "/root/ros2_ws/install/bitcq_camera/share/bitcq_camera/config/GMSL_Camera/gmsl_camera.yaml"

4. Node Main函数区别（上为ROS2，下为ROS1）

#include <bitcq_camera.h>

int main(int argc, char** argv)
{
    rclcpp::init(argc, argv);

    auto yolov4 = std::make_shared<Yolov4>(rclcpp::NodeOptions{});

    rclcpp::spin(yolov4);

    rclcpp::shutdown();
}

#include <bitcq_camera.h>

int main(int argc, char** argv)
{
    ros::init(argc,argv,"yolov4_detection",ros::init_options::AnonymousName);

    ros::NodeHandle n("~");

    DYolov4 Yolov4(n);

    ros::spin();

  	ros::shutdown();
}

这里看出来大部分都是ros对rclcpp的替换，但是创建节点的时候是有区别的。

5. 头文件区别（上为ROS2，下为ROS1）

#include <rclcpp/rclcpp.hpp>

#include <image_transport/image_transport.hpp>
#include <image_transport/subscriber.hpp>
#include <image_transport/subscriber_filter.h>

#include <message_filters/subscriber.h>
#include <message_filters/synchronizer.h>
#include <message_filters/sync_policies/approximate_time.h>

#include <cv_bridge/cv_bridge.h>

#include <sensor_msgs/msg/image.hpp>

#include "yolov4_trt/msg/bounding_box2_d.hpp"
#include "yolov4_trt/msg/object_hypothesis.hpp"
#include "yolov4_trt/msg/detector2_d_array.hpp"
#include "yolov4_trt/msg/detector2_d.hpp"
#include "yolov4_trt/msg/bounding_box.hpp"
#include "yolov4_trt/msg/bounding_boxes.hpp"

#include "ros/ros.h"
#include "ros/package.h"
#include <ros/console.h>

#include <image_transport/image_transport.h>
#include <image_transport/subscriber_filter.h>

#include <message_filters/subscriber.h>
#include <message_filters/synchronizer.h>
#include <message_filters/sync_policies/approximate_time.h>

#include "cv_bridge/cv_bridge.h"

#include <sensor_msgs/Image.h>

#include "yolov4_trt_ros/Detector2DArray.h"
#include "yolov4_trt_ros/Detector2D.h"
#include "yolov4_trt_ros/BoundingBox.h"
#include "yolov4_trt_ros/BoundingBoxes.h"

可以看出来变化主要是在消息的头文件上，需要注意ROS2中消息的头文件以及引用均需要在中间加msg字段

6. 类和构造函数的区别（上为ROS2，下为ROS1）

class Yolov4 : public rclcpp::Node
{
public:
	explicit Yolov4(rclcpp::NodeOptions const& options) : rclcpp::Node{ "yolov4_trt_node", options }
	{

    }
}

class Yolov4
{
public:
    ros::NodeHandle nh;
    image_transport::ImageTransport it;

    Yolov4(const ros::NodeHandle& node_handle) : nh(node_handle), it(node_handle)
    {

    }
}

在ROS1中，新建的NodeHandle是作为构造函数参数传递进类里面进行使用，而ROS2的类直接继承自rclcpp:：Node，在使用node时直接使用this指针即可。
这里使用了explicit来显式声明构造函数，这种用法前提是构造函数只有一个参数传递。
​

我们这里使用一个语句来使用this指针，查看查看一下效果。

RCLCPP_INFO(this->get_logger(), “[%s]: Initializing…”, this->get_name());

7. 参数获取（上为ROS2，下为ROS1）

this->declare_parameter("topic_name_0");
this->get_parameter("topic_name_0", video_topic_0);

this->declare_parameter("category_number");
this->get_parameter("category_number", category_num);

this->declare_parameter("confidence_threshold");
this->get_parameter("confidence_threshold", conf_th);

this->declare_parameter("show_image");
this->get_parameter("show_image", show_img);

nh.param<std::string>("/yolov4_trt/topic_name_0", video_topic_0, "/image_source_0");

nh.param<int>("/yolov4_trt/category_number", category_num, 80);

nh.param<float>("/yolov4_trt/confidence_threshold", conf_th, 0.5);

nh.param<bool>("/yolov4_trt/show_image", show_img, true);

这里用四个参数举例，可以看出ROS1和ROS2的区别，在ROS2的构造函数中使用this指针代替了NodeHandle的作用来进行参数的获取。

8. Publisher和Subscriber的区别（上为ROS2，下为ROS1）

rmw_qos_profile_t qos = rmw_qos_profile_default;

//ImageTransport 创建订阅者节点
ImageTransport::Subscriber image_sub =
    image_transport::create_subscription(
    	this,
    	"/image_source_1",
    	std::bind(&Yolov4::imageCallback, this, std::placeholders::_1),
    	"raw",
    	qos
    );


//普通sensor_msgs的创建
auto image_sub2 = this->create_subscription<sensor_msgs::msg::Image>(
    "/image_source_1",
    qos,
    std::bind(&Yolov4::imageCallback, this, std::placeholders::_1)
)

//ImageTransport 创建订阅者节点
const boost::function<void(const sensor_msgs::ImageConstPtr&)> f(
    boost::bind(&Yolov4::imageCallback,this,_1)
);

ImageTransport::Subscriber image_sub= it.subscribe("/image_source_1",1,f);


//普通sensor_msgs的创建
ros::Subscriber<sensor_msgs::Image> image_sub2 = nh.subscribe("/image_source_1",1,f);

可以看出来ROS2使用了create_subscription来创建接收器。这里演示了ROS1和ROS2中的两种订阅器创建方式。其他消息订阅器的创建也和这个类似。

cv::Mat image = cv::Mat::zeros(cv::Size(1920, 1080), CV_8UC3);
rmw_qos_profile_t qos = rmw_qos_profile_default;

//ImageTransport 推送节点创建
image_transport::Publisher itPub;
sensor_msgs::msg::Image::SharedPtr msg;

itPub = image_transport::create_publisher(this, "image_source_1", qos);

msg = cv_bridge::CvImage(std_msgs::msg::Header(), "bgr8", image).toImageMsg();

msg->header.stamp = rclcpp::Clock().now();

itPub.publish(msg);



//普通消息推送节点
std::shared_ptr<rclcpp::Publisher<yolov4_trt::msg::BoundingBoxes>> msgPub =
    this->create_publisher<yolov4_trt::msg::BoundingBoxes>("bounding_boxes_0", 1);

yolov4_trt::msg::BoundingBoxes boxes_msg;
boxes_msg.header.stamp = rclcpp::Clock().now();
boxes_msg.header.frame_id = "detection";

yolov4_trt::msg::BoundingBox bounding_box_msg;
boxes_msg.bounding_boxes.push_back(bounding_box_msg);

msgPub->publish(boxes_msg);

cv::Mat image = cv::Mat::zeros(cv::Size(1920, 1080), CV_8UC3);

//ImageTransport 推送节点创建
image_transport::ImageTransport it(node);

image_transport::Publisher pub = it.advertise("image_source_1", 1);

sensor_msgs::ImagePtr msg;

msg = cv_bridge::CvImage(std_msgs::Header(), "bgr8", image).toImageMsg();

pub.publish(msg);



//普通消息推送节点
ros::Publisher msgPub =
    nh.advertise<yolov4_trt_ros::BoundingBoxes>("/bounding_boxes_0", 1);

yolov4_trt_ros::BoundingBoxes boxes_msg;
boxes_msg.header.stamp = ros::Time::now();
boxes_msg.header.frame_id = "detection";

yolov4_trt_ros::BoundingBox bounding_box_msg;
boxes_msg.bounding_boxes.push_back(bounding_box_msg);

msgPub.publish(boxes_msg);

可以对比我编写的四个例程，对项目中原有的推送节点进行修改。

9. ROS2中一些用法与ROS1的对比（上为ROS2，下为ROS1）

​

rclcpp::WallRate loopRate(30);
while (rclcpp::ok())
{
    //TO-DO
    rclcpp::spin_some(this->get_node_base_interface());
    loopRate.sleep();
}

ros::Rate loopRate(60);
while (node.ok())
{
    //TO-DO
    ros::spinOnce();
    loopRate.sleep();
}

可以看到在ROS2中，在构造函数外如果需要使用一些需要node节点的自带函数，则可以使用this->get_node_base_interface()来声明获取一个node，而不是直接使用this指针。
​

​

10. Python项目Migration的部分暂时待补充😅
