一、准备工作:

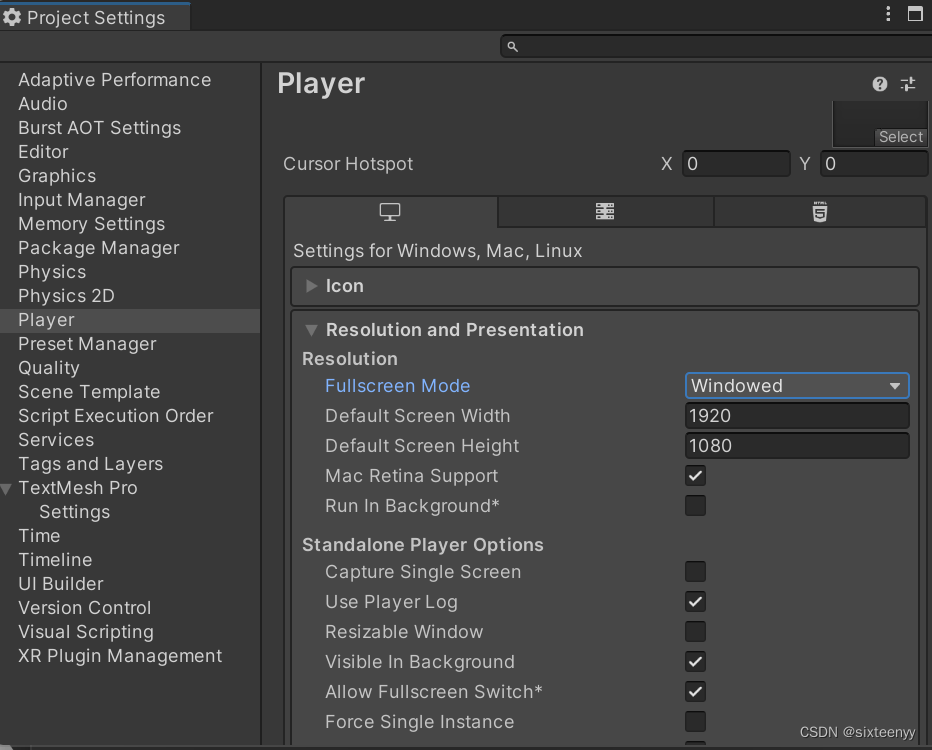

1、新建项目,设置游戏界面分辨率、摄像机
(1) Game 界面,选择16:9
(2) 设置摄像机背景色:黑色,size:15
2、创建墙:
(1) 2D Object-Sprites-Square,重命名Wall,Position中Y=10,Scale中X=45,选择适当颜色
(2) 选中Wall,Ctrl+D,Position中Y=-10
(3) 复制Wall,Position中Y=0,Rotation中Z=90,Scale中X=20,Position中X=-22
(4) 复制Wall(2),Position中X=22
(5) 选中四面墙,右键,Create Empty Parent
3、创建背景
(1) 2D Object-Sprites-Square,重命名为bp;Scale中X=44,Y=20,选择适当颜色
(2) 选中bp,在Additional Settings中,使Order in Layer的值=-1(设定当前图片需要显示的位置——类似于置于底层)
4、向Hierarchy面板添加游戏对象
(1) 将素材拖放到新建文件夹中,可以按类Create文件夹,如(food,tray等)
(2) 将素材拖放到Hierarchy面板,在新建文件夹中点击素材,调整素材大小(数字越大,图片越小)
(3) 设定Scene界面中各物体的层级(改变Order in Layer的值)
二、移动游戏对象
1、使游戏对象在按下特定键时,持续向某一方向移动,但不能反向移动
(1) 给需要移动的游戏对象添加C#Script,名字自取,如:Snake

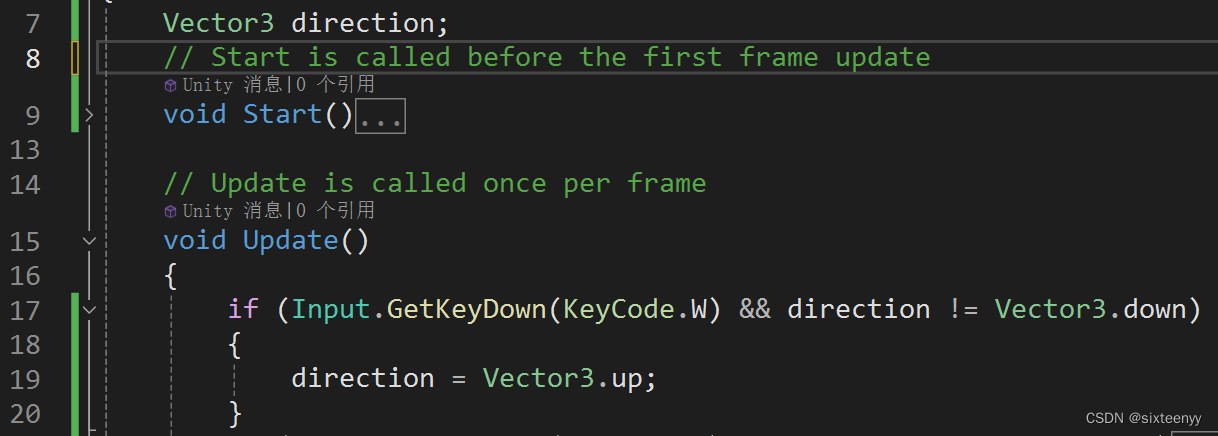

(2) 打开Snake.cs,声明一个可以装载3个值的变量,名字自取。如:direction
(3) 输入代码:

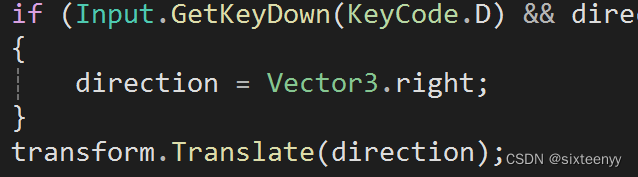

(4) 用同样的方法设置其他三个方向,最后添加
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class Snake : MonoBehaviour
{
Vector3 direction;
// Start is called before the first frame update
void Start()
{
}
// Update is called once per frame
void Update()
{
if (Input.GetKeyDown(KeyCode.W))
{
direction = Vector3.up;
}
if (Input.GetKeyDown(KeyCode.S) && direction != Vector3.up)
{
direction = Vector3.down;
}
if (Input.GetKeyDown(KeyCode.A) && direction != Vector3.right)
{
direction = Vector3.left;
}
if (Input.GetKeyDown(KeyCode.D) && direction != Vector3.left)
{
direction = Vector3.right;
}
transform.Translate(direction);
}
}
2、改变游戏运行速度
(1) 使游戏对象一格一格地移动(使用慢动作效果)
(2) 在Unity面板中改变游戏运行速度
A. 声明一个变量,名字自取,如speed,该面板出现在Unity的游戏对象的脚本中

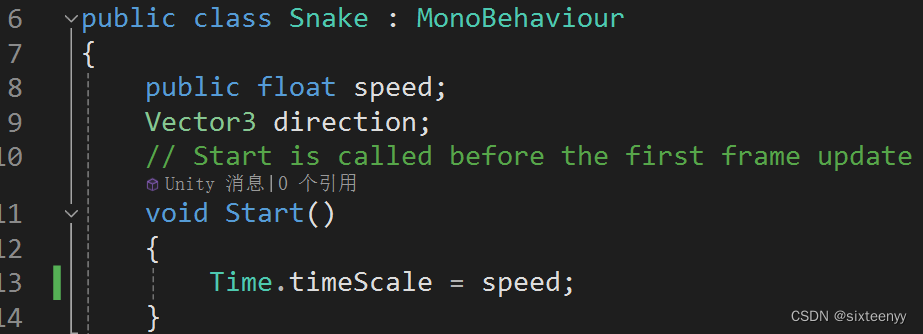

B.改变游戏运行速度,使游戏对象移动减慢

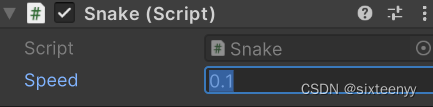

C.回到Unity,设置Speed值
3、本环节代码
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class Snake : MonoBehaviour
{
public float speed;
Vector3 direction;
// Start is called before the first frame update
void Start()
{
Time.timeScale = speed;
}
// Update is called once per frame
void Update()
{
if (Input.GetKeyDown(KeyCode.W))
{
direction = Vector3.up;
}
if (Input.GetKeyDown(KeyCode.S) && direction != Vector3.up)
{
direction = Vector3.down;
}
if (Input.GetKeyDown(KeyCode.A) && direction != Vector3.right)
{
direction = Vector3.left;
}
if (Input.GetKeyDown(KeyCode.D) && direction != Vector3.left)
{
direction = Vector3.right;
}
}

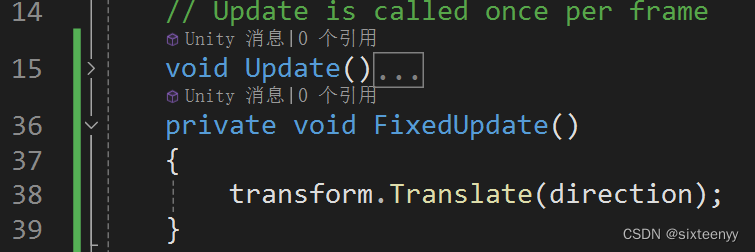

private void FixedUpdate()
{
transform.Translate(direction);
}
}
三、使FOOD文件夹中的物体随机出现在场景中的随机位置
1、制备做Food的一系列预制体
2、Create Empty
名字自取。如:foodsEmpty
3、Create C#Script
名字自取。如FoodsEmpty,给foodsEmpty添加这个脚本组件

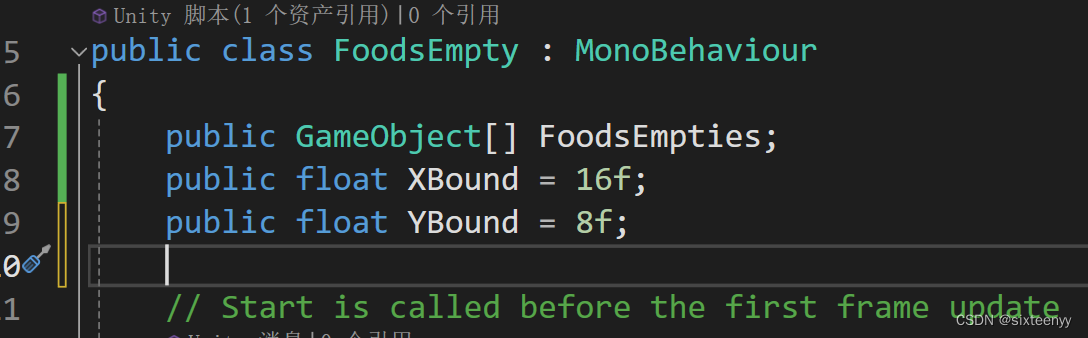

4、声明变量并赋值

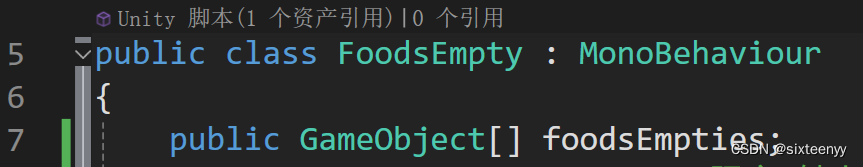

(1) 声明数组变量,名字自取。如:foodsEmpties,使这个变量出现在Unity面板中,用以添加Food文件夹中的预制体
(2) 声明变量,名字自取。如:YBound,Xbound

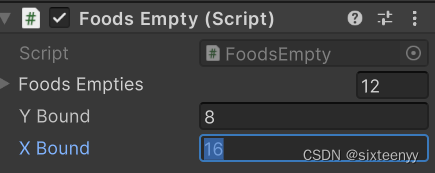

(3) 回到Unity设置坐标

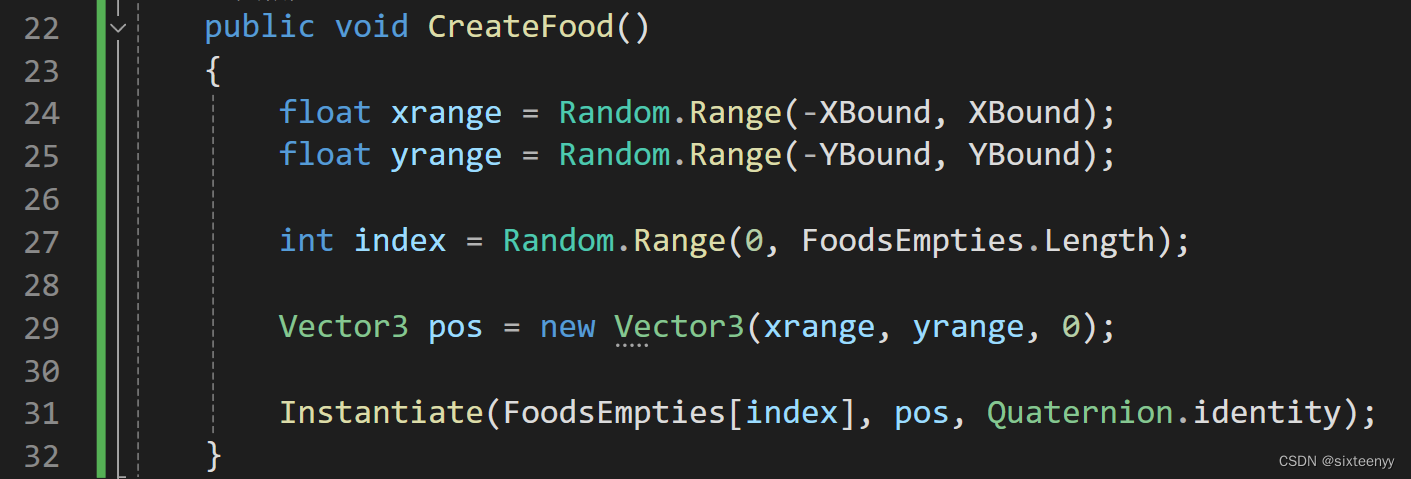

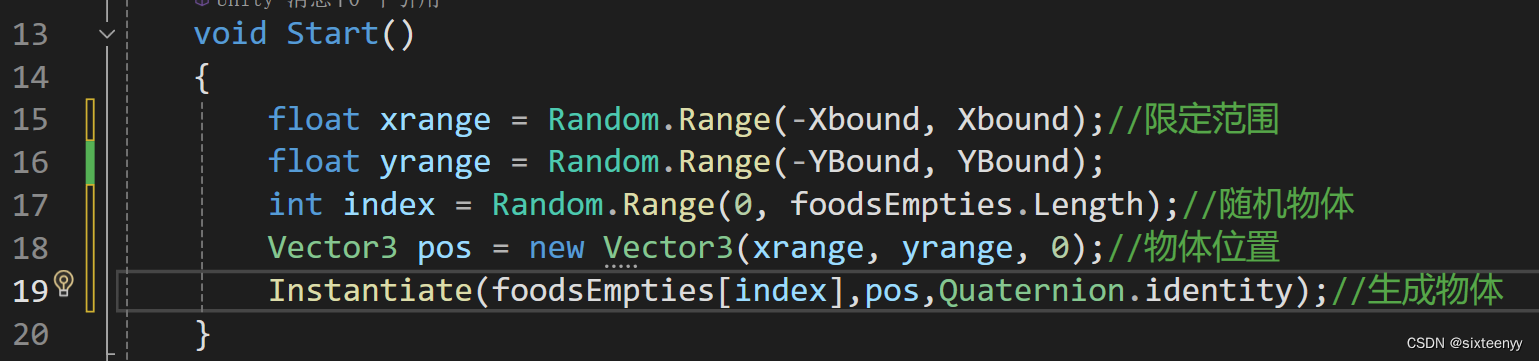

5、随机生成物体
四、打包程序并调用程序
1、打包程序
2、在Start中调用程序:
3、本节代码
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class FoodsEmpty : MonoBehaviour
{
public GameObject[] foodsEmpties;
public float YBound = 8f;
public float XBound = 16f;
// Start is called before the first frame update
void Start()
{
CreateFood();
}
// Update is called once per frame
void Update()
{
}
public void CreateFood()
{
float xrange = Random.Range(-XBound, XBound);
float yrange = Random.Range(-YBound, YBound);
int Index = Random.Range(0, foodsEmpties.Length);
Vector3 pos = new Vector3(xrange, yrange, 0);
Instantiate(foodsEmpties[Index], pos, Quaternion.identity);
}
}
五、接触事件——吃掉苹果
1、准备工作:
(1) 给游戏对象添加snake标签;
(2) 添加Collider 2D组件,勾选Istrigger,调整接触范围
(3) 给游戏对象添加Rigidbody 2D组件,选择KInematic
(4) 给food文件夹中的所有预制体添加Collider 2D 组件,勾选Istrigger,(增加标签food)

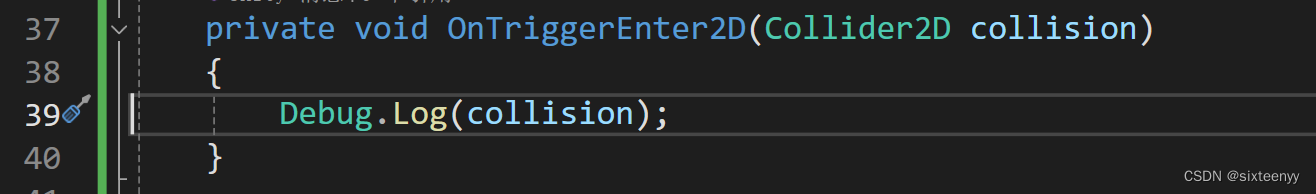

2、测试接触事件,并使发生接触事件后当前物体消失
(1) 给food文件夹中的所有预制体添加food.cs,打开food.cs
(2) 发生接触事件后,当前物体消失:
(3) 本节代码
private void OnTriggerEnter2D(Collider2D collision)
{
if (collision.CompareTag("snake"))
{
Destroy(gameObject);
3、物体消失后,生成新的物体

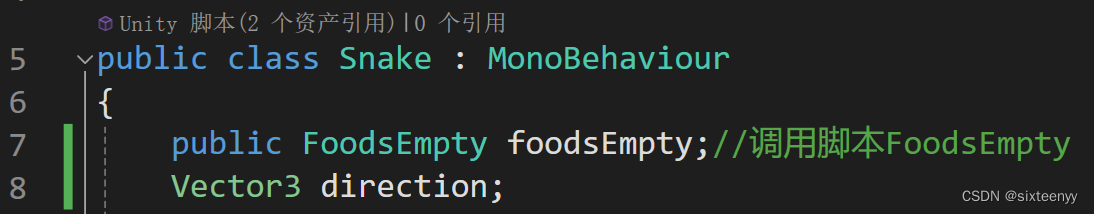

(1) 在Snake.cs中调用FoodEmpty.cs
(2) 在Unity中给Food Empty赋值

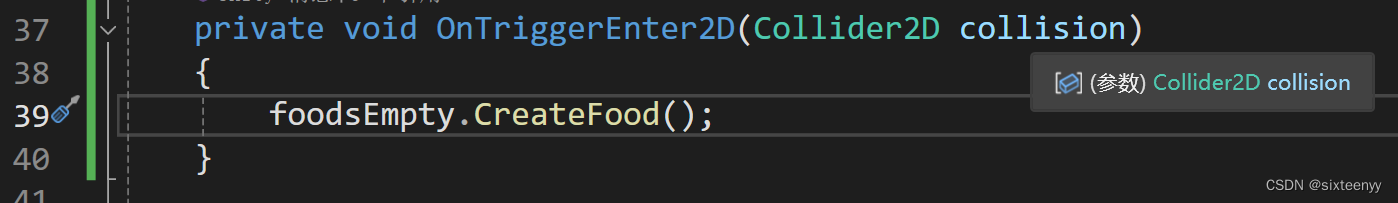

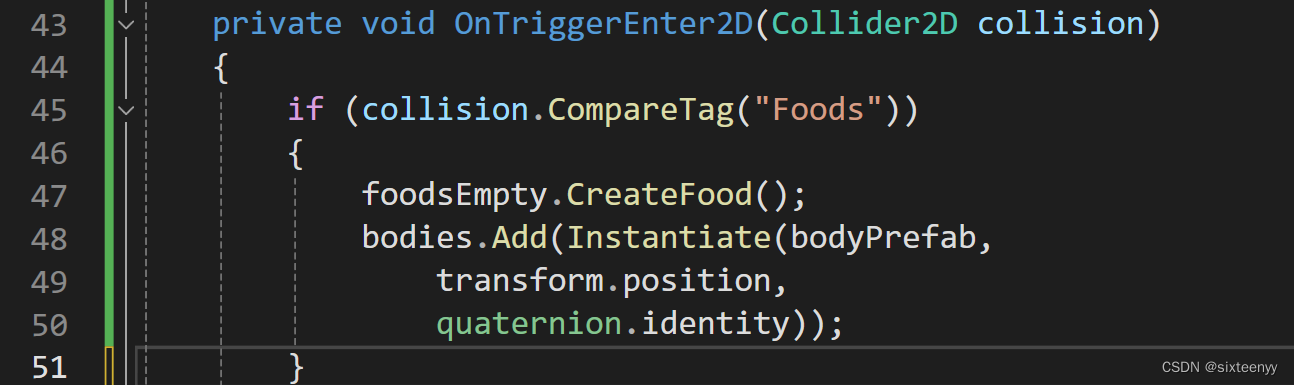

(3) 生成新物体(food文件夹中的物体)
private void OnTriggerEnter2D(Collider2D collision)
{
if (collision.CompareTag("food"))
{
foodsEmpty.CreateFood();
}
}
六、接触事件——蛇的身体出现
1、创建身体
(1) 创建身体图片:Create-2D Object-Sprite-Circle,命名body,重置位置,更改颜色
(2) 把图片变为预制体:
把图片拖放到Project面板中的Asset文件夹中(也可以放入新创建的Prefabs文件夹中)
(3) 删除Hierarchy面板中的预制体
2、通过脚本使body出现(在吃到苹果后)

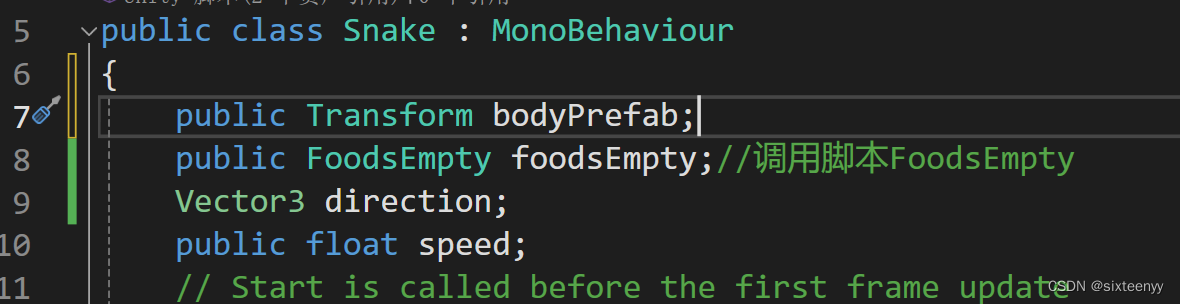

(1) 打开Snake脚本,声明一个名为bodyPrefab的变量,保存脚本
public Transform bodyPrefab;

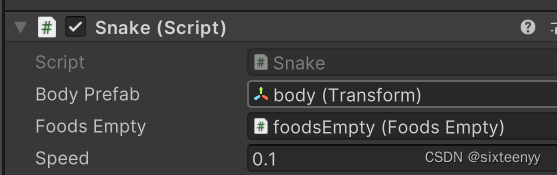

(2) 在Unity中给bodyPrefab赋值
(3) 声明一个数组装载陆续生长的身体
public List<Transform> bodies = new List<Transform>();
(4) 把当前物体放到List的索引值为0的位置
(5) 生成身体,使之出现在当前物体(Snake)的坐标上

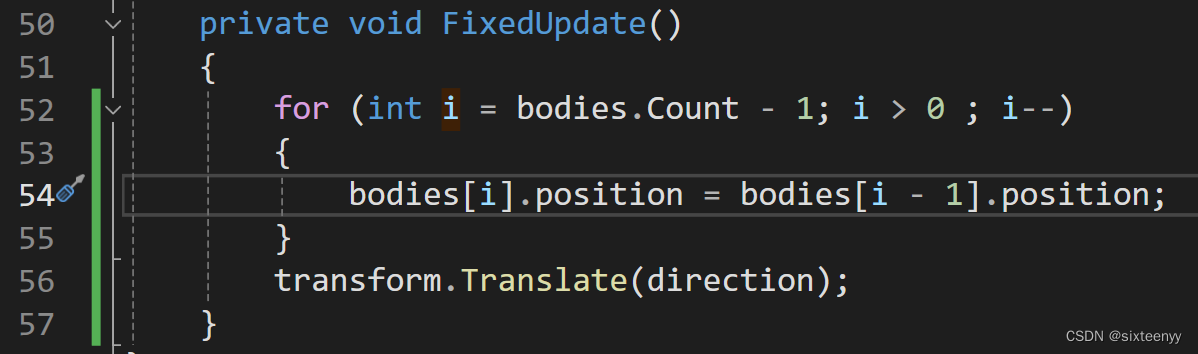

3、使生成的身体随Snake移动
4、本节代码
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class Snake : MonoBehaviour
{
public Transform bodyPrefab;
public List<Transform> bodies = new List<Transform>();
public FoodsEmpty foodsEmpty;
public float speed;
Vector3 direction;
// Start is called before the first frame update
void Start()
{
Time.timeScale = speed;
bodies.Add(transform);
}
// Update is called once per frame
void Update()
{
if (Input.GetKeyDown(KeyCode.W))
{
direction = Vector3.up;
}
if (Input.GetKeyDown(KeyCode.S) && direction != Vector3.up)
{
direction = Vector3.down;
}
if (Input.GetKeyDown(KeyCode.A) && direction != Vector3.right)
{
direction = Vector3.left;
}
if (Input.GetKeyDown(KeyCode.D) && direction != Vector3.left)
{
direction = Vector3.right;
}
}
private void OnTriggerEnter2D(Collider2D collision)
{
if (collision.CompareTag("food"))
{
foodsEmpty.CreateFood();
bodies.Add(Instantiate(bodyPrefab, transform.position, Quaternion.identity));
}
}
private void FixedUpdate()
{
transform.Translate(direction);
for (int i = bodies.Count - 1; i > 0; i--)
{
bodies[i].position = bodies[i - 1].position;
}
}
}
七、游戏结束,重置场景
1、角色撞到墙,游戏结束
(1) 给四道墙增加box Collider 2D,取消勾选Is Trigger
(2) 添加一个专属标签:自主命名,如:obstacle(障碍物)
(3) 在Snake脚本,新建一个重置场景的方法
void ResetStage()
{
transform.position = Vector3.zero;
direction = Vector3.zero;
for (int i = 1; i < bodies.Count; i++)
{
Destroy(bodies[i].gameObject);
}
bodies.Clear();
bodies.Add(transform);
}

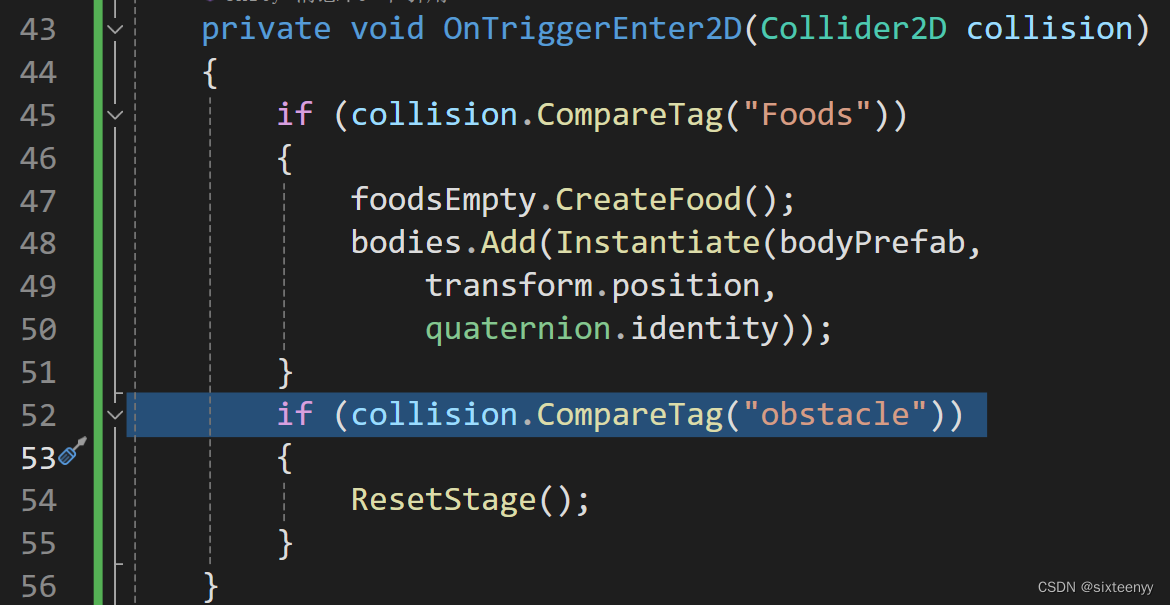

(4) 找到OnTriggerEnter2D事件,写入重置场景的方法
if (collision.CompareTag("obstacle"))
{
ResetStage();
}
2、游戏对象撞到bodyPrefab,游戏结束
给预制体body添加Collider 2D,修改预制体的标签为obstacle

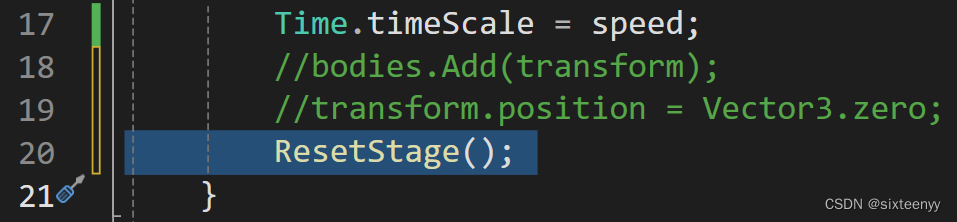

3、每次游戏运行时,游戏对象都在界面中心
4、本节代码
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class Snake : MonoBehaviour
{
public Transform bodyPrefab;
public List<Transform> bodies = new List<Transform>();
public FoodsEmpty foodsEmpty;
public float speed;
Vector3 direction;
// Start is called before the first frame update
void Start()
{
Time.timeScale = speed;
ResetStage();
}
// Update is called once per frame
void Update()
{
if (Input.GetKeyDown(KeyCode.W))
{
direction = Vector3.up;
}
if (Input.GetKeyDown(KeyCode.S) && direction != Vector3.up)
{
direction = Vector3.down;
}
if (Input.GetKeyDown(KeyCode.A) && direction != Vector3.right)
{
direction = Vector3.left;
}
if (Input.GetKeyDown(KeyCode.D) && direction != Vector3.left)
{
direction = Vector3.right;
}
}
private void OnTriggerEnter2D(Collider2D collision)
{
if (collision.CompareTag("food"))
{
foodsEmpty.CreateFood();
bodies.Add(Instantiate(bodyPrefab, transform.position, Quaternion.identity));
}
if (collision.CompareTag("obstacle"))
{
ResetStage();
}
}
private void FixedUpdate()
{
transform.Translate(direction);
for (int i = bodies.Count - 1; i > 0; i--)
{
bodies[i].position = bodies[i - 1].position;
}
}
void ResetStage()
{
transform.position = Vector3.zero;
direction = Vector3.zero;
for (int i = 1; i < bodies.Count; i++)
{
Destroy(bodies[i].gameObject);
}
bodies.Clear();
bodies.Add(transform);
}
}
八、添加障碍物
1、准备工作
(1) 在Prefabs文件夹中新建文件夹,名字自取。如Trays。
(2) 调整Sprites文件夹中素材图片的大小:选中Assets/Sprites文件夹中的图片,调整大小(数字越大,图片越小)
(3) 制作障碍物预制体
(4) 给Trays文件夹中的所有障碍物预制体添加Collider2D,取消勾选Istrigger,(增加标签tray)
(5) 在Hierarchy面板,CreateEmpty,名字自取,如:traysEmpty
(6) 给traysEmpty添加脚本组件,名字自取,如:TraysEmpty
(7)
2、声明变量

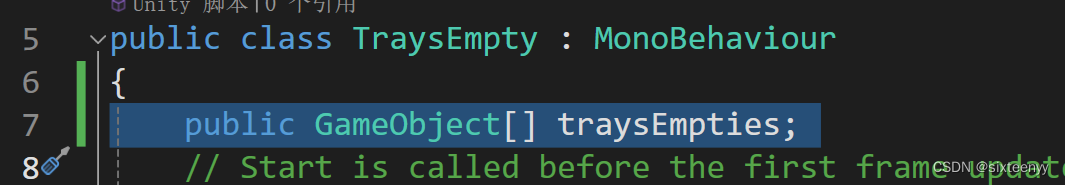

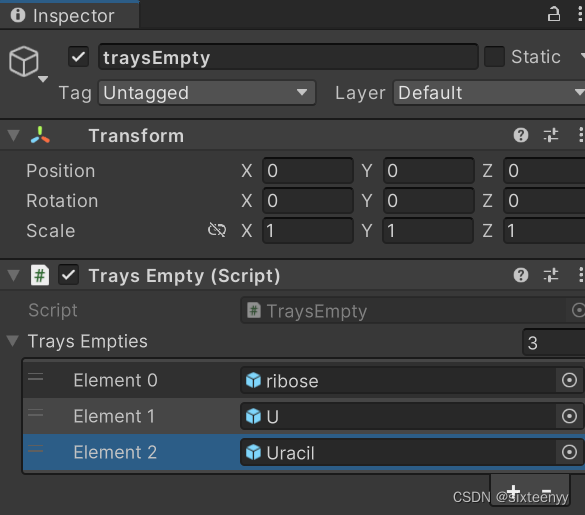

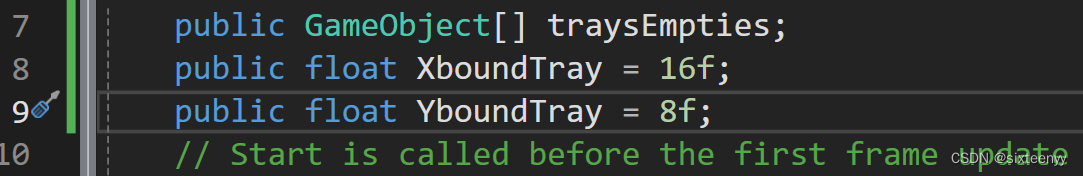

(1) 打开TraysEmpty.cs,声明数组类变量,以便在Unity的traysEmpty中添加障碍物预制体
public GameObject[] traysEmpties;
(2) 声明变量表示范围信息
(3) 回到Unity,设置
public float XboundTray = 16f;
public float YboundTray = 8f;
3、在特定范围内的随机位置生成随机物体
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class TraysEmpty : MonoBehaviour
{
public GameObject[] traysEmpties;
public float XboundTray = 16f;
public float YboundTray = 8f;
// Start is called before the first frame update
void Start()
{
float xrangeTray = Random.Range(-XboundTray, XboundTray);
float yrangeTray = Random.Range(-YboundTray, YboundTray);
int indexTray = Random.Range(0, traysEmpties.Length);
Vector3 posTray = new Vector3(xrangeTray, yrangeTray, 0);
Instantiate(traysEmpties[indexTray], posTray, Quaternion.identity);
}
// Update is called once per frame
void Update()
{
}
}
4、打包程序并在Start 中调用:
5、间隔时间出现陷阱
private float times;
void Update()
{
{
times += Time.deltaTime;
if (times >= 2)
{
times = 0;
CreateTray();
}
}
}
6、本节代码
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class TraysEmpty : MonoBehaviour
{
private float times;
public GameObject[] traysEmpties;
public float XboundTray = 16f;
public float YboundTray = 8f;
// Start is called before the first frame update
void Start()
{
CreateTray();
}
// Update is called once per frame
void Update()
{
{
times += Time.deltaTime;
if (times >= 2)
{
times = 0;
CreateTray();
}
}
}
public void CreateTray()
{
float xrangeTray = Random.Range(-XboundTray, XboundTray);
float yrangeTray = Random.Range(-YboundTray, YboundTray);
int indexTray = Random.Range(0, traysEmpties.Length);
Vector3 posTray = new Vector3(xrangeTray, yrangeTray, 0);
Instantiate(traysEmpties[indexTray], posTray, Quaternion.identity);
}
}
九、增加接触事件(接触障碍物后游戏数据重置)
1、打开Snake.cs

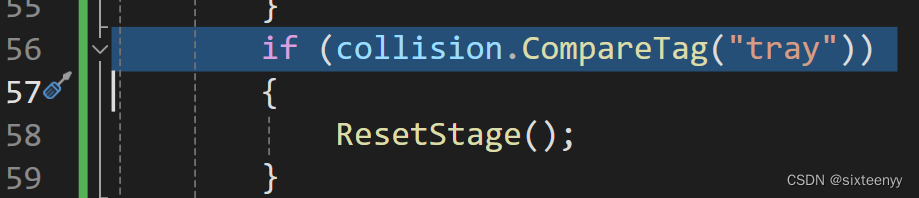

if (collision.CompareTag("tray"))
{
ResetStage();
}
十、增加得分记录
1、准备工作
(1) UI-Text-TextMeshPro名字自取。如:Score。设定字体、字号、颜色;把文本放在合适的位置
(2) Create Empty,名字自取。如:UI
(3) 为UI添加脚本,名字自取。如:GameUI

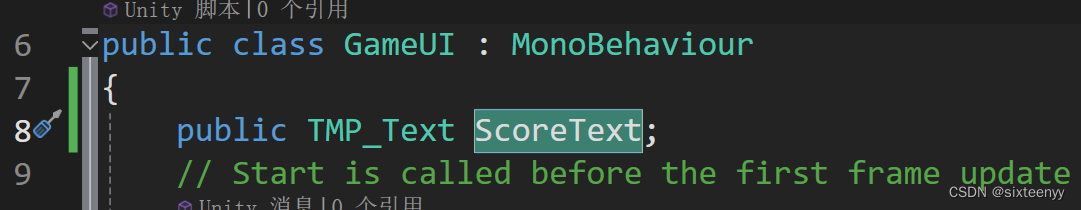

(4) 打开GameUI.cs
public TMP_Text ScoreText;

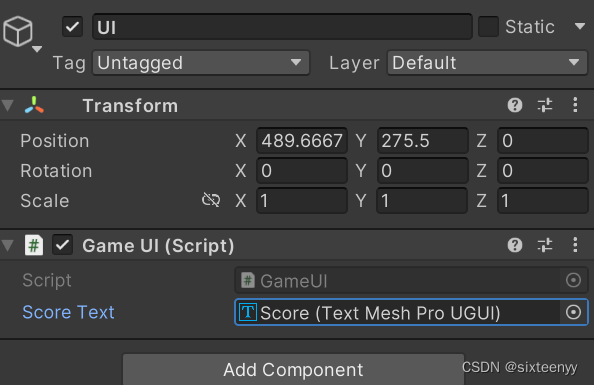

(5) 回到Unity,选中UI,在Game UI下面Score Text右侧 ,选择Score
2、打开GameUI.cs
using System.Collections;
using System.Collections.Generic;
using TMPro;
using UnityEngine;
public class GameUI : MonoBehaviour
{
public TMP_Text ScoreText;
int score;//声明变量
// Start is called before the first frame update
void Start()
{
ScoreText.text = score.ToString();//在ScoreText文本中输入转换为String类型的变量(score)
}
// Update is called once per frame
void Update()
{
}
public void ResetScore()//创建并公开Score重置为0的方法(方法名自取,如:ResetScore)
{
score = 0;
ScoreText.text = score.ToString();
}
public void AddScore()//统计得分
{
score++;
ScoreText.text = score.ToString();
}
}
3、在Snake脚本中调用打包好的得分记录

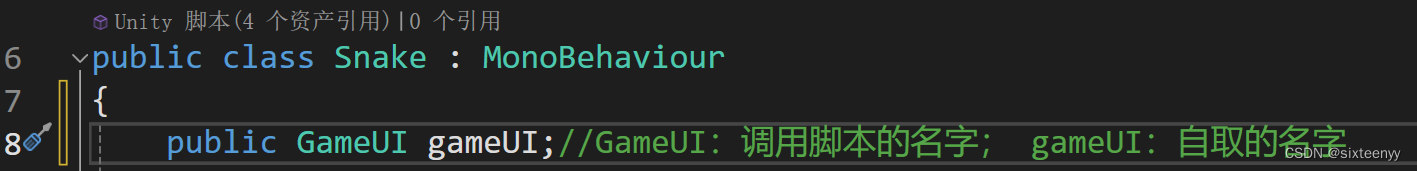

(1) 打开Snake.cs

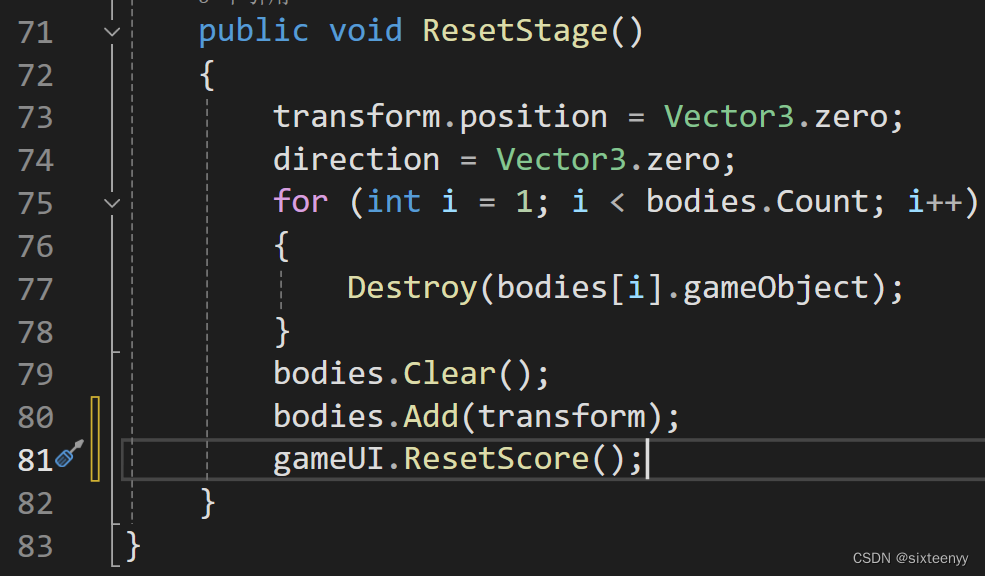

(2) 添加重置分数

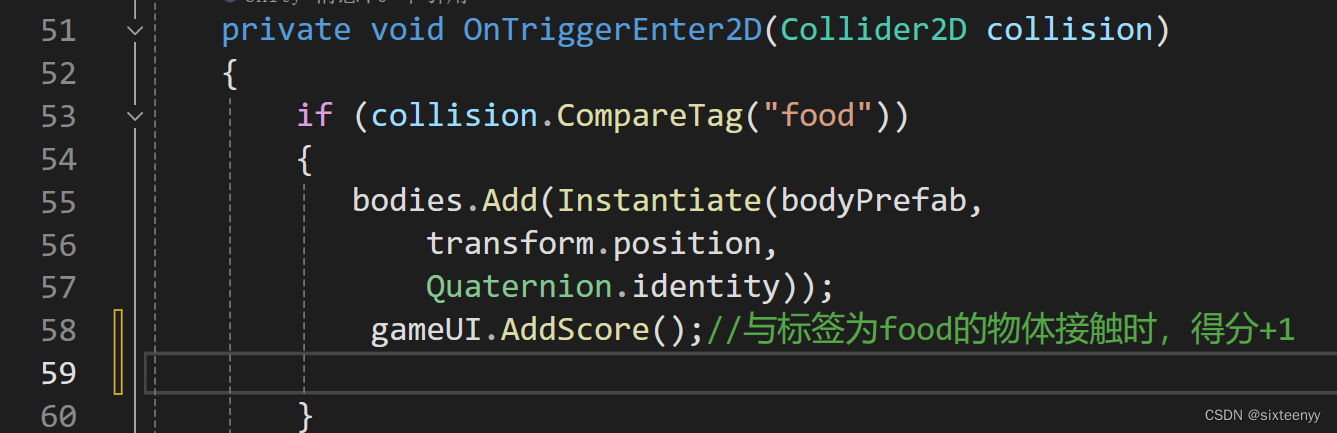

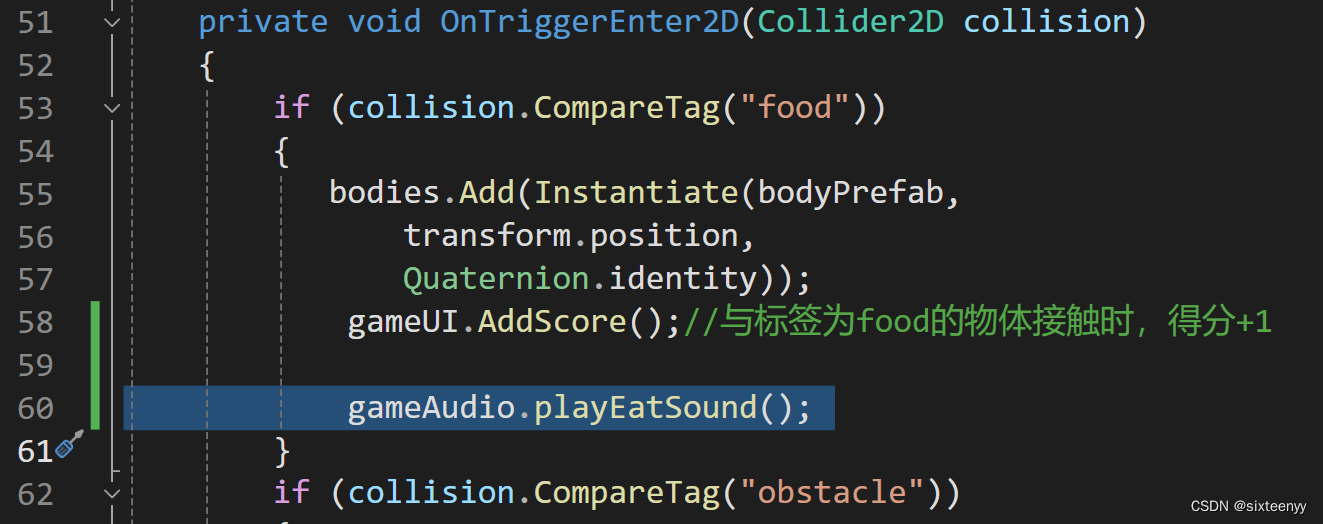

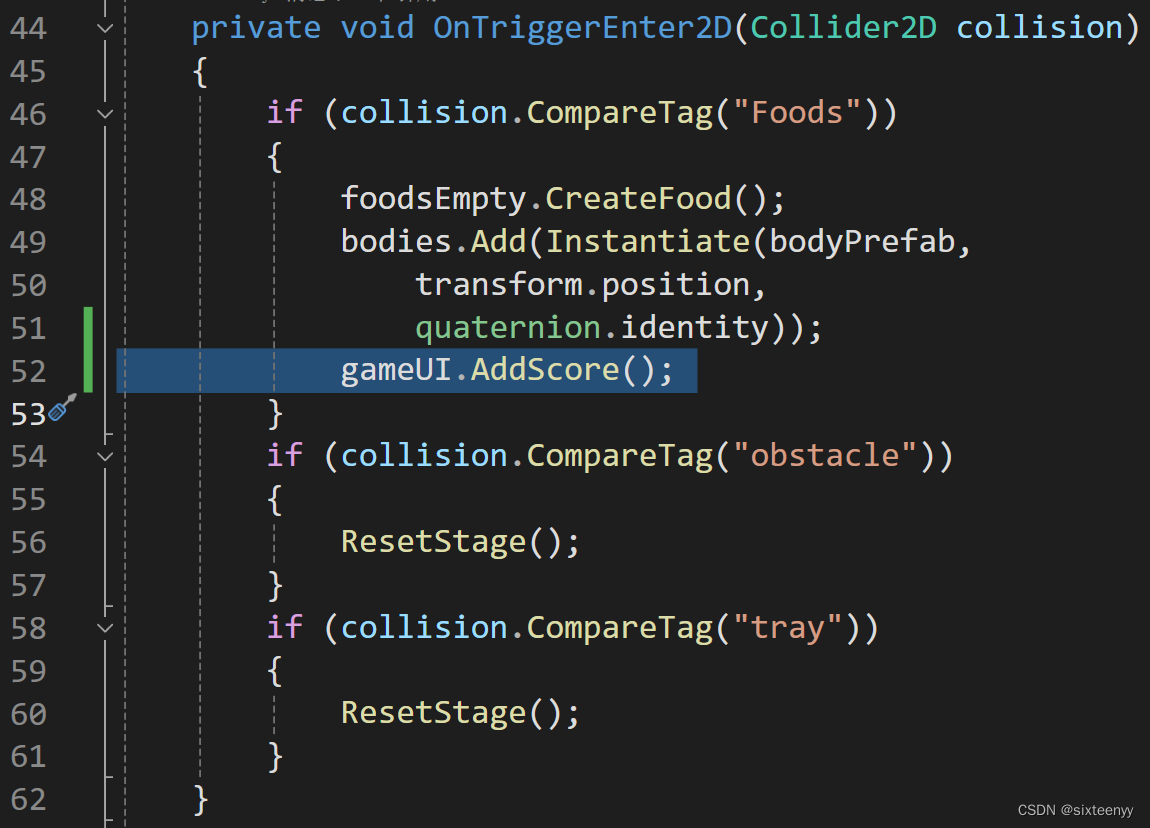

(3) 添加得分情况

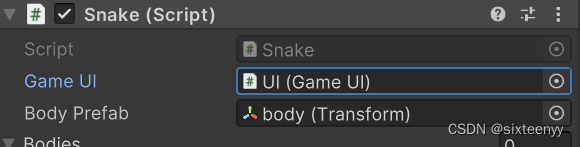

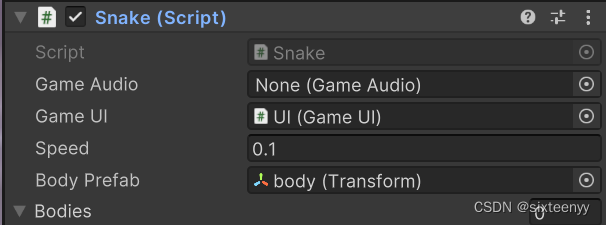

(4) 回到Unity,选择Snake.cs所挂载的物体,Game UI上选择UI
十一、游戏开始界面
1、准备工作
(1) 素材图片

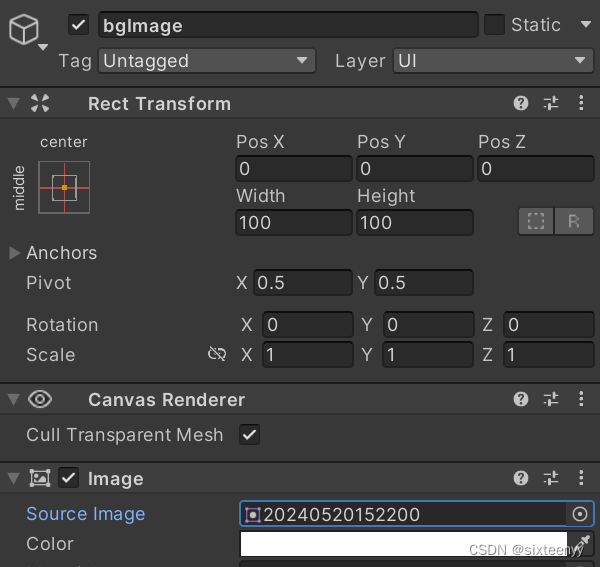

(2) 在Canvas上右击,UI-Image,名字自取,如:bgImage
(3) 选中bgImage,在Image面板选择准备好的图片

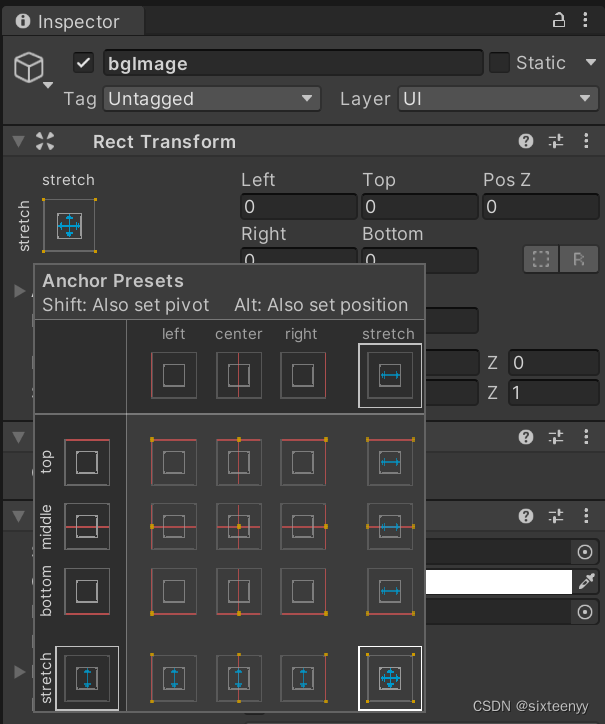

(4) 在Rect Transform组件,点击stretch,弹出如下图对话框,按住Alt键,选择右下角图标使图片完美覆盖整个场景
2、创建开始界面上的文字
(1) Hierarchy界面右击,UI-Text TextMeshPro,名字自取,如titleText
(2) 安装中文字体,添加需要显示的文字(游戏名称titleText、玩法infoText等)
3、创建开始按钮
(1) UI-Button TextMeshPro,适当位置,在Image组件改变颜色
(2) 选择按钮下的文本,输入"开始游戏"
4、设置按钮
(1) 选中开始界面所有元素,右击,Create Empty Parent,重命名这个空物体如StartMune
(2) 设定按钮,使按钮按下(开始游戏)时,StartMenu不显示(消失)

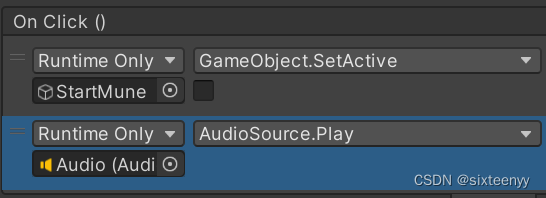

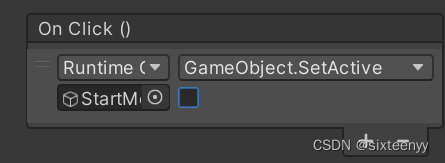

(3) 选择Hierarchy上的Button,找到On Click()面板,按下面的加号
出现下图
(4) 将StartMenu拖放到None(Object)的位置
(5) 打开No Function,选择GameObject-setActive
说明:取消勾选表示按钮按下时,StartMenu不显示

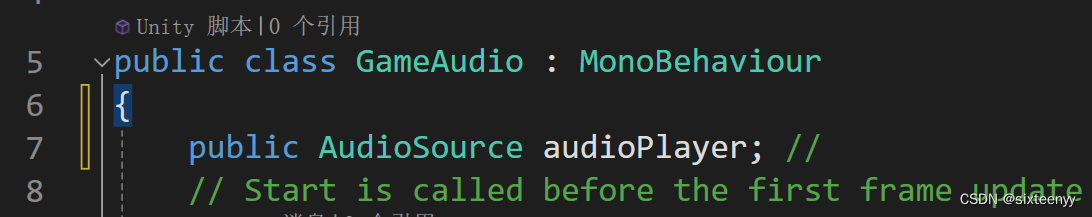

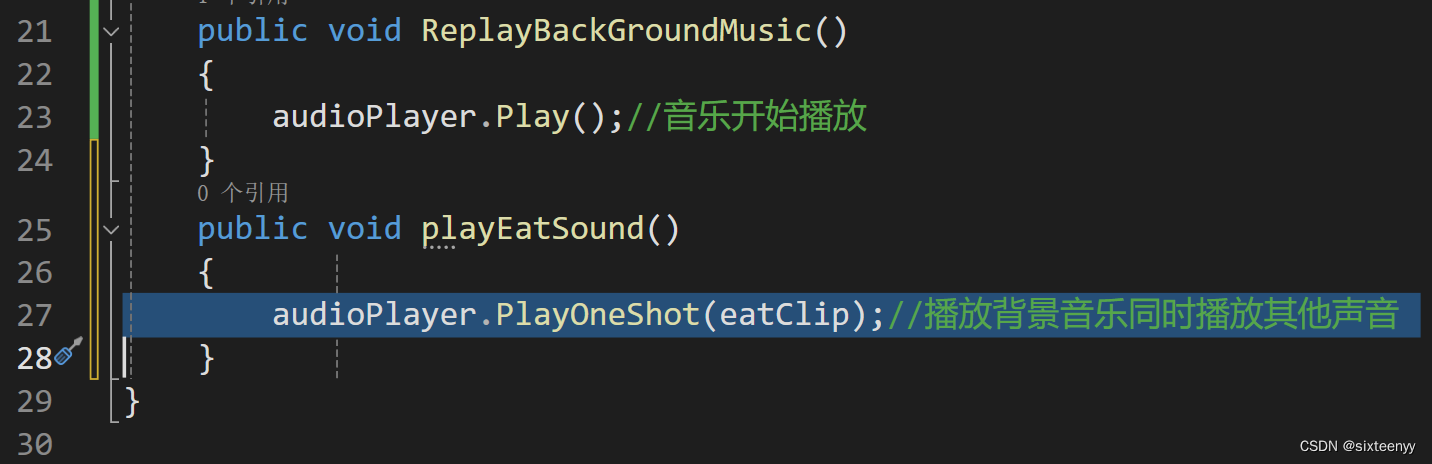

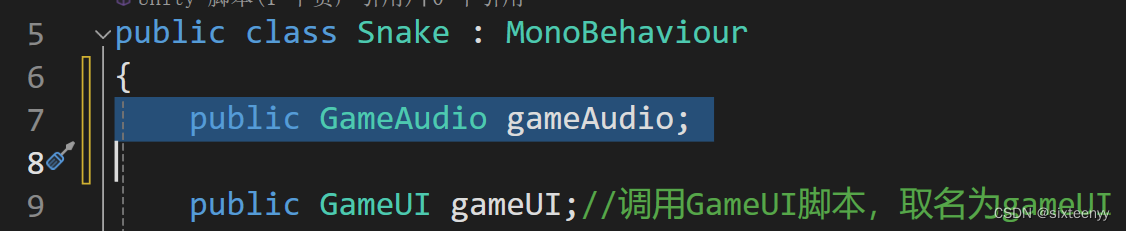

十二、添加音效:
1、准备工作
(1) 素材音乐:背景音乐、吃、吃错音乐。导入Unity
(2) Create Empty,名字自取,如:Audio

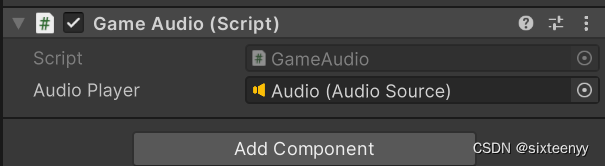

(3) Add component(添加组件)-Audio Source

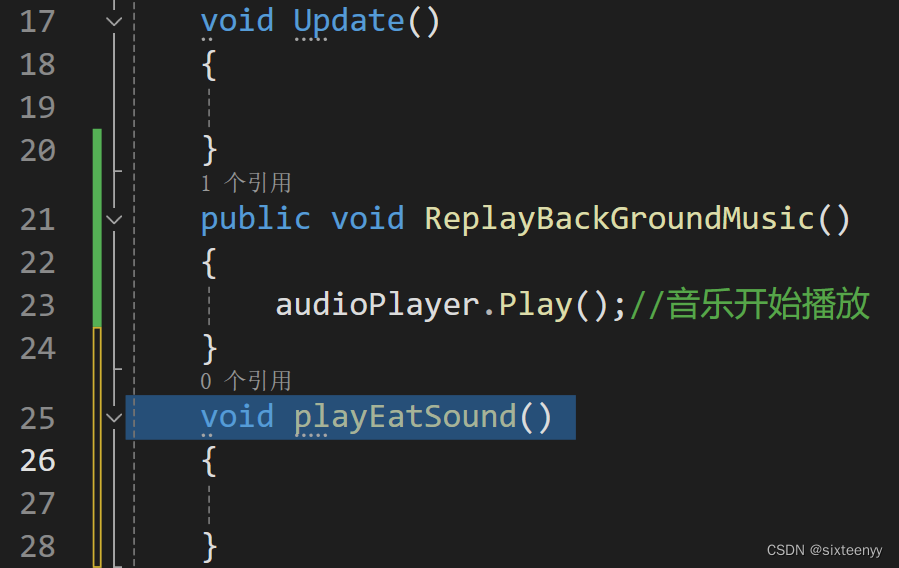

2、导入音乐
(1) 选中Audio,在AudioClip中选择导入的背景音乐
(2) 取消勾选Play On Awake,勾选Loop,调节音量(Volume)
3、背景音乐在点击开始游戏按钮时才播放
选中Button,On Click(),添加事件
4、游戏结束时,背景音乐重复播放
(1) Create-C#Script,名字自取,如:GameAudio
(2) 在GameAudio.cs中,引用AudioSource组件:
public AudioSource audioPlayer;
(3) 给Audio添加刚刚创建的脚本(GameAudio.cs)
(4) 将Inspector面板中的Audio Source拖放到AudioPlayer上

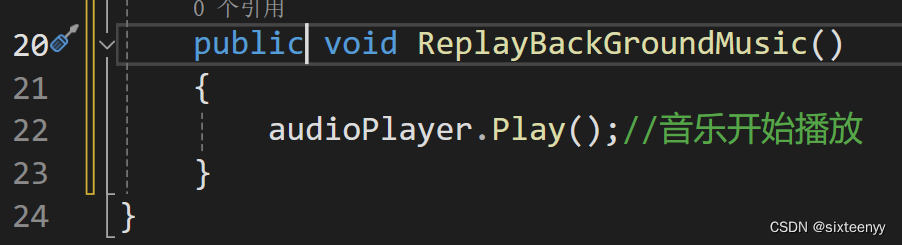

(5) 打开GameAudio.cs,创建一个新的方法,用于其他方法调用
public void RePlayBackGroundMusic()
{
audioPlayer.Play();
}
(6) 打开Snake.cs,声明一个变量,以便调用GameAudio.cs脚本中的内容
public GameAudio gameAudio;

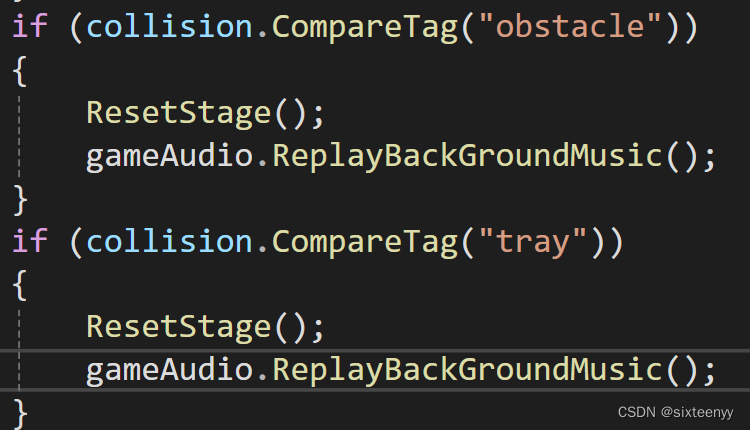

(7) 找到游戏结束的方法(2个),调用GameAudio中的方法
if (collision.CompareTag("obstacle"))
{
ResetStage();
gameAudio.RePlayBackGroundMusic();
}
if (collision.CompareTag("tray"))
{
ResetStage();
gameAudio.RePlayBackGroundMusic();
}
(8) 打开Unity,给新建的Game Audio赋值:选择Audio
5、吃掉食物音效

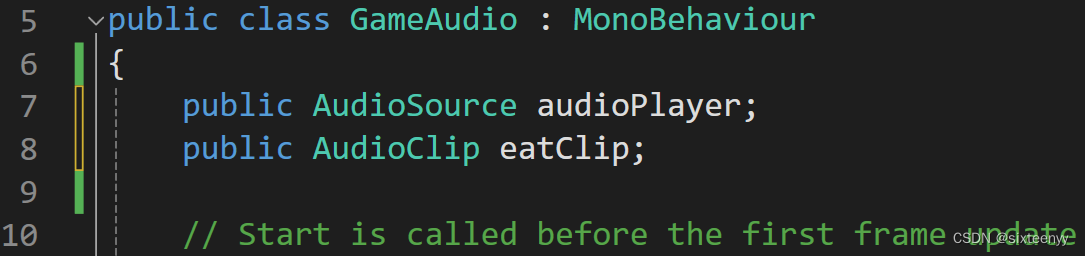

(1) 打开GameAudio.cs,声明一个名字自取的变量,如:eatClip
public AudioClip eatClip;
(2) 回到Unity,选中Audio物体,在Eat Clip中选择音乐素材
(3) 打开GameAudio.cs,新建一个方法
即:
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class GameAudio : MonoBehaviour
{
public AudioClip eatClip;
public AudioSource audioPlayer;
// Start is called before the first frame update
void Start()
{
}
// Update is called once per frame
void Update()
{
}
public void ReplayBackGroundMusic()
{
audioPlayer.Play();
}
public void PlayEatSound()
{
audioPlayer.PlayOneShot(eatClip);
}
}
(3) 打开Snake.cs,找到吃苹果事件
(4) 添加播放声音事件
.
十三、发布游戏
1、File-Build Settings
2、选择需要发布的场景和添加需要发布的场景
3、选择发布平台
4、点击Player Settings,选择Player,设置相关信息
5、打开Resolution and Presentation,选择窗口模式
十四、更多尝试1——吃掉苹果的同时,生成障碍物,碰撞障碍物掉血
1、
十五、更多尝试 2——成功接触后摆放物体——等
1、准备工作:
(1) 导入素材:在Asetts/Sprite文件夹新建文件夹,名字自取。如:Deoxynucleotides
(2) 制作素材预制体
(3) Create Empty,并摆放在固定位置
2、调用物体
(1) 打开Snake.cs
(2) 回到Unity
