Vivado Error问题之[DRC NSTD-1] 问题解决

       此篇是我在学习中做的归纳与总结，其中如果存在版权或知识错误或问题请直接联系我，欢迎留言。
        PS:本着知识共享的原则，此篇博客可以转载，但请标明出处！

1、问题描述

Vivado Error问题警告如下所示：

[DRC NSTD-1] Unspecified I/O Standard: 1 out of 9 logical ports use I/O standard (IOSTANDARD) value 'DEFAULT', instead of a user assigned specific value.
This may cause I/O contention or incompatibility with the board power or connectivity affecting performance, signal integrity or in extreme cases cause damage to the device or the components to which it is connected. To correct this violation, specify all I/O standards. This design will fail to generate a bitstream unless all logical ports have a user specified I/O standard value defined. To allow bitstream creation with unspecified I/O standard values (not recommended), use this command: set_property SEVERITY {Warning} [get_drc_checks NSTD-1].  NOTE: When using the Vivado Runs infrastructure (e.g. launch_runs Tcl command), add this command to a .tcl file and add that file as a pre-hook for write_bitstream step for the implementation run. Problem ports: SYS_CLK.

 在IO设置界面如下所示：

 对于IO工作电压没有明确定义，因此需要以下操作；

2、解决：

新建 .tcl文件，写入如下内容：

set_property SEVERITY {Warning} [get_drc_checks NSTD-1]

set_property SEVERITY {Warning} [get_drc_checks UCIO-1]

set_property SEVERITY {Warning} [get_drc_checks RTSTAT-1]

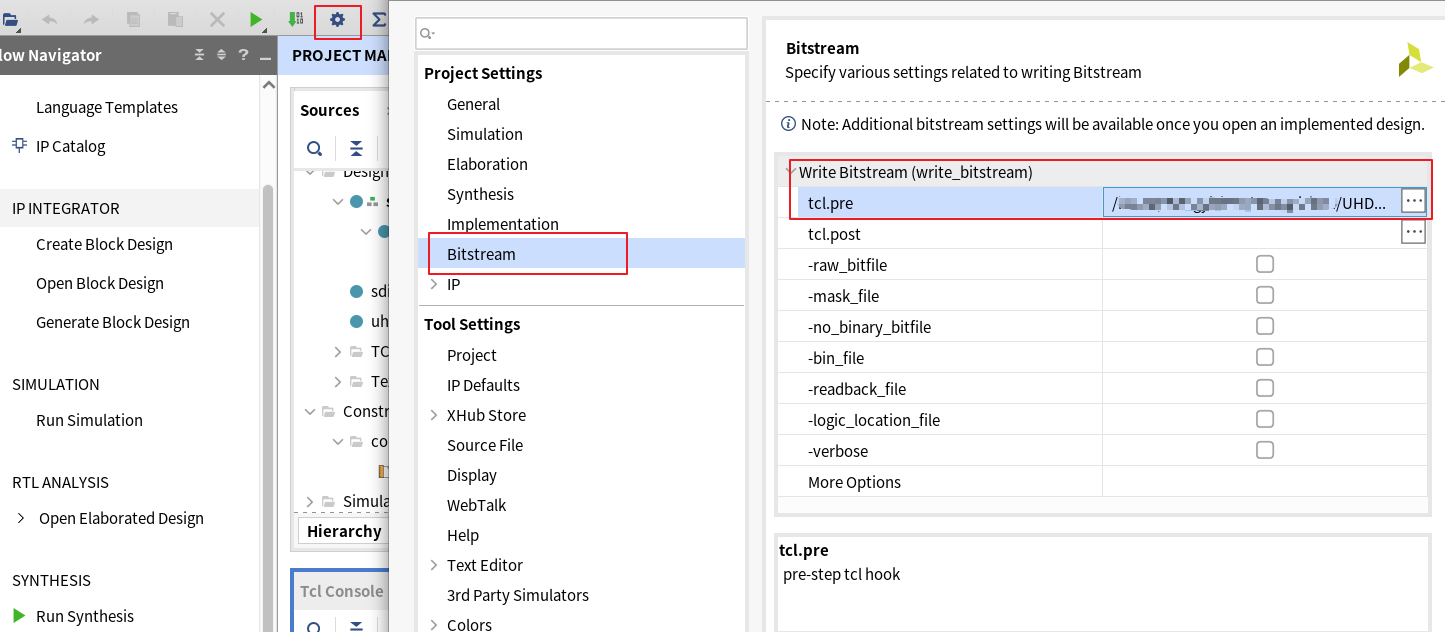

在Vivado setting中加入：

 重新编译后错误警告消失！
