本文深入探讨了空间金字塔池化（SPP）及其多种变体，包括SPPF、SimSPPF、ASPP、RFB等，分析它们的原理和在目标检测中的应用。SPP技术旨在解决图像失真和特征重复提取问题，提高候选框生成速度。文章还介绍了针对SPP的优化结构SPPCSPC和SPPFCSPC，并提供了参数量对比和改进方法。
感谢大家一路以来的支持和陪伴！为了回馈大家对我们的关注和信任，我特别赠送 50 算力券，您可以免费体验 4090 显卡 24 小时的强劲性能：点击领取。希望在您的项目或学习中助您一臂之力！
我最近在哔哩哔哩上更新了视频版的讲解，有需要的同学可以关注一下~ 我的哔哩哔哩主页
文章目录
1 原理
1.1 SPP（Spatial Pyramid Pooling）
SPP模块是何凯明大神在2015年的论文《Spatial Pyramid Pooling in Deep Convolutional Networks for Visual Recognition》中被提出。
SPP全程为空间金字塔池化结构，主要是为了解决两个问题：
- 有效避免了对图像区域裁剪、缩放操作导致的图像失真等问题；
- 解决了卷积神经网络对图相关重复特征提取的问题，大大提高了产生候选框的速度，且节省了计算成本。
class SPP(nn.Module):
# Spatial Pyramid Pooling (SPP) layer https://arxiv.org/abs/1406.4729
def __init__(self, c1, c2, k=(5, 9, 13)):
super().__init__()
c_ = c1 // 2 # hidden channels
self.cv1 = Conv(c1, c_, 1, 1)
self.cv2 = Conv(c_ * (len(k) + 1), c2, 1, 1)
self.m = nn.ModuleList([nn.MaxPool2d(kernel_size=x, stride=1, padding=x // 2) for x in k])
def forward(self, x):
x = self.cv1(x)
with warnings.catch_warnings():
warnings.simplefilter('ignore') # suppress torch 1.9.0 max_pool2d() warning
return self.cv2(torch.cat([x] + [m(x) for m in self.m], 1))
1.2 SPPF（Spatial Pyramid Pooling - Fast）
这个是YOLOv5作者Glenn Jocher基于SPP提出的，速度较SPP快很多，所以叫SPP-Fast
class SPPF(nn.Module):
# Spatial Pyramid Pooling - Fast (SPPF) layer for YOLOv5 by Glenn Jocher
def __init__(self, c1, c2, k=5): # equivalent to SPP(k=(5, 9, 13))
super().__init__()
c_ = c1 // 2 # hidden channels
self.cv1 = Conv(c1, c_, 1, 1)
self.cv2 = Conv(c_ * 4, c2, 1, 1)
self.m = nn.MaxPool2d(kernel_size=k, stride=1, padding=k // 2)
def forward(self, x):
x = self.cv1(x)
with warnings.catch_warnings():
warnings.simplefilter('ignore') # suppress torch 1.9.0 max_pool2d() warning
y1 = self.m(x)
y2 = self.m(y1)
return self.cv2(torch.cat((x, y1, y2, self.m(y2)), 1))
1.3 SimSPPF（Simplified SPPF）
美团YOLOv6提出的模块，感觉和SPPF只差了一个激活函数，简单测试了一下，单个ConvBNReLU速度要比ConvBNSiLU快18%
class SimConv(nn.Module):
'''Normal Conv with ReLU activation'''
def __init__(self, in_channels, out_channels, kernel_size, stride, groups=1, bias=False):
super().__init__()
padding = kernel_size // 2
self.conv = nn.Conv2d(
in_channels,
out_channels,
kernel_size=kernel_size,
stride=stride,
padding=padding,
groups=groups,
bias=bias,
)
self.bn = nn.BatchNorm2d(out_channels)
self.act = nn.ReLU()
def forward(self, x):
return self.act(self.bn(self.conv(x)))
def forward_fuse(self, x):
return self.act(self.conv(x))
class SimSPPF(nn.Module):
'''Simplified SPPF with ReLU activation'''
def __init__(self, in_channels, out_channels, kernel_size=5):
super().__init__()
c_ = in_channels // 2 # hidden channels
self.cv1 = SimConv(in_channels, c_, 1, 1)
self.cv2 = SimConv(c_ * 4, out_channels, 1, 1)
self.m = nn.MaxPool2d(kernel_size=kernel_size, stride=1, padding=kernel_size // 2)
def forward(self, x):
x = self.cv1(x)
with warnings.catch_warnings():
warnings.simplefilter('ignore')
y1 = self.m(x)
y2 = self.m(y1)
return self.cv2(torch.cat([x, y1, y2, self.m(y2)], 1))
1.4 ASPP（Atrous Spatial Pyramid Pooling）
受到SPP的启发，语义分割模型DeepLabv2中提出了ASPP模块(空洞空间卷积池化金字塔)，该模块使用具有不同采样率的多个并行空洞卷积层。为每个采样率提取的特征在单独的分支中进一步处理，并融合以生成最终结果。该模块通过不同的空洞率构建不同感受野的卷积核，用来获取多尺度物体信息，具体结构比较简单如下图所示：
ASPP是在DeepLab中提出来的，在后续的DeepLab版本中对其做了改进，如加入BN层、加入深度可分离卷积等，但基本的思路还是没变。
# without BN version
class ASPP(nn.Module):
def __init__(self, in_channel=512, out_channel=256):
super(ASPP, self).__init__()
self.mean = nn.AdaptiveAvgPool2d((1, 1)) # (1,1)means ouput_dim
self.conv = nn.Conv2d(in_channel,out_channel, 1, 1)
self.atrous_block1 = nn.Conv2d(in_channel, out_channel, 1, 1)
self.atrous_block6 = nn.Conv2d(in_channel, out_channel, 3, 1, padding=6, dilation=6)
self.atrous_block12 = nn.Conv2d(in_channel, out_channel, 3, 1, padding=12, dilation=12)
self.atrous_block18 = nn.Conv2d(in_channel, out_channel, 3, 1, padding=18, dilation=18)
self.conv_1x1_output = nn.Conv2d(out_channel * 5, out_channel, 1, 1)
def forward(self, x):
size = x.shape[2:]
image_features = self.mean(x)
image_features = self.conv(image_features)
image_features = F.upsample(image_features, size=size, mode='bilinear')
atrous_block1 = self.atrous_block1(x)
atrous_block6 = self.atrous_block6(x)
atrous_block12 = self.atrous_block12(x)
atrous_block18 = self.atrous_block18(x)
net = self.conv_1x1_output(torch.cat([image_features, atrous_block1, atrous_block6,
atrous_block12, atrous_block18], dim=1))
return net
1.5 RFB（Receptive Field Block）
RFB模块是在《ECCV2018:Receptive Field Block Net for Accurate and Fast Object Detection》一文中提出的，该文的出发点是模拟人类视觉的感受野从而加强网络的特征提取能力，在结构上RFB借鉴了Inception的思想，主要是在Inception的基础上加入了空洞卷积，从而有效增大了感受野
RFB和RFB-s的架构。RFB-s用于在浅层人类视网膜主题图中模拟较小的pRF，使用具有较小内核的更多分支。
class BasicConv(nn.Module):
def __init__(self, in_planes, out_planes, kernel_size, stride=1, padding=0, dilation=1, groups=1, relu=True, bn=True):
super(BasicConv, self).__init__()
self.out_channels = out_planes
if bn:
self.conv = nn.Conv2d(in_planes, out_planes, kernel_size=kernel_size, stride=stride, padding=padding, dilation=dilation, groups=groups, bias=False)
self.bn = nn.BatchNorm2d(out_planes, eps=1e-5, momentum=0.01, affine=True)
self.relu = nn.ReLU(inplace=True) if relu else None
else:
self.conv = nn.Conv2d(in_planes, out_planes, kernel_size=kernel_size, stride=stride, padding=padding, dilation=dilation, groups=groups, bias=True)
self.bn = None
self.relu = nn.ReLU(inplace=True) if relu else None
def forward(self, x):
x = self.conv(x)
if self.bn is not None:
x = self.bn(x)
if self.relu is not None:
x = self.relu(x)
return x
class BasicRFB(nn.Module):
def __init__(self, in_planes, out_planes, stride=1, scale=0.1, map_reduce=8, vision=1, groups=1):
super(BasicRFB, self).__init__()
self.scale = scale
self.out_channels = out_planes
inter_planes = in_planes // map_reduce
self.branch0 = nn.Sequential(
BasicConv(in_planes, inter_planes, kernel_size=1, stride=1, groups=groups, relu=False),
BasicConv(inter_planes, 2 * inter_planes, kernel_size=(3, 3), stride=stride, padding=(1, 1), groups=groups),
BasicConv(2 * inter_planes, 2 * inter_planes, kernel_size=3, stride=1, padding=vision, dilation=vision, relu=False, groups=groups)
)
self.branch1 = nn.Sequential(
BasicConv(in_planes, inter_planes, kernel_size=1, stride=1, groups=groups, relu=False),
BasicConv(inter_planes, 2 * inter_planes, kernel_size=(3, 3), stride=stride, padding=(1, 1), groups=groups),
BasicConv(2 * inter_planes, 2 * inter_planes, kernel_size=3, stride=1, padding=vision + 2, dilation=vision + 2, relu=False, groups=groups)
)
self.branch2 = nn.Sequential(
BasicConv(in_planes, inter_planes, kernel_size=1, stride=1, groups=groups, relu=False),
BasicConv(inter_planes, (inter_planes // 2) * 3, kernel_size=3, stride=1, padding=1, groups=groups),
BasicConv((inter_planes // 2) * 3, 2 * inter_planes, kernel_size=3, stride=stride, padding=1, groups=groups),
BasicConv(2 * inter_planes, 2 * inter_planes, kernel_size=3, stride=1, padding=vision + 4, dilation=vision + 4, relu=False, groups=groups)
)
self.ConvLinear = BasicConv(6 * inter_planes, out_planes, kernel_size=1, stride=1, relu=False)
self.shortcut = BasicConv(in_planes, out_planes, kernel_size=1, stride=stride, relu=False)
self.relu = nn.ReLU(inplace=False)
def forward(self, x):
x0 = self.branch0(x)
x1 = self.branch1(x)
x2 = self.branch2(x)
out = torch.cat((x0, x1, x2), 1)
out = self.ConvLinear(out)
short = self.shortcut(x)
out = out * self.scale + short
out = self.relu(out)
return out
1.6 SPPCSPC
该模块是YOLOv7中使用的SPP结构，表现优于SPPF，但参数量和计算量提升了很多
class SPPCSPC(nn.Module):
# CSP https://github.com/WongKinYiu/CrossStagePartialNetworks
def __init__(self, c1, c2, n=1, shortcut=False, g=1, e=0.5, k=(5, 9, 13)):
super(SPPCSPC, self).__init__()
c_ = int(2 * c2 * e) # hidden channels
self.cv1 = Conv(c1, c_, 1, 1)
self.cv2 = Conv(c1, c_, 1, 1)
self.cv3 = Conv(c_, c_, 3, 1)
self.cv4 = Conv(c_, c_, 1, 1)
self.m = nn.ModuleList([nn.MaxPool2d(kernel_size=x, stride=1, padding=x // 2) for x in k])
self.cv5 = Conv(4 * c_, c_, 1, 1)
self.cv6 = Conv(c_, c_, 3, 1)
self.cv7 = Conv(2 * c_, c2, 1, 1)
def forward(self, x):
x1 = self.cv4(self.cv3(self.cv1(x)))
y1 = self.cv6(self.cv5(torch.cat([x1] + [m(x1) for m in self.m], 1)))
y2 = self.cv2(x)
return self.cv7(torch.cat((y1, y2), dim=1))
#分组SPPCSPC 分组后参数量和计算量与原本差距不大，不知道效果怎么样
class SPPCSPC_group(nn.Module):
def __init__(self, c1, c2, n=1, shortcut=False, g=1, e=0.5, k=(5, 9, 13)):
super(SPPCSPC_group, self).__init__()
c_ = int(2 * c2 * e) # hidden channels
self.cv1 = Conv(c1, c_, 1, 1, g=4)
self.cv2 = Conv(c1, c_, 1, 1, g=4)
self.cv3 = Conv(c_, c_, 3, 1, g=4)
self.cv4 = Conv(c_, c_, 1, 1, g=4)
self.m = nn.ModuleList([nn.MaxPool2d(kernel_size=x, stride=1, padding=x // 2) for x in k])
self.cv5 = Conv(4 * c_, c_, 1, 1, g=4)
self.cv6 = Conv(c_, c_, 3, 1, g=4)
self.cv7 = Conv(2 * c_, c2, 1, 1, g=4)
def forward(self, x):
x1 = self.cv4(self.cv3(self.cv1(x)))
y1 = self.cv6(self.cv5(torch.cat([x1] + [m(x1) for m in self.m], 1)))
y2 = self.cv2(x)
return self.cv7(torch.cat((y1, y2), dim=1))
1.7 SPPFCSPC🍀

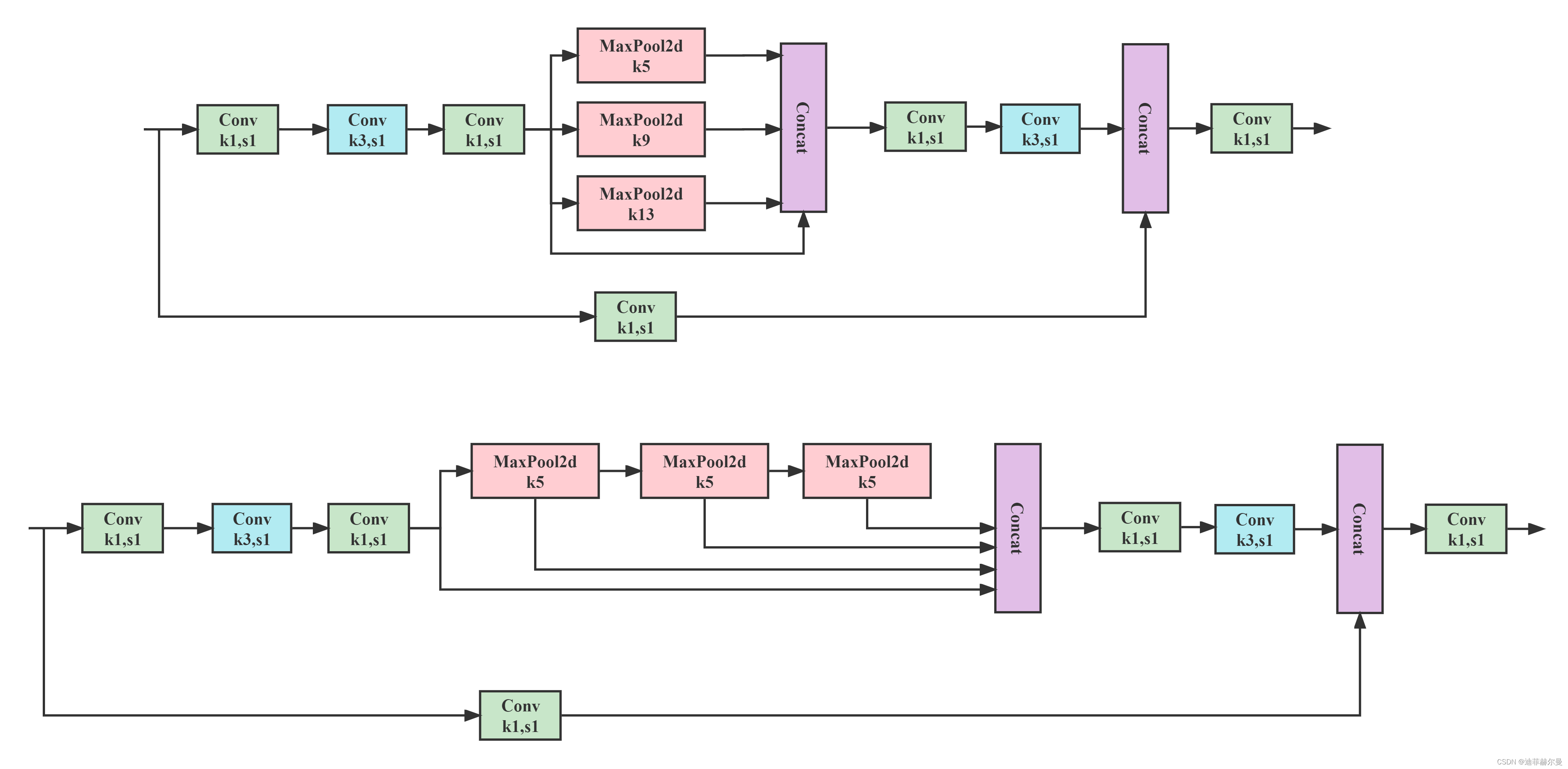

我借鉴了SPPF的思想将SPPCSPC优化了一下，得到了SPPFCSPC，在保持感受野不变的情况下获得速度提升；我把这个模块给v7作者看了，并没有得到否定，详细回答可以看4 Issue
目前这个结构被YOLOv6 3.0版本使用了，效果很不错，大家可以看一下YOLOv6 3.0的论文，里面有详细的实验结果。
class SPPFCSPC(nn.Module):
def __init__(self, c1, c2, n=1, shortcut=False, g=1, e=0.5, k=5):
super(SPPFCSPC, self).__init__()
c_ = int(2 * c2 * e) # hidden channels
self.cv1 = Conv(c1, c_, 1, 1)
self.cv2 = Conv(c1, c_, 1, 1)
self.cv3 = Conv(c_, c_, 3, 1)
self.cv4 = Conv(c_, c_, 1, 1)
self.m = nn.MaxPool2d(kernel_size=k, stride=1, padding=k // 2)
self.cv5 = Conv(4 * c_, c_, 1, 1)
self.cv6 = Conv(c_, c_, 3, 1)
self.cv7 = Conv(2 * c_, c2, 1, 1)
def forward(self, x):
x1 = self.cv4(self.cv3(self.cv1(x)))
x2 = self.m(x1)
x3 = self.m(x2)
y1 = self.cv6(self.cv5(torch.cat((x1,x2,x3, self.m(x3)),1)))
y2 = self.cv2(x)
return self.cv7(torch.cat((y1, y2), dim=1))
2 参数量对比
这里我在yolov5s.yaml中使用各个模型替换SPP模块
| 模型 | 参数量(parameters) | 计算量(GFLOPs) |
|---|---|---|
| SPP | 7225885 | 16.5 |
| SPPF | 7235389 | 16.5 |
| SimSPPF | 7235389 | 16.5 |
| ASPP | 15485725 | 23.1 |
| BasicRFB | 7895421 | 17.1 |
| SPPCSPC | 13663549 | 21.7 |
| SPPFCSPC🍀 | 13663549 | 21.7 |
| 分组SPPCSPC | 8355133 | 17.4 |
3 YOLOv5 改进方式
第一步；各个代码放入common.py中
第二步；yolo.py中加入类名
第三步；修改配置文件
yolov5配置文件如下：
# YOLOv5 🚀 by Ultralytics, GPL-3.0 license
# YOLOv5 v6.0 backbone
backbone:
# [from, number, module, args]
[[-1, 1, Conv, [64, 6, 2, 2]], # 0-P1/2
[-1, 1, Conv, [128, 3, 2]], # 1-P2/4
[-1, 3, C3, [128]],
[-1, 1, Conv, [256, 3, 2]], # 3-P3/8
[-1, 6, C3, [256]],
[-1, 1, Conv, [512, 3, 2]], # 5-P4/16
[-1, 9, C3, [512]],
[-1, 1, Conv, [1024, 3, 2]], # 7-P5/32
[-1, 3, C3, [1024]],
[-1, 1, SPPF, [1024, 5]], # 9
# [-1, 1, ASPP, [512]], # 9
# [-1, 1, SPP, [1024]],
# [-1, 1, SimSPPF, [1024]],
# [-1, 1, BasicRFB, [1024]],
# [-1, 1, SPPCSPC, [1024]],
# [-1, 1, SPPFCSPC, [1024]], # 🍀
]
4 Issue
Q：Why use SPPCSPC instead of SPPFCSPC？ /
yolov5’s SPPF is much faster than SPP.
Why not try to replace SPPCSPC with SPPFCSPC?
A:
Max pooling uses very few computation, if you programming well, above one could run three max pool layers in parallel, while below one must process three max pool layers sequentially.
By the way, you could replace SPPCSPC by SPPFCSPC at inference time if your hardware is friendly to SPPFCSPC.
感兴趣的可以试一下
本人更多YOLOv5实战内容导航🍀🌟🚀
-
手把手带你Yolov5 (v6.2)添加注意力机制(一)（并附上30多种顶会Attention原理图）🌟强烈推荐🍀新增8种
-
空间金字塔池化改进 SPP / SPPF / SimSPPF / ASPP / RFB / SPPCSPC / SPPFCSPC🚀
有问题欢迎大家指正，如果感觉有帮助的话请点赞支持下👍📖🌟
更新日志：2022年8月16日上午9:33分前在图片中增加感受野标注🍀
更新日志：2022年8月29日晚上11点40分在文中增加了SimSPPF模块，并测试了速度
更新日志：2022年8月30日修正了SPPCSPC的结构图
更新日志：2022年8月30日增加了SPPFCSPC的结构
更新日志：2023年5月19日修复了RFB的小错误
更新日志：2023年7月23日修复了RFB的Bug
