【计算机视觉】从运动中恢复结构SfM-摄像机运动估计,三维重建[2d点序列]

结构运动-摄像机运动估计

来源OpenCV  3.3.0

目标

在本教程中,您将学习如何使用重建api的摄像机运动估计:

• 加载文件与跟踪二维点，并建立容器的所有帧。
• libmv重建传递途径运行。
• 使用即显示结果。

从运动中恢复结构SfM模块安装

使用情况和结果

为了运行这个示例,我们需要指定的路径跟踪点文件,相机的焦距长度除了中心投影坐标(以像素为单位)。 你可以找到一个示例文件/数据/ desktop_trakcks.txt样品

./example_sfm_trajectory_reconstruction desktop_tracks.txt 1914 640 360
./sfm_test ../desktop_tracks.txt 1914 640 360

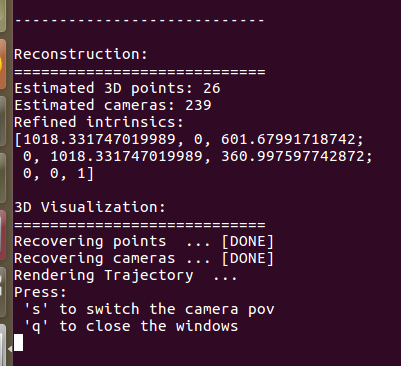

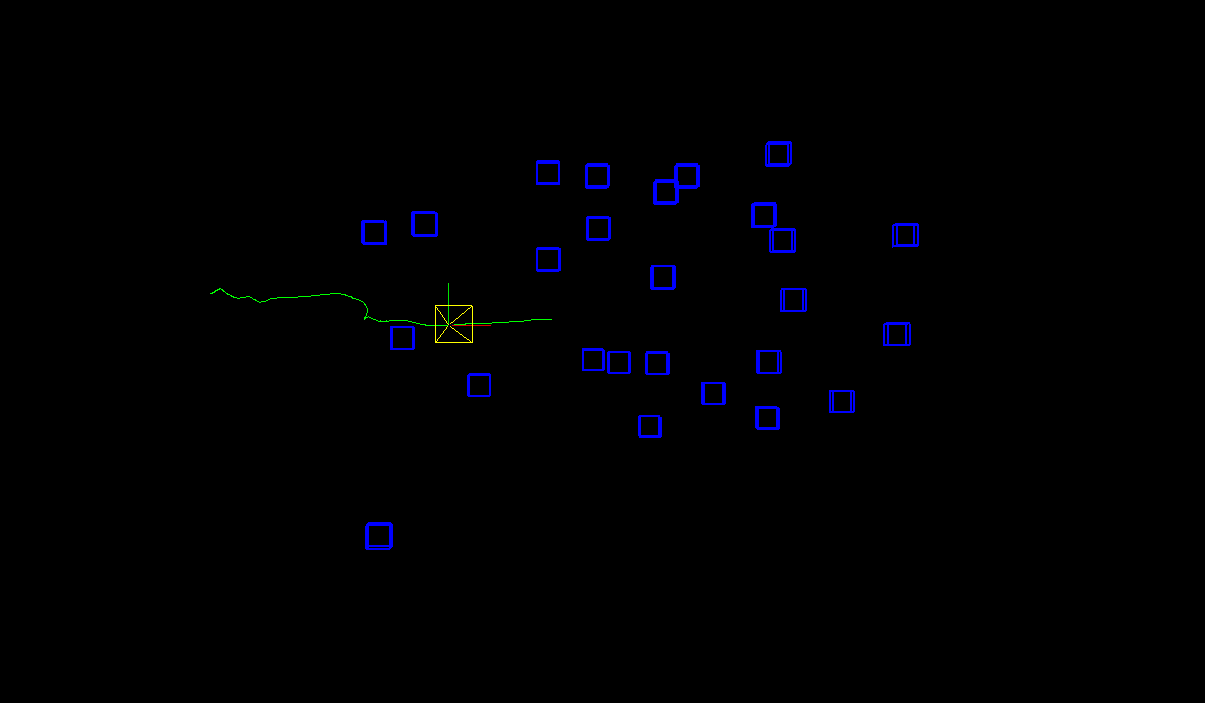

下面的图片显示了获得相机运动从追踪获得2 d点:

Code

代码

#define CERES_FOUND 1
#include <opencv2/sfm.hpp>
#include <opencv2/core.hpp>
#include <opencv2/sfm.hpp>
#include <opencv2/viz.hpp>
#include <opencv2/sfm/reconstruct.hpp>
#include <opencv2/sfm/simple_pipeline.hpp>
#include "/usr/local/include/opencv2/sfm/reconstruct.hpp"
//#include "reconstruct2.hpp"
#include <opencv2/calib3d.hpp>
#include <opencv2/core.hpp>
#include <iostream>
#include <fstream>
#include <opencv2/core.hpp>
#include <opencv2/sfm.hpp>
#include <opencv2/viz.hpp>
#include <iostream>
#include <fstream>
using namespace std;
using namespace cv;
using namespace cv::sfm;
static void help() {
  cout
      << "\n------------------------------------------------------------------\n"
      << " This program shows the camera trajectory reconstruction capabilities\n"
      << " in the OpenCV Structure From Motion (SFM) module.\n"
      << " \n"
      << " Usage:\n"
      << "        example_sfm_trajectory_reconstruction <path_to_tracks_file> <f> <cx> <cy>\n"
      << " where: is the tracks file absolute path into your system. \n"
      << " \n"
      << "        The file must have the following format: \n"
      << "        row1 : x1 y1 x2 y2 ... x36 y36 for track 1\n"
      << "        row2 : x1 y1 x2 y2 ... x36 y36 for track 2\n"
      << "        etc\n"
      << " \n"
      << "        i.e. a row gives the 2D measured position of a point as it is tracked\n"
      << "        through frames 1 to 36.  If there is no match found in a view then x\n"
      << "        and y are -1.\n"
      << " \n"
      << "        Each row corresponds to a different point.\n"
      << " \n"
      << "        f  is the focal lenght in pixels. \n"
      << "        cx is the image principal point x coordinates in pixels. \n"
      << "        cy is the image principal point y coordinates in pixels. \n"
      << "------------------------------------------------------------------\n\n"
      << endl;
}
/* Build the following structure data
 *
 *            frame1           frame2           frameN
 *  track1 | (x11,y11) | -> | (x12,y12) | -> | (x1N,y1N) |
 *  track2 | (x21,y11) | -> | (x22,y22) | -> | (x2N,y2N) |
 *  trackN | (xN1,yN1) | -> | (xN2,yN2) | -> | (xNN,yNN) |
 *
 *
 *  In case a marker (x,y) does not appear in a frame its
 *  values will be (-1,-1).
 */
void
parser_2D_tracks(const String &_filename, std::vector<Mat> &points2d )
{
  ifstream myfile(_filename.c_str());
  if (!myfile.is_open())
  {
    cout << "Unable to read file: " << _filename << endl;
    exit(0);
  } else {
    double x, y;
    string line_str;
    int n_frames = 0, n_tracks = 0;
    // extract data from text file
    vector<vector<Vec2d> > tracks;
    for ( ; getline(myfile,line_str); ++n_tracks)
    {
      istringstream line(line_str);
      vector<Vec2d> track;
      for ( n_frames = 0; line >> x >> y; ++n_frames)
      {
        if ( x > 0 && y > 0)
          track.push_back(Vec2d(x,y));
        else
          track.push_back(Vec2d(-1));
      }
      tracks.push_back(track);
    }
    // embed data in reconstruction api format
    for (int i = 0; i < n_frames; ++i)
    {
      Mat_<double> frame(2, n_tracks);
      for (int j = 0; j < n_tracks; ++j)
      {
        frame(0,j) = tracks[j][i][0];
        frame(1,j) = tracks[j][i][1];
      }
      points2d.push_back(Mat(frame));
    }
    myfile.close();
  }
}
/* Keyboard callback to control 3D visualization
 */
bool camera_pov = false;
void keyboard_callback(const viz::KeyboardEvent &event, void* cookie)
{
  if ( event.action == 0 &&!event.symbol.compare("s") )
    camera_pov = !camera_pov;
}
/* Sample main code
 */
//void cv::sfm::reconstruct(InputArrayOfArrays points2d, OutputArray Rs, OutputArray Ts, InputOutputArray K,OutputArray points3d, bool is_projective = false);
int main(int argc, char** argv)
{
  // Read input parameters
  if ( argc != 5 )
  {
    help();
    exit(0);
  }
  // Read 2D points from text file
  std::vector<Mat> points2d;
  parser_2D_tracks( argv[1], points2d );
  // Set the camera calibration matrix
  const double f  = atof(argv[2]),
               cx = atof(argv[3]), cy = atof(argv[4]);
  Matx33d K = Matx33d( f, 0, cx,
                       0, f, cy,
                       0, 0,  1);
  bool is_projective = true;
  vector<Mat> Rs_est, ts_est, points3d_estimated;
  cv::sfm::reconstruct(points2d, Rs_est, ts_est, K, points3d_estimated, is_projective);
  // Print output
  cout << "\n----------------------------\n" << endl;
  cout << "Reconstruction: " << endl;
  cout << "============================" << endl;
  cout << "Estimated 3D points: " << points3d_estimated.size() << endl;
  cout << "Estimated cameras: " << Rs_est.size() << endl;
  cout << "Refined intrinsics: " << endl << K << endl << endl;
  cout << "3D Visualization: " << endl;
  cout << "============================" << endl;
  viz::Viz3d window_est("Estimation Coordinate Frame");
             window_est.setBackgroundColor(); // black by default
             window_est.registerKeyboardCallback(&keyboard_callback);
  // Create the pointcloud
  cout << "Recovering points  ... ";
  // recover estimated points3d
  vector<Vec3f> point_cloud_est;
  for (int i = 0; i < points3d_estimated.size(); ++i)
    point_cloud_est.push_back(Vec3f(points3d_estimated[i]));
  cout << "[DONE]" << endl;
  cout << "Recovering cameras ... ";
  vector<Affine3d> path_est;
  for (size_t i = 0; i < Rs_est.size(); ++i)
    path_est.push_back(Affine3d(Rs_est[i],ts_est[i]));
  cout << "[DONE]" << endl;
  cout << "Rendering Trajectory  ... ";
  cout << endl << "Press:                       " << endl;
  cout <<         " 's' to switch the camera pov" << endl;
  cout <<         " 'q' to close the windows    " << endl;
  if ( path_est.size() > 0 )
  {
    // animated trajectory
    int idx = 0, forw = -1, n = static_cast<int>(path_est.size());
    while(!window_est.wasStopped())
    {
      for (size_t i = 0; i < point_cloud_est.size(); ++i)
      {
        Vec3d point = point_cloud_est[i];
        Affine3d point_pose(Mat::eye(3,3,CV_64F), point);
        char buffer[50];
        sprintf (buffer, "%d", static_cast<int>(i));
        viz::WCube cube_widget(Point3f(0.1,0.1,0.0), Point3f(0.0,0.0,-0.1), true, viz::Color::blue());
                   cube_widget.setRenderingProperty(viz::LINE_WIDTH, 2.0);
        window_est.showWidget("Cube"+String(buffer), cube_widget, point_pose);
      }
      Affine3d cam_pose = path_est[idx];
      viz::WCameraPosition cpw(0.25); // Coordinate axes
      viz::WCameraPosition cpw_frustum(K, 0.3, viz::Color::yellow()); // Camera frustum
      if ( camera_pov )
        window_est.setViewerPose(cam_pose);
      else
      {
        // render complete trajectory
        window_est.showWidget("cameras_frames_and_lines_est", viz::WTrajectory(path_est, viz::WTrajectory::PATH, 1.0, viz::Color::green()));
        window_est.showWidget("CPW", cpw, cam_pose);
        window_est.showWidget("CPW_FRUSTUM", cpw_frustum, cam_pose);
      }
      // update trajectory index (spring effect)
      forw *= (idx==n || idx==0) ? -1: 1; idx += forw;
      // frame rate 1s
      window_est.spinOnce(1, true);
      window_est.removeAllWidgets();
    }
  }
  return 0;
}



解释

首先,我们需要加载这个文件包含2 d点跟踪所有帧和构造容器重建api。 在这种情况下,跟踪2 d点会有以下结构,2 d点的向量数组,每个数组内代表一个不同的帧。 每一帧由2 d点的列表,例如第一个点在坐标系1点在坐标系2相同。 如果没有在一帧分配的值将被(-1,-1):

/* Build the following structure data

*

* frame1 frame2 frameN

* track1 | (x11,y11) | -> | (x12,y12) | -> | (x1N,y1N) |

* track2 | (x21,y11) | -> | (x22,y22) | -> | (x2N,y2N) |

* trackN | (xN1,yN1) | -> | (xN2,yN2) | -> | (xNN,yNN) |

*

*

* In case a marker (x,y) does not appear in a frame its

* values will be (-1,-1).

*/

...

for (int i = 0; i < n_frames; ++i)

{

Mat_<double> frame(2, n_tracks);

for (int j = 0; j < n_tracks; ++j)

{

frame(0,j) = tracks[j][i][0];

frame(1,j) = tracks[j][i][1];

}

points2d.push_back(Mat(frame));

}

Secondly, the built container will be used to feed the reconstruction api. It is important outline that the estimated results must be stored in a vector<Mat>:

其次,建立集装箱将被用来喂重建api。 重要的是大纲,必须存储在一个向量的估计结果<<Mat>:

bool is_projective =true;

vector<Mat> Rs_est, ts_est, points3d_estimated;

reconstruct(points2d, Rs_est, ts_est, K, points3d_estimated, is_projective(投影的));

// Print output

cout << "\n----------------------------\n" << endl;

cout << "Reconstruction: " << endl;

cout << "============================" << endl;

cout << "Estimated 3D points: " << points3d_estimated.size() << endl;

cout << "Estimated cameras: " << Rs_est.size() << endl;

cout << "Refined intrinsics: " << endl << K << endl << endl;

Finally, the obtained results will be shown in Viz, in this case reproducing(复制) the camera with an oscillation(振荡) effect.

最后,获得的结果将即所示,在这种情况下相机的重建效果。

cmake 文件

project(sfm_test)
CMAKE_MINIMUM_REQUIRED(VERSION 2.6)
set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -std=c++11")
set("OpenCV_DIR" "/usr/local/share/OpenCV/")
find_package( OpenCV REQUIRED )
MESSAGE("OpenCV vesion: ${OpenCV_VERSION}")
find_package(Ceres REQUIRED)
find_package(Gflags QUIET)
find_package(Ceres QUIET)
# include(CheckCXXCompilerFlag)
AUX_SOURCE_DIRECTORY(. DIR_SRCS)
ADD_EXECUTABLE(sfm_test ${DIR_SRCS}  )
target_link_libraries( sfm_test ${OpenCV_LIBS} )

reconstruct()说明

§ reconstruct() [1/4]

void cv::sfm::reconstruct	(	InputArrayOfArrays	points2d,
		OutputArray	Ps,
		OutputArray	points3d,
		InputOutputArray	K,
		bool	is_projective = false
	)

在执行自动校准时从2d对应重建3d点。

参数

points2d	2d点矢量的输入矢量（内部矢量是每个图像）。
PS	输出向量与每个图像的3x4投影矩阵。
points3d	具有估计的3d点的输出数组。
ķ	输入/输出相机矩阵\（K = \ vecthreethree {f_x} {0} {c_x} {0} {f_y} {c_y} {0} {0} {1} \）。 输入参数用作初始猜测。
is_projective	如果是真的，相机应该是投射的。

该方法调用以下签名并从估计的K，R和t中提取投影矩阵。

注意

• 轨道必须尽可能精确。 它不处理异常值并且对它们非常敏感。

§ reconstruct() [2/4]

void cv::sfm::reconstruct	(	InputArrayOfArrays	points2d,
		OutputArray	Rs,
		OutputArray	Ts,
		InputOutputArray	K,
		OutputArray	points3d,
		bool	is_projective = false
	)



在执行自动校准时从2d对应重建3d点。

参数

points2d 2d点矢量的输入矢量（内部矢量是每个图像）。 Rs 摄像机3x3旋转的输出矢量。 Ts 相机的3x1平移的输出矢量。 points3d 具有估计的3d点的输出数组。 ķ 输入/输出相机矩阵\（K = \ vecthreethree {f_x} {0} {c_x} {0} {f_y} {c_y} {0} {0} {1} \） 输入参数用作初始猜测。 is_projective 如果是真的，相机应该是投射的。 通过实例化SFMLibmvEuclideanReconstruction类，在内部调用libmv简单管道例程和一些默认参数。 注意 轨道必须尽可能精确。 它不处理异常值并且对它们非常敏感。 要查看相机运动重建的工作示例，请查看以下教程： 相机运动估计 。



问题

'reconstruct' is not a member of 'cv::sfm'

This is because of the Mismatch of Required Ceres, Eigen version from the SFM Module. The CERES_FOUND flag is set to 0 internally because of the newer Ceres version!

You can manually set this flag to 1 like this. before including the SFM modules.

    #define CERES_FOUND 1
    #include <opencv2/sfm.hpp>
