[AMR] 独轮和双轮移动机器人运动学模型 Kinematic Model of Unicycle and Bicycle Mobile Robot


一、独轮移动机器人

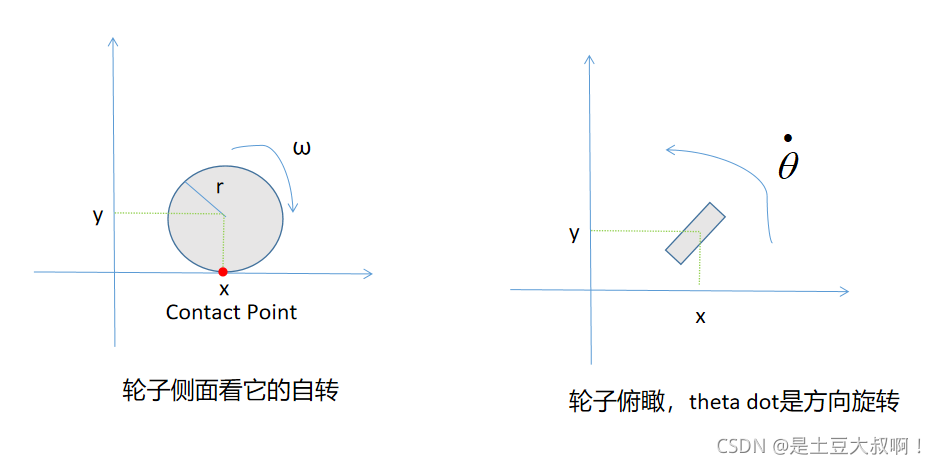

独轮图
在这里插入图片描述

1. Configuration

q = ( x y θ ) q = \begin{pmatrix} x \\ y \\ \theta \end{pmatrix} q=xyθ

x, y 表示轮子与地面接触点坐标, θ \theta θ 是轮子方向转角。

2. 约束 Constraints

有几个轮子就有几个 pure rolling (纯滚动) 的约束

sin ⁡ θ   x ˙ − cos ⁡ θ   y ˙ = 0 \sin \theta \space \dot{x} - \cos \theta \space \dot{y} = 0 sinθ x˙cosθ y˙=0

写成矩阵(Pfaffian Form)形式 A T ( q ) q ˙ = 0 A^{T}(q) \dot{q} = 0 AT(q)q˙=0,即:

( sin ⁡ θ − cos ⁡ θ 0 ) ( x ˙ y ˙ θ ˙ ) = 0 \begin{pmatrix} \sin \theta & -\cos \theta & 0 \end{pmatrix} \begin{pmatrix} \dot{x} \\ \dot{y} \\ \dot{\theta} \end{pmatrix} = 0 (sinθcosθ0)x˙y˙θ˙=0

3. 运动学模型

独轮只有一个轮子,所以只有一个 pure rolling,即只有一个运动学约束,k = 1,即 矩阵 A T A^{T} AT 有 k = 1 行,其 configuration q 有几个量,则 矩阵 A T A^{T} AT 有 n = 3 列。

然后
q ˙ ∈ N ( A T ( q ) ) \dot{q} \in N(A^{T}(q)) q˙N(AT(q))

其中,零和空间 N 的维度为 n - k = 3 - 1 = 2,即, q ˙ \dot{q} q˙ 应有两个解 g 1 , g 2 g_{1}, g_{2} g1,g2 (也即输入),使得 Pfaffian Form 成立,计算后得:

q ˙ = g 1 ( q ) u 1 + g 2 ( q ) u 2 = ( cos ⁡ θ sin ⁡ θ 0 ) u 1 + ( 0 0 1 ) u 2 \dot{q} = g_{1}(q)u_{1} + g_{2}(q)u_{2} = \begin{pmatrix} \cos \theta \\ \sin \theta \\ 0 \end{pmatrix}u_{1} + \begin{pmatrix} 0 \\ 0 \\ 1 \end{pmatrix}u_{2} q˙=g1(q)u1+g2(q)u2=cosθsinθ0u1+001u2


x ˙ = cos ⁡ θ u 1 ,   y ˙ = sin ⁡ θ u 1 ,   θ ˙ = u 2 \dot{x} = \cos \theta u_{1}, \space \dot{y}=\sin \theta u_{1}, \space\dot{\theta}=u_{2} x˙=cosθu1, y˙=sinθu1, θ˙=u2

其中, u 1 = ω r , u 2 = Θ ˙ u_{1}=\omega r, u_{2} = \dot{ \Theta } u1=ωr,u2=Θ˙

4. Lie Bracket 与判断是否可控 Controllable

Lie Bracket的定义

g i ( x ) g_{i}(x) gi(x) 是一个 n 维向量域,当给定 g 1 ( x ) , g 2 ( x ) g_{1}(x), g_{2}(x) g1(x),g2(x)时,然后

g 3 = [ g 1 ( x ) , g 2 ( x ) ] = ∂ g 2 ∂ x g 1 − ∂ g 1 ∂ x g 2 g_{3} = [g_{1}(x), g_{2}(x)] = \frac{\partial g_{2}}{\partial x}g_{1} - \frac{\partial g_{1}}{\partial x}g_{2} g3=[g1(x),g2(x)]=xg2g1xg1g2

g 3 g_{3} g3 就是一个新的向量域,称为 g 1 ( x ) , g 2 ( x ) g_{1}(x), g_{2}(x) g1(x),g2(x)Lie Bracket.

判断是否可控 Controllable

对于所有得输入向量域 (Input vector filed), 把他们收集起来写成

Δ = { g 1 ( x ) , g 2 ( x ) , . . . , g m ( q ) , . . . , [ g i , g j ] , . . . , [ g i , [ g i , g k ] ] , . . . , a n d   s o   o n . . . } \Delta = \{ g_{1}(x), g_{2}(x), ..., g_{m}(q), ..., [g_{i}, g_{j}], ..., [g_{i}, [g_{i}, g_{k}]], ..., and \space so \space on... \} Δ={g1(x),g2(x),...,gm(q),...,[gi,gj],...,[gi,[gi,gk]],...,and so on...}

如果 维度 dim Δ \Delta Δ = n,则运动学模型是可控的。或者可以看 rank Δ \Delta Δ = n(我不知道为什么,但这是很常用的方法)

对于 独轮来说,

g 3 = [ g 1 , g 2 ] = ( sin ⁡ θ − cos ⁡ θ 0 ) g_{3} = [g_{1}, g_{2}] = \begin{pmatrix} \sin\theta \\ -\cos\theta \\ 0 \end{pmatrix} g3=[g1,g2]=sinθcosθ0

r a n k ( g 1 , g 2 ) = ( cos ⁡ θ 0 sin ⁡ θ sin ⁡ θ 0 − cos ⁡ θ 0 1 0 ) = n = 3 rank(g_{1}, g_{2}) = \begin{pmatrix} \cos \theta & 0 & \sin\theta \\ \sin \theta & 0 & -\cos\theta\\ 0 & 1 & 0\end{pmatrix}=n=3 rank(g1,g2)=cosθsinθ0001sinθcosθ0=n=3

二、两轮自行车 Bicycle

1. Configuration

自行车俯瞰图
在这里插入图片描述

q = ( x y θ ϕ ) q = \begin{pmatrix} x \\ y \\ \theta \\ \phi \end{pmatrix} q=xyθϕ

n = 4

2. 约束 Constraints

有几个轮子就有几个 pure rolling (纯滚动) 的约束,两个轮子就有俩约束,k = 2

对于后轮 Pure Rolling Constraint:

sin ⁡ θ   x ˙ − cos ⁡ θ   y ˙ = 0 \sin \theta \space \dot{x} - \cos \theta \space \dot{y} = 0 sinθ x˙cosθ y˙=0

对前轮:

sin ⁡ ( θ + ϕ )   x f ˙ − cos ⁡ ( θ + ϕ )   y f ˙ = 0 \sin( \theta + \phi) \space \dot{x_{f}} - \cos (\theta + \phi) \space \dot{y_{f}} = 0 sin(θ+ϕ) xf˙cos(θ+ϕ) yf˙=0

其中 x f , y f x_{f}, y_{f} xf,yf 要替换成 x,y, 即:

x f = x + l cos ⁡ θ x_{f} = x + l \cos\theta xf=x+lcosθ

y f = y + l sin ⁡ θ y_{f} = y + l \sin\theta yf=y+lsinθ

对时间求导,得:

x f ˙ = x ˙ − l sin ⁡ θ   θ ˙ \dot{x_{f}} = \dot{x} - l\sin \theta \space \dot{\theta} xf˙=x˙lsinθ θ˙

y f ˙ = y ˙ + l cos ⁡ θ   θ ˙ \dot{y_{f}} = \dot{y} + l\cos \theta \space \dot{\theta} yf˙=y˙+lcosθ θ˙

最后全替换了,前轮约束公式就变成了下式:

sin ⁡ ( θ + ϕ ) x ˙ − cos ⁡ ( θ + ϕ ) y ˙ − l cos ⁡ ϕ   θ ˙ = 0 \sin(\theta + \phi) \dot{x} - \cos(\theta+\phi)\dot{y}-l\cos \phi \space \dot{\theta} = 0 sin(θ+ϕ)x˙cos(θ+ϕ)y˙lcosϕ θ˙=0

3. 运动学模型

A T ( q ) q ˙ = 0 ⇒ ( sin ⁡ θ − cos ⁡ θ 0 0 sin ⁡ ( θ + ϕ ) − cos ⁡ ( θ + ϕ ) − l cos ⁡ ϕ 0 ) ( x ˙ y ˙ θ ˙ ϕ ˙ ) = 0 A^{T}(q) \dot{q} = 0 \Rightarrow \begin{pmatrix} \sin\theta & -\cos\theta & 0 & 0 \\ \sin(\theta+\phi) & -\cos(\theta+\phi) & -l\cos\phi & 0 \end{pmatrix}\begin{pmatrix} \dot{x} \\ \dot{y} \\ \dot{\theta} \\ \dot{\phi} \end{pmatrix}=0 AT(q)q˙=0(sinθsin(θ+ϕ)cosθcos(θ+ϕ)0lcosϕ00)x˙y˙θ˙ϕ˙=0

n − k = 2 n - k = 2 nk=2,计算得:
q ˙ = ( cos ⁡ θ sin ⁡ θ tan ⁡ θ l 0 ) u 1 + ( 0 0 0 1 ) u 2 \dot{q} = \begin{pmatrix} \cos\theta \\ \sin\theta \\ \frac{\tan\theta}{l} \\ 0 \end{pmatrix}u_{1} + \begin{pmatrix} 0 \\ 0 \\ 0 \\ 1 \end{pmatrix}u_{2} q˙=cosθsinθltanθ0u1+0001u2

其中, u 1 = ± x 2 ˙ + y 2 ˙ ,    u 2 = ϕ ˙ u_{1}= \pm \sqrt{\dot{x^{2}} + \dot{y^{2}}}, \space\space u_{2} = \dot{\phi} u1=±x2˙+y2˙ ,  u2=ϕ˙.

4. 判断是否可控

已知 g 1 , g 2 g_{1}, g_{2} g1,g2,计算:

g 3 = [ g 1 , g 2 ] = ( 0 0 − 1 l c o s 2 ϕ 0 ) g_{3} = [g_{1}, g_{2}] = \begin{pmatrix} 0 \\ 0 \\ -\frac{1}{lcos^{2}\phi} \\0 \end{pmatrix} g3=[g1,g2]=00lcos2ϕ10

g 4 = [ g 1 , g 3 ] = ( − sin ⁡ θ l 2 cos ⁡ ϕ cos ⁡ θ l 2 cos ⁡ ϕ 0 0 ) g_{4} = [g_{1}, g_{3}] = \begin{pmatrix} -\frac{\sin\theta}{l^{2}\cos\phi} \\ \frac{\cos\theta}{l^{2}\cos\phi} \\ 0 \\0 \end{pmatrix} g4=[g1,g3]=l2cosϕsinθl2cosϕcosθ00

则:

r a n k ( ∣ ∣ ∣ ∣ g 1 g 2 g 3 g 4 ∣ ∣ ∣ ∣ ) = 4 rank \begin{pmatrix} | &|&|&| \\ g_{1} &g_{2} &g_{3} &g_{4} \\ | &|&|&| \end{pmatrix} = 4 rankg1g2g3g4=4

则自行车约束可控!
