写在前面的话:建议先看完本专栏的前三篇文章再看这篇
本文将介绍如何了查找点云中每个点的邻近点并统计个数
取点云文件
我给了个demo文件,在input文件夹下面,其每行为一个点,每行分别有4个数:index, x, y, z
0 0.190818 2.151146 1.516178
1 0.182662 2.208185 1.506151
2 0.212130 2.120995 1.519654
3 0.195404 2.216945 1.554745
4 0.177847 2.420602 1.464208
5 0.108176 2.408980 1.471528
6 0.285591 2.271129 1.526475
...........................
82881 2.856293 4.802210 0.886675
82882 2.893785 4.858056 0.938935
读取函数如下:
float* read_pc(string filename, float xyz[]){
ifstream fin;
fin.open(filename);
if(!fin) {
cout << filename << " file could not be opened\n";
exit(0);
}
int idx;
float x, y, z;
while(!fin.eof()) {
fin >> idx >> x >> y >> z;
xyz[idx*3 + 0] =x;
xyz[idx*3 + 1] =y;
xyz[idx*3 + 2] =z;
}
return xyz;
}
主函数
主函数中我们需要设置计算邻近点的辐射距离,如下代码中所示,与所选点距离小于0.2m的即可以视为所选点的邻近点
int main() {
string inputFileName = "/home/bruno/Documents/Clion_Project/cuda_demo/demo3_AdjacentPoint/input/pc.txt";
const int point_num = 82883;
const float radius = 0.2;
float xyz[point_num*3];
read_pc(inputFileName, xyz);
checkNearPoints(point_num, xyz, radius);
return 0;
}
检查临近点
首先我们要清楚我们的输入是什么: 点云个数,点云坐标,以及辐射距离; 其次我们要理清楚如何去利用cuda加速计算。最简单的想法:我们有多少个点就开启多少个线程,这样一次就可以把所有的点的临近点算出来。该函数的编写思路与前面几篇文章总结的一样,这里不多说。
void checkNearPoints(const int point_num, float xyz[], const float radius){
dim3 blocks(DIVUP(point_num, THREADS_PER_BLOCK));
dim3 threads(THREADS_PER_BLOCK);
int * ptsCnt_h;
ptsCnt_h = (int *)malloc(point_num * sizeof(int));
// define gpu variable
int * point_num_d;
float * xyz_d;
float * radius_d;
int * ptsCnt_d; //mark the number of adjacent points
int * adj_point_d; //mark the adjacent points, 1 is true,0 is false
//generate gpu ram
CUDA_ERR_CHK( cudaMalloc((void **) &point_num_d, sizeof(int)));
CUDA_ERR_CHK(cudaMalloc((void **) &xyz_d, 3*point_num*sizeof(float)));
CUDA_ERR_CHK(cudaMalloc((void **) &radius_d, sizeof(float)));
CUDA_ERR_CHK(cudaMalloc((void **) &ptsCnt_d, point_num*sizeof(int)));
// copy host to device
CUDA_ERR_CHK(cudaMemcpy(point_num_d, &point_num, sizeof(int), cudaMemcpyHostToDevice));
CUDA_ERR_CHK(cudaMemcpy(xyz_d, xyz, 3*point_num*sizeof(float), cudaMemcpyHostToDevice));
CUDA_ERR_CHK(cudaMemcpy(radius_d, &radius, sizeof(float), cudaMemcpyHostToDevice));
// start device kernel
checkNearPoints_cuda<<<blocks, threads>>>(point_num_d, xyz_d, radius_d, ptsCnt_d);
// copy device to host
CUDA_ERR_CHK(cudaMemcpy(ptsCnt_h, ptsCnt_d, point_num*sizeof(float), cudaMemcpyDeviceToHost));
// release gpu ram
CUDA_ERR_CHK(cudaFree(point_num_d));
CUDA_ERR_CHK(cudaFree(xyz_d));
CUDA_ERR_CHK(cudaFree(radius_d));
CUDA_ERR_CHK(cudaFree(ptsCnt_d));
for (int i =0; i< point_num; i++){
printf("index: %d adjacent point number: %d \n",i, ptsCnt_h[i]);
}
}
CUDA检查函数
由于我们直接调用CUDA的函数(cudaMencpy cudaMalloc 等),其不会直接返回准确的报错信息,所以我们需要写一个报错检索函数,这样我们可以知道出错的原因:
// https://stackoverflow.com/a/14038590
#define CUDA_ERR_CHK(code) { cuda_err_chk((code), __FILE__, __LINE__); }
inline void cuda_err_chk(cudaError_t code, const char *file, int line, bool abort = true) {
if (code != cudaSuccess) {
fprintf(stderr, "\tCUDA ERROR: %s %s %d\n", cudaGetErrorString(code), file, line);
if (abort) exit(code);
}
}

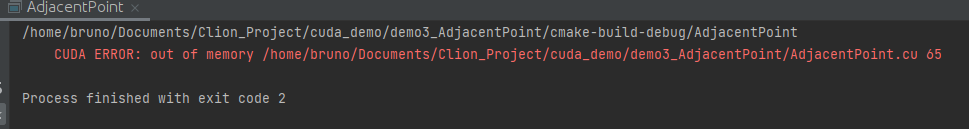

添加后我们可以看到如下报错:直接告诉我们在65行,内存溢出了。(说明你的GPU卡内存不够,可以换卡, 或者对点进行下采样)
核函数
核函数利用线程ID做检索,通过for循环去遍历所选点外的每一个点。通过计算每个点与所选距离,再与辐射距离进行比较,小于辐射距离的视为邻近点。
__global__ void checkNearPoints_cuda(int *point_num_d, float *xyz_d, float *eps_d, int *ptsCnt_d){
int th_index = blockIdx.x*blockDim.x + threadIdx.x;
if (th_index >= *point_num_d) return ;
ptsCnt_d[th_index] = 0; // the number of adjacent points
float o_x = xyz_d[th_index * 3 + 0];
float o_y = xyz_d[th_index * 3 + 1];
float o_z = xyz_d[th_index * 3 + 2];
for (int k =0; k< *point_num_d; k++){
if(th_index==k) continue;
float k_x = xyz_d[k * 3 + 0];
float k_y = xyz_d[k * 3 + 1];
float k_z = xyz_d[k * 3 + 2];
float l2 = sqrt((k_x-o_x)*(k_x-o_x)+(k_y-o_y)*(k_y-o_y)+(k_z-o_z)*(k_z-o_z));
if (l2 <= *eps_d) {
ptsCnt_d[th_index]= ptsCnt_d[th_index] + 1;
}
}
}
CmakeList
Cmakelist我这次给出了一个通用的模板,基本每个demo都可以用,还解决了无法核嵌套的问题。注意要根据自己CUDA安装路径小小更改下下面的代码。
cmake_minimum_required(VERSION 3.19)
project(AdjacentPoint)
set(CMAKE_CXX_STANDARD 14)
# packages
find_package(CUDA REQUIRED)
if(${CUDA_FOUND})
set(CUDA_SOURCE_PROPERTY_FORMAT OBJ)
set(CUDA_SEPARABLE_COMPILATION ON)
include_directories(${CUDA_INCLUDE_DIRS})
set(CUDA_PROPAGATE_HOST_FLAGS OFF)
# set(CUDA_VERBOSE_BUILD ON)
SET(CUDA_NVCC_FLAGS ${CUDA_NVCC_FLAGS};-gencode arch=compute_75,code=sm_75;-std=c++14; -rdc=true; -lcudadevrt)
link_directories(/usr/local/cuda/lib64)
MESSAGE(STATUS "found cuda")
else(${CUDA_FOUND})
MESSAGE(STATUS "cuda not found!")
endif(${CUDA_FOUND})
file(GLOB CURRENT_SOURCES *.cpp *.cu)
file(GLOB_RECURSE CURRENT_HEADERS *.h *.hpp *.cuh)
source_group("Source" FILES ${CURRENT_SOURCES})
source_group("Include" FILES ${CURRENT_HEADERS})
CUDA_ADD_EXECUTABLE(AdjacentPoint ${CURRENT_HEADERS} ${CURRENT_SOURCES} ${CUDA_INCLUDE_DIRS})
target_link_libraries(AdjacentPoint /usr/local/cuda/lib64/libcudadevrt.a)
打印结果

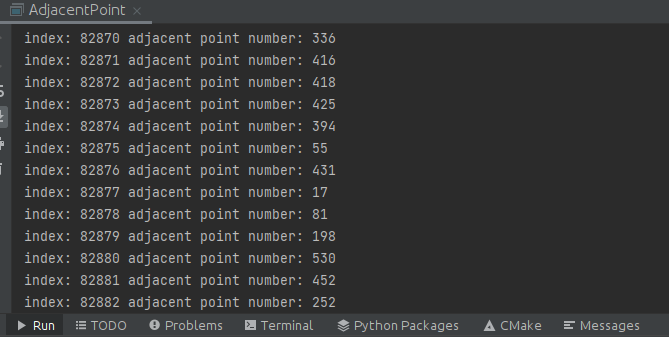

结果如下图所示。 如果想知道邻近点的索引,可以查看adj_point_d变量,该变量很占内存,如果不需要还是注释掉。
最后,完整代码以及其他demo可以在我的github中获取(不定期更新):
GitHub - weiguangzhao/cuda_demo: CUDA DEMOhttps://github.com/weiguangzhao/cuda_demo
