在 Docker 中启动 ROS2 里的 rivz2 和 rqt 出现错误的解决方法

背锅侠

已于 2024-02-06 15:04:38 修改

阅读量1.9k

点赞数 15

分类专栏： ROS Ubuntu 编程开发文章标签： docker 容器运维

于 2024-02-06 14:41:00 首次发布

本文链接：https://blog.csdn.net/wxl5018/article/details/136056248

版权

编程开发同时被 3 个专栏收录

18 篇文章 0 订阅

订阅专栏

ROS

8 篇文章 0 订阅

订阅专栏

Ubuntu

7 篇文章 0 订阅

订阅专栏

1. 出现错误：

运行 ros2 run rivz2 rivz2 ，报错如下：

No protocol specified
qt.qpa.xcb: could not connect to display :1
qt.qpa.plugin: Could not load the Qt platform plugin "xcb" in "" even though it was found.
This application failed to start because no Qt platform plugin could be initialized. Reinstalling the application may fix this problem.

Available platform plugins are: eglfs, linuxfb, minimal, minimalegl, offscreen, vnc, xcb.

[ros2run]: Aborted

排查问题：执行 export QT_DEBUG_PLUGINS=1 后再运行 ros2 run rivz2 rivz2

# export QT_DEBUG_PLUGINS=1
# ros2 run rviz2 rviz2
---------------------------------------------------------------------
QFactoryLoader::QFactoryLoader() checking directory path "/usr/lib/x86_64-linux-gnu/qt5/plugins/platforms" ...
QFactoryLoader::QFactoryLoader() looking at "/usr/lib/x86_64-linux-gnu/qt5/plugins/platforms/libqeglfs.so"
Found metadata in lib /usr/lib/x86_64-linux-gnu/qt5/plugins/platforms/libqeglfs.so, metadata=
{
    "IID": "org.qt-project.Qt.QPA.QPlatformIntegrationFactoryInterface.5.3",
    "MetaData": {
        "Keys": [
            "eglfs"
        ]
    },
    "archreq": 0,
    "className": "QEglFSIntegrationPlugin",
    "debug": false,
    "version": 331520
}


Got keys from plugin meta data ("eglfs")
QFactoryLoader::QFactoryLoader() looking at "/usr/lib/x86_64-linux-gnu/qt5/plugins/platforms/libqlinuxfb.so"
Found metadata in lib /usr/lib/x86_64-linux-gnu/qt5/plugins/platforms/libqlinuxfb.so, metadata=
{
    "IID": "org.qt-project.Qt.QPA.QPlatformIntegrationFactoryInterface.5.3",
    "MetaData": {
        "Keys": [
            "linuxfb"
        ]
    },
    "archreq": 0,
    "className": "QLinuxFbIntegrationPlugin",
    "debug": false,
    "version": 331520
}


Got keys from plugin meta data ("linuxfb")
QFactoryLoader::QFactoryLoader() looking at "/usr/lib/x86_64-linux-gnu/qt5/plugins/platforms/libqminimal.so"
Found metadata in lib /usr/lib/x86_64-linux-gnu/qt5/plugins/platforms/libqminimal.so, metadata=
{
    "IID": "org.qt-project.Qt.QPA.QPlatformIntegrationFactoryInterface.5.3",
    "MetaData": {
        "Keys": [
            "minimal"
        ]
    },
    "archreq": 0,
    "className": "QMinimalIntegrationPlugin",
    "debug": false,
    "version": 331520
}


Got keys from plugin meta data ("minimal")
QFactoryLoader::QFactoryLoader() looking at "/usr/lib/x86_64-linux-gnu/qt5/plugins/platforms/libqminimalegl.so"
Found metadata in lib /usr/lib/x86_64-linux-gnu/qt5/plugins/platforms/libqminimalegl.so, metadata=
{
    "IID": "org.qt-project.Qt.QPA.QPlatformIntegrationFactoryInterface.5.3",
    "MetaData": {
        "Keys": [
            "minimalegl"
        ]
    },
    "archreq": 0,
    "className": "QMinimalEglIntegrationPlugin",
    "debug": false,
    "version": 331520
}


Got keys from plugin meta data ("minimalegl")
QFactoryLoader::QFactoryLoader() looking at "/usr/lib/x86_64-linux-gnu/qt5/plugins/platforms/libqoffscreen.so"
Found metadata in lib /usr/lib/x86_64-linux-gnu/qt5/plugins/platforms/libqoffscreen.so, metadata=
{
    "IID": "org.qt-project.Qt.QPA.QPlatformIntegrationFactoryInterface.5.3",
    "MetaData": {
        "Keys": [
            "offscreen"
        ]
    },
    "archreq": 0,
    "className": "QOffscreenIntegrationPlugin",
    "debug": false,
    "version": 331520
}


Got keys from plugin meta data ("offscreen")
QFactoryLoader::QFactoryLoader() looking at "/usr/lib/x86_64-linux-gnu/qt5/plugins/platforms/libqvnc.so"
Found metadata in lib /usr/lib/x86_64-linux-gnu/qt5/plugins/platforms/libqvnc.so, metadata=
{
    "IID": "org.qt-project.Qt.QPA.QPlatformIntegrationFactoryInterface.5.3",
    "MetaData": {
        "Keys": [
            "vnc"
        ]
    },
    "archreq": 0,
    "className": "QVncIntegrationPlugin",
    "debug": false,
    "version": 331520
}


Got keys from plugin meta data ("vnc")
QFactoryLoader::QFactoryLoader() looking at "/usr/lib/x86_64-linux-gnu/qt5/plugins/platforms/libqxcb.so"
Found metadata in lib /usr/lib/x86_64-linux-gnu/qt5/plugins/platforms/libqxcb.so, metadata=
{
    "IID": "org.qt-project.Qt.QPA.QPlatformIntegrationFactoryInterface.5.3",
    "MetaData": {
        "Keys": [
            "xcb"
        ]
    },
    "archreq": 0,
    "className": "QXcbIntegrationPlugin",
    "debug": false,
    "version": 331520
}


Got keys from plugin meta data ("xcb")
QFactoryLoader::QFactoryLoader() checking directory path "/opt/ros/humble/lib/rviz2/platforms" ...
loaded library "/usr/lib/x86_64-linux-gnu/qt5/plugins/platforms/libqxcb.so"
No protocol specified
qt.qpa.xcb: could not connect to display :1
qt.qpa.plugin: Could not load the Qt platform plugin "xcb" in "" even though it was found.
This application failed to start because no Qt platform plugin could be initialized. Reinstalling the application may fix this problem.

Available platform plugins are: eglfs, linuxfb, minimal, minimalegl, offscreen, vnc, xcb.

[ros2run]: Aborted

进入 Docker 终端，输入 echo $DISPLAY 查看输出的值 是否与错误中的 display 后面的值一致。
如果一致，则表示不是 DISPLAY 的问题。

2. 解决方法：

在本地终端 输入命令 ：“sudo xhost +” 回车输入密码。
再到 docker 终端运行 ros2 run rivz2 rivz2

输出内容如下：

Got keys from plugin meta data ("xcb_glx")
QFactoryLoader::QFactoryLoader() checking directory path "/opt/ros/humble/lib/rviz2/xcbglintegrations" ...
loaded library "/usr/lib/x86_64-linux-gnu/qt5/plugins/xcbglintegrations/libqxcb-glx-integration.so"
QFactoryLoader::QFactoryLoader() checking directory path "/usr/lib/x86_64-linux-gnu/qt5/plugins/accessible" ...
QFactoryLoader::QFactoryLoader() checking directory path "/opt/ros/humble/lib/rviz2/accessible" ...
[INFO] [1707198676.391043318] [rviz2]: Stereo is NOT SUPPORTED
[INFO] [1707198676.391141640] [rviz2]: OpenGl version: 4.6 (GLSL 4.6)
[INFO] [1707198676.447671021] [rviz2]: Stereo is NOT SUPPORTED
QFactoryLoader::QFactoryLoader() checking directory path "/usr/lib/x86_64-linux-gnu/qt5/plugins/accessiblebridge" ...
QFactoryLoader::QFactoryLoader() checking directory path "/opt/ros/humble/lib/rviz2/accessiblebridge" ...
QLibraryPrivate::unload succeeded on "/usr/lib/x86_64-linux-gnu/qt5/plugins/xcbglintegrations/libqxcb-glx-integration.so"
QLibraryPrivate::unload succeeded on "/usr/lib/x86_64-linux-gnu/qt5/plugins/imageformats/libqgif.so"
QLibraryPrivate::unload succeeded on "/usr/lib/x86_64-linux-gnu/qt5/plugins/imageformats/libqico.so"
QLibraryPrivate::unload succeeded on "/usr/lib/x86_64-linux-gnu/qt5/plugins/imageformats/libqjpeg.so"
QLibraryPrivate::unload succeeded on "/usr/lib/x86_64-linux-gnu/qt5/plugins/imageformats/libqsvg.so"
QLibraryPrivate::unload succeeded on "/usr/lib/x86_64-linux-gnu/qt5/plugins/platforminputcontexts/libcomposeplatforminputcontextplugin.so"
QLibraryPrivate::unload succeeded on "/usr/lib/x86_64-linux-gnu/qt5/plugins/platforms/libqxcb.so"
QLibraryPrivate::unload succeeded on "Xcursor" (faked)

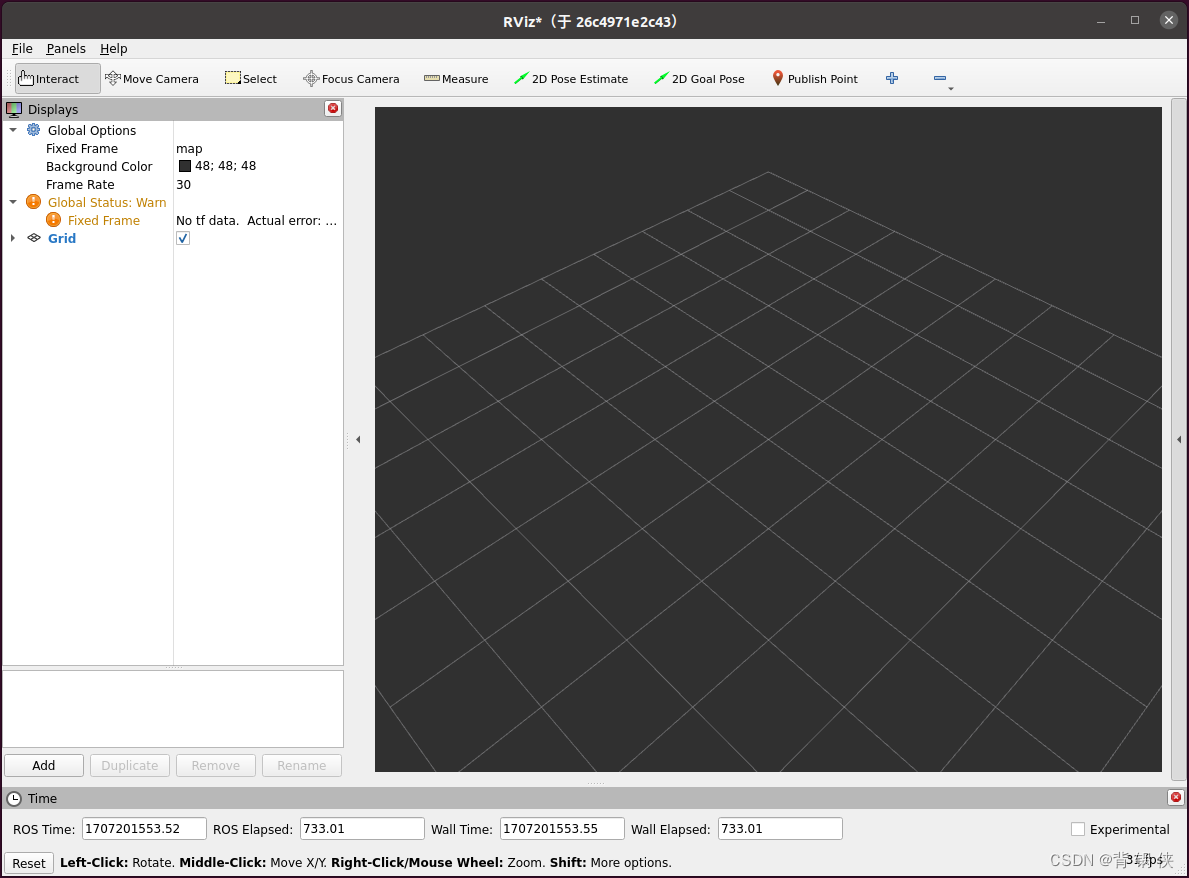

rivz2 的界面终于显示出来了。

xhost命令的基本用法 ：
*****************************************************
xhost命令的基本用法非常简单，只需要在终端中输入以下命令：xhost +

执行这个命令后，就会允许所有主机访问当前X服务器。
如果想要限制访问的主机，可以使用以下命令 ：xhost -hostname
hostname 是要限制访问的主机名或IP地址。


xhost 命令的注意事项 ：
*****************************************************
在使用 xhost 命令时，需要注意以下几点 ：
1. xhost 命令只能在图形界面下使用，如果在终端中使用会提示错误。
2. 在执行 xhost 命令时，需要以 root 用户身份执行。
3. 在允许所有主机访问当前系统的 X 服务器时，需要特别注意安全问题。

再启动 rqt 也正常了，如下图所示 :
