一、开源链接

        开源代码： https://github.com/isaac-sim/IsaacLab/tree/v2.0.0
        版本：v2.0.0
        SHA：157a19e29b0dcafd87abbdad6f2e9428df3f09be

英文文档链接：https://isaac-sim.github.io/IsaacLab/main/source/setup/installation/pip_installation.html#installing-isaac-lab
中文文档链接：https://docs.robotsfan.com/isaaclab/source/setup/installation/pip_installation.html

注意，开始该系列博客之前，请参考链接搭建好 isaac-sim 环境：https://blog.csdn.net/weixin_43013761/article/details/144299459

二、终端环境搭建

其实官方文档中已经有很详细的安装说了，且对多种安装方式都进行了介绍，这里主要是记录下来个人使用，备忘用的。首先需要根据【03.isaac-sim】最新从零无死角系列-(00) 目录最新无死角环境搭建与仿真模拟及源码讲解中的介绍，把 isaac-sim 安装好。本人安装 isaac-sim 是使用 doker 的方式。所以下面的操作都是在 docker 中进行操作。

本人主要参考文件为 https://docs.robotsfan.com/isaaclab/source/setup/installation/pip_installation.html，下面是个人安装记录。

$\color{red}注意$ 本人此时搭建环境， isaac-lab 最新版本为 v2.0.0，若出现更新版本，应以对应指导文档为主。

1.源码 clone

首先进入到已经安装好 isaac-sim 的 dokcer 容器。如本人执行如下指令：

docker exec -it isaac-sim /bin/bash # 进入容器

其上 isaac-sim 就是本人搭建好 isaac-sim 的docker 容器。接着随便选择一个目录，如本人用于项目的目录为：

cd /work/01.zhuwenhai/00.mywork/01.ReinforcementLearning/isaac-lab # 进入工作目录

进入到该目录后就是 clone 源码了，直接执行如下指令：

git clone https://github.com/isaac-sim/IsaacLab.git  --recurse-submodules
# 本人此时搭建环境， isaac-lab 最新版本为 v2.0.0，若出现更新版本，建议安装最新版本
git checkout v2.0.0

2.conda 环境

首先进入到 IsaacLab 目录之中，然后执行如下指令即可，随着 IsaacLab 版本不一样，torch 略有变化，请注意：

conda create -n isaaclab-pt2.5.1-py3.10 python=3.10
conda activate isaaclab-pt2.5.1-py3.10
pip install torch==2.5.1 --index-url https://download.pytorch.org/whl/cu118
apt install cmake build-essential
./isaaclab.sh --install # 自动安装python相关环境包

3.环境验证

环境搭建完成之后，通过如下指令验证环境是否安装成功：

    python scripts/tutorials/00_sim/create_empty.py

若是报错如下：

Traceback (most recent call last):
  File "/work/01.zhuwenhai/00.mywork/01.ReinforcementLearning/isaac-lab/IsaacLab/source/standalone/tutorials/00_sim/create_empty.py", line 20, in <module>
    from omni.isaac.lab.app import AppLauncher
  File "/work/01.zhuwenhai/00.mywork/01.ReinforcementLearning/isaac-lab/IsaacLab/source/extensions/omni.isaac.lab/omni/isaac/lab/app/__init__.py", line 15, in <module>
    from .app_launcher import AppLauncher  # noqa: F401, F403
  File "/work/01.zhuwenhai/00.mywork/01.ReinforcementLearning/isaac-lab/IsaacLab/source/extensions/omni.isaac.lab/omni/isaac/lab/app/app_launcher.py", line 26, in <module>
    from omni.isaac.kit import SimulationApp

那么需要先如下执行指令(在重复前面的指令)：

# 此处卡主，则需连接外网
source /isaac-sim/setup_conda_env.sh # 激活 isaac-sim 环境

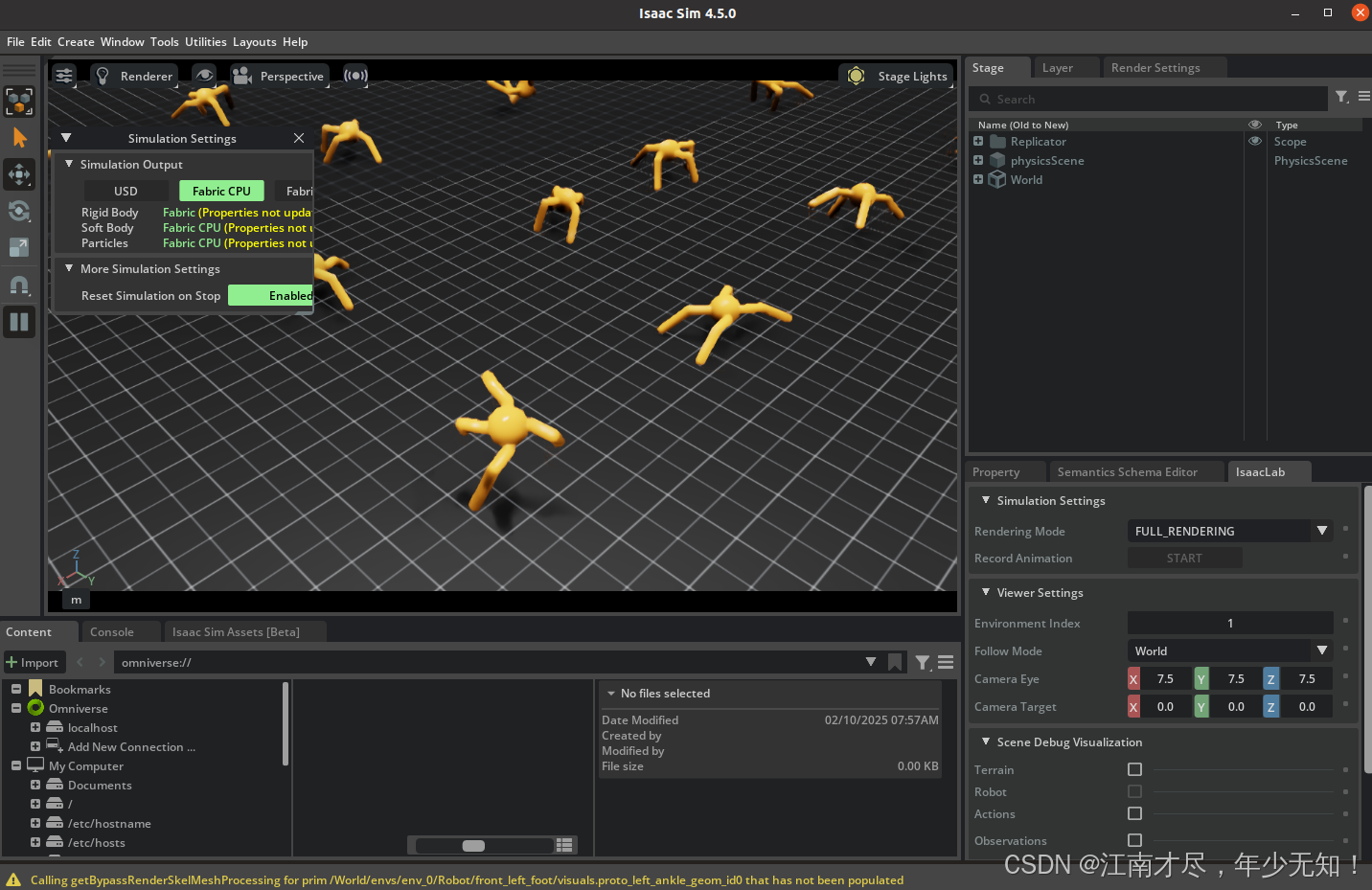

也可执行如下带界面的训练指令：

# 若是报错 ModuleNotFoundError: No module named 'rsl_rl'
# 则执行 pip install rsl-rl-lib

python  scripts/reinforcement_learning/rsl_rl/train.py --task=Isaac-Ant-v0

python  scripts/reinforcement_learning/rsl_rl/train.py --task=Isaac-Velocity-Rough-Anymal-C-v0

若卡住，请连接外网

在这里插入图片描述

三、VScode 环境指导

关于VScode 相关配置，本人参考 https://docs.robotsfan.com/isaaclab/source/overview/developer-guide/vs_code.html，下面是本人的个人使用记录。

1.基本配置

首先第一步当然是通过 vsode 打开代码所在目录。然后检查 .vsode 目录，正常应该结构如下：

.vscode
├── tools
│   ├── launch.template.json
│   ├── settings.template.json
│   └── setup_vscode.py
├── extensions.json
├── launch.json  # <- this is generated by setup_vscode.py
├── settings.json  # <- this is generated by setup_vscode.py
└── tasks.json

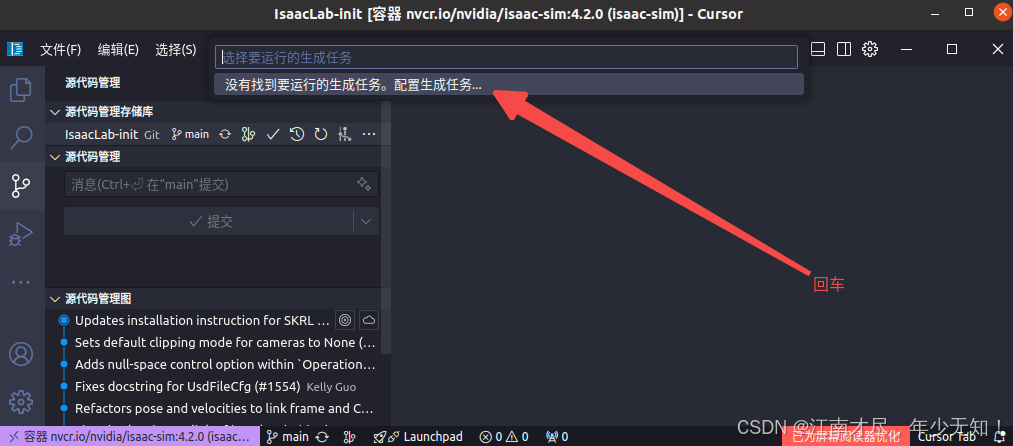

运行 VSCode Tasks ，通过按下 ${\color{blue}Ctrl+Shift+P}$ ，选择 Tasks: Run Task 并在下拉菜单中运行 ${\color{blue}setup\_python\_env}$ 。
在这里插入图片描述

本人终端保存如下：

INFO] Using python from: /root/anaconda3/envs/isaaclab-pt2.4.0-py3.10/bin/python
Traceback (most recent call last):
  File "/work/01.zhuwenhai/00.mywork/01.ReinforcementLearning/isaac-lab/IsaacLab-init/.vscode/tools/setup_vscode.py", line 38, in <module>
    raise FileNotFoundError(
FileNotFoundError: Could not find the isaac-sim directory: /work/01.zhuwenhai/00.mywork/01.ReinforcementLearning/isaac-lab/IsaacLab-init/_isaac_sim. There are two possible reasons for this:
    1. The Isaac Sim directory does not exist as a symlink at: /work/01.zhuwenhai/00.mywork/01.ReinforcementLearning/isaac-lab/IsaacLab-init/_isaac_sim
    2. The script could import the 'isaacsim' package. This could be due to the 'isaacsim' package not being installed in the Python environment.

Please make sure that the Isaac Sim directory exists or that the 'isaacsim' package is installed.

根据提示，可以创建一个软连接，连接到 isaac-sim 的目录，本人 isaac-sim 所在目录为 /isaac-sim，故执行如下指令：

ln -s /isaac-sim _isaac_sim # 需在 IsaacLab 目录下运行

source /isaac-sim/setup_conda_env.sh # 修改该 ~/.bashrc 文件，在末尾添加如下脚本

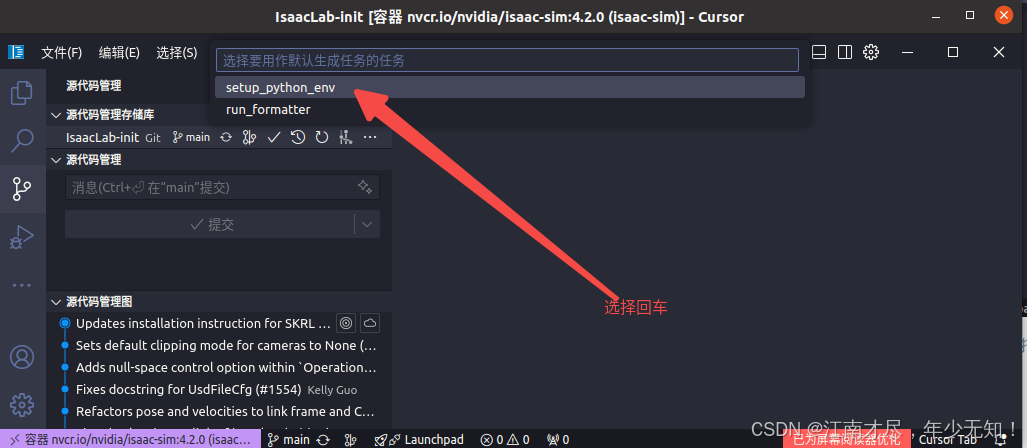

然后再重复前面操作 Tasks: Run Task 并在下拉菜单中运行 ${\color{blue}setup\_python\_env}$ ，如果一切执行正确，它应该创建以下文件:

.vscode/launch.json: 包含用于调试 python 代码的启动配置。
.vscode/settings.json: 包含 python 解释器和 python 环境的设置。

有关 VSCode 对 Omniverse 的支持的更多信息，请参考以下链接:

Isaac Sim VSCode 支持
 使用 VSCode 进行调试

在提供的配置中，我们将默认的 python 解释器设置为使用 Omniverse 提供的 python 可执行文件。这在 .vscode/settings.json 文件中指定:

{
   "python.defaultInterpreterPath": "${workspaceFolder}/_isaac_sim/python.sh",
}

如果你想使用不同的 python 解释器（例如，从你的 conda 环境），你需要通过选择并激活你在 VSCode 左下角选择的 python 解释器来更改使用的 python 解释器，或者打开命令面板（ ${\color{blue}Ctrl+Shift+P}$ ）并选择 ${\color{blue}Python: Select ~Interpreter}$ 。

2.vscode 训练(train)

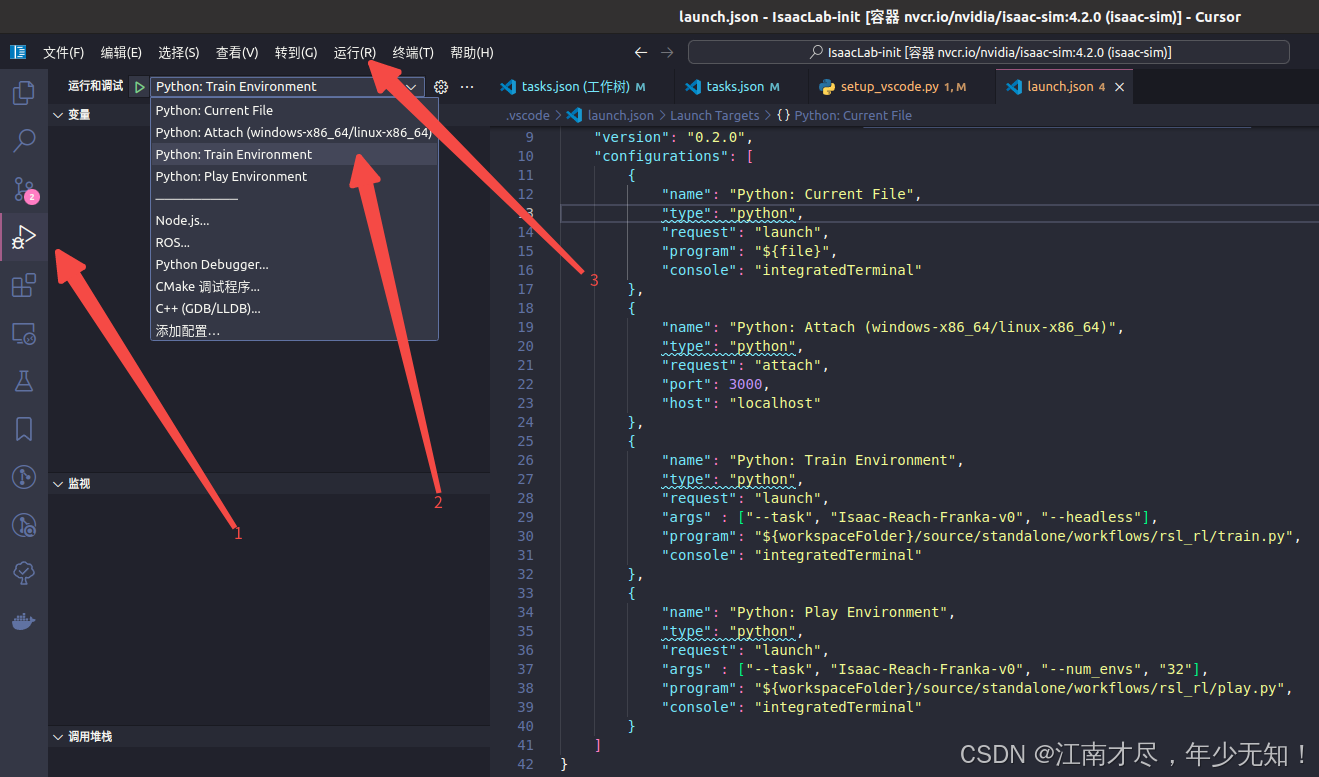

上述操作完成之后，执行如下三个操作：
在这里插入图片描述

错误1

该错误是因为新版本 .vscode/launch.json 文件未修改该导致：

FileNotFoundError: [Errno 2] No such file or directory: '/work/01.zhuwenhai/00.mywork/01.ReinforcementLearning/isaac-lab/IsaacLab/source/standalone/workflows/rsl_rl/train.py'

解决方案

修改 IsaacLab/.vscode/launch.json 文件中L
	${workspaceFolder}/source/standalone/workflows/rsl_rl/train.py
为
	${workspaceFolder}/scripts/reinforcement_learning/rsl_rl/train.py

修改 IsaacLab/.vscode/tools/launch.template.json 文件中L
	${workspaceFolder}/source/standalone/workflows/rsl_rl/play.py
为
	${workspaceFolder}/scripts/reinforcement_learning/rsl_rl/play.py

错误2

同前面终端训练报错一样：

No module named 'omni.isaac.kit'
  File "/work/01.zhuwenhai/00.mywork/01.ReinforcementLearning/isaac-lab/IsaacLab/source/extensions/omni.isaac.lab/omni/isaac/lab/app/app_launcher.py", line 26, in <module>
    from omni.isaac.kit import SimulationApp
  File "/work/01.zhuwenhai/00.mywork/01.ReinforcementLearning/isaac-lab/IsaacLab/source/extensions/omni.isaac.lab/omni/isaac/lab/app/__init__.py", line 15, in <module>
    from .app_launcher import AppLauncher  # noqa: F401, F403
  File "/work/01.zhuwenhai/00.mywork/01.ReinforcementLearning/isaac-lab/IsaacLab-init/source/standalone/workflows/rsl_rl/train.py", line 13, in <module>
    from omni.isaac.lab.app import AppLauncher
ModuleNotFoundError: No module named 'omni.isaac.kit'

本人的解决方案为修改该 ~/.bashrc 文件，在末尾添加如下脚本：

source /isaac-sim/setup_conda_env.sh

错误3

然后重启vsode且重新前面的操作即可进行训练，有朋友如果没有设置好资源可能会卡很久然后输出如下打印：

2024-12-21 11:21:11 [221,427ms] [Warning] [omni.usd] Warning: in _ReportErrors at line 2890 of /builds/omniverse/usd-ci/USD/pxr/usd/usd/stage.cpp -- In </World/envs/env_0/Robot>: Could not open asset @http://omniverse-content-production.s3-us-west-2.amazonaws.com/Assets/Isaac/4.2/Isaac/IsaacLab/Robots/FrankaEmika/panda_instanceable.usd@ for reference introduced by @anon:0xa05a150:World0.usd@</World/envs/env_0/Robot>. (recomposing stage on stage @anon:0xa05a150:World0.usd@ <0xa05f0d0>)

2024-12-21 11:21:11 [221,551ms] [Warning] [omni.isaac.lab.sim.utils] Could not perform 'modify_rigid_body_properties' on any prims under: '/World/envs/env_0/Robot'. This might be because of the following reasons:
        (1) The desired attribute does not exist on any of the prims.
        (2) The desired attribute exists on an instanced prim.
                Discovered list of instanced prim paths: []
2024-12-21 11:21:11 [221,551ms] [Warning] [omni.isaac.lab.sim.utils] Could not perform 'modify_articulation_root_properties' on any prims under: '/World/envs/env_0/Robot'. This might be because of the following reasons:
        (1) The desired attribute does not exist on any of the prims.
        (2) The desired attribute exists on an instanced prim.
                Discovered list of instanced prim paths: []
2024-12-21 11:25:31 [482,077ms] [Warning] [omni.usd] Warning: in _ReportErrors at line 2890 of /builds/omniverse/usd-ci/USD/pxr/usd/usd/stage.cpp -- In </World/ground>: Could not open asset @http://omniverse-content-production.s3-us-west-2.amazonaws.com/Assets/Isaac/4.2/Isaac/Environments/Grid/default_environment.usd@ for reference introduced by @anon:0xa05a150:World0.usd@</World/ground>. (recomposing stage on stage @anon:0xa05a150:World0.usd@ <0xa05f0d0>)

[INFO]: Time taken for scene creation : 478.018777 seconds
Error executing job with overrides: []
Traceback (most recent call last):
  File "/work/01.zhuwenhai/00.mywork/01.ReinforcementLearning/isaac-lab/IsaacLab/source/extensions/omni.isaac.lab_tasks/omni/isaac/lab_tasks/utils/hydra.py", line 99, in hydra_main
    func(env_cfg, agent_cfg, *args, **kwargs)
  File "/work/01.zhuwenhai/00.mywork/01.ReinforcementLearning/isaac-lab/IsaacLab-init/source/standalone/workflows/rsl_rl/train.py", line 101, in main
    env = gym.make(args_cli.task, cfg=env_cfg, render_mode="rgb_array" if args_cli.video else None)
  File "/isaac-sim/exts/omni.isaac.ml_archive/pip_prebundle/gymnasium/envs/registration.py", line 802, in make
    env = env_creator(**env_spec_kwargs)
  File "/work/01.zhuwenhai/00.mywork/01.ReinforcementLearning/isaac-lab/IsaacLab/source/extensions/omni.isaac.lab/omni/isaac/lab/envs/manager_based_rl_env.py", line 76, in __init__
    super().__init__(cfg=cfg)
  File "/work/01.zhuwenhai/00.mywork/01.ReinforcementLearning/isaac-lab/IsaacLab/source/extensions/omni.isaac.lab/omni/isaac/lab/envs/manager_based_env.py", line 122, in __init__
    self.scene = InteractiveScene(self.cfg.scene)
  File "/work/01.zhuwenhai/00.mywork/01.ReinforcementLearning/isaac-lab/IsaacLab/source/extensions/omni.isaac.lab/omni/isaac/lab/scene/interactive_scene.py", line 150, in __init__
    self._add_entities_from_cfg()
  File "/work/01.zhuwenhai/00.mywork/01.ReinforcementLearning/isaac-lab/IsaacLab/source/extensions/omni.isaac.lab/omni/isaac/lab/scene/interactive_scene.py", line 615, in _add_entities_from_cfg
    asset_cfg.spawn.func(
  File "/work/01.zhuwenhai/00.mywork/01.ReinforcementLearning/isaac-lab/IsaacLab/source/extensions/omni.isaac.lab/omni/isaac/lab/sim/spawners/from_files/from_files.py", line 145, in spawn_ground_plane
    collision_prim_path = prim_utils.get_prim_path(
  File "/isaac-sim/exts/omni.isaac.core/omni/isaac/core/utils/prims.py", line 612, in get_prim_path
    return prim.GetPath()
AttributeError: 'NoneType' object has no attribute 'GetPath'

那么可以参考博客：【03.issa-sim】最新从零无死角系列-(02) isaac-sim 之 Nucleus 与纯本地(无外网) 部署，资源(Assets)获取，无遗漏，各种疑难杂症处理搭建本地服务。其实上面的报错存在如下：

Could not open asset @http://omniverse-content-production.s3-us-west-2.amazonaws.com/Assets/Isaac/4.2/Isaac/Environments/Grid/default_environment.usd

所以其本质原因是无法加载这个 usd，在启动的时候注意到如下打印：

(isaaclab-py3.10) root@ub20-04:/work/01.zhuwenhai/00.mywork/01.ReinforcementLearning/isaac-lab/IsaacLab#  /usr/bin/env /root/anaconda3/envs/isaaclab-py3.10/bin/python /root/.cursor-server/extensions/ms-python.debugpy-2024.6.0-linux-x64/bundled/libs/debugpy/adapter/../../debugpy/launcher 50631 -- /work/01.zhuwenhai/00.mywork/01.ReinforcementLearning/isaac-lab/IsaacLab/source/standalone/workflows/rsl_rl/play.py --task Isaac-Velocity-Rough-Unitree-Go2-v0 --num_envs 32
[INFO][AppLauncher]: Loading experience file: /work/01.zhuwenhai/00.mywork/01.ReinforcementLearning/isaac-lab/IsaacLab/source/apps/isaaclab.python.kit
Loading user config located at: '/isaac-sim/kit/data/Kit/Isaac-Sim/4.2/user.config.json'
[Info] [carb] Logging to file: /isaac-sim/kit/logs/Kit/Isaac-Sim/4.2/kit_20241221_203017.log

如本人这里为 /isaac-sim/kit/data/Kit/Isaac-Sim/4.2/user.config.json(该文件貌似会被 /root/.local/share/ov/data/Kit/Isaac-Sim/4.2/user.config.json 覆盖，所以应该修改后者，或者两个都修改一下)，打开后者文件，搜索 asset_root，如下所示：

	"isaac": {
	    "asset_root": {
	        "default": "http://omniverse-content-production.s3-us-west-2.amazonaws.com/Assets/Isaac/4.2",
	        "nvidia": "http://omniverse-content-production.s3-us-west-2.amazonaws.com/Assets/Isaac/4.2",
	        "isaac": "omniverse://localhost/NVIDIA/Assets/Isaac/4.2/Isaac",
	        "cloud": "http://omniverse-content-production.s3-us-west-2.amazonaws.com/Assets/Isaac/4.2",
	        "timeout": 5.0
	    }
	},

本人搭建本服务之后，如下所示：

    "isaac": {
        "asset_root": {
            "nvidia": "omniverse://localhost/NVIDIA",
            "isaac": "omniverse://localhost/NVIDIA/Assets/Isaac/4.2/Isaac",
            "cloud": "http://omniverse-content-production.s3-us-west-2.amazonaws.com/Assets/Isaac/4.2",
            "timeout": 5.0,
            "default": "/work/系统环境软件备份/01.编程软件/ISSAC-SIM/isaac/Assets/Isaac/4.2"
        }
    },

于源码中搜索 http://omniverse-content-production.s3-us-west-2.amazonaws.com/Assets/Isaac/4.2/，可在 source/extensions/omni.isaac.lab/omni/isaac/lab/app/app_launcher.py 中发现如下代码：

assets_path = "http://omniverse-content-production.s3-us-west-2.amazonaws.com/Assets/Isaac/4.2"

把其修改为本地云服务器路径，或者纯本地服务的绝对路径，如下二选一即可(本人如下，推荐后者)：

# 本地云
assets_path = "omniverse://localhost/NVIDIA/Assets/Isaac/4.2"

# 本地绝对路径(需下载资源包),换成你个人的
assets_path = "/work/系统环境软件备份/01.编程软件/ISSAC-SIM/isaac/Assets/Isaac/4.2"

若以上方式都未解决，那么就需要外网，且需要修改 .vscode/settings.json 文件，添加如下内容(该得自行百度)：

"http.proxy": "http://127.0.0.1:7890",
"http.proxyStrictSSL": false, // 如果代理使用自签名证书，请将此选项设置为 true，否则设置为 false

通过上面操作，如果正常训练，输出大致如下:

################################################################################
                       Learning iteration 0/1500

                       Computation: 20672 steps/s (collection: 4.537s, learning 0.218s)
               Value function loss: 0.0956
                    Surrogate loss: 0.0158
             Mean action noise std: 1.00
                       Mean reward: -0.48
               Mean episode length: 11.88
Episode_Reward/track_lin_vel_xy_exp: 0.0039
Episode_Reward/track_ang_vel_z_exp: 0.0024
       Episode_Reward/lin_vel_z_l2: -0.0140
      Episode_Reward/ang_vel_xy_l2: -0.0078
     Episode_Reward/dof_torques_l2: -0.0014
         Episode_Reward/dof_acc_l2: -0.0054
     Episode_Reward/action_rate_l2: -0.0029
      Episode_Reward/feet_air_time: -0.0000
Episode_Reward/flat_orientation_l2: 0.0000
         Curriculum/terrain_levels: 3.5267
Metrics/base_velocity/error_vel_xy: 0.0175
Metrics/base_velocity/error_vel_yaw: 0.0207
      Episode_Termination/time_out: 3.9167
  Episode_Termination/base_contact: 0.0000
--------------------------------------------------------------------------------
                   Total timesteps: 98304
                    Iteration time: 4.76s
                        Total time: 4.76s
                               ETA: 7132.9s
```Curriculum/terrain_levels: 3.5267
Metrics/base_velocity/error_vel_xy: 0.0175
Metrics/base_velocity/error_vel_yaw: 0.0207
      Episode_Termination/time_out: 3.9167
  Episode_Termination/base_contact: 0.0000
--------------------------------------------------------------------------------
                   Total timesteps: 98304
                    Iteration time: 4.76s
                        Total time: 4.76s
                               ETA: 7132.9s

3.vscode 播放(play)

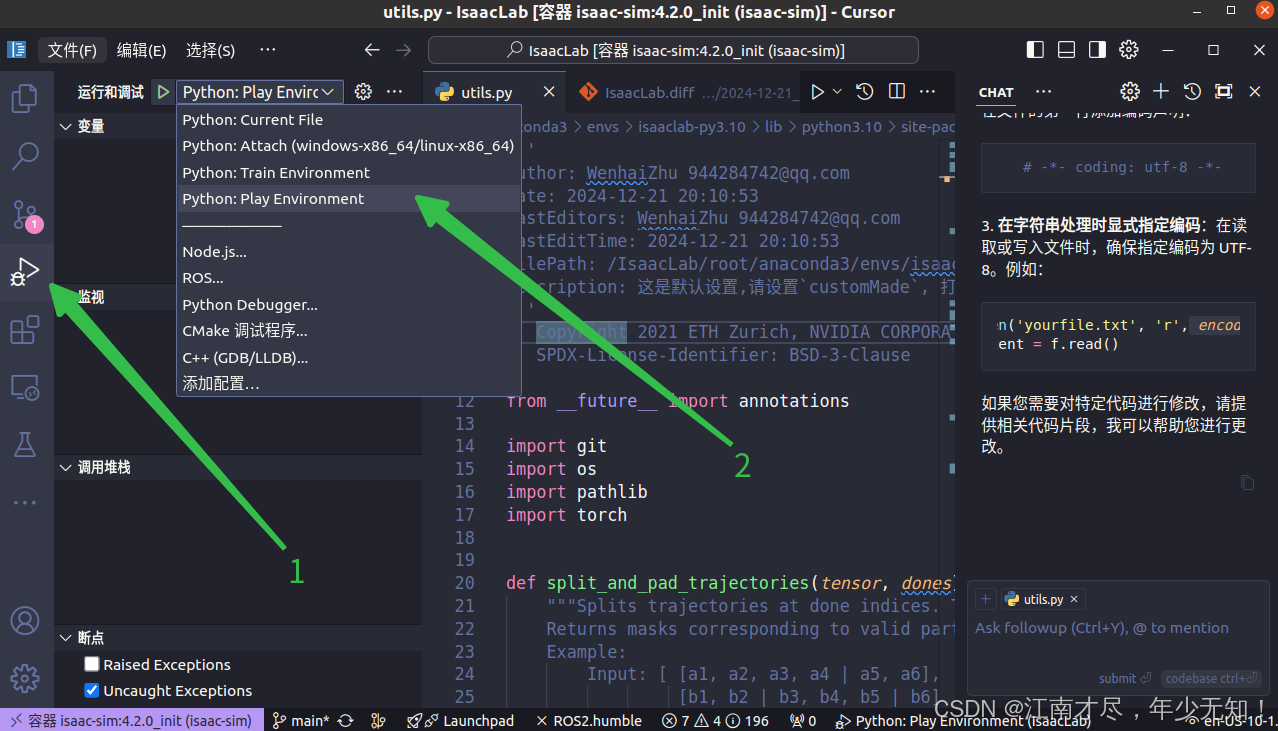

训练一段时间后，通过如下选择其会自动加载模型可视化播放效果：
在这里插入图片描述

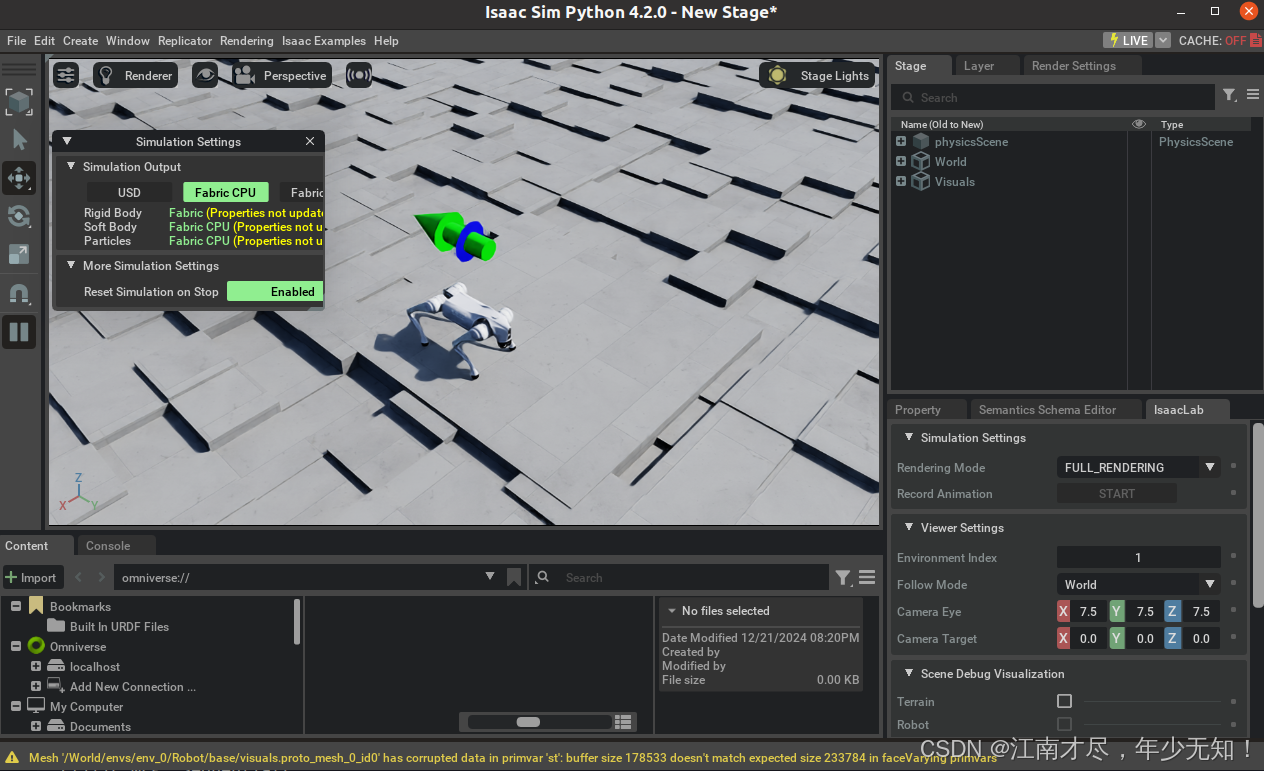

本人显示如下(训练脚本本人做了修改，所以训练机器狗，后面有贴出)：

本人修改 .vscode/launch.json 内容如下：

	......
    {
        "name": "Python: Train Environment",
        "type": "python",
        "request": "launch",
        "args" : ["--task", "Isaac-Velocity-Rough-Unitree-Go2-v0", "--headless"],
        "program": "${workspaceFolder}/source/standalone/workflows/rsl_rl/train.py",
        "console": "integratedTerminal"
    },
    {
        "name": "Python: Play Environment",
        "type": "python",
        "request": "launch",
        "args" : ["--task", "Isaac-Velocity-Rough-Unitree-Go2-v0", "--num_envs", "32"],
        "program": "${workspaceFolder}/source/standalone/workflows/rsl_rl/play.py",
        "console": "integratedTerminal"
    }
