本篇是对UVM设计模式 ( 二 ) 参数化类、静态变量/方法/类、单例模式、UVM_ROOT、工厂模式、UVM_FACTORY中单例模式的补充，分析静态类的使用，UVM中资源池的实现，uvm_config_db的使用。
Static class
Systemverilog中可以使用static修饰变量，方法，得到静态变量和静态函数。static也可以直接修饰class，获得静态类。但是static class class_name .... endclass这种直接定义一个静态类的方式是不允许的，只可以在一个class的内部，通过static class_name的方式声明一个静态类。这一点SV与Jave相同。（🔗Java中的 static class)
静态类的特征：
- 相比
automatic class, 静态类被new创建后，其对应的内存空间一直存在，伴随仿真结束。配合单例模式使用，则是全局唯一类的实例，可以被当作全局变量使用。 - 相比静态变量，静态类可以封装更多内容，充当资源容器的角色。
所以UVM中对全局的资源管理，都是通过静态类实现的。
uvm_pool
uvm_pool#(type KEY=int, T=uvm_void)是一个参数化的类，相当于SV中的联合数组。参数KEY是联合数组的索引，参数T是联合数组存储的变量类型。uvm_pool封装了原有联合数组的操作方法，供访问内部的联合数组pool。
m_global_pool是uvm_pool #(KEY, T)类型的静态类，通过静态方法get_global_pool可以获得唯一的实例。
uvm_queue #(T)和uvm_pool#(type KEY=int, T=uvm_void)类似，实现一个class-based dynamic queue.
# uvm_pool.svh
class uvm_pool #(type KEY=int, T=uvm_void) extends uvm_object;
const static string type_name = "uvm_pool";
typedef uvm_pool #(KEY,T) this_type;
static protected this_type m_global_pool;
protected T pool[KEY];
// Function: new
// Creates a new pool with the given ~name~.
function new (string name="");
super.new(name);
endfunction
// Function: get_global_pool
// Returns the singleton global pool for the item type, T.
// This allows items to be shared amongst components throughout the
// verification environment.
static function this_type get_global_pool ();
if (m_global_pool==null)
m_global_pool = new("pool");
return m_global_pool;
endfunction
// Function: get_global
// Returns the specified item instance from the global item pool.
static function T get_global (KEY key);
this_type gpool;
gpool = get_global_pool();
return gpool.get(key);
endfunction
// Function: get
// Returns the item with the given ~key~.
// If no item exists by that key, a new item is created with that key
// and returned.
virtual function T get (KEY key);
if (!pool.exists(key)) begin
T default_value;
pool[key] = default_value;
end
return pool[key];
endfunction
virtual function void add (KEY key, T item);
pool[key] = item;
endfunction
virtual function int num ();
return pool.num();
endfunction
......
......
......
endclass
uvm_event_pool
uvm_object_string_pool的KEY是string类型。
uvm_event_pool由uvm_object_string_pool #(uvm_event)声明，KEY是string类型，T是uvm_event类型。
uvm_event是sv中event的class warpper，内建了很多方法。
# uvm_pool.svh
class uvm_object_string_pool #(type T=uvm_object) extends uvm_pool #(string,T);
......
typedef class uvm_barrier;
typedef class uvm_event;
typedef uvm_object_string_pool #(uvm_barrier) uvm_barrier_pool;
typedef uvm_object_string_pool #(uvm_event) uvm_event_pool;
# uvm_event.svh
//------------------------------------------------------------------------------
// CLASS: uvm_event
// The uvm_event class is a wrapper class around the SystemVerilog event
// construct. It provides some additional services such as setting callbacks
// and maintaining the number of waiters.
//------------------------------------------------------------------------------
class uvm_event extends uvm_object;
const static string type_name = "uvm_event";
local event m_event;
local int num_waiters;
local bit on;
local time trigger_time=0;
local uvm_object trigger_data;
local uvm_event_callback callbacks[$];
function new (string name="");
super.new(name);
endfunction
......
......
......
virtual task wait_on (bit delta=0);
virtual task wait_off (bit delta=0);
virtual task wait_trigger ();
virtual task wait_ptrigger ();
virtual task wait_trigger_data (output uvm_object data);
virtual task wait_ptrigger_data (output uvm_object data);
virtual function void trigger (uvm_object data=null);
virtual function uvm_object get_trigger_data ();
virtual function time get_trigger_time ();
virtual function void add_callback (uvm_event_callback cb, bit append=1);
virtual function int get_num_waiters ();
......
endclass : uvm_event
使用
uvm_event_pool作为全局唯一的uvm_evnet的资源池，可以在不同component中调用，实现事件的同步功能。
比如sequence和scoreboard需要通过event来握手：
# event_sequence.sv
class event_sequence extends uvm_sequence;
......
uvm_event_pool events_pool;
uvm_event sync_e;
......
function new (string name = "event_sequence");
events_pool = uvm_event_pool::get_global_pool();
sync_e = events_pool.get("sync_e");
// 也可以直接调用 sync_e = uvm_event_pool::get_global("sync_e")；
endfunction
......
virtual task body();
......
sync_e.trigger();
......
endtask
endclass
# event_scb.sv
class event_scb extends uvm_scoreboard;
......
uvm_event_pool events_pool;
uvm_event sync_e;
......
function new (string name = "event_sequence");
events_pool = uvm_event_pool::get_global_pool();
sync_e = events_pool.get("sync_e");
endfunction
......
virtual task wait_sync_e();
......
sync_e.wait_trigger();
......
endtask
endclass
无论是uvm_component还是uvm_object，是否在同一个package中，都可以通过uvm_evnet_pool::get_global_pool()获得全局唯一的uvm_event资源池。
上述的uvm_event并不需要new(),因为调用get()函数时会自动创建：
# uvm_object_string_pool #(uvm_event)
// Function: get
// Returns the object item at the given string ~key~.
// If no item exists by the given ~key~, a new item is created for that key
// and returned.
virtual function T get (string key);
if (!pool.exists(key))
pool[key] = new (key);
return pool[key];
endfunction
uvm_event不仅可以用于event同步，也可以传递一些简单的数据。提供了两个方法：wait_trigger_data (output uvm_object data) trigger (uvm_object data)，可以传递uvm_object类型的数据。也可以add_callback加入回调函数。🔗 uvm_event
uvm中还提供了uvm_barrier用于多个组件之间的同步，uvm_barrier_pool存放所有的uvm_barrier。
uvm_config_db
结构
uvm_resource#(type T): 各类资源（scalar objects class handles queues lists virtual interfaces 等）的一个wrapper，内部成员变量val是一个type T类型的句柄，通过调用write函数，将val指向资源的实例（ !!! 对于class handles virtual interfaces，val看作句柄指向实例；对于 queues lists等，val是被直接赋值 !!!）。set函数将uvm_resource加入全局资源池uvm_resources。
class uvm_resource #(type T=int) extends uvm_resource_base;
typedef uvm_resource#(T) this_type;
// singleton handle that represents the type of this resource
static this_type my_type = get_type();
// Can't be rand since things like rand strings are not legal.
protected T val;
......
// Function: get_type
// Static function that returns the static type handle. The return
// type is this_type, which is the type of the parameterized class.
static function this_type get_type();
if(my_type == null)
my_type = new();
return my_type;
endfunction
......
// Function: set
// Simply put this resource into the global resource pool
function void set();
uvm_resource_pool rp = uvm_resource_pool::get();
rp.set(this);
endfunction
......
// Function: write
// Modify the object stored in this resource container. If the
// resource is read-only then issue an error message and return
// without modifying the object in the container. If the resource is
// not read-only and an ~accessor~ object has been supplied then also
// update the accessor record. Lastly, replace the object value in
// the container with the value supplied as the argument, ~t~, and
// release any processes blocked on
// <uvm_resource_base::wait_modified>. If the value to be written is
// the same as the value already present in the resource then the
// write is not done. That also means that the accessor record is not
// updated and the modified bit is not set.
function void write(T t, uvm_object accessor = null);
if(is_read_only()) begin
uvm_report_error("resource", $sformatf("resource %s is read only -- cannot modify", get_name()));
return;
end
// Set the modified bit and record the transaction only if the value
// has actually changed.
if(val == t)
return;
record_write_access(accessor);
// set the value and set the dirty bit
val = t;
modified = 1;
endfunction
......
uvm_resource_pool: 存放所有的uvm_resource, 全局唯一的实例uvm_resources。
uvm_resource_pool::get()得到uvm_resources。（注意： 这里的 new函数使用了local修饰，而uvm_event_pool中的 new没有被 local修饰。所以 uvm_resource_pool和 uvm_root拥有真正的全局唯一实例，而uvm_event_pool可以在外部手动 new创建多个实例。）
rtab[string] ttab[uvm_resource_base]分别以name type为索引存放uvm_resource。
//----------------------------------------------------------------------
// Class: uvm_resource_pool
//
// The global (singleton) resource database.
//
// Each resource is stored both by primary name and by type handle. The
// resource pool contains two associative arrays, one with name as the
// key and one with the type handle as the key. Each associative array
// contains a queue of resources. Each resource has a regular
// expression that represents the set of scopes over with it is visible.
//
//| +------+------------+ +------------+------+
//| | name | rsrc queue | | rsrc queue | type |
//| +------+------------+ +------------+------+
//| | | | | | |
//| +------+------------+ +-+-+ +------------+------+
//| | | | | | |<--+---* | T |
//| +------+------------+ +-+-+ +-+-+ +------------+------+
//| | A | *---+-->| | | | | | |
//| +------+------------+ +-+-+ | +------------+------+
//| | | | | | | | |
//| +------+------------+ +-------+ +-+ +------------+------+
//| | | | | | | | |
//| +------+------------+ | | +------------+------+
//| | | | V V | | |
//| +------+------------+ +------+ +------------+------+
//| | | | | rsrc | | | |
//| +------+------------+ +------+ +------------+------+
//
// The above diagrams illustrates how a resource whose name is A and
// type is T is stored in the pool. The pool contains an entry in the
// type map for type T and an entry in the name map for name A. The
// queues in each of the arrays each contain an entry for the resource A
// whose type is T. The name map can contain in its queue other
// resources whose name is A which may or may not have the same type as
// our resource A. Similarly, the type map can contain in its queue
// other resources whose type is T and whose name may or may not be A.
//
// Resources are added to the pool by calling <set>; they are retrieved
// from the pool by calling <get_by_name> or <get_by_type>. When an object
// creates a new resource and calls <set> the resource is made available to be
// retrieved by other objects outside of itsef; an object gets a
// resource when it wants to access a resource not currently available
// in its scope.
//----------------------------------------------------------------------
// static global resource pool handle
//----------------------------------------------------------------------
const uvm_resource_pool uvm_resources = uvm_resource_pool::get();
class uvm_resource_pool;
static bit m_has_wildcard_names;
static local uvm_resource_pool rp = get();
uvm_resource_types::rsrc_q_t rtab [string];
uvm_resource_types::rsrc_q_t ttab [uvm_resource_base];
......
local function new();
endfunction
// Function: get
//
// Returns the singleton handle to the resource pool
static function uvm_resource_pool get();
if(rp == null)
rp = new();
return rp;
endfunction
......
// Function: get_by_name
//
// Lookup a resource by ~name~, ~scope~, and ~type_handle~. Whether
// the get succeeds or fails, save a record of the get attempt. The
// ~rpterr~ flag indicates whether to report errors or not.
// Essentially, it serves as a verbose flag. If set then the spell
// checker will be invoked and warnings about multiple resources will
// be produced.
function uvm_resource_base get_by_name(string scope = "",
string name,
uvm_resource_base type_handle,
bit rpterr = 1);
// Function: get_by_type
//
// Lookup a resource by ~type_handle~ and ~scope~. Insert a record into
// the get history list whether or not the get succeeded.
function uvm_resource_base get_by_type(string scope = "",
uvm_resource_base type_handle);
......
......
endclass
uvm_resource_db#(type T):访问资源池的接口，内部都是static function。
uvm_config_db#(type T):继承于uvm_resource_db#(type T)，进行了一些功能扩展。内部都是static function。
接下来重点看一下uvm_config_db传入的4个参数：
cntxt: uvm_component类型，context上下文的含义，由cntxt可以确定资源的优先级，对同一个资源set，从UVM树顶层往下，优先级依次降低。cntxt = null时，为uvm_root::get()，优先级最高。
inst_name: string类型，通过{cntxt.get_full_name(), ".", inst_name}组成的字符串设置资源的scope。内部调用DPI，支持通配符。只有get中的scope可以和set中的scope匹配上，才可以正常访问资源。
field_name: 资源名，scope内的资源。也支持通配符，一般set get设置相同即可。
value: type T类型，资源的类型。get中的是inout，调用get函数先给value赋值，结束后再将val传出，但是get中并没有处理传入value的代码，不知道为什么这样用。
class uvm_config_db#(type T=int) extends uvm_resource_db#(T);
......
static uvm_pool#(string,uvm_resource#(T)) m_rsc[uvm_component];
......
static function bit get(uvm_component cntxt,
string inst_name,
string field_name,
inout T value);
//TBD: add file/line
int unsigned p;
uvm_resource#(T) r, rt;
uvm_resource_pool rp = uvm_resource_pool::get();
uvm_resource_types::rsrc_q_t rq;
if(cntxt == null)
cntxt = uvm_root::get();
if(inst_name == "")
inst_name = cntxt.get_full_name();
else if(cntxt.get_full_name() != "")
inst_name = {cntxt.get_full_name(), ".", inst_name};
......
value = r.read(cntxt);
return 1;
endfunction
static function void set(uvm_component cntxt,
string inst_name,
string field_name,
T value);
uvm_root top;
uvm_phase curr_phase;
uvm_resource#(T) r;
bit exists;
string lookup;
uvm_pool#(string,uvm_resource#(T)) pool;
//take care of random stability during allocation
process p = process::self();
string rstate = p.get_randstate();
top = uvm_root::get();
curr_phase = top.m_current_phase;
if(cntxt == null)
cntxt = top;
if(inst_name == "")
inst_name = cntxt.get_full_name();
else if(cntxt.get_full_name() != "")
inst_name = {cntxt.get_full_name(), ".", inst_name};
......
r.write(value, cntxt);
......
endfunction
有一种特殊的情况，就是 cntxt = null， 而uvm_root::get().get_full_name()为空字符串。
其他情况都是以uvm_test_top为开头设置scope。
总结如下：
test中set, driver中get, 如果socpe match，则可以get到set的资源。
| code | scope | match |
|---|---|---|
uvm_config_db#(int):: set(this,"env.agt.drv","val",10) | "uvm_test_top.env.agt.drv" | |
uvm_config_db#(int):: get(this,"","val",value) | "uvm_test_top.env.agt.drv" | YES |
uvm_config_db#(int):: set(this,"env.agt*","val",10) | "uvm_test_top.env.agt*" | |
uvm_config_db#(int):: get(null,"uvm_test_top.env.agt.drv_error_spell","val",value) | "uvm_test_top. env.agt.drv_error_spell" | YES |
uvm_config_db#(int):: set(null,"","val",10) | "" | |
uvm_config_db#(int):: get(null,"","val",value) | "" | YES |
uvm_config_db#(int):: set(this,"env.agt","val",10) | "uvm_test_top.env.agt" | |
uvm_config_db#(int):: get(get_parent(),"","val",value) | "uvm_test_top.agt" | YES |
uvm_config_db#(int):: set(this,"env.agt.drv","val",10) | "uvm_test_top.env.agt.drv" | |
uvm_config_db#(int):: get(null,"","val",value) | "" | NO |
uvm_config_db#(int):: set(this,"*drv","val",10) | "uvm_test_top.*drv" | |
uvm_config_db#(int):: get(null,get_full_name(),"val",value) | "uvm_test_top.env.agt.drv" | YES |
上表中的第二个，虽然拼写错误了，但是scope是match的，可以正常get到；所以uvm_config_db的第二个参数inst_name其实不准确填写instance_hierarchy也可以。
由于第三个参数是string类型，书写错误时，编译不会报错，仿真如果不加上assert判断，也无法察觉错误，不利于debug。不过UVM中提供了check_config_usage print_config函数协助debug。

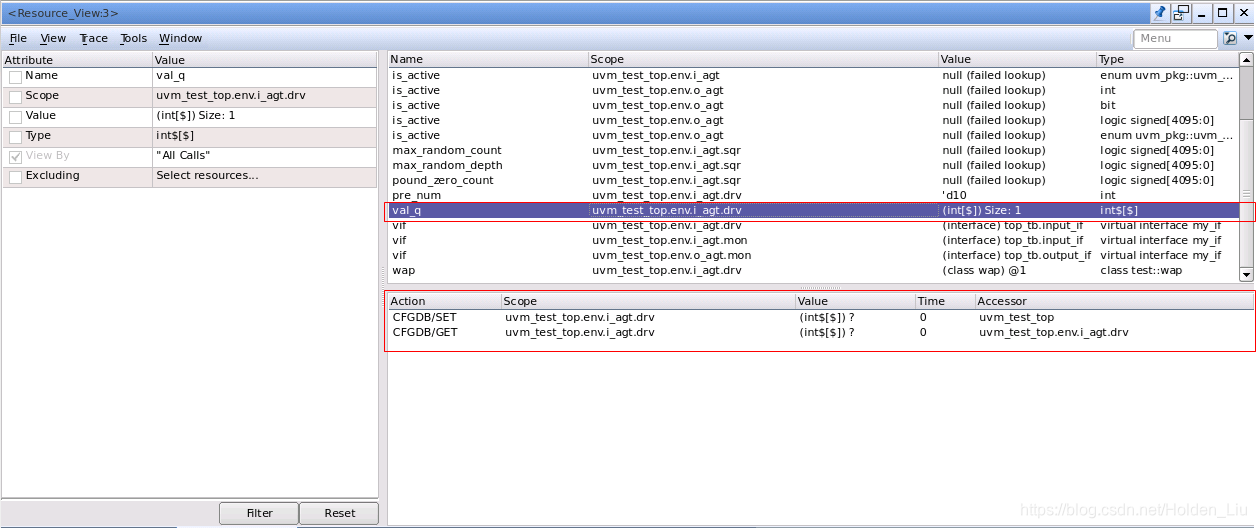

Verdi也提供了GUI界面，可以看到set get的具体内容，方便debug：
使用
uvm_config_db机制本质就是在一个地方创建资源，通过set以uvm_resource的形式存储到uvm_resource_pool上。然后在另一个地方，通过get获得之前创建的资源。
uvm_config_db机制还为资源加上了scope限制资源的访问，保证数据安全；precedence设置优先级；override资源重写；record记录资源访问历史用于debug等功能。
这里的资源可以是scalar objects class handles queues lists virtual interfaces 等。
队列，数组类型
对于队列，数组的传递，int val_q[$]直接通过uvm_config_db#(int) :: set(this, "env.i_agt.drv","val_q",val_q);的方式会编译报错，因为uvm_config_db#(type T=int)中type是int类型，而不是队列类型。
需要typedef int t_q[$] ; 定义队列类型。
t_q val_q； uvm_config_db#(t_q) :: set(this, "env.i_agt.drv","val_q",val_q)；
还有另一种方式，通过class封装队列（uvm已提供了uvm_queue#(type T）。这种方式的好处是，队列在一端改变，另一段也可以看到队列的修改，因为变量对资源的访问是通过句柄的形式，指向同一处资源。而直接传递队列，一端修改，另一端看不到，因为两端的队列是各自class scope中的两份不同的数据，只有再执行一次set get操作才会获得队列的新内容。
sequence中的资源访问
UVM中sequence不属uvm_component，存在固定的生命周期，对资源的访问，分为直接和间接两种类型。
以reg_model为例，reg_model在env中create, sequence通过reg_model访问寄存器。
总结如下6种方式：
- sequence没有出现在树形结构中，难以确定路径参数，可以通过
setnull, ""设定全局scope，这样sequence在哪里都可以访问资源。注意： sequence没有phase，get可以放在pre_bodybodypre_randomizepre_start中，只要在调用reg_model之前get被调用即可。
# env
top_reg_model m_regmodel；
m_regmodel = top_reg_model::type_id::create("m_regmodel");
uvm_config_db #(top_reg_model)::set(null， ""，"reg_model"，m_regmodel);
# seq
top_reg_model m_regmodel；
uvm_config_db #(top_reg_model)::get(null， ""，"reg_model"，m_regmodel);
// 为什么说 null, ""的组合是全局scope呢？
// TODO
- sequence的路径可以通过
get_full_name()获得。
# env
top_reg_model m_regmodel；
m_regmodel = top_reg_model::type_id::create("m_regmodel");
uvm_config_db #(top_reg_model)::set(this， " agt.sqr.* "，"reg_model"，m_regmodel);
# seq
top_reg_model m_regmodel；
uvm_config_db #(top_reg_model)::get(null， get_full_name()，"reg_model"，m_regmodel);
- sequence虽然不在树形结构上，但是其内部成员变量
m_sequencer在树形结构上，可以通过m_sequencer间接访问资源。
# env
top_reg_model m_regmodel；
m_regmodel = top_reg_model::type_id::create("m_regmodel");
uvm_config_db #(top_reg_model)::set(this， " agt.sqr"，"reg_model"，m_regmodel);
# seq
top_reg_model m_regmodel；
uvm_config_db #(top_reg_model)::get(m_sequencer， ""，"reg_model"，m_regmodel);
- 直接通过
p_sequener访问资源。sequencer中get获得资源，sequence中调用p_sequencer.m_regmodel访问资源。 - 直接赋值，在test中例化sequence时，
seq.m_regmodel = m_regmodel。也可以封装到sequence中的function。
#seq
virtual function set_regmodel(top_reg_model m_regmodel);
this.m_regmodel = m_regmodel;
endfunction
当然也可以封装到test中的function:
#test
virtual function set_regmodel(sequence_baes seq);
seq.m_regmodel = m_regmodel;
endfunction
- 使用 uvm_top.find(“string”)获得
top_reg_model的实例，find()函数的机制可以参考🔗：UVM设计模式 ( 二 ) 参数化类、静态变量/方法/类、单例模式、UVM_ROOT、工厂模式、UVM_FACTORY
#seq
top_reg_model m_regmodel；
$cast(m_regmodel, uvm_top.find("*.m_regmodel"));
上述方法，本质都是一样的，将m_model句柄指向在env中创建的top_reg_model实例。在UT环境中，推荐使用第五种方式，简单明了；在ST中可以遵循使用习惯使用；第1种和第6种不推荐使用；
自定义资源池
我们也可以模仿uvm_event_pool uvm_resource_pool的方式，自定义一个资源池。
不使用uvm_config_db，自定义一个interface pool，示例如下（UVM实战 /ch10/section10.6/10.6.2）：
# interface_pool
class if_object extends uvm_object;
`uvm_object_utils(if_object)
function new(string name = "if_object");
super.new(name);
endfunction
static if_object me;
static function if_object get();
if(me == null) begin
me = new("me");
end
return me;
endfunction
virtual my_if input_vif0;
virtual my_if output_vif0;
virtual my_if input_vif1;
virtual my_if output_vif1;
endclass
# top_tb.sv
module top_tb;
......
my_if input_if0(clk, rst_n);
my_if input_if1(clk, rst_n);
my_if output_if0(clk, rst_n);
my_if output_if1(clk, rst_n);
......
initial begin
if_object if_obj;
if_obj = if_object::get();
if_obj.input_vif0 = input_if0;
if_obj.input_vif1 = input_if1;
if_obj.output_vif0 = output_if0;
if_obj.output_vif1 = output_if1;
end
endmodule
# base_test.sv
class base_test extends uvm_test;
my_env env0;
my_env env1;
my_vsqr v_sqr;
function new(string name = "base_test", uvm_component parent = null);
super.new(name,parent);
endfunction
extern virtual function void build_phase(uvm_phase phase);
extern virtual function void connect_phase(uvm_phase phase);
extern virtual function void report_phase(uvm_phase phase);
`uvm_component_utils(base_test)
endclass
......
function void base_test::connect_phase(uvm_phase phase);
if_object if_obj;
if_obj = if_object::get();
v_sqr.p_sqr0 = env0.i_agt.sqr;
v_sqr.p_sqr1 = env1.i_agt.sqr;
env0.i_agt.drv.vif = if_obj.input_vif0;
env0.i_agt.mon.vif = if_obj.input_vif0;
env0.o_agt.mon.vif = if_obj.output_vif0;
env1.i_agt.drv.vif = if_obj.input_vif1;
env1.i_agt.mon.vif = if_obj.input_vif1;
env1.o_agt.mon.vif = if_obj.output_vif1;
endfunction
平台中所有使用uvm_config_db的地方都可以通过这种方式替代，当然并不建议这样使用，uvm_config_db提供了更丰富的功能。
这种方式的一个优点是编写错误可以在编译阶段发现，而uvm_config_db中字符串错误不容易发现。
wait_modified
uvm_config_db不仅可以共享资源，也可以像uvm_event那样，用于事件的同步，可以通过wait_modified实现。
drv0_seq在get之前，case0_vseq中必须先set，否则wait_modified会一直阻塞。因为wait_modified中调用@waiter.trigger，trigger是event类型；在set的最后，->w.trigger会触发该event。
平台中所有的等待事件都放在了 m_waiters[string]中，其中的索引sting对应get set函数中第三个参数field_name。
class drv0_seq extends uvm_sequence #(my_transaction);
......
virtual task body();
bit send_en = 1;
fork
while(1) begin
uvm_config_db#(bit)::wait_modified(null, get_full_name(), "send_en");
void'(uvm_config_db#(bit)::get(null, get_full_name, "send_en", send_en));
`uvm_info("drv0_seq", $sformatf("send_en value modified, the new value is %0d", send_en), UVM_LOW)
end
join_none
repeat (10) begin
`uvm_do(m_trans)
end
endtask
endclass
class case0_vseq extends uvm_sequence;
......
virtual task body();
my_transaction tr;
drv0_seq seq0;
drv1_seq seq1;
if(starting_phase != null)
starting_phase.raise_objection(this);
fork
`uvm_do_on(seq0, p_sequencer.p_sqr0);
`uvm_do_on(seq1, p_sequencer.p_sqr1);
begin
#10000;
uvm_config_db#(bit)::set(uvm_root::get(), "uvm_test_top.v_sqr.*", "send_en", 0);
#10000;
uvm_config_db#(bit)::set(uvm_root::get(), "uvm_test_top.v_sqr.*", "send_en", 1);
end
join
#100;
if(starting_phase != null)
starting_phase.drop_objection(this);
endtask
endclass
class m_uvm_waiter;
string inst_name;
string field_name;
event trigger;
function new (string inst_name, string field_name);
this.inst_name = inst_name;
this.field_name = field_name;
endfunction
endclass
class uvm_config_db#(type T=int) extends uvm_resource_db#(T);
......
// Internal waiter list for wait_modified
static local uvm_queue#(m_uvm_waiter) m_waiters[string];
......
static task wait_modified(uvm_component cntxt, string inst_name,
string field_name);
process p = process::self();
string rstate = p.get_randstate();
m_uvm_waiter waiter;
if(cntxt == null)
cntxt = uvm_root::get();
if(cntxt != uvm_root::get()) begin
if(inst_name != "")
inst_name = {cntxt.get_full_name(),".",inst_name};
else
inst_name = cntxt.get_full_name();
end
waiter = new(inst_name, field_name);
if(!m_waiters.exists(field_name))
m_waiters[field_name] = new;
m_waiters[field_name].push_back(waiter);
p.set_randstate(rstate);
// wait on the waiter to trigger
@waiter.trigger;
// Remove the waiter from the waiter list
for(int i=0; i<m_waiters[field_name].size(); ++i) begin
if(m_waiters[field_name].get(i) == waiter) begin
m_waiters[field_name].delete(i);
break;
end
end
endtask
......
static function void set(uvm_component cntxt,
string inst_name,
string field_name,
T value);
......
//trigger any waiters
if(m_waiters.exists(field_name)) begin
m_uvm_waiter w;
for(int i=0; i<m_waiters[field_name].size(); ++i) begin
w = m_waiters[field_name].get(i);
if(uvm_re_match(uvm_glob_to_re(inst_name),w.inst_name) == 0)
->w.trigger;
end
end
......
endfunction
UVM_REGEX_NO_DPI
大量 ”滥用“ uvm_config_db配置访问资源，会降低仿真速度。
db:set/get()会自动扩展正则匹配，uvm_re_match()调用DPI的方式，增加仿真内核切换时间，每一次get()需要遍历set()的所有资源。而且不是简单的线性降低仿真速度。

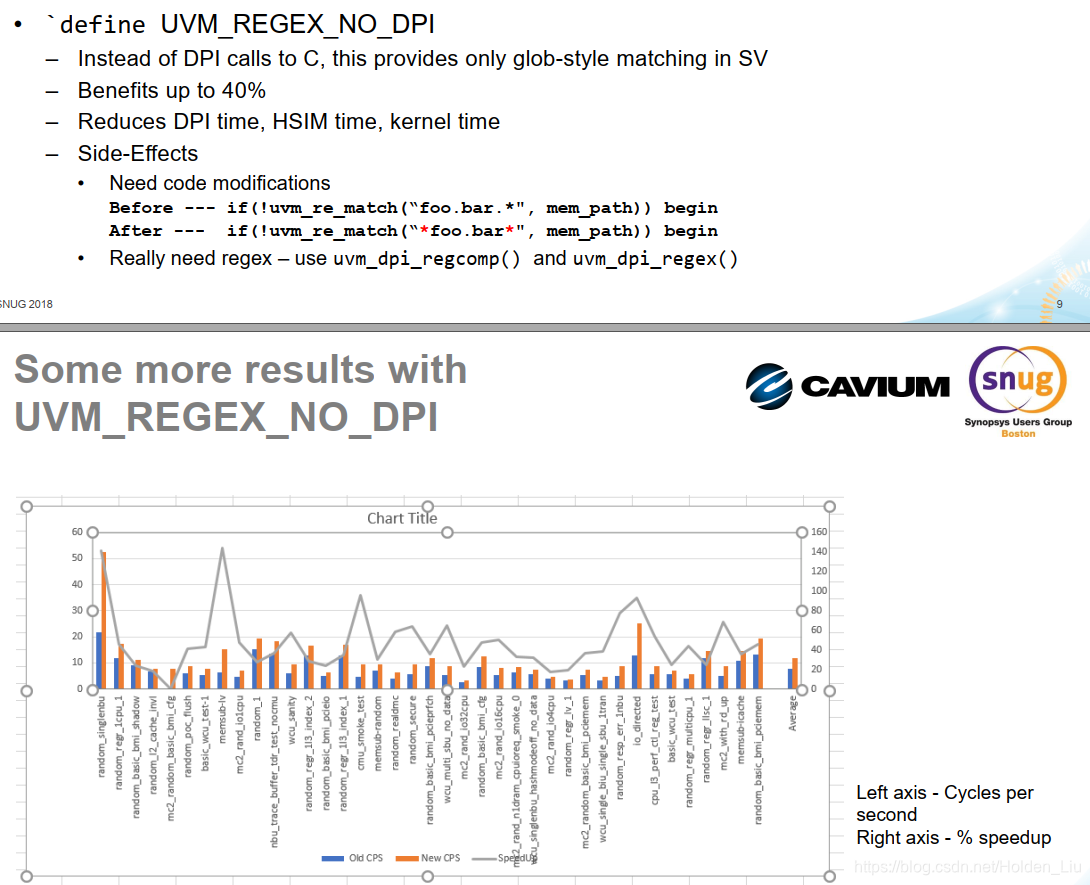

可以优化原有代码，减少set/get调用；使用UVM_REGEX_NO_DPI禁用正则匹配，仅仅使用* ? +这种简单的通配符。
如果在SoC级别的平台，发现build_phase占用太多时间，可以参考🔗SNUG 2018 Auditing the UVM Resource Database进行优化，对源码进行相应修改，更好的Auditing平台的资源配置。
扫一扫
524
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
