【ROS】mp4转rosbag

前言

工作中遇到域控中无中间件，无法采用rosbag等中间件的形式同时采集感知结果与视频流，只能通过外接摄像头采集视频流，以及使用can报文或者bin文件形式存储路测数据；导致本地回放时，无法通过视频流观察真实情况，来判断优化方向。于是，另辟蹊径，将工程代码转成ros方式以及将视频流转成rosbag，可同时使用rviz分析算法与image定位问题；

注意事项

1.需要使用python2

代码

import time, sys, os
from ros import rosbag
import roslib, rospy
roslib.load_manifest('sensor_msgs')
from sensor_msgs.msg import Image
import argparse
from cv_bridge import CvBridge
import cv2


TOPIC = "/image_viz" # 对应topic_name
def CreateVideoBag(videopath, bagname):
    '''Creates a bag file with a video file'''
    print("raw mp4 name:",videopath)
    print("output bag name:",bagname)
    bag = rosbag.Bag(bagname, 'w')
    cap = cv2.VideoCapture(videopath)
    cb = CvBridge()
    prop_fps = cap.get(cv2.CAP_PROP_FPS)
    if prop_fps != prop_fps or prop_fps <= 1e-2:
        print("Warning: can't get FPS. Assuming 24.")
        prop_fps = 24
    prop_fps = 24 #
    print("set fps:",prop_fps)
    ret = True
    frame_id = 0
    while(ret):
        ret, frame = cap.read()
        if not ret:
            break
        stamp = rospy.rostime.Time.from_sec(float(frame_id) / prop_fps)
        frame_id += 1
        image = cb.cv2_to_imgmsg(frame, encoding='bgr8')
        image.header.stamp = stamp
        image.header.frame_id = "base_link"
        bag.write(TOPIC, image, stamp)
    cap.release()
    bag.close()

if __name__ == "__main__":
    # parser = argparse.ArgumentParser()
    # parser.add_argument("--topic", type=str, default="/image_viz")
    # args = parser.parse_args()
    if len( sys.argv ) == 3:
        CreateVideoBag(*sys.argv[1:])
    else:
        print( "Usage: video2bag videofilename bagfilename")

步骤

python2 mp4_to_bag.py <video_name>.mp4 <output_bag_name>.bag # 执行转化命令
rosbag play -l <output_bag_name>.bag camera/image_raw:=image_raw0 # 循环播放图片，并重命名成自己需要的话题名

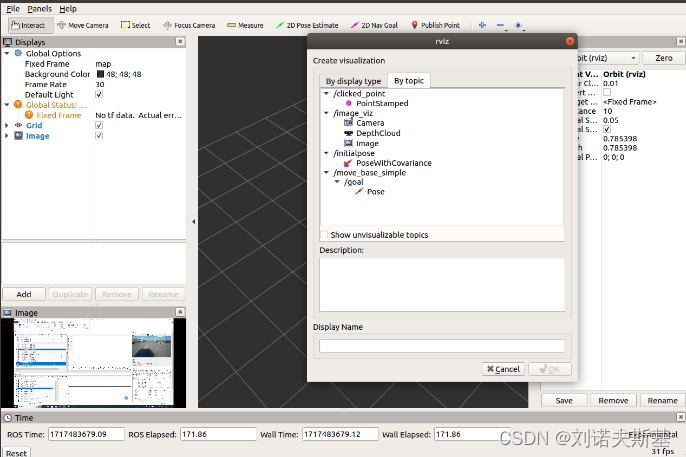

结果

PS：请注意视频流与算法处理存在些许的时间差。
