ROS中rviz显示运动轨迹的常见方法

1.利用nav_msgs/Path消息实现轨迹显示

• 主函数showpath.cpp

#include <ros/ros.h>
#include <ros/console.h>
#include <nav_msgs/Path.h>
#include <std_msgs/String.h>
#include <geometry_msgs/Quaternion.h>
#include <geometry_msgs/PoseStamped.h>
#include <tf/transform_broadcaster.h>
#include <tf/tf.h>

main (int argc, char **argv)
{
    ros::init (argc, argv, "showpath");

    ros::NodeHandle ph;
    ros::Publisher path_pub = ph.advertise<nav_msgs::Path>("trajectory",1, true);

    ros::Time current_time, last_time;
    current_time = ros::Time::now();
    last_time = ros::Time::now();

    nav_msgs::Path path;
    //nav_msgs::Path path;
    path.header.stamp=current_time;
    path.header.frame_id="odom";


    double x = 0.0;
    double y = 0.0;
    double th = 0.0;
    double vx = 0.1;
    double vy = -0.1;
    double vth = 0.1;

    ros::Rate loop_rate(1);
    while (ros::ok())
    {

        current_time = ros::Time::now();
        //compute odometry in a typical way given the velocities of the robot
        double dt = 0.1;
        double delta_x = (vx * cos(th) - vy * sin(th)) * dt;
        double delta_y = (vx * sin(th) + vy * cos(th)) * dt;
        double delta_th = vth * dt;

        x += delta_x;
        y += delta_y;
        th += delta_th;


        geometry_msgs::PoseStamped this_pose_stamped;
        this_pose_stamped.pose.position.x = x;
        this_pose_stamped.pose.position.y = y;

        geometry_msgs::Quaternion goal_quat = tf::createQuaternionMsgFromYaw(th);
        this_pose_stamped.pose.orientation.x = goal_quat.x;
        this_pose_stamped.pose.orientation.y = goal_quat.y;
        this_pose_stamped.pose.orientation.z = goal_quat.z;
        this_pose_stamped.pose.orientation.w = goal_quat.w;

        this_pose_stamped.header.stamp=current_time;
        this_pose_stamped.header.frame_id="odom";
        path.poses.push_back(this_pose_stamped);

        path_pub.publish(path);
        ros::spinOnce();               // check for incoming messages

        last_time = current_time;
        loop_rate.sleep();
    }

    return 0;
}

• 编辑CMakeLists.txt
  add_executable(showpath src/showpath.cpp)
  target_link_libraries(showpath ${catkin_LIBRARIES})

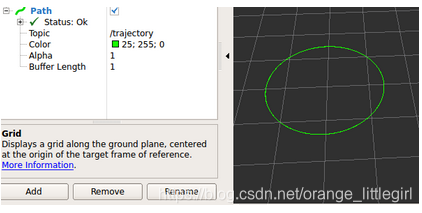

• rviz显示

在globel option的Fixed Fram输入odom
左边点击add
选中path
在path的topic选项中选
/trajectory

2.利用visualization_msgs/Marker消息类型显示轨迹

如名字所示，就是画出可视化的标志物。利用Marker有两种方法可以实现画出轨迹。相对于后面的方法来说，使用Marker可以有丰富的形状选择。首先看这个类包含的成员：

//各种标志物类型的定义，每一个的具体介绍和形状可以到这里查看：http://wiki.ros.org/rviz/DisplayTypes/Marker
uint8 ARROW=0//箭头
uint8 CUBE=1//立方体
uint8 SPHERE=2//球
uint8 CYLINDER=3//圆柱体
uint8 LINE_STRIP=4//线条（点的连线）
uint8 LINE_LIST=5//线条序列
uint8 CUBE_LIST=6//立方体序列
uint8 SPHERE_LIST=7//球序列
uint8 POINTS=8//点集
uint8 TEXT_VIEW_FACING=9//显示3D的文字
uint8 MESH_RESOURCE=10//网格？
uint8 TRIANGLE_LIST=11//三角形序列
//对标记的操作
uint8 ADD=0
uint8 MODIFY=0
uint8 DELETE=2
uint8 DELETEALL=3

Header header
string ns   //命名空间namespace，就是你理解的那样
int32 id    //与命名空间联合起来，形成唯一的id，这个唯一的id可以将各个标志物区分开来，使得程序可以对指定的标志物进行操作
int32 type  //类型
int32 action 	//操作，是添加还是修改还是删除
geometry_msgs/Pose pose       # Pose of the object
geometry_msgs/Vector3 scale   # Scale of the object 1,1,1 means default (usually 1 meter square)
std_msgs/ColorRGBA color      # Color [0.0-1.0]
duration lifetime             # How long the object should last before being automatically deleted.  0 means forever
bool frame_locked             # If this marker should be frame-locked, i.e. retransformed into its frame every timestep

#Only used if the type specified has some use for them (eg. POINTS, LINE_STRIP, ...)
geometry_msgs/Point[] points//这个是在序列、点集中才会用到，指明序列中每个点的位置
#Only used if the type specified has some use for them (eg. POINTS, LINE_STRIP, ...)
#number of colors must either be 0 or equal to the number of points
#NOTE: alpha is not yet used
std_msgs/ColorRGBA[] colors

# NOTE: only used for text markers
string text

# NOTE: only used for MESH_RESOURCE markers
string mesh_resource
bool mesh_use_embedded_materials

参考:https://blog.csdn.net/u013834525/article/details/80447931
