DH参数
DH参数存在三种不同的描述:
根据机器人学中的最小线性表示约定,欧几里得空间中的坐标变换,最少需要由4个参数描述
-
标准DH参数 (四参数)
标准DH参数由Denavit和Hartenberg提出,在一些旧教材上介绍得多,适用于开链机器人建模,在描述树状(一个连杆末端连接两个关节)和闭链结构时会产生歧义。不建议使用。
-
改进DH参数 Modified DH(四参数)
Khalil和Kleinfinger提出的一种修改DH法,适用于开链,树状和闭链机器人建模。建议使用。
-
改进DH参数 Modified DH(五参数)
在精度标定里,在四个参数的基础上,新引入一个参数解决相邻连杆平行时存在的奇异性问题,和上面两个DH参数的应用场景不同。
改进DH参数
连杆的坐标系固定在连杆的近端(前一个关节)
- 变换顺序
α → a → θ → d \alpha \to a \to \theta \to d α→a→θ→d
- 变换
n − 1 T n = Rot x n − 1 ( α n − 1 ) ⋅ Trans x n − 1 ( a n − 1 ) ⋅ Rot z n ( θ n ) ⋅ Trans z n ( d n ) ^{n-1}T_n = \text{Rot}_{x_{n-1}}(\alpha_{n-1}) \cdot \text{Trans}_{x_{n-1}}(a_{n-1}) \cdot \text{Rot}_{z_n}(\theta_n) \cdot \text{Trans}_{z_n}(d_n) n−1Tn=Rotxn−1(αn−1)⋅Transxn−1(an−1)⋅Rotzn(θn)⋅Transzn(dn)
-

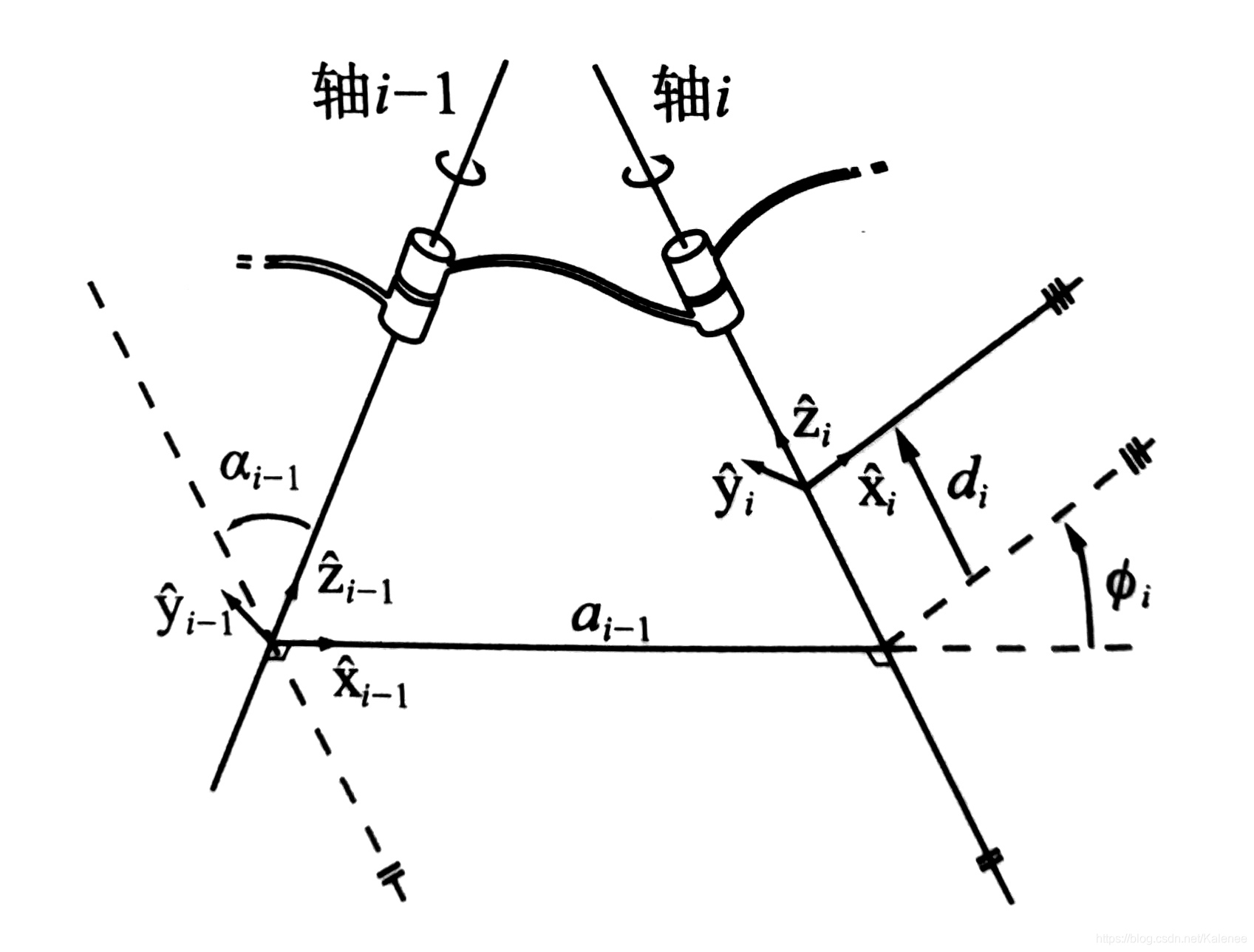

参数说明
DH参数 说明 连杆长度 a i − 1 a_{i-1} ai−1 z ^ i − 1 \hat{z}_{i-1} z^i−1轴与 z ^ i \hat{z}_{i} z^i轴的公法线长度,标量,为杆 i − 1 i-1 i−1的连杆长(并不是物理意义上的两杆长度) 连杆扭转角 α i − 1 \alpha_{i-1} αi−1 关节轴线 z ^ i − 1 \hat{z}_{i-1} z^i−1到 z ^ \hat{z} z^的转角 连杆偏距 d i d_i di 从 x ^ i − 1 \hat{x}_{i-1} x^i−1与轴线 z ^ \hat{z} z^的交点到连杆坐标系 i {i} i原点的有向距离(正向沿 z ^ i \hat{z}_i z^i方向) 关节转角 θ i \theta_i θi 从 x ^ i − 1 \hat{x}_{i-1} x^i−1到 x ^ i \hat{x}_i x^i的转角,在 z ^ \hat{z} z^处度量
程序仿真
Matlab
函数说明
L = Link(dh, options) is a link object using the specified kinematic convention and with parameters:
-
DH
DH = [THETA D A ALPHA SIGMA OFFSET]
SIGMA
:关节形式,0为旋转,1为平移,默认为0OFFSET
:是设置的机械臂的初始姿态与DH描述的数学模型机械臂之间的偏移量,旋转为角度,平移为距离。
-
Options
standard
: for standard D&H parameters (default).modified
: for modified D&H parameters.revolute
: for a revolute joint, can be abbreviated to ‘r’ (default)prismatic
: for a prismatic joint, can be abbreviated to ‘p’
程序
clear L;
%% 准备
%启动工具箱
startup_rvc;
%角度转换
du=pi/180; %度
radian=180/pi; %弧度
%关节长度
L1=0.40;L2=0.39;L3=0.37;
L4=0.08;%末端执行器
%% DH法建立模型,关节角,连杆偏移,连杆长度,连杆扭转角,关节类型(0转动,1移动)
L(1) = Link('alpha',0, 'a',0, 'offset',0, 'd',L1,'modified');
L(2) = Link('alpha',pi/2, 'a',0, 'offset',pi/2, 'd',0 ,'modified');
L(3) = Link('alpha',0 , 'a',L2,'offset',0, 'd',0, 'modified');
L(4) = Link('alpha',pi/2 ,'a',0, 'offset',0, 'd',0, 'modified');
L(5) = Link('alpha',0 , 'a',0, 'offset',0, 'd',L3,'modified');
L(6) = Link('alpha',pi/2 ,'a',0, 'offset',0, 'd',0, 'modified');
plotopt = {'noraise', 'nowrist', 'nojaxes', 'delay',0};
tool_char=[1 0 0 0;
0 1 0 0;
0 0 1 0;
0 0 0 1];
six_link=SerialLink(L,'name','six link','tool',tool_char);

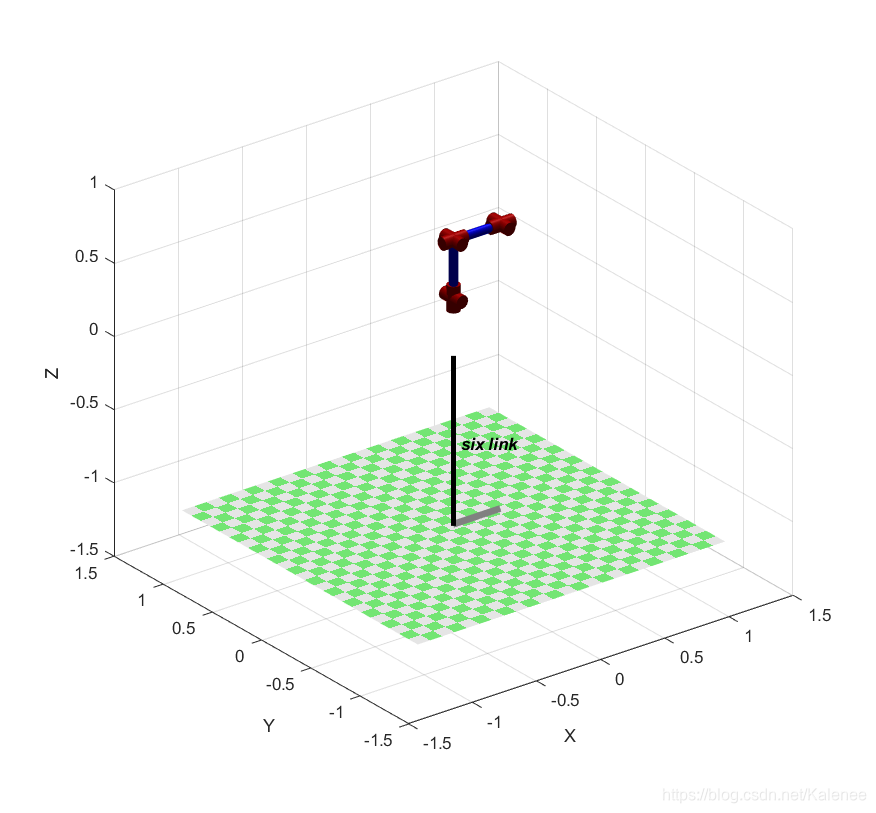

%% 显示机械臂
figure(1)
hold on
six_link.plot([0 0 0 0 0 0], plotopt{:});
hold off
Python
函数说明
class roboticstoolbox.robot.DHLink.RevoluteMDH(d=0.0, a=0.0, alpha=0.0, offset=0.0, qlim=None, flip=False, **kwargs)
# Class for revolute links using modified DH convention
参数含义
- d (float) – kinematic - link offset
- alpha (float) – kinematic - link twist
- a (float) – kinematic - link length
- offset (float) – kinematic - joint variable offset
- qlim (float ndarray*(1,2)*) – joint variable limits [min, max]
- flip (bool) – joint moves in opposite direction
- m (float) – dynamic - link mass
- r (float ndarray*(3)*) – dynamic - position of COM with respect to link frame
- I (ndarray) – dynamic - inertia of link with respect to COM
- Jm (float) – dynamic - motor inertia
- B (float*, or* ndarray*(2,**)*) – dynamic - motor viscous friction: B=B⁺=B⁻, [B⁺, B⁻]
- Tc (ndarray*(2,**)*) – dynamic - motor Coulomb friction [Tc⁺, Tc⁻]
- G (float) – dynamic - gear ratio
A subclass of the DHLink class for a revolute joint that holds all information related to a robot link such as kinematics parameters, rigid-body inertial parameters, motor and transmission parameters.
The link transform is
T
t
x
(
a
i
−
1
)
⋅
T
r
x
(
α
i
−
1
)
⋅
T
r
z
(
q
i
)
⋅
T
t
z
(
d
i
)
\mathbf{T}{tx}(a{i-1}) \cdot \mathbf{T}{rx}(\alpha{i-1}) \cdot \mathbf{T}{rz}(q_i) \cdot \mathbf{T}_{tz}(d_i)
Ttx(ai−1)⋅Trx(αi−1)⋅Trz(qi)⋅Ttz(di)
where
q
i
q_i
qi is the joint variable.
程序
import roboticstoolbox as rtb
from math import pi
import numpy as np
L1=0.40
L2=0.39
L3=0.37
L4=0.08 # 末端执行器
leg = rtb.DHRobot(
[
rtb.RevoluteMDH(alpha=0, a=0, offset=0, d=L1),
rtb.RevoluteMDH(alpha=pi/2, a=0, offset=pi/2,d=0 ),
rtb.RevoluteMDH(alpha=0, a=L2, offset=0, d=0 ),
rtb.RevoluteMDH(alpha=pi/2, a=0, offset=0, d=0 ),
rtb.RevoluteMDH(alpha=0, a=0, offset=0, d=L3),
rtb.RevoluteMDH(alpha=pi/2, a=0, offset=0, d=0 )
],name="six link")
init_T = np.array([0,0,0,0,0,0])

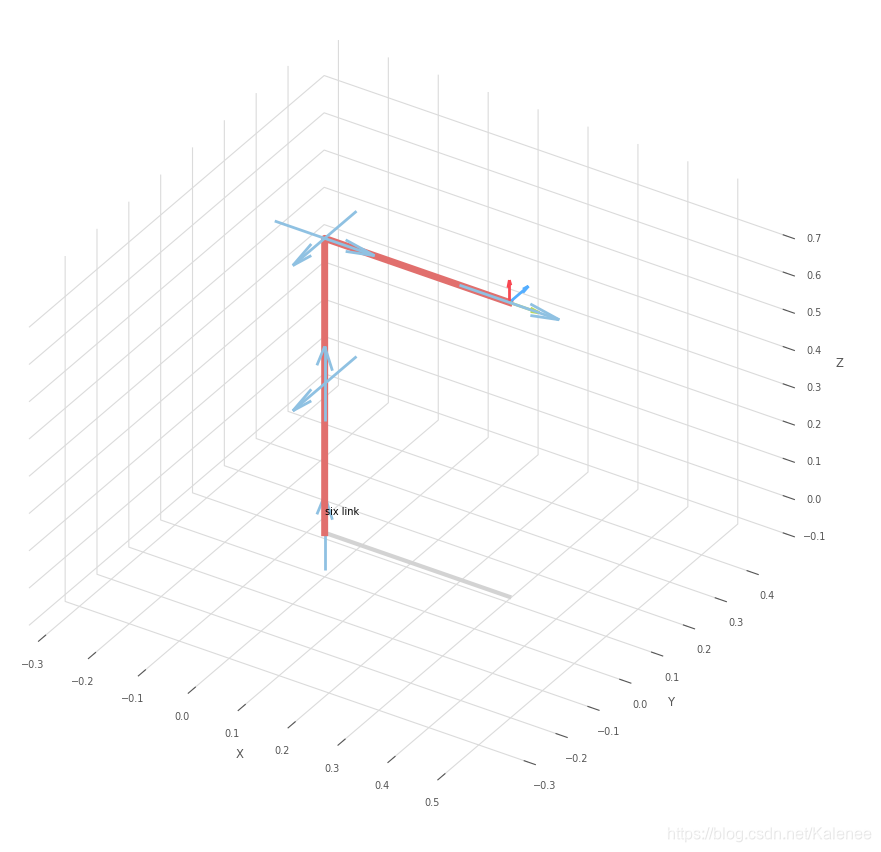

leg.plot(init_T, movie='six link.png')
input()
参考
为什么改进的DH模型优于标准DH模型,却大多都是使用标准D-H模型
《现代机器人学:机构、规划与控制》
