控制台变量(ConsoleVariable)基础

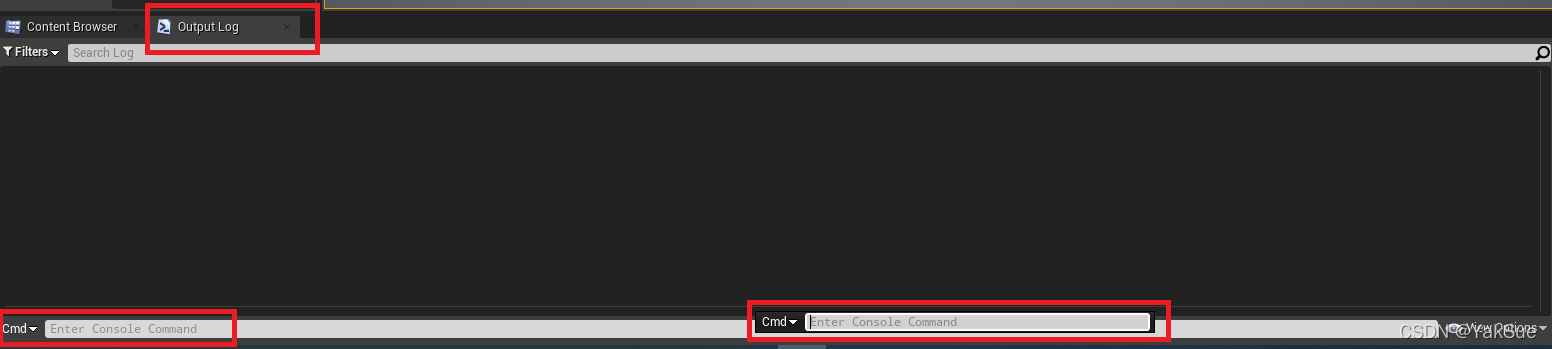

在 Output Log 面板下方，或者按下`之后的输入框中，可以输入控制台命令。
在这里插入图片描述
常用的控制台命令除了包括控制台变量还包括 “Stat命令” 等。
完整的控制台命令可以查阅 UE4 Console Variables and Commands

对于控制台变量，输入变量名后跟?可以查阅当前的值以及是通过什么方式设置的（什么都不跟则只显示当前值）：

Cmd: r.Streaming.PoolSize ?
HELP for 'r.Streaming.PoolSize':
-1: Default texture pool size, otherwise the size in MB
r.Streaming.PoolSize = "1000"      LastSetBy: Scalability

如果输入变量名后跟一个具体的值，则就会改变。输入后再查询它可看到：

Cmd: r.Streaming.PoolSize 1200
r.Streaming.PoolSize = "1200"
LogContentStreaming: Texture pool size now 1200 MB
Cmd: r.Streaming.PoolSize ?
HELP for 'r.Streaming.PoolSize':
-1: Default texture pool size, otherwise the size in MB
r.Streaming.PoolSize = "1200"      LastSetBy: Console

控制台变量的设置优先级

从代码注释可以看到控制台变量各种设置方式的优先级（更详细的观察过程见附录）：

名字	注释	翻译
Constructor	lowest priority (default after console variable creation)	最低优先级（控制台变量创建后的默认值）
Scalability	from Scalability.ini (lower priority than game settings so it’s easier to override partially)	来自 Scalability.ini 的可延展性（优先级低于GameSetting，因此更容易被部分覆盖）
GameSetting	(in game UI or from file)	在游戏UI中设置，或者来自文件
ProjectSetting	project settings (editor UI or from file, higher priority than game setting to allow to enforce some setting fro this project)	项目设置（编辑器 UI 或来自文件，比GameSetting优先级更高以允许强制执行此项目的某些设置）
SystemSettingsIni	per project setting (ini file e.g. Engine.ini or Game.ini)	每个项目的设置（ini 文件，例如 Engine.ini 或 Game.ini）
DeviceProfile	per device setting (e.g. specific iOS device, higher priority than per project to do device specific settings)	每个设备的 DeviceProfile 设置（例如特定的 iOS 设备，优先级比项目的更高，因此可以进行设备特定的设置）
ConsoleVariablesIni	consolevariables.ini (for multiple projects)	consolevariables.ini（用于多个项目）
Commandline	a minus command e.g. -VSync (very high priority to enforce the setting for the application)	减号命令，例如 -VSync（非常高的优先级以强制应用程序设置）
Code	least useful, likely a hack, maybe better to find the correct SetBy…	最不常使用的，可能用于某些hack，最好以更正确的方式来设置…
Console	editor UI or console in game or editor	编辑器UI或者游戏或编辑器中的控制台

实验

以r.Streaming.PoolSize为例：

Scalability

Cmd: r.Streaming.PoolSize ?
HELP for 'r.Streaming.PoolSize':
-1: Default texture pool size, otherwise the size in MB
r.Streaming.PoolSize = "1000"      LastSetBy: Scalability

可以看到，它现在被Scalability所设置。

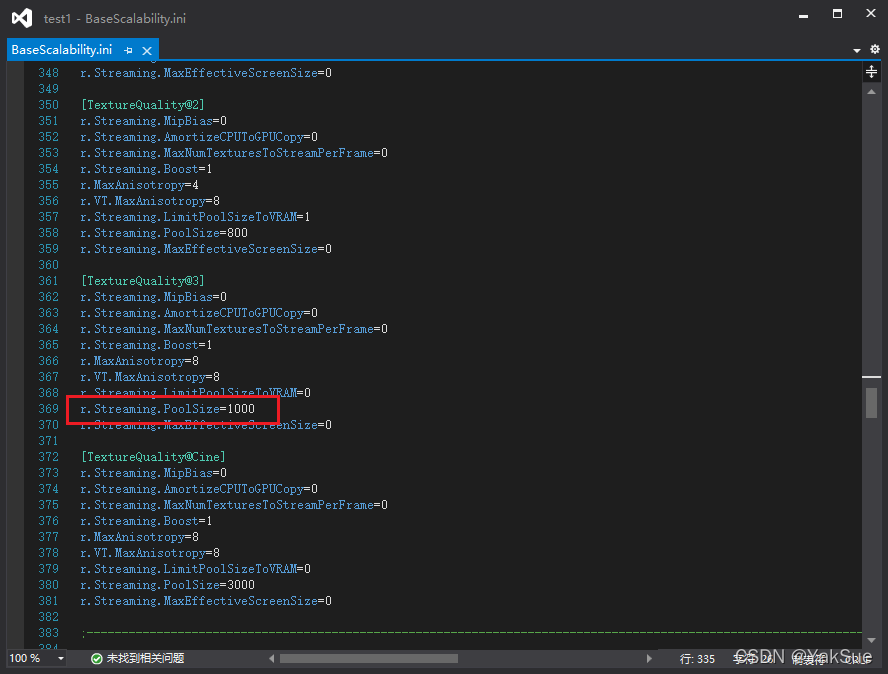

Scalability相关的配置可在 UE_4.27\Engine\Config\BaseScalability.ini 中看到。比如r.Streaming.PoolSize可以找到：
在这里插入图片描述

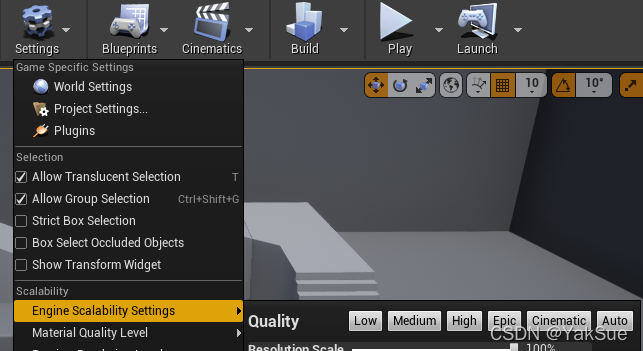

假如修改画质，将可以看到值被改变

Device Profiles

根据优先级的讨论可以知道，Device Profiles 有更高的优先级。

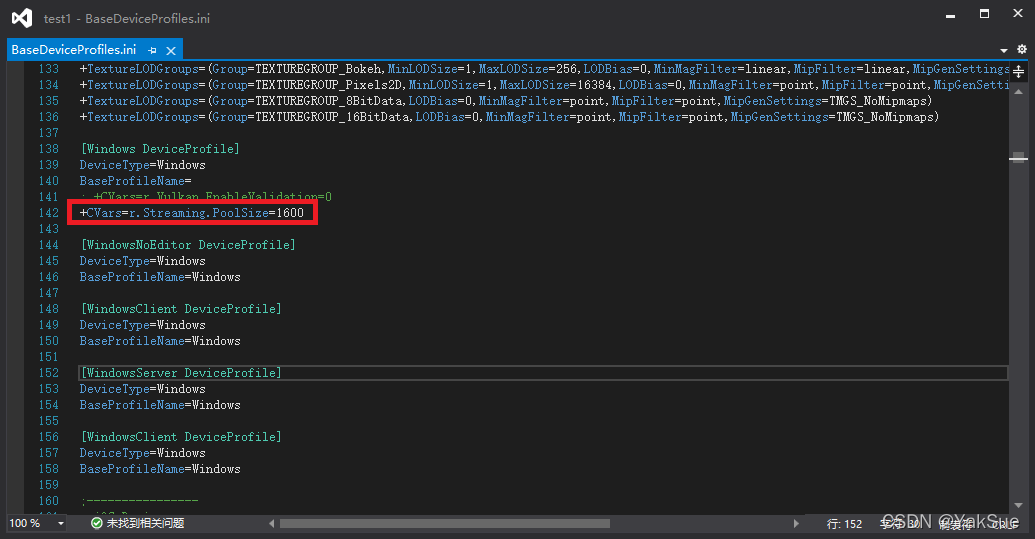

更改 \UE_4.27\Engine\Config\BaseDeviceProfiles.ini 中的Windows添加r.Streaming.PoolSize的设置：
在这里插入图片描述
现在，打开引擎后查询r.Streaming.PoolSize后可以看到：

Cmd: r.Streaming.PoolSize ?
HELP for 'r.Streaming.PoolSize':
-1: Default texture pool size, otherwise the size in MB
r.Streaming.PoolSize = "1600"      LastSetBy: DeviceProfile

可以看到值确实被覆盖了。

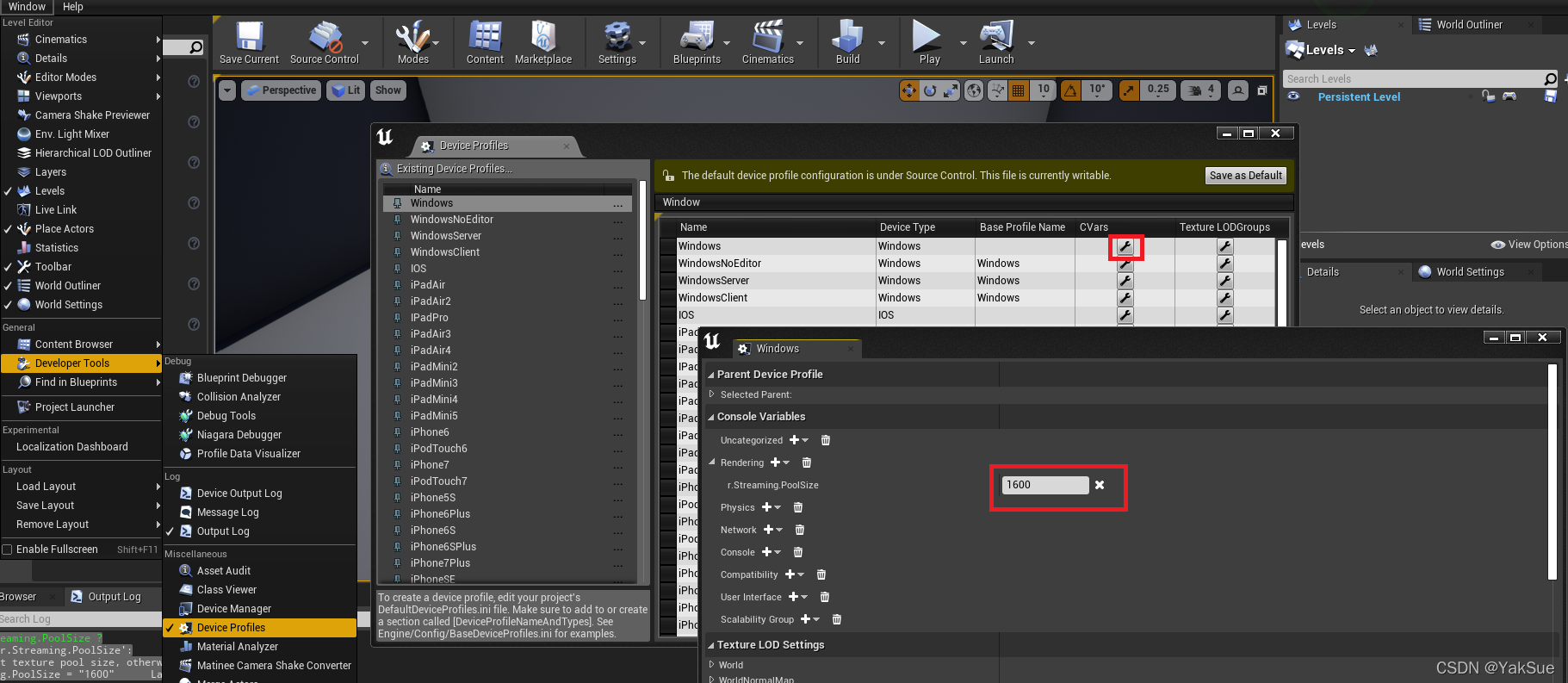

（另外，此部分也可以在引擎中使用界面来观察：）
在这里插入图片描述

附录：观察代码中控制台变量的设置优先级

注意到控制台输出的LastSetBy表示被设置的方式。因此搜索此字符串后，找到：
在 \Engine\Source\Runtime\Core\Private\HAL\ConsoleManager.cpp 中：

Ar.Logf(TEXT("%s = \"%s\"      LastSetBy: %s"), *Param1, *CVar->GetString(), GetSetByTCHAR(CVar->GetFlags()));

其中：
CVar 类型是IConsoleVariable，它的成员GetFlags()返回枚举EConsoleVariableFlags：

enum EConsoleVariableFlags
{
	/* Mask for flags. Use this instead of ~ECVF_SetByMask */
	ECVF_FlagMask = 0x0000ffff,

	/**
	 * Default, no flags are set, the value is set by the constructor
	 */
	ECVF_Default = 0x0,
	/**
	 * Console variables marked with this flag behave differently in a final release build.
	 * Then they are are hidden in the console and cannot be changed by the user.
	 */
	ECVF_Cheat = 0x1,
	/**
	 * Console variables cannot be changed by the user (from console).
	 * Changing from C++ or ini is still possible.
	 */
	ECVF_ReadOnly = 0x4,
	/**
	 * UnregisterConsoleObject() was called on this one.
	 * If the variable is registered again with the same type this object is reactivated. This is good for DLL unloading.
	 */
	ECVF_Unregistered = 0x8,
	/**
	 * This flag is set by the ini loading code when the variable wasn't registered yet.
	 * Once the variable is registered later the value is copied over and the variable is destructed.
	 */
	ECVF_CreatedFromIni = 0x10,
	/**
	 * Maintains another shadow copy and updates the copy with render thread commands to maintain proper ordering.
	 * Could be extended for more/other thread.
 	 * Note: On console variable references it assumes the reference is accessed on the render thread only
	 * (Don't use in any other thread or better don't use references to avoid the potential pitfall).
	 */
	ECVF_RenderThreadSafe = 0x20,

	/* ApplyCVarSettingsGroupFromIni will complain if this wasn't set, should not be combined with ECVF_Cheat */
	ECVF_Scalability = 0x40,

	/* those cvars control other cvars with the flag ECVF_Scalability, names should start with "sg." */
	ECVF_ScalabilityGroup = 0x80,

	// ------------------------------------------------

	/* Set flags */
	ECVF_SetFlagMask =				0x00ff0000,

	// Use to set a cvar without calling all cvar sinks. Much faster, but potentially unsafe. Use only if you know the particular cvar/setting does not require a sink call
	ECVF_Set_NoSinkCall_Unsafe =	0x00010000,

	// ------------------------------------------------

	/* to get some history of where the last value was set by ( useful for track down why a cvar is in a specific state */
	ECVF_SetByMask =				0xff000000,

	// the ECVF_SetBy are sorted in override order (weak to strong), the value is not serialized, it only affects it's override behavior when calling Set()

	// lowest priority (default after console variable creation)
	ECVF_SetByConstructor =			0x00000000,
	// from Scalability.ini (lower priority than game settings so it's easier to override partially)
	ECVF_SetByScalability =			0x01000000,
	// (in game UI or from file)
	ECVF_SetByGameSetting =			0x02000000,
	// project settings (editor UI or from file, higher priority than game setting to allow to enforce some setting fro this project)
	ECVF_SetByProjectSetting =		0x03000000,
	// per project setting (ini file e.g. Engine.ini or Game.ini)
	ECVF_SetBySystemSettingsIni =	0x04000000,
	// per device setting (e.g. specific iOS device, higher priority than per project to do device specific settings)
	ECVF_SetByDeviceProfile =		0x05000000,
	// consolevariables.ini (for multiple projects)
	ECVF_SetByConsoleVariablesIni = 0x06000000,
	// a minus command e.g. -VSync (very high priority to enforce the setting for the application)
	ECVF_SetByCommandline =			0x07000000,
	// least useful, likely a hack, maybe better to find the correct SetBy...
	ECVF_SetByCode =				0x08000000,
	// editor UI or console in game or editor
	ECVF_SetByConsole =				0x09000000,

	// ------------------------------------------------
};

而GetSetByTCHAR将上面特定枚举值转换为字符串：

// Get human readable string
// @return never 0
static const TCHAR* GetSetByTCHAR(EConsoleVariableFlags InSetBy)
{
	EConsoleVariableFlags SetBy = (EConsoleVariableFlags)((uint32)InSetBy & ECVF_SetByMask);

	switch(SetBy)
	{
#define CASE(A) case ECVF_SetBy##A: return TEXT(#A);
		// Could also be done with enum reflection instead
		CASE(Constructor)
		CASE(Scalability)
		CASE(GameSetting)
		CASE(ProjectSetting)
		CASE(DeviceProfile)
		CASE(SystemSettingsIni)
		CASE(ConsoleVariablesIni)
		CASE(Commandline)
		CASE(Code)
		CASE(Console)
#undef CASE
	}
	return TEXT("<UNKNOWN>");
}
