学习使用ProceduralMeshComponent在运行时构建Mesh数据

最新推荐文章于 2024-12-09 22:12:37 发布

YakSue

最新推荐文章于 2024-12-09 22:12:37 发布

阅读量4.8k

点赞数 2

分类专栏： UE 文章标签： unreal 游戏引擎

本文链接：https://blog.csdn.net/u013412391/article/details/120335613

版权

UE 专栏收录该内容

129 篇文章

订阅专栏

参考来源

主要参考的资源是https://nerivec.github.io/old-ue4-wiki/pages/procedural-mesh-component-in-cgetting-started.html，不过这并不是官方的链接，因为官方的网页似乎当前有些显示问题。。。

不过，代码上的改动比较大（变得复杂了一些）。主要是原版只生成了一个三角形，而我想要生成有体积的东西做测试。于是借用了上一篇中的数据，当然代码上构建了相同的接口。

步骤

步骤相比于上一篇使用BuildFromMeshDescriptions在运行时构建StaticMesh数据，简单很多，没有太多概念。主要就是使用UProceduralMeshComponent的接口：

/**
 *	Create/replace a section for this procedural mesh component.
 *	This function is deprecated for Blueprints because it uses the unsupported 'Color' type. Use new 'Create Mesh Section' function which uses LinearColor instead.
 *	@param	SectionIndex		Index of the section to create or replace.
 *	@param	Vertices			Vertex buffer of all vertex positions to use for this mesh section.
 *	@param	Triangles			Index buffer indicating which vertices make up each triangle. Length must be a multiple of 3.
 *	@param	Normals				Optional array of normal vectors for each vertex. If supplied, must be same length as Vertices array.
 *	@param	UV0					Optional array of texture co-ordinates for each vertex. If supplied, must be same length as Vertices array.
 *	@param	VertexColors		Optional array of colors for each vertex. If supplied, must be same length as Vertices array.
 *	@param	Tangents			Optional array of tangent vector for each vertex. If supplied, must be same length as Vertices array.
 *	@param	bCreateCollision	Indicates whether collision should be created for this section. This adds significant cost.
 */
UFUNCTION(BlueprintCallable, Category = "Components|ProceduralMesh", meta = (DeprecatedFunction, DeprecationMessage = "This function is deprecated for Blueprints because it uses the unsupported 'Color' type. Use new 'Create Mesh Section' function which uses LinearColor instead.", DisplayName = "Create Mesh Section FColor", AutoCreateRefTerm = "Normals,UV0,VertexColors,Tangents"))
void CreateMeshSection(int32 SectionIndex, const TArray<FVector>& Vertices, const TArray<int32>& Triangles, const TArray<FVector>& Normals, const TArray<FVector2D>& UV0, const TArray<FColor>& VertexColors, const TArray<FProcMeshTangent>& Tangents, bool bCreateCollision)

另外要注意，UProceduralMeshComponent来自于 \Plugins\Runtime\ProceduralMeshComponent\Source\ProceduralMeshComponent模块。

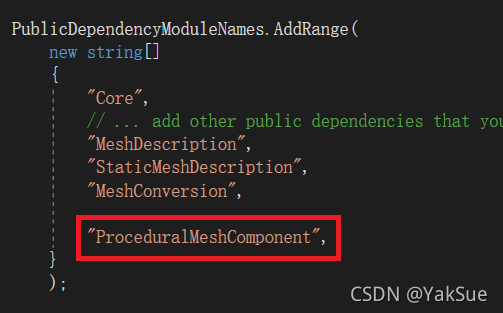

要在.Build.cs文件中依赖这个模块：
在这里插入图片描述

代码

TestRTBuildPMActor.h：

#pragma once

#include "GameFramework/Actor.h"
#include "TestRTBuildPMActor.generated.h"

UCLASS()
class ATestRTBuildPMActor : public AActor
{
public:
	GENERATED_UCLASS_BODY()

	UPROPERTY()
	class UProceduralMeshComponent *PMC;

	/** Overridable native event for when play begins for this actor. */
	virtual void BeginPlay() override;
};

TestRTBuildPMActor.cpp：

#include "TestRTBuildPMActor.h"
#include "ProceduralMeshComponent.h"


ATestRTBuildPMActor::ATestRTBuildPMActor(const FObjectInitializer & ObjectInitializer)
	: Super(ObjectInitializer)
{
	//创建 ProceduralMeshComponent 对象：
	PMC = CreateDefaultSubobject<UProceduralMeshComponent>(TEXT("myPMC"), false);

	//设定其为根组件：
	SetRootComponent(PMC);
}

void ATestRTBuildPMActor::BeginPlay()
{
	//指定 5 个顶点各自的位置：
	TArray<FVector> VertexPositions;
	VertexPositions.Add(FVector(0.0, 0.0, 100.0));		// 顶尖
	VertexPositions.Add(FVector(-50.0, 50.0, 0.0));		// 角 1
	VertexPositions.Add(FVector(-50.0, -50.0, 0.0));	// 角 2
	VertexPositions.Add(FVector(50.0, -50.0, 0.0));		// 角 3
	VertexPositions.Add(FVector(50.0, 50.0, 0.0));		// 角 4

	//为了方便，定义一个结构体来封装三角形中一个顶点的信息
	struct VertexInfo
	{
		int ID;				//对应的顶点ID
		FVector Normal;		//法线
		FVector2D UV;		//UV
		VertexInfo(int InID, FVector InNormal, FVector2D InUV)
			:ID(InID), Normal(InNormal), UV(InUV)
		{
		}
	};

	//当前MeshSection的数目
	int MeshSectionCount = 0;

	//为了方便，创建一个局部函数用来快速根据给定的顶点信息创建三角形
	auto AppendTriangle = [this,&MeshSectionCount,&VertexPositions](TArray<VertexInfo> data)
	{
		TArray<FVector> Vertices;
		TArray<int32> Indices;
		TArray<FVector> Normals;
		TArray<FVector2D> UV0;
		TArray<FLinearColor> VertexColors;
		TArray<FProcMeshTangent> Tangents;

		for (int i = 0; i < 3; i++)
		{
			Vertices.Add(VertexPositions[data[i].ID]);			//位置
			Indices.Add(i);										//索引
			Normals.Add(data[i].Normal);						//法线
			UV0.Add(data[i].UV);								//UV
			Tangents.Add(FProcMeshTangent(0, 1, 0));			//切线暂时不需要，所以固定一个无用的值
			VertexColors.Add(FLinearColor(1.0, 1.0, 1.0, 1.0));	//顶点色暂时不需要，所以固定成白色
		}

		//调用 ProceduralMeshComponent 的接口创建三角形！
		PMC->CreateMeshSection_LinearColor(
			MeshSectionCount,	//SectionIndex
			Vertices, Indices, Normals, UV0, VertexColors, Tangents, //顶点数据列表
			true);				//bCreateCollision

		MeshSectionCount++;//递增MeshSection
	};

	//四个面的数据：

	// 面 1 (朝向 -X) 三角型的顶点数据：
	AppendTriangle({
		VertexInfo(0,FVector(-0.7071, 0, 0.7071),FVector2D(0, 1)),
		VertexInfo(2,FVector(-0.7071, 0, 0.7071),FVector2D(1, 0)),
		VertexInfo(1,FVector(-0.7071, 0, 0.7071),FVector2D(0, 0)) });
	// 面 2 (朝向 -Y) 三角型的顶点数据：
	AppendTriangle({
		VertexInfo(0,FVector(0, -0.7071, 0.7071),FVector2D(0, 1)),
		VertexInfo(3,FVector(0, -0.7071, 0.7071),FVector2D(1, 0)),
		VertexInfo(2,FVector(0, -0.7071, 0.7071),FVector2D(0, 0)) });
	// 面 3 (朝向 +X) 三角型的顶点数据：
	AppendTriangle({
		VertexInfo(0,FVector(0.7071, 0, 0.7071),FVector2D(0, 1)),
		VertexInfo(4,FVector(0.7071, 0, 0.7071),FVector2D(1, 0)),
		VertexInfo(3,FVector(0.7071, 0, 0.7071),FVector2D(0, 0)) });
	// 面 4 (朝向 +Y) 三角型的顶点数据：
	AppendTriangle({
		VertexInfo(0,FVector(0, 0.7071, 0.7071),FVector2D(0, 1)),
		VertexInfo(1,FVector(0, 0.7071, 0.7071),FVector2D(1, 0)),
		VertexInfo(4,FVector(0, 0.7071, 0.7071),FVector2D(0, 0)) });

	// Enable collision data

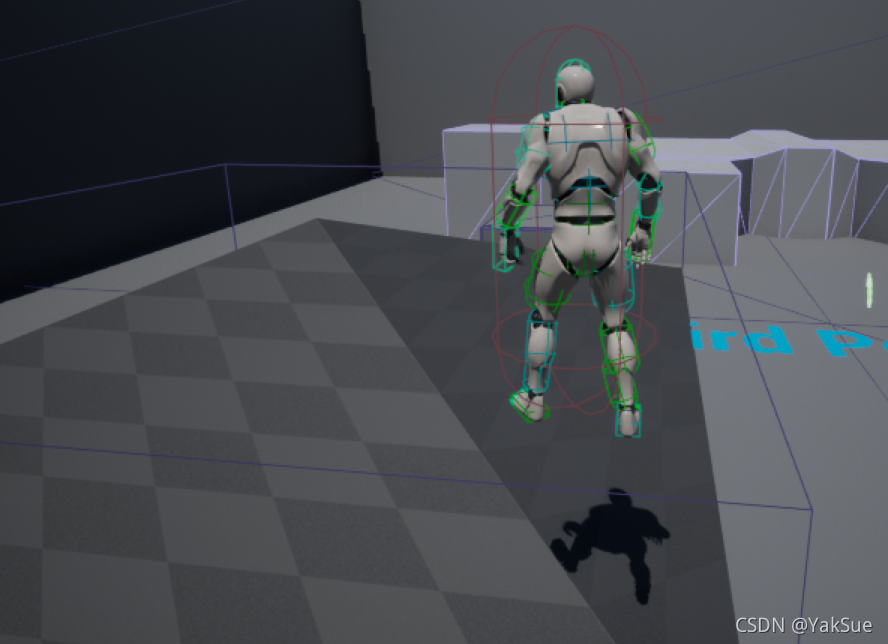

	PMC->ContainsPhysicsTriMeshData(true);
}
