确实是会基于msg文件生成对应头文件,打开头文件,一切都明了了。

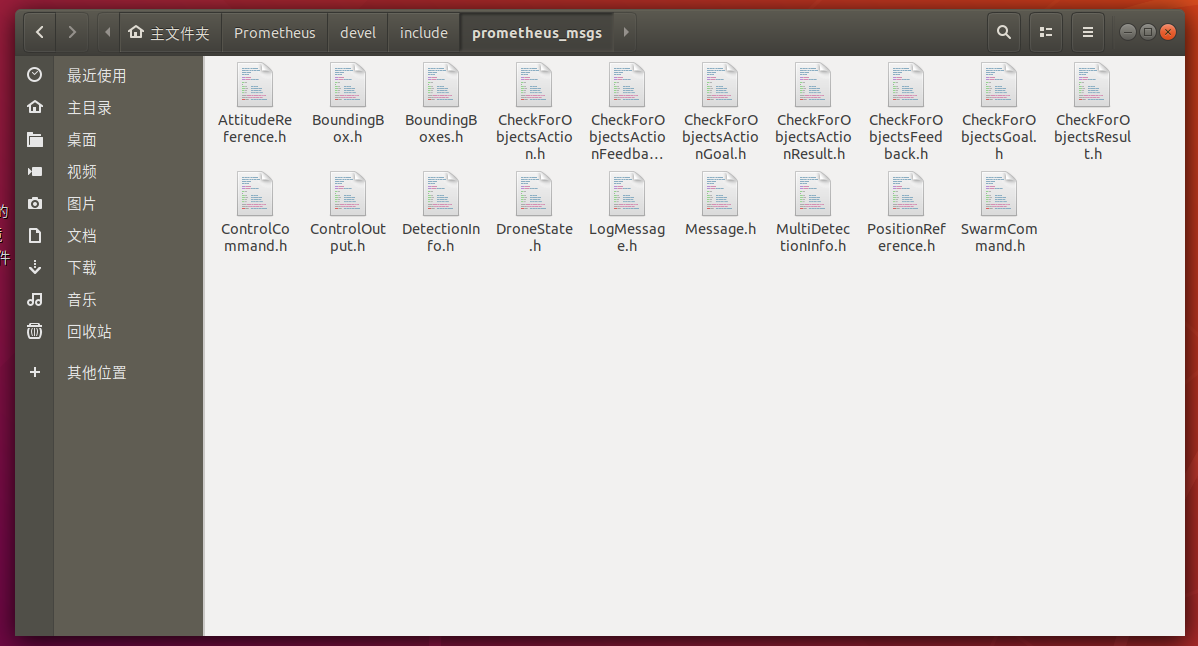

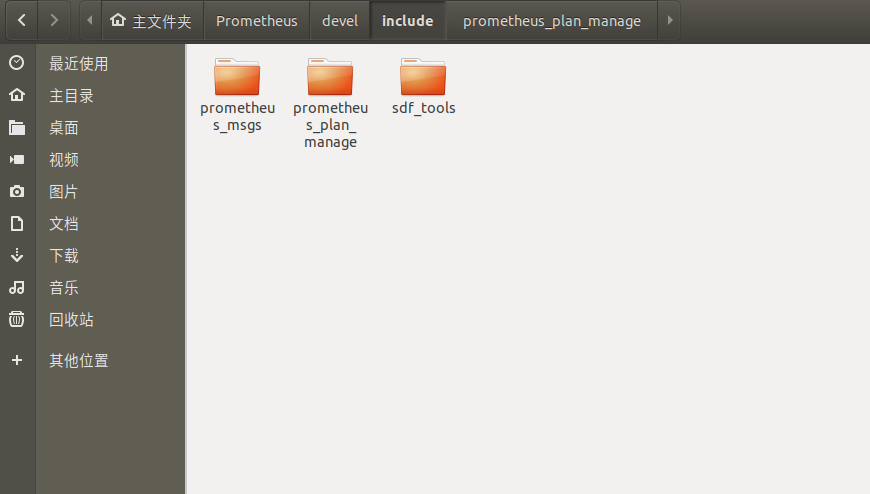

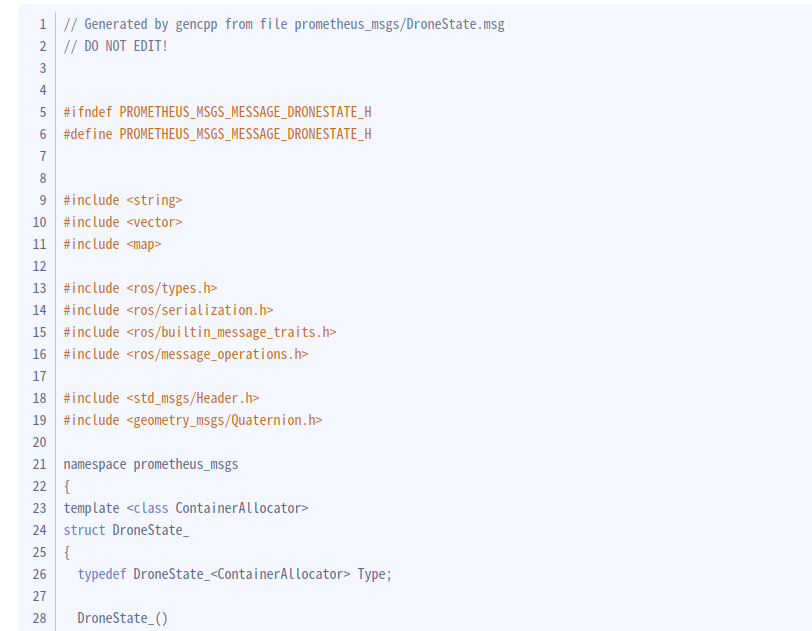

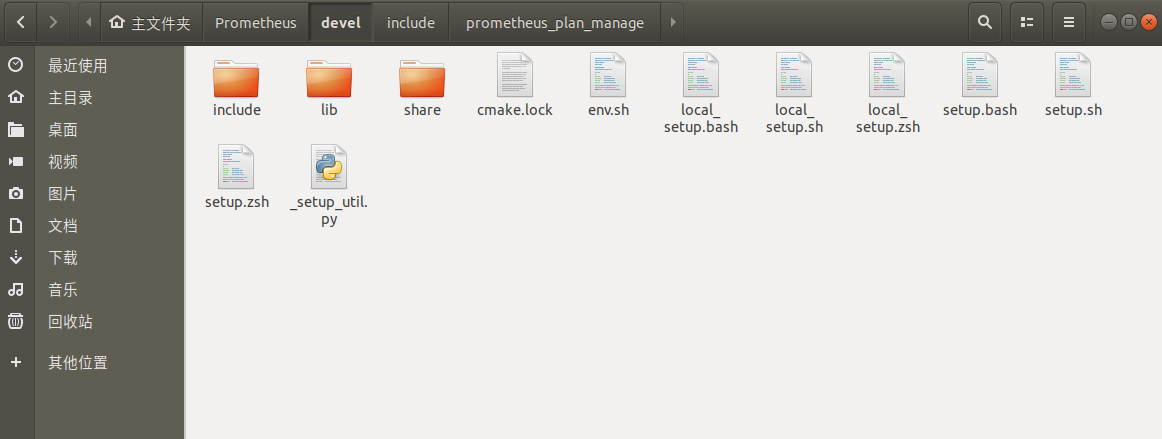

比如这是DroneState.msg对应生成的头文件DroneState.h,是在devel文件夹下面,是编译生成的。这里一开头就明确定义了工作空间namespace,以后再看到prometheus_msgs::DroneSate就不会有疑问了,我一直对这个细节抓着不放彻底弄明白弄清楚是对的,是可以真正完全弄清楚的。看来msg文件可以写那么简单完全是为了方便我们啊,实际的头文件内容还是非常多的。
// Generated by gencpp from file prometheus_msgs/DroneState.msg
// DO NOT EDIT!
#ifndef PROMETHEUS_MSGS_MESSAGE_DRONESTATE_H
#define PROMETHEUS_MSGS_MESSAGE_DRONESTATE_H
#include <string>
#include <vector>
#include <map>
#include <ros/types.h>
#include <ros/serialization.h>
#include <ros/builtin_message_traits.h>
#include <ros/message_operations.h>
#include <std_msgs/Header.h>
#include <geometry_msgs/Quaternion.h>
namespace prometheus_msgs
{
template <class ContainerAllocator>
struct DroneState_
{
typedef DroneState_<ContainerAllocator> Type;
DroneState_()
: header()
, connected(false)
, armed(false)
, landed(false)
, mode()
, time_from_start(0.0)
, position()
, velocity()
, attitude()
, attitude_q()
, attitude_rate() {
position.assign(0.0);
velocity.assign(0.0);
attitude.assign(0.0);
attitude_rate.assign(0.0);
}
DroneState_(const ContainerAllocator& _alloc)
: header(_alloc)
, connected(false)
, armed(false)
, landed(false)
, mode(_alloc)
, time_from_start(0.0)
, position()
, velocity()
, attitude()
, attitude_q(_alloc)
, attitude_rate() {
(void)_alloc;
position.assign(0.0);
velocity.assign(0.0);
attitude.assign(0.0);
attitude_rate.assign(0.0);
}
typedef ::std_msgs::Header_<ContainerAllocator> _header_type;
_header_type header;
typedef uint8_t _connected_type;
_connected_type connected;
typedef uint8_t _armed_type;
_armed_type armed;
typedef uint8_t _landed_type;
_landed_type landed;
typedef std::basic_string<char, std::char_traits<char>, typename ContainerAllocator::template rebind<char>::other > _mode_type;
_mode_type mode;
typedef float _time_from_start_type;
_time_from_start_type time_from_start;
typedef boost::array<float, 3> _position_type;
_position_type position;
typedef boost::array<float, 3> _velocity_type;
_velocity_type velocity;
typedef boost::array<float, 3> _attitude_type;
_attitude_type attitude;
typedef ::geometry_msgs::Quaternion_<ContainerAllocator> _attitude_q_type;
_attitude_q_type attitude_q;
typedef boost::array<float, 3> _attitude_rate_type;
_attitude_rate_type attitude_rate;
typedef boost::shared_ptr< ::prometheus_msgs::DroneState_<ContainerAllocator> > Ptr;
typedef boost::shared_ptr< ::prometheus_msgs::DroneState_<ContainerAllocator> const> ConstPtr;
}; // struct DroneState_
typedef ::prometheus_msgs::DroneState_<std::allocator<void> > DroneState;
typedef boost::shared_ptr< ::prometheus_msgs::DroneState > DroneStatePtr;
typedef boost::shared_ptr< ::prometheus_msgs::DroneState const> DroneStateConstPtr;
// constants requiring out of line definition
template<typename ContainerAllocator>
std::ostream& operator<<(std::ostream& s, const ::prometheus_msgs::DroneState_<ContainerAllocator> & v)
{
ros::message_operations::Printer< ::prometheus_msgs::DroneState_<ContainerAllocator> >::stream(s, "", v);
return s;
}
template<typename ContainerAllocator1, typename ContainerAllocator2>
bool operator==(const ::prometheus_msgs::DroneState_<ContainerAllocator1> & lhs, const ::prometheus_msgs::DroneState_<ContainerAllocator2> & rhs)
{
return lhs.header == rhs.header &&
lhs.connected == rhs.connected &&
lhs.armed == rhs.armed &&
lhs.landed == rhs.landed &&
lhs.mode == rhs.mode &&
lhs.time_from_start == rhs.time_from_start &&
lhs.position == rhs.position &&
lhs.velocity == rhs.velocity &&
lhs.attitude == rhs.attitude &&
lhs.attitude_q == rhs.attitude_q &&
lhs.attitude_rate == rhs.attitude_rate;
}
template<typename ContainerAllocator1, typename ContainerAllocator2>
bool operator!=(const ::prometheus_msgs::DroneState_<ContainerAllocator1> & lhs, const ::prometheus_msgs::DroneState_<ContainerAllocator2> & rhs)
{
return !(lhs == rhs);
}
} // namespace prometheus_msgs
namespace ros
{
namespace message_traits
{
template <class ContainerAllocator>
struct IsFixedSize< ::prometheus_msgs::DroneState_<ContainerAllocator> >
: FalseType
{ };
template <class ContainerAllocator>
struct IsFixedSize< ::prometheus_msgs::DroneState_<ContainerAllocator> const>
: FalseType
{ };
template <class ContainerAllocator>
struct IsMessage< ::prometheus_msgs::DroneState_<ContainerAllocator> >
: TrueType
{ };
template <class ContainerAllocator>
struct IsMessage< ::prometheus_msgs::DroneState_<ContainerAllocator> const>
: TrueType
{ };
template <class ContainerAllocator>
struct HasHeader< ::prometheus_msgs::DroneState_<ContainerAllocator> >
: TrueType
{ };
template <class ContainerAllocator>
struct HasHeader< ::prometheus_msgs::DroneState_<ContainerAllocator> const>
: TrueType
{ };
template<class ContainerAllocator>
struct MD5Sum< ::prometheus_msgs::DroneState_<ContainerAllocator> >
{
static const char* value()
{
return "2e58976f7e6bb6fb3559cb004475bce0";
}
static const char* value(const ::prometheus_msgs::DroneState_<ContainerAllocator>&) { return value(); }
static const uint64_t static_value1 = 0x2e58976f7e6bb6fbULL;
static const uint64_t static_value2 = 0x3559cb004475bce0ULL;
};
template<class ContainerAllocator>
struct DataType< ::prometheus_msgs::DroneState_<ContainerAllocator> >
{
static const char* value()
{
return "prometheus_msgs/DroneState";
}
static const char* value(const ::prometheus_msgs::DroneState_<ContainerAllocator>&) { return value(); }
};
template<class ContainerAllocator>
struct Definition< ::prometheus_msgs::DroneState_<ContainerAllocator> >
{
static const char* value()
{
return "std_msgs/Header header\n"
"\n"
"## 机载电脑是否连接上飞控,true已连接,false则不是\n"
"bool connected\n"
"## 是否解锁,true为已解锁,false则不是\n"
"bool armed\n"
"## 是否降落,true为已降落,false则代表在空中\n"
"bool landed\n"
"## PX4飞控当前飞行模式\n"
"string mode\n"
"\n"
"## 系统启动时间\n"
"float32 time_from_start ## [s]\n"
"\n"
"## 无人机状态量:位置、速度、姿态\n"
"float32[3] position ## [m]\n"
"float32[3] velocity ## [m/s]\n"
"float32[3] attitude ## [rad]\n"
"geometry_msgs/Quaternion attitude_q ## 四元数\n"
"float32[3] attitude_rate ## [rad/s]\n"
"================================================================================\n"
"MSG: std_msgs/Header\n"
"# Standard metadata for higher-level stamped data types.\n"
"# This is generally used to communicate timestamped data \n"
"# in a particular coordinate frame.\n"
"# \n"
"# sequence ID: consecutively increasing ID \n"
"uint32 seq\n"
"#Two-integer timestamp that is expressed as:\n"
"# * stamp.sec: seconds (stamp_secs) since epoch (in Python the variable is called 'secs')\n"
"# * stamp.nsec: nanoseconds since stamp_secs (in Python the variable is called 'nsecs')\n"
"# time-handling sugar is provided by the client library\n"
"time stamp\n"
"#Frame this data is associated with\n"
"string frame_id\n"
"\n"
"================================================================================\n"
"MSG: geometry_msgs/Quaternion\n"
"# This represents an orientation in free space in quaternion form.\n"
"\n"
"float64 x\n"
"float64 y\n"
"float64 z\n"
"float64 w\n"
;
}
static const char* value(const ::prometheus_msgs::DroneState_<ContainerAllocator>&) { return value(); }
};
} // namespace message_traits
} // namespace ros
namespace ros
{
namespace serialization
{
template<class ContainerAllocator> struct Serializer< ::prometheus_msgs::DroneState_<ContainerAllocator> >
{
template<typename Stream, typename T> inline static void allInOne(Stream& stream, T m)
{
stream.next(m.header);
stream.next(m.connected);
stream.next(m.armed);
stream.next(m.landed);
stream.next(m.mode);
stream.next(m.time_from_start);
stream.next(m.position);
stream.next(m.velocity);
stream.next(m.attitude);
stream.next(m.attitude_q);
stream.next(m.attitude_rate);
}
ROS_DECLARE_ALLINONE_SERIALIZER
}; // struct DroneState_
} // namespace serialization
} // namespace ros
namespace ros
{
namespace message_operations
{
template<class ContainerAllocator>
struct Printer< ::prometheus_msgs::DroneState_<ContainerAllocator> >
{
template<typename Stream> static void stream(Stream& s, const std::string& indent, const ::prometheus_msgs::DroneState_<ContainerAllocator>& v)
{
s << indent << "header: ";
s << std::endl;
Printer< ::std_msgs::Header_<ContainerAllocator> >::stream(s, indent + " ", v.header);
s << indent << "connected: ";
Printer<uint8_t>::stream(s, indent + " ", v.connected);
s << indent << "armed: ";
Printer<uint8_t>::stream(s, indent + " ", v.armed);
s << indent << "landed: ";
Printer<uint8_t>::stream(s, indent + " ", v.landed);
s << indent << "mode: ";
Printer<std::basic_string<char, std::char_traits<char>, typename ContainerAllocator::template rebind<char>::other > >::stream(s, indent + " ", v.mode);
s << indent << "time_from_start: ";
Printer<float>::stream(s, indent + " ", v.time_from_start);
s << indent << "position[]" << std::endl;
for (size_t i = 0; i < v.position.size(); ++i)
{
s << indent << " position[" << i << "]: ";
Printer<float>::stream(s, indent + " ", v.position[i]);
}
s << indent << "velocity[]" << std::endl;
for (size_t i = 0; i < v.velocity.size(); ++i)
{
s << indent << " velocity[" << i << "]: ";
Printer<float>::stream(s, indent + " ", v.velocity[i]);
}
s << indent << "attitude[]" << std::endl;
for (size_t i = 0; i < v.attitude.size(); ++i)
{
s << indent << " attitude[" << i << "]: ";
Printer<float>::stream(s, indent + " ", v.attitude[i]);
}
s << indent << "attitude_q: ";
s << std::endl;
Printer< ::geometry_msgs::Quaternion_<ContainerAllocator> >::stream(s, indent + " ", v.attitude_q);
s << indent << "attitude_rate[]" << std::endl;
for (size_t i = 0; i < v.attitude_rate.size(); ++i)
{
s << indent << " attitude_rate[" << i << "]: ";
Printer<float>::stream(s, indent + " ", v.attitude_rate[i]);
}
}
};
} // namespace message_operations
} // namespace ros
#endif // PROMETHEUS_MSGS_MESSAGE_DRONESTATE_H

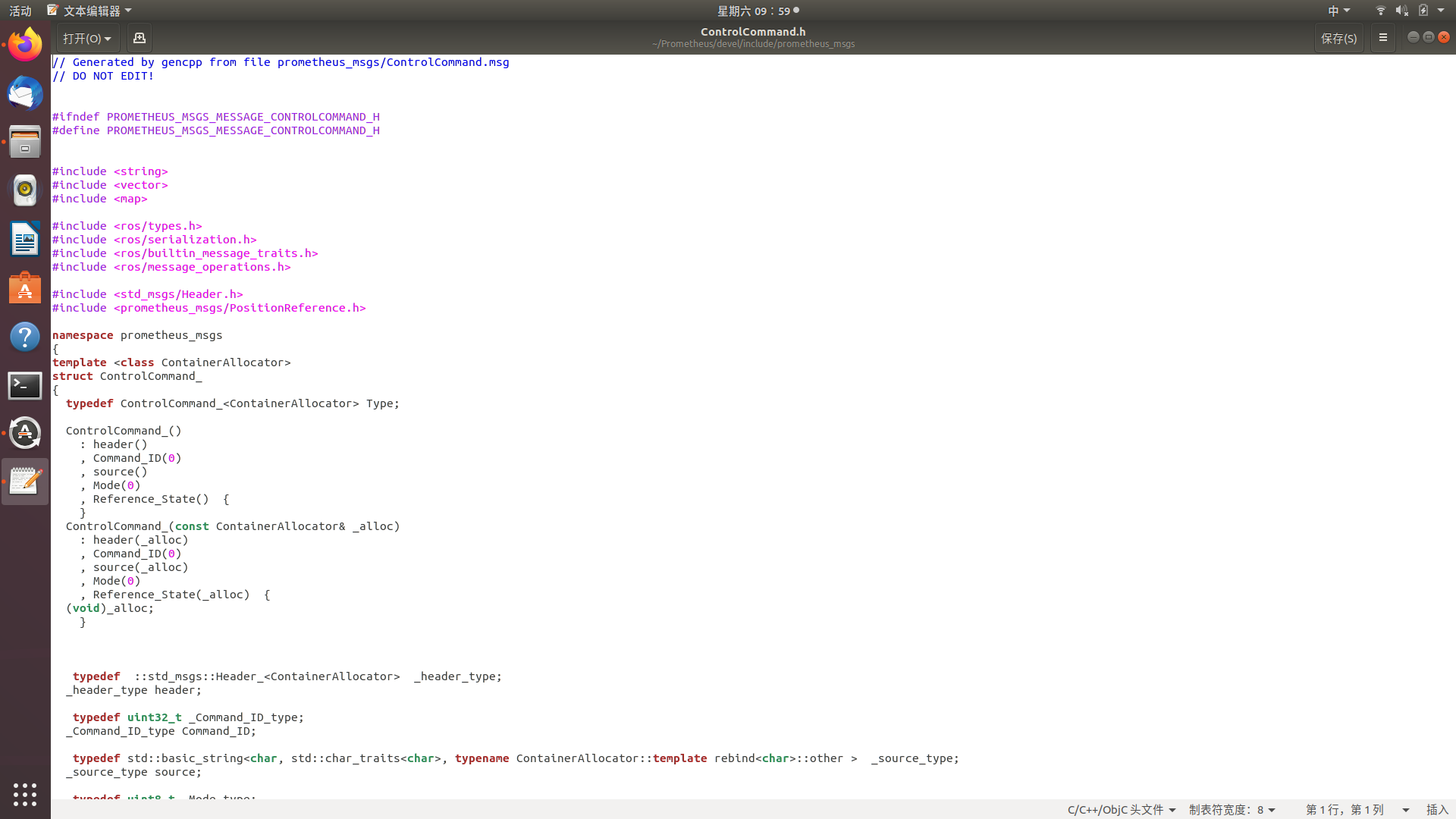

我任打开一个其他的话题消息的头文件,每个都写了namespace prometheus_msgs

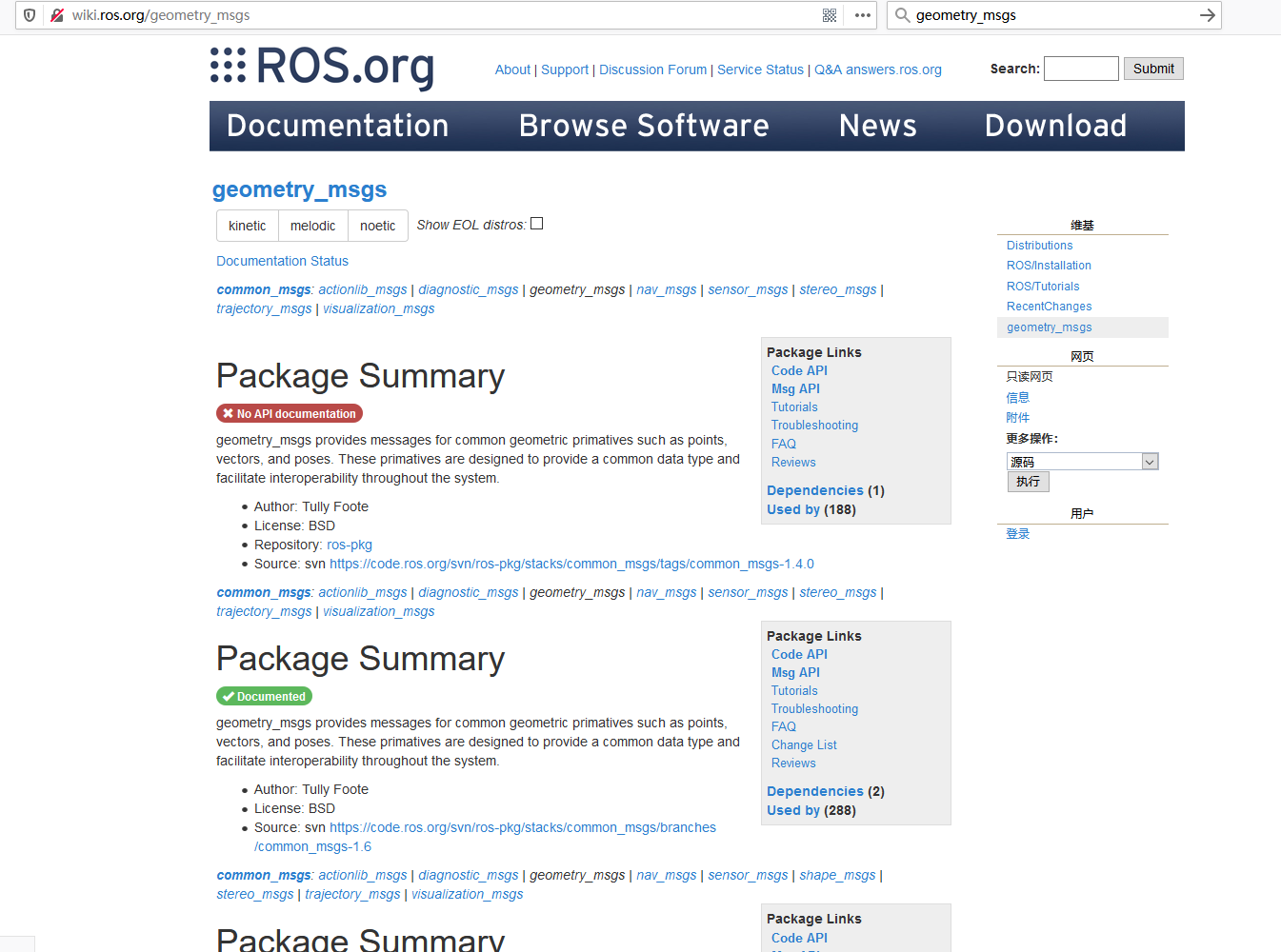

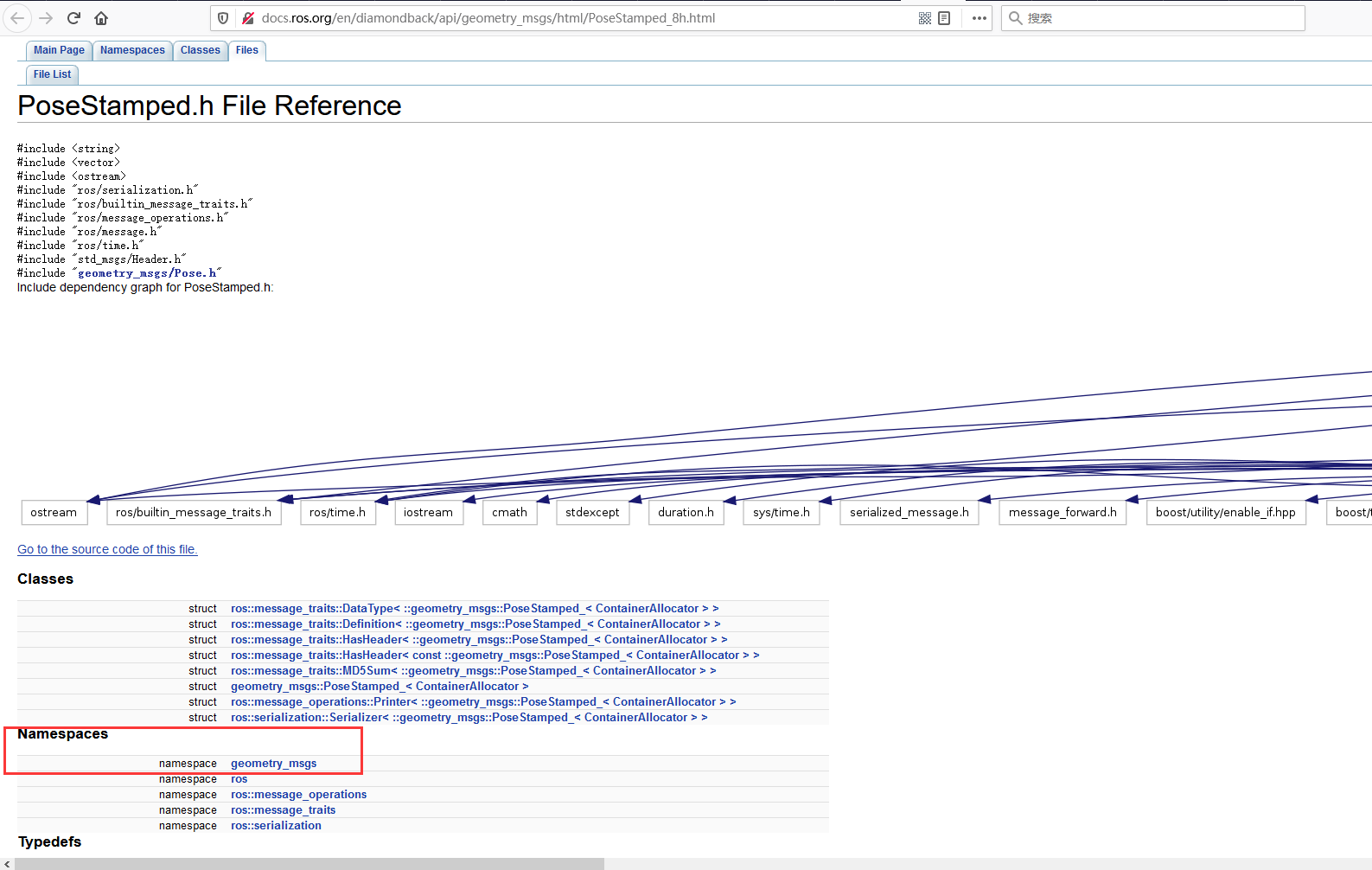

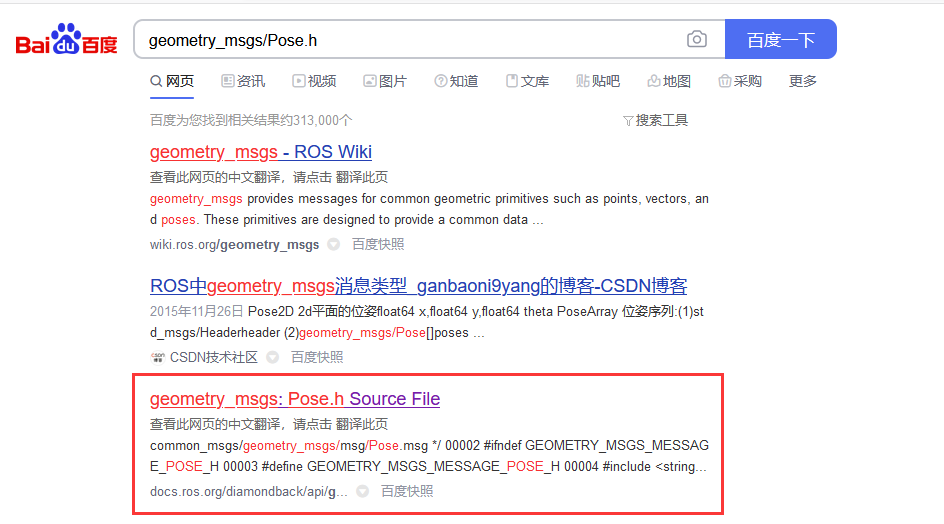

我似乎也搜到了对应的头文件

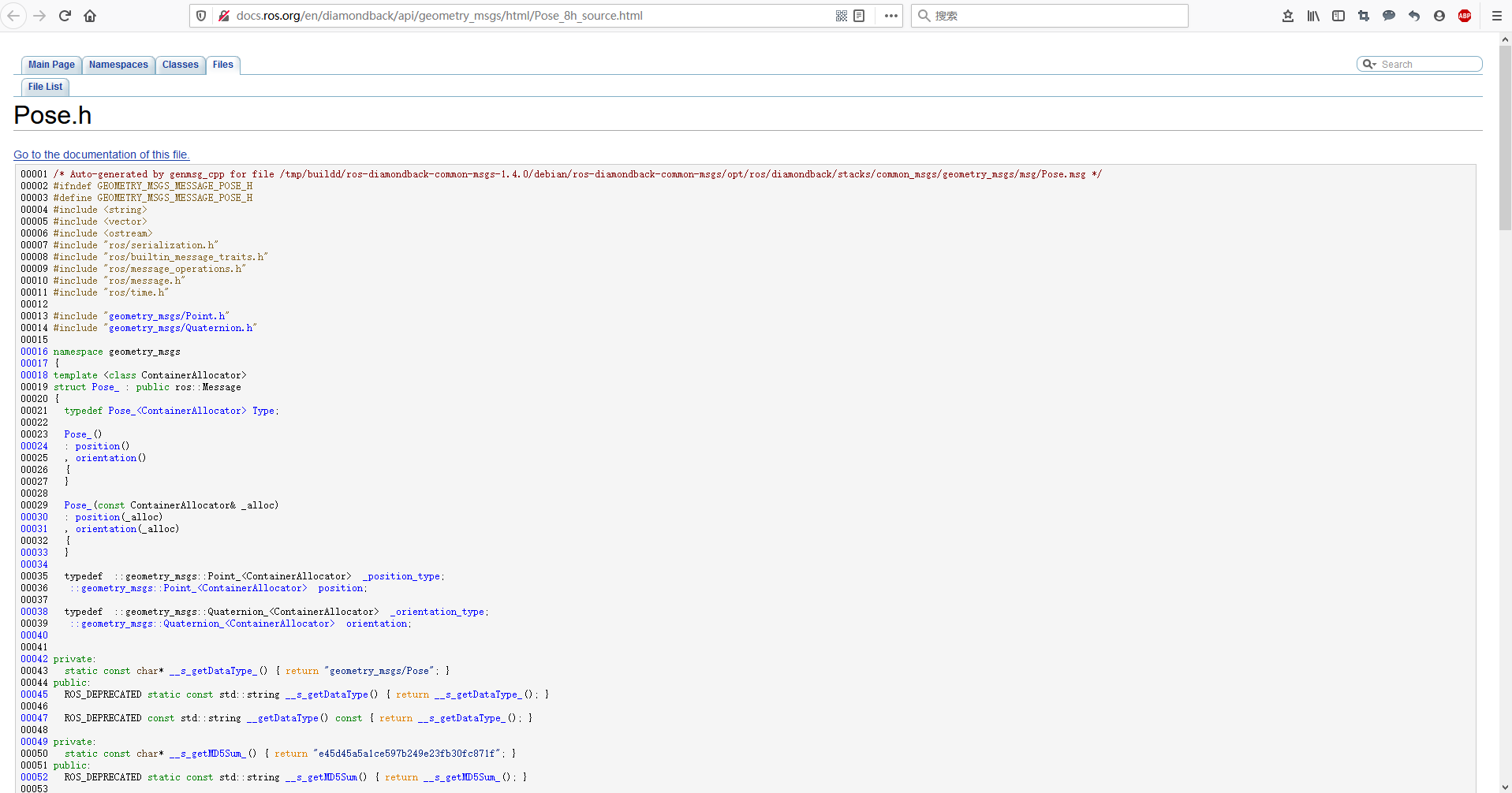

http://docs.ros.org/en/diamondback/api/geometry_msgs/html/Pose_8h_source.html
00001 /* Auto-generated by genmsg_cpp for file /tmp/buildd/ros-diamondback-common-msgs-1.4.0/debian/ros-diamondback-common-msgs/opt/ros/diamondback/stacks/common_msgs/geometry_msgs/msg/Pose.msg */
00002 #ifndef GEOMETRY_MSGS_MESSAGE_POSE_H
00003 #define GEOMETRY_MSGS_MESSAGE_POSE_H
00004 #include <string>
00005 #include <vector>
00006 #include <ostream>
00007 #include "ros/serialization.h"
00008 #include "ros/builtin_message_traits.h"
00009 #include "ros/message_operations.h"
00010 #include "ros/message.h"
00011 #include "ros/time.h"
00012
00013 #include "geometry_msgs/Point.h"
00014 #include "geometry_msgs/Quaternion.h"
00015
00016 namespace geometry_msgs
00017 {

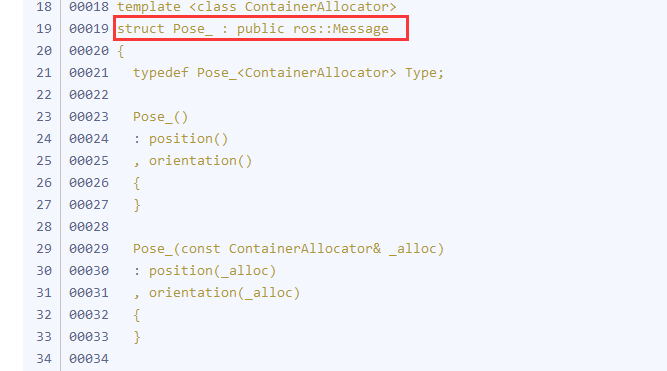

00018 template <class ContainerAllocator>
00019 struct Pose_ : public ros::Message
00020 {
00021 typedef Pose_<ContainerAllocator> Type;
00022
00023 Pose_()
00024 : position()
00025 , orientation()
00026 {
00027 }
00028
00029 Pose_(const ContainerAllocator& _alloc)
00030 : position(_alloc)
00031 , orientation(_alloc)
00032 {
00033 }
00034
00035 typedef ::geometry_msgs::Point_<ContainerAllocator> _position_type;
00036 ::geometry_msgs::Point_<ContainerAllocator> position;
00037
00038 typedef ::geometry_msgs::Quaternion_<ContainerAllocator> _orientation_type;
00039 ::geometry_msgs::Quaternion_<ContainerAllocator> orientation;
00040
00041
00042 private:
00043 static const char* __s_getDataType_() { return "geometry_msgs/Pose"; }
00044 public:
00045 ROS_DEPRECATED static const std::string __s_getDataType() { return __s_getDataType_(); }
00046
00047 ROS_DEPRECATED const std::string __getDataType() const { return __s_getDataType_(); }
00048
00049 private:
00050 static const char* __s_getMD5Sum_() { return "e45d45a5a1ce597b249e23fb30fc871f"; }
00051 public:
00052 ROS_DEPRECATED static const std::string __s_getMD5Sum() { return __s_getMD5Sum_(); }
00053
00054 ROS_DEPRECATED const std::string __getMD5Sum() const { return __s_getMD5Sum_(); }
00055
00056 private:
00057 static const char* __s_getMessageDefinition_() { return "# A representation of pose in free space, composed of postion and orientation. \n\
00058 Point position\n\
00059 Quaternion orientation\n\
00060 \n\
00061 ================================================================================\n\
00062 MSG: geometry_msgs/Point\n\
00063 # This contains the position of a point in free space\n\
00064 float64 x\n\
00065 float64 y\n\
00066 float64 z\n\
00067 \n\
00068 ================================================================================\n\
00069 MSG: geometry_msgs/Quaternion\n\
00070 # This represents an orientation in free space in quaternion form.\n\
00071 \n\
00072 float64 x\n\
00073 float64 y\n\
00074 float64 z\n\
00075 float64 w\n\
00076 \n\
00077 "; }
00078 public:
00079 ROS_DEPRECATED static const std::string __s_getMessageDefinition() { return __s_getMessageDefinition_(); }
00080
00081 ROS_DEPRECATED const std::string __getMessageDefinition() const { return __s_getMessageDefinition_(); }
00082
00083 ROS_DEPRECATED virtual uint8_t *serialize(uint8_t *write_ptr, uint32_t seq) const
00084 {
00085 ros::serialization::OStream stream(write_ptr, 1000000000);
00086 ros::serialization::serialize(stream, position);
00087 ros::serialization::serialize(stream, orientation);
00088 return stream.getData();
00089 }
00090
00091 ROS_DEPRECATED virtual uint8_t *deserialize(uint8_t *read_ptr)
00092 {
00093 ros::serialization::IStream stream(read_ptr, 1000000000);
00094 ros::serialization::deserialize(stream, position);
00095 ros::serialization::deserialize(stream, orientation);
00096 return stream.getData();
00097 }
00098
00099 ROS_DEPRECATED virtual uint32_t serializationLength() const
00100 {
00101 uint32_t size = 0;
00102 size += ros::serialization::serializationLength(position);
00103 size += ros::serialization::serializationLength(orientation);
00104 return size;
00105 }
00106
00107 typedef boost::shared_ptr< ::geometry_msgs::Pose_<ContainerAllocator> > Ptr;
00108 typedef boost::shared_ptr< ::geometry_msgs::Pose_<ContainerAllocator> const> ConstPtr;
00109 }; // struct Pose
00110 typedef ::geometry_msgs::Pose_<std::allocator<void> > Pose;
00111
00112 typedef boost::shared_ptr< ::geometry_msgs::Pose> PosePtr;
00113 typedef boost::shared_ptr< ::geometry_msgs::Pose const> PoseConstPtr;
00114
00115
00116 template<typename ContainerAllocator>
00117 std::ostream& operator<<(std::ostream& s, const ::geometry_msgs::Pose_<ContainerAllocator> & v)
00118 {
00119 ros::message_operations::Printer< ::geometry_msgs::Pose_<ContainerAllocator> >::stream(s, "", v);
00120 return s;}
00121
00122 } // namespace geometry_msgs
00123
00124 namespace ros
00125 {
00126 namespace message_traits
00127 {
00128 template<class ContainerAllocator>
00129 struct MD5Sum< ::geometry_msgs::Pose_<ContainerAllocator> > {
00130 static const char* value()
00131 {
00132 return "e45d45a5a1ce597b249e23fb30fc871f";
00133 }
00134
00135 static const char* value(const ::geometry_msgs::Pose_<ContainerAllocator> &) { return value(); }
00136 static const uint64_t static_value1 = 0xe45d45a5a1ce597bULL;
00137 static const uint64_t static_value2 = 0x249e23fb30fc871fULL;
00138 };
00139
00140 template<class ContainerAllocator>
00141 struct DataType< ::geometry_msgs::Pose_<ContainerAllocator> > {
00142 static const char* value()
00143 {
00144 return "geometry_msgs/Pose";
00145 }
00146
00147 static const char* value(const ::geometry_msgs::Pose_<ContainerAllocator> &) { return value(); }
00148 };
00149
00150 template<class ContainerAllocator>
00151 struct Definition< ::geometry_msgs::Pose_<ContainerAllocator> > {
00152 static const char* value()
00153 {
00154 return "# A representation of pose in free space, composed of postion and orientation. \n\
00155 Point position\n\
00156 Quaternion orientation\n\
00157 \n\
00158 ================================================================================\n\
00159 MSG: geometry_msgs/Point\n\
00160 # This contains the position of a point in free space\n\
00161 float64 x\n\
00162 float64 y\n\
00163 float64 z\n\
00164 \n\
00165 ================================================================================\n\
00166 MSG: geometry_msgs/Quaternion\n\
00167 # This represents an orientation in free space in quaternion form.\n\
00168 \n\
00169 float64 x\n\
00170 float64 y\n\
00171 float64 z\n\
00172 float64 w\n\
00173 \n\
00174 ";
00175 }
00176
00177 static const char* value(const ::geometry_msgs::Pose_<ContainerAllocator> &) { return value(); }
00178 };
00179
00180 template<class ContainerAllocator> struct IsFixedSize< ::geometry_msgs::Pose_<ContainerAllocator> > : public TrueType {};
00181 } // namespace message_traits
00182 } // namespace ros
00183
00184 namespace ros
00185 {
00186 namespace serialization
00187 {
00188
00189 template<class ContainerAllocator> struct Serializer< ::geometry_msgs::Pose_<ContainerAllocator> >
00190 {
00191 template<typename Stream, typename T> inline static void allInOne(Stream& stream, T m)
00192 {
00193 stream.next(m.position);
00194 stream.next(m.orientation);
00195 }
00196
00197 ROS_DECLARE_ALLINONE_SERIALIZER;
00198 }; // struct Pose_
00199 } // namespace serialization
00200 } // namespace ros
00201
00202 namespace ros
00203 {
00204 namespace message_operations
00205 {
00206
00207 template<class ContainerAllocator>
00208 struct Printer< ::geometry_msgs::Pose_<ContainerAllocator> >
00209 {
00210 template<typename Stream> static void stream(Stream& s, const std::string& indent, const ::geometry_msgs::Pose_<ContainerAllocator> & v)
00211 {
00212 s << indent << "position: ";
00213 s << std::endl;
00214 Printer< ::geometry_msgs::Point_<ContainerAllocator> >::stream(s, indent + " ", v.position);
00215 s << indent << "orientation: ";
00216 s << std::endl;
00217 Printer< ::geometry_msgs::Quaternion_<ContainerAllocator> >::stream(s, indent + " ", v.orientation);
00218 }
00219 };
00220
00221
00222 } // namespace message_operations
00223 } // namespace ros
00224
00225 #endif // GEOMETRY_MSGS_MESSAGE_POSE_H
00226
细看一下它类里面其实就是写个结构体,所以可以像下面这么写
geometry_msgs::Pose pose
pose.position.x
pose是对象名,position可能是结构体,感觉似乎又不对
讲道理一个消息就是一种类,你包含了其他的消息就是包含了其他的类啊,
所以你看pose这个消息的头文件里面是include了的poin和quaternion这两个消息的头文件的

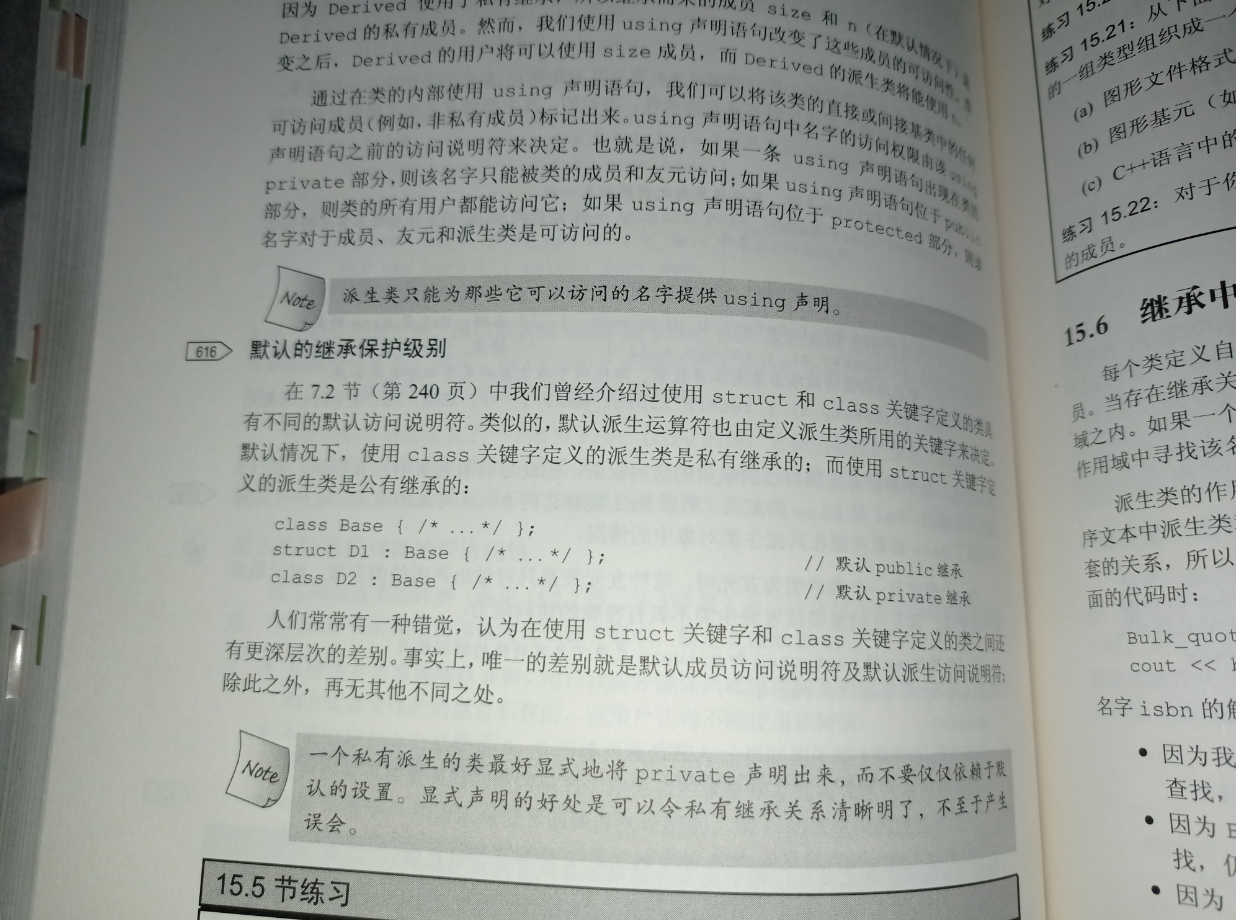

上面写的struct似乎也是定义类的。

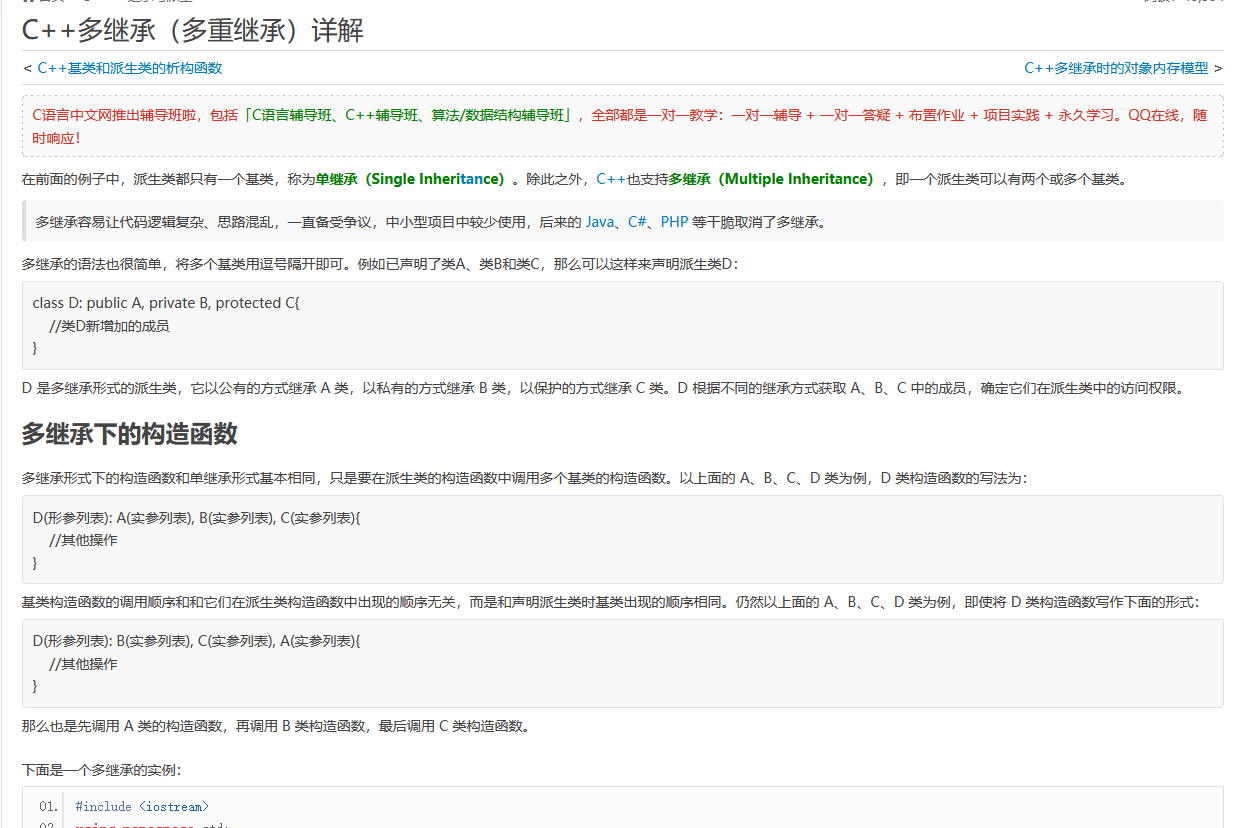

这应该就是一个函数。这应该是多重继承的写法
http://m.biancheng.net/view/2277.html
这也应该是继承的写法。
我想起java是不能多重继承的,得用接口,是不是C++可以多重继承。
而且我刚刚发现上面正是多重继承下的构造函数!!!!!Pose_()正是构造函数!!!!!
http://m.biancheng.net/view/2277.html
所以ROS里面一个消息类型是由其他小消息类型组合而成的,在C++层面上是通过多重继承实现的。
http://docs.ros.org/en/diamondback/api/geometry_msgs/html/PoseStamped_8h.html
从这里也可以看出 geometry_msgs 确实就是个功能包,我理解得没有错,话题消息的定义都是写在一个专门的功能包里面的
